6-05 — FRONT PANEL (#63873) — 584 parça

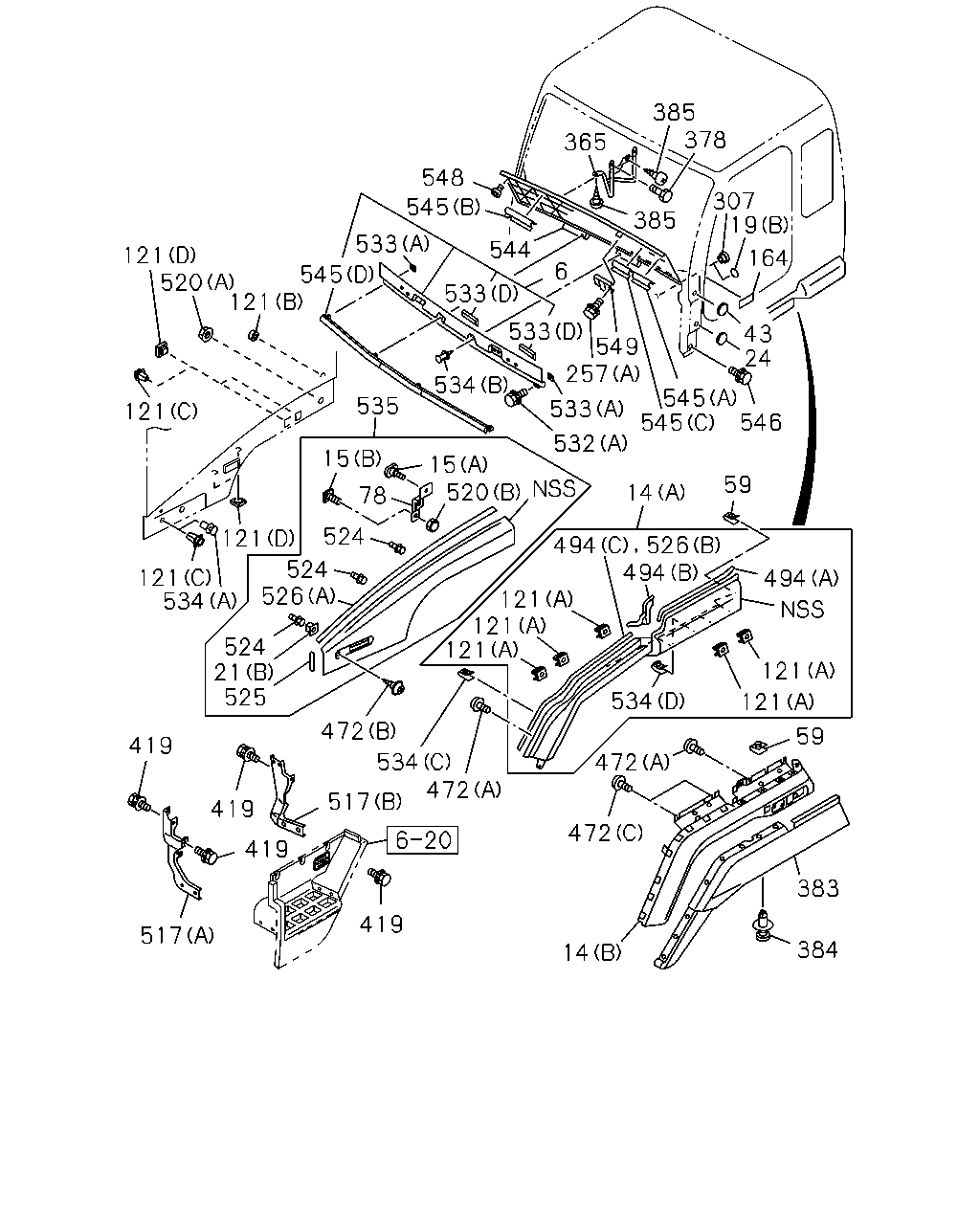

çizim 126569
385 378 365 548 307 19 545 385 533 544 121 520 164 6 545 121 533 533 534 43 24 549 257 545 545 546 535 533 121 532 15 15 520 59 78 14 524 121 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 472 59 419 534 472 472 517 419 419 472 383 419 517 384 14 494 526
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 PANEL; FRONT 1-65481-557-2 01 1 9601-9803 ●
6 PANEL; FRONT 1-65481-747-1 01 1 9808-0004 ●
6 PANEL; FRONT 1-65481-747-2 01 1 0005- ● ●
6 PANEL; FRONT 1-65481-556-2 01 1 9601-9803 ● ●
6 PANEL; FRONT 1-65481-744-2 01 1 9808- ● ● ●
14 FENDER; FRT
(A) WHITE 		1-65481-447-1 01 1 9601-0004 ●
14 FENDER; FRT
(A) WHITE 		1-65481-447-1 01 1 0005-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-023-0 01 1 0210- ● ●
14 FENDER; FRT
(A) WHITE 		1-65481-446-1 01 1 9601-0004 ●
14 FENDER; FRT
(A) WHITE 		1-65481-446-1 01 1 0005-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-022-0 01 1 0210- ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9601-9803 ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9804-0209 ● ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210- ● ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9601-9803 ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9804-0209 ● ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210- ● ● ●
14 FENDER; FRT
(B) 		1-71996-149-5 01 1 9601-9703 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-0 01 1 9704-9803 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9804- ● ● ●
14 FENDER; FRT
(B) 		1-71996-148-4 01 1 9601-9703 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-0 01 1 9704-9803 ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9804- ● ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9601-9803 ● ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9804-0004 ● ● ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0005- ● ● ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9601-9803 ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9804-0004 ● ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-2 12 1 9601-9803 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9804-0004 ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9803 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9804-0004 ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ● ● ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9610-9811 ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 9812- ● ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9804-9903 ● ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904-0004 ● ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 0005- ● ● ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0005- ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9601-9803 ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9804-9811 ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9601-9803 ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9804-0004 ● ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0005- ● ● ● ● ●
59 GROMMET; SCREW 8-94279-723-0 03 1 9601-9705 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 9706-9803 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 9804- ● ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9601-9803 ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9601-9803 ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9804-0004 ● ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 0005- ● ● ● ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9804-0004 ● ● ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 0005- ● ● ● ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9601-9803 ● ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9804-0004 ● ● ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0005-1009 ● ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601-9803 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9804-0004 ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0005-0304 ● ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-0405 ● ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0406- ● ● ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9601-9803 ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9804-0004 ● ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0005- ● ● ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-9803 ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9804-0004 ● ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0005-0304 ● ● ● ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9601-9803 ● ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9804-0004 ● ● ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0005- ● ● ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9804-0004 ● ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0102 ● ● ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0604 ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0604 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0605-0904 ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0605-0904 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9601-9803 ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9804-0004 ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ● ● ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9601-9703 ● ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9601-9803 ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9804- ● ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9601-9803 ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9804- ● ● ●
383 GUARD; MUD,FENDER LWR 1-71996-062-2 01 1 9601-0004 ●
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 0005- ● ●
383 GUARD; MUD,FENDER LWR 1-71996-061-2 01 1 9601-0004 ●
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 0005- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 9601-0004 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 0005- ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9601-9803 ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9804- ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9601-9803 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9804-0004 ● ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 0005-0009 ● ● ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0405 ● ● ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0406-0904 ● ● ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ● ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ● ● ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ● ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-0405 ● ● ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0406- ● ● ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 9601-0004 ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 0005- ● ●
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9601-9706 ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-9803 ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9804-0004 ● ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0005- ● ● ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9601-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 27 1 9601-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 34 1 9607-9607 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 32 1 9608-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9803 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9804-9804 ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805- ● ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9601-9803 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9804- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9803 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9804-9804 ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805- ● ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9601-9803 ● ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9804-0001 ● ● ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71998-900-3 02 1 0002-0004 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR TNT ORANGE(992) (C) 		1-71998-900-3 02 1 0002-0004 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71998-900-3 02 1 0005-0610 ● ● ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0005-0610 ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ● ● ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9601-9803 ● ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9804-0001 ● ● ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0002-0004 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR TNT ORANGE(992) (A) 		1-71998-999-0 02 1 0002-0004 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0005-0705 ● ● ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0005-0705 ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706- ● ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9601-9803 ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9601-9803 ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9804-0004 ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0005- ● ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9804-0004 ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0005- ● ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-3 01 1 9601-9803 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-3 01 1 9804-0004 ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0005- ● ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9601-9803 ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9804-0004 ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0005- ● ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-1 01 1 9601-9803 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-1 01 1 9804-0004 ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0005- ● ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9601-9803 ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9804-0004 ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0005- ● ● ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-9803 ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9804-0004 ● ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ● ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9601-9803 ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9804-0004 ● ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0005- ● ● ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9601-9803 ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-0004 ● ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0005- ● ● ● ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9601-9803 ● ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9804-0004 ● ● ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0005-0409 ● ● ● ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ● ● ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9601-9803 ● ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9804-0004 ● ● ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0005- ● ● ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 9801-9803 ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 9804-0004 ● ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 0005-0207 ● ● ● ● ●
526 FINISHER; FENDER
BODY COLOR MARINE BLUE(890) (B) 		1-71998-900-3 04 1 0208-0209 ●
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 0208-0209 ● ● ●
526 FINISHER; FENDER
BODY COLOR MARINE BLUE(890) (B) 		1-71998-900-3 02 1 0210-0610 ●
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0210-0610 ● ● ●
526 FINISHER; FENDER
BODY COLOR MARINE BLUE(890) (B) 		1-71907-641-0 02 1 0611- ●
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611- ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9601-9803 ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9804-0004 ● ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-9803 ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9804-0004 ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ● ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406 ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9804-0004 ● ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9804-9806 ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-0004 ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9804-0004 ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9601-9803 ● ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9601-9803 ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9601-9803 ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9804-0004 ● ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0005- ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-0004 ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0005-1302 ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ● ● ● ●
534 FASTENER
(C) 		1-71996-035-1 02 1 9603-9605 ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-9803 ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9804-0404 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9804- ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-1 01 1 9601-9803 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-2 01 1 9804-0004 ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0005-0209 ● ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210- ● ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-1 01 1 9601-9803 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-2 01 1 9804-0004 ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0005-0209 ● ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210- ● ● ● ● ●
544 LID; FRT 1-71108-041-9 01 1 9601-9803 ●
544 LID; FRT 1-71108-095-2 01 1 9804-0004 ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> 		1-71108-095-2 01 1 0005- ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-161-1 01 1 0005- ● ●
544 LID; FRT 1-71108-073-3 01 1 9601-9703 ● ●
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9803 ● ●
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9804-0004 ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0207 ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0411 ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0406- ● ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-2 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-836-3 01 1 9601-0004 ●
545 SEAL; FRT LID
(D) 		1-71998-836-4 01 1 0005- ● ●
545 SEAL; FRT LID
(B) 		1-71998-872-5 01 1 9601-9908 ●
545 SEAL; FRT LID
(B) 		1-71996-254-0 01 1 9909-0004 ●
545 SEAL; FRT LID
(B) 		1-71996-254-0 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(B) 		1-71996-254-0 01 1 0412- ● ●
545 SEAL; FRT LID
(C) 		1-71998-874-4 01 1 9601-9908 ●
545 SEAL; FRT LID
(C) 		1-71996-256-0 01 1 9909-0004 ●
545 SEAL; FRT LID
(C) 		1-71996-256-0 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(C) 		1-71996-256-0 01 1 0412- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9601-9803 ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9804-0004 ● ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0005-0411 ● ● ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0412- ● ● ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9601-9803 ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9804-9807 ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 02 1 9808-0406 ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0407- ● ● ●
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9601-9803 ● ●
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9804-9908 ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909-0411 ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0412- ● ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9601-9803 ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9804-9908 ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-0411 ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0412- ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9601-9803 ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9804-0004 ● ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0005- ● ● ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 9601-9803 ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 9804-0004 ● ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0005-0411 ● ● ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0412- ● ● ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9601-9803 ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9804-0004 ● ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0005-0301 ● ● ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302- ● ● ● ● ●

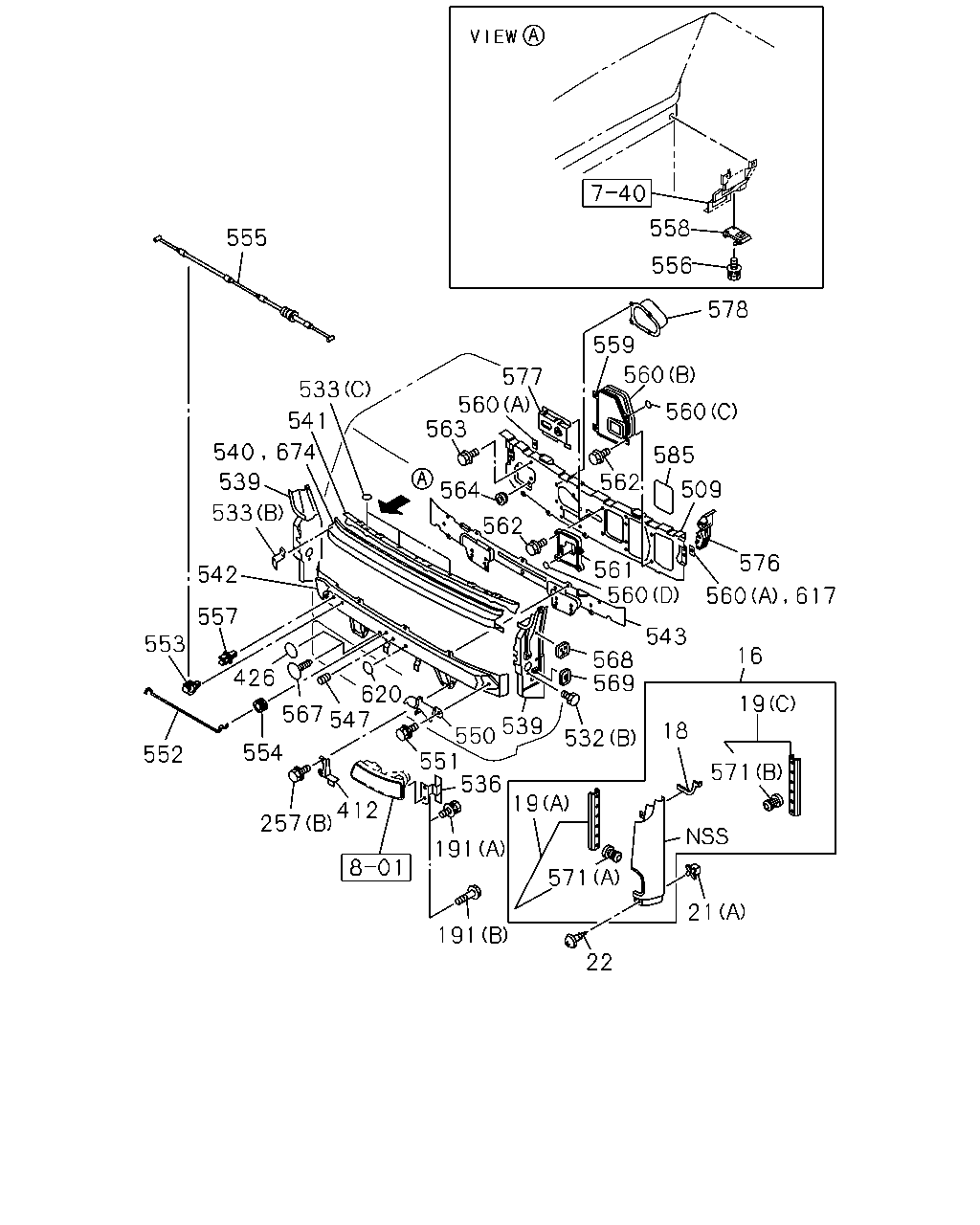

çizim 184267
558 555 556 578 559 560 577 560 563 533 560 541 540 674 585 539 562 509 564 533 562 561 560 576 542 560 617 557 543 553 16 568 569 426 620 567 547 19 539 550 551 536 18 532 554 552 571 412 257 19 191 571 21 191 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-2 01 1 9601-9803 ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-2 01 1 9601-9803 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-2 01 1 9804-0004 ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-2 01 1 9804-0004 ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0005- ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0005- ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0005- ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9601-9801 ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9802-9803 ●
16 PANEL; FRONT,SIDE
EXC. KENYA EQUIPMENT(PQ2) WHITE 		1-65481-590-1 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9804-9804 ● ●
16 PANEL; FRONT,SIDE
EXC. KENYA EQUIPMENT(PQ2) WHITE 		1-65481-590-1 01 1 9804-9804 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0005- ● ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-590-2 01 1 0005- ● ●
16 PANEL; FRONT,SIDE
KENYA EQUIPMENT(PQ2) WHITE 		1-65481-562-2 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-562-3 01 1 9804- ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-1 01 1 9601-9803 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-2 01 1 9804- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9601-9803 ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9804-0004 ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0005- ● ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9601-9803 ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9804-0004 ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9601-9803 ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9804-0004 ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-2 12 1 9601-9803 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9804-0004 ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9803 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9804-0004 ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9601-9803 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9804-0003 ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0004 ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0005-0810 ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ● ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-9803 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-9803 ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9804-0004 ● ● ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0102 ● ● ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0103-0604 ● ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0103-0604 ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0605-0708 ● ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0605-0708 ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
191 BOLT; HINGE
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9804-0004 ● ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0102 ● ● ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0604 ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0604 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0605-0904 ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0605-0904 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9601-9803 ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9804-0004 ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ● ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-2 01 1 9601-9803 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-044-2 01 1 9601-9803 ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9804-0004 ● ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-0102 ● ● ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0103-0604 ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0103-0604 ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0605- ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0605- ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9601-9803 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9601-9803 ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9804-0004 ● ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-0102 ● ● ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0103-0604 ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0103-0604 ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0605- ● ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0605- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0004 ● ● ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0004 ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0004 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ● ● ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 9805-0004 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 9805-0004 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ●
509 PANEL; DASH 1-62280-220-1 01 1 9601-0004 ●
509 PANEL; DASH 1-62280-220-2 01 1 0005- ● ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9601-9803 ● ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9804-0604 ● ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9804-0604 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 9601-9803 ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 9804-0004 ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 9804-0004 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 0005-0604 ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9601-9803 ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9804-0004 ● ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-9803 ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9804-0004 ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ● ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406 ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9804-0004 ● ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9804-9806 ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-0004 ● ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0005- ● ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-9803 ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9804-0004 ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ● ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9601-9803 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9601-9803 ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9804-0004 ● ● ● ●
536 HINGE 1-86830-004-5 01 1 0005-0102 ● ● ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0103-0604 ● ● ●
536 HINGE 1-86830-004-5 01 1 0103-0604 ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0605- ● ● ●
536 HINGE 1-86830-004-5 01 1 0605- ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9601-9803 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9601-9803 ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9804-0004 ● ● ● ●
536 HINGE 1-86830-003-5 01 1 0005-0102 ● ● ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0103-0604 ● ● ●
536 HINGE 1-86830-003-5 01 1 0103-0604 ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0605- ● ● ●
536 HINGE 1-86830-003-5 01 1 0605- ● ●
539 CLOSING; PILLAR 1-61480-674-5 01 1 9601-9803 ● ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 9804-0004 ● ● ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0005- ● ● ● ● ●
539 CLOSING; PILLAR 1-61480-673-5 01 1 9601-9803 ● ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 9804-0004 ● ● ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0005- ● ● ● ● ●
540 PANEL; FRONT,OUTER 1-61480-790-2 01 1 9601-0004 ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9601-9803 ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9804- ● ● ●
541 PANEL; FRONT,INNER 1-61480-702-0 01 1 9601-0004 ●
541 PANEL; FRONT,INNER 1-61480-702-0 01 1 0005- ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9601-9803 ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9804- ● ● ●
542 RAIL; FRT MOUNTING 1-61480-791-6 01 1 9601-0004 ●
542 RAIL; FRT MOUNTING 1-61480-791-9 01 1 0005- ● ●
542 RAIL; FRT MOUNTING 1-61480-773-5 01 1 9601-9803 ● ●
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 9804- ● ● ●
543 CLOSING; FRT MTG RAIL 1-61480-707-3 01 1 9601-0004 ●
543 CLOSING; FRT MTG RAIL 1-61480-707-5 01 1 0005- ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-2 01 1 9601-9803 ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 9804- ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9601-9803 ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9804-0004 ● ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0005- ● ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-1 01 1 9601-9803 ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-1 01 1 9804-0004 ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0005- ● ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-3 01 1 9601-9803 ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-3 01 1 9804-0004 ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0005- ● ● ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9601-9803 ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9804-0004 ● ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ● ● ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 9601-9803 ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 9804-0004 ● ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 0005-0205 ● ● ● ● ●
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706 ● ● ● ● ●
552 STAY; FRT LID 1-71996-352-0 01 1 0707- ● ● ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9601-9803 ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9804-0004 ● ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 0005- ● ● ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9601-9803 ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9804-0004 ● ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0005- ● ● ● ● ●
555 CABLE; FRT LID
L=2342 		1-79348-002-4 01 1 9601-0004 ●
555 CABLE; FRT LID
L=2342 		1-79348-002-5 01 1 0005- ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-3 01 1 9601-9803 ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9804- ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9803 ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9804-0004 ● ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0005- ● ● ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9601-9803 ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9804-0004 ● ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0005- ● ● ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9601-9803 ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9804-0004 ● ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 0005-0212 ● ● ● ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0301- ● ● ● ● ●
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9601-9603 ● ● ●
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608 ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9609-9803 ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9804-0004 ● ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0005- ● ● ● ● ●
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9601-9803 ● ● ●
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9804-9805 ● ● ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9601-9803 ● ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9804-0004 ● ● ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0005- ● ● ● ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9601-9803 ● ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9804-9806 ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9804-9806 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0004 ● ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0004 ● ●
560 SEAL; COVER
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005- ● ●
560 SEAL; COVER
ISUZU M/T<X9A> (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005- ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005- ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (D) 		1-76798-018-0 02 1 9601-9609 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (D) OD=36 BLACK 		1-76798-018-0 02 1 9610-9803 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 02 1 9804-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (D) OD=36 BLACK 		1-76798-018-0 02 1 9804-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0005- ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0005- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 9601-9803 ● ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 9804-0004 ● ● ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0005- ● ● ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9803 ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804-0004 ● ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ● ● ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9601-9707 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9803 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9804-9807 ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0004 ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0005-0202 ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ● ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9601-9707 ● ● ●
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9803 ● ● ●
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9804-9807 ● ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9601-9803 ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9804-0004 ● ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0005- ● ● ● ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9601-9803 ● ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9804-9804 ● ● ● ●
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9601-9803 ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9804-0004 ● ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0005- ● ● ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9601-9803 ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9804-0004 ● ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0005- ● ● ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9601-9803 ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9804-0004 ● ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0005- ● ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 9601-9803 ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804-0004 ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0005-0207 ● ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0208- ● ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0208- ● ● ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 14 1 9601-9803 ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 14 1 9804-0004 ● ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ● ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ● ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 9601-9803 ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 9804-0004 ● ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0005-0604 ● ● ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0605- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 9601-9803 ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 9804-0004 ● ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0005-0604 ● ● ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0605- ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 9601-9803 ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 9804-0604 ● ● ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9601-0004 ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 0005-0009 ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010- ● ●
578 COVER; WIPER MOTOR 1-62280-173-3 01 1 9601-9803 ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9804-0604 ● ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9601-9803 ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9804-0004 ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9804-0004 ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 0005- ● ● ●
617 SEAL; DASH 1-61281-497-0 02 1 9806-0004 ● ● ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0005-0604 ● ● ● ● ●
617 SEAL; DASH 1-61281-497-1 02 1 0605- ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ● ● ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ● ●
674 PANEL; UPR 1-61480-790-2 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
