◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#63870) — 106 parça

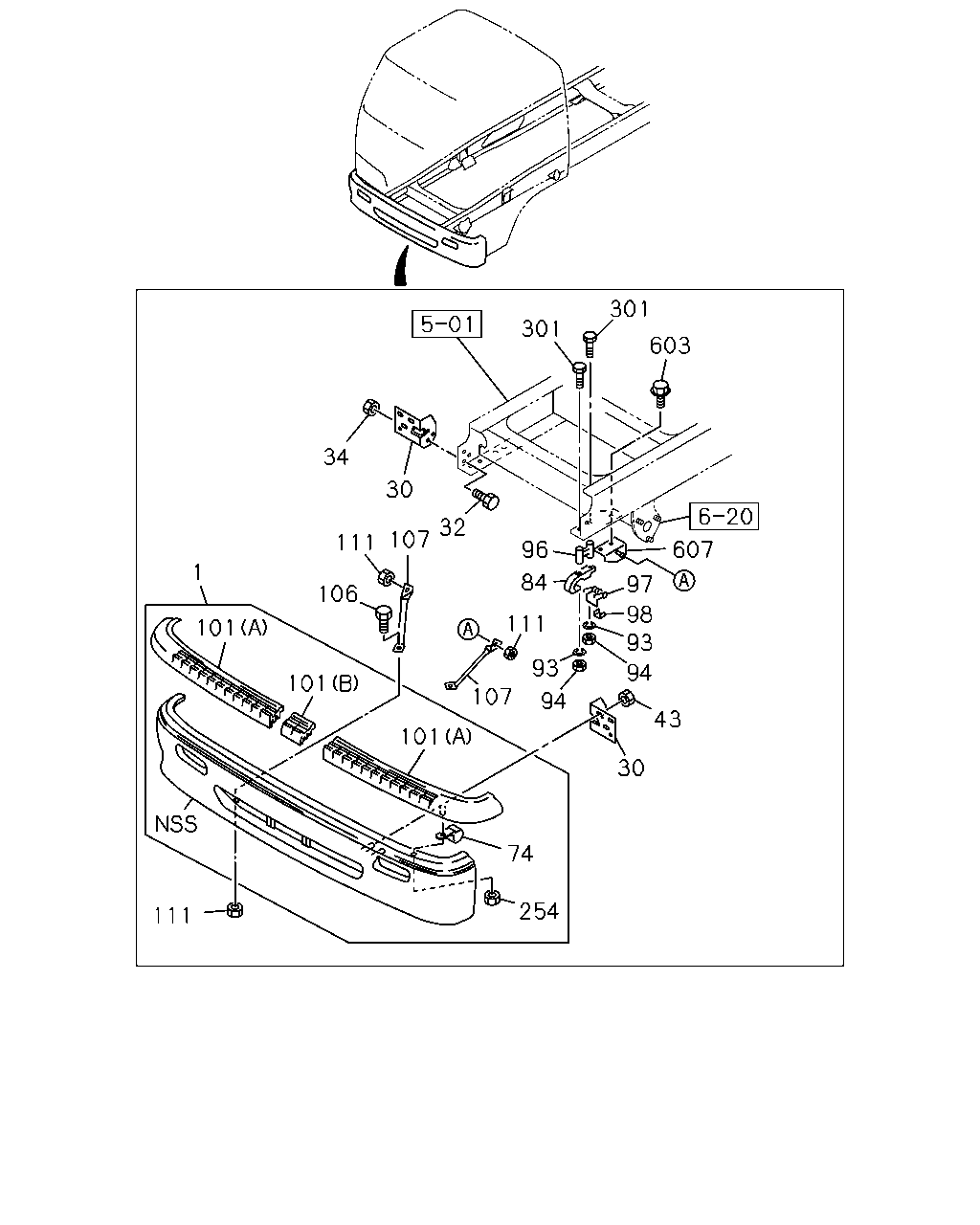

çizim 125839
301 301 603 34 30 607 32 107 111 96 84 93 94 1 97 98 93 94 106 111 101 101 107 43 101 30 74 254 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BUMPER ASM; FRT 1-71210-582-3 01 1 9601-9605 ●
1 BUMPER ASM; FRT
WHITE 		1-71210-786-0 01 1 9606-0004 ●
1 BUMPER ASM; FRT
FRONT PANEL CARGO FACE<NGD> WHITE 		1-71210-786-1 01 1 0005- ● ●
1 BUMPER ASM; FRT
EXC. FRONT PANEL CARGO FACE<NGD> WHITE 		1-71210-854-2 01 1 0005- ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-661-1 01 1 9601-9803 ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-661-1 01 1 9804-0004 ● ● ●
1 BUMPER ASM; FRT
FRONT PANEL CARGO FACE<NGD> WHITE 		1-71210-661-2 01 1 0005- ● ● ●
1 BUMPER ASM; FRT
EXC. FRONT PANEL CARGO FACE<NGD> WHITE 		1-71210-846-3 01 1 0005- ● ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9601-9803 ● ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9804-0004 ● ● ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0005- ● ● ● ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9601-9803 ● ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9804-0004 ● ● ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 0005-0111 ● ● ● ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112- ● ● ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9601-9606 ● ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-9803 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9804-0004 ● ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0005-0512 ● ● ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ● ● ● ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9601-9606 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-9803 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9804-0004 ● ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0005-0602 ● ● ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 06 1 9601-9606 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-9803 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9804-0004 ● ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0005-0602 ● ● ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ● ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9601-9803 ● ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9804-0004 ● ● ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0005- ● ● ● ● ●
84 HOOK 1-57181-027-1 01 1 9601-9803 ● ● ●
84 HOOK 1-57181-027-1 01 1 9804-0004 ● ● ● ●
84 HOOK 1-57181-027-1 01 1 0005-0208 ● ● ● ● ●
84 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0209- ● ● ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9601-9803 ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9804-0004 ● ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0005-0208 ● ● ● ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0209-0603 ● ● ● ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ● ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9601-9803 ● ● ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9804-0004 ● ● ● ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 0005-0206 ● ● ● ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0208 ● ● ● ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0209-0512 ● ● ● ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
96 PLATE; DIST,HOOK 1-57189-193-0 01 1 9601-9803 ● ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9601-9803 ● ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9601-9803 ● ● ●
101 STEP; BUMPER
(B) 		1-71260-083-1 01 1 9601-0004 ●
101 STEP; BUMPER
(B) 		1-71260-083-1 01 1 0005- ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9601-9803 ● ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9804-0004 ● ● ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0005- ● ● ● ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9601-9803 ● ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9804-0004 ● ● ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0005- ● ● ● ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9601-9803 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9804- ● ● ●
106 BOLT; AIR DAM
M10X16 FLANGE 		0-28081-016-0 02 1 9601-9602 ● ● ●
106 BOLT; AIR DAM
M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ● ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28681-025-0 02 1 9607-9803 ● ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28681-025-0 02 1 9804-0004 ● ● ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0512 ● ● ● ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ● ● ● ●
107 STAY; AIR DAM 1-71260-169-0 01 1 9606-9803 ●
107 STAY; AIR DAM 1-71260-168-0 01 1 9606-9803 ●
107 STAY; AIR DAM 1-71260-169-0 01 1 9804-0004 ●
107 STAY; AIR DAM 1-71260-169-0 01 1 0005- ● ●
107 STAY; AIR DAM 1-71260-168-0 01 1 9804-0004 ●
107 STAY; AIR DAM 1-71260-168-0 01 1 0005- ● ●
107 STAY; AIR DAM 1-71260-132-0 01 1 9601-9605 ● ● ●
107 STAY; AIR DAM 1-71260-132-1 01 1 9606-9803 ● ●
107 STAY; AIR DAM 1-71260-132-1 01 1 9804- ● ● ●
107 STAY; AIR DAM 1-71260-131-0 01 1 9601-9605 ● ● ●
107 STAY; AIR DAM 1-71260-131-1 01 1 9606-9803 ● ●
107 STAY; AIR DAM 1-71260-131-1 01 1 9804- ● ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-110-0 04 1 9601-9606 ● ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ● ●
111 NUT; STAY
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 12 1 9601-0004 ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 12 1 0005-0602 ● ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 12 1 0603- ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9601-9803 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9804-0602 ● ● ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ● ● ●
301 BOLT; HOOK TO FRAME
M16X147 		5-51361-003-3 02 1 9601-9803 ● ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 9804-0004 ● ● ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 0005-0208 ● ● ● ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X70 		0-10811-670-0 01 1 0209-0512 ● ● ● ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X70 		0-10861-670-0 01 1 0601- ● ● ● ● ●
301 BOLT; HOOK TO FRAME
M16X60 		0-10811-660-0 01 1 9804-0004 ● ● ●
301 BOLT; HOOK TO FRAME
M16X60 		0-10811-660-0 01 1 0005-0103 ● ● ● ●
301 BOLT; HOOK TO FRAME
M16X60 		0-10811-660-0 01 1 0104-0208 ● ● ● ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X60 		0-10811-660-0 01 1 0209-0512 ● ● ● ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X60 		0-10861-660-0 01 1 0601- ● ● ● ● ●
603 BOLT; BRKT
FRONT SPRING LONG SPAN<W36> M12X35 FLANGE 		0-28681-235-0 04 1 0011-0512 ●
603 BOLT; BRKT
FRONT SPRING LONG SPAN<W36> M12X35 FLANGE 		0-28651-235-0 04 1 0601-0905 ●
603 BOLT; BRKT
FRONT SPRING LONG SPAN<W36> M12X30 FLANGE 		0-28051-230-0 04 1 0906- ●
607 BRACKET
FRONT SPRING LONG SPAN<W36> 		1-47478-843-1 01 1 0011- ●
607 BRACKET
FRONT SPRING LONG SPAN<W36> 		1-47478-844-1 01 1 0011- ●
