1 |

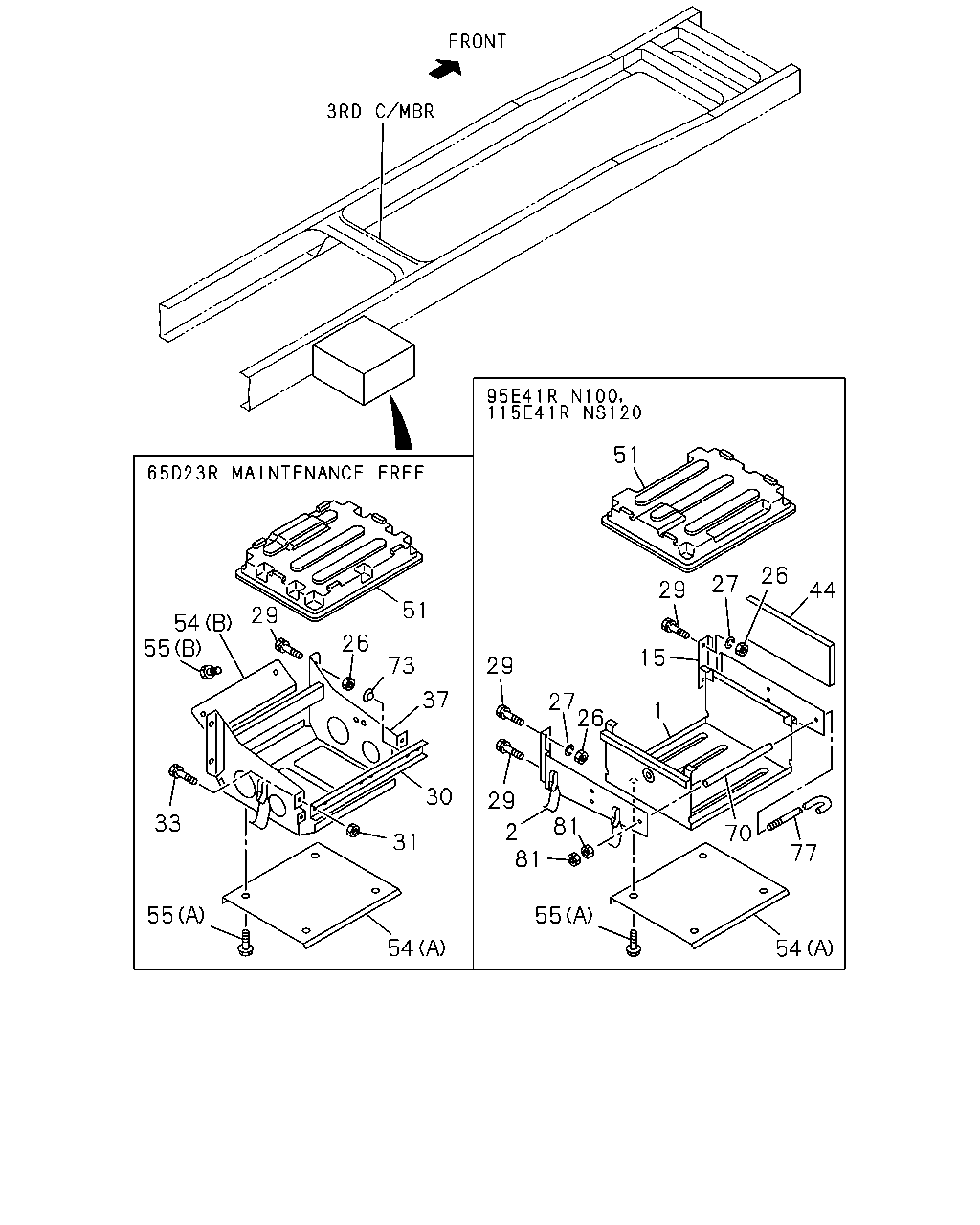

CARRIER; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
9-53613-584-3 |
01 |
1 |
9601-0006 |
● |
● |
● |
|
|
| |
1 |
CARRIER; BATTERY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
9-53613-584-3 |
01 |
1 |
0007-0406 |
● |
● |
● |
|
|
| |
1 |
CARRIER; BATTERY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L),6HK1 TCS ENG(80L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
9-53613-584-3 |
01 |
1 |
0407- |
● |
● |
● |
|
|
| |
1 |
CARRIER; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-398-1 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
1 |
CARRIER; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-398-1 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
| |
2 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-339-1 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
2 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-339-3 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
2 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-339-3 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
15 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-340-1 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
15 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-340-3 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
15 |
BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53613-340-3 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
26 |
NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9601-9608 |
● |
● |
● |
|
|
| |
26 |
NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10
|
9-09110-510-0 |
04 |
1 |
9609-9803 |
● |
● |
● |
|
|
| |
26 |
NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10
|
9-09110-510-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
26 |
NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10
|
9-09110-510-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
26 |
NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
26 |
NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14
|
9-99110-414-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
26 |
NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14
|
9-99110-414-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
26 |
NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14
|
9-99110-414-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
26 |
NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14
|
0-91110-514-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
27 |
WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
27 |
WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
27 |
WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=14.2
|
9-09150-514-0 |
04 |
1 |
0005-0603 |
● |
● |
● |
● |
● |
| |
27 |
WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0604- |
● |
● |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X30 FLANGE
|
0-28081-030-0 |
04 |
1 |
9601-9606 |
● |
● |
● |
|
|
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9607-9803 |
● |
● |
● |
|
|
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14X40
|
0-20801-440-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14X40
|
0-20801-440-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14X40
|
0-20801-440-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M14X40
|
0-20851-440-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
30 |
PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53616-046-3 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
30 |
PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53616-046-3 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
30 |
PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53616-046-3 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
31 |
NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9601-9608 |
● |
● |
● |
|
|
| |
31 |
NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
9-09110-408-0 |
02 |
1 |
9609-9803 |
● |
● |
● |
|
|
| |
31 |
NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
9-09110-408-0 |
02 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
31 |
NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
9-09110-408-0 |
02 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
31 |
NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
0-91110-508-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
● |
|
|
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9709 |
● |
● |
● |
|
|
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9710-9803 |
● |
● |
● |
|
|
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
| |
37 |
BRACKET; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-354-3 |
01 |
1 |
9601-0006 |
● |
● |
● |
|
|
| |
37 |
BRACKET; BATTERY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-354-3 |
01 |
1 |
0007- |
● |
● |
● |
|
|
| |
37 |
BRACKET; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-407-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
37 |
BRACKET; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-407-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
37 |
BRACKET; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-407-0 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
44 |
SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-006-0 |
02 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
44 |
SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-006-0 |
02 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
44 |
SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-006-0 |
02 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
51 |
COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53612-019-1 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
51 |
COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53612-019-1 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
51 |
COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53612-019-1 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
51 |
COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53612-029-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
51 |
COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53612-029-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
51 |
COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53612-029-1 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
|
1-53619-083-1 |
01 |
1 |
9601-9612 |
● |
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
9701-9705 |
● |
|
|
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
|
1-53619-083-2 |
01 |
1 |
9701-9705 |
|
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
9706-9803 |
● |
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
|
1-53619-083-2 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 STD ENG(37L)
(A)
|
1-53619-083-2 |
01 |
1 |
9706-9803 |
|
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
9804-9806 |
● |
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
|
1-53619-083-2 |
01 |
1 |
9807-0004 |
|
● |
|
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
9807-0004 |
|
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
(A)
|
1-53619-083-2 |
01 |
1 |
9807-0004 |
|
|
|
|
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
0005-0606 |
|
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L)
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
0005-0606 |
|
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
0005-0606 |
|
|
|
|
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-2 |
01 |
1 |
0005-0606 |
|
|
|
|
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
(A)
|
1-53619-083-2 |
01 |
1 |
0005-0606 |
|
|
|
● |
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
● |
|
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO3 SPECIFICATION<NJX>,EURO2
SPECIFICATION<THN>
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L)
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
|
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
EXC. EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
|
|
|
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
|
|
|
● |
| |
54 |
PROTECTOR; HEAT,BATTERY
(A)
|
1-53619-083-3 |
01 |
1 |
0607- |
|
|
|
● |
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
|
1-53619-069-1 |
01 |
1 |
9601-0004 |
● |
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(B)
|
1-53619-069-1 |
01 |
1 |
0005-0006 |
● |
● |
● |
|
|
| |
54 |
PROTECTOR; HEAT,BATTERY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(B)
|
1-53619-069-1 |
01 |
1 |
0007- |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
M8X16 FLANGE
|
0-28280-816-0 |
04 |
1 |
9601-9606 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9607-9612 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9701-9705 |
● |
|
|
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9701-9705 |
|
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9706-9803 |
● |
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9706-9803 |
|
● |
|
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 STD ENG(37L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9706-9803 |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9804-9806 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9807-0004 |
|
● |
|
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9807-0004 |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9807-0004 |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0005-0512 |
|
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L)
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0005-0512 |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0005-0512 |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0005-0512 |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0005-0512 |
|
|
|
● |
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601-0606 |
|
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L)
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601-0606 |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601-0606 |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601-0606 |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601-0606 |
|
|
|
● |
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
● |
|
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. EURO3 SPECIFICATION<NJX>,EURO2
SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L)
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
|
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
VERTICAL TAIL PIPE<NC4>
EURO2 SPECIFICATION<THN>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
|
|
|
● |
| |
55 |
BOLT; HEAT PROTECTOR
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0607- |
|
|
|
● |
|
| |
55 |
BOLT; HEAT PROTECTOR
6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M8X16 FLANGE
|
0-28280-816-0 |
02 |
1 |
9601-9606 |
|
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9607-0004 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0006 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0007-0512 |
● |
● |
● |
|
|
| |
55 |
BOLT; HEAT PROTECTOR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
● |
|
|
| |
70 |
SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-023-0 |
01 |
1 |
9609-9803 |
● |
● |
● |
|
|
| |
70 |
SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-023-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
70 |
SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53619-023-0 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
73 |
RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-09337-002-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
73 |
RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-09337-002-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
73 |
RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-09337-002-0 |
04 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
77 |
BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53616-101-0 |
02 |
1 |
9601-9803 |
● |
● |
● |
|
|
| |
77 |
BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53616-101-0 |
02 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
77 |
BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
|
1-53616-101-0 |
02 |
1 |
0005- |
● |
● |
● |
● |
● |
| |
81 |
NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9710 |
● |
● |
● |
|
|
| |
81 |
NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
04 |
1 |
9711-9803 |
● |
● |
● |
|
|
| |
81 |
NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
04 |
1 |
9804-0004 |
● |
● |
● |
|
● |
| |
81 |
NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
● |
| |
81 |
NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
0-91110-508-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
