5-10 — CAB MOUNTING; FRAME SIDE (#63866) — 519 parça

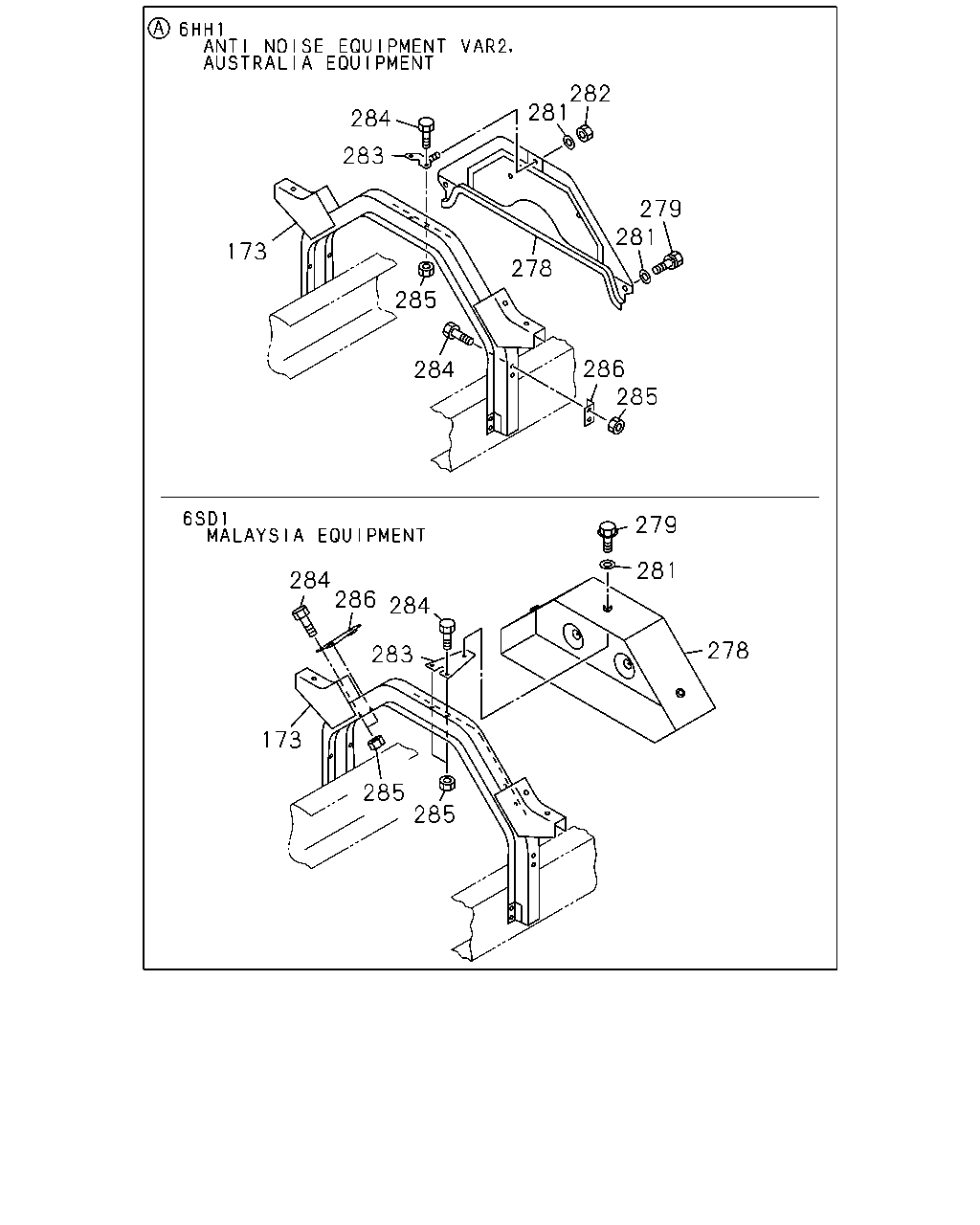

çizim 125269
282 281 284 283 279 281 173 278 285 286 285 284 279 281 284 286 284 278 283 173 285 285
BalonParca AdiParca NoAdetTipApplied Date A B C D E
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9601-9803 ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-1 01 1 9804-0004 ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0005-0405 ● ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0406-0604 ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-53454-705-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0605- ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> 		1-53454-705-3 01 1 0605- ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9601-9803 ● ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9804-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9601-9607 ● ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9608-9803 ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. ENGINE REAR PTO<SV1> 		1-53192-932-1 01 1 9608-9803 ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. ENGINE REAR PTO<SV1> 		1-53192-932-1 01 1 9804-0004 ●
278 COVER
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53192-945-1 01 1 9601-9803 ● ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ENGINE REAR PTO<SV1> 		1-53191-891-2 01 1 9608-0004 ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9601-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9601-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
279 BOLT
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X30 FLANGE 		0-28080-830-0 03 1 9601-9606 ● ●
279 BOLT
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X35 FLANGE 		0-28680-835-0 03 1 9607-9803 ● ●
281 WASHER; PL,BACK COVER
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9804-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9804-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9601-9803 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9601-9803 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9601-9803 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9601-9803 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9804-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9804-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
283 BRACKET; UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53447-006-0 01 1 9601-9803 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
285 NUT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9804-0004 ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9804-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
286 BRACKET; LOW
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53447-006-0 02 1 9601-9803 ● ●

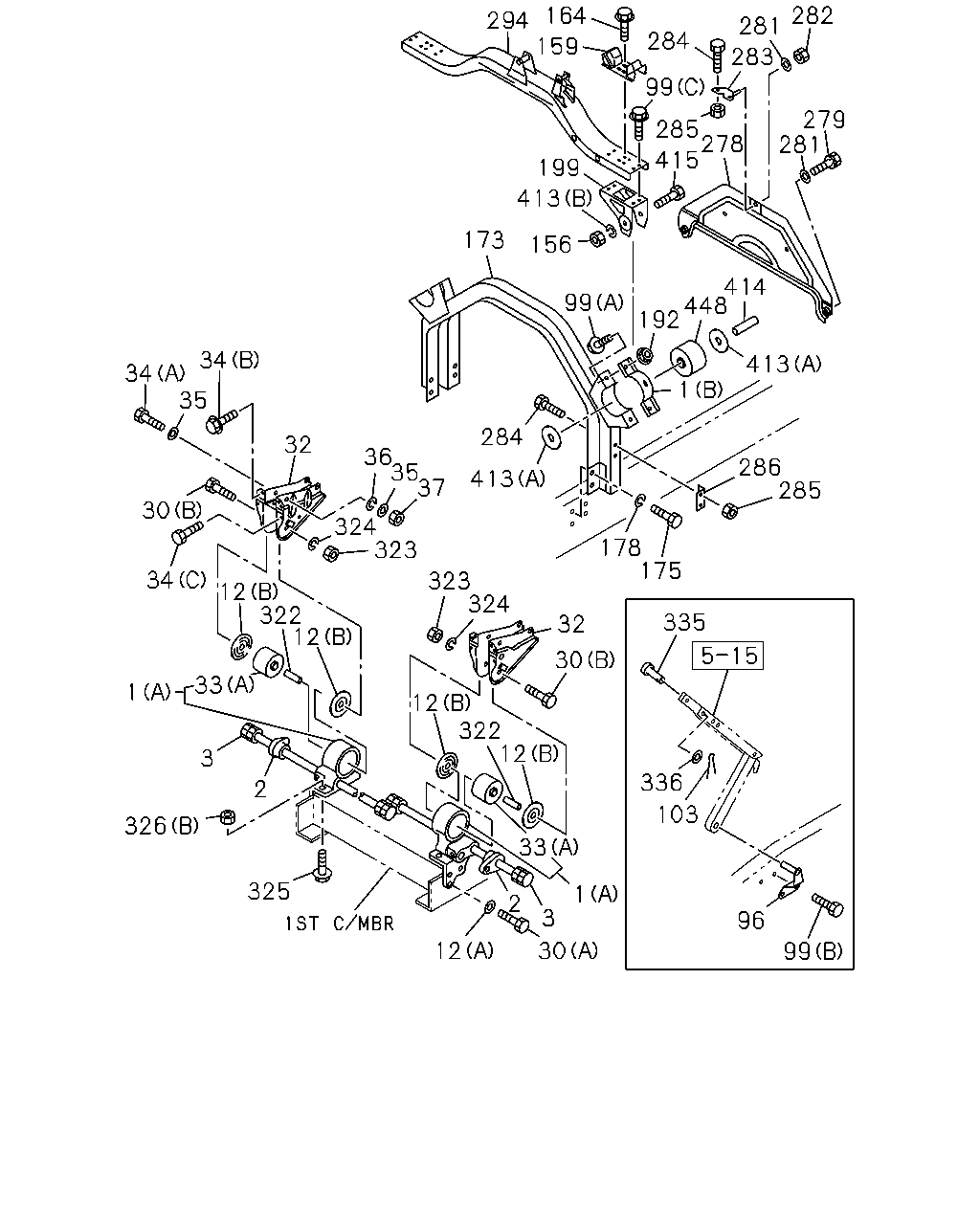

çizim 184268
282 164 294 159 281 284 283 99 279 281 285 278 415 199 413 173 156 414 448 192 99 34 413 34 35 1 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 2 335 32 30 33 1 12 322 12 3 336 2 103 326 33 325 1 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 9601-9803 ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 0005- ● ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 9601-9803 ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 0005- ● ● ● ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0005- ● ● ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9601-9803 ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9804-0004 ● ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0005- ● ● ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9601-9803 ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9804-0004 ● ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 0005- ● ● ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9601-9803 ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9804-0004 ● ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 0005- ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9601-9803 ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9804-0004 ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0005-0306 ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307-0405 ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0406- ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9601-9803 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9804-0004 ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9601-9803 ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9804-0004 ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9601-9803 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9804-0004 ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 0005-0201 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0202-0405 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0406- ● ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9601-9803 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9804-0004 ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0005- ● ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 9601-9803 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 9804-0004 ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0005- ● ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9601-9803 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9804-0004 ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 0005- ● ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9601-9803 ● ● ●

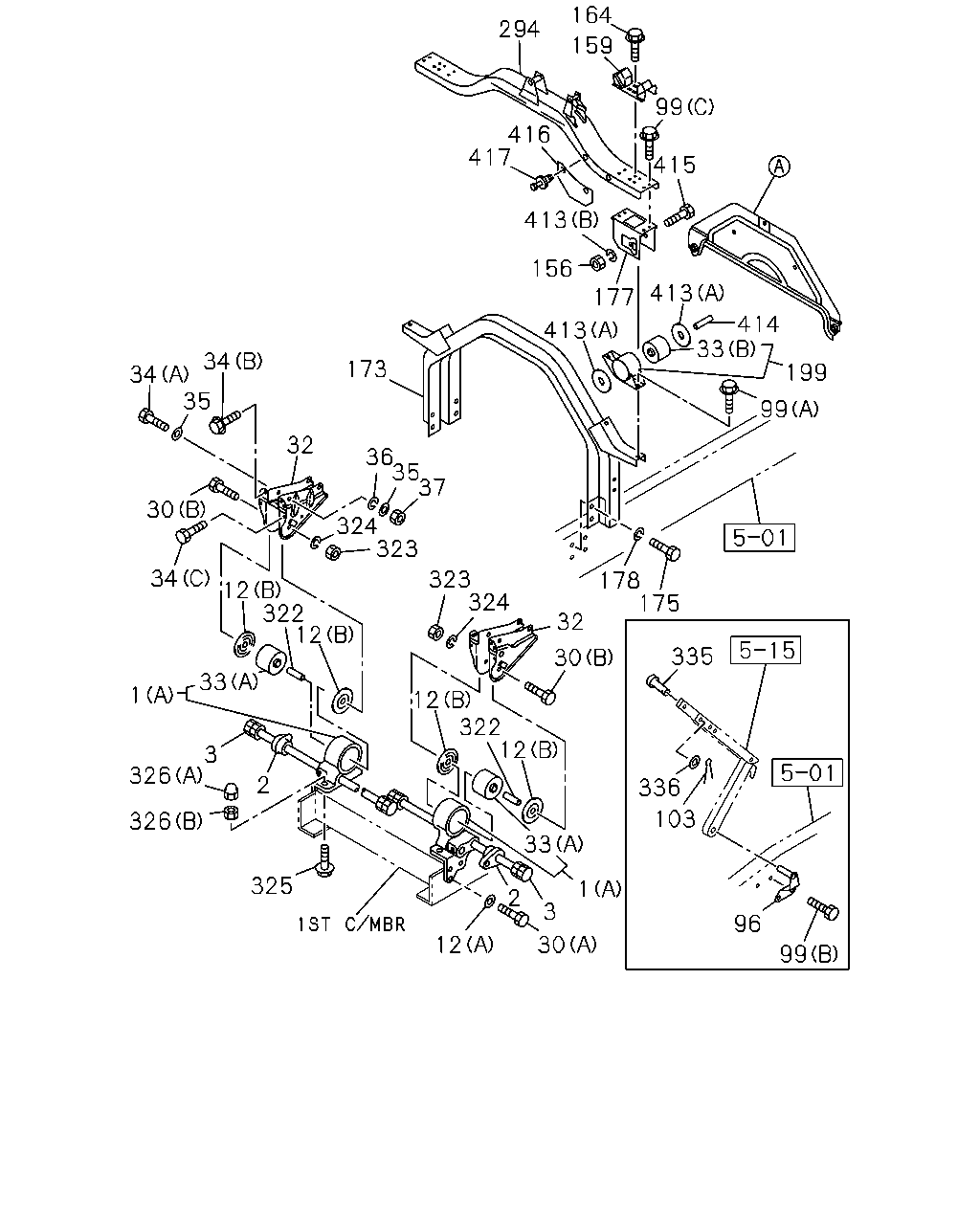

34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9804-0004 ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9804-0004 ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9601-9803 ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9804-0004 ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9601-9803 ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9804-0004 ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9601-9803 ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9804-0004 ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9601-9803 ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9804-0004 ● ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0005- ● ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9601-9606 ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-9803 ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ● ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-9803 ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ● ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9601-9606 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-9803 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9601-9803 ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9804-0004 ● ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0005- ● ● ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9601-9803 ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9804-0004 ● ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0005-0512 ● ● ● ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9601-9803 ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9804-0004 ● ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0005- ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0004 ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ●
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9601-9803 ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-1 01 1 9804-0004 ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0005-0405 ● ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0406-0604 ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-53454-705-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0605- ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> 		1-53454-705-3 01 1 0605- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9601-9803 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9804-0004 ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9601-9803 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9804-0004 ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 9804-0004 ● ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ● ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9601-9803 ● ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0004 ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 0005-0207 ● ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ● ● ● ● ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ● ● ● ● ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9601-9803 ● ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9804-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9601-9607 ● ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9608-9803 ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. ENGINE REAR PTO<SV1> 		1-53192-932-1 01 1 9608-9803 ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. ENGINE REAR PTO<SV1> 		1-53192-932-1 01 1 9804-0004 ●
278 COVER
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53192-945-1 01 1 9601-9803 ● ●
278 COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ENGINE REAR PTO<SV1> 		1-53191-891-2 01 1 9608-0004 ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9601-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9601-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ●
279 BOLT
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
279 BOLT
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X30 FLANGE 		0-28080-830-0 03 1 9601-9606 ● ●
279 BOLT
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X35 FLANGE 		0-28680-835-0 03 1 9607-9803 ● ●
281 WASHER; PL,BACK COVER
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9601-9803 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9804-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9804-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9601-9803 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9601-9803 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9804-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9601-9803 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9601-9803 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9804-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9804-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
283 BRACKET; UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53447-006-0 01 1 9601-9803 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
284 BOLT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ●
285 NUT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9601-9606 ● ●
285 NUT; BRKT UPR
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9803 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9804-0004 ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9804-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9601-9803 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9804-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
286 BRACKET; LOW
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53447-006-0 02 1 9601-9803 ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9601-9803 ● ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9804-0004 ● ● ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0005- ● ● ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9601-9803 ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9804-0004 ● ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0005- ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9601-9803 ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9804-0004 ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9601-9803 ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9804-0004 ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28081-235-0 02 1 9601-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28681-235-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-9803 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9804-0004 ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9601-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9601-9803 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9804-0004 ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0109 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0110-0405 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0406- ● ● ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9601-9803 ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9804-0004 ● ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0005- ● ● ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9601-9803 ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9804-0004 ● ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0005- ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9601-9803 ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9804-0004 ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 0005-0306 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307-0405 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0406- ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9601-9803 ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9804-0004 ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ● ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9601-9803 ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9804-0004 ● ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0005- ● ● ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9601-9803 ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9804-0004 ● ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0005- ● ● ● ● ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 9804-0004 ● ● ● ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 0005- ● ● ● ● ●
çizim 184275
164 294 159 99 416 417 415 413 156 413 177 414 33 413 34 173 199 34 35 99 32 36 35 37 30 324 323 34 323 324 178 175 12 322 12 32 335 30 33 1 12 322 12 3 326 2 336 103 326 33 325 1 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 9601-9803 ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-268-0 01 1 0005- ● ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 9601-9803 ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-267-0 01 1 0005- ● ● ● ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804-0004 ● ● ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0005- ● ● ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9601-9803 ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9804-0004 ● ● ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0005- ● ● ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9601-9803 ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9804-0004 ● ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 0005- ● ● ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9601-9803 ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9804-0004 ● ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 0005- ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9601-9803 ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9804-0004 ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 0005-0306 ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307-0405 ● ● ● ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0406- ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9601-9803 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9804-0004 ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9601-9803 ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9804-0004 ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9601-9803 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9804-0004 ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 0005-0201 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0202-0405 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0406- ● ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9601-9803 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9804-0004 ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0005- ● ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 9601-9803 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 9804-0004 ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-290-1 01 1 0005- ● ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9601-9803 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9804-0004 ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 0005- ● ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9804-0004 ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9601-9803 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9804-0004 ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0004 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9601-9803 ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9804-0004 ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9601-9803 ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9804-0004 ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9601-9803 ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9804-0004 ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9601-9803 ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9804-0004 ● ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0005- ● ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9601-9606 ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-9803 ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ● ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-9803 ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ● ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9601-9606 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-9803 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9804-0004 ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9601-9803 ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9804-0004 ● ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0005- ● ● ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9601-9803 ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9804-0004 ● ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0005-0512 ● ● ● ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9601-9803 ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9804-0004 ● ● ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0005- ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9803 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0004 ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ●
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR
6HK1 TCS ENG(80L) 		1-53454-861-2 01 1 0605- ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9601-9803 ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-1 01 1 9804-0004 ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0005-0405 ● ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-705-2 01 1 0406-0604 ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-53454-705-2 01 1 0406-0604 ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0605- ● ● ● ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> 		1-53454-705-3 01 1 0605- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9601-9803 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9804-0004 ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ● ● ●
177 BRACKET; MEMBER 1-53454-529-1 01 1 9601-9803 ● ● ●
177 BRACKET; MEMBER 1-53454-528-1 01 1 9601-9803 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9601-9803 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9804-0004 ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9601-9803 ● ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0004 ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 0005-0207 ● ● ● ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ● ● ● ● ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ● ● ● ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9601-9803 ● ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9804-0004 ● ● ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0005- ● ● ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9601-9803 ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9804-0004 ● ● ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0005- ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9601-9803 ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9804-0004 ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9601-9803 ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9804-0004 ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28081-235-0 02 1 9601-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28681-235-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-9803 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9804-0004 ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9601-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9601-9803 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9804-0004 ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0109 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0110-0405 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0406- ● ● ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9601-9803 ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9804-0004 ● ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0005- ● ● ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9601-9803 ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9804-0004 ● ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0005- ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9601-9803 ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9804-0004 ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 0005-0306 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307-0405 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0406- ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9601-9803 ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9804-0004 ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ● ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ● ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9601-9803 ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9804-0004 ● ● ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0005- ● ● ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9601-9803 ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9804-0004 ● ● ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0005- ● ● ● ● ●
416 RUBBER; SHUTTER
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53446-730-0 02 1 9601-9803 ● ●
416 RUBBER; SHUTTER
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-53446-730-0 02 1 9601-9803 ● ●
416 RUBBER; SHUTTER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53446-730-0 02 1 9601-9803 ● ●
417 RIVET
6SD1 STD ENG(37L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-09470-001-0 04 1 9601-9803 ● ●
417 RIVET
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 		1-09470-001-0 04 1 9601-9803 ● ●
417 RIVET
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-09470-001-0 04 1 9601-9803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
