Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#63863) — 390 parça

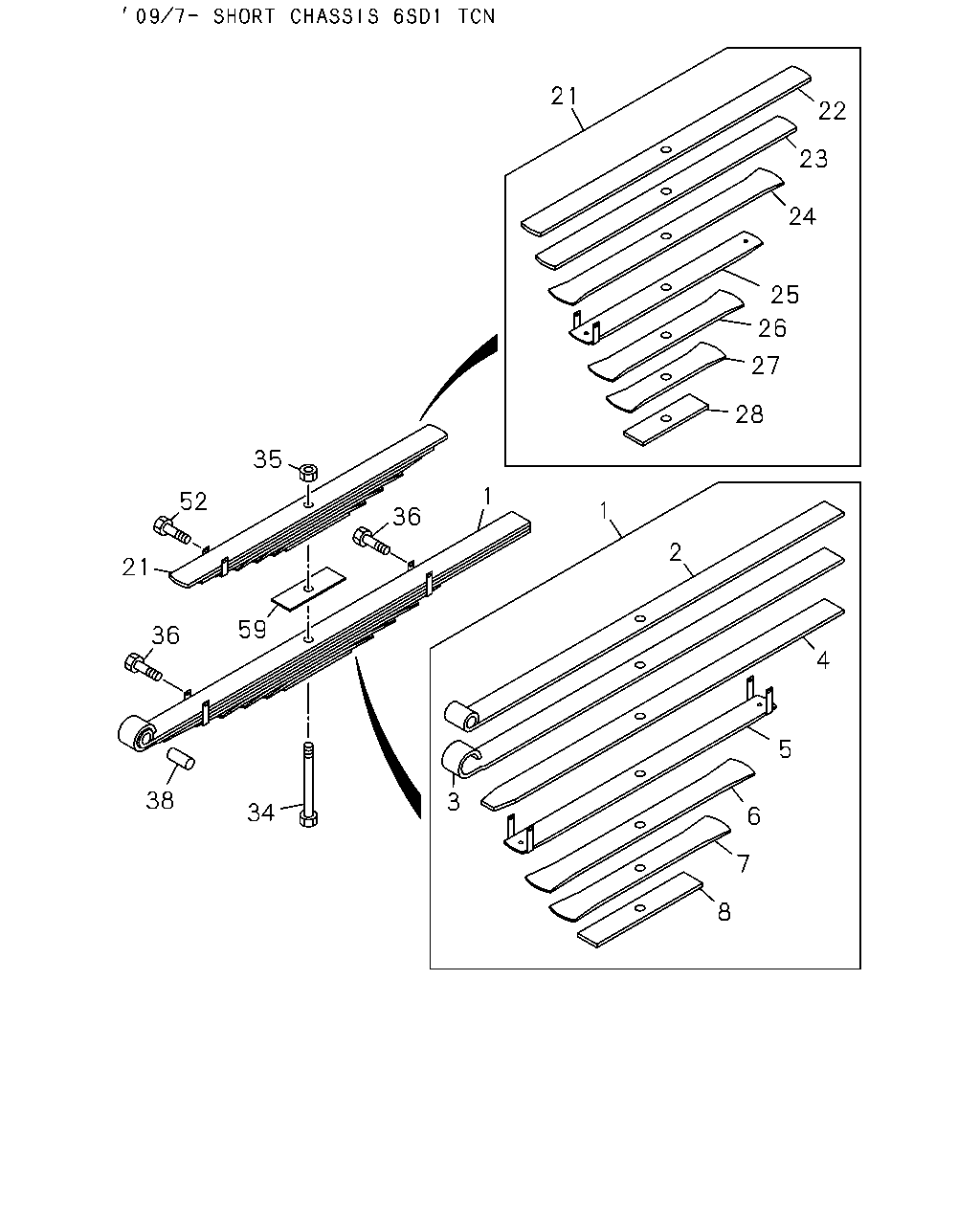

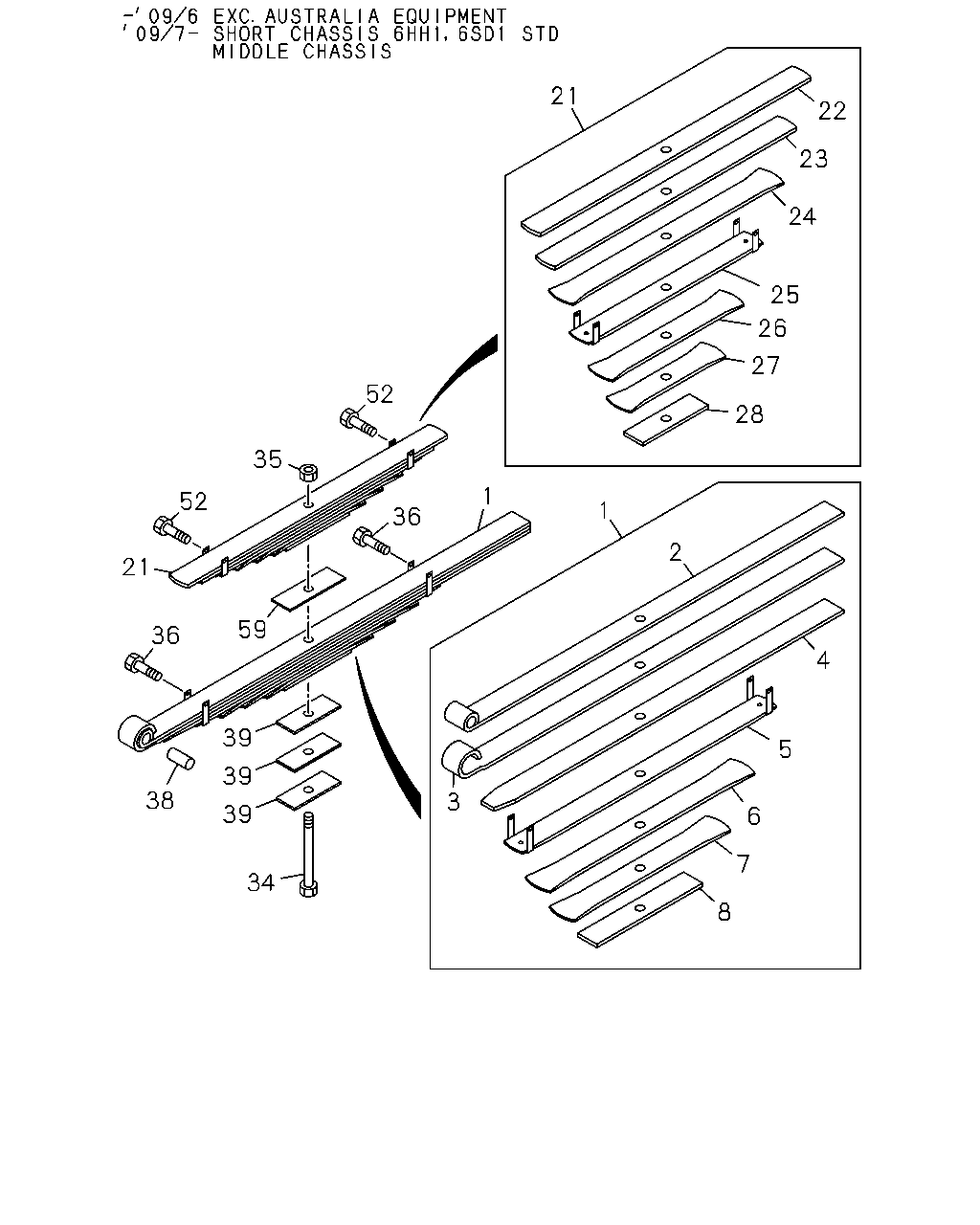

21 22 23 24 25 26 27 28 1 2 4 5 6 7 8 3 34 39 38 39 39 36 59 21 52 35 52 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51410-094-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51410-168-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-667-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51411-094-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51411-168-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51412-094-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51412-168-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51413-094-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51413-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51414-094-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51414-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-666-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51415-094-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51415-168-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: B = 1-51300-522-1	1-51416-094-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51416-168-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51417-094-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51417-168-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-984-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51340-612-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51340-647-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51341-612-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51341-647-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51342-612-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51342-647-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51343-612-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51343-647-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51344-612-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51344-647-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51345-612-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51345-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51346-612-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51346-647-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-991-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51347-612-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51347-647-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-992-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: D = 1-51300-560-0	1-51356-129-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: E = 8-98100-572-0	1-51356-139-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: B = 1-51300-522-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: C = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: B = 1-51300-522-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: C = 1-51300-532-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 1-51300-352-0	1-51377-118-0	05	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: E = 8-98100-572-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: D = 1-51300-560-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, E = 8-98100-572-0	1-51377-118-0	01	1	-

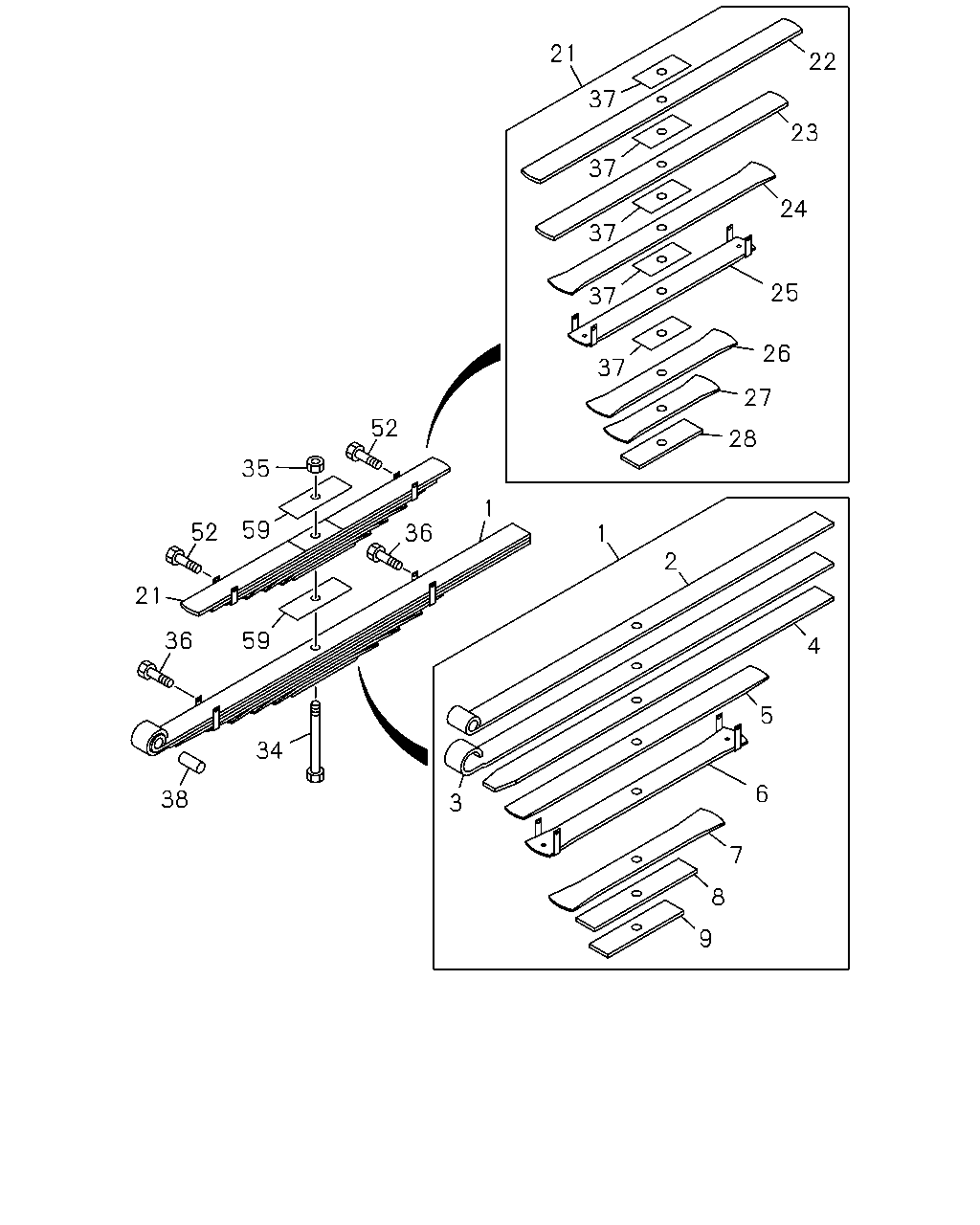

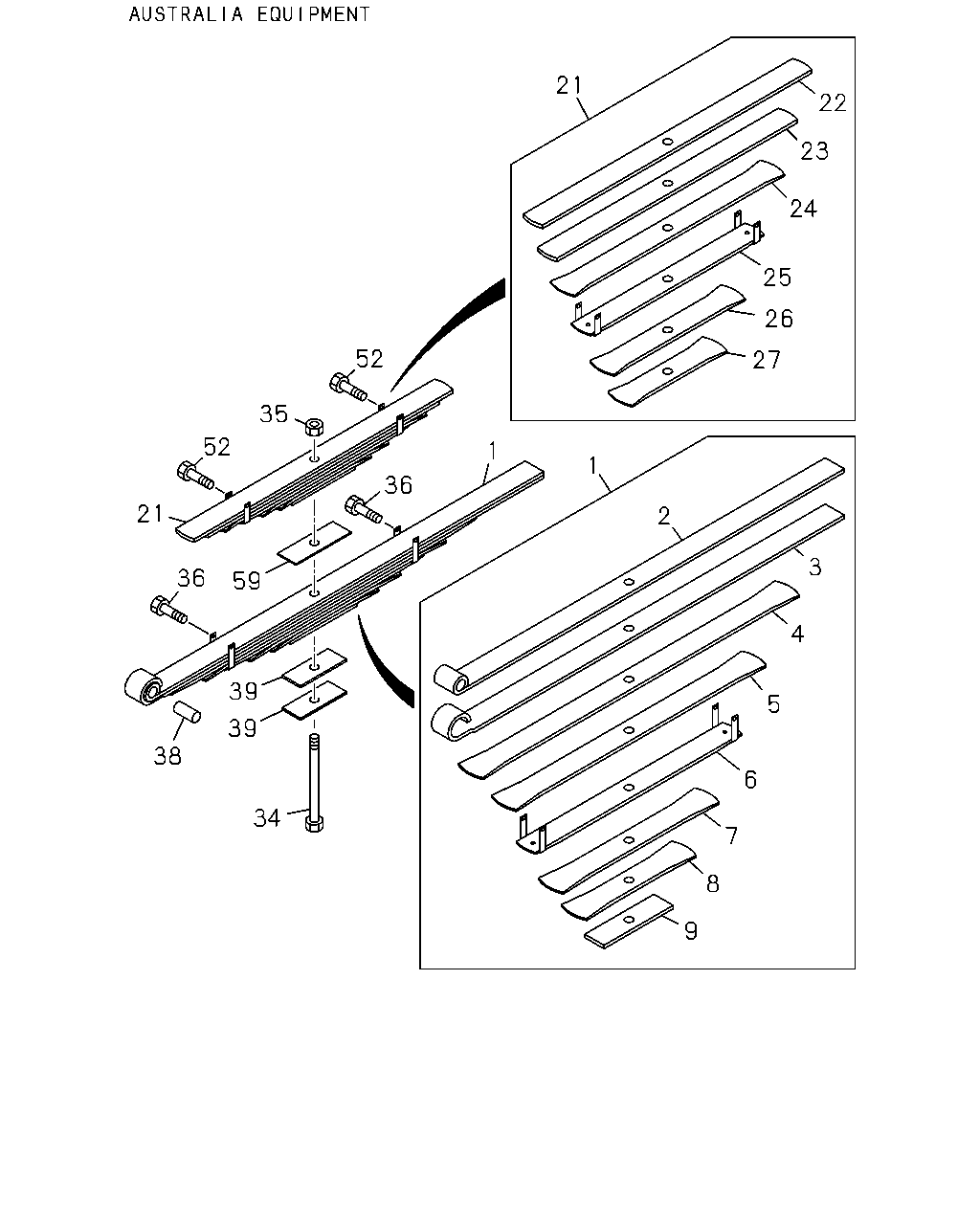

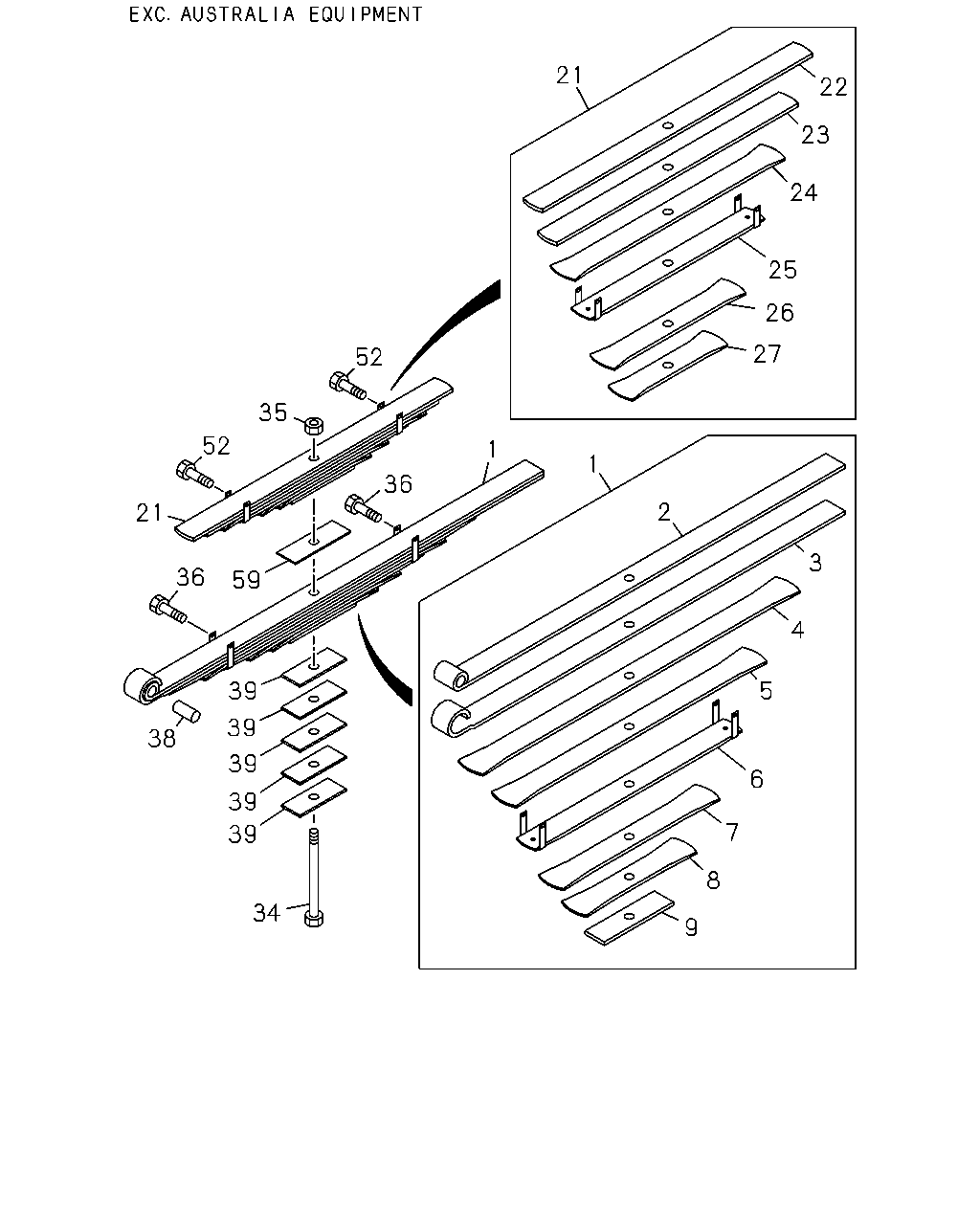

21 22 23 24 25 26 52 27 35 52 1 1 36 21 2 3 36 59 4 39 5 39 38 6 34 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51410-094-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51410-168-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-667-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51411-094-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51411-168-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51412-094-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51412-168-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51413-094-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51413-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51414-094-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51414-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-666-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51415-094-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51415-168-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: B = 1-51300-522-1	1-51416-094-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51416-168-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51417-094-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51417-168-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-984-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51318-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51418-168-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51340-612-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51340-647-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51341-612-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51341-647-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51342-612-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51342-647-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51343-612-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51343-647-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51344-612-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51344-647-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51345-612-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51345-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51346-612-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51346-647-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-991-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: D = 1-51300-560-0	1-51356-129-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: E = 8-98100-572-0	1-51356-139-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: B = 1-51300-522-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: C = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: B = 1-51300-522-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: C = 1-51300-532-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 1-51300-352-0	1-51377-118-0	05	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: E = 8-98100-572-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: D = 1-51300-560-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, E = 8-98100-572-0	1-51377-118-0	01	1	-

21 37 37 37 37 37 22 23 24 25 26 27 28 2 1 1 36 52 35 59 52 21 36 59 38 34 3 4 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51410-094-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51410-168-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-667-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51411-094-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51411-168-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51412-094-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51412-168-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51413-094-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51413-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51414-094-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51414-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-666-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51415-094-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51415-168-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: B = 1-51300-522-1	1-51416-094-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51416-168-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51417-094-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51417-168-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-984-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51318-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51418-168-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51340-612-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51340-647-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51341-612-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51341-647-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51342-612-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51342-647-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51343-612-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51343-647-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51344-612-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51344-647-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51345-612-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51345-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51346-612-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51346-647-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-991-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51347-612-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51347-647-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-992-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: D = 1-51300-560-0	1-51356-129-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: E = 8-98100-572-0	1-51356-139-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: B = 1-51300-522-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: C = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: D = 1-51300-560-0	1-51377-159-0	05	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-87610-164-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: E = 8-98100-572-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: D = 1-51300-560-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, E = 8-98100-572-0	1-51377-118-0	01	1	-

21 22 23 24 25 26 27 28 2 1 1 36 35 52 21 59 36 38 34 3 4 5 6 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51410-094-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51410-168-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-667-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51411-094-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51411-168-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51412-094-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51412-168-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51413-094-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51413-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51414-094-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51414-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-666-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51415-094-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51415-168-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: B = 1-51300-522-1	1-51416-094-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51416-168-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51417-094-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51417-168-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-984-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51340-612-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51340-647-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51341-612-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51341-647-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51342-612-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51342-647-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51343-612-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51343-647-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51344-612-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51344-647-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51345-612-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51345-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51346-612-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51346-647-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-991-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51347-612-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51347-647-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-992-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: D = 1-51300-560-0	1-51356-129-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: E = 8-98100-572-0	1-51356-139-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: B = 1-51300-522-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: C = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-87610-164-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: E = 8-98100-572-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: D = 1-51300-560-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, E = 8-98100-572-0	1-51377-118-0	01	1	-

21 22 23 24 25 26 27 52 35 52 1 1 36 2 21 3 36 59 4 39 5 39 38 39 6 39 7 39 8 34 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51310-721-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51410-094-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51410-168-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-667-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51311-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51411-094-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51411-168-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-978-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51312-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51412-094-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51412-168-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-979-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51313-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51413-094-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51413-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-980-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51314-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51414-094-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51414-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98125-666-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51315-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51415-094-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51415-168-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-982-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51316-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: B = 1-51300-522-1	1-51416-094-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51416-168-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-983-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51317-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: B = 1-51300-522-1	1-51417-094-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51417-168-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-984-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51318-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 15-LEAF ASM PART: D = 1-51300-560-0	1-51418-168-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51340-450-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51340-612-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51340-647-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-985-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51341-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51341-612-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51341-647-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-986-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51342-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51342-612-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51342-647-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-987-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51343-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51343-612-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51343-647-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-988-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51344-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51344-612-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51344-647-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-989-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51345-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51345-612-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51345-647-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-990-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: A = 1-51300-352-0, C = 1-51300-532-0	1-51346-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: B = 1-51300-522-1	1-51346-612-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 15-LEAF ASM PART: D = 1-51300-560-0	1-51346-647-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14-LEAF ASM PART: E = 8-98100-572-0	8-98051-991-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: D = 1-51300-560-0	1-51356-129-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: E = 8-98100-572-0	1-51356-139-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: B = 1-51300-522-1	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: C = 1-51300-532-0	1-51356-146-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0, E = 8-98100-572-0	1-87610-164-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: B = 1-51300-522-1	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: C = 1-51300-532-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 1-51300-352-0	1-51377-118-0	05	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, D = 1-51300-560-0	1-09000-334-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: E = 8-98100-572-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: D = 1-51300-560-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1, C = 1-51300-532-0, E = 8-98100-572-0	1-51377-118-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
