◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#63862) — 24 parça

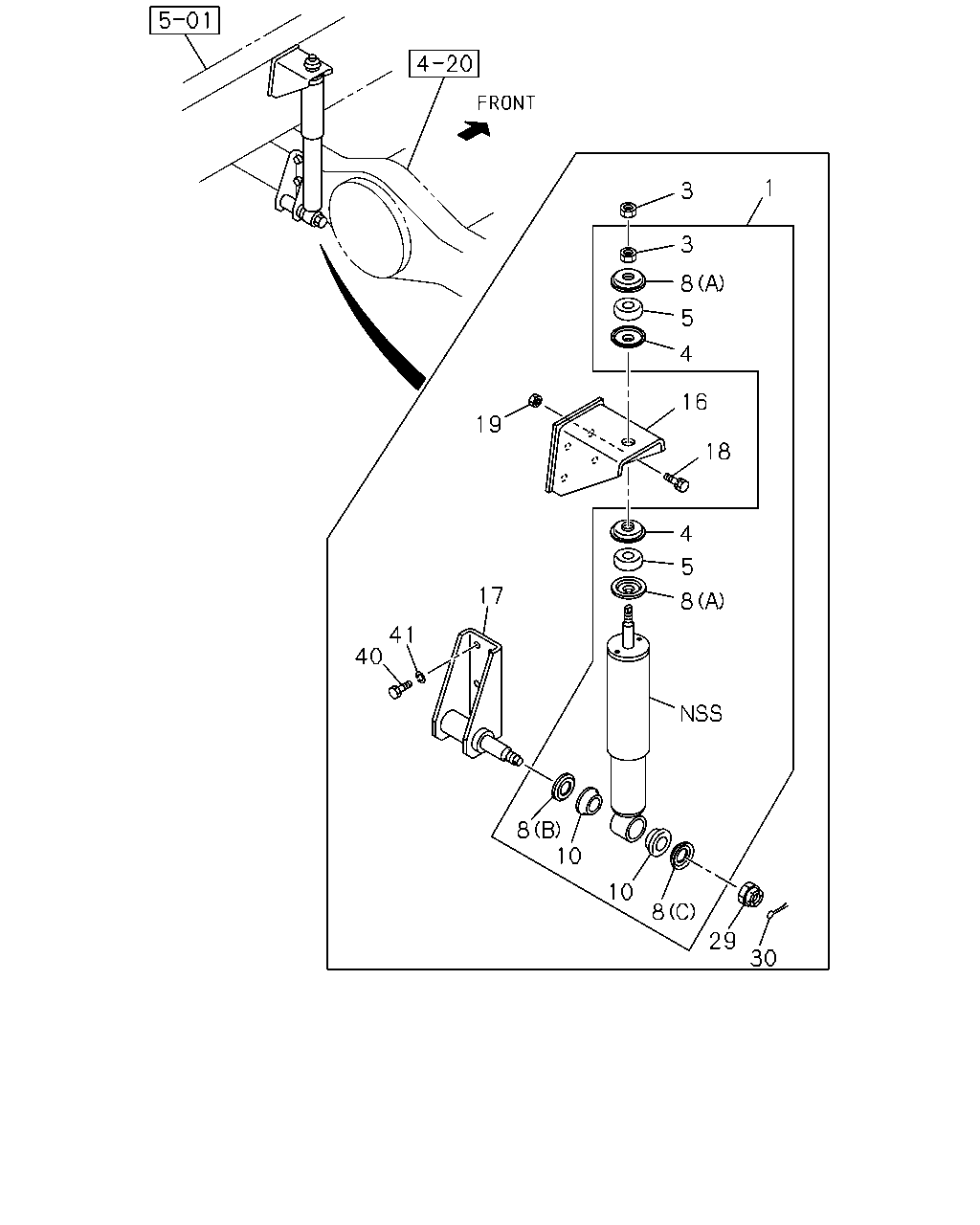

çizim 124897
1 3 3 8 5 4 16 19 18 4 5 17 8 41 40 8 10 10 8 29 30
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
RR SHOCK ABSORBER DUAL<GL6> 		1-51630-640-0 02 1 9804-
3 NUT; S/ABS
RR SHOCK ABSORBER DUAL<GL6> M18 		0-91111-518-0 02 1 0601-
3 NUT; S/ABS
RR SHOCK ABSORBER DUAL<GL6> M18 		9-99111-418-0 04 1 9804-0512
3 NUT; S/ABS
RR SHOCK ABSORBER DUAL<GL6> M18 		9-99111-418-0 02 1 0601-
4 WASHER; CENTER,S/ABS
RR SHOCK ABSORBER DUAL<GL6> 		1-51631-072-0 04 1 9804-
5 BUSHING; RUBBER,S/ABS,UPR
RR SHOCK ABSORBER DUAL<GL6> 		1-51631-073-0 04 1 9804-
8 WASHER; S/ABS
RR SHOCK ABSORBER DUAL<GL6> (A) 		1-51631-071-0 04 1 9804-
8 WASHER; S/ABS
RR SHOCK ABSORBER DUAL<GL6> (B) 		1-51631-074-0 02 1 9804-
8 WASHER; S/ABS
RR SHOCK ABSORBER DUAL<GL6> (C) 		1-51631-075-0 02 1 9804-
10 BUSHING; RUBBER,S/ABS
RR SHOCK ABSORBER DUAL<GL6> 		1-51631-076-0 04 1 9804-
16 BRACKET; S/ABS,RR
VERTICAL TAIL PIPE<NC4> FUEL TANK 400L<SDH> 		1-51681-372-2 02 1 9804-
17 BRACKET; S/ABS LWR
RR SHOCK ABSORBER DUAL<GL6> 		1-51681-762-0 01 1 9804-
17 BRACKET; S/ABS LWR
RR SHOCK ABSORBER DUAL<GL6> 		1-51681-761-0 01 1 9804-
18 BOLT; S/ABS BRKT
VERTICAL TAIL PIPE<NC4> FUEL TANK 400L<SDH> M14X40 		9-92061-440-0 08 1 9804-0512
18 BOLT; S/ABS BRKT
VERTICAL TAIL PIPE<NC4> FUEL TANK 400L<SDH> M14X40 		0-20951-440-0 08 1 0601-
19 NUT; S/ABS BRKT
VERTICAL TAIL PIPE<NC4> FUEL TANK 400L<SDH> M14 		9-99110-514-0 08 1 9804-0512
19 NUT; S/ABS BRKT
VERTICAL TAIL PIPE<NC4> FUEL TANK 400L<SDH> M14 		0-91110-514-0 08 1 0601-
29 NUT; LK,S/ABS,RR SUSP
RR SHOCK ABSORBER DUAL<GL6> M24 		9-99116-424-0 02 1 9804-
30 PIN; SPLIT,S/ABS,RR SUSP
RR SHOCK ABSORBER DUAL<GL6> OD=4.6 L=45 		9-08115-045-0 02 1 9804-0606
30 PIN; SPLIT,S/ABS,RR SUSP
RR SHOCK ABSORBER DUAL<GL6> OD=4.6 L=45 		0-81125-045-0 02 1 0607-
40 BOLT; LWR BRKT
RR SHOCK ABSORBER DUAL<GL6> M14X30 		0-20801-430-0 08 1 9804-0512
40 BOLT; LWR BRKT
RR SHOCK ABSORBER DUAL<GL6> M14X30 		0-20851-430-0 08 1 0601-
41 WASHER; LK
RR SHOCK ABSORBER DUAL<GL6> ID=14.2 		9-09150-614-0 08 1 9804-0603
41 WASHER; LK
RR SHOCK ABSORBER DUAL<GL6> ID=14.2 		0-91510-614-0 08 1 0604-
