4-60 — REAR SUSPENSION (#63861) — 213 parça

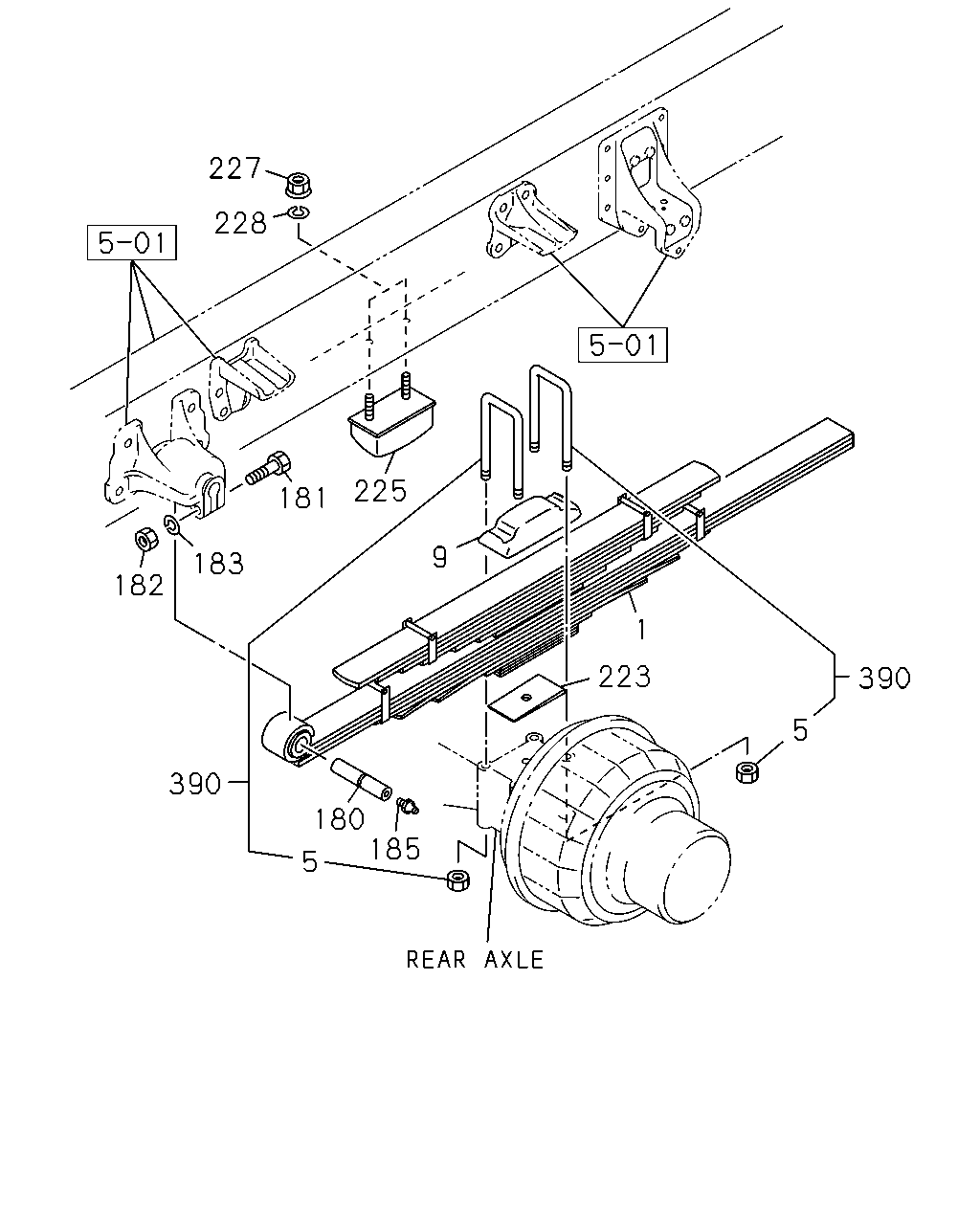

çizim 124985
227 228 225 181 9 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		8-98100-572-0 02 1 0907-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6SD1 TCN ENG(31L) HEAVY DUTY SUSPENSION(F41) 14-LEAF 		8-98100-572-0 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),AUSTRALIA EQUIPMENT(RR3) 14-LEAF 		1-51300-352-0 02 1 9601-0004 ● ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-352-0 02 1 0005- ● ● ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-532-0 02 1 9601-9803 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-532-0 02 1 9804-0004 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) EXC. AUSTRALIA EQUIPMENT(RR3) 14-LEAF 		1-51300-522-0 02 1 9601-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-522-1 02 1 0005-0906 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-522-1 02 1 0907-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HH1STD ENG(65L) HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-522-1 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 14-LEAF 		1-51300-522-1 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-560-0 02 1 9804- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9601-9803 ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9804-0004 ● ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0005-0512 ● ● ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ● ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9601-9803 ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9804-0004 ● ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0005- ● ● ● ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 9601-9803 ● ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 9804-0004 ● ● ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 0005- ● ● ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9601-9803 ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9804-0004 ● ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 0005-0512 ● ● ● ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0601- ● ● ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9601-9803 ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9804-0004 ● ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0005-0512 ● ● ● ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ● ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9601-9803 ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9804-0004 ● ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ● ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-9803 ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9804-0004 ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ● ●
223 SPACER; U BOLT,RR SPR
6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5) 		1-51377-369-1 02 1 0406-0906 ●
223 SPACER; U BOLT,RR SPR 1-51377-369-1 02 1 0907-0907 ● ●
223 SPACER; U BOLT,RR SPR
6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5) 		1-51377-369-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) HEAVY DUTY SUSPENSION(F41) 		1-51377-369-1 02 1 0907-1312 ●
223 SPACER; U BOLT,RR SPR
6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5) 		1-51377-369-1 02 1 0907-1312 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) HEAVY DUTY SUSPENSION(F41) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-344-0 02 1 9601-9609 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51377-344-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-344-0 02 1 9610-9803 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51377-344-0 02 1 9610-9803 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-0 02 1 9804-0006 ● ●
223 SPACER; U BOLT,RR SPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-0 02 1 9804-0006 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) 		1-51377-371-0 02 1 9804-0006 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0007-0403 ● ●
223 SPACER; U BOLT,RR SPR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0007-0403 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) 		1-51377-371-1 02 1 0007-0403 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0404-1212 ● ●
223 SPACER; U BOLT,RR SPR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0404-1212 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51377-371-1 02 1 0404-1212 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5) 		1-51377-371-1 02 1 0404-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9601-9609 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-327-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-327-0 02 1 9610-9803 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9610-9803 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-370-0 02 1 9804-1306 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-370-0 02 1 9804-1306 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		8-98220-147-0 02 1 1307- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		8-98220-147-0 02 1 1307- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-131-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-131-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-51377-368-0 02 1 9804-9805 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-368-0 02 1 9804-9805 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-0 02 1 9804-9805 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-51377-368-0 02 1 9806-0004 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-368-0 02 1 9806-0004 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-0 02 1 9806-0004 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-0 02 1 9806-0004 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-51377-368-1 02 1 0005-0405 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 0005-0405 ● ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0005-0405 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-51377-368-1 02 1 0406-0707 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 0406-0707 ● ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0406-0707 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0406-0707 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 0708-0906 ● ● ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HH1STD ENG(65L) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) EXC. HEAVY DUTY SUSPENSION(F41) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 0907-1212 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-0 02 1 9601-0004 ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-081-0 02 1 9601-0004 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-0 02 1 0005-0612 ● ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-081-0 02 1 0005-0612 ● ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0701-0906 ● ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 0701-0906 ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0907-0907 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 0907-0907 ● ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0907- ● ● ●
225 RUBBER; CUSHION,RR SPR
6SD1 TCN ENG(31L) REAR AXLE R130<B5V> HEAVY DUTY SUSPENSION(F41) 		1-53366-081-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> HEAVY DUTY PACKAGE TRUCK<RD2> T=80 		1-53366-025-1 01 1 9702-9803 ● ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-045-0 02 1 9804-0612 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-0 02 1 9804-0612 ●
225 RUBBER; CUSHION,RR SPR
REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0701-0906 ● ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 0701-0906 ●
225 RUBBER; CUSHION,RR SPR
REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907-0907 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 0907-0907 ●
225 RUBBER; CUSHION,RR SPR
REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907- ● ●
225 RUBBER; CUSHION,RR SPR
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HH1STD ENG(65L) REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
6SD1 TCN ENG(31L) REAR AXLE R130<B5V> EXC. HEAVY DUTY SUSPENSION(F41) 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 02 1 9601-9701 ● ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 01 1 9702-9803 ● ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-53366-142-0 01 1 9702-9803 ● ●
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9601-9611 ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9612-9803 ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9804-0004 ● ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ● ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ● ●
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9601-9611 ● ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-2 04 1 9601-9803 ●
390 U-BOLT SET; RR SPRING
EXC. AUSTRALIA EQUIPMENT(RR3) L=490 		1-87870-036-2 04 1 9601-9803 ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-2 04 1 9804-0004 ● ●
390 U-BOLT SET; RR SPRING
EXC. AUSTRALIA EQUIPMENT(RR3) L=490 		1-87870-036-2 04 1 9804-0004 ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0005-0906 ● ● ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0907-0907 ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0907- ● ● ●
390 U-BOLT SET; RR SPRING
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HH1STD ENG(65L) L=490 		1-87870-036-4 04 1 0907- ●
390 U-BOLT SET; RR SPRING
6SD1 TCN ENG(31L) EXC. HEAVY DUTY SUSPENSION(F41) L=490 		1-87870-036-4 04 1 0907- ●
390 U-BOLT SET; RR SPRING
AUSTRALIA EQUIPMENT(RR3) EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9601-9803 ● ●
390 U-BOLT SET; RR SPRING
AUSTRALIA EQUIPMENT(RR3) EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9804-0004 ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-300-0 04 1 9804-0004 ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-300-1 04 1 0005-0906 ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-300-1 04 1 0907-0907 ● ● ●
390 U-BOLT SET; RR SPRING
6SD1 TCN ENG(31L) HEAVY DUTY SUSPENSION(F41) L=470 		1-87870-300-1 04 1 0907- ●
390 U-BOLT SET; RR SPRING
L=470 		1-87870-300-1 04 1 0907- ●
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> AUSTRALIA EQUIPMENT(RR3) L=490 		1-87870-299-0 04 1 9601-9803 ● ●
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> AUSTRALIA EQUIPMENT(RR3) L=490 		1-87870-299-0 04 1 9804-0004 ●

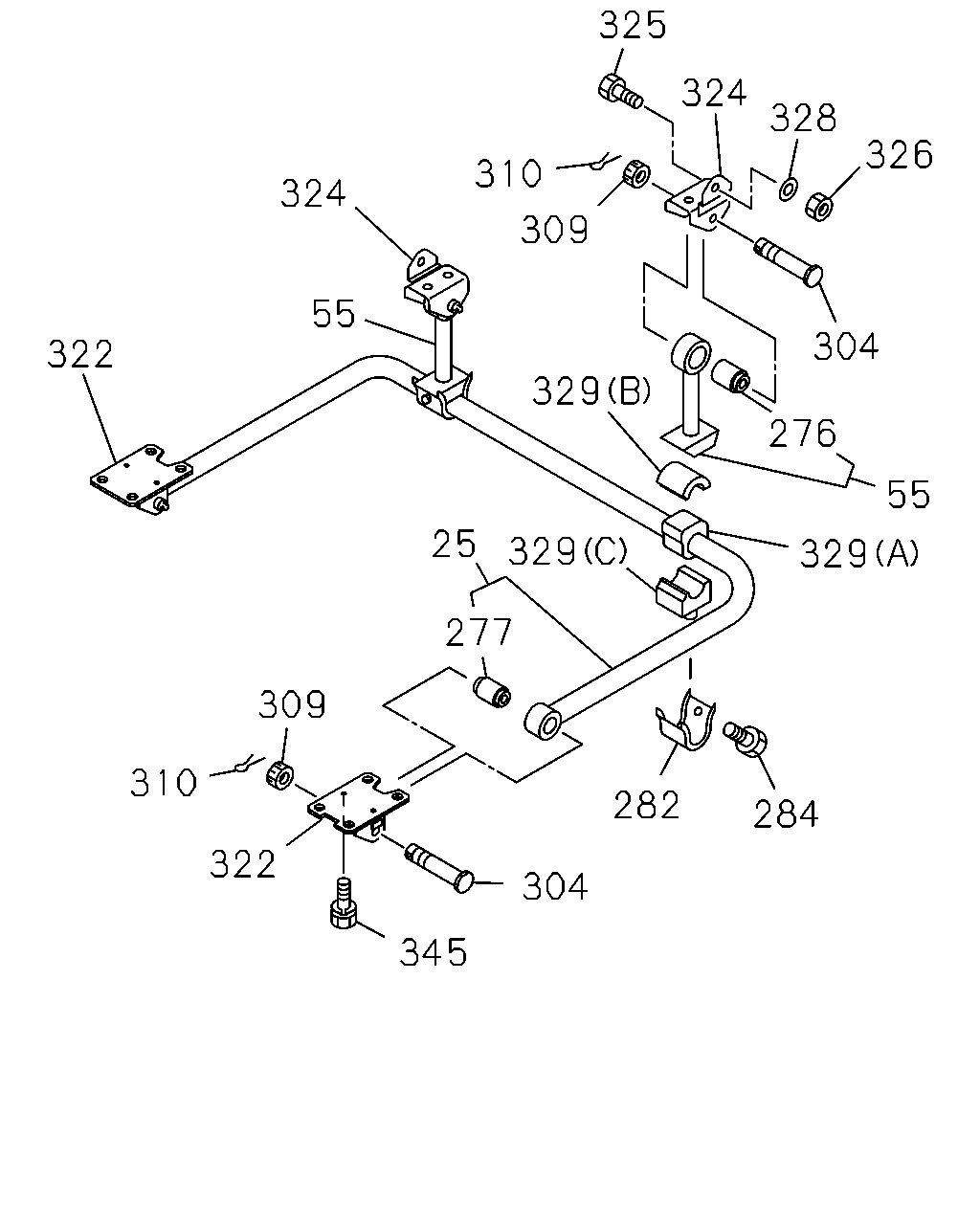

çizim 125083
325 324 328 326 310 324 309 55 304 322 329 276 55 25 329 329 277 309 310 282 284 322 304 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 9601-9803 ● ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 9804-0004 ● ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 0005- ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-035-1 02 1 9601-9803 ● ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-035-1 02 1 9804-0004 ● ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-035-1 02 1 0005- ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 9601-9803 ● ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 9804-0004 ● ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 0005- ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9601-9803 ● ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9804-0004 ● ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 0005- ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9601-9803 ● ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9804-0004 ● ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 0005- ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9601-9803 ● ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9804-0004 ● ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 0005- ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-1 04 1 9601-9803 ● ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-1 04 1 9804-0004 ● ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 0005- ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9601-9803 ● ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9804-0004 ● ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 0005- ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9601-9803 ● ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9804-0004 ● ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 0005-0606 ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		0-81125-045-0 04 1 0607- ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-048-4 02 1 9601-9803 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-048-4 01 1 9804-0004 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-048-4 01 1 0005- ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-127-0 01 1 9804-0004 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-127-0 01 1 0005- ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 9601-9803 ● ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 9804-0004 ● ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 0005- ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 06 1 9601-9803 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 04 1 9804-0004 ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 02 1 9804-0004 ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X35 		9-92061-435-0 02 1 9804-0512 ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X35 		0-20951-435-0 02 1 0601- ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 04 1 9804-0512 ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		0-20951-440-0 04 1 0601- ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 04 1 9601-9803 ● ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9804-0004 ● ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 0005-0512 ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		0-91110-514-0 06 1 0601- ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 10 1 9601-9803 ● ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 9804-0004 ● ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 0005-0910 ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		8-98010-627-1 12 1 0911- ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-016-0 02 1 9601-9602 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-051-1 02 1 9603-9803 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-051-1 02 1 9804-0004 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-051-1 02 1 0005- ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (C) 		1-51789-052-0 02 1 9603-9803 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (C) 		1-51789-052-0 02 1 9804-0004 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (C) 		1-51789-052-0 02 1 0005- ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9601-9606 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 02 1 9607-9702 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 04 1 9703-9803 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 04 1 9804-0004 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 04 1 0005-0512 ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28051-016-0 04 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
