4-55 — FRONT LEAF SPRING (#63860) — 258 parça

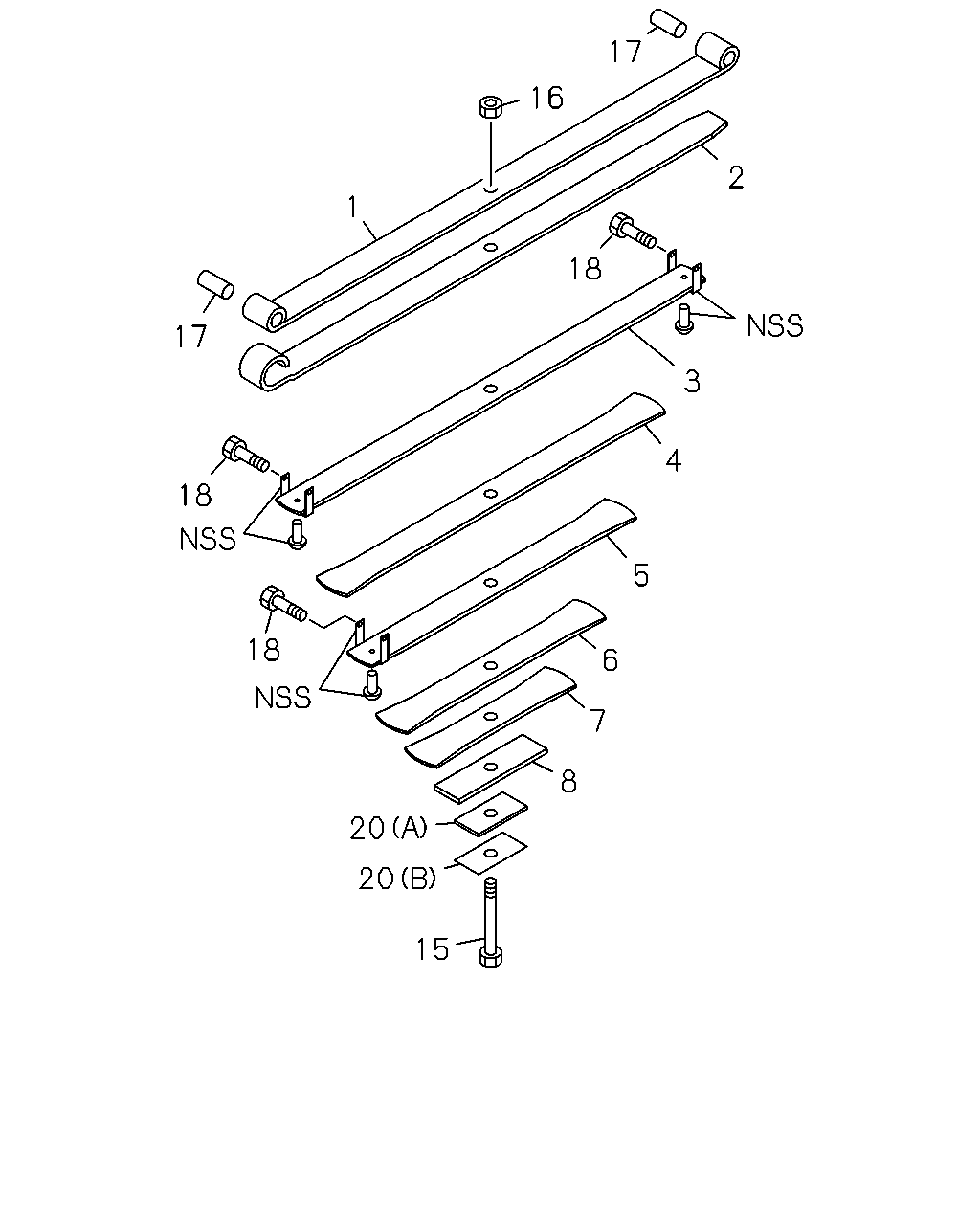

çizim 124886
17 16 2 1 18 17 3 4 18 5 18 6 7 8 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51131-349-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51131-474-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51131-527-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51131-528-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51131-793-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51132-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51132-474-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51132-527-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51132-528-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51132-793-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51133-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51133-474-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51133-527-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51133-528-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: F = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: G = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51133-793-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51134-349-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51134-474-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51134-527-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51134-528-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51135-349-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51135-474-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51135-527-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51135-528-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51136-349-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51136-474-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51136-527-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51136-528-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51137-349-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51137-474-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LWAF ASM PART: D = 1-51130-527-0 		1-51137-527-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51137-528-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51138-349-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51138-474-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51138-527-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51138-528-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-527-0 		1-51156-290-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-474-0, H = 1-51130-793-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-349-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, E = 1-51130-528-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: F = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: G = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: H = 1-51130-793-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-09000-536-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: F = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=12 ASM PART: B = 1-51130-349-0, H = 1-51130-793-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: E = 1-51130-528-0 		1-51177-115-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: C = 1-51130-474-0, D = 1-51130-527-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 1-51130-793-0 		1-51177-161-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0 		1-51177-181-0 01 1 -

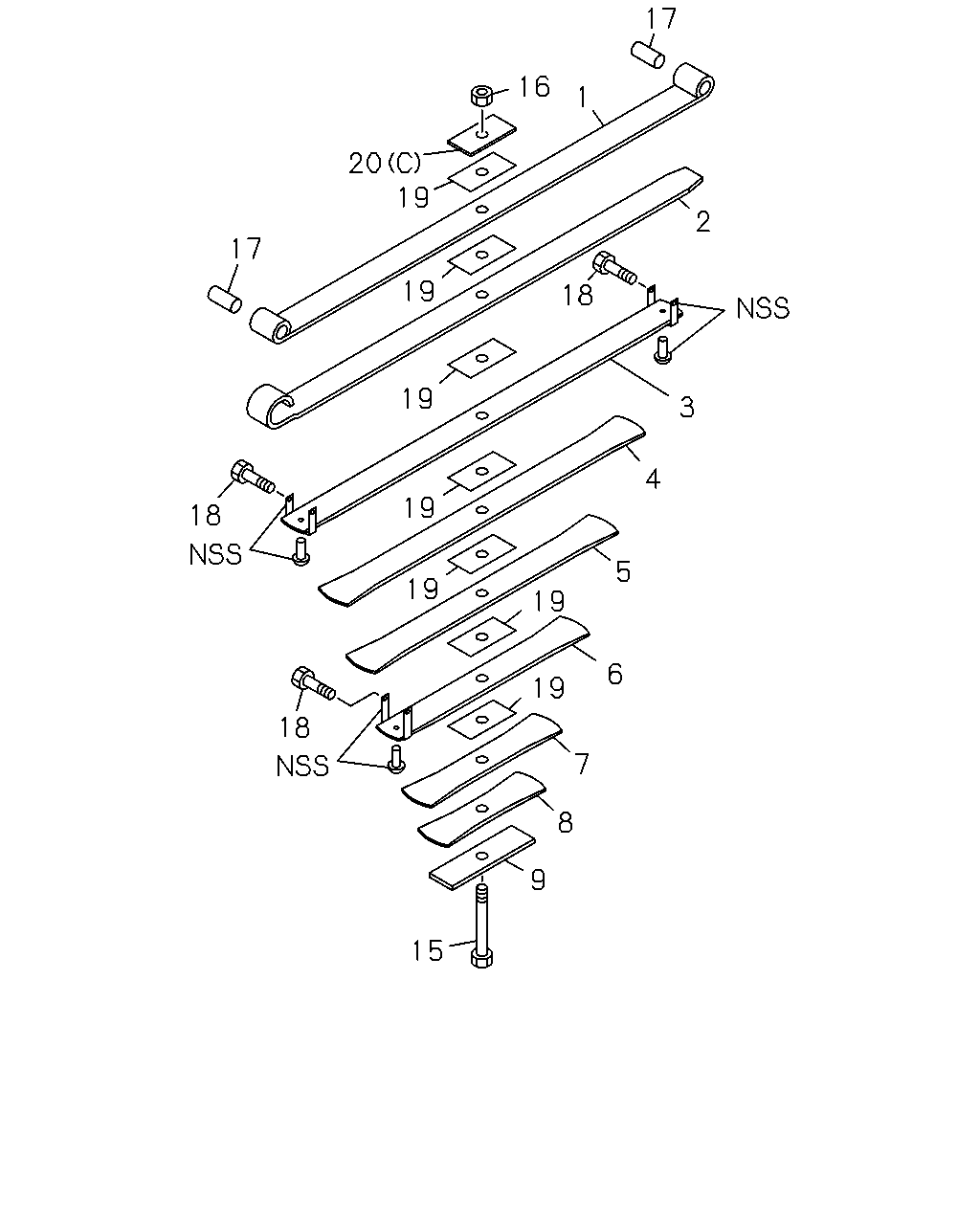

çizim 124889
17 16 1 20 19 2 17 19 18 19 3 4 19 18 5 19 19 6 19 18 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51131-349-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51131-474-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51131-527-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51131-528-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51131-793-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51132-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51132-474-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51132-527-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51132-528-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51132-793-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51133-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51133-474-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51133-527-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51133-528-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: F = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: G = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51133-793-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51134-349-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51134-474-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51134-527-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51134-528-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51135-349-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51135-474-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51135-527-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51135-528-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51136-349-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51136-474-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51136-527-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51136-528-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51137-349-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51137-474-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LWAF ASM PART: D = 1-51130-527-0 		1-51137-527-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51137-528-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51138-349-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51138-474-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51138-527-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51138-528-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51139-349-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51139-527-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51139-528-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-527-0 		1-51156-290-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-474-0, H = 1-51130-793-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-349-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, E = 1-51130-528-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: F = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: G = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: H = 1-51130-793-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-349-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-527-0, E = 1-51130-528-0 		1-51177-322-0 07 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: F = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=12 ASM PART: B = 1-51130-349-0, H = 1-51130-793-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: E = 1-51130-528-0 		1-51177-115-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: C = 1-51130-474-0, D = 1-51130-527-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 1-51130-793-0 		1-51177-161-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0 		1-51177-181-0 01 1 -

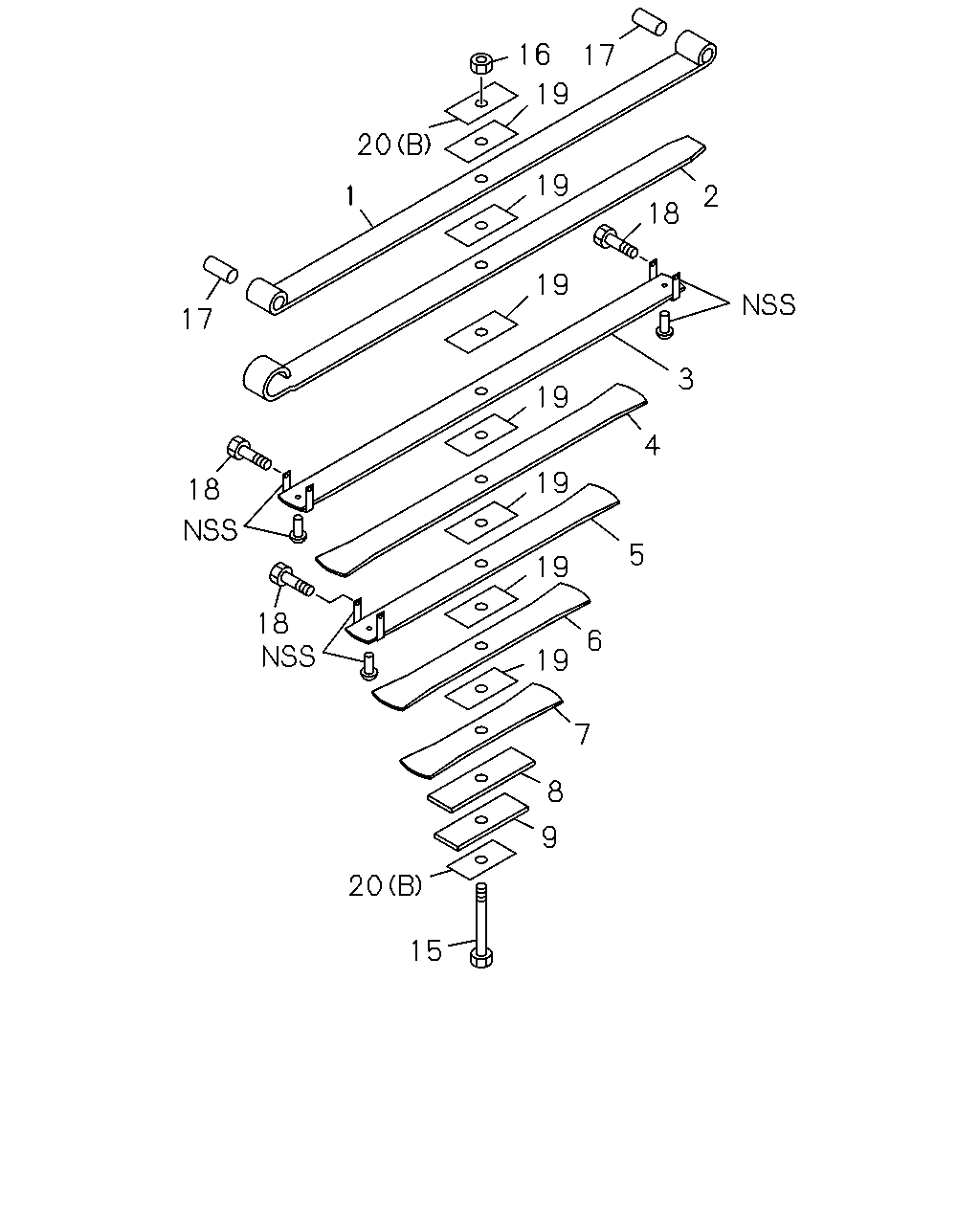

çizim 125013
16 17 19 20 19 2 1 18 19 17 3 19 4 19 18 5 19 18 6 19 7 8 9 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51131-349-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51131-474-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51131-527-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51131-528-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51131-793-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51132-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51132-474-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51132-527-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51132-528-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51132-793-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51133-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51133-474-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51133-527-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51133-528-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: F = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: G = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51133-793-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51134-349-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51134-474-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51134-527-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51134-528-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51135-349-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51135-474-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51135-527-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51135-528-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51136-349-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51136-474-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51136-527-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51136-528-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51137-349-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51137-474-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LWAF ASM PART: D = 1-51130-527-0 		1-51137-527-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51137-528-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51138-349-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51138-474-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51138-527-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51138-528-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51139-349-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51139-527-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51139-528-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-527-0 		1-51156-290-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-474-0, H = 1-51130-793-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-349-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, E = 1-51130-528-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: F = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: G = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: H = 1-51130-793-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-349-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-527-0, E = 1-51130-528-0 		1-51177-322-0 07 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: F = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=12 ASM PART: B = 1-51130-349-0, H = 1-51130-793-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: E = 1-51130-528-0 		1-51177-115-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: C = 1-51130-474-0, D = 1-51130-527-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 1-51130-793-0 		1-51177-161-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0 		1-51177-181-0 01 1 -
çizim 125135
17 16 20 19 19 18 19 17 1 3 20 2 20 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51131-349-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51131-474-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51131-527-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51131-528-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51131-743-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51131-744-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51131-793-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: B = 1-51130-349-0 		1-51132-349-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: C = 1-51130-474-0 		1-51132-474-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51132-527-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51132-528-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: F = 1-51130-743-0 		1-51132-743-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: G = 1-51130-744-0 		1-51132-744-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51132-793-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF, W/CLIP ASM PART: B = 1-51130-349-0 		1-51133-349-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: C = 1-51130-474-0 		1-51133-474-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: D = 1-51130-527-0 		1-51133-527-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-528-0 		1-51133-528-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: F = 1-51130-743-0 		1-51133-743-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: G = 1-51130-744-0 		1-51133-744-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF ASM PART: H = 1-51130-793-0 		1-51133-793-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: D = 1-51130-527-0 		1-51156-290-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: C = 1-51130-474-0, H = 1-51130-793-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-349-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0, E = 1-51130-528-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: F = 1-51130-743-0 		1-51156-368-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: G = 1-51130-744-0 		1-51156-405-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0, F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0, D = 1-51130-527-0, E = 1-51130-528-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: H = 1-51130-793-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-349-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0, H = 1-51130-793-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-527-0, E = 1-51130-528-0 		1-51177-322-0 07 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: F = 1-51130-743-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: F = 1-51130-743-0, G = 1-51130-744-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=12 ASM PART: B = 1-51130-349-0, H = 1-51130-793-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: E = 1-51130-528-0 		1-51177-115-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=6 ASM PART: C = 1-51130-474-0, D = 1-51130-527-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 1-51130-793-0 		1-51177-161-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0 		1-51177-181-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
