Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#6386) — 275 parça

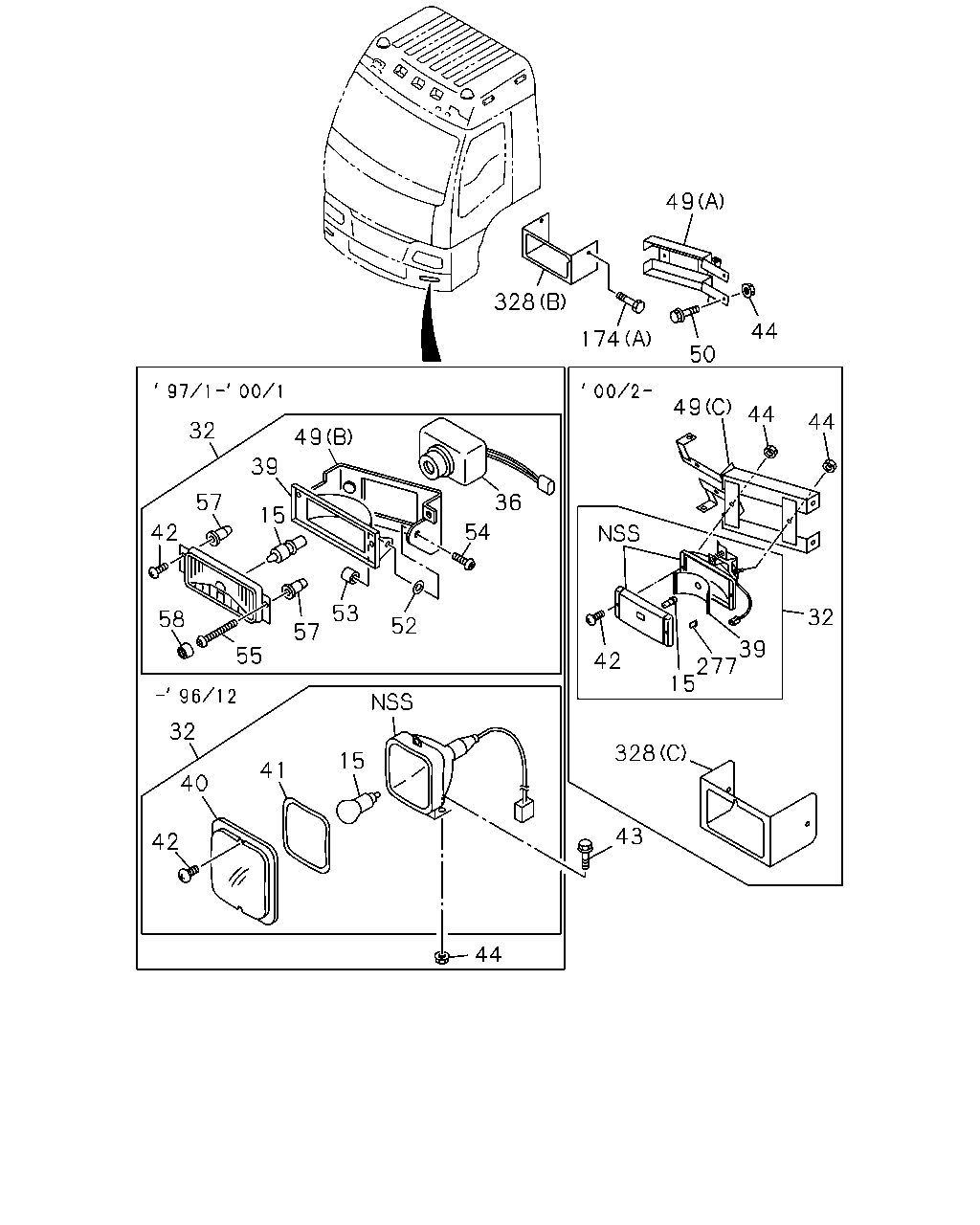

49 328 44 174 50 49 44 44 32 49 39 57 36 15 54 42 53 32 58 52 57 39 277 15 55 42 32 328 15 41 40 43 42 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 40W	1-82194-024-0	02	1	9612-9612
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9604-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	1-82110-298-0	01	1	9612-9612
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-777-1	01	1	9701-0001
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0002-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	1-82110-297-0	01	1	9612-9612
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-776-1	01	1	9701-0001
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0002-
36	CORD; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97095-518-0	02	1	9701-0001
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-061-0	02	1	9701-9904
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97119-301-0	01	1	9905-0001
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-061-0	01	1	9905-0001
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-929-0	02	1	0002-
40	LENS; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	1-82235-007-0	02	1	9612-9612
41	GASKET; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	1-82236-006-0	02	1	9612-9612
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-058-0	04	1	9612-9612
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-089-0	04	1	9701-0001
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-931-0	04	1	0002-
43	BOLT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28680-820-0	04	1	9612-9612
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8 FLANGE	0-91150-108-0	04	1	9612-0001
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5 CAP NUT	9-61167-090-0	02	1	0002-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82117-122-1	01	1	9612-0001
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-149-0	01	1	0002-0004
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-151-0	01	1	0005-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82117-123-1	01	1	9612-0001
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-150-0	01	1	0002-0004
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-152-0	01	1	0005-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-97104-091-0	01	1	9701-0001
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-97104-090-0	01	1	9701-0001
50	BOLT; BRKT,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28680-820-0	04	1	9612-
52	RING; MTG,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-062-0	02	1	9701-0001
53	NUT; MTG RING,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-94379-802-0	04	1	9701-0001
54	BOLT; MTG RING,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5X12	8-94379-803-0	04	1	9701-0001
55	SCREW; ADJ,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-087-0	02	1	9701-0001
57	NUT; UNIT TO SCREW,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-94379-806-0	06	1	9701-0001
58	HOLDER; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-088-0	02	1	9701-0001
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	9612-
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X25	8-94279-204-0	04	1	9604-0012
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-
277	CLIP; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-930-0	02	1	0002-
328	COVER; LAMP (A)	1-76217-122-0	03	1	9604-9904
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9905-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-124-0	01	1	9612-0001
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-134-0	01	1	0002-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-125-0	01	1	9612-0001
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-135-0	01	1	0002-

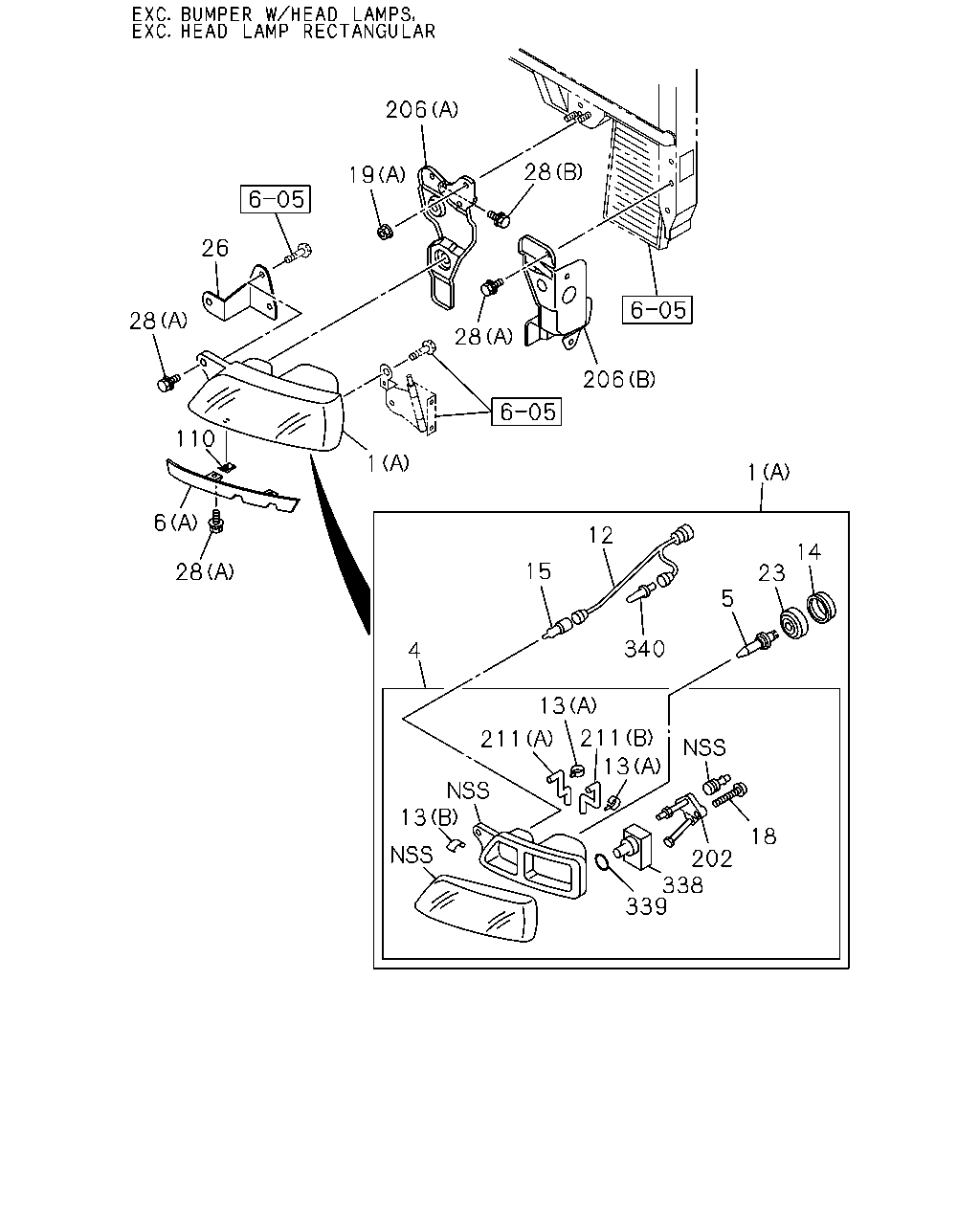

206 28 19 26 28 28 206 110 1 1 6 12 14 15 28 23 5 340 4 13 211 13 211 13 18 202 338 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9604-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9604-9609
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9604-9609
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9610-9610
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9604-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9604-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9604-9609
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9604-9609
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9610-9610
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9604-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9604-
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9604-9807
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-079-0	01	1	9604-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-078-0	01	1	9604-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71107-024-0	01	1	9604-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71107-023-0	01	1	9604-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C) INNER 24V 70W	1-82114-018-0	02	1	9604-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C) OUTER 24V 75/70W	1-82114-019-0	02	1	9604-
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9604-9904
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9905-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	9604-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	9604-
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	9604-
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 40W	1-82194-024-0	02	1	9612-9612
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9604-
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	9604-
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9604-9611
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9604-
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	9604-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9604-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9604-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9604-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9604-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9604-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	9604-
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	9604-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9604-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9604-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9604-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9604-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-142-0	01	1	9604-9911
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	9912-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-144-0	01	1	9604-9911
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	9912-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-141-0	01	1	9604-9911
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	9912-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-143-0	01	1	9604-9911
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	9912-
338	LEVELING; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-138-0	02	1	9808-9904
339	GASKET; LEVELING EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-158-0	02	1	9808-9904
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	9604-

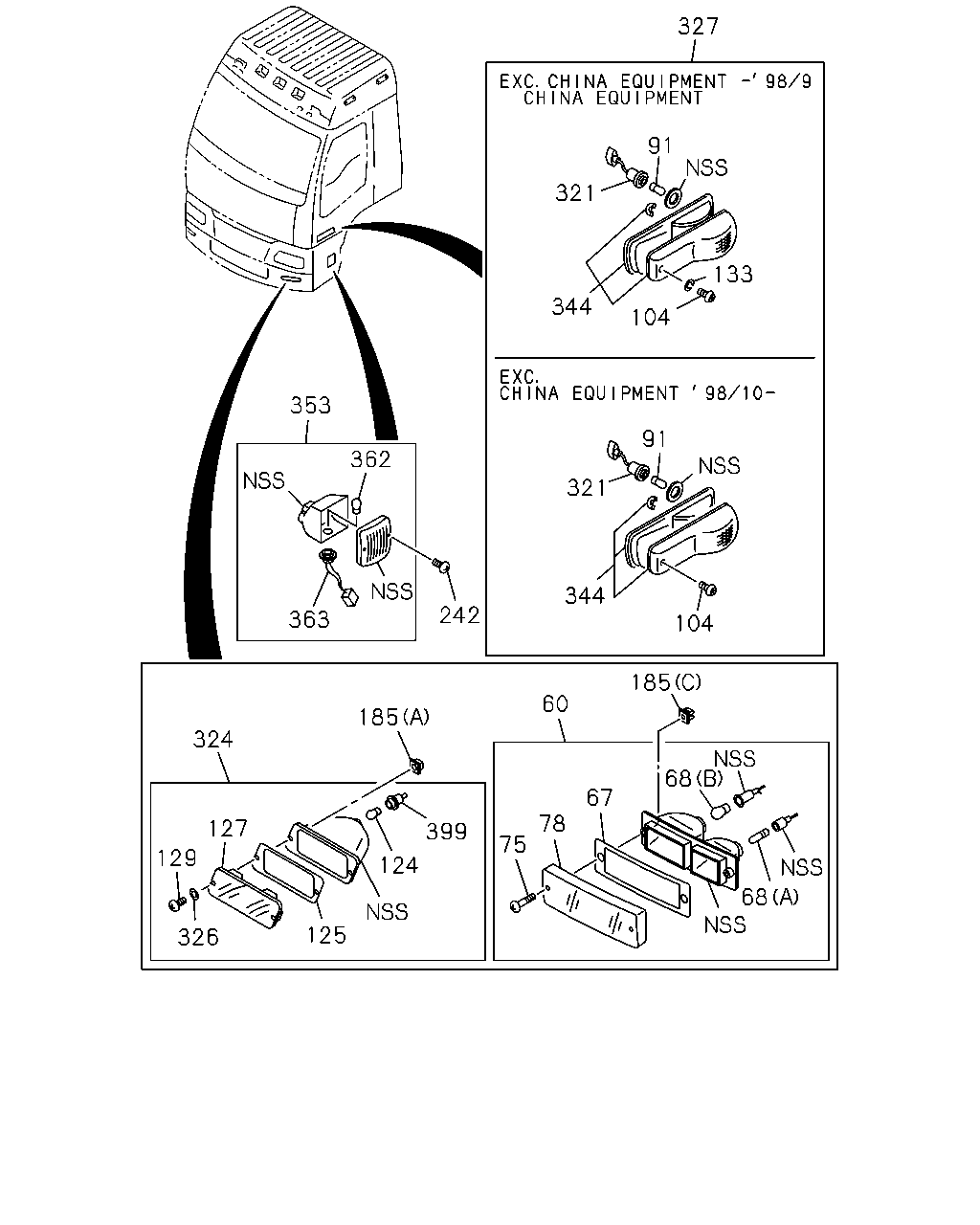

327 91 321 133 344 104 353 91 362 321 344 242 363 104 185 60 185 324 68 67 78 127 399 75 129 124 68 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	9604-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	9604-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	9604-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	9604-
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	9604-
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	9604-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	9604-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	9604-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	9604-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	9604-
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	9604-
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	9604-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	9604-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	9604-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	9604-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	9604-
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9604-9809
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 10W	1-82194-037-0	02	1	9810-9904
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	9905-
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	9810-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9604-
124	BULB; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	9604-
125	GASKET; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	9604-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	9604-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	9604-
129	SCREW; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	9604-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9604-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9604-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9604-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9604-
185	GROMMET; SCREW EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9604-9606
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9604-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9604-9904
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	9905-
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	9905-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	9604-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	9604-
326	WASHER; PL,FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	9604-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-265-1	01	1	9604-9904
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-228-1	01	1	9905-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-264-1	01	1	9604-9904
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-227-1	01	1	9905-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-263-0	01	1	9604-9809
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	9810-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-262-0	01	1	9604-9809
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	9810-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-267-1	01	1	9604-9904
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-266-1	01	1	9604-9904
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	9905-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	9905-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	9604-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	9604-
353	LAMP ASM; STEP 24V 5W	1-86830-248-2	01	1	9604-
362	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	9604-
363	HARNESS; STEP LAMP	1-86830-296-0	01	1	9604-
399	SOCKET; TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	9604-

206 19 28 206 28 175 1 16 160 162 1 140 19 1 6 22 25 21 5 20 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9604-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9604-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9604-9609
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9610-9610
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9604-9609
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9610-9610
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9604-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9604-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9604-9609
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9610-9610
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9604-9609
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9610-9610
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9604-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9604-
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9604-9807
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-079-0	01	1	9604-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-078-0	01	1	9604-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71107-024-0	01	1	9604-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71107-023-0	01	1	9604-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C) INNER 24V 70W	1-82114-018-0	02	1	9604-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C) OUTER 24V 75/70W	1-82114-019-0	02	1	9604-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-103-1	04	1	9604-
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9604-9611
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9604-
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-104-0	16	1	9604-9704
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-023-0	16	1	9705-
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-021-0	04	1	9604-9704
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-105-0	04	1	9705-
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-095-0	08	1	9604-
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB>	1-09104-031-0	08	1	9604-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9604-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9604-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9604-
140	NUT BUMPER W/HEADLAMPS<SLB> M5 FLANGE	1-09984-170-0	12	1	9604-
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28080-816-0	08	1	9604-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-304-1	16	1	9604-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9604-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9604-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9604-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9604-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9604-

256 328 84 325 185 32 83 325 185 256 82 81 174 83 80 84 256 80 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	1-82110-298-0	01	1	9612-9612
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-777-1	01	1	9701-0001
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0002-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	1-82110-297-0	01	1	9612-9612
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-776-1	01	1	9701-0001
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0002-
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 5W	8-94135-397-0	02	1	9604-9904
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	9905-
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 3W	1-82219-035-0	06	1	0012-
81	SEAT; SCREW CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82219-012-0	04	1	9604-9904
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9905-
82	SCREW; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82219-011-0	04	1	9604-9904
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	9905-
83	LENS; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82215-046-0	02	1	9604-9904
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	9905-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	9905-
84	GASKET; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-86830-288-0	02	1	9604-9904
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	9905-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	9905-
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	9612-
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X25	8-94279-204-0	04	1	9604-0012
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9604-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9604-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9604-
185	GROMMET; SCREW EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9604-9606
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-86830-242-1	02	1	9604-9904
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-1	02	1	9905-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-241-0	06	1	0002-0011
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0012-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	9905-
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	9604-9904
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9905-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9905-
328	COVER; LAMP (A)	1-76217-122-0	03	1	9604-9904
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9905-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-124-0	01	1	9612-0001
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-134-0	01	1	0002-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-125-0	01	1	9612-0001
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-135-0	01	1	0002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
