◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#63859) — 314 parça

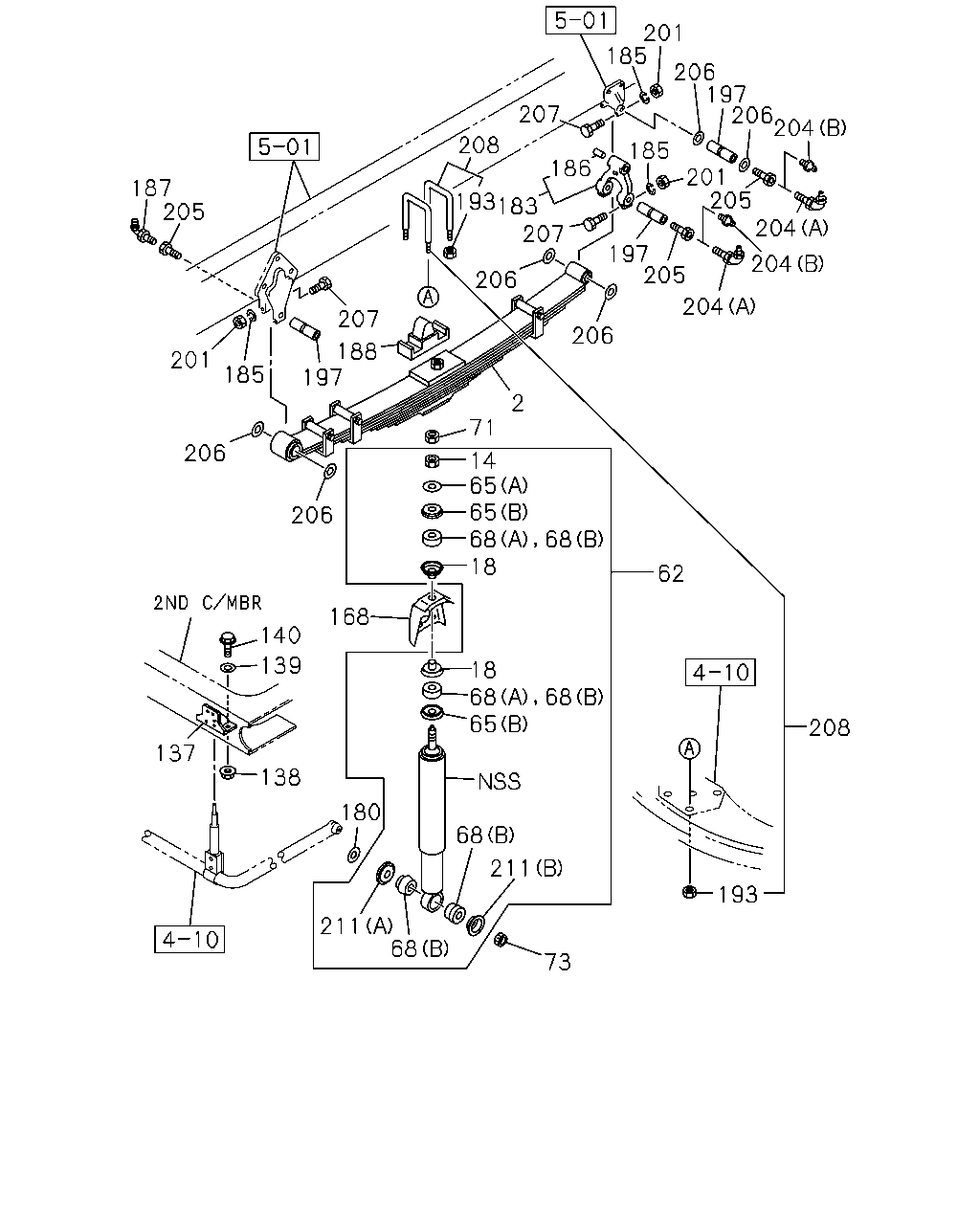

çizim 184262
201 185 206 197 206 204 207 208 185 201 205 204 186 187 205 193 183 207 197 205 204 206 204 207 206 188 197 201 185 2 71 206 14 65 65 18 206 62 168 140 139 18 65 208 137 138 180 68 211 193 211 68 73 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 9601-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 0005-0010 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-474-0 01 1 0011- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 9601-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 0005-0010 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-343-0 01 1 0011- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59>,FRONT SPRING HEAVY DUTY<F60> 8-LEAF 		1-51130-343-0 02 1 9601-9810 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 9811-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 0005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 0005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9601-9803 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 02 1 9601-9803 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9804-9810 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 02 1 9804-9810 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9811- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-743-0 01 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-744-0 01 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-793-0 02 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-528-0 01 1 9804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-527-0 01 1 9804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-527-0 02 1 9804- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-9803 ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9804-0004 ● ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0010 ● ● ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0011-0101 ● ● ● ●
14 NUT; S/ABS,UPR
EXC. FRONT SPRING LONG SPAN<W36> M14 		9-99111-414-0 02 1 0011-0101 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0102- ● ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-9803 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9804-0004 ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0005-0010 ● ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0011- ● ● ● ●
18 WASHER; CENTERING,S/ABS
EXC. FRONT SPRING LONG SPAN<W36> ID=20.8 		9-51631-041-0 04 1 0011- ●
18 WASHER; CENTERING,S/ABS
FRONT SPRING LONG SPAN<W36> ID=24 		1-51631-067-0 04 1 0102- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-433-1 02 1 9601-9803 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9804-0004 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0005-0010 ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0011- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING LONG SPAN<W36> 		1-51630-579-0 02 1 0011- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING LONG SPAN<W36> 		1-51630-415-0 02 1 0011-0101 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING LONG SPAN<W36> 		1-51600-415-0 02 1 0102- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-641-0 02 1 9804- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 9804-0010 ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0011- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING LONG SPAN<W36> BEST VALUE PARTS 		1-87610-155-0 02 1 0011- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-9803 ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 9804-0004 ● ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0005-0010 ● ● ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0011- ● ● ● ●
65 WASHER; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (B) ID=16.5 		9-51631-040-0 04 1 0011- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-9803 ● ● ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=27 		9-51631-027-0 02 1 0011-0101 ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (A) ID=16.5 		1-09503-266-0 02 1 0102- ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=21 		9-51631-028-0 02 1 0011-0101 ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=16.5 		1-51631-068-0 04 1 0102- ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-9803 ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9804-0004 ● ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0005-0010 ● ● ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0011- ● ● ● ●
68 BUSHING; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (A) 		9-51631-039-0 04 1 0011- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-9803 ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9804-0004 ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0005-0010 ● ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0011-0101 ● ● ● ●
68 BUSHING; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (B) 		9-51631-026-0 04 1 0011-0101 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0102- ● ● ● ● ●
68 BUSHING; S/ABS
FRONT SPRING LONG SPAN<W36> (A) 		9-51631-026-0 08 1 0011-0101 ●
68 BUSHING; S/ABS
FRONT SPRING LONG SPAN<W36> (A) ID=16 T=25 		1-51631-069-0 04 1 0102- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-9803 ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9804-0004 ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0512 ● ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9601-9803 ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9804-0004 ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0005-0311 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312-0405 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0406-0512 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ● ● ● ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9601-9803 ● ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9804-0004 ● ● ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-3 02 1 0005- ● ● ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9601-9606 ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 9607-9803 ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 9804-0004 ● ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 0005-0602 ● ● ● ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ● ● ●
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9601-9606 ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28081-030-0 08 1 9601-9606 ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X35 FLANGE 		0-28681-035-0 08 1 9607-9803 ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X35 FLANGE 		0-28681-035-0 08 1 9804-0001 ● ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0002-0004 ● ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0005-0512 ● ● ● ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-9803 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9804-0004 ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0005- ● ● ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9601-9803 ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9804-0004 ● ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0005-0605 ● ● ● ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ● ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9601-9803 ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9804-0004 ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-9803 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9804-0004 ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-9803 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9804-0004 ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9601-9803 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9804-0004 ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0005- ● ● ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-9803 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9804-0004 ● ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ● ● ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ● ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9601-9803 ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9804-0004 ● ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0005- ● ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-9803 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9804-0004 ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ● ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-9803 ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9804-0004 ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-9803 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9804-0004 ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-9803 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9804-0004 ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-9803 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9804-0004 ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9601-9803 ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9804-0004 ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0005-0011 ● ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0012- ● ● ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING LONG SPAN<W36> L=210 		1-87870-380-2 04 1 0012- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=190 		1-87870-163-4 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-9803 ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9804-0004 ● ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0005- ● ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-9803 ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9804-0004 ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0005- ● ● ● ● ●

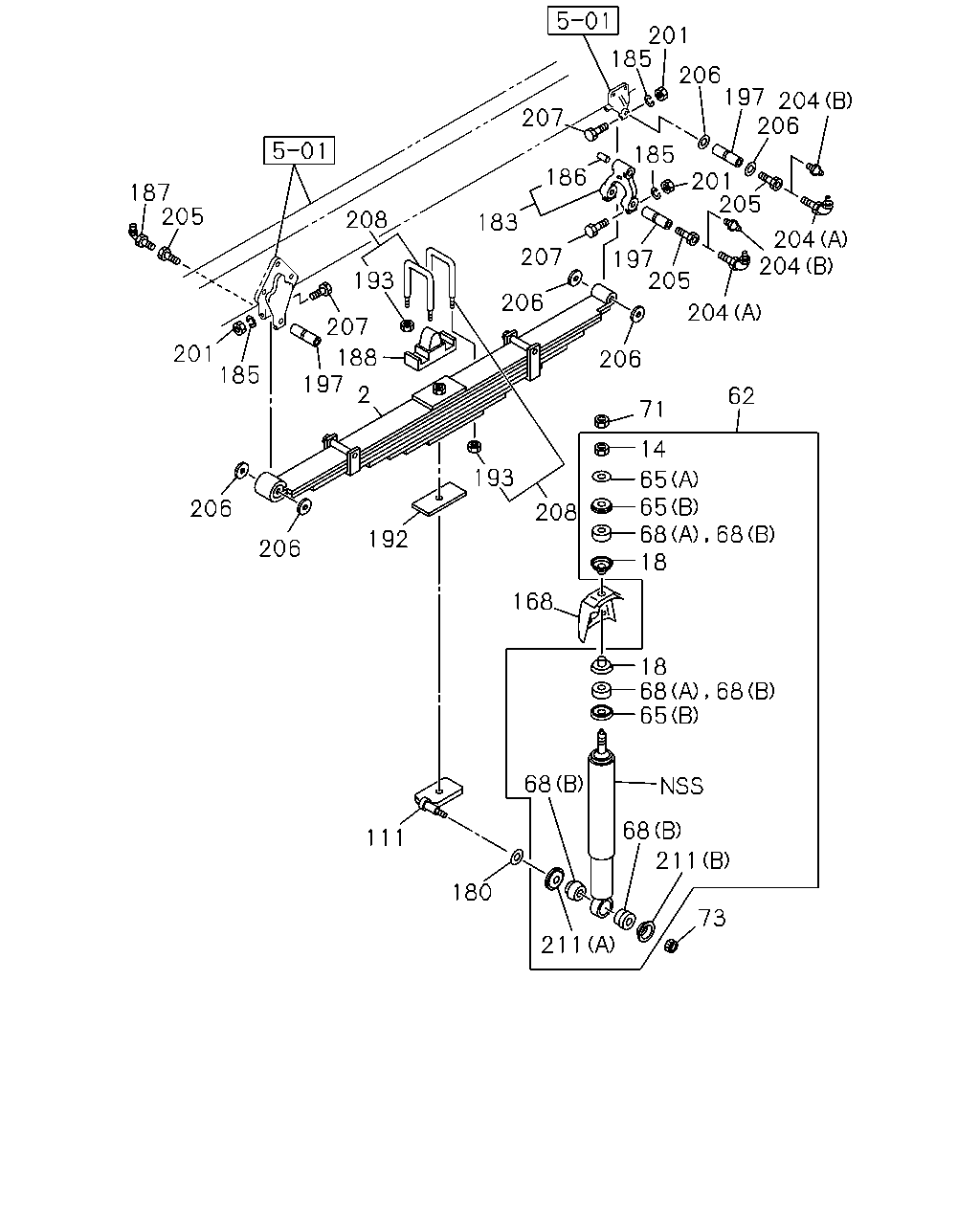

çizim 184392
201 185 206 197 204 206 207 185 201 205 186 187 205 208 183 204 204 207 197 205 193 206 204 207 201 188 197 206 185 2 62 71 14 193 65 65 18 206 208 192 206 168 18 65 68 68 111 211 180 73 211 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 9601-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 0005-0010 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-474-0 01 1 0011- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 9601-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 0005-0010 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-343-0 01 1 0011- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59>,FRONT SPRING HEAVY DUTY<F60> 8-LEAF 		1-51130-343-0 02 1 9601-9810 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 9811-0004 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 0005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY SUSPENSION(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 0005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9601-9803 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 02 1 9601-9803 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9804-9810 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 02 1 9804-9810 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY SUSPENSION(F41) 9-LEAF 		1-51130-349-0 02 1 9811- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-743-0 01 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-744-0 01 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT SPRING LONG SPAN<W36> 3-LEAF 		1-51130-793-0 02 1 0011- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-528-0 01 1 9804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-527-0 01 1 9804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-527-0 02 1 9804- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-9803 ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9804-0004 ● ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0010 ● ● ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0011-0101 ● ● ● ●
14 NUT; S/ABS,UPR
EXC. FRONT SPRING LONG SPAN<W36> M14 		9-99111-414-0 02 1 0011-0101 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0102- ● ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-9803 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9804-0004 ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0005-0010 ● ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0011- ● ● ● ●
18 WASHER; CENTERING,S/ABS
EXC. FRONT SPRING LONG SPAN<W36> ID=20.8 		9-51631-041-0 04 1 0011- ●
18 WASHER; CENTERING,S/ABS
FRONT SPRING LONG SPAN<W36> ID=24 		1-51631-067-0 04 1 0102- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-433-1 02 1 9601-9803 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9804-0004 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0005-0010 ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0011- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING LONG SPAN<W36> 		1-51630-579-0 02 1 0011- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING LONG SPAN<W36> 		1-51630-415-0 02 1 0011-0101 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING LONG SPAN<W36> 		1-51600-415-0 02 1 0102- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-641-0 02 1 9804- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 9804-0010 ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0011- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING LONG SPAN<W36> BEST VALUE PARTS 		1-87610-155-0 02 1 0011- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-9803 ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 9804-0004 ● ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0005-0010 ● ● ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0011- ● ● ● ●
65 WASHER; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (B) ID=16.5 		9-51631-040-0 04 1 0011- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-9803 ● ● ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=27 		9-51631-027-0 02 1 0011-0101 ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (A) ID=16.5 		1-09503-266-0 02 1 0102- ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=21 		9-51631-028-0 02 1 0011-0101 ●
65 WASHER; S/ABS
FRONT SPRING LONG SPAN<W36> (B) ID=16.5 		1-51631-068-0 04 1 0102- ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-9803 ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9804-0004 ● ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0005-0010 ● ● ● ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0011- ● ● ● ●
68 BUSHING; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (A) 		9-51631-039-0 04 1 0011- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-9803 ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9804-0004 ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0005-0010 ● ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0011-0101 ● ● ● ●
68 BUSHING; S/ABS
EXC. FRONT SPRING LONG SPAN<W36> (B) 		9-51631-026-0 04 1 0011-0101 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0102- ● ● ● ● ●
68 BUSHING; S/ABS
FRONT SPRING LONG SPAN<W36> (A) 		9-51631-026-0 08 1 0011-0101 ●
68 BUSHING; S/ABS
FRONT SPRING LONG SPAN<W36> (A) ID=16 T=25 		1-51631-069-0 04 1 0102- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-9803 ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9804-0004 ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0512 ● ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9601-9803 ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9804-0004 ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0005-0311 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312-0405 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0406-0512 ● ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ● ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-723-0 01 1 9601-9803 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-723-0 01 1 9804-0004 ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-723-1 01 1 0005-1004 ● ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98153-484-0 01 1 1005- ● ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-722-0 01 1 9601-9803 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-722-0 01 1 9804-0004 ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-722-1 01 1 0005-1004 ● ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98153-483-0 01 1 1005- ● ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-9803 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9804-0004 ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0005- ● ● ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9601-9803 ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9804-0004 ● ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0005-0605 ● ● ● ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ● ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9601-9803 ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9804-0004 ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-9803 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9804-0004 ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-9803 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9804-0004 ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9601-9803 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9804-0004 ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0005- ● ● ● ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 9601-9803 ● ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 9804-0004 ● ● ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 0005- ● ● ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-9803 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9804-0004 ● ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ● ● ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ● ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9601-9803 ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9804-0004 ● ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0005- ● ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-9803 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9804-0004 ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ● ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-9803 ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9804-0004 ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-9803 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9804-0004 ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-9803 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9804-0004 ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-9803 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9804-0004 ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9601-9803 ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9804-0004 ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0005-0011 ● ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0012- ● ● ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING LONG SPAN<W36> L=210 		1-87870-380-2 04 1 0012- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=190 		1-87870-163-4 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-9803 ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9804-0004 ● ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0005- ● ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-9803 ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9804-0004 ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0005- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
