◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#63856) — 223 parça

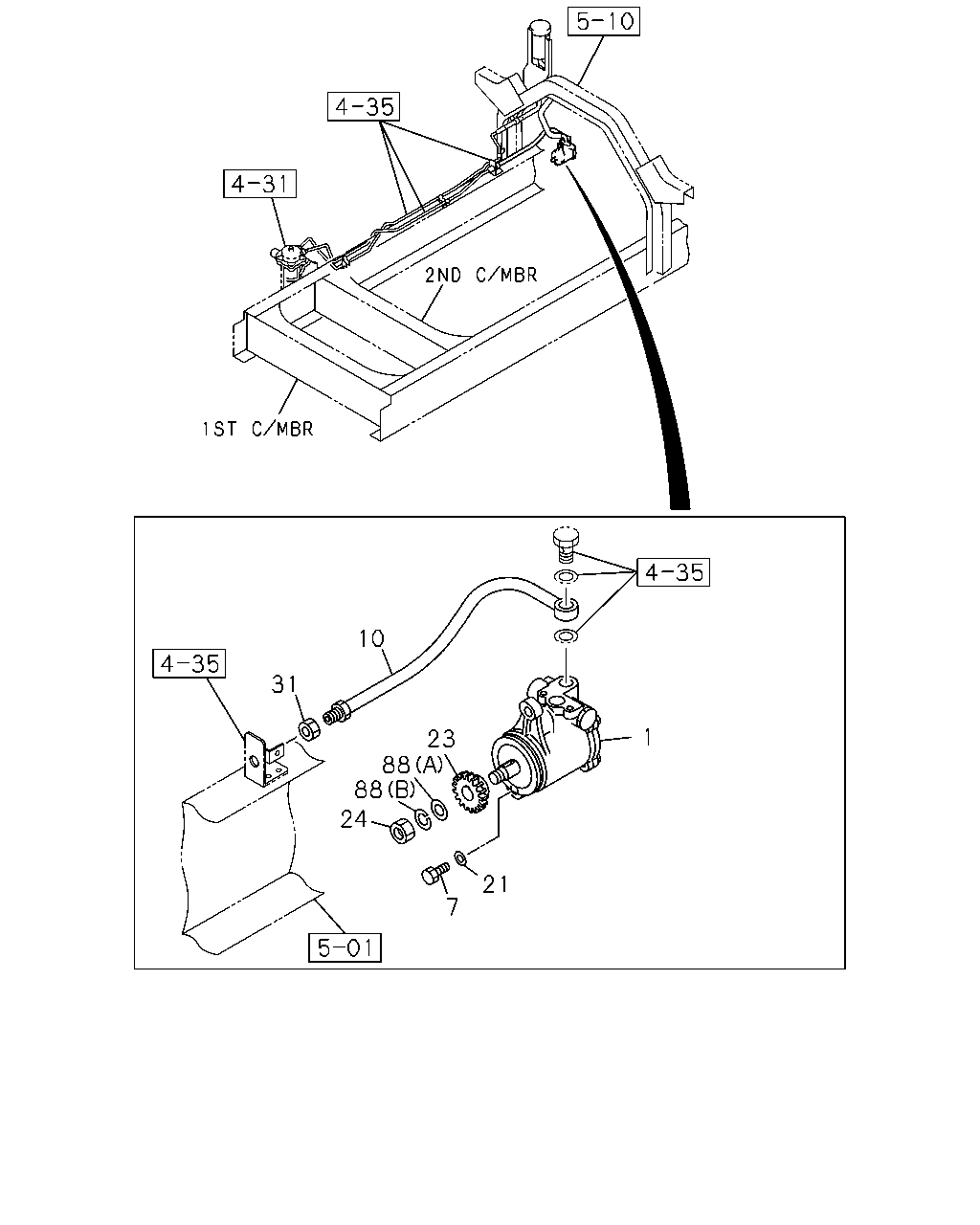

çizim 124047
10 31 1 23 88 88 24 21 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9601-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9804-0004 ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-2 01 1 0005- ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9601-9609 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9610-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 9804-0004 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0405 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0406- ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9805-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0406- ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9601-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9804-0004 ● ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 0005- ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9601-9609 ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9610-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 9804-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0406-0805 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=900 		1-09365-251-0 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9601-9803 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9804-0004 ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 0005-0604 ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> 		0-09539-520-0 01 1 0605-0606 ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> 		0-89539-520-0 01 1 0607- ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-965-0 01 1 9610-9702 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-974-0 01 1 9703-9705 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-974-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-971-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 9804-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9601-9609 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-894-0 01 1 9610-9705 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9610-9705 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-894-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-980-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-980-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 9804-0006 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 9804-0006 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 0007-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0007-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0406- ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 9601-9803 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 9804-0004 ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9601-9803 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9804-0004 ● ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 0005- ● ● ● ● ●
23 GEAR; OIL PUMP
6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9601-9609 ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9610-0004 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0405 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0406- ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9601-9609 ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9610-0004 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0405 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0406-0712 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9601-9803 ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9804-0004 ● ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 0005- ● ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9601-9803 ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9804-0004 ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512 ● ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601- ● ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 9601-9803 ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 9804-0004 ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 0005- ● ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 0005- ● ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 9601-9803 ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 9804-0004 ● ● ● ●

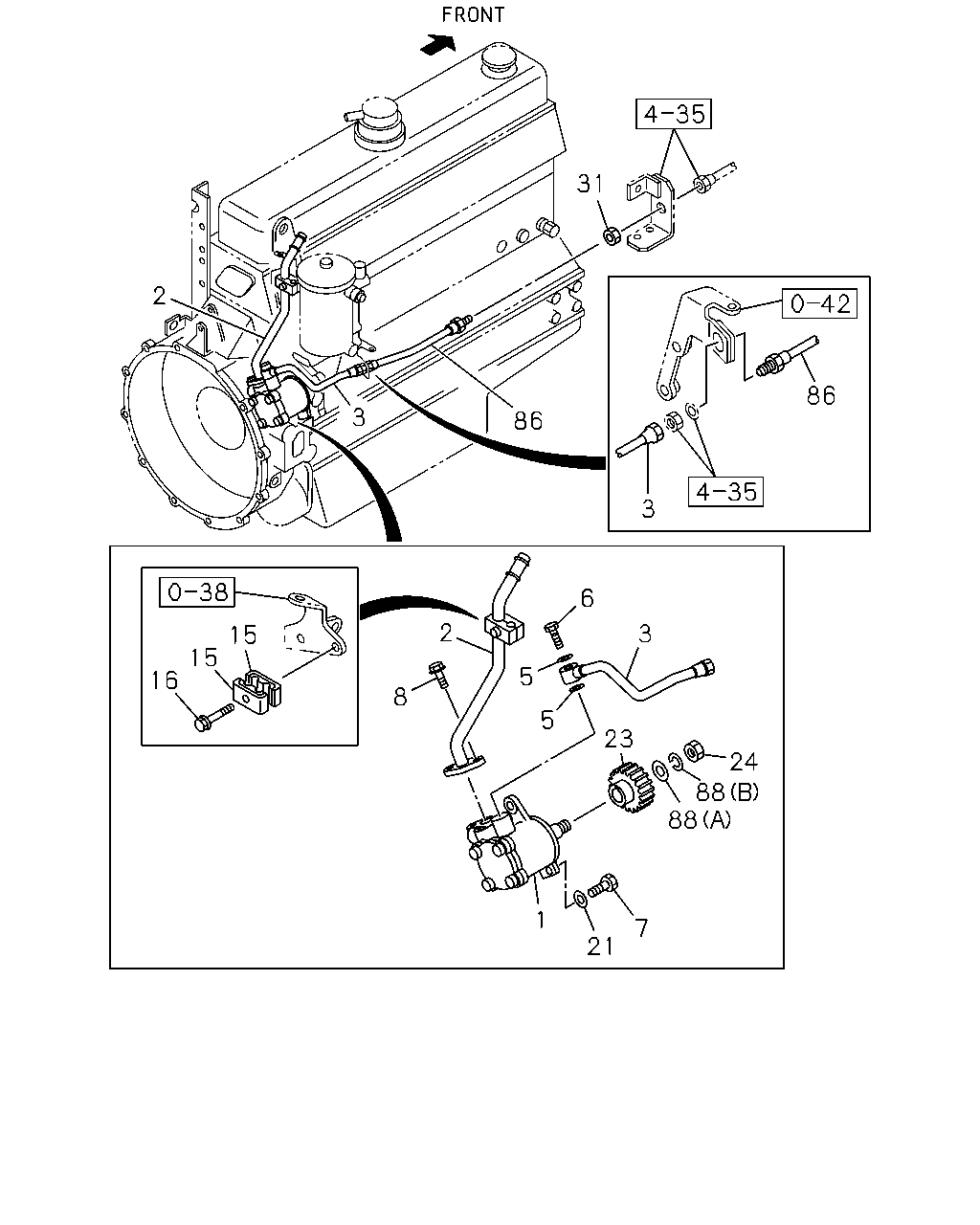

çizim 124291
31 2 86 3 86 3 6 2 3 15 15 5 16 8 5 23 24 88 88 1 7 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9601-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9804-0004 ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-2 01 1 0005- ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9601-9609 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9610-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 9804-0004 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0405 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0406- ● ● ●
2 PIPE ASM; OIL,SUCTION
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-13313-963-0 01 1 0605- ●
3 PIPE; OIL,CHARGE,P/S
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-13313-962-0 01 1 0605- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0605- ●
6 BOLT; EYE,P/S PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M18X36 		1-09675-205-0 01 1 0605- ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9805-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0406- ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9601-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9804-0004 ● ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 0005- ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9601-9609 ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9610-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 9804-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0406-0805 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ● ● ●
8 BOLT; OIL PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0605-0906 ●
8 BOLT; OIL PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907- ●
15 CLIP; OIL PIPE SUCTION
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-09701-210-0 02 1 0605- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 9601-9609 ● ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 9610-0004 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 0005-0405 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) ID=32 		1-09704-085-0 02 1 0406- ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6X45 FLANGE 		0-28050-645-0 01 1 0605- ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 9601-9803 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 9804-0004 ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9601-9803 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9804-0004 ● ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 0005- ● ● ● ● ●
23 GEAR; OIL PUMP
6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9601-9609 ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9610-0004 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0405 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0406- ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9601-9609 ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9610-0004 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0405 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0406-0712 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9601-9803 ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9804-0004 ● ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 0005- ● ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9601-9803 ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9804-0004 ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512 ● ● ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601- ● ● ● ● ●
86 HOSE; FLEX,P/S
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		0-09536-400-0 01 1 0605-0606 ●
86 HOSE; FLEX,P/S
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		0-89536-400-0 01 1 0607- ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 9601-9803 ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 9804-0004 ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 0005- ● ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 0005- ● ● ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 9601-9803 ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 9804-0004 ● ● ● ●

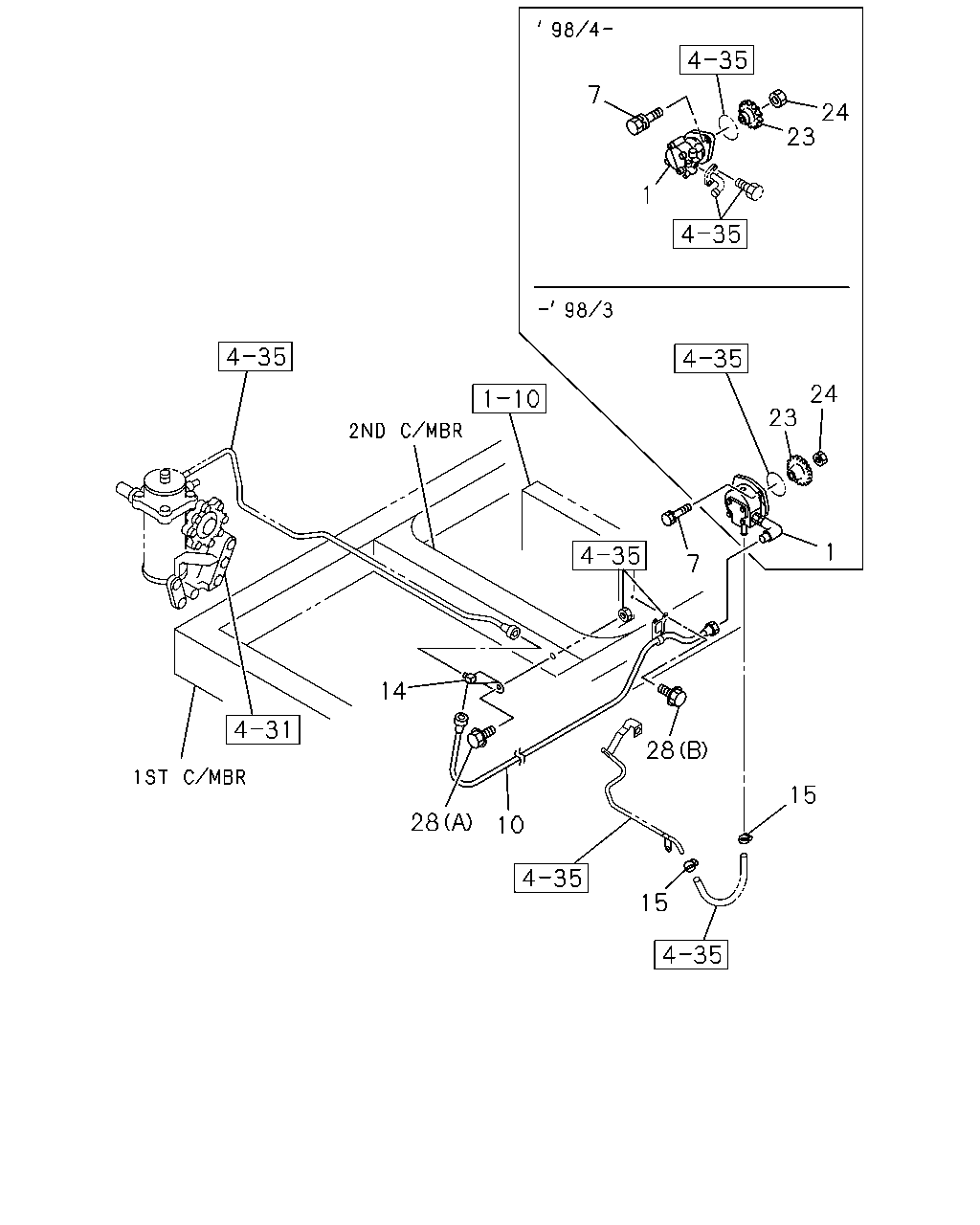

çizim 184393
7 24 23 1 24 23 1 7 14 28 15 28 10 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9601-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9804-0004 ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-2 01 1 0005- ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9601-9609 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-466-0 01 1 9610-9803 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 9804-0004 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0405 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0406- ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9805-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0406- ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9601-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9804-0004 ● ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 0005- ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9601-9609 ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 02 1 9610-9803 ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 9804-0004 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0405 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0406-0805 ● ● ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=900 		1-09365-251-0 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9601-9803 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9804-0004 ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 0005-0604 ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> 		0-09539-520-0 01 1 0605-0606 ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> 		0-89539-520-0 01 1 0607- ● ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-965-0 01 1 9610-9702 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-974-0 01 1 9703-9705 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-974-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-971-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 9804-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9601-9609 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-894-0 01 1 9610-9705 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9610-9705 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-894-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-894-0 01 1 9706-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875 		1-09364-980-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-980-0 01 1 9707-9803 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 9804-0006 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 9804-0006 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 0007-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0007-0405 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-09364-983-1 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0406- ● ●
14 UNION; FLEX HOSE,P/S
6HK1 TCS ENG(80L) 		1-47470-663-0 01 1 0406- ●
14 UNION; FLEX HOSE,P/S
6HH1 STD ENG(65L) 		1-47470-315-2 01 1 9601-9609 ● ●
14 UNION; FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47470-315-2 01 1 9610-9803 ● ● ●
14 UNION; FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47470-463-1 01 1 9804-0006 ● ● ●
14 UNION; FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47470-463-1 01 1 0007- ● ● ●
15 CLIP; OIL PIPE SUCTION
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-09701-210-0 02 1 0605- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 9601-9609 ● ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 9610-0004 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 0005-0405 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) ID=32 		1-09704-085-0 02 1 0406- ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9601-9803 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9804-0004 ● ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 0005- ● ● ● ● ●
23 GEAR; OIL PUMP
6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9601-9609 ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9610-0004 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0405 ● ● ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0406- ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9601-9609 ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9610-0004 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0405 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0406-0712 ● ● ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9601-9803 ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9804-0004 ● ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 0005- ● ● ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9801 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0006 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0007-0405 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9601-9609 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9705 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9705 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9706-0006 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9706-0006 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0007-0405 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0007-0405 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
