4-33 — STEERING LINKAGE (#63854) — 74 parça

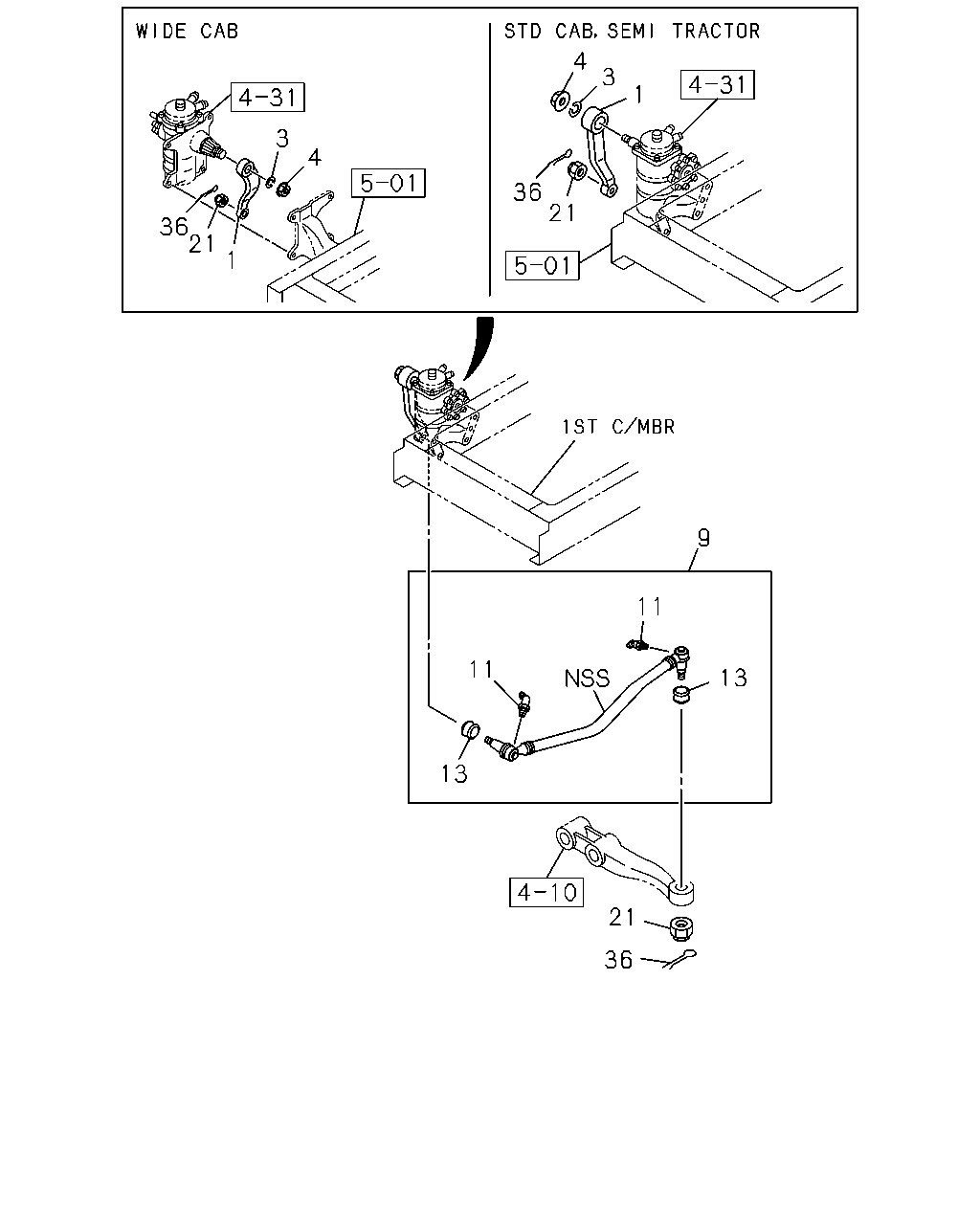

çizim 123942
4 3 1 3 4 36 21 36 21 1 9 11 11 13 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; PITMAN,STRG 1-44341-423-0 01 1 9601-0004 ●
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 0005- ● ●
1 ARM; PITMAN,STRG 1-44341-409-0 01 1 9601-9803 ● ●
1 ARM; PITMAN,STRG 1-44341-409-1 01 1 9804- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9601-9803 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9804-0004 ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0005- ● ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9601-9803 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9804-0004 ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0005-0805 ● ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ● ● ● ●
9 LINK; DRAG 1-44380-100-2 01 1 9601-9803 ● ● ●
9 LINK; DRAG 1-44380-100-2 01 1 9804-0004 ● ● ● ●
9 LINK; DRAG 1-44380-100-3 01 1 0005-0301 ● ● ● ● ●
9 LINK; DRAG 1-44380-283-1 01 1 0302-1103 ● ● ● ● ●
9 LINK; DRAG 8-98181-401-0 01 1 1104- ● ● ● ● ●
11 NIPPLE; GREASE,DRAG LINK 8-98160-122-0 02 1 1104- ● ● ● ● ●
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9601-9603 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9604-9803 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9804-0004 ● ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0005-1103 ● ● ● ● ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1104- ● ● ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9601-9803 ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9804-0004 ● ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0005-0805 ● ● ● ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9601-9803 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9804-0004 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0606 ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ● ● ● ●

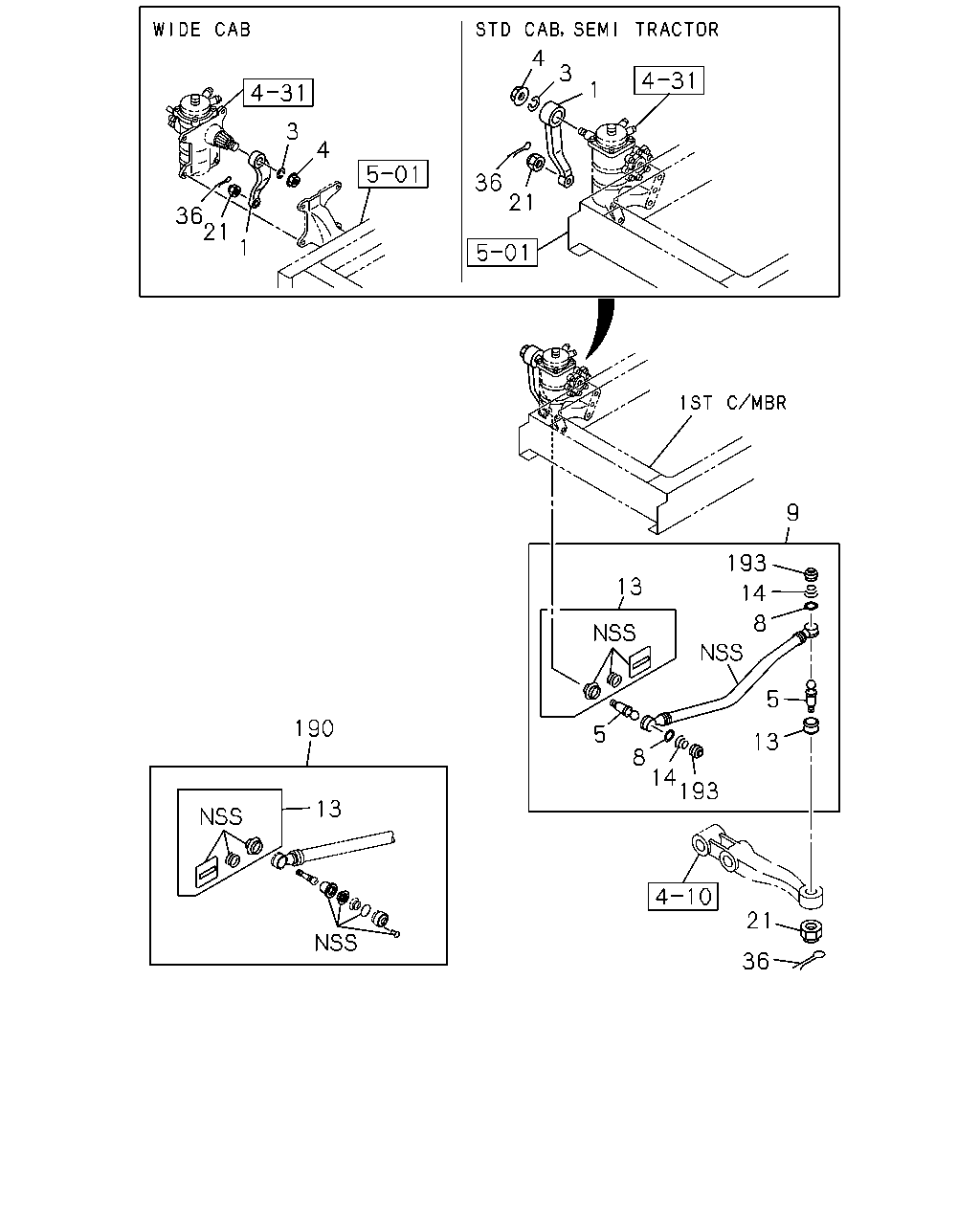

çizim 123970
4 3 1 3 4 36 21 36 21 1 9 193 13 14 8 5 190 5 13 8 14 193 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; PITMAN,STRG 1-44341-423-0 01 1 9601-0004 ●
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 0005- ● ●
1 ARM; PITMAN,STRG 1-44341-409-0 01 1 9601-9803 ● ●
1 ARM; PITMAN,STRG 1-44341-409-1 01 1 9804- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9601-9803 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9804-0004 ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0005- ● ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9601-9803 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9804-0004 ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0005-0805 ● ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9601-9803 ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9804-0004 ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0005-1103 ● ● ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9601-9803 ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9804-0004 ● ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0005-1103 ● ● ● ● ●
9 LINK; DRAG 1-44380-100-2 01 1 9601-9803 ● ● ●
9 LINK; DRAG 1-44380-100-2 01 1 9804-0004 ● ● ● ●
9 LINK; DRAG 1-44380-100-3 01 1 0005-0301 ● ● ● ● ●
9 LINK; DRAG 1-44380-283-1 01 1 0302-1103 ● ● ● ● ●
9 LINK; DRAG 8-98181-401-0 01 1 1104- ● ● ● ● ●
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9601-9603 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9604-9803 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9804-0004 ● ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0005-1103 ● ● ● ● ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1104- ● ● ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9601-9803 ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9804-0004 ● ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0005-1103 ● ● ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9601-9803 ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9804-0004 ● ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0005-0805 ● ● ● ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9601-9803 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9804-0004 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0606 ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ● ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9601-9803 ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9804-0004 ● ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0005-1103 ● ● ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9601-9803 ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9804-0004 ● ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0005-1103 ● ● ● ● ●
