Sayfa 4-25C - Isuzu EPC

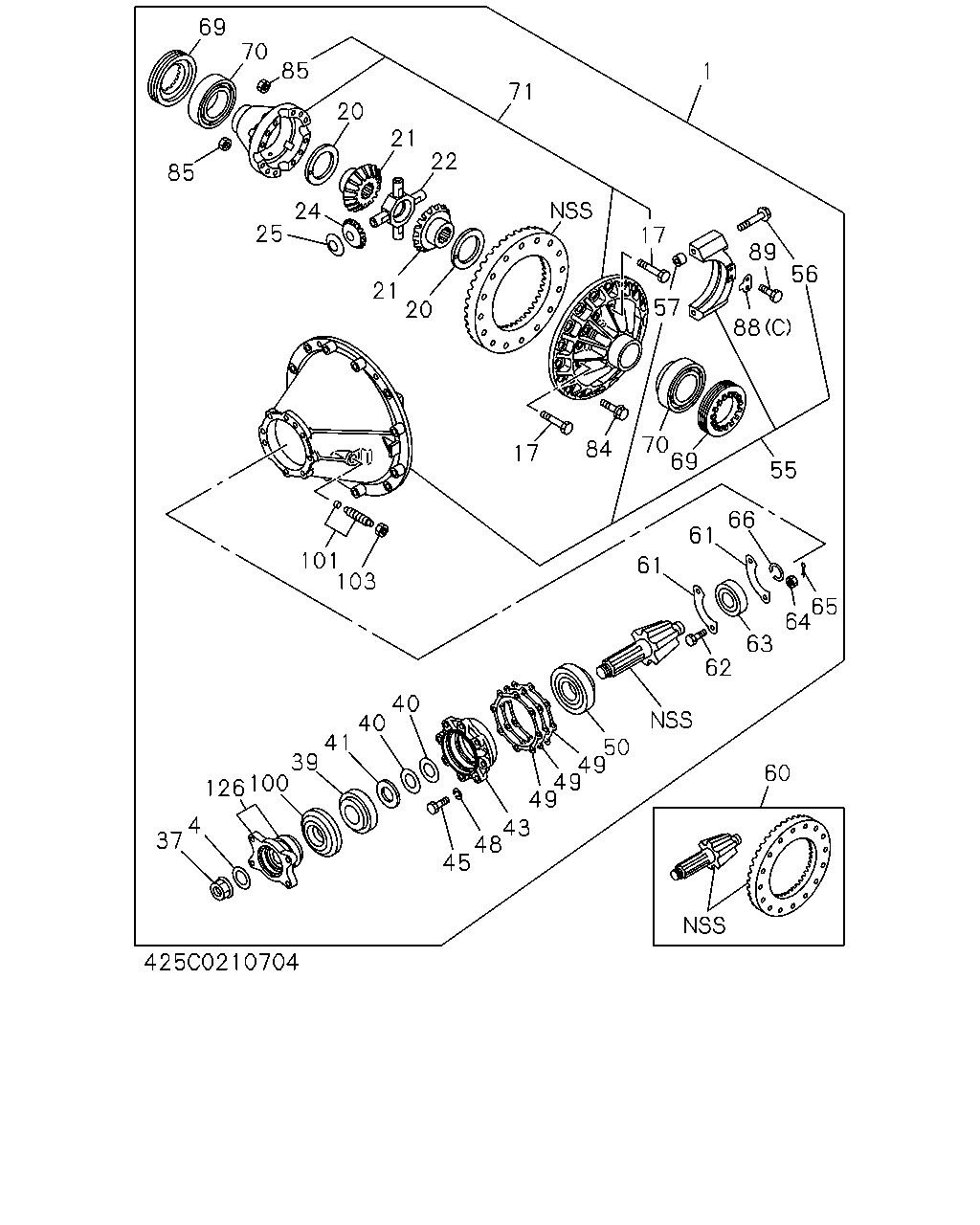

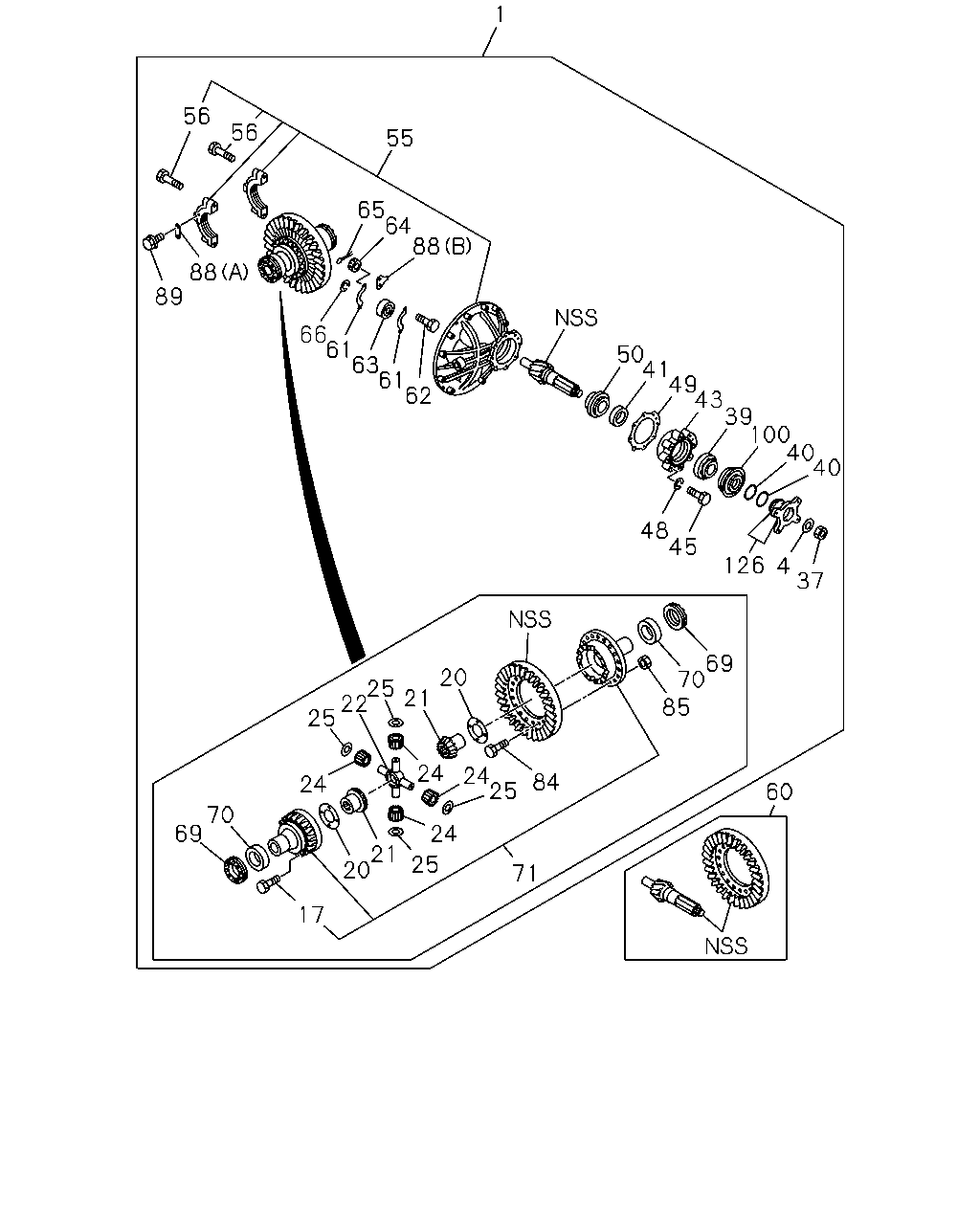

4-25C — REAR FINAL DRIVE (#63850) — 469 parça

69 70 85 1 71 20 21 22 85 24 25 17 89 56 21 57 20 88 70 69 84 17 55 66 61 101 103 61 65 64 63 62 40 40 41 39 100 126 50 49 49 49 60 4 37 43 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR 37/6	1-41000-854-0	01	1	0202-	●
1	DRIVE ASM; FINAL,RR 39/6	1-41002-771-0	01	1	0012-		●
1	DRIVE ASM; FINAL,RR 39/8	1-41000-504-0	01	1	0012-			●
1	DRIVE ASM; FINAL,RR 39/7	1-41000-495-0	01	1	0012-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0202-0211	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0212-0604	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0605-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0012-0208		●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-		●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0202-	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0202-	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0012-		●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	0012-		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0202-0405	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-0911	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	0912-	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	0012-0405		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-123-0	02	1	0406-0911		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-162-0	02	1	0912-		●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0202-	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-1	01	1	0012-		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0202-0405	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-0911	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	0912-	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	0012-0405		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-040-0	04	1	0406-0911		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-052-0	04	1	0912-		●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0202-	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	0012-		●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0202-0211	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0212-0604	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0605-	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	0012-		●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0202-0211	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0212-0604	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0605-	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0202-0211	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0212-0604	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0605-	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	0012-		●	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	0012-		●	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0012-		●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0202-	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	0012-		●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0202-0211	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0212-0604	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0605-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0012-		●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0202-0211	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0212-0603	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-0604	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0605-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0012-0603		●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-104-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-105-0	AR	1	0012-		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0202-0211	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0212-0604	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0605-	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0202-0211	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0212-0604	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	0605-	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0012-		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0012-		●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	0202-	●
55	CARRIER; DIFF	1-41110-120-1	01	1	0012-		●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0202-	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0012-0211		●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0212-0604		●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0605-		●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	0202-	●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0202-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	0012-		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-543-0	01	1	0012-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-517-0	01	1	0012-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	0202-	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0012-		●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	0202-	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0012-		●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0202-	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0202-	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0012-		●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0012-		●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0012-0201		●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0202-0211	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0212-0512	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-0604	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0605-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0012-0201		●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0202-0211	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0212-0604	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0605-0805	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0202-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0012-		●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	0202-	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	0202-	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0012-0211		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0212-0604		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0605-		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0012-0211		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0212-0604		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0605-		●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	0202-	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	0202-	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0012-0211		●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0212-0604		●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0605-		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-277-0	01	1	0202-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0012-0510		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0511-0512			●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0601-		●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0202-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0012-		●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0202-0211	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0212-0512	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-0604	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0605-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0012-		●	●	●
88	PLATE; LK,ADJ NUT (C)	9-41124-013-0	02	1	0202-	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0012-0211		●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0212-0604		●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0605-		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0012-0211		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0212-0604		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0605-		●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0202-0512	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0012-0211		●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0212-0512		●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-0604		●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0605-		●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0202-0211	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0212-0604	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0605-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0012-		●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	0202-	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	0202-	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0202-0211	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0212-0604	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0605-	●
126	COUPLING; DRIVING PINION	1-37245-081-4	01	1	0012-0208		●	●	●
126	COUPLING; DRIVING PINION	1-37245-390-0	01	1	0209-		●	●	●

1 56 56 55 65 64 88 88 89 66 61 63 61 62 50 41 49 43 39 100 40 40 48 45 126 4 37 69 70 85 20 25 21 22 25 24 24 25 84 24 60 70 69 24 21 20 25 71 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR 37/6	1-41000-854-0	01	1	0202-	●
1	DRIVE ASM; FINAL,RR 39/6	1-41002-771-0	01	1	0012-		●
1	DRIVE ASM; FINAL,RR 39/8	1-41000-504-0	01	1	0012-			●
1	DRIVE ASM; FINAL,RR 39/7	1-41000-495-0	01	1	0012-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0202-0211	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0212-0604	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0605-	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0012-0208		●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-		●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0202-	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0202-	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	0012-		●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0202-	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	0012-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	0012-		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0202-0405	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-0911	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	0912-	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	0012-0405		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-123-0	02	1	0406-0911		●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-162-0	02	1	0912-		●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0202-	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-1	01	1	0012-		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0202-0405	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-0911	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	0912-	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	0012-0405		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-040-0	04	1	0406-0911		●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-052-0	04	1	0912-		●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0202-	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	0012-		●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0202-0211	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0212-0604	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0605-	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	0012-		●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0202-0211	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0212-0604	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0605-	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0202-0211	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0212-0604	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0605-	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	0012-		●	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	0012-		●	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0202-0211	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0212-0604	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0605-	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0012-		●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0202-0211	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0212-0604	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0605-	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0012-		●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0012-		●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0202-	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	0012-		●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0202-0211	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0212-0604	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0605-	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0012-		●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0202-0211	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0212-0603	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-0604	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0605-	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0012-0603		●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0202-	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-104-0	AR	1	0012-		●	●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-105-0	AR	1	0012-		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0202-0211	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0212-0604	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0605-	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0202-0211	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0212-0604	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	0605-	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0012-		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0012-		●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	0202-	●
55	CARRIER; DIFF	1-41110-120-1	01	1	0012-		●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0202-	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0012-0211		●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0212-0604		●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0605-		●	●	●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0202-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	0012-		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-543-0	01	1	0012-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-517-0	01	1	0012-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	0202-	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0012-		●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	0202-	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0012-		●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0202-	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0202-	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0012-		●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0012-		●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0012-0201		●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0202-0211	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0212-0512	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-0604	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0605-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0012-0201		●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0202-0211	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0212-0604	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0605-0805	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0202-	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0012-		●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	0202-	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	0202-	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0012-0211		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0212-0604		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0605-		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0012-0211		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0212-0604		●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0605-		●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	0202-	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	0202-	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0012-0211		●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0212-0604		●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0605-		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-277-0	01	1	0202-	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0012-0510		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0511-0512			●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	0601-		●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0202-	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0012-		●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0202-0211	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0212-0512	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-0604	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0605-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0012-		●	●	●
88	PLATE; LK,ADJ NUT (C)	9-41124-013-0	02	1	0202-	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0012-0211		●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0212-0604		●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	0605-		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0012-0211		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0212-0604		●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0605-		●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0202-0512	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0012-0211		●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0212-0512		●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-0604		●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0605-		●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0202-0211	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0212-0604	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0605-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0012-		●	●	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0202-0211	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0212-0604	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0605-	●
126	COUPLING; DRIVING PINION	1-37245-081-4	01	1	0012-0208		●	●	●
126	COUPLING; DRIVING PINION	1-37245-390-0	01	1	0209-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
