7-70 — SEPARATER AND BED (#6385) — 115 parça

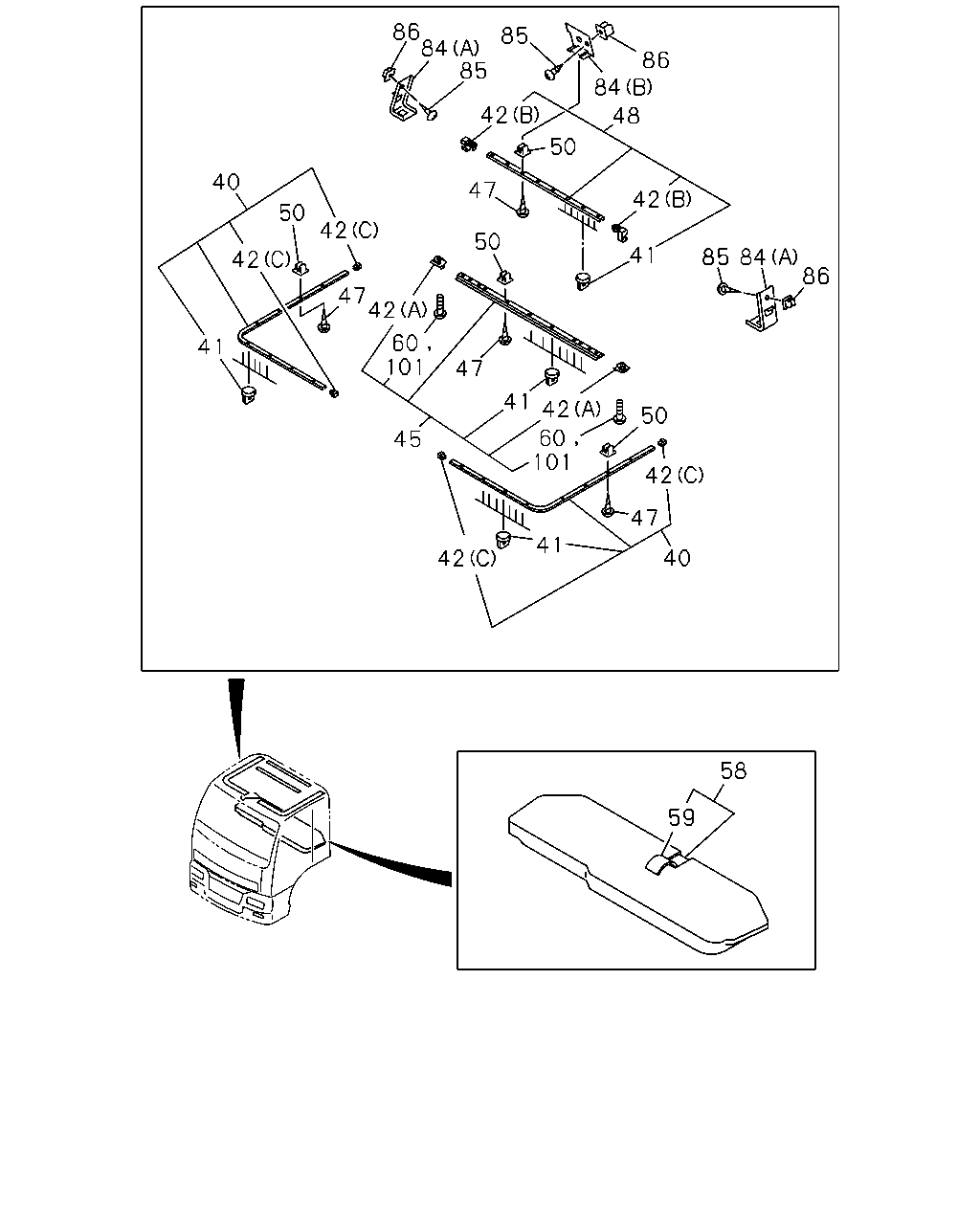

86 84 85 85 86 84 42 48 50 40 47 42 50 42 50 41 85 84 86 42 47 42 60 101 41 47 41 42 50 60 101 45 42 47 42 41 40 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE	1-73907-424-0	01	1	9604-9904
40	RAIL; CURTAIN,SIDE	1-73907-487-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE	1-73907-423-0	01	1	9604-9904
40	RAIL; CURTAIN,SIDE	1-73907-486-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	26	1	9604-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	27	1	9705-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9604-9904
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	9604-9904
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9604-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> CABIN CENTER	1-73907-379-5	01	1	9604-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> CABIN CENTER	1-73907-420-0	01	1	9604-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	32	1	9604-
48	RAIL; CURTAIN,BACK	1-73996-279-0	01	1	9604-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73908-111-0	01	1	0009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-106-3	01	1	9905-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9604-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9604-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-997-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9604-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-086-0	01	1	0004-
60	HOLDER	1-73907-400-0	02	1	9604-9904
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9604-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9604-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9604-9904
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9905-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9604-9904
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9905-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9604-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9604-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-400-0	02	1	9604-9704
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-

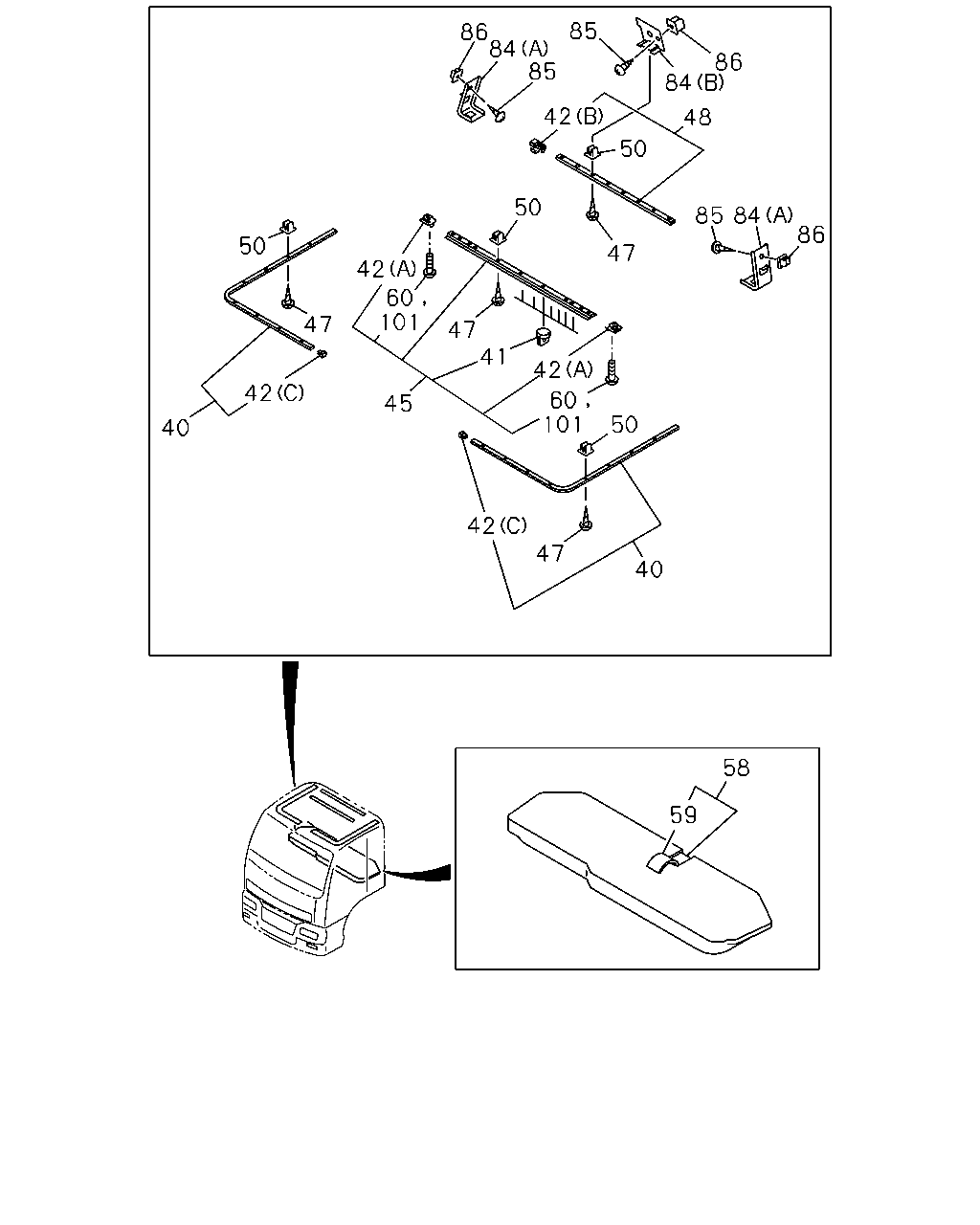

85 86 84 85 86 84 42 48 50 50 85 84 86 50 47 42 60 101 47 47 41 42 42 60 101 45 50 40 42 47 40 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE	1-73907-424-0	01	1	9604-9904
40	RAIL; CURTAIN,SIDE	1-73907-487-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE	1-73907-423-0	01	1	9604-9904
40	RAIL; CURTAIN,SIDE	1-73907-486-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	26	1	9604-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	27	1	9705-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9604-9904
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	9604-9904
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9604-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> CABIN CENTER	1-73907-379-5	01	1	9604-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> CABIN CENTER	1-73907-420-0	01	1	9604-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	32	1	9604-
48	RAIL; CURTAIN,BACK	1-73996-279-0	01	1	9604-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73908-111-0	01	1	0009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-106-3	01	1	9905-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9604-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9604-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-997-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9604-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-086-0	01	1	0004-
60	HOLDER	1-73907-400-0	02	1	9604-9904
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9604-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9604-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9604-9904
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9905-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9604-9904
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9905-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9604-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9604-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-400-0	02	1	9604-9704
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-

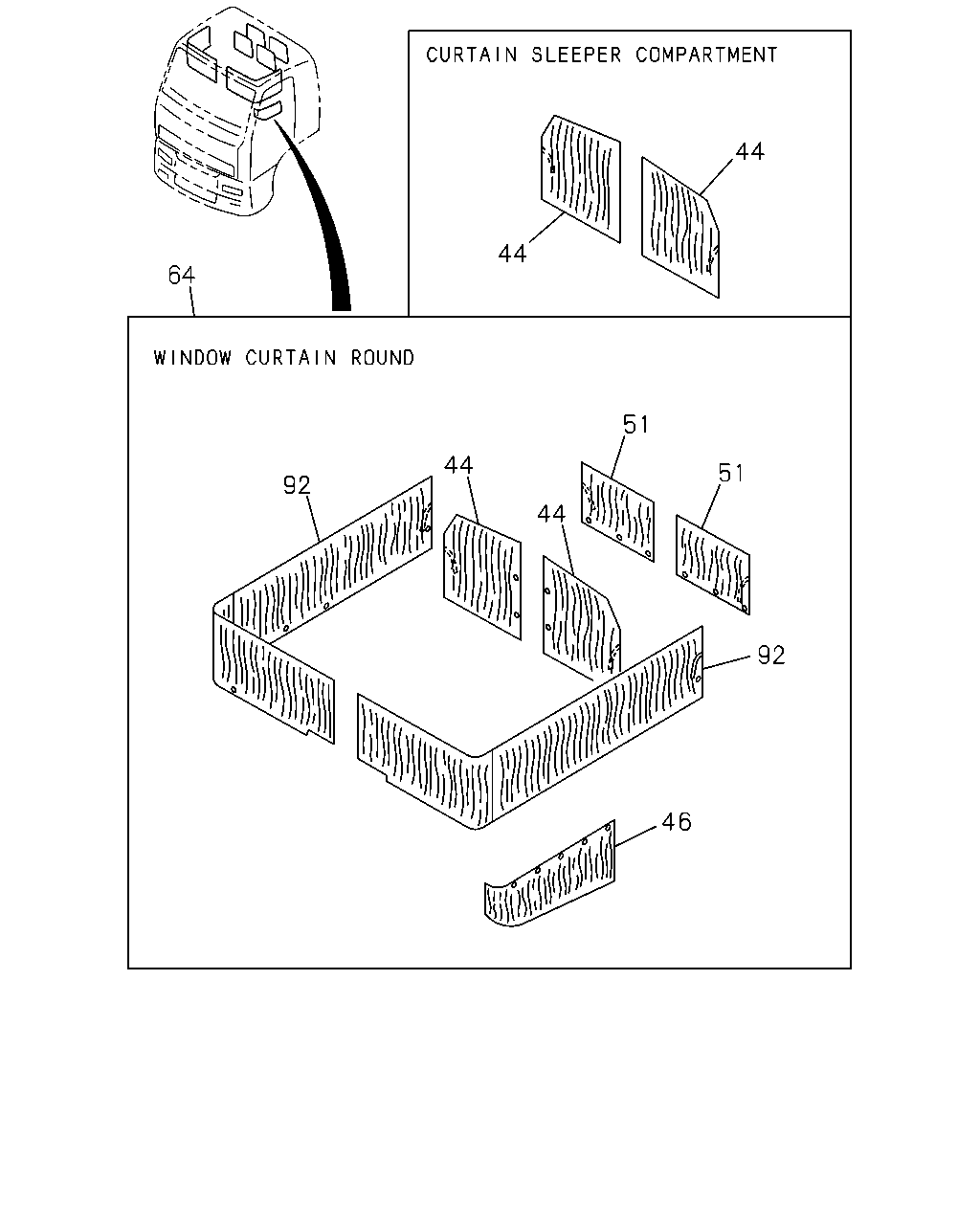

44 44 64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-0	01	1	9604-9904
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-481-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-481-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-0	01	1	9604-9904
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-480-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-480-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-0	01	1	9905-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	9905-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-0	01	1	9905-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-0	01	1	9905-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	9905-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	9905-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-0	01	1	9905-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-0	01	1	9905-
