Sayfa 4-11 - Isuzu EPC

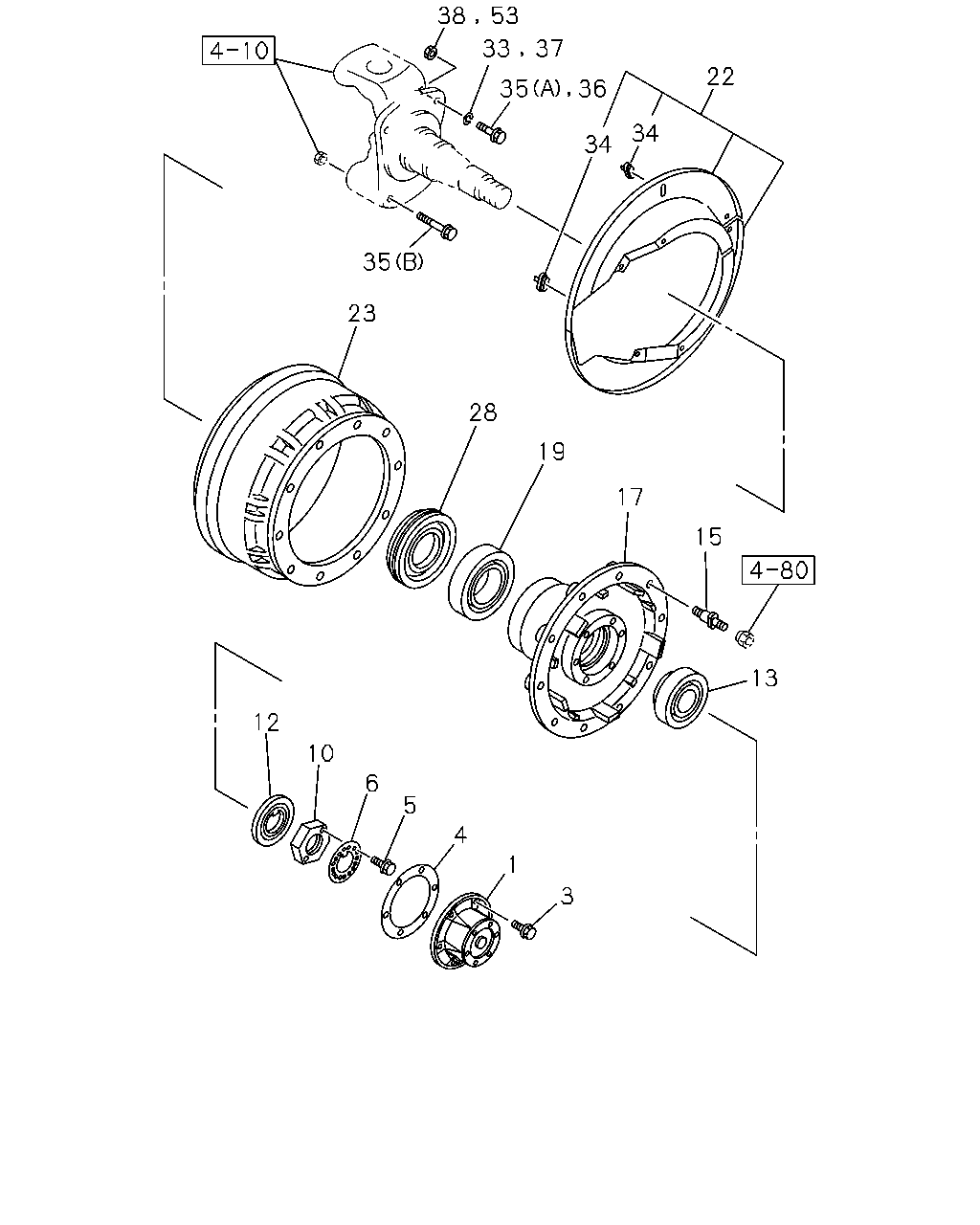

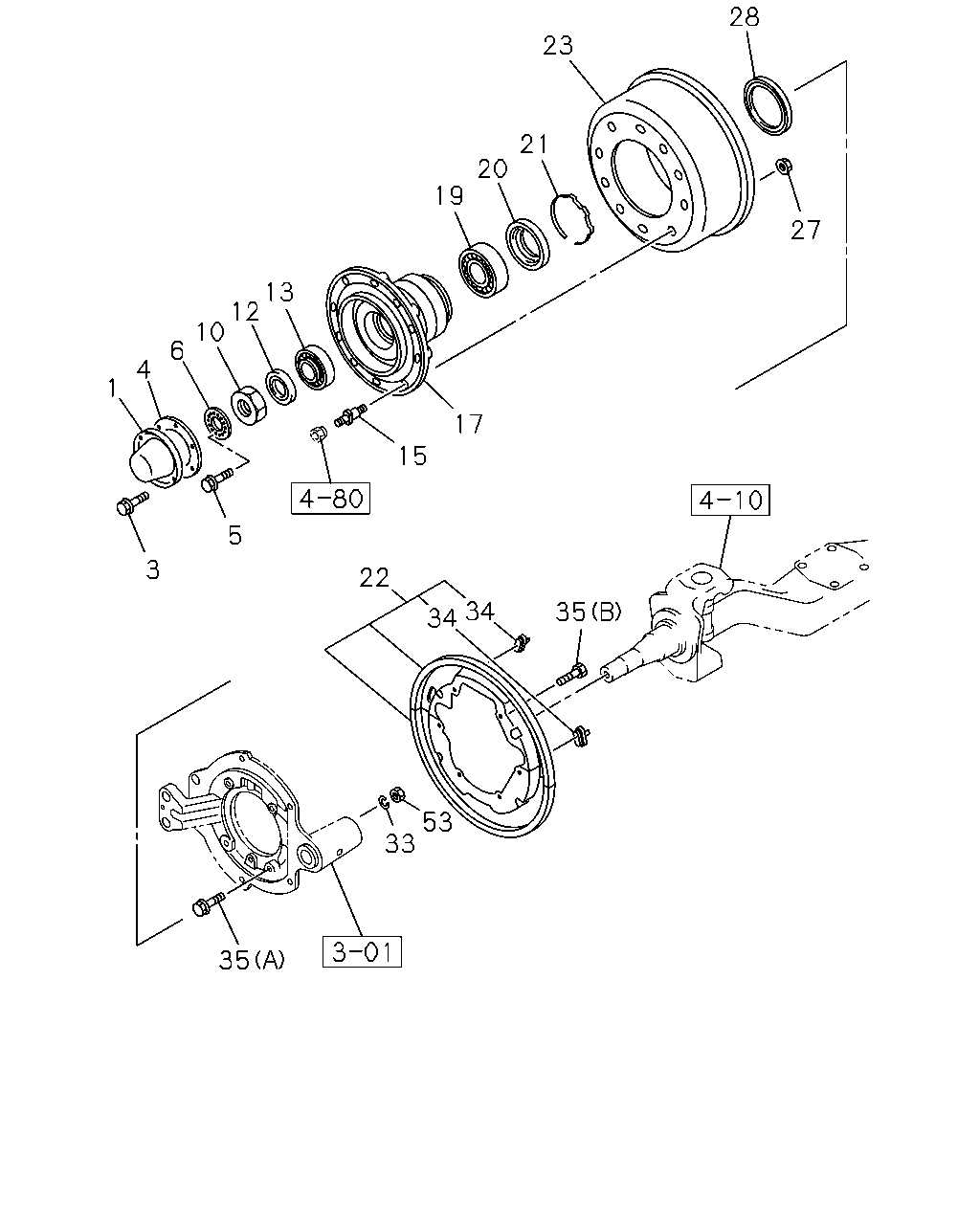

4-11 — FRONT HUB AND DRUM OR ROTOR (#63846) — 520 parça

28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 3 22 34 34 35 53 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0012-0201	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0202-0211	●	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0212-	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9601-9803	●		●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9804-0004	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0005-0011	●	●	●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0012-0109	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0012-0109		●	●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0110-0211	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0110-0211			●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0212-	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0212-					●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0012-0201	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0202-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0212-0512	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28050-812-0	12	1	0601-	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9601-9803	●		●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9804-0004	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0005-0011	●	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0012-0109	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0012-0109		●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0110-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0110-0211			●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0212-0512	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0212-0512					●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0601-	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28050-816-0	12	1	0601-					●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-0	02	1	0012-0201	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-0	02	1	0202-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-2	02	1	0212-	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9601-9803	●		●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9804-0004	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0005-0011	●	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0012-0109	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0012-0109		●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0110-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0110-0211			●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0212-	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0212-					●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-9803	●		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9804-0004	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0512	●	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●	●	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●	●	●	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-9803	●		●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0005-0707	●	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-	●	●	●	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9601-9803	●		●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9804-0004	●	●	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0005-	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-9803	●		●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9804-0004	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0005-0911	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9803	●		●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9804-9809	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-0004	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0005-	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9803	●		●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9804-9809	●	●	●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0303-0610	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0702-	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0303-0610	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0702-	●		●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-044-0	20	1	0012-0201	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-044-0	20	1	0202-0210	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0211-0211	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0212-0302	●	●	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-	●	●	●
15	PIN; WHEEL,FRT AXLE BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-				●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-				●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9601-9701	●		●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9702-9803	●
15	PIN; WHEEL,FRT AXLE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42337-052-0	20	1	9702-9803			●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9804-0004	●	●	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0005-0011	●	●	●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0012-0109	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0012-0109		●	●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0110-0211	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0110-0211			●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0212-	●	●	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0212-					●
15	PIN; WHEEL,FRT AXLE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42337-031-0	20	1	9702-9803			●	●
17	HUB; FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42312-128-2	02	1	0303-	●		●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-0	02	1	0012-0201	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0202-0211	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0212-0302	●	●	●	●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0303-	●	●	●
17	HUB; FRT AXLE BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0303-				●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42312-100-1	02	1	0303-				●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9601-9701	●		●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9702-9803	●
17	HUB; FRT AXLE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42312-133-0	02	1	9702-9803			●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9804-0004	●	●	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0005-0011	●	●	●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0012-0109	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0012-0109		●	●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0110-0211	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0110-0211			●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0212-	●	●	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0212-					●
17	HUB; FRT AXLE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42312-089-1	02	1	9702-9803			●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9803	●		●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9804-9809	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-0004	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0005-	●	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9803	●		●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9804-9809	●	●	●	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0012-0201	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0202-0211	●	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0212-	●	●	●	●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0012-0201	●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0202-0211	●	●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0012-0201	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0202-0211	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9601-9701	●		●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9702-9803	●
22	COVER SET; FRT BRK DRUM EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-47151-642-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9804-0004	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0005-0011	●	●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0012-0109	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0012-0109		●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0110-0211	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0110-0211			●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0212-					●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9601-9701	●		●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9702-9803	●
22	COVER SET; FRT BRK DRUM EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-47151-643-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9804-0004	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0005-0011	●	●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0012-0109	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0012-0109		●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0110-0211	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0110-0211			●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0212-					●
22	COVER SET; FRT BRK DRUM BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-774-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-773-0	01	1	9702-9803			●	●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-336-1	02	1	0303-0308	●		●	●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-355-0	02	1	0309-	●		●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0012-0201	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0202-0211	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0212-0302	●	●	●	●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0303-	●	●	●
23	DRUM; BRK,FRT BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0303-				●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-337-0	02	1	0303-				●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9601-9701	●		●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9702-9803	●
23	DRUM; BRK,FRT EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42315-348-2	02	1	9702-9803			●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9804-0004	●	●	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0005-0011	●	●	●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0012-0109	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0012-0109		●	●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0110-0211	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0110-0211			●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0212-	●	●	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0212-					●
23	DRUM; BRK,FRT BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42315-330-1	02	1	9702-9803			●	●
27	NUT; WHEEL PIN,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M22 FLANGE	1-09440-065-0	16	1	0303-	●		●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0012-0201	●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0202-0211	●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0212-0302	●	●	●	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0303-	●	●	●
27	NUT; WHEEL PIN,FRT AXLE BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0303-				●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M22	1-09400-071-0	20	1	0303-				●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0012-0201	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0202-0211	●	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9601-9803	●		●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9804-0004	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0005-0011	●	●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0012-0109	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0012-0109		●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0110-0211	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0110-0211			●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0212-					●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9601-9803	●		●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9804-0004	●	●	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0005-0011	●	●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0012-0109	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0012-0109		●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0110-0211	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0110-0211			●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0212-					●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-9701	●		●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9702-9803	●
33	WASHER; LK,DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> ID=16.2	9-09150-816-0	04	1	9702-9803			●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9804-0004	●	●	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0005-0603	●	●	●	●	●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-	●	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0012-0201	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0202-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0212-	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9601-9701	●		●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9702-9803	●
34	COVER; CHECK HOLE,DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87050-011-0	04	1	9702-9803			●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9804-0004	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0005-0011	●	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0012-0109	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0012-0109		●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0110-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0110-0211			●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0212-	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0212-					●
34	COVER; CHECK HOLE,DRUM COVER BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-402-0	04	1	9702-9803			●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0012-0201	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0202-0211	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0212-0906	●	●	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-	●	●	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0012-0201	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0202-0211	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-1	02	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-1	02	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) M16X52	1-09044-001-1	02	1	9702-9803			●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0012-0109	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0110-0211	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0805	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0212-0805					●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-120-0	02	1	0806-	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-120-0	02	1	0806-					●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-1	02	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-1	02	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) M16X59 FLANGE	1-09044-002-1	02	1	9702-9803			●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0012-0109	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B) M16X59 FLANGE	1-09044-002-2	02	1	0110-0211	●	●
35	BOLT; DRUM COVER (B) M16X59 FLANGE	1-09044-002-2	02	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B) M16X59 FLANGE	1-09044-002-2	02	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (B) M16X59 FLANGE	1-09044-002-2	02	1	0212-					●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B)	1-47159-177-0	08	1	9702-9803			●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0012-0109	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0110-0211	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0212-					●
35	BOLT; DRUM COVER BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B)	1-87061-389-0	08	1	9702-9803			●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9701	●		●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9702-9803	●
53	NUT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M16	9-99110-416-0	04	1	9702-9803			●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9804-9902	●	●	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0004	●	●	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	0005-0512	●	●	●	●	●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-	●	●	●	●	●

38 53 33 37 22 35 36 34 34 35 23 28 19 17 15 13 12 10 6 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0012-0201	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0202-0211	●	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0212-	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9601-9803	●		●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9804-0004	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0005-0011	●	●	●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0012-0109	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0012-0109		●	●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0110-0211	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0110-0211			●	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0212-	●	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0212-					●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0012-0201	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0202-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0212-0512	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28050-812-0	12	1	0601-	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9601-9803	●		●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9804-0004	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0005-0011	●	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0012-0109	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0012-0109		●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0110-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0110-0211			●	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0212-0512	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0212-0512					●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0601-	●	●	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28050-816-0	12	1	0601-					●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-0	02	1	0012-0201	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-0	02	1	0202-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-2	02	1	0212-	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9601-9803	●		●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9804-0004	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0005-0011	●	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0012-0109	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0012-0109		●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0110-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0110-0211			●	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0212-	●	●	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0212-					●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-9803	●		●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9804-0004	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0512	●	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●	●	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●	●	●	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-9803	●		●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0005-0707	●	●	●	●	●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-	●	●	●	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9601-9803	●		●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9804-0004	●	●	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0005-	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-9803	●		●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9804-0004	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0005-0911	●	●	●	●	●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9803	●		●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9804-9809	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-0004	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0005-	●	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9803	●		●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9804-9809	●	●	●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0303-0610	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0702-	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0303-0610	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701	●		●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0702-	●		●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-044-0	20	1	0012-0201	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-044-0	20	1	0202-0210	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0211-0211	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0212-0302	●	●	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-	●	●	●
15	PIN; WHEEL,FRT AXLE BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-				●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0303-				●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9601-9701	●		●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9702-9803	●
15	PIN; WHEEL,FRT AXLE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42337-052-0	20	1	9702-9803			●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9804-0004	●	●	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0005-0011	●	●	●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0012-0109	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0012-0109		●	●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0110-0211	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0110-0211			●	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0212-	●	●	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0212-					●
15	PIN; WHEEL,FRT AXLE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42337-031-0	20	1	9702-9803			●	●
17	HUB; FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42312-128-2	02	1	0303-	●		●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-0	02	1	0012-0201	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0202-0211	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0212-0302	●	●	●	●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0303-	●	●	●
17	HUB; FRT AXLE BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-42312-100-1	02	1	0303-				●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42312-100-1	02	1	0303-				●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9601-9701	●		●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9702-9803	●
17	HUB; FRT AXLE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42312-133-0	02	1	9702-9803			●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	9804-0004	●	●	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0005-0011	●	●	●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0012-0109	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0012-0109		●	●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0110-0211	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0110-0211			●	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42312-133-0	02	1	0212-	●	●	●	●
17	HUB; FRT AXLE	1-42312-133-0	02	1	0212-					●
17	HUB; FRT AXLE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42312-089-1	02	1	9702-9803			●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9803	●		●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9804-9809	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-0004	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0005-	●	●	●	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9803	●		●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9804-9809	●	●	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0012-0201	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0202-0211	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9601-9701	●		●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9702-9803	●
22	COVER SET; FRT BRK DRUM EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-47151-642-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9804-0004	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0005-0011	●	●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0012-0109	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0012-0109		●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0110-0211	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0110-0211			●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0212-					●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9601-9701	●		●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9702-9803	●
22	COVER SET; FRT BRK DRUM EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-47151-643-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9804-0004	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0005-0011	●	●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0012-0109	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0012-0109		●	●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0110-0211	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0110-0211			●	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0212-	●	●	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0212-					●
22	COVER SET; FRT BRK DRUM BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-774-0	01	1	9702-9803			●	●
22	COVER SET; FRT BRK DRUM BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-773-0	01	1	9702-9803			●	●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-336-1	02	1	0303-0308	●		●	●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-355-0	02	1	0309-	●		●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0012-0201	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0202-0211	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0212-0302	●	●	●	●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0303-	●	●	●
23	DRUM; BRK,FRT BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-42315-337-0	02	1	0303-				●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-42315-337-0	02	1	0303-				●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9601-9701	●		●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9702-9803	●
23	DRUM; BRK,FRT EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42315-348-2	02	1	9702-9803			●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	9804-0004	●	●	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0005-0011	●	●	●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0012-0109	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0012-0109		●	●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0110-0211	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0110-0211			●	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-42315-348-2	02	1	0212-	●	●	●	●
23	DRUM; BRK,FRT	1-42315-348-2	02	1	0212-					●
23	DRUM; BRK,FRT BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-42315-330-1	02	1	9702-9803			●	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0012-0201	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0202-0211	●	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9601-9803	●		●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9804-0004	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0005-0011	●	●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0012-0109	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0012-0109		●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0110-0211	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0110-0211			●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0212-					●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9601-9803	●		●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9804-0004	●	●	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0005-0011	●	●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0012-0109	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0012-0109		●	●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0110-0211	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0110-0211			●	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0212-	●	●	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0212-					●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-9701	●		●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9702-9803	●
33	WASHER; LK,DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> ID=16.2	9-09150-816-0	04	1	9702-9803			●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9804-0004	●	●	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0005-0603	●	●	●	●	●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-	●	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0012-0201	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0202-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0212-	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9601-9701	●		●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9702-9803	●
34	COVER; CHECK HOLE,DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87050-011-0	04	1	9702-9803			●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9804-0004	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0005-0011	●	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0012-0109	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0012-0109		●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0110-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0110-0211			●	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0212-	●	●	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0212-					●
34	COVER; CHECK HOLE,DRUM COVER BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>	1-87061-402-0	04	1	9702-9803			●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0012-0201	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0202-0211	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0212-0906	●	●	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-	●	●	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0012-0201	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0202-0211	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	04	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-1	02	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-1	02	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) M16X52	1-09044-001-1	02	1	9702-9803			●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0012-0109	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0110-0211	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0805	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0212-0805					●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-120-0	02	1	0806-	●	●	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-120-0	02	1	0806-					●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-1	02	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-1	02	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) M16X59 FLANGE	1-09044-002-1	02	1	9702-9803			●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0012-0109	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B) M16X59 FLANGE	1-09044-002-2	02	1	0110-0211	●	●
35	BOLT; DRUM COVER (B) M16X59 FLANGE	1-09044-002-2	02	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B) M16X59 FLANGE	1-09044-002-2	02	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (B) M16X59 FLANGE	1-09044-002-2	02	1	0212-					●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-9701	●		●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9702-9803	●
35	BOLT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B)	1-47159-177-0	08	1	9702-9803			●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9804-0004	●	●	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0005-0011	●	●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0012-0109	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0012-0109		●	●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0110-0211	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0110-0211			●	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-	●	●	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0212-					●
35	BOLT; DRUM COVER BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B)	1-87061-389-0	08	1	9702-9803			●	●
36	BOLT; BACK PLATE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M16X52	1-09044-001-1	04	1	9702-9803			●	●
37	WASHER; LK,BACK PLATE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> ID=16.2	9-09150-816-0	04	1	9702-9803			●	●
38	NUT; BACK PLATE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M16	9-99110-416-0	04	1	9702-9803			●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9701	●		●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9702-9803	●
53	NUT; DRUM COVER EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M16	9-99110-416-0	04	1	9702-9803			●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9804-9902	●	●	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0004	●	●	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	0005-0512	●	●	●	●	●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
