4-10 — FRONT AXLE (#63845) — 438 parça

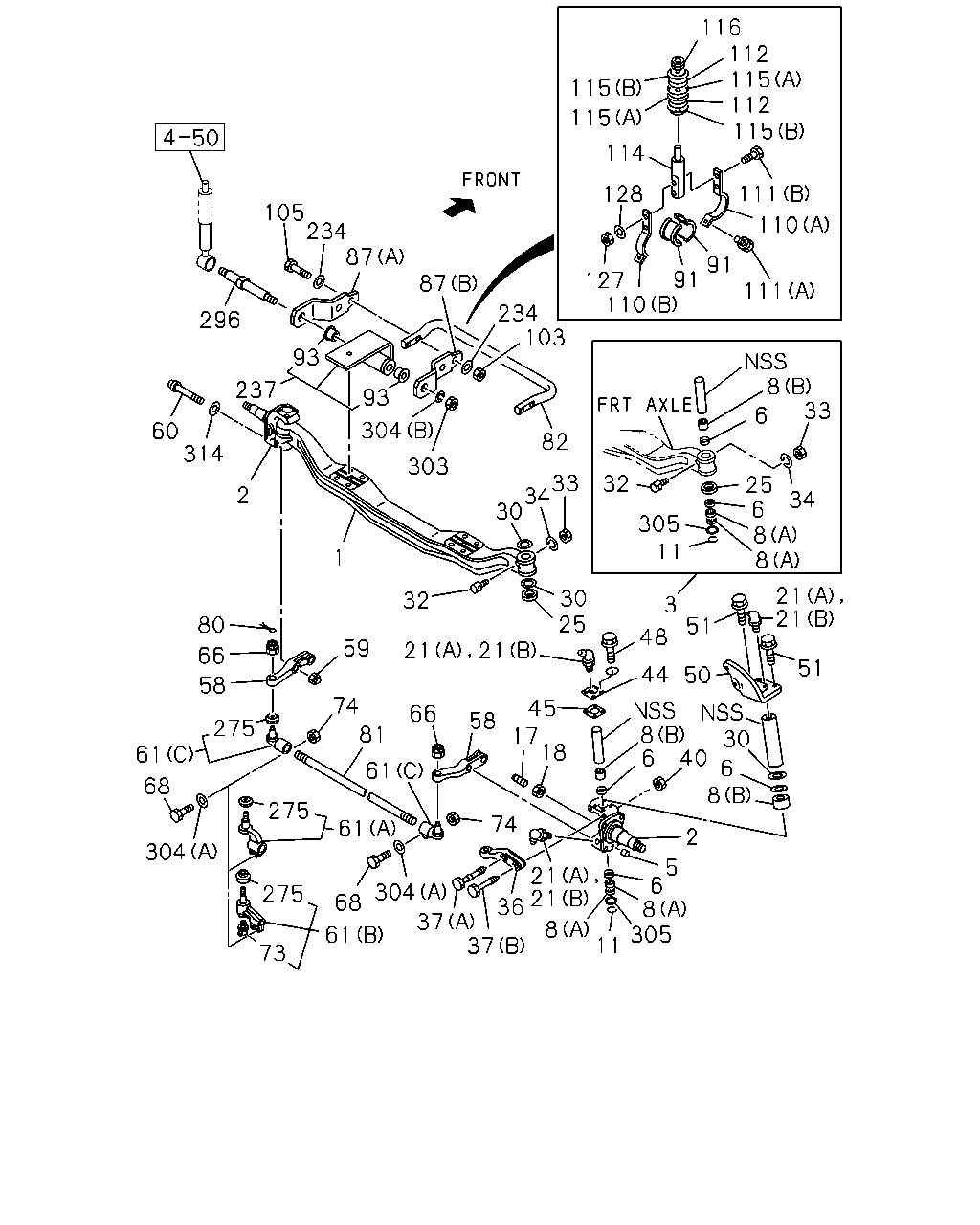

çizim 184390
116 112 115 112 115 115 115 114 111 128 105 234 87 110 91 127 91 110 87 111 234 103 296 93 8 33 237 93 6 304 60 314 82 32 303 33 34 30 25 6 8 8 2 34 305 11 1 21 21 30 25 32 3 80 51 48 59 21 21 66 5 44 50 58 74 45 17 18 8 30 66 58 275 81 61 6 8 61 68 275 74 2 61 21 21 36 304 5 6 8 305 304 275 68 37 37 8 11 61 73 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 AXLE; FRT 1-43111-113-1 01 1 9601-9803 ● ● ●
1 AXLE; FRT 1-43111-113-1 01 1 9804-0004 ● ● ● ●
1 AXLE; FRT 1-43111-113-6 01 1 0005- ● ● ● ● ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43132-079-0 01 1 0012-0201 ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43132-079-0 01 1 0202-0211 ● ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43132-079-1 01 1 0212- ● ● ● ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43131-079-0 01 1 0012-0201 ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43131-079-0 01 1 0202-0211 ● ●
2 KNUCKLE; FRT AXLE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43131-079-1 01 1 0212- ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 9601-9803 ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 9804-0004 ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 0005-0011 ● ● ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43132-087-0 01 1 0012-0109 ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 0012-0109 ● ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43132-087-0 01 1 0110-0211 ● ●
2 KNUCKLE; FRT AXLE 1-43132-087-0 01 1 0110-0211 ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43132-087-1 01 1 0212- ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-087-1 01 1 0212- ●
2 KNUCKLE; FRT AXLE 1-43131-087-0 01 1 9601-9803 ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-087-0 01 1 9804-0004 ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-087-0 01 1 0005-0011 ● ● ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43131-087-0 01 1 0012-0109 ●
2 KNUCKLE; FRT AXLE 1-43131-087-0 01 1 0012-0109 ● ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43131-087-0 01 1 0110-0211 ● ●
2 KNUCKLE; FRT AXLE 1-43131-087-0 01 1 0110-0211 ● ● ●
2 KNUCKLE; FRT AXLE
HUB LUBRICATION OIL BATH<C5K> 		1-43131-087-1 01 1 0212- ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-087-1 01 1 0212- ●
3 KING PIN SET 1-87830-738-0 02 1 9601-9803 ● ● ●
3 KING PIN SET 1-87830-738-0 02 1 9804-0004 ● ● ● ●
3 KING PIN SET 1-87830-738-5 02 1 0005- ● ● ● ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 9601-9803 ● ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 9804-0004 ● ● ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 0005- ● ● ● ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 9601-9803 ● ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 9804-0004 ● ● ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 0005- ● ● ● ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 9601-9803 ● ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 9804-0004 ● ● ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0005- ● ● ● ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 9601-9803 ● ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 9804-0004 ● ● ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0005- ● ● ● ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 9601-9803 ● ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 9804-0004 ● ● ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0005- ● ● ● ● ●
17 BOLT; STOPPER KNUCKLE
EXC. HUB LUBRICATION OIL BATH<C5K> M18X43 		1-09009-065-0 02 1 0012-0201 ●
17 BOLT; STOPPER KNUCKLE
EXC. HUB LUBRICATION OIL BATH<C5K> M18X43 		1-09009-065-0 02 1 0202-0211 ● ●
17 BOLT; STOPPER KNUCKLE
EXC. HUB LUBRICATION OIL BATH<C5K> M18X43 		1-09009-065-0 02 1 0212-0705 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
EXC. HUB LUBRICATION OIL BATH<C5K> M18X43 		1-09009-190-0 02 1 0706- ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 9601-9803 ● ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 9804-0004 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 0005-0011 ● ● ● ● ●
17 BOLT; STOPPER KNUCKLE
HUB LUBRICATION OIL BATH<C5K> M18X53 		1-09009-066-0 02 1 0012-0109 ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 0012-0109 ● ● ● ●
17 BOLT; STOPPER KNUCKLE
HUB LUBRICATION OIL BATH<C5K> M18X53 		1-09009-066-0 02 1 0110-0211 ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 0110-0211 ● ● ●
17 BOLT; STOPPER KNUCKLE
HUB LUBRICATION OIL BATH<C5K> M18X53 		1-09009-066-0 02 1 0212- ● ● ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 0212- ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 9601-9803 ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 9804-0004 ● ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 0005-0512 ● ● ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 0601- ● ● ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9601-9704 ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9705-9803 ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9804-0004 ● ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0005-0512 ● ● ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601- ● ● ● ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9704 ● ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 9601-9803 ● ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 9804-0004 ● ● ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0005- ● ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 9601-9803 ● ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 9804-0004 ● ● ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0005- ● ● ● ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 9601-9803 ● ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 9804-0004 ● ● ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 0005- ● ● ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 9601-9803 ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 9804-0004 ● ● ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0005-0512 ● ● ● ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601- ● ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 9601-9803 ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 9804-0004 ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0005-0603 ● ● ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ● ●
36 ARM; KNUCKLE 1-43133-063-1 01 1 9601-9803 ● ● ●
36 ARM; KNUCKLE 1-43133-063-1 01 1 9804-0004 ● ● ● ●
36 ARM; KNUCKLE 1-43133-063-3 01 1 0005- ● ● ● ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 9601-9803 ● ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 9804-0004 ● ● ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 0005-0704 ● ● ● ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		8-98052-380-1 01 1 0705- ● ● ● ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 9601-9803 ● ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 9804-0004 ● ● ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 0005-0704 ● ● ● ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		8-98052-381-1 01 1 0705- ● ● ● ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 9601-9803 ● ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 9804-0004 ● ● ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0005-0704 ● ● ● ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0705- ● ● ● ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 9601-9803 ● ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 9804-0004 ● ● ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 0005-0011 ● ● ● ● ●
44 COVER; KING PIN
HUB LUBRICATION OIL BATH<C5K> 		1-43175-014-1 02 1 0012-0109 ●
44 COVER; KING PIN 1-43175-014-1 02 1 0012-0109 ● ● ● ●
44 COVER; KING PIN
HUB LUBRICATION OIL BATH<C5K> 		1-43175-014-1 02 1 0110-0211 ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 0110-0211 ● ● ●
44 COVER; KING PIN
HUB LUBRICATION OIL BATH<C5K> 		1-43175-014-1 02 1 0212- ● ● ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 0212- ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 9601-9803 ● ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 9804-0004 ● ● ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 0005-0011 ● ● ● ● ●
45 GASKET; KING PIN COVER
HUB LUBRICATION OIL BATH<C5K> 		1-42319-044-0 02 1 0012-0109 ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 0012-0109 ● ● ● ●
45 GASKET; KING PIN COVER
HUB LUBRICATION OIL BATH<C5K> 		1-42319-044-0 02 1 0110-0211 ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 0110-0211 ● ● ●
45 GASKET; KING PIN COVER
HUB LUBRICATION OIL BATH<C5K> 		1-42319-044-0 02 1 0212- ● ● ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 0212- ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 9601-9803 ● ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 9804-0004 ● ● ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 0005-0011 ● ● ● ● ●
48 BOLT; COVER
HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE 		0-28081-216-0 08 1 0012-0109 ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 0012-0109 ● ● ● ●
48 BOLT; COVER
HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE 		0-28081-216-0 08 1 0110-0211 ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 0110-0211 ● ● ●
48 BOLT; COVER
HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE 		0-28081-216-0 08 1 0212-0512 ● ● ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28081-216-0 08 1 0212-0512 ●
48 BOLT; COVER
HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE 		0-28051-216-0 08 1 0601- ● ● ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28051-216-0 08 1 0601- ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-010-3 01 1 0012-0201 ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-010-3 01 1 0202-0211 ● ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-010-3 01 1 0212- ● ● ● ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-009-3 01 1 0012-0201 ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-009-3 01 1 0202-0211 ● ●
50 BRACKET; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43145-009-3 01 1 0212- ● ● ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE 		0-28081-260-0 02 1 0012-0201 ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE 		0-28081-260-0 02 1 0202-0211 ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE 		0-28081-260-0 02 1 0212-0512 ● ● ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE 		0-28051-260-0 02 1 0601- ● ● ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE 		0-28681-225-0 06 1 0012-0201 ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE 		0-28681-225-0 06 1 0202-0211 ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE 		0-28681-225-0 06 1 0212-0512 ● ● ● ●
51 BOLT; POWER CHAMBER BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE 		0-28651-225-0 06 1 0601- ● ● ● ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43135-042-1 01 1 0012-0201 ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43135-042-1 01 1 0202-0211 ● ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43135-042-3 01 1 0212- ● ● ● ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43134-042-1 01 1 0012-0201 ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43134-042-1 01 1 0202-0211 ● ●
58 ARM; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43134-042-3 01 1 0212- ● ● ● ●
58 ARM; TIE ROD 1-43135-044-0 01 1 9601-9803 ● ● ●
58 ARM; TIE ROD 1-43135-044-1 01 1 9804-0004 ● ● ● ●
58 ARM; TIE ROD 1-43135-044-1 01 1 0005-0011 ● ● ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43135-044-1 01 1 0012-0109 ●
58 ARM; TIE ROD 1-43135-044-1 01 1 0012-0109 ● ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43135-044-1 01 1 0110-0211 ● ●
58 ARM; TIE ROD 1-43135-044-1 01 1 0110-0211 ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43135-044-3 01 1 0212- ● ● ● ●
58 ARM; TIE ROD 1-43135-044-3 01 1 0212- ●
58 ARM; TIE ROD 1-43134-044-0 01 1 9601-9803 ● ● ●
58 ARM; TIE ROD 1-43134-044-1 01 1 9804-0004 ● ● ● ●
58 ARM; TIE ROD 1-43134-044-1 01 1 0005-0011 ● ● ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43134-044-1 01 1 0012-0109 ●
58 ARM; TIE ROD 1-43134-044-1 01 1 0012-0109 ● ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43134-044-1 01 1 0110-0211 ● ●
58 ARM; TIE ROD 1-43134-044-1 01 1 0110-0211 ● ● ●
58 ARM; TIE ROD
HUB LUBRICATION OIL BATH<C5K> 		1-43134-044-3 01 1 0212- ● ● ● ●
58 ARM; TIE ROD 1-43134-044-3 01 1 0212- ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 9601-9803 ● ● ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 9804-0004 ● ● ● ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0005-0704 ● ● ● ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0705- ● ● ● ● ●
60 BOLT; TIE ROD ARM
EXC. HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 04 1 0012-0201 ●
60 BOLT; TIE ROD ARM
EXC. HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 04 1 0202-0211 ● ●
60 BOLT; TIE ROD ARM
EXC. HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 04 1 0212-0704 ● ● ● ●
60 BOLT; TIE ROD ARM
EXC. HUB LUBRICATION OIL BATH<C5K> M22X193 		8-98052-379-1 04 1 0705- ● ● ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-1 02 1 9601-9701 ● ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 9702-9803 ●
60 BOLT; TIE ROD ARM
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M22X193 		1-09000-154-2 02 1 9702-9803 ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 9804-0004 ● ● ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 0005-0011 ● ● ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 02 1 0012-0109 ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 0012-0109 ● ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 02 1 0110-0211 ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 0110-0211 ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X193 		1-09000-154-2 02 1 0212-0704 ● ● ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 02 1 0212-0704 ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X193 		8-98052-379-1 02 1 0705- ● ● ● ●
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-1 02 1 0705- ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-0 02 1 9601-9701 ● ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 9702-9803 ●
60 BOLT; TIE ROD ARM
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M22X180.5 		1-09070-117-1 02 1 9702-9803 ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 9804-0004 ● ● ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 0005-0011 ● ● ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X180.5 		1-09070-117-1 02 1 0012-0109 ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 0012-0109 ● ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X180.5 		1-09070-117-1 02 1 0110-0211 ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 0110-0211 ● ● ●
60 BOLT; TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> M22X180.5 		1-09070-117-1 02 1 0212- ● ● ● ●
60 BOLT; TIE ROD ARM
M22X180.5 		1-09070-117-1 02 1 0212- ●
60 BOLT; TIE ROD ARM
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> M22X180.5 		1-09070-117-1 04 1 9702-9803 ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-802-0 01 1 0012-0201 ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-802-0 01 1 0202-0211 ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-802-0 01 1 0212-1009 ● ● ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		8-98171-445-0 01 1 1010-1306 ● ● ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		8-98236-801-0 01 1 1307- ● ● ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-801-0 01 1 0012-0201 ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-801-0 01 1 0202-0211 ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-43150-801-0 01 1 0212-1009 ● ● ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		8-98171-444-0 01 1 1010-1306 ● ● ● ●
61 ROD END; TIE ROD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		8-98236-800-0 01 1 1307- ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-627-2 01 1 9601-9803 ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-627-2 01 1 9804-9812 ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-793-0 01 1 9901-0004 ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-793-0 01 1 0005-0011 ● ● ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-793-1 01 1 0012-0109 ●
61 ROD END; TIE ROD
(C) 		1-43150-793-1 01 1 0012-0109 ● ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-793-1 01 1 0110-0211 ● ●
61 ROD END; TIE ROD
(C) 		1-43150-793-1 01 1 0110-0211 ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-793-1 01 1 0212- ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-793-1 01 1 0212- ●
61 ROD END; TIE ROD
(C) 		1-43150-626-2 01 1 9601-9803 ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-626-2 01 1 9804-9812 ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-792-0 01 1 9901-0004 ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-792-0 01 1 0005-0011 ● ● ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-792-1 01 1 0012-0109 ●
61 ROD END; TIE ROD
(C) 		1-43150-792-1 01 1 0012-0109 ● ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-792-1 01 1 0110-0211 ● ●
61 ROD END; TIE ROD
(C) 		1-43150-792-1 01 1 0110-0211 ● ● ●
61 ROD END; TIE ROD
HUB LUBRICATION OIL BATH<C5K> (C) 		1-43150-792-1 01 1 0212- ● ● ● ●
61 ROD END; TIE ROD
(C) 		1-43150-792-1 01 1 0212- ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 9601-9803 ● ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 9804-0004 ● ● ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0005-0805 ● ● ● ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806- ● ● ● ● ●
68 BOLT; TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> M12X65 		9-91061-265-0 04 1 0012-0201 ●
68 BOLT; TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> M12X65 		9-91061-265-0 04 1 0202-0211 ● ●
68 BOLT; TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> M12X65 		9-91061-265-0 04 1 0212-0704 ● ● ● ●
68 BOLT; TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> M12X65 		8-98053-922-0 04 1 0705- ● ● ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 9601-9803 ● ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 9804-0004 ● ● ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 0005-0011 ● ● ● ● ●
68 BOLT; TIE ROD END
HUB LUBRICATION OIL BATH<C5K> M12X55 		9-91061-255-0 04 1 0012-0109 ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 0012-0109 ● ● ● ●
68 BOLT; TIE ROD END
HUB LUBRICATION OIL BATH<C5K> M12X55 		9-91061-255-0 04 1 0110-0211 ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 0110-0211 ● ● ●
68 BOLT; TIE ROD END
HUB LUBRICATION OIL BATH<C5K> M12X55 		9-91061-255-0 04 1 0212- ● ● ● ●
68 BOLT; TIE ROD END
M12X55 		9-91061-255-0 04 1 0212- ●
73 NIPPLE; GREASE,TIE ROD END
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43159-133-0 02 1 1010- ● ● ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 9601-9803 ● ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 9804-0004 ● ● ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0005-0109 ● ● ● ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0110-0201 ● ● ● ●
74 NUT; TIE ROD END
HUB LUBRICATION OIL BATH<C5K> M12 		9-99110-512-0 04 1 0110-0201 ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0202-0512 ● ● ● ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601- ● ● ● ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 9601-9803 ● ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 9804-0004 ● ● ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0606 ● ● ● ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ● ● ● ●
81 ROD; TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43151-119-0 01 1 0012-0201 ●
81 ROD; TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43151-119-0 01 1 0202-0211 ● ●
81 ROD; TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43151-119-0 01 1 0212-1009 ● ● ● ●
81 ROD; TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		8-98172-133-0 01 1 1010-1109 ● ● ● ●
81 ROD; TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		8-98193-965-0 01 1 1110- ● ● ● ●
81 ROD; TIE 9-43151-120-1 01 1 9601-9803 ● ● ●
81 ROD; TIE 9-43151-120-1 01 1 9804-0004 ● ● ● ●
81 ROD; TIE 9-43151-120-1 01 1 0005-0011 ● ● ● ● ●
81 ROD; TIE
HUB LUBRICATION OIL BATH<C5K> 		9-43151-120-1 01 1 0012-0109 ●
81 ROD; TIE 9-43151-120-1 01 1 0012-0109 ● ● ● ●
81 ROD; TIE
HUB LUBRICATION OIL BATH<C5K> 		9-43151-120-1 01 1 0110-0211 ● ●
81 ROD; TIE 9-43151-120-1 01 1 0110-0211 ● ● ●
81 ROD; TIE
HUB LUBRICATION OIL BATH<C5K> 		9-43151-120-1 01 1 0212- ● ● ● ●
81 ROD; TIE 9-43151-120-1 01 1 0212- ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-113-0 01 1 9601-9803 ● ● ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-113-0 01 1 9804-0004 ● ● ● ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-113-0 01 1 0005-0201 ● ● ● ● ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-200-0 01 1 0202- ● ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		1-51781-083-1 02 1 9601-9803 ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		1-51781-083-1 02 1 9804-0004 ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		1-51781-083-1 02 1 0005-0912 ● ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1001- ● ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		1-51781-084-1 02 1 9601-9803 ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		1-51781-084-1 02 1 9804-0004 ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		1-51781-084-1 02 1 0005-0912 ● ● ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1001- ● ● ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-084-0 04 1 9601-9803 ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-084-0 04 1 9804-0004 ● ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-084-0 04 1 0005-0201 ● ● ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-121-1 04 1 0202- ● ● ● ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-0 04 1 9601-9803 ● ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-1 04 1 9804-0004 ● ● ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 0005- ● ● ● ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 04 1 9601-9803 ● ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 04 1 9804-0004 ● ● ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 04 1 0005-0512 ● ● ● ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 0601- ● ● ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		9-91061-470-0 04 1 9601-9803 ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		9-91061-470-0 04 1 9804-0004 ● ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		9-91061-470-0 04 1 0005-0206 ● ● ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		9-91066-470-0 04 1 0207-0910 ● ● ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 0911- ● ● ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 9601-9803 ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 9804-0004 ● ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 0005- ● ● ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 9601-9803 ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 9804-0004 ● ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 0005- ● ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20801-230-0 02 1 9601-9803 ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20801-230-0 02 1 9804-0004 ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20801-230-0 02 1 0005-0910 ● ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 0911- ● ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20801-250-0 04 1 9601-9803 ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20801-250-0 04 1 9804-0004 ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20801-250-0 04 1 0005-0910 ● ● ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 0911- ● ● ● ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 9601-9803 ● ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 9804-0004 ● ● ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 0005- ● ● ● ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-084-0 02 1 9601-9803 ● ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-084-0 02 1 9804-0004 ● ● ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-084-0 02 1 0005- ● ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.8 		1-51631-022-0 04 1 9601-9803 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.8 		1-51631-022-0 04 1 9804-0004 ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.8 		1-51631-022-0 04 1 0005- ● ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=14.5 		9-51631-051-0 04 1 9601-9803 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=14.5 		9-51631-051-0 04 1 9804-0004 ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=14.5 		9-51631-051-0 04 1 0005- ● ● ● ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 04 1 9601-9803 ● ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 04 1 9804-0004 ● ● ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 04 1 0005-0512 ● ● ● ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 0601- ● ● ● ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		9-99110-412-0 06 1 9601-9803 ● ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		9-99110-412-0 06 1 9804-0004 ● ● ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		9-99110-412-0 06 1 0005-0512 ● ● ● ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 0601- ● ● ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-512-0 06 1 9601-9803 ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-512-0 06 1 9804-0004 ● ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-512-0 06 1 0005-0603 ● ● ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-512-0 06 1 0604-0912 ● ● ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1001- ● ● ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 08 1 9601-9803 ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 08 1 9804-0004 ● ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 08 1 0005-0910 ● ● ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 0911- ● ● ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-724-0 02 1 9601-9803 ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-724-0 02 1 9804-0004 ● ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-724-0 02 1 0005-0010 ● ● ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-724-0 02 1 0011-0209 ● ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRONT SPRING LONG SPAN<W36> 		1-51681-724-0 02 1 0011-0209 ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 		1-51681-662-0 02 1 0011-0209 ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 0210- ● ● ● ● ●
275 BOOT; ROD END,TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-43159-131-0 02 1 1010-1306 ● ● ● ●
275 BOOT; ROD END,TIE
EXC. HUB LUBRICATION OIL BATH<C5K> 		8-98229-116-0 02 1 1307- ● ● ● ●
275 BOOT; ROD END,TIE 1-43159-078-0 02 1 9601-9803 ● ● ●
275 BOOT; ROD END,TIE 1-43159-078-0 02 1 9804-9812 ● ● ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 9901-0004 ● ● ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0005-0109 ● ● ● ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0110-0201 ● ● ● ●
275 BOOT; ROD END,TIE
HUB LUBRICATION OIL BATH<C5K> 		1-43159-107-0 02 1 0110-0201 ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0202-1009 ● ● ● ● ●
275 BOOT; ROD END,TIE
HUB LUBRICATION OIL BATH<C5K> 		1-43159-107-0 02 1 1010- ● ● ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1010- ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		1-51682-145-2 02 1 9601-9803 ● ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		1-51682-145-2 02 1 9804-0004 ● ● ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		1-51682-145-2 02 1 0005-0907 ● ● ● ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 0908- ● ● ● ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 9601-9803 ● ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 9804-0004 ● ● ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 0005-0512 ● ● ● ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 0601- ● ● ● ● ●
304 WASHER; PL
EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=12.5 		0-91614-512-0 04 1 0705- ● ● ● ●
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 9601-9803 ● ● ●
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 9804-0004 ● ● ● ●
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0005-0704 ● ● ● ● ●
304 WASHER; PL
HUB LUBRICATION OIL BATH<C5K> (A) ID=12.5 		9-09164-512-0 04 1 0705- ● ● ● ●
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0705- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 9601-9803 ● ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 9804-0004 ● ● ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 0005-0907 ● ● ● ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 0908- ● ● ● ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 9601-9803 ● ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 9804-0004 ● ● ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 0005-0704 ● ● ● ● ●
305 COVER; KNUCKLE 8-98052-291-0 02 1 0705- ● ● ● ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 9708-9803 ●
314 WASHER; PL,TIE ROD ARM
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> ID=23 		9-09164-522-0 04 1 9708-9803 ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 9804-0004 ● ● ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 0005-0011 ● ● ● ● ●
314 WASHER; PL,TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> ID=23 		9-09164-522-0 04 1 0012-0109 ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 0012-0109 ● ● ● ●
314 WASHER; PL,TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> ID=23 		9-09164-522-0 04 1 0110-0211 ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 0110-0211 ● ● ●
314 WASHER; PL,TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> ID=23 		9-09164-522-0 04 1 0212-0605 ● ● ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		9-09164-522-0 04 1 0212-0605 ●
314 WASHER; PL,TIE ROD ARM
HUB LUBRICATION OIL BATH<C5K> ID=23 		0-91614-522-0 04 1 0606- ● ● ● ●
314 WASHER; PL,TIE ROD ARM
ID=23 		0-91614-522-0 04 1 0606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
