1 |
SHAFT; PROP
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
(A)
L=1281
|
1-37152-796-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
(A)
L=766
|
1-37152-297-0 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
FINAL GEAR 17.5"<B5D>
P60 PROP SHAFT(C2M)
(C)
L=1134
|
1-37124-093-0 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
FINAL GEAR 17.5"<B5D>
P60 PROP SHAFT(C2M)
(C)
L=1134
|
1-37124-093-0 |
01 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
EXC. FINAL GEAR 17.5"<B5D>
(C)
L=1114
|
1-37124-346-0 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
EXC. FINAL GEAR 17.5"<B5D>
(C)
L=1114
|
1-37124-346-0 |
01 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
(B)
L=956
|
1-37152-277-0 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HK1 TCS ENG(80L)
FULLER FSO5206B OD M/T(Y4V)
P60 PROP SHAFT(C2M)
(A)
L=596
|
1-37153-490-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
(C)
L=1119
|
1-37124-152-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
(B)
L=811
|
1-37153-491-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
FINAL GEAR 17.5"<B5D>
P90 PROP SHAFT(C5T)
(C)
L=1147
|
1-37125-159-0 |
01 |
1 |
0301- |
● |
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
FINAL GEAR 17.5"<B5D>
P46 PROP SHAFT(C4Z)
(C)
L=886
|
1-37124-084-1 |
01 |
1 |
0303- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
FINAL GEAR 17.5"<B5D>
P90 PROP SHAFT(C5T)
(C)
L=1107
|
1-37123-973-0 |
01 |
1 |
0212- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
FULLER FS8209 DD M/T(Y2S)
P90 PROP SHAFT(C5T)
(A)
L=1119
|
1-37152-122-0 |
01 |
1 |
9601-9803 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
EURO2 SPECIFICATION<THN>
MLD7 M/T<X9Z>
(A)
L=1401
|
1-37152-288-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=1401
|
1-37152-288-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=612
|
1-37123-888-0 |
01 |
1 |
9601-9803 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=627
|
1-37124-094-0 |
01 |
1 |
9804- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=608
|
1-37152-038-0 |
01 |
1 |
9601-9803 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(A)
L=608
|
1-37152-038-0 |
01 |
1 |
9804-0906 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(A)
L=597
|
8-98133-100-0 |
01 |
1 |
0907- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=876
|
1-37124-186-1 |
01 |
1 |
9601-0004 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=876
|
1-37124-186-1 |
01 |
1 |
0005-0302 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
EXC. FINAL GEAR 17.5"<B5D>
(C)
L=876
|
1-37124-186-1 |
01 |
1 |
0303- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(C)
L=701
|
1-37123-763-1 |
01 |
1 |
9601- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
(A)
L=701
|
1-37151-939-0 |
01 |
1 |
9601-9607 |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
(A)
L=701
|
1-37151-939-1 |
01 |
1 |
9608-0004 |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
EXC. ENGINE REAR PTO<SV1>
(A)
L=701
|
1-37151-939-1 |
01 |
1 |
9608-0004 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=701
|
1-37151-939-1 |
01 |
1 |
0005-1111 |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=694
|
8-98069-611-0 |
01 |
1 |
1112- |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=601
|
1-37152-005-1 |
01 |
1 |
9601-0004 |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=601
|
1-37152-005-1 |
01 |
1 |
0005-1111 |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=594
|
8-98069-607-0 |
01 |
1 |
1112- |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
L=711
|
1-37151-634-1 |
01 |
1 |
9601-1111 |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
L=704
|
8-98069-606-0 |
01 |
1 |
1112- |
|
|
|
|
● |
● |
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=1019
|
1-37124-516-0 |
01 |
1 |
9807-0004 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
MLD7 M/T<X9Z>
(A)
L=706
|
1-37152-558-0 |
01 |
1 |
9807-0004 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
9601-0004 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
9601-0004 |
● |
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0005-0011 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0005-0011 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0012-0211 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
HUB LUBRICATION OIL BATH<C5K>
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0012-0211 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0012-0211 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0012-0211 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0212-0405 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0212-0405 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0212-0405 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0406- |
|
|
● |
|
|
● |
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(C)
L=1226
|
1-37124-096-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ENGINE REAR PTO<SV1>
MLD6 M/T<X9Y>
(A)
L=641
|
1-37151-357-1 |
01 |
1 |
9608-0004 |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(C)
L=1041
|
1-37124-183-1 |
01 |
1 |
9601- |
|
|
|
|
|
● |
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=1134
|
1-37124-093-0 |
01 |
1 |
9706-9803 |
|
|
|
● |
|
● |
|
| |
1 |
SHAFT; PROP
FULLER FS8209 DD M/T(Y2S)
(C)
L=837
|
1-37124-270-0 |
01 |
1 |
9804-0004 |
|
|
|
|
|
|
● |
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
MLD6 M/T<X9Y>
(C)
L=1114
|
1-37124-346-0 |
01 |
1 |
9806-9806 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
MLD6 M/T<X9Y>
(C)
L=1114
|
1-37124-346-0 |
01 |
1 |
9807-0004 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=1114
|
1-37124-346-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
MLD6 M/T<X9Y>
(A)
L=1101
|
1-37152-336-0 |
01 |
1 |
9806-0004 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=828
|
1-37152-299-0 |
01 |
1 |
9707-9803 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(C)
L=1092
|
1-37124-348-0 |
01 |
1 |
9804-0004 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=1092
|
1-37124-348-0 |
01 |
1 |
0005-0211 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
EXC. FINAL GEAR 16.5"<B2Y>,FINAL GEAR
17.5"<B5D>
(C)
L=1092
|
1-37124-348-0 |
01 |
1 |
0212- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
MAL6 M/T<X9G>
P46 PROP SHAFT(C4Z)
(A)
L=931
|
1-37151-576-0 |
01 |
1 |
9601-9803 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
MAL6 M/T<X9G>
P46 PROP SHAFT(C4Z)
(C)
L=1176
|
1-37124-342-1 |
01 |
1 |
9804-0004 |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(C)
L=1176
|
1-37124-342-1 |
01 |
1 |
0005- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
6HE1 TC ENG(57L)
FINAL GEAR 16.5"<B2Y>
P46 PROP SHAFT(C4Z)
EXC. HUB LUBRICATION OIL BATH<C5K>
(C)
L=1266
|
1-37123-424-3 |
01 |
1 |
0012- |
|
● |
● |
|
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=1096
|
1-37151-941-1 |
01 |
1 |
9601-0004 |
|
|
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=1096
|
1-37151-941-1 |
01 |
1 |
0005-1111 |
|
|
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=1089
|
8-98069-573-0 |
01 |
1 |
1112- |
|
|
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=996
|
1-37152-006-1 |
01 |
1 |
9601-0004 |
|
|
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=996
|
1-37152-006-1 |
01 |
1 |
0005-0405 |
|
|
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=996
|
1-37152-006-1 |
01 |
1 |
0406- |
|
|
|
● |
|
● |
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
HONG KONG EQUIPMENT(PQ1)
MLD7 M/T<X9Z>
(A)
L=996
|
1-37152-006-1 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P60 PROP SHAFT(C2M)
(A)
L=636
|
1-37152-028-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P60 PROP SHAFT(C2M)
(A)
L=536
|
1-37152-276-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=869
|
1-37124-216-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1056
|
1-37152-030-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
MLD6 M/T<X9Y>
(A)
L=636
|
1-37152-028-0 |
01 |
1 |
9806-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(B)
L=623
|
1-37152-041-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=811
|
1-37151-355-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=811
|
1-37151-355-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=811
|
1-37151-355-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=811
|
1-37151-355-1 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=811
|
1-37151-355-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
(A)
L=621
|
1-37151-483-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
(A)
L=1501
|
1-37152-231-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=621
|
1-37151-483-1 |
01 |
1 |
0005- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=526
|
1-37152-007-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=526
|
1-37152-007-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
EXC. EURO2 SPECIFICATION<THN>
(A)
L=526
|
1-37152-007-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=526
|
1-37152-007-1 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
MLD7 M/T<X9Z>
(A)
L=526
|
1-37152-007-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(B)
L=651
|
1-37151-645-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
(C)
L=787
|
1-37124-220-0 |
01 |
1 |
9804-0004 |
|
|
|
|
|
|
● |
| |
1 |
SHAFT; PROP
(C)
L=787
|
1-37124-220-0 |
01 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
MAL6 M/T<X9G>
(A)
L=611
|
1-37152-055-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
MAL6 M/T<X9G>
(A)
L=1331
|
1-37152-098-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
MAL6 M/T<X9G>
P46 PROP SHAFT(C4Z)
(A)
L=1331
|
1-37152-098-1 |
01 |
1 |
0005- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=533
|
1-37152-039-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(A)
L=1223
|
1-37152-339-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=1223
|
1-37152-339-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=869
|
1-37124-216-0 |
01 |
1 |
9806-0004 |
● |
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1056
|
1-37152-030-0 |
01 |
1 |
9806-0004 |
● |
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
9601-9706 |
● |
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
9707-9803 |
● |
● |
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
9804-0011 |
● |
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
0012-0211 |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
HUB LUBRICATION OIL BATH<C5K>
P90 PROP SHAFT(C5T)
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
0012-0211 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P90 PROP SHAFT(C5T)
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
0012-0211 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K>
P90 PROP SHAFT(C5T)
EXC. FINAL GEAR 16.5"<B2Y>,FINAL GEAR
17.5"<B5D>
(C)
L=1132
|
1-37124-185-0 |
01 |
1 |
0212- |
● |
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P60 PROP SHAFT(C2M)
(A)
L=866
|
1-37152-296-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P60 PROP SHAFT(C2M)
(A)
L=766
|
1-37152-297-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(C)
L=1109
|
1-37124-052-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1081
|
1-37151-907-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1131
|
1-37152-031-0 |
01 |
1 |
9806-0004 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(B)
L=788
|
1-37152-042-0 |
01 |
1 |
9601- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=761
|
1-37151-772-0 |
01 |
1 |
9601-9609 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=761
|
1-37151-772-1 |
01 |
1 |
9610-0004 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD7 M/T<X9Z>
P46 PROP SHAFT(C4Z)
(A)
L=761
|
1-37151-772-1 |
01 |
1 |
0005-0405 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD7 M/T<X9Z>
(A)
L=761
|
1-37151-772-1 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
HONG KONG EQUIPMENT(PQ1)
MLD7 M/T<X9Z>
(A)
L=761
|
1-37151-772-1 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=1081
|
1-37151-641-0 |
01 |
1 |
9601-9609 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=1081
|
1-37151-641-1 |
01 |
1 |
9610-0004 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=1081
|
1-37151-641-1 |
01 |
1 |
0005-0405 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=1081
|
1-37151-641-1 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MLD6 M/T<X9Y>
(A)
L=861
|
1-37151-943-1 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
MLD6 M/T<X9Y>
P46 PROP SHAFT(C4Z)
(A)
L=861
|
1-37151-943-1 |
01 |
1 |
0005- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(B)
L=796
|
1-37152-058-1 |
01 |
1 |
9601- |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
MAL6 M/T<X9G>
(A)
L=971
|
1-37152-056-0 |
01 |
1 |
9601-9803 |
|
● |
|
|
|
|
|
| |
1 |
SHAFT; PROP
6SD1 STD ENG(37L)
MAL6 M/T<X9G>
P46 PROP SHAFT(C4Z)
(A)
L=971
|
1-37152-056-1 |
01 |
1 |
9804- |
|
● |
● |
|
|
|
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
(C)
L=1216
|
1-37123-465-1 |
01 |
1 |
9601-0011 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
HUB LUBRICATION OIL BATH<C5K>
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1216
|
1-37123-465-1 |
01 |
1 |
0012-0211 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
EXC. FINAL GEAR 16.5"<B2Y>
(C)
L=1216
|
1-37123-465-1 |
01 |
1 |
0212- |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=868
|
1-37152-040-0 |
01 |
1 |
9601-9803 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(A)
L=868
|
1-37152-040-0 |
01 |
1 |
9804- |
|
● |
● |
● |
|
|
|
| |
1 |
SHAFT; PROP
6SD1 TCN ENG(31L)
P90 PROP SHAFT(C5T)
MAL6 M/T<X9G>
(A)
L=968
|
1-37152-131-0 |
01 |
1 |
0012- |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
6SD1 TCN ENG(31L)
ZF 9S109 OD M/T HONG KONG(Y3Y)
P90 PROP SHAFT(C5T)
(A)
L=773
|
1-37152-240-0 |
01 |
1 |
9904-0004 |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
ALLISON MD3560P A/T(Y3B)
P90 PROP SHAFT(C5T)
(A)
L=653
|
1-37152-351-0 |
01 |
1 |
0005- |
|
|
|
|
● |
|
|
| |
1 |
SHAFT; PROP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
FINAL GEAR 16.5"<B2Y>
P90 PROP SHAFT(C5T)
EXC. HUB LUBRICATION OIL BATH<C5K>
(C)
L=1182
|
1-37124-805-0 |
01 |
1 |
0012- |
|
● |
|
● |
|
|
|
| |
1 |
SHAFT; PROP
FULLER FS8209 DD M/T(Y2S)
P90 PROP SHAFT(C5T)
(A)
L=918
|
1-37152-162-0 |
01 |
1 |
9601-0004 |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
ALLISON MD3060P A/T(Y4G)
P90 PROP SHAFT(C5T)
(A)
L=1273
|
1-37152-063-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1346
|
1-37152-064-0 |
01 |
1 |
9706-9803 |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P60 PROP SHAFT(C2M)
(B)
L=1341
|
1-37151-877-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P90 PROP SHAFT(C5T)
(B)
L=1288
|
1-37152-043-0 |
01 |
1 |
9601- |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
L=1346
|
1-37152-057-1 |
01 |
1 |
9601-0004 |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
P46 PROP SHAFT(C4Z)
(B)
L=1346
|
1-37152-057-1 |
01 |
1 |
0005- |
|
|
|
● |
|
|
|
| |
1 |
SHAFT; PROP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
6HE1 TC ENG(57L)
P60 PROP SHAFT(C2M)
MLD7 M/T<X9Z>
(A)
L=1001
|
1-37152-557-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L)
FULLER FSO5206B OD M/T(Y4V)
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
03 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT

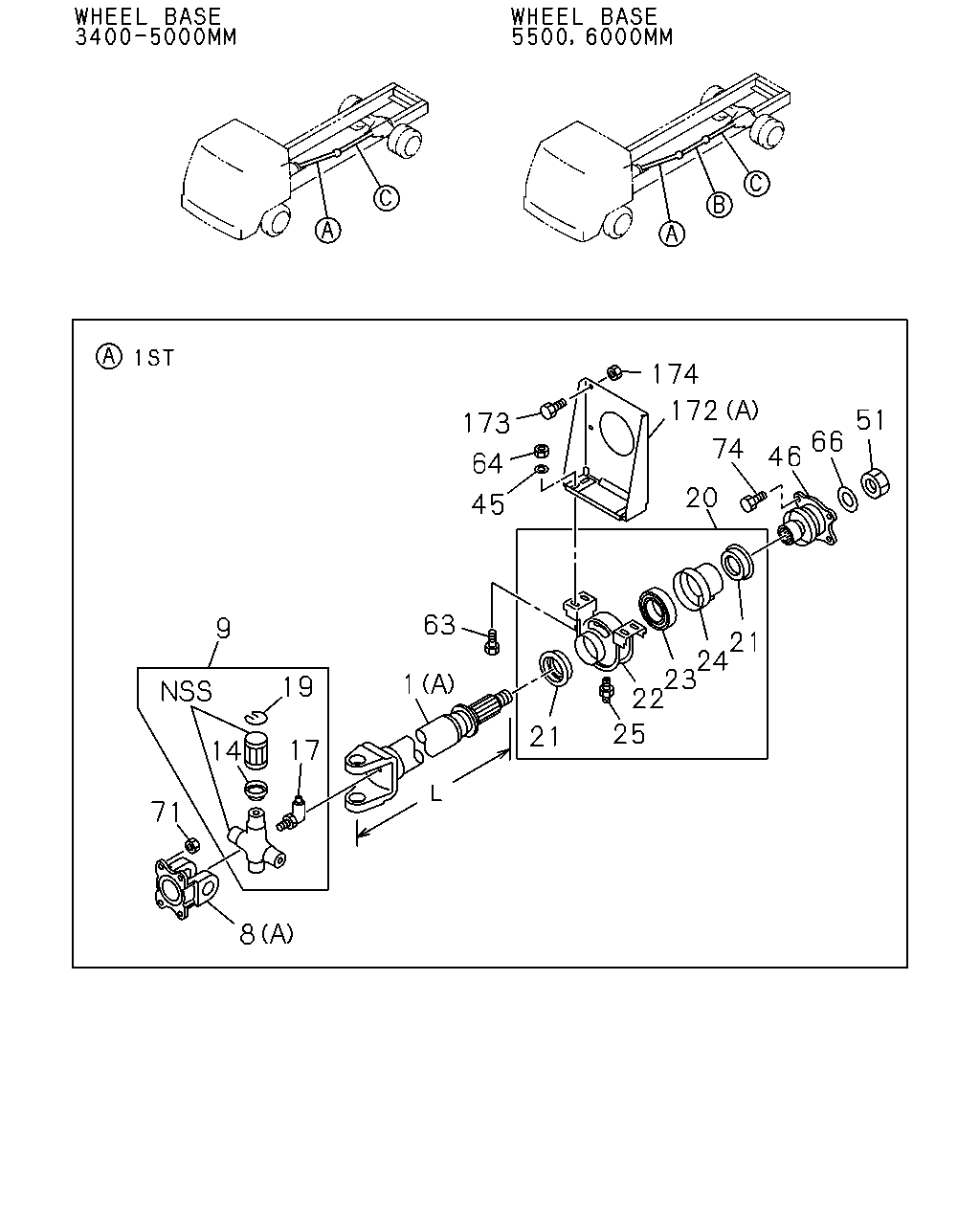

P46 PROP SHAFT(C4Z)
(A)
|
1-37211-054-0 |
02 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(B)
|
1-37211-056-3 |
01 |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(B)
|
1-37211-056-3 |
01 |
1 |
9601- |
● |
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(A)
|
1-37211-054-0 |
01 |
1 |
0005-1111 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(A)
|
1-37211-054-0 |
01 |
1 |
0005-1111 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(A)
|
8-98178-052-0 |
01 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(A)
|
8-98178-052-0 |
01 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT

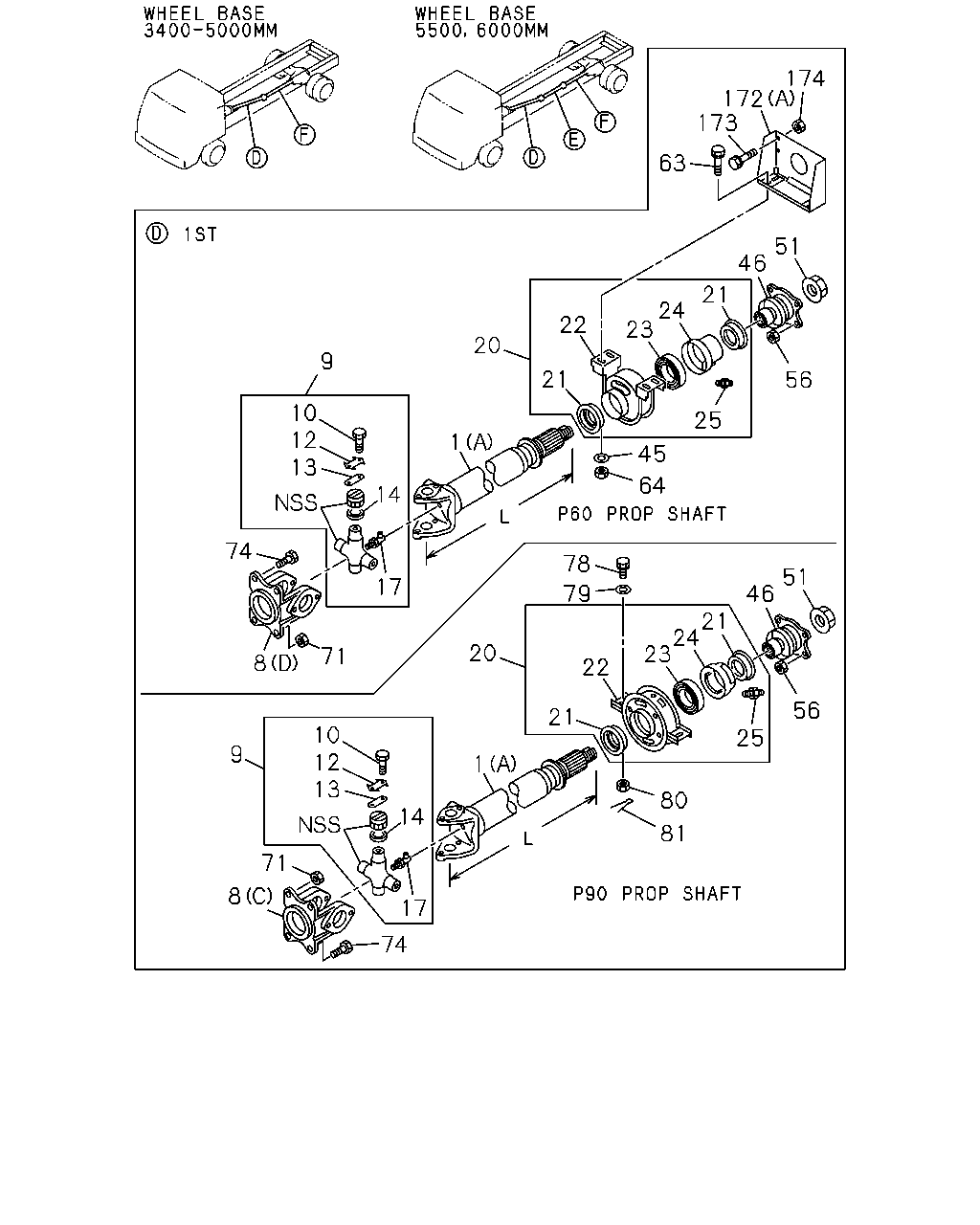

P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
03 |
1 |
9804-0004 |
|
|
● |
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
0005- |
|
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
02 |
1 |
9601-9706 |
● |
● |
|
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
02 |
1 |
9707-9803 |
● |
● |
● |
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
9804-0004 |
● |
● |
|
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
01 |
1 |
9804-0004 |
● |
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
02 |
1 |
0005- |
● |
● |
● |
● |
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
(D)
|
1-37211-066-1 |
02 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
9706-9803 |
● |
● |
|
● |
|
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T)
(D)
|
1-37211-066-1 |
02 |
1 |
9804-0004 |
● |
● |
|
● |
● |
|
● |
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
03 |
1 |
9806-9806 |
|
|
● |
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
9807-9807 |
● |
● |
● |
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
02 |
1 |
9808-0004 |
● |
● |
● |
● |
|
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
FVR WIDE CAB SHORT CHASSIS(FV**FC)
(C)
|
1-37211-072-1 |
01 |
1 |
9807-9807 |
|
|
|
|
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
FVR STD CAB SHORT CHASSIS(FV**MC)
AIR ASSIST CLUTCH<PK1>
(C)
|
1-37211-072-1 |
01 |
1 |
9807-9807 |
|
|
|
|
● |
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
AIR ASSIST CLUTCH<PK1>
(C)
|
1-37211-072-1 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
|
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
|
● |
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9808-0004 |
● |
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M)
(C)
|
1-37211-072-1 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
8 |
YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z)
(A)
|
1-37211-054-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
1ST,END REAR
|
8-98048-925-1 |
AR |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
1ST,END REAR
|
8-98048-925-1 |
AR |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-1 |
AR |
1 |
0406- |
● |
|
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-1 |
AR |
1 |
0406- |
● |
|
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-1 |
AR |
1 |
0406- |
|
● |
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-1 |
AR |
1 |
0406- |
|
|
● |
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
6HK1 TCS ENG(80L)
FULLER FSO5206B OD M/T(Y4V)
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-1 |
AR |
1 |
0406- |
● |
|
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
6SD1 STD ENG(37L),6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-1 |
AR |
1 |
0406- |
● |
|
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-1 |
AR |
1 |
0406- |
|
● |
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-1 |
AR |
1 |
0406- |
|
● |
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
1ST,2ND,END
|
1-37300-069-0 |
AR |
1 |
9601-9809 |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
1ST,2ND,END
|
1-37300-102-1 |
AR |
1 |
9810-0405 |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37300-102-1 |
AR |
1 |
1506- |
|
● |
|
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z)
2ND,END FRONT
|
1-37300-102-1 |
AR |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-0 |
AR |
1 |
9706-9803 |
● |
● |
|
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-0 |
AR |
1 |
9706-9803 |
● |
● |
|
● |
● |
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
2ND AND 1ST=WB 3900-5000MM
|
1-37300-092-0 |
AR |
1 |
9601-0004 |
● |
● |
● |
● |
● |
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
1ST,2ND,END
|
1-37300-093-0 |
AR |
1 |
0005-0011 |
● |
● |
|
● |
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
END AND 1ST=WB 5500,6000MM
|
1-37300-091-0 |
AR |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
END AND 1ST=WB 5500,6000MM
|
1-37300-091-0 |
AR |
1 |
9804-0004 |
● |
● |
● |
● |
● |
|
● |
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-0 |
AR |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
1ST,END
|
1-37300-094-0 |
AR |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-0 |
AR |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M)
2ND
|
1-37300-095-0 |
AR |
1 |
9807-0004 |
● |
● |
● |
● |
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
END AND 1ST=WB 5500,6000MM
|
1-37300-091-0 |
AR |
1 |
0005-0011 |
|
● |
● |
● |
● |
|
● |
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
END AND 1ST=WB 5500,6000MM
|
1-37300-091-1 |
AR |
1 |
0012- |
● |
● |
● |
● |
● |
|
● |
| |
9 |
JOURNAL ASM; PROP SHAFT
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)
,ALLISON MD3560P A/T(Y3B),ALLISON MD3060P
A/T(Y4G)
P90 PROP SHAFT(C5T)
1ST
|
1-37300-092-1 |
AR |
1 |
0005-0906 |
● |
|
● |
|
● |
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B)
P90 PROP SHAFT(C5T)
1ST
|
1-37300-092-1 |
AR |
1 |
0907- |
|
|
|
|
● |
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)
,ALLISON MD3060P A/T(Y4G)
P90 PROP SHAFT(C5T)
1ST
|
1-37300-092-1 |
AR |
1 |
0907- |
● |
|
● |
|
|
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
1ST
|
1-37300-091-1 |
AR |
1 |
0907- |
|
|
|
|
● |
|
|
| |
9 |
JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T)
2ND
|
1-37300-092-1 |
AR |
1 |
0005- |
|
● |
|
● |
|
|
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
1ST
|
8-98020-800-0 |
04 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
14 |
COVER; DUST,SPIDER
6HK1 TCS ENG(80L)
FULLER FSO5206B OD M/T(Y4V)
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
04 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
14 |
COVER; DUST,SPIDER
6SD1 STD ENG(37L)
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
04 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
14 |
COVER; DUST,SPIDER
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
04 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
14 |
COVER; DUST,SPIDER
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
08 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
14 |
COVER; DUST,SPIDER
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
08 |
1 |
0406- |
● |
● |
|
|
|
|
|
| |
14 |
COVER; DUST,SPIDER
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
12 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
|
1-37319-012-0 |
AR |
1 |
9601-1111 |
● |
● |
● |
● |
● |
● |
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
END
|
8-98020-800-0 |
08 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
14 |
COVER; DUST,SPIDER
P90 PROP SHAFT(C5T)
|
1-37249-131-0 |
AR |
1 |
9601-0011 |
● |
● |
● |
● |
● |
|
|
| |
14 |
COVER; DUST,SPIDER
|
1-37249-131-0 |
AR |
1 |
9601-0011 |
|
|
|
|
|
|
● |
| |
14 |
COVER; DUST,SPIDER
P90 PROP SHAFT(C5T)
|
1-37249-131-0 |
AR |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
14 |
COVER; DUST,SPIDER
|
1-37249-131-0 |
AR |
1 |
9804- |
|
|
|
|
|
|
● |
| |
14 |
COVER; DUST,SPIDER
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
AR |
1 |
9806-0004 |
● |
● |
● |
● |
|
● |
|
| |
14 |
COVER; DUST,SPIDER
P60 PROP SHAFT(C2M)
|
9-37352-023-0 |
AR |
1 |
9706-9803 |
● |
● |
|
● |
|
● |
|
| |
14 |
COVER; DUST,SPIDER
P90 PROP SHAFT(C5T)
|
1-37249-131-0 |
04 |
1 |
0406- |
● |
● |
● |
● |
● |
|
|
| |
14 |
COVER; DUST,SPIDER
P90 PROP SHAFT(C5T)
|
1-37249-131-0 |
04 |
1 |
0406- |
|
● |
|
● |
|
|
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
|
1-37319-012-0 |
04 |
1 |
0608-1111 |
● |
● |
● |
● |
● |
● |
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
|
1-37319-012-0 |
04 |
1 |
0608-1111 |
● |
● |
|
● |
|
|
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
2ND
|
1-37319-012-0 |
04 |
1 |
1112-1505 |
● |
● |
|
● |
|
|
|
| |
14 |
COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z)
|
1-37319-012-0 |
04 |
1 |
1506- |
|
● |
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0406-0512 |
● |
● |
● |
● |
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0406-0512 |
|
|
|
|
|
|
● |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
AR |
1 |
0601- |
● |
● |
● |
● |
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
AR |
1 |
0601- |
|
|
|
|
|
|
● |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
90
PT1/8 ELBOW
|
9-09031-210-0 |
AR |
1 |
9601-0512 |
● |
● |
● |
● |
● |
● |
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
90
PT1/8 ELBOW
|
0-90301-610-0 |
AR |
1 |
0601-0906 |
● |
● |
● |
● |
● |
● |
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z)
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
● |
● |
|
● |
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B)
P90 PROP SHAFT(C5T)
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
|
|
|
|
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
|
|
|
|
|
● |
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T)
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
● |
|
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
90
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0907- |
|
● |
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
9804-0004 |
● |
● |
● |
● |
● |
● |
● |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0005-0405 |
● |
● |
● |
● |
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0005-0405 |
|
|
|
|
|
|
● |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L)
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
AR |
1 |
0406-0512 |
|
● |
|
● |
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
AR |
1 |
0601-0906 |
● |
|
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L)
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
AR |
1 |
0601-0906 |
|
● |
|
● |
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
ZF 9S109 OD M/T(Y2L)
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0907- |
|
|
|
|
● |
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V)
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0907- |
● |
|
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0907- |
|
● |
|
● |
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G)
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0907- |
|
● |
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z)
90
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
03 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
17 |
NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
03 |
1 |
0601- |
● |
|
|
|
|
|
|
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
OD=45.5 T=1.95 BLUE
|
1-09587-086-0 |
AR |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
OD=45.5 T=2.00 WHITE
|
1-09587-087-2 |
AR |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
OD=45.5 T=2.05 YELLOW
|
1-09587-088-1 |
AR |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
1ST
|
8-98020-881-0 |
01 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0608-1111 |
● |
● |
● |
● |
● |
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
1-37510-105-0 |
01 |
1 |
0608-1111 |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z)
2ND
|
1-37510-105-0 |
01 |
1 |
1112- |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T)
|
1-37510-094-3 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T)
|
1-37510-094-3 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T)
|
1-37510-094-3 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T)
|
1-37510-094-3 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
20 |
BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M)
|
1-37510-099-1 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
21 |
SEAL; OIL,CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
21 |
SEAL; OIL,CENTER BRG
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0608- |
● |
● |
● |
● |
● |
● |
|
| |
21 |
SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z)
ID=54
|
1-09625-161-0 |
02 |
1 |
0608- |
● |
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T)
D=120
|
1-09625-127-0 |
02 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T)
D=120
|
1-09625-127-0 |
02 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T)
D=120
|
1-09625-127-0 |
02 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T)
D=120
|
1-09625-127-0 |
02 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
21 |
SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M)
D=120
|
1-09625-126-0 |
02 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0608- |
● |
● |
● |
● |
● |
● |
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37516-059-0 |
01 |
1 |
0608- |
● |
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37516-048-2 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37516-048-2 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37516-048-2 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37516-048-2 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37516-053-0 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
23 |
BEARING; CENTER,PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
23 |
BEARING; CENTER,PROP SHAFT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0608- |
● |
● |
● |
● |
● |
● |
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z)
|
9-00090-071-0 |
01 |
1 |
0608- |
● |
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T)
|
9-00090-256-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T)
|
9-00090-256-0 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T)
|
9-00090-256-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T)
|
9-00090-256-0 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
23 |
BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M)
|
9-00090-292-0 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
1ST
|
8-98020-882-0 |
01 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0608-1111 |
● |
● |
● |
● |
● |
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
|
1-37529-068-0 |
01 |
1 |
0608-1111 |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z)
2ND
|
1-37529-068-0 |
01 |
1 |
1112- |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37529-041-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37529-041-0 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37529-041-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T)
|
1-37529-041-0 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
24 |
RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M)
|
1-37529-039-0 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9804-9805 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9804-9805 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9804-9805 |
|
● |
|
● |
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9806-9903 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9806-9903 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9806-9903 |
|
● |
|
● |
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9904-0004 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9904-0004 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9904-0004 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9904-0004 |
|
● |
|
● |
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
25 |
NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0406- |
|
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
1ST
|
8-98020-815-0 |
01 |
1 |
1112- |
● |
● |
● |
● |
● |
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0608-1111 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
|
1-37245-071-0 |
01 |
1 |
0608-1111 |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
2ND
|
1-37245-071-0 |
01 |
1 |
1112- |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T)
|
1-37245-271-1 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T)
|
1-37245-271-1 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T)
|
1-37245-271-1 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T)
|
1-37245-271-1 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
|
1-37245-283-1 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
49 |
NUT; YOKE
P46 PROP SHAFT(C4Z)
M14
|
9-99110-514-0 |
04 |
1 |
9601-0405 |
● |
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M14
|
9-99110-514-0 |
04 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
49 |
NUT; YOKE
P46 PROP SHAFT(C4Z)
M14
|
9-99110-514-0 |
04 |
1 |
0406-0512 |
|
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M14
|
0-91110-514-0 |
04 |
1 |
0601- |
● |
|
|
|
|
|
|
| |
49 |
NUT; YOKE
P46 PROP SHAFT(C4Z)
M14
|
0-91110-514-0 |
04 |
1 |
0601- |
|
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9804-9806 |
|
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9807-0004 |
|
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
49 |
NUT; YOKE
P60 PROP SHAFT(C2M)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
49 |
NUT; YOKE
P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0406- |
|
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30 H=23
|
1-09449-068-0 |
01 |
1 |
9601-9801 |
● |
● |
● |
● |
● |
● |
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30 H=23
|
1-09449-068-0 |
01 |
1 |
9601-9801 |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
9802-0004 |
● |
● |
● |
● |
● |
● |
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
9802-0004 |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
51 |
NUT; FLANGE,SPLINED
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0406-0607 |
● |
● |
● |
● |
● |
● |
|
| |
51 |
NUT; FLANGE,SPLINED
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0406-0607 |
● |
|
|
|
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0406-0607 |
|
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0608- |
● |
● |
● |
● |
● |
● |
|
| |
51 |
NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z)
M30
|
8-97160-857-0 |
01 |
1 |
0608- |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T)
M39 FLANGE
|
1-09440-046-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
51 |
NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T)
M39 FLANGE
|
1-09440-046-0 |
01 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T)
M39 FLANGE
|
1-09440-046-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
|
|
| |
51 |
NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T)
M39 FLANGE
|
1-09440-046-0 |
01 |
1 |
9804- |
|
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9807-0004 |
● |
● |
● |
● |
|
● |
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
51 |
NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M)
M33 FLANGE
|
1-09449-051-0 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
52 |
WASHER; LK,YOKE
P46 PROP SHAFT(C4Z)
ID=14.2
|
9-09150-614-0 |
04 |
1 |
9601-0405 |
● |
● |
|
● |
|
|
|
| |
52 |
WASHER; LK,YOKE
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=14.2
|
9-09150-614-0 |
04 |
1 |
0406-0603 |
● |
|
|
|
|
|
|
| |
52 |
WASHER; LK,YOKE
P46 PROP SHAFT(C4Z)
ID=14.2
|
9-09150-614-0 |
04 |
1 |
0406-0603 |
|
● |
|
● |
|
|
|
| |
52 |
WASHER; LK,YOKE
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=14.2
|
0-91510-614-0 |
04 |
1 |
0604- |
● |
|
|
|
|
|
|
| |
52 |
WASHER; LK,YOKE
P46 PROP SHAFT(C4Z)
ID=14.2
|
0-91510-614-0 |
04 |
1 |
0604- |
|
● |
|
● |
|
|
|
| |
56 |
NUT; YOKE
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
● |
● |
| |
56 |
NUT; YOKE
P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9806-0004 |
● |
● |
● |
● |
● |
● |
● |
| |
56 |
NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
9806-0004 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
● |
| |
56 |
NUT; YOKE
P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
● |
| |
56 |
NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16 FLANGE
|
1-09449-065-0 |
04 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
P46 PROP SHAFT(C4Z)
M14
|
9-99110-514-0 |
04 |
1 |
9601-0512 |
● |
● |
● |
● |
● |
● |
|
| |
56 |
NUT; YOKE
P46 PROP SHAFT(C4Z)
M14
|
0-91110-514-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
|
| |
57 |
WASHER; LK,YOKE
P46 PROP SHAFT(C4Z)
ID=14.2
|
9-09150-614-0 |
04 |
1 |
9601-0603 |
● |
● |
● |
● |
● |
● |
|
| |
57 |
WASHER; LK,YOKE
P46 PROP SHAFT(C4Z)
ID=14.2
|
0-91510-614-0 |
04 |
1 |
0604- |
● |
● |
● |
● |
● |
● |
|
| |
60 |
WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M)
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M)
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
9806-9806 |
● |
● |
|
|
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M)
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
9807-0004 |
● |
● |
|
● |
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z)
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
9601-0405 |
● |
● |
|
● |
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0406-0605 |
● |
|
|
|
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z)
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0406-0605 |
|
● |
|
● |
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0606- |
● |
|
|
|
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z)
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0606- |
|
● |
|
● |
|
|
|
| |
60 |
WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M)
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50541-230-0 |
04 |
1 |
0601-0901 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50541-230-0 |
04 |
1 |
0601-0901 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X35 W/LK WASHER
|
0-50541-235-0 |
04 |
1 |
0902- |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X35 W/LK WASHER
|
0-50541-235-0 |
04 |
1 |
0902- |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0406-0512 |
● |
● |
● |
● |
● |
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0406-0512 |
|
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
|
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9806-9806 |
● |
|
|
|
|
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9806-9806 |
|
● |
● |
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9806-9806 |
● |
|
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9806-9806 |
|
● |
|
|
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9807-0004 |
|
|
|
● |
|
● |
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M)
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0406-0602 |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0406-0602 |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9601-9608 |
● |
● |
● |
● |
● |
● |
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9601-9608 |
● |
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9609-0004 |
● |
● |
● |
● |
● |
● |
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9609-0004 |
● |
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
64 |
NUT; RET TO BRKT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0406-0602 |
● |
● |
● |
● |
● |
● |
|
| |
64 |
NUT; RET TO BRKT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0406-0602 |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0406-0602 |
|
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
● |
● |
● |
● |
● |
● |
|
| |
64 |
NUT; RET TO BRKT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
|
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9806-9806 |
● |
|
|
|
|
● |
|
| |
64 |
NUT; RET TO BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9806-9806 |
|
● |
● |
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9806-9806 |
● |
|
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9806-9806 |
|
● |
|
|
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9807-0004 |
|
|
|
● |
|
● |
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
64 |
NUT; RET TO BRKT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
66 |
WASHER
P46 PROP SHAFT(C4Z)
ID=30.5
|
1-09503-025-0 |
01 |
1 |
9601-9801 |
● |
● |
● |
● |
● |
● |
|
| |
66 |
WASHER
P46 PROP SHAFT(C4Z)
ID=30.5
|
1-09503-025-0 |
01 |
1 |
9601-9801 |
● |
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
9601-0004 |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
9601-0004 |
● |
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0005-0405 |
● |
|
|
|
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z)
M14X37
|
1-09000-121-0 |
04 |
1 |
0406- |
|
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD
M/T(Y2S)
M16X48
|
1-09000-383-0 |
04 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
|
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9601-9803 |
● |
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
● |
● |
| |
74 |
BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD
M/T(Y2S)
M16X48
|
1-09000-383-0 |
04 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
|
|
| |
74 |
BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9804-9805 |
|
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9806-0004 |
● |
● |
● |
● |
● |
● |
● |
| |
74 |
BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD
M/T(Y2S)
M16X48
|
1-09000-383-0 |
04 |
1 |
9806-0004 |
● |
● |
● |
● |
● |
|
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
9806-0004 |
|
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
0005- |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L),FULLER FSO5206B OD
M/T(Y4V)
M16X48
|
1-09000-383-0 |
04 |
1 |
0005- |
● |
● |
● |
● |
● |
● |
|
| |
74 |
BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
M16X48
|
1-09000-383-0 |
04 |
1 |
0005- |
|
● |
|
● |
|
|
|
| |
74 |
BOLT; YOKE,TRANS
M16X48
|
1-09000-383-0 |
04 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
95 |
BOLT; YOKE,FINAL
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>
M16X48
|
1-09000-383-0 |
04 |
1 |
9706-9803 |
● |
● |
● |
|
● |
● |
|
| |
95 |
BOLT; YOKE,FINAL
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
FINAL GEAR 16.5"<B2Y>
M16X48
|
1-09000-383-0 |
04 |
1 |
0012-0403 |
|
● |
● |
● |
|
|
|
| |
95 |
BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y>,FINAL GEAR 17.5"<B5D>
M16X48
|
1-09000-383-0 |
04 |
1 |
0404- |
● |
● |
● |
● |
● |
● |
|
| |
104 |
PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z)
|
1-09600-064-0 |
01 |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
104 |
PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9601-9705 |
● |
● |
|
● |
● |
|
|
| |
104 |
PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9706-9803 |
● |
● |
● |
● |
● |
● |
|
| |
104 |
PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
|
|
| |
104 |
PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
● |
● |
|
● |
| |
104 |
PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
● |
|
● |
| |
104 |
PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
● |
● |
● |
| |
104 |
PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
|
|
| |
104 |
PLUG; SLEEVE YOKE
|
1-09600-067-0 |
01 |
1 |
0005-0405 |
|
|
|
|
|
|
● |
| |
104 |
PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
|
1-09600-067-0 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
|
|
| |
104 |
PLUG; SLEEVE YOKE
|
1-09600-067-0 |
01 |
1 |
0406- |
|
|
|
|
|
|
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(A)
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9601-9803 |
● |
● |
● |
● |
● |
● |
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T)
(A)
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
|
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(A)
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9804-9805 |
|
|
|
|
|
|
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(A)
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9806-0512 |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9601-9705 |
● |
● |
|
● |
● |
|
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9706-9803 |
● |
● |
● |
● |
● |
● |
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9804-9805 |
● |
● |
● |
● |
● |
|
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
● |
● |
|
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
● |
|
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
|
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0005-0405 |
|
|
|
|
|
|
● |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0406- |
● |
● |
● |
● |
● |
|
|
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
(B)
MT6 STRAIGHT
|
1-09380-006-0 |
01 |
1 |
0406- |
|
|
|
|
|
|
● |
| |
107 |
COVER; RET,SLEEVE
P60 PROP SHAFT(C2M)
|
1-37249-137-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
107 |
COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z)
|
1-37249-060-1 |
01 |
1 |
9601- |
● |
● |
● |
● |
● |
● |
|
| |
107 |
COVER; RET,SLEEVE
P90 PROP SHAFT(C5T)
|
1-37249-132-0 |
01 |
1 |
9601-9706 |
● |
● |
|
● |
● |
|
|
| |
107 |
COVER; RET,SLEEVE
P90 PROP SHAFT(C5T)
|
1-37249-132-0 |
01 |
1 |
9707-9803 |
● |
● |
● |
● |
● |
|
|
| |
107 |
COVER; RET,SLEEVE
P90 PROP SHAFT(C5T)
|
1-37249-132-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
● |
● |
|
|
| |
107 |
COVER; RET,SLEEVE
P90 PROP SHAFT(C5T)
|
1-37249-132-1 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
|
|
| |
107 |
COVER; RET,SLEEVE
|
1-37249-132-1 |
01 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
107 |
COVER; RET,SLEEVE
P60 PROP SHAFT(C2M)
|
1-37249-137-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
● |
|
| |
107 |
COVER; RET,SLEEVE
P60 PROP SHAFT(C2M)
|
1-37249-137-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
107 |
COVER; RET,SLEEVE
P60 PROP SHAFT(C2M)
|
1-37249-137-0 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
|
|
|
| |
107 |
COVER; RET,SLEEVE
P60 PROP SHAFT(C2M)
|
1-37249-137-0 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
|
● |
|
| |
128 |
SEAL; SLEEVE
P60 PROP SHAFT(C2M)
|
1-37247-021-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
128 |
SEAL; SLEEVE
P46 PROP SHAFT(C4Z)
|
1-37247-015-0 |
01 |
1 |
9601-9811 |
● |
● |
● |
● |
● |
● |
|
| |
128 |
SEAL; SLEEVE
P46 PROP SHAFT(C4Z)
|
1-37247-024-0 |
01 |
1 |
9810- |
● |
● |
● |
● |
● |
● |
|
| |
128 |
SEAL; SLEEVE
P90 PROP SHAFT(C5T)
|
1-37247-019-0 |
01 |
1 |
9601-9706 |
● |
● |
|
● |
● |
|
|
| |
128 |
SEAL; SLEEVE
P90 PROP SHAFT(C5T)
|
1-37247-019-0 |
01 |
1 |
9707-9803 |
● |
● |
● |
● |
● |
|
|
| |
128 |
SEAL; SLEEVE
P90 PROP SHAFT(C5T)
|
1-37247-019-0 |
01 |
1 |
9804-0004 |
● |
● |
● |
● |
● |
|
|
| |
128 |
SEAL; SLEEVE
P90 PROP SHAFT(C5T)
|
1-37247-019-0 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
|
|
| |
128 |
SEAL; SLEEVE
|
1-37247-019-0 |
01 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
128 |
SEAL; SLEEVE
P60 PROP SHAFT(C2M)
|
1-37247-021-0 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
● |
|
| |
128 |
SEAL; SLEEVE
P60 PROP SHAFT(C2M)
|
1-37247-021-0 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
128 |
SEAL; SLEEVE
P60 PROP SHAFT(C2M)
|
1-37247-021-0 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
|
|
|
| |
128 |
SEAL; SLEEVE
P60 PROP SHAFT(C2M)
|
1-37247-021-0 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
|
● |
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P60 PROP SHAFT(C2M)
(B)
|
1-37515-124-0 |
01 |
1 |
0406-0406 |
● |
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
(B)
|
1-37515-124-0 |
01 |
1 |
0407- |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(A)
|
1-37515-123-0 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HK1 TCS ENG(80L)
P60 PROP SHAFT(C2M)
(B)
|
1-37515-125-0 |
01 |
1 |
0406-0406 |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(B)
|
1-37515-125-0 |
01 |
1 |
0406-0406 |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
(B)
|
1-37515-125-0 |
01 |
1 |
0407- |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
9601-9803 |
|
|
|
|
● |
● |
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
9601-9803 |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
9601-9803 |
|
● |
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
9804-0004 |
|
|
|
|
● |
● |
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
9804-0004 |
|
● |
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
0005-0405 |
|
|
|
|
● |
● |
|
| |
172 |
BRACKET; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
(A)
|
1-37515-102-0 |
01 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
0406- |
|
|
|
|
● |
● |
|
| |
172 |
BRACKET; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-102-0 |
01 |
1 |
0406- |
|
● |
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(A)
|
1-37515-117-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
● |
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(A)
|
1-37515-123-0 |
01 |
1 |
9806-0004 |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-071-2 |
01 |
1 |
0406- |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-071-2 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-071-2 |
01 |
1 |
0406- |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(B)
|
1-37515-124-0 |
01 |
1 |
9706-9803 |
● |
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-135-0 |
01 |
1 |
9804-0405 |
|
|
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-135-0 |
01 |
1 |
0406- |
|
|
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(B)
|
1-37515-124-0 |
01 |
1 |
9806-0004 |
● |
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-101-0 |
01 |
1 |
9601-9803 |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-101-0 |
01 |
1 |
9601-9803 |
|
|
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-101-0 |
01 |
1 |
9804- |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(A)
|
1-37515-125-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
EURO2 SPECIFICATION<THN>
(A)
|
1-37515-136-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-136-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-136-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
FVR STD CAB MIDDLE CHASSIS(FV**MF)
P60 PROP SHAFT(C2M)
(A)
|
1-37515-125-0 |
01 |
1 |
9806-0004 |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P60 PROP SHAFT(C2M)
(B)
|
1-37515-116-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-071-2 |
01 |
1 |
9601-9803 |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-071-2 |
01 |
1 |
9601-9803 |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(B)
|
1-37515-071-2 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-071-2 |
01 |
1 |
9804- |
|
|
● |
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6SD1 STD ENG(37L)
P46 PROP SHAFT(C4Z)
(A)
|
1-37515-071-2 |
01 |
1 |
9804- |
|
● |
|
|
|
|
|
| |
172 |
BRACKET; CENTER BRG
6HE1 TC ENG(57L)
P46 PROP SHAFT(C4Z)
EXC. EURO2 SPECIFICATION<THN>
(B)
|
1-37515-071-2 |
01 |
1 |
9804- |
● |
|
|
|
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
0406-0512 |
● |
● |
● |
● |
|
● |
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
0406-0512 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28651-230-0 |
04 |
1 |
0601- |
● |
● |
● |
● |
|
● |
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28651-230-0 |
04 |
1 |
0601- |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X20 FLANGE
|
0-28081-020-0 |
04 |
1 |
9601-9602 |
● |
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X20 FLANGE
|
0-28081-020-0 |
04 |
1 |
9601-9602 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28081-025-0 |
04 |
1 |
9603-9606 |
● |
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28081-025-0 |
04 |
1 |
9603-9606 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9607-9712 |
● |
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9607-9712 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9801-0004 |
● |
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9801-0004 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0005-0405 |
● |
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0005-0405 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0406-0512 |
|
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0406-0512 |
● |
|
|
|
|
|
|
| |
173 |
BOLT; BRKT
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0406-0512 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
|
● |
● |
● |
● |
● |
|
| |
173 |
BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L),
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
● |
|
|
|
|
|
|
| |
173 |
BOLT; BRKT
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9806-9908 |
● |
● |
● |
|
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9806-9908 |
|
● |
|
|
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9909-0004 |
● |
● |
● |
● |
|
● |
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9909-0004 |
|
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
173 |
BOLT; BRKT
P60 PROP SHAFT(C2M)
M12X30 FLANGE
|
0-28681-230-0 |
04 |
1 |
9706-9803 |
|
● |
|
● |
|
|
|
| |
177 |
NUT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0406-0602 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9806-9908 |
● |
● |
|
|
|
|
|
| |
177 |
NUT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9909-0004 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M10
|
9-09110-510-0 |
04 |
1 |
9601-9606 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9607-0405 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0406-0602 |
● |
|
|
|
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0406-0602 |
|
● |
|
● |
|
|
|
| |
177 |
NUT
6HH1 STD ENG(65L)
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
● |
|
|
|
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
|
● |
|
● |
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M12
|
9-99110-512-0 |
04 |
1 |
9601-9606 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P46 PROP SHAFT(C4Z)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9607-9701 |
● |
● |
|
● |
|
|
|
| |
177 |
NUT
P60 PROP SHAFT(C2M)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9706-9803 |
● |
● |
|
● |
|
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M)
L=332
|
1-37241-109-1 |
01 |
1 |
0406- |
● |
|
|
|
|
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z)
L=271
|
1-37241-099-2 |
01 |
1 |
9601-9811 |
● |
● |
● |
● |
● |
● |
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z)
L=271
|
1-37241-129-0 |
01 |
1 |
9810-9902 |
● |
● |
● |
● |
● |
● |
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z)
L=271
|
1-37241-099-2 |
01 |
1 |
9903- |
● |
● |
● |
● |
● |
● |
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T)
L=332
|
1-37241-103-1 |
01 |
1 |
9601-9706 |
● |
● |
|
● |
● |
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T)
L=332
|
1-37241-103-1 |
01 |
1 |
9707-9803 |
● |
● |
● |
● |
● |
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T)
L=332
|
1-37241-103-1 |
01 |
1 |
9804-0004 |
● |
● |
● |
● |
● |
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T)
L=332
|
1-37241-103-1 |
01 |
1 |
0005- |
● |
● |
● |
● |
● |
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
L=332
|
1-37241-103-1 |
01 |
1 |
0005- |
|
|
|
|
|
|
● |
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M)
L=332
|
1-37241-109-1 |
01 |
1 |
9706-9803 |
● |
● |
|
● |
|
● |
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M)
L=332
|
1-37241-109-1 |
01 |
1 |
9806-9806 |
● |
● |
● |
|
|
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M)
L=332
|
1-37241-109-1 |
01 |
1 |
9807-9807 |
● |
● |
● |
● |
|
|
|
| |
225 |
YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M)
L=332
|
1-37241-109-1 |
01 |
1 |
9808-0004 |
● |
● |
● |
● |
|
● |
|
