Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#63840) — 404 parça

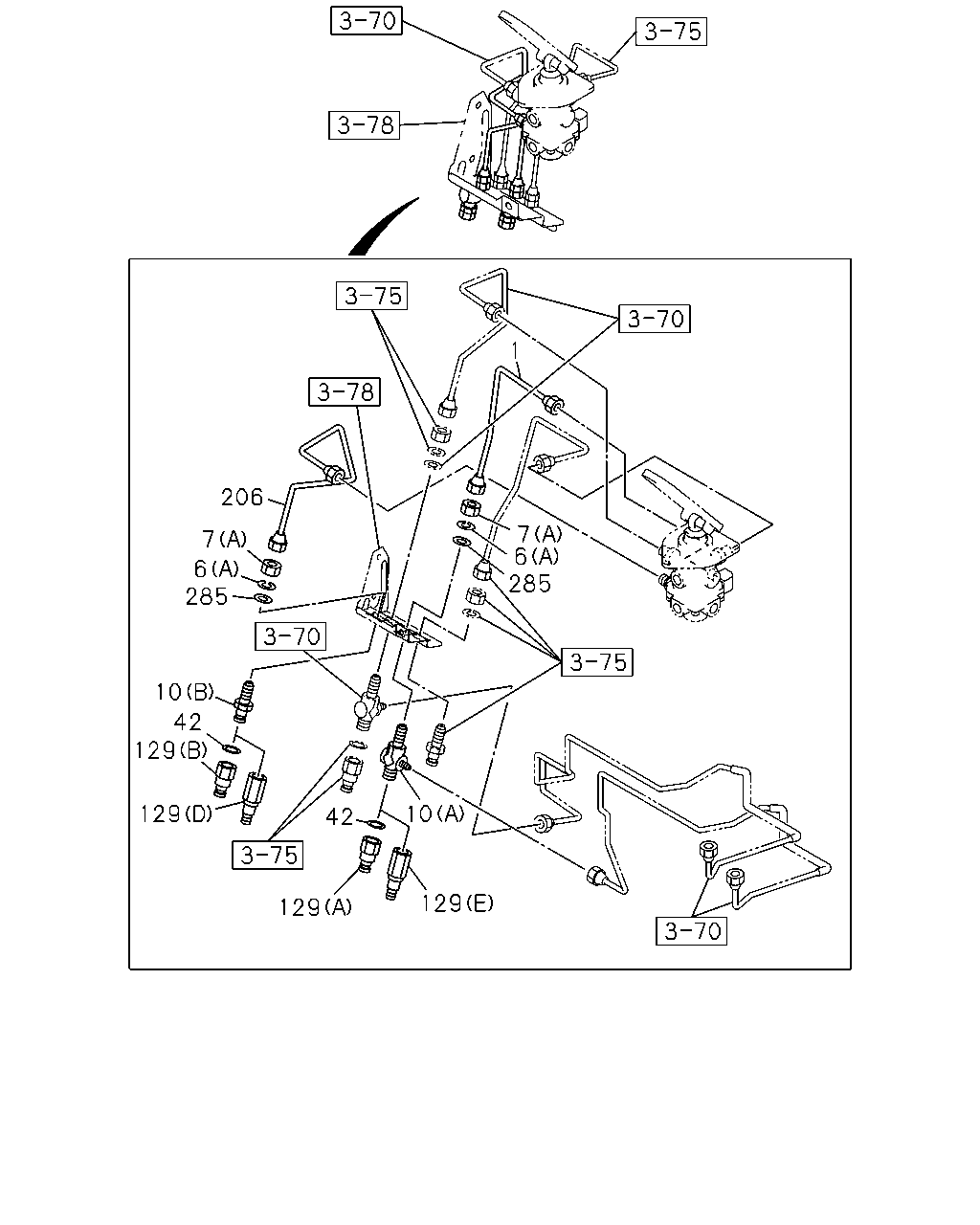

1 206 7 6 285 7 6 285 10 42 129 129 10 42 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9601-9803	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9804-9902	●	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-0004	●	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-9803	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	0005-0603	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●	●	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-9803	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9601-9803	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0004	●	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0005-0512	●	●	●	●	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●	●	●	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004	●	●	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-451-1	01	1	9601-9803	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	9804-0004	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	0005-0103	●	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-754-0	01	1	0104-	●	●	●	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9803	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●	●	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●	●	●	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0005-	●	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9601-9803	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9804-0004	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-	●	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9601-9803	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9804-0004	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0005-0605	●	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●	●	●

223 192 192 192 192 192 297 72 223 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
72	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0202-0602	●
72	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0202-0602		●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0202-0602					●
72	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
72	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-					●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-0405	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-9705	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0211	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9804-9805	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9806-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
223	TUBE; CORRUGATE 6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-9803	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9804-0004	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0604	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-0405	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0406-	●	●	●		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9804-0003	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9804-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●	●
297	CLIP; BAND 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> L=250	1-09707-126-0	01	1	0605-			●

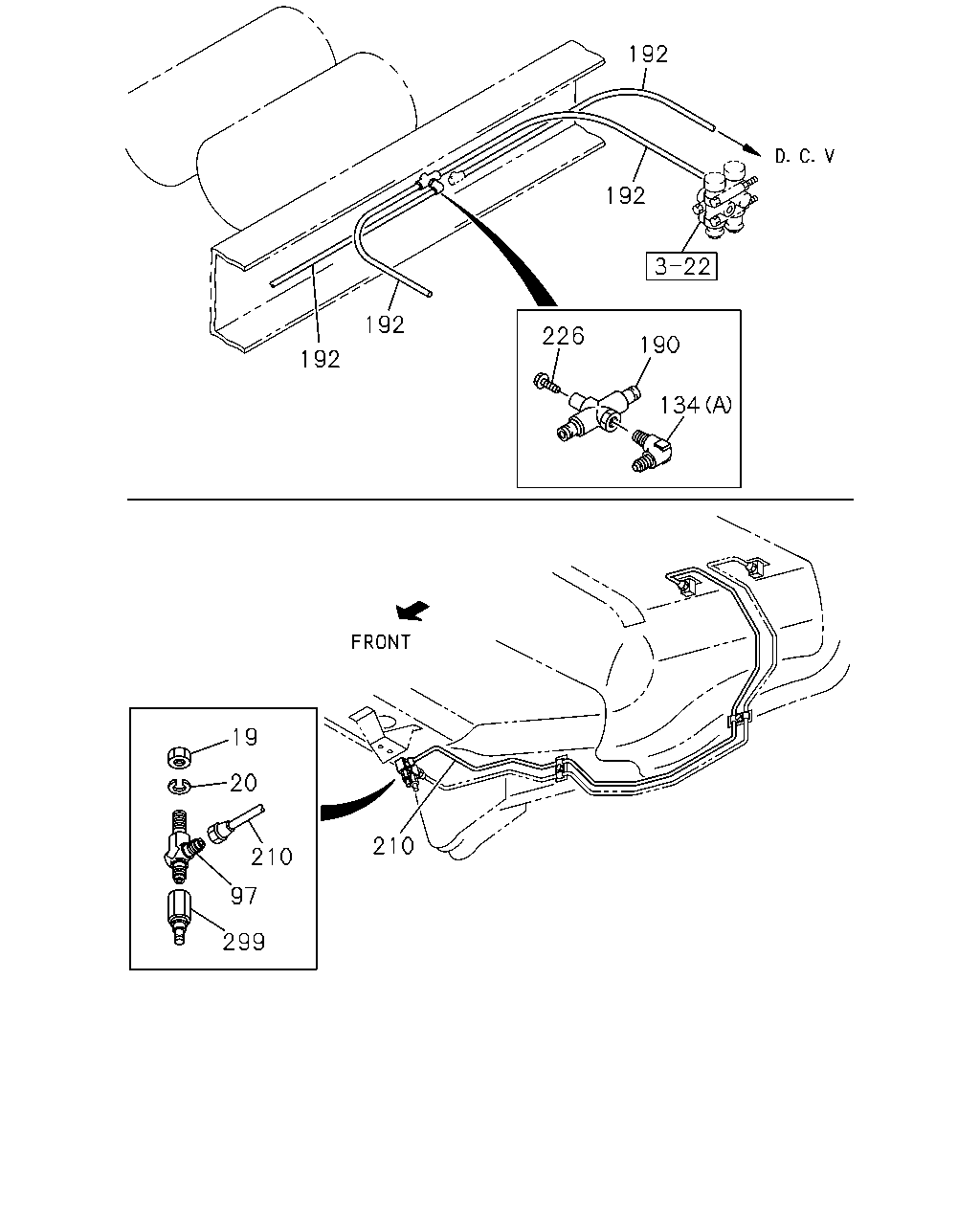

192 192 192 226 190 192 134 19 20 210 210 97 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	NUT; PIPE UNION M12	9-99111-412-0	01	1	9804-0512				●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0601-	●	●	●
20	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9804-0603				●
20	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-	●	●	●
97	UNION; AIR PIPE M16 2WAY	1-09650-182-1	01	1	9804-				●
134	CONNECTOR (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004				●
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-				●
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9804-0004				●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-				●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-0405	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-9705	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0211	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9804-9805	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9806-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
210	PIPE; AIR,UNION TO UNION	1-49117-772-1	01	1	9804-9902				●
210	PIPE; AIR,UNION TO UNION	1-49121-496-0	01	1	9903-				●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9804-0512				●
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●	●
226	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9804-0512				●
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
299	CONNECTOR; ADAPTOR DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9804-0004				●
299	CONNECTOR; ADAPTOR DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007				●
299	CONNECTOR; ADAPTOR DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-				●

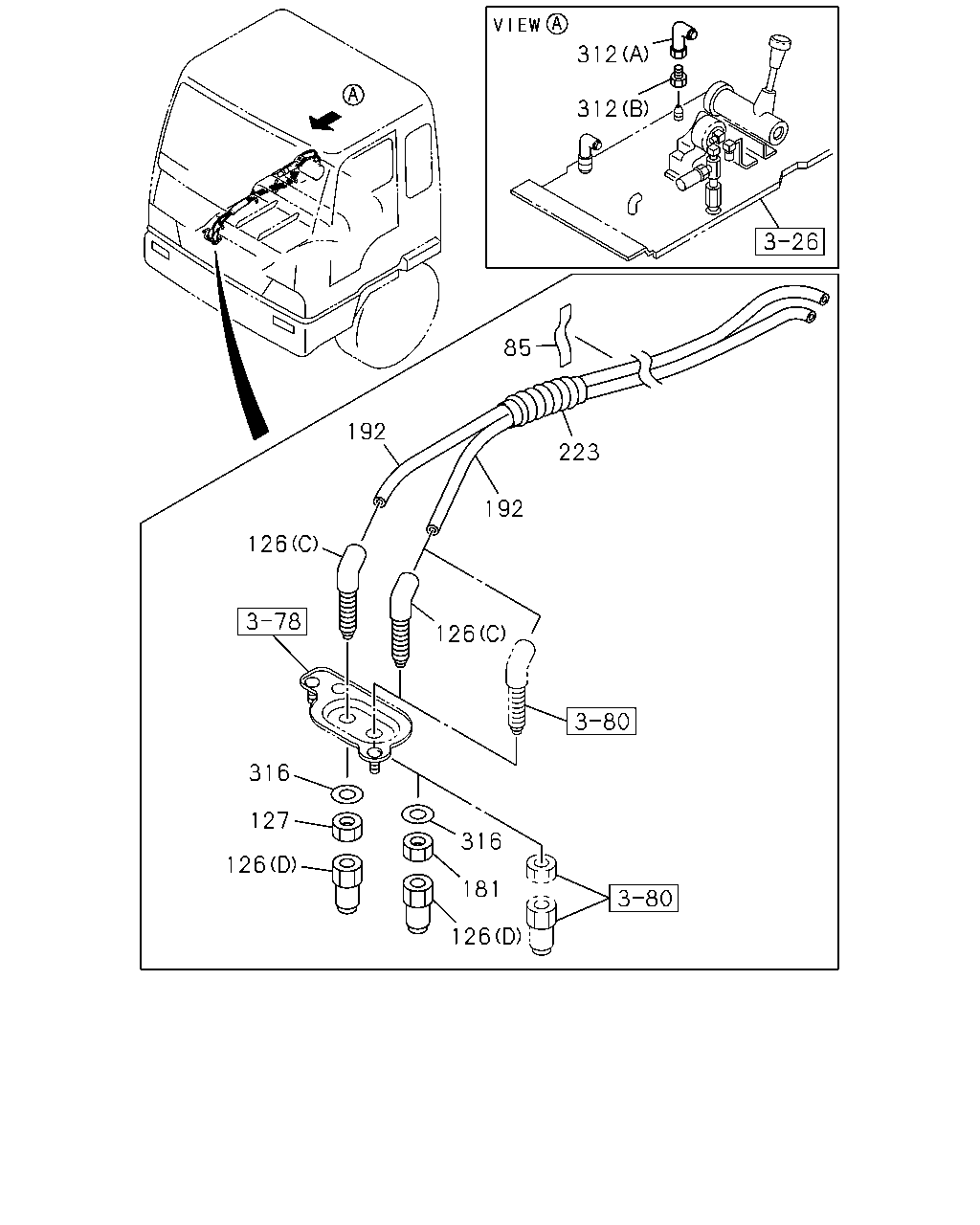

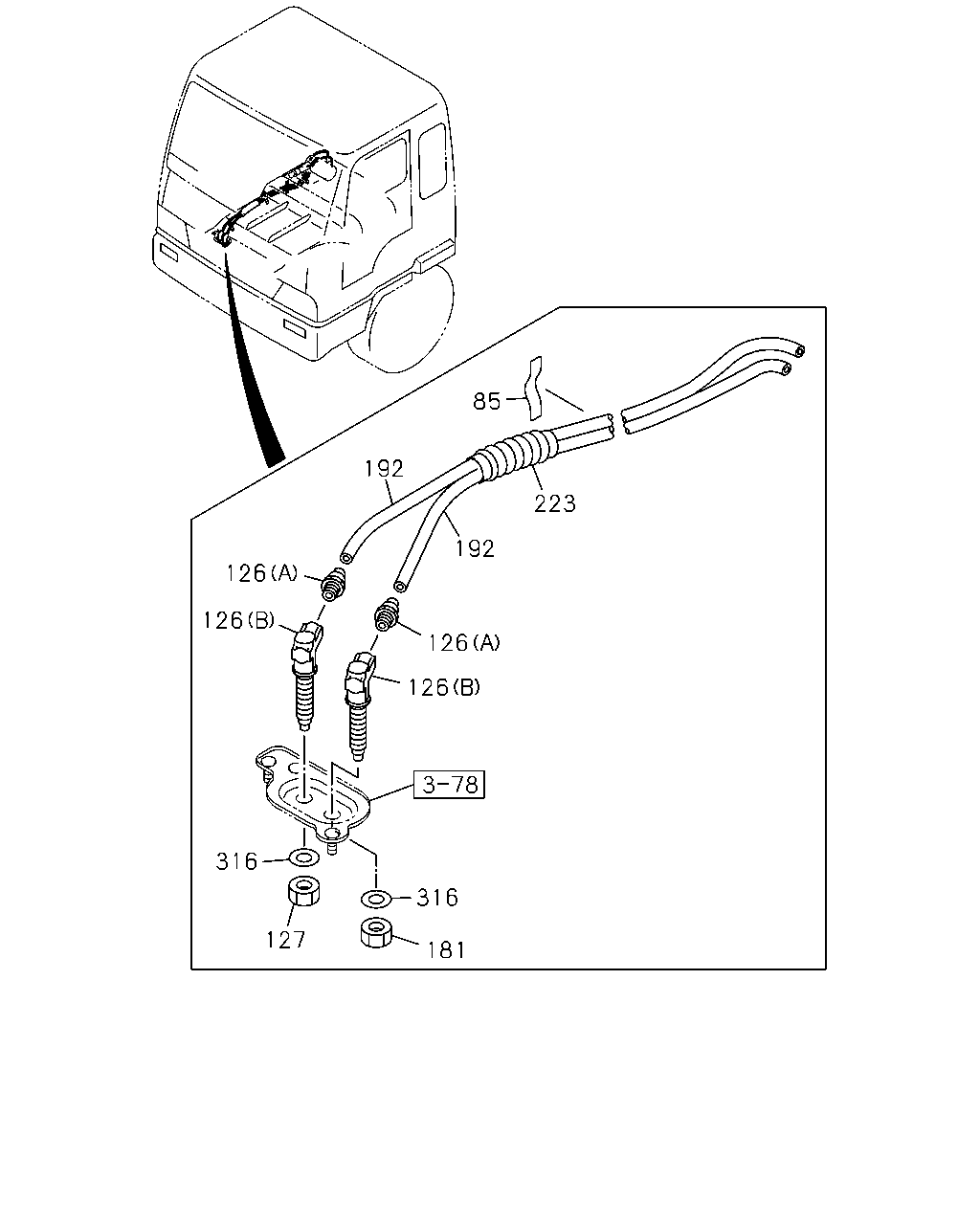

85 192 223 192 126 126 126 126 316 316 127 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9803	●	●	●
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9804-9903	●	●	●	●
85	GASKET; NYLON TUBE 100X40	1-72498-022-0	05	1	9904-0004	●	●	●	●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0005-	●	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706	●	●	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0707-0707				●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0708-				●
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9803	●	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●	●		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●	●		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●	●		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9804-0004				●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	01	1	9804-0007				●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0008-0707				●
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9803	●	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	0005-0512	●	●	●	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9803	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9804-0004	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0512	●	●	●		●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-0405	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-9705	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0211	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9804-9805	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9806-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
223	TUBE; CORRUGATE 6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-9803	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9804-0004	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0604	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-0405	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0406-	●	●	●		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9804-0003	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9804-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	9804-0004	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0005-0605	●	●	●		●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	01	1	9804-0605				●
316	WASHER; PL ID=21	0-91610-520-0	01	1	0606-	●	●	●

312 312 85 192 223 192 126 126 316 127 316 126 181 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9803	●	●	●
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9804-9903	●	●	●	●
85	GASKET; NYLON TUBE 100X40	1-72498-022-0	05	1	9904-0004	●	●	●	●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0005-	●	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706	●	●	●	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0707-0707				●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0708-				●
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9803	●	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●	●		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●	●		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●	●		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9804-0004				●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	01	1	9804-0007				●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0008-0707				●
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9803	●	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	0005-0512	●	●	●	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9803	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9804-0004	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0512	●	●	●		●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-0405	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-9705	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0211	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9804-9805	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9806-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
223	TUBE; CORRUGATE 6HK1 TCS ENG(80L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-9803	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9804-0004	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0604	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-0405	●	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0406-	●	●	●		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9804-0003	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9804-0004	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●	●
312	CONNECTOR; SUPPLY (A) DIN8 ELBOW	1-09660-924-1	01	1	9804-1006				●
312	CONNECTOR; SUPPLY (A)	8-97633-756-0	01	1	1007-				●
312	CONNECTOR; SUPPLY (B)	1-09660-930-1	01	1	9804-1006				●
312	CONNECTOR; SUPPLY (B)	8-97633-768-0	01	1	1007-				●
316	WASHER; PL ID=21	9-09160-520-0	02	1	9804-0004	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0005-0605	●	●	●		●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	01	1	9804-0605				●
316	WASHER; PL ID=21	0-91610-520-0	01	1	0606-	●	●	●

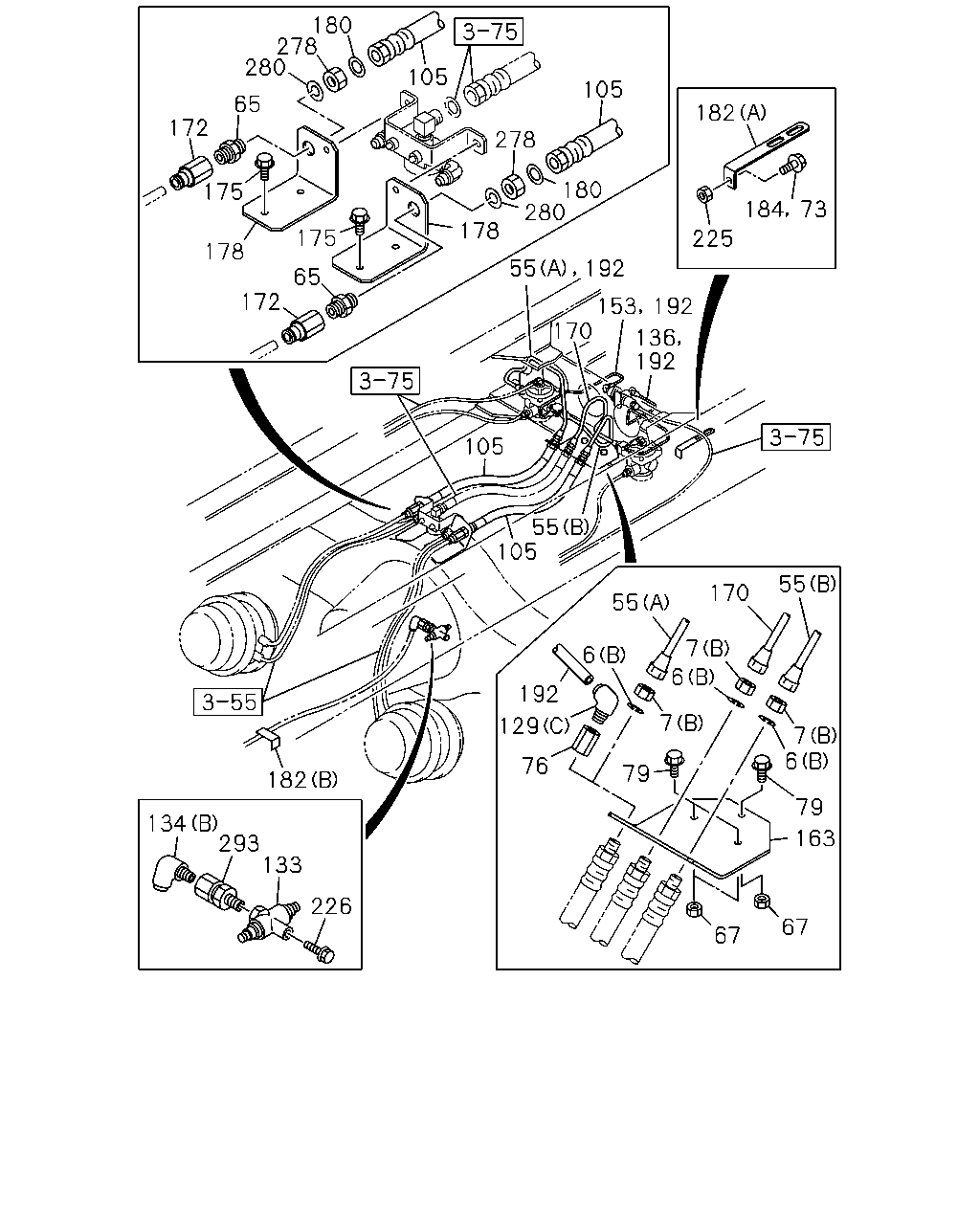

180 278 280 105 105 65 182 172 278 180 280 175 184 73 178 175 225 178 55 192 65 172 153 170 192 136 192 105 55 105 55 170 55 7 6 6 192 7 129 7 6 76 79 182 79 134 293 133 163 226 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-9803	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0004	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	0005-0603	●	●	●	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●	●	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-9803	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9601-9803	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0004	●	●	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0005-0512	●	●	●	●	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●	●	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-49113-329-0	01	1	9601-9803	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-49113-328-0	01	1	9601-9803	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=426	1-49118-958-0	01	1	9804-0004	●	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=426	1-49118-958-0	01	1	0005-	●	●	●	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	9601-9803	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER EXC. BRAKE REGULATION ADR<TDU> M20 STRAIGHT	1-09654-240-1	02	1	9601-9803		●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	9804-0004	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER EXC. BRAKE REGULATION ADR<TDU> M20 STRAIGHT	1-09654-240-1	02	1	9804-0004			●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	0005-	●	●		●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER EXC. BRAKE REGULATION ADR<TDU> M20 STRAIGHT	1-09654-240-1	02	1	0005-			●
67	NUT; HOSE BRKT M8	9-09110-408-0	03	1	9601-9606	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	9804-0004	●	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
73	BOLT; CLIP 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606		●	●
73	BOLT; CLIP 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9607-9609		●	●
73	BOLT; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9610-9903	●	●	●
76	ADAPTER; NYLON TUBE M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9804-0004	●	●	●	●
76	ADAPTER; NYLON TUBE M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0005-	●	●	●	●	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	9804-0004	●	●	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●	●	●	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9601-9803	●	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9804-0004	●	●	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	0005-0605	●	●	●	●	●
105	HOSE; FLEX L=610	0-57807-610-1	02	1	0606-	●	●	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9803	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●	●	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●	●	●	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9804-0004	●	●	●	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0005-	●	●	●	●	●
133	UNION; NIPPLE	1-09660-757-0	01	1	9804-0004				●
133	UNION; NIPPLE DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0005-				●
134	CONNECTOR (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004				●
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-				●
136	PIPE; AIR,DBL CHECK VLV TO UNION	1-49116-286-0	01	1	9601-9803	●	●	●
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV	1-49115-567-0	01	1	9601-9803	●	●	●
163	BRACKET; FLEX HOSE	1-47476-787-0	01	1	9601-9803	●	●	●
163	BRACKET; FLEX HOSE	1-47477-997-1	01	1	9804-0004	●	●	●
163	BRACKET; FLEX HOSE	1-47477-997-1	01	1	0005-	●	●	●		●
163	BRACKET; FLEX HOSE	1-47477-861-1	01	1	9804-				●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE	1-49113-330-0	01	1	9601-9803	●	●	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE L=510	1-49118-957-0	01	1	9804-0004	●	●	●	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE L=510	1-49118-957-0	01	1	0005-	●	●	●	●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9601-9803	●
172	ADAPTER; UNION EXC. BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9601-9803		●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9804-0004	●	●
172	ADAPTER; UNION EXC. BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9804-0004			●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●		●	●
172	ADAPTER; UNION EXC. BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007			●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●		●	●
172	ADAPTER; UNION EXC. BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-			●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9705	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	04	1	9607-9705		●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9706-9803	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9706-9803		●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9804-9901	●	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	04	1	9804-9901			●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9902-0004	●	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9902-0004			●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	0005-0108	●	●		●	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	0005-0108			●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	0109-0512	●	●		●	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	04	1	0109-0512			●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●		●	●
175	BOLT; HOSE BRKT EXC. BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0601-			●
178	BRACKET; UNION	1-47477-517-0	01	1	9601-9803	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-517-0	01	1	9601-9803		●	●
178	BRACKET; UNION	1-47477-517-0	01	1	9804-0004	●	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-517-0	01	1	9804-0004			●	●
178	BRACKET; UNION	1-47477-517-0	01	1	0005-	●	●		●	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-517-0	01	1	0005-			●
178	BRACKET; UNION	1-47477-516-0	01	1	9601-9803	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-516-0	01	1	9601-9803		●	●
178	BRACKET; UNION	1-47477-516-0	01	1	9804-0004	●	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-516-0	01	1	9804-0004			●	●
178	BRACKET; UNION	1-47477-516-0	01	1	0005-	●	●		●	●
178	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU>	1-47477-516-0	01	1	0005-			●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9804-0004	●	●	●	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-	●	●	●	●	●
182	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	01	1	9601-9808	●	●	●
182	BRACKET; TUBE CLIP (B)	1-47477-571-3	02	1	9804-				●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9808	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-0405	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-9705	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0211	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9804-9805	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9806-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0004	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-0405	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-	●	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
225	NUT; TUBE CLIP M8	9-09110-408-0	01	1	9601-9606	●	●	●
225	NUT; TUBE CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	9601-9606		●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●	●
225	NUT; TUBE CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9607-9609		●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9610-9808	●	●	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9610-9808	●	●	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9809-9903	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9804-0512				●
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●	●
226	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9804-0512				●
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
278	NUT; UNION M20	9-99111-420-0	02	1	9601-9803	●
278	NUT; UNION EXC. BRAKE REGULATION ADR<TDU> M20	9-99111-420-0	02	1	9601-9803		●	●
278	NUT; UNION M20	9-99111-420-0	02	1	9804-0004	●	●
278	NUT; UNION EXC. BRAKE REGULATION ADR<TDU> M20	9-99111-420-0	02	1	9804-0004			●	●
278	NUT; UNION M20	9-99111-420-0	02	1	0005-0512	●	●		●	●
278	NUT; UNION EXC. BRAKE REGULATION ADR<TDU> M20	9-99111-420-0	02	1	0005-0512			●
278	NUT; UNION M20	0-91111-520-0	02	1	0601-	●	●		●	●
278	NUT; UNION EXC. BRAKE REGULATION ADR<TDU> M20	0-91111-520-0	02	1	0601-			●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	9601-9803	●
280	WASHER; LK EXC. BRAKE REGULATION ADR<TDU> ID=20.2	9-09150-520-0	02	1	9601-9803		●	●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	9804-0004	●	●
280	WASHER; LK EXC. BRAKE REGULATION ADR<TDU> ID=20.2	9-09150-520-0	02	1	9804-0004			●	●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	0005-0603	●	●		●	●
280	WASHER; LK EXC. BRAKE REGULATION ADR<TDU> ID=20.2	9-09150-520-0	02	1	0005-0603			●
280	WASHER; LK ID=20.2	0-91510-520-0	02	1	0604-	●	●		●	●
280	WASHER; LK EXC. BRAKE REGULATION ADR<TDU> ID=20.2	0-91510-520-0	02	1	0604-			●
293	VALVE; CHECK	1-48320-013-2	01	1	9804-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
