Isuzu WW
▶
TRUCKS
▶
CVR
▶
10723 - CVR LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#6384) — 15 parça
◀
[760A] NO.3 (4 parça)
[760A] NO.2 (6 parça)
[760A] NO.1 (5 parça)
▶

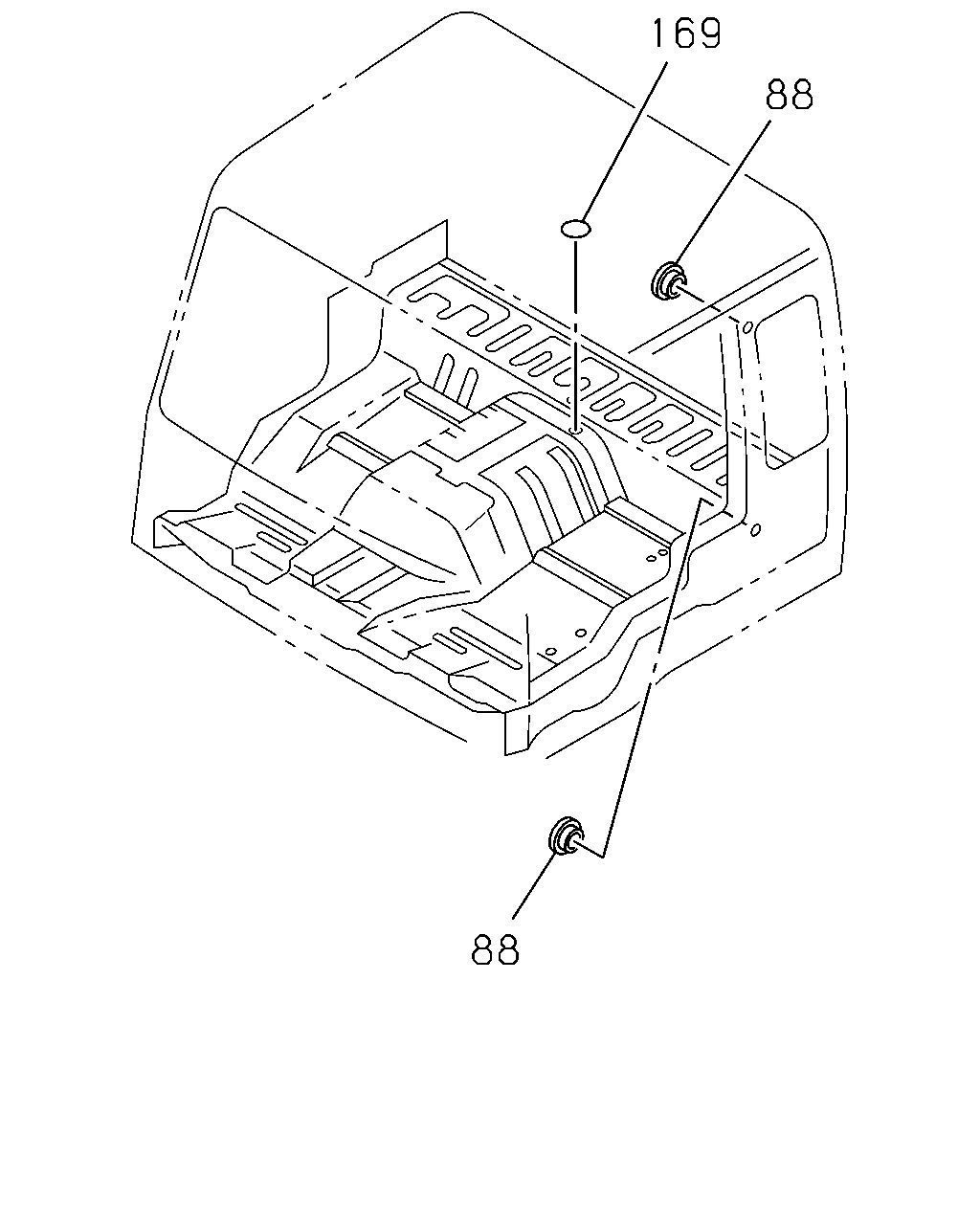

169
88
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6
8-94198-177-0
02
1
9604-9709
88
PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=31.6
8-94198-177-0
02
1
9604-9709
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6
8-94198-177-0
02
1
9710-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) SEAT BELT ANCHOR OD=25 BLACK
1-76798-019-0
04
1
9604-

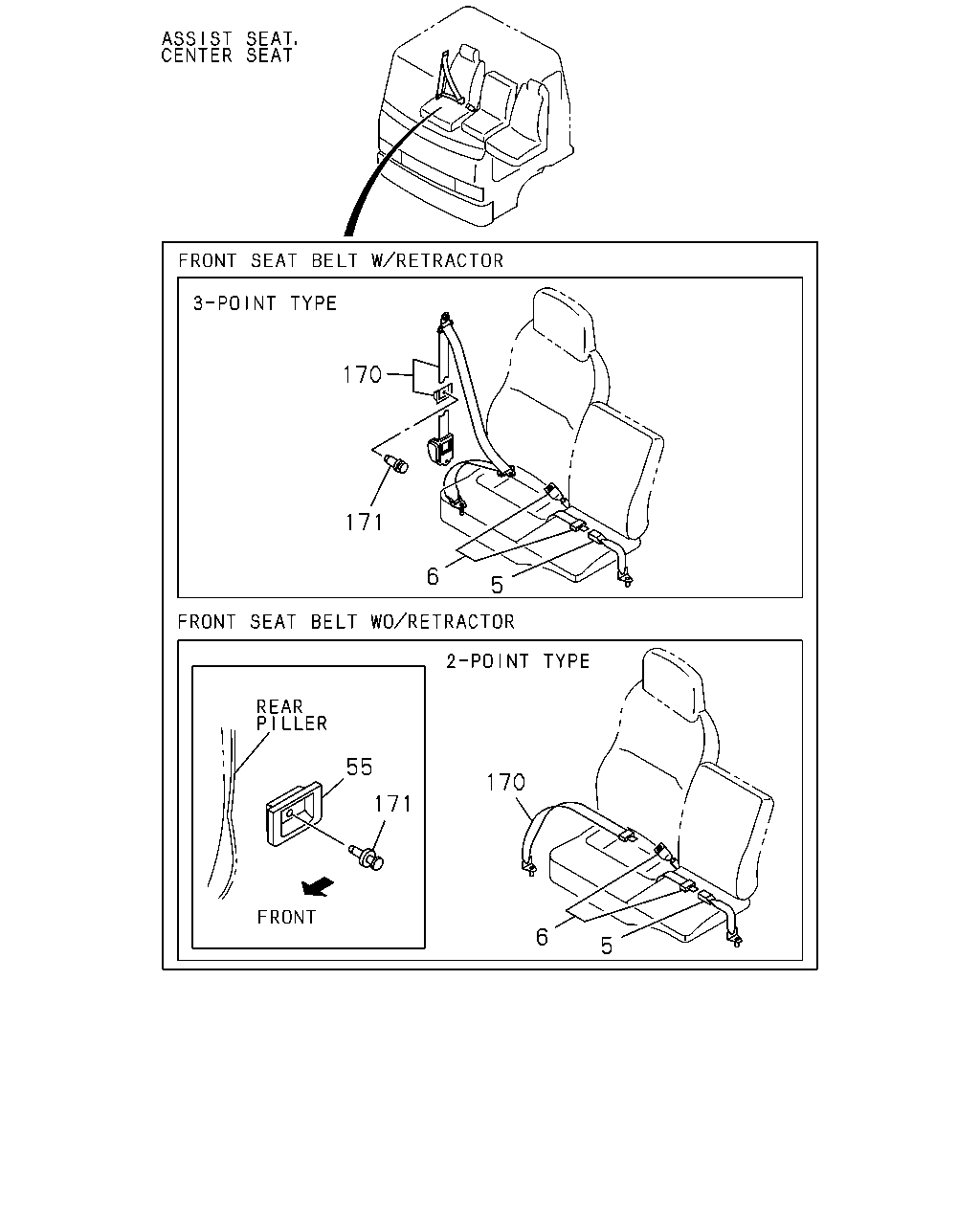

170
171
6
5
55
170
171
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)
1-75618-739-0
01
1
9604-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)
1-75617-511-4
01
1
9604-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-513-0
02
1
9604-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 2-POINT
1-75618-780-4
01
1
9604-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 3-POINT
1-75617-509-5
01
1
9604-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
9604-
171
3
2
171
3
55
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 2-POINT
1-75618-780-4
01
1
9604-
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 3-POINT
1-75617-514-5
01
1
9604-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)
1-75618-779-0
01
1
9604-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-513-0
02
1
9604-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
9604-
