Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#63839) — 577 parça

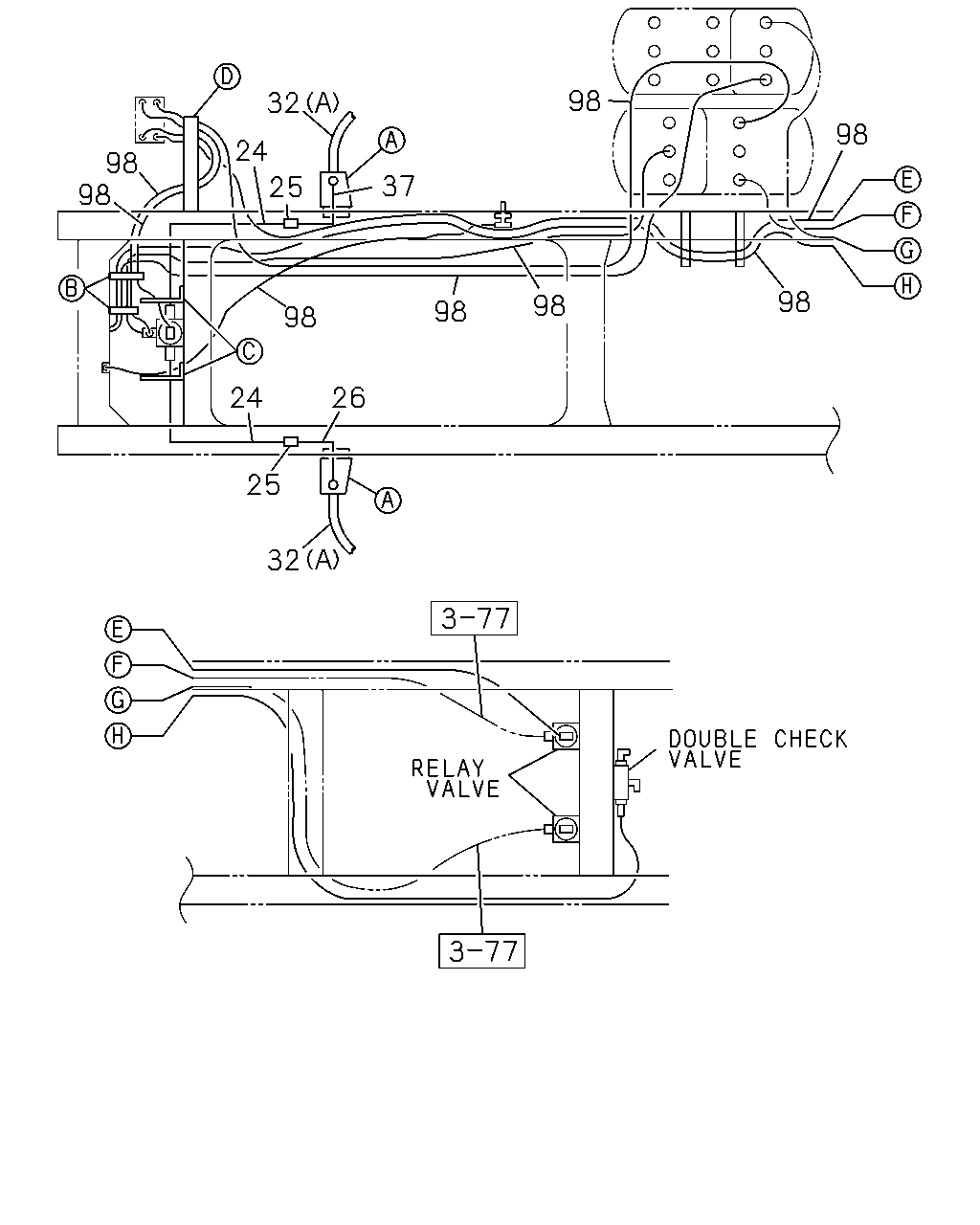

98 32 98 98 98 24 37 25 98 98 98 98 24 26 25 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-326-0	01	1	9601-9803	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-326-0	01	1	9804-0004	●	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-326-0	01	1	0005-0101	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-326-0	01	1	0005-0101		●	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	0005-0101				●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-326-0	01	1	0102-	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-326-0	01	1	0102-		●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36>	1-49113-326-0	01	1	0102-			●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	0102-				●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-324-0	01	1	9601-9803	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-324-0	01	1	9804-0004	●	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-324-0	01	1	0005-0101	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-324-0	01	1	0005-0101		●	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	0005-0101				●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-324-0	01	1	0102-0301	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-324-0	01	1	0102-0301		●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36>	1-49113-324-0	01	1	0102-0301			●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	0102-0301				●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49124-019-0	01	1	0302-	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49124-019-0	01	1	0302-		●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36>	1-49124-019-0	01	1	0302-			●
24	PIPE; AIR,RELAY VLV TO UNION	1-49124-019-0	01	1	0302-				●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-			●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-0301			●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36>	1-49124-010-0	01	1	0302-			●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 L=42	9-09233-010-1	02	1	9601-9803	●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 L=42	9-09233-010-1	02	1	9804-0004	●	●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	9-09233-010-1	02	1	0005-0607	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 L=42	9-09233-010-1	02	1	0005-0607		●	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	0005-0607				●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-		●	●
25	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-				●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	9601-9803	●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	9804-0004	●	●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0005-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	0005-		●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0005-				●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	9601-9803	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	9804-0004	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0005-	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	0005-		●	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0005-				●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-0405				●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0301-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0406-	●	●	●	●	●

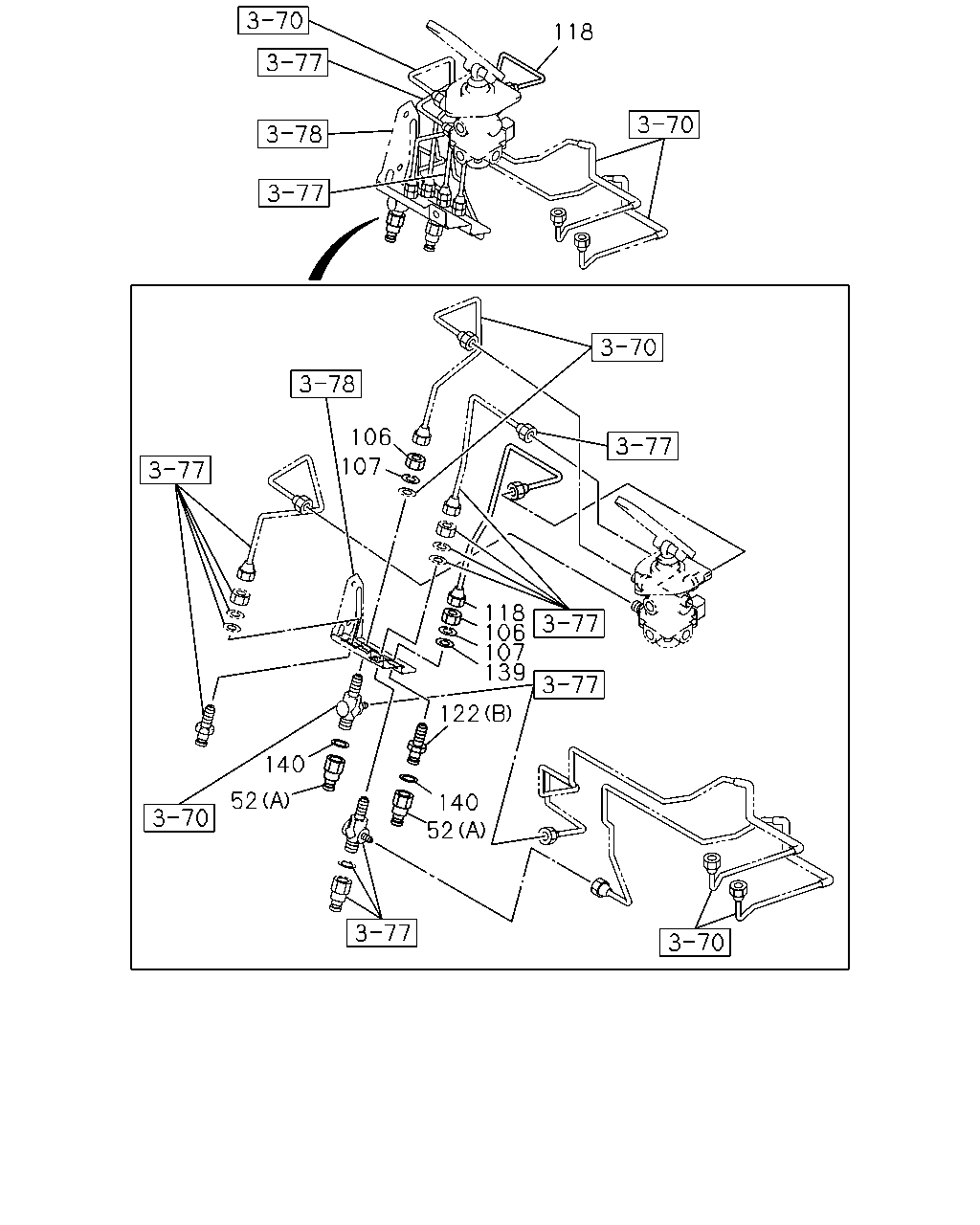

118 106 107 118 106 107 139 122 140 52 140 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803		●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004	●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004		●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●	●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-		●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9804-0004				●
52	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
52	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9804-0004				●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9601-9803	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-9803	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9601-9803	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9803	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-9803	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9804-0004	●	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004	●	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-9701	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-9701	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9601-9701		●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9702-9803	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9702-9803	●
122	CONNECTOR; FLEX HOSE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>,BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9702-9803		●	●
122	CONNECTOR; FLEX HOSE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) L=35	1-09660-039-0	01	1	9702-9803		●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9804-0004	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9804-0004	●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9804-0004			●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0005-0011	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0005-0011	●	●		●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0005-0011			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0012-0109	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0012-0109	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0012-0109		●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0012-0109		●		●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0012-0109			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0110-0211	●			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0110-0211	●			●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0110-0211		●	●		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0110-0211		●			●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0110-0211			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0212-	●	●	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0212-	●	●		●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0212-			●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0212-					●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0212-					●
122	CONNECTOR; FLEX HOSE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	02	1	9702-9803		●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-9803	●	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9804-0004	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803		●	●

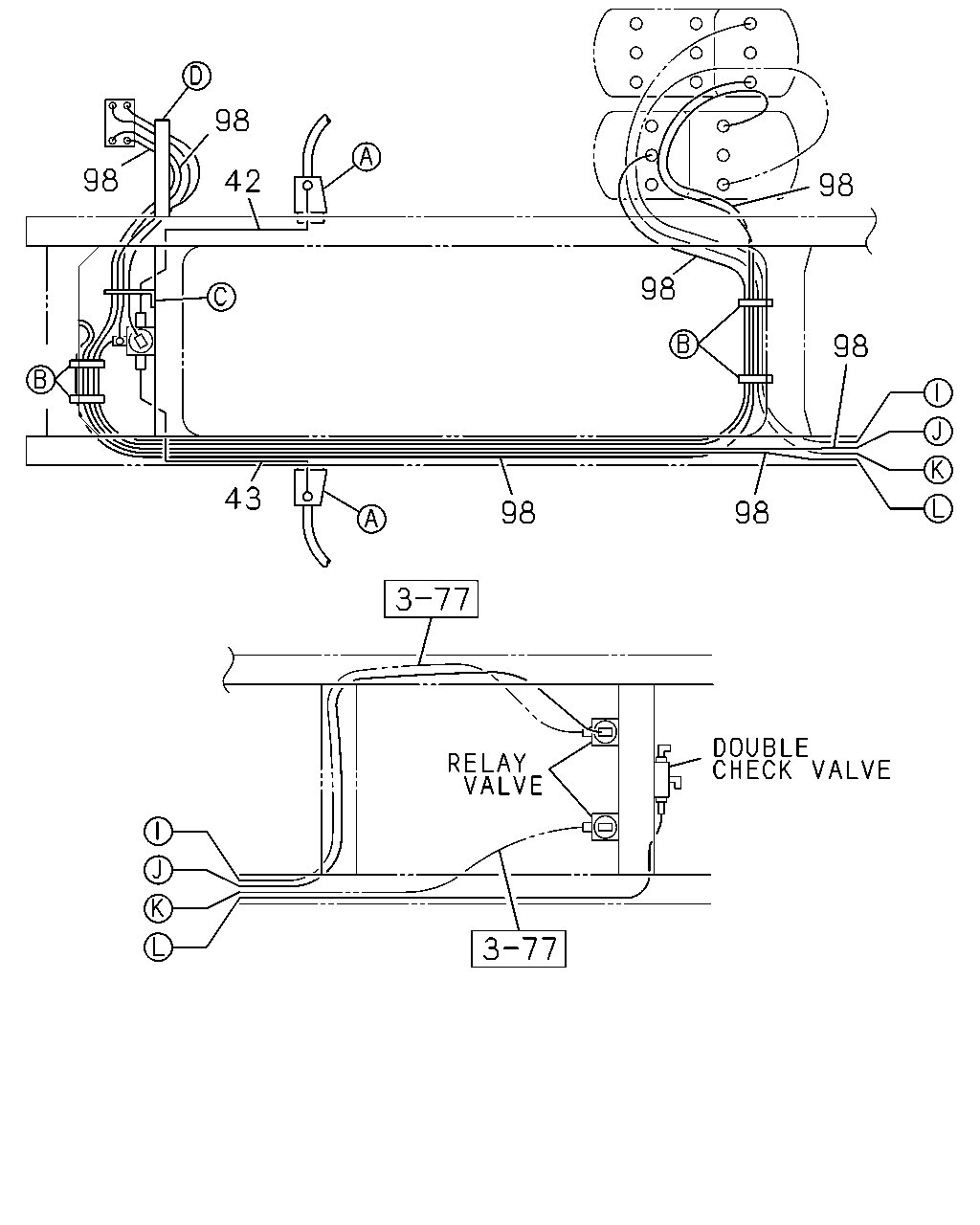

98 98 42 98 98 98 43 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) FRONT SPRING LONG SPAN<W36> L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0406-			●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-0004	●	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405			●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0406-	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0406-		●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) FRONT SPRING LONG SPAN<W36> L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0406-			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-0004	●	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0406-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0406-		●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-0405				●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0301-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-0405	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0406-	●	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0406-	●	●	●	●	●

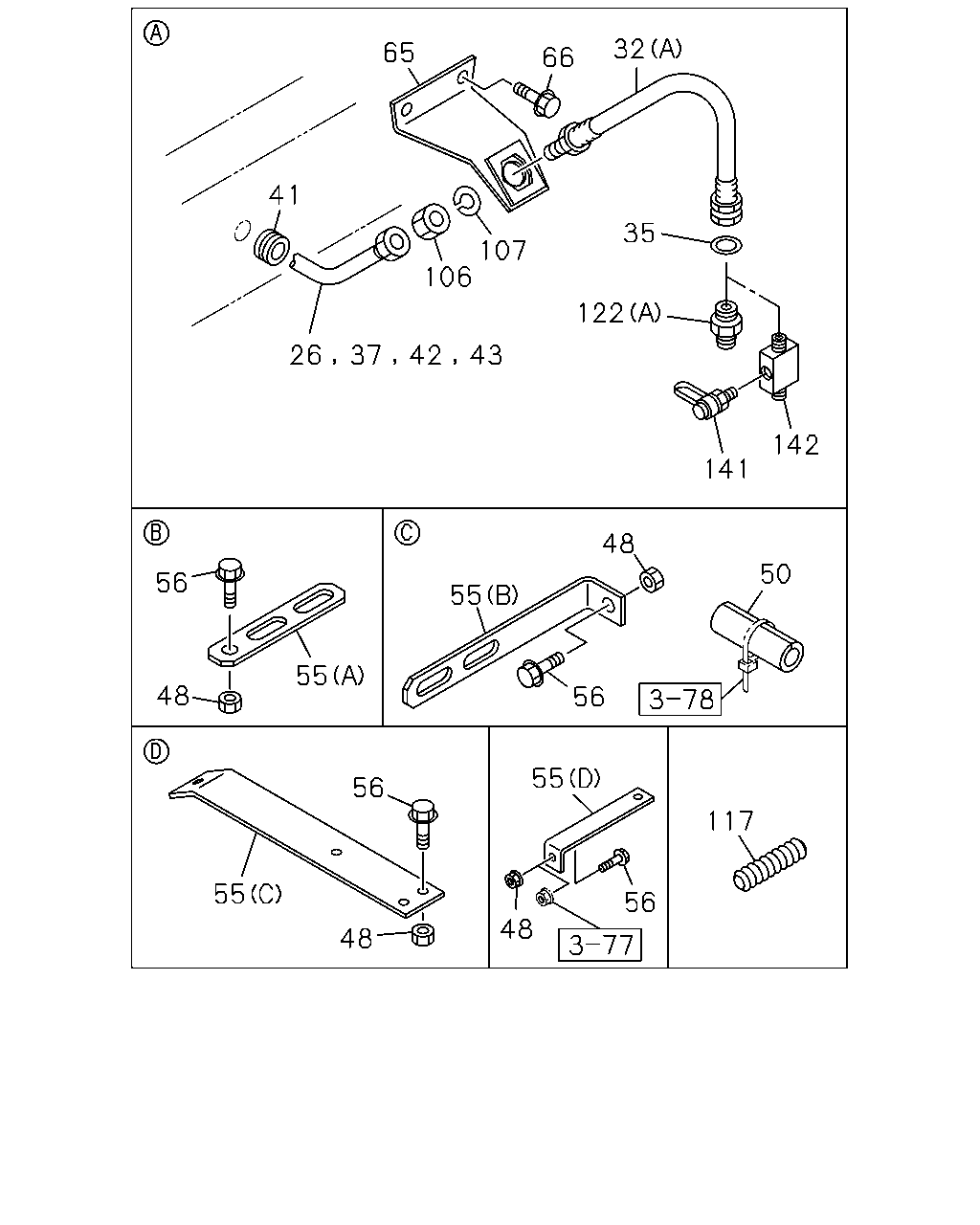

32 65 66 41 35 107 106 122 26 142 141 48 50 56 55 55 48 56 55 56 117 55 56 48 48 37 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	9601-9803	●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	9804-0004	●	●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0005-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	0005-		●	●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0005-				●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●	●	●	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9804-0004	●	●	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-	●	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	9601-9803	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	9804-0004	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0005-	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	0005-		●	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0005-				●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9803	●	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9804-0004	●	●	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-	●	●	●	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) FRONT SPRING LONG SPAN<W36> L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0406-			●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-0004	●	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405			●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0406-	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0406-		●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) FRONT SPRING LONG SPAN<W36> L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0406-			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-0004	●	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0405			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0406-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0406-		●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	02	1	0005-0010	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	02	1	0005-0010		●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	02	1	0005-0010			●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0011-0104	●	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	02	1	0105-0105	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0105-0105			●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0105-0105			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0105					●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0106-0405	●	●	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0109-0602				●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●	●	●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8	9-09110-408-0	05	1	9601-9606		●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	9607-9609		●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	05	1	9610-0002	●	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0003-0004	●	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0005-0105	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	0005-0105		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0105					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0106-0112	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0106-0112		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	0106-0112					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0201-0201	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	0201-0201		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0201-0201					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0202-0602	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0202-0602		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	0202-0602					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	04	1	0603-					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606		●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-9609		●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9610-9803		●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	9804-9807	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	9804-9807		●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9808-0002	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9808-0002		●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	02	1	0003-0004	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0003-0004	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0003-0004		●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M8 FLANGE	0-91150-108-0	02	1	0003-0004		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	02	1	0003-0004			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010		●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0010			●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0010					●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0010					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0011-0104	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0011-0104		●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0011-0104			●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0011-0104				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0011-0104					●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0011-0104					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0105-0112	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0105-0112		●	●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0105-0112				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0112					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0201-0405	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0201-0405		●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0201-0405			●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0201-0405				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0201-0405					●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0201-0405					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0406-0602		●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0406-0602			●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0406-0602			●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0406-0602				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0406-0602					●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0406-0602					●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	0603-	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0603-			●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-			●
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	0603-				●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0603-					●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0603-					●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	05	1	0003-0004				●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	06	1	0005-0108	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0005-0108		●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	06	1	0005-0108				●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	06	1	0109-0405	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0109-0405		●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0109-0405			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	06	1	0406-0602	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	0406-0602		●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8 FLANGE	0-91150-108-0	06	1	0406-0602			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	06	1	0603-	●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	06	1	0603-		●
48	NUT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8 FLANGE	0-91180-108-0	06	1	0603-			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3060P A/T(Y4G) ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-			●
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-					●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (D) L=145 B=25	1-47477-697-0	01	1	0003-0004	●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (D) L=145 B=25	1-47477-697-0	01	1	0003-0004		●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=145 B=25	1-47477-697-0	01	1	0003-0004			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (D) L=145 B=25	1-47477-697-0	01	1	0005-0010	●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> (D) L=145 B=25	1-47477-697-0	01	1	0005-0010		●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> (D) L=145 B=25	1-47477-697-0	01	1	0005-0010			●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=145 B=25	1-47477-697-0	01	1	0011-0011	●	●	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	9601-9803	●	●	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	9804-0004	●	●	●	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	0005-	●	●	●	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9601-9803	●	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9804-9807	●	●	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=150 H=30	1-47477-629-2	01	1	9808-0004	●	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0005-0011	●	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0012-0403	●	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0012-0403				●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0404-	●	●	●	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=160 B=25	1-53441-518-0	01	1	0003-0004	●	●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0005-0006	●	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0005-0006	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0005-0006		●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0005-0006					●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0007-0010	●	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0007-0010	●	●	●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0007-0010					●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0011-0011	●	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0011-0011	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=160 B=25	1-53441-518-0	01	1	0011-0011		●	●
55	BRACKET; TUBE UNION AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0011-0011				●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0011-0011					●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0012-	●	●	●	●	●
55	BRACKET; TUBE UNION AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0012-	●			●
55	BRACKET; TUBE UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=160 B=25	1-53441-518-0	01	1	0012-		●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0012-					●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	9804-0004	●	●	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (A)	1-47477-514-3	02	1	0005-0405	●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	0005-0405		●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	0005-0405			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (A)	1-47477-514-3	02	1	0406-	●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	0406-		●
55	BRACKET; TUBE UNION 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) (A)	1-47477-514-3	02	1	0406-			●
55	BRACKET; TUBE UNION (B) L=225	1-47477-646-3	01	1	9804-0002	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=225	1-47477-646-3	01	1	0003-0004	●	●	●	●
55	BRACKET; TUBE UNION (D) L=60 H=30	1-47477-716-1	01	1	0109-0201	●	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (D) L=60 H=30	1-47477-716-1	01	1	0202-0405	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (D) L=60 H=30	1-47477-716-1	01	1	0202-0405		●	●
55	BRACKET; TUBE UNION (D) L=60 H=30	1-47477-716-1	01	1	0202-0405				●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (D) L=60 H=30	1-47477-716-1	01	1	0406-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (D) L=60 H=30	1-47477-716-1	01	1	0406-		●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) (D) L=60 H=30	1-47477-716-1	01	1	0406-			●
55	BRACKET; TUBE UNION (D) L=60 H=30	1-47477-716-1	01	1	0406-				●	●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) (A)	1-47477-514-2	04	1	9601-9609		●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	04	1	9610-9803	●	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	9804-0004	●	●	●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	0005-0112	●	●	●	●	●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (A)	1-47477-514-3	01	1	0005-0112			●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	0005-0112					●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	0201-	●	●	●	●	●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (B) L=100 H=30	1-47477-645-2	01	1	0105-0105			●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	01	1	0105-0105					●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=100 H=30	1-47477-645-2	01	1	0106-0112	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=100 H=30	1-47477-645-2	01	1	0106-0112		●	●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	01	1	0106-0112					●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (B) L=100 H=30	1-47477-645-2	01	1	0201-			●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	01	1	0201-					●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	02	1	9804-0405				●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (B) L=100 H=30	1-47477-645-2	02	1	0406-			●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	02	1	0406-				●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0605-			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	03	1	0201-0512				●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8X30 FLANGE	0-28680-830-0	01	1	0003-0004	●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M8X30 FLANGE	0-28680-830-0	01	1	0003-0004		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> M8X30 FLANGE	0-28680-830-0	01	1	0003-0004			●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8X30 FLANGE	0-28680-830-0	01	1	0005-0010	●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> M8X30 FLANGE	0-28680-830-0	01	1	0005-0010		●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> M8X30 FLANGE	0-28680-830-0	01	1	0005-0010			●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X30 FLANGE	0-28680-830-0	01	1	0011-0201	●	●	●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X30 FLANGE	0-28680-830-0	01	1	0202-0405	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0202-0405					●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X30 FLANGE	0-28680-830-0	01	1	0406-0512	●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0406-0512	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0406-0512					●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-					●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9803	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	9804-0004	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	0005-0512	●	●	●		●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●		●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	05	1	9601-9606		●	●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	9607-9609		●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	9610-9803	●	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	9804-0002	●	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	0003-0004	●	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	05	1	0005-0405	●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	0005-0405		●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	0005-0405			●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	05	1	0406-0512	●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	05	1	0406-0512		●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	05	1	0406-0512			●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
56	BOLT; UNION BRKT 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	05	1	0601-			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9803		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9804-9807		●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	9804-9807				●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	9808-0002		●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0003-0004	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	0003-0004		●	●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M8X25 FLANGE	0-28680-825-0	01	1	0003-0004		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0003-0004			●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●	●	●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0005-0010			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0010					●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0010					●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0011-0104	●			●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0011-0104		●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0011-0104			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0011-0104					●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0011-0104					●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0105-0112	●			●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0105-0112		●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0112					●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0201-0512	●			●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0201-0512		●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0201-0512			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0201-0512					●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0201-0512					●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●			●
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-					●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-					●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0104		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105		●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0105					●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	03	1	0106-0112		●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	03	1	0106-0112				●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0201-0405		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0406-0512		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28650-825-0	02	1	0605-		●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	05	1	9804-0108				●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	06	1	0109-0512				●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	06	1	0601-	●	●	●	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	9808-0004				●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0105				●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9601-9803	●	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9804-0004	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0005-	●	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9601-9803	●	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9804-0004	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0005-	●	●	●	●	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9601-9602	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9603-0004	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0005-0512	●	●	●		●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●	●		●
66	BOLT; HOSE BRKT M8X14 FLANGE	0-28080-814-0	04	1	9804-				●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9601-9803	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-9803	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●	●	●	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9601-9803	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9803	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0004	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9601-0405	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-0405	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9601-0405	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-0405	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9601-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9601-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0406-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0406-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0406-	●	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0406-	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004	●	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-9701	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-9701	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9601-9701		●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9702-9803	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9702-9803	●
122	CONNECTOR; FLEX HOSE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU>,BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9702-9803		●	●
122	CONNECTOR; FLEX HOSE EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) L=35	1-09660-039-0	01	1	9702-9803		●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9804-0004	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9804-0004	●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	9804-0004			●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0005-0011	●	●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0005-0011	●	●		●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0005-0011			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0012-0109	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0012-0109	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0012-0109		●	●	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0012-0109		●		●	●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0012-0109			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0110-0211	●			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0110-0211	●			●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0110-0211		●	●		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0110-0211		●			●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0110-0211			●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0212-	●	●	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	01	1	0212-	●	●		●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0212-			●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0212-					●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	0212-					●
122	CONNECTOR; FLEX HOSE BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> EXC. BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	02	1	9702-9803		●	●
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9601-9803		●	●
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9804-0004			●	●
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0005-			●
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-09660-838-0	01	1	0212-0305			●
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU> EXC. HUB LUBRICATION OIL BATH<C5K>	1-09661-592-0	01	1	0306-			●
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	9601-9803		●	●
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	9804-0004			●	●
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	0005-0211			●
142	UNION; 3-WAY HUB LUBRICATION OIL BATH<C5K> BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	0212-			●

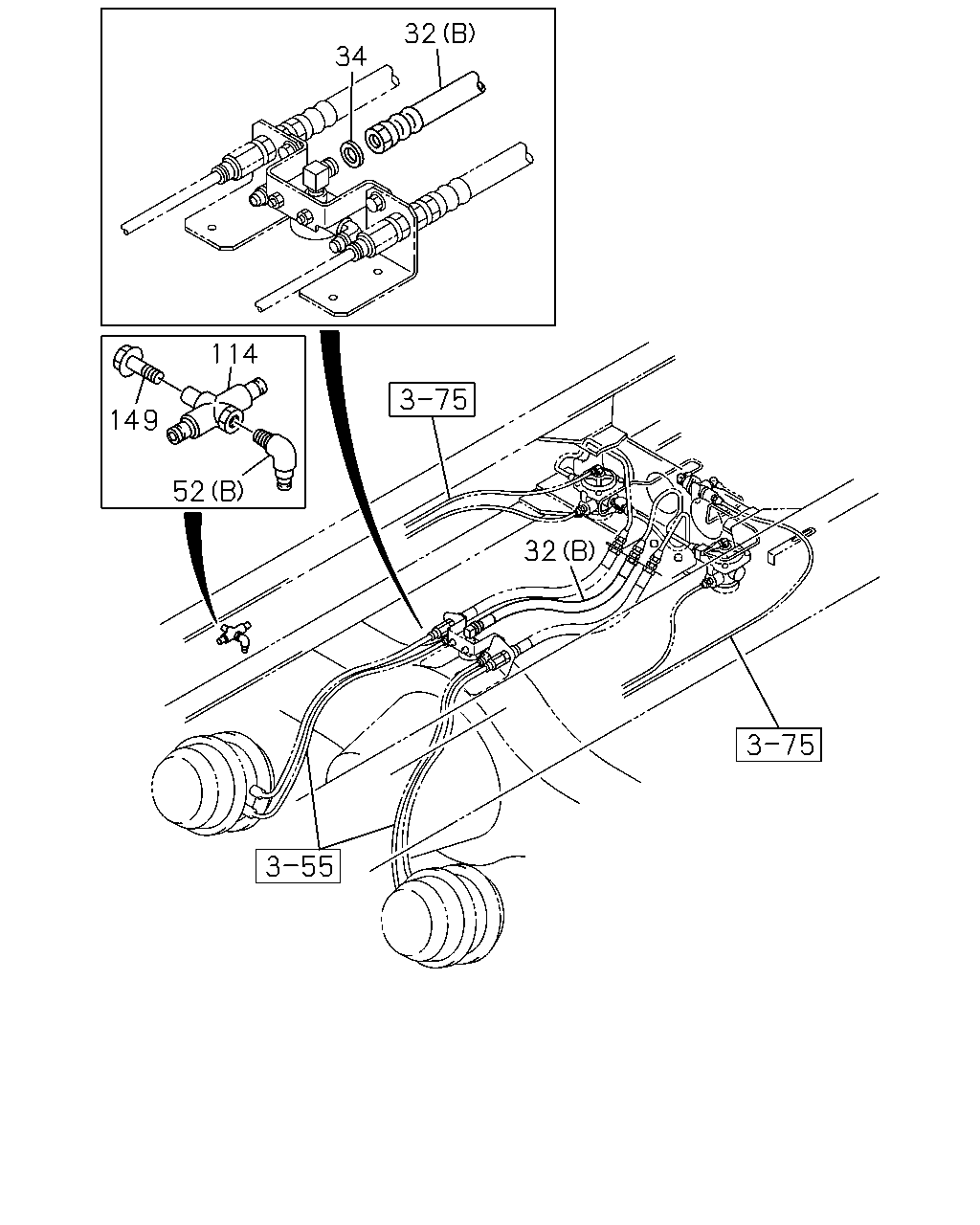

32 34 114 149 52 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0004	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●	●	●	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9804-0004	●	●	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-	●	●	●	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803		●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004	●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0004		●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●	●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-		●	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9804-0004				●
52	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
52	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9804-0004				●
114	UNION; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9804-0004				●
114	UNION; NYLON TUBE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-				●
149	BOLT; UNION EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	01	1	9804-0004				●
149	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0005-0512				●
149	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
