◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#63838) — 1564 parça

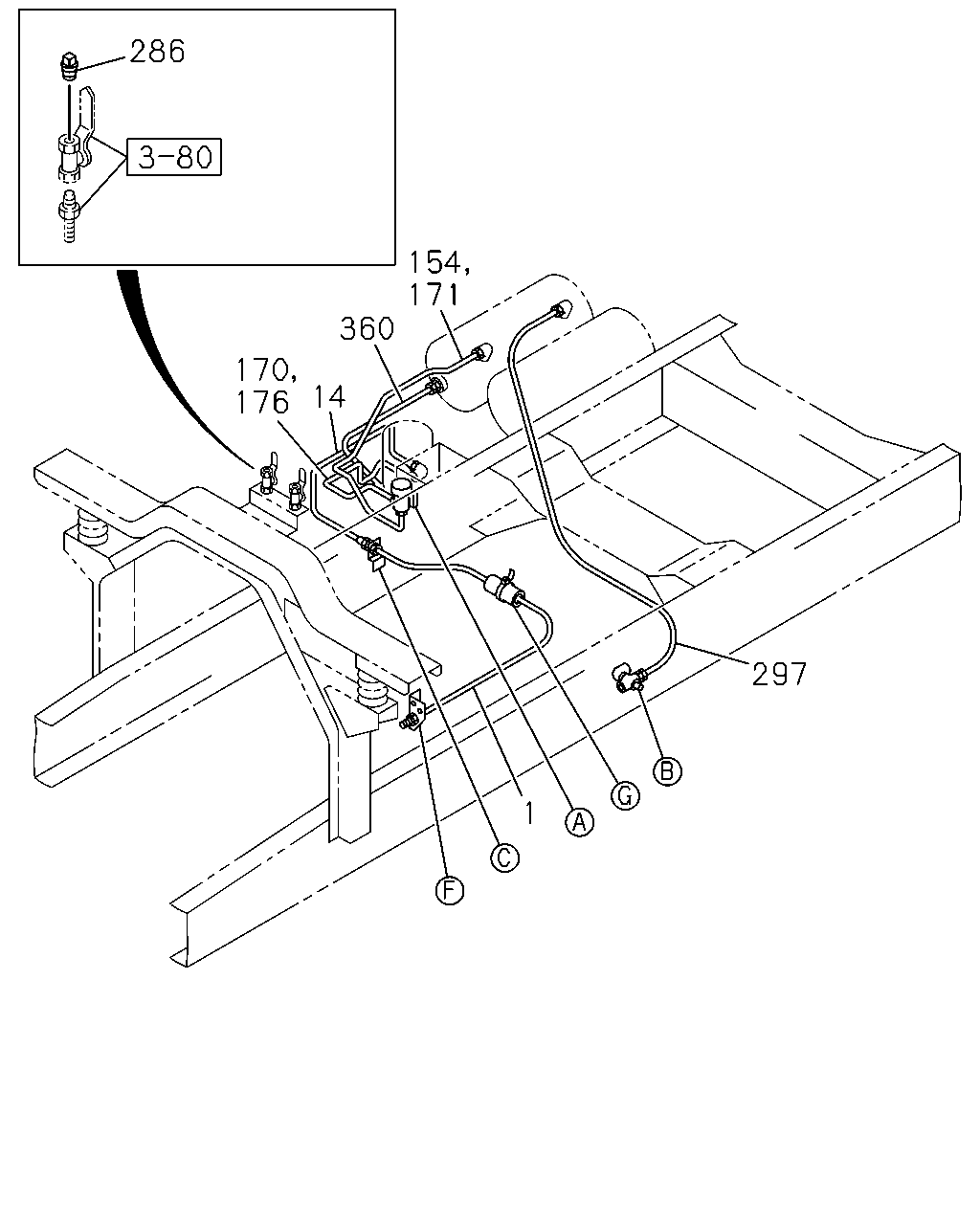

çizim 121246
34 171 176 14 154 297 154 14 170 297 297 297 1 297 297 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9601-9803 ● ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9804-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9601-9607 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=430 		1-09363-559-0 01 1 9608-0004 ●
1 HOSE; FLEX,AIR TANK
VERTICAL TAIL PIPE<NC4> L=1400 		0-17716-140-0 01 1 0005-0103 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0104-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1300 		0-17716-130-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. VERTICAL TAIL PIPE<NC4> L=1300 		0-17716-130-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49122-834-0 01 1 0605- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-202-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) EXC. AIR DRYER<PS7> L=1546 		1-49124-434-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-174-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49117-717-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-522-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-522-0 01 1 0005- ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804- ● ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0005- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 0005- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9807-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9807-0004 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 9807-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0005-0405 ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0005-0405 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0005-0405 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0406-0604 ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0406-0604 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49124-745-0 01 1 0605- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49122-180-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49122-181-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-410-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-175-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-437-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-153-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-398-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-171-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-421-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-176-0 01 1 0005- ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L) (A) 		1-47475-427-1 01 1 0005- ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (A) 		1-47475-427-1 01 1 0005- ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) M8 W/NUT 		1-47475-729-0 02 1 9809-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-438-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-519-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-186-0 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-187-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 0605- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-401-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-191-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0605- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49118-402-0 01 1 9804-0103 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49123-098-0 01 1 0104- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0605- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9601- ● ● ● ● ●

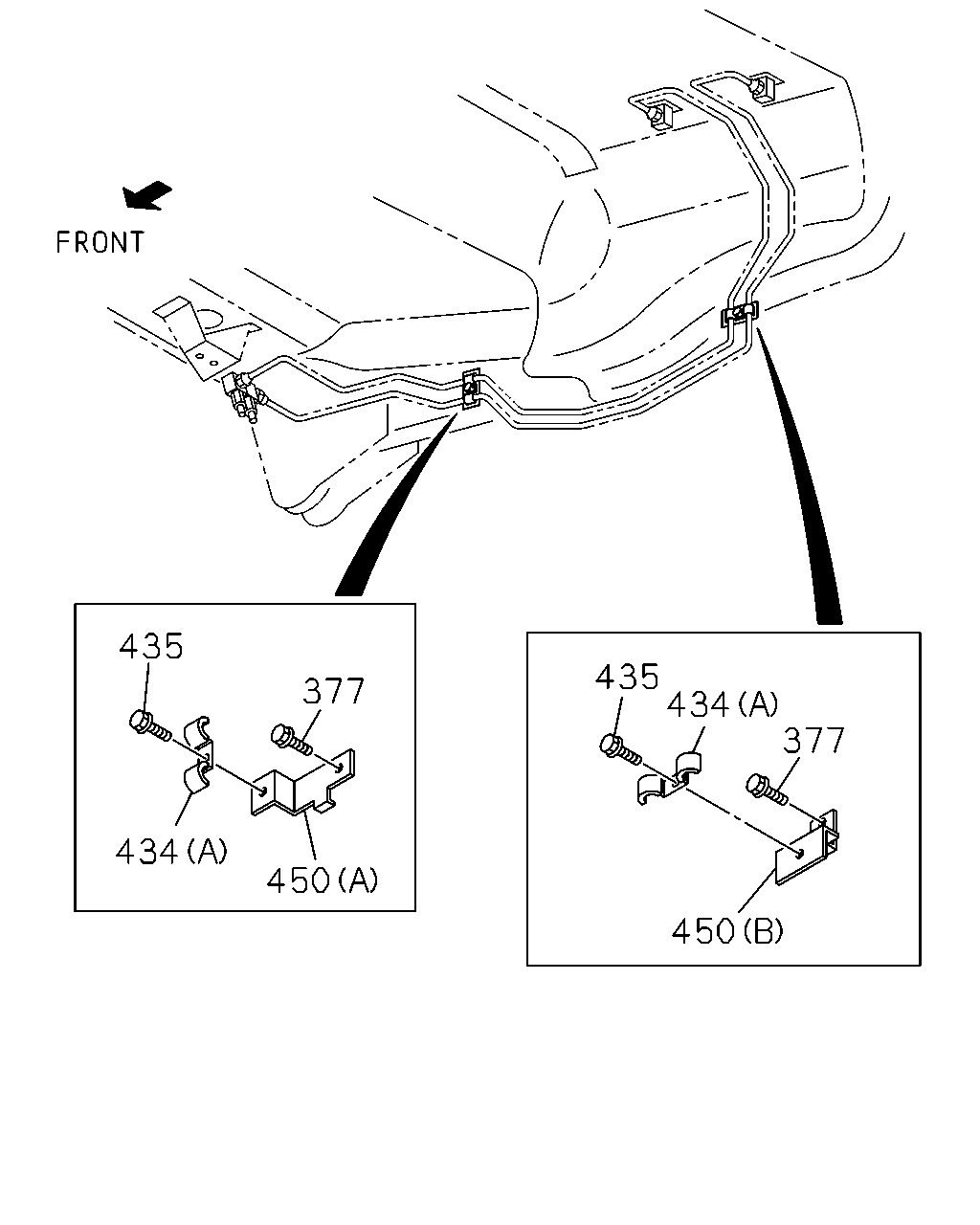

çizim 121362
435 435 434 377 377 434 450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E
377 BOLT; BRKT FIX
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9804- ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0605- ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0108-0604 ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EXC. EURO3 SPECIFICATION<NJX> (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0605- ●
434 CLIP
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9804- ●
435 BOLT; CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9804- ●
450 BRACKET; CLIP
(B) 		1-47475-461-0 01 1 9804- ●
450 BRACKET; CLIP
(A) 		1-79738-841-3 01 1 9804- ●
çizim 121524
14 154 170 184 1 34 154 176 14 171 1 184 297 222 297 221 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9601-9803 ● ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9804-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9601-9607 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=430 		1-09363-559-0 01 1 9608-0004 ●
1 HOSE; FLEX,AIR TANK
VERTICAL TAIL PIPE<NC4> L=1400 		0-17716-140-0 01 1 0005-0103 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0104-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1300 		0-17716-130-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. VERTICAL TAIL PIPE<NC4> L=1300 		0-17716-130-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49122-834-0 01 1 0605- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-202-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) EXC. AIR DRYER<PS7> L=1546 		1-49124-434-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-174-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49117-717-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-522-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-522-0 01 1 0005- ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804- ● ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0005- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 0005- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9807-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9807-0004 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 9807-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0005-0405 ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0005-0405 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0005-0405 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0406-0604 ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0406-0604 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0605- ●
34 PIPE; AIR
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49124-745-0 01 1 0605- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49122-180-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49122-181-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-410-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-175-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-437-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-153-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-398-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-171-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-421-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-176-0 01 1 0005- ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L) (A) 		1-47475-427-1 01 1 0005- ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (A) 		1-47475-427-1 01 1 0005- ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) M8 W/NUT 		1-47475-729-0 02 1 9809-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-438-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-519-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-186-0 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-187-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 0605- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-401-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-191-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0605- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49118-402-0 01 1 9804-0103 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49123-098-0 01 1 0104- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9610-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-0405 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0406- ●
184 HOSE; FLEX,AIR GOV
6HK1 TCS ENG(80L) L=330 		1-09363-584-0 01 1 0406- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9607 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=350 		1-09363-651-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=370 		1-09363-586-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) L=370 		1-09363-586-0 01 1 0005- ● ●
221 BOLT; BRKT
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X16 FLANGE 		0-28080-816-0 01 1 9809-0004 ●
221 BOLT; BRKT
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X50 FLANGE 		0-28080-850-0 01 1 9809-0004 ●
221 BOLT; BRKT
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X40 FLANGE 		0-28680-840-0 01 1 9809-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1057 SERVICED BY L=1100 		1-47426-351-0 01 1 9610-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1057 SERVICED BY L=1100 		1-47426-351-0 01 1 9706-9708 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9709-0405 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0406- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9805-0405 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250 		1-47428-817-0 01 1 0406- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0605- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9601- ● ● ● ● ●
çizim 121670
312 322 306 313 333 323 296 438 328 258 337 339 231 321 296 337 330 375 232 325 258 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date A B C D E
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49123-979-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49123-980-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-431-1 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-431-1 01 1 0005-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(A) L=1561 		1-49122-779-0 01 1 0104- ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-432-1 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-432-1 01 1 0005-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(B) L=1245 		1-49122-780-0 01 1 0104- ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9601-9803 ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9804-0103 ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104-0212 ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0301- ● ●
230 PIPE; AIR,UNION TO UNION
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49122-777-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9601-9803 ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9804-0103 ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104-0212 ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0301- ● ●
230 PIPE; AIR,UNION TO UNION
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49122-778-0 01 1 0301- ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9601-9803 ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9804-0004 ● ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005- ● ● ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9601-9803 ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9804-0004 ● ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005- ● ● ● ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9804-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0005- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9610-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9804-9810 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0405 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0405 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0406- ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0406- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX>,A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9609-9803 ● ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) 		1-09660-718-1 01 1 9601-0004 ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9601-9803 ● ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9804-0001 ● ● ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0002-0004 ● ● ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0005- ● ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9804- ● ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9804- ● ● ● ● ●
306 PLUG; NYLON TUBE
AIR CONTROL SEAT<A60> PT1/8 		1-09605-050-0 01 1 9804-0004 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9803 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9804-9902 ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903-0004 ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005- ● ● ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 9601-9803 ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 9804-0004 ● ● ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9804-0004 ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0005-0604 ● ● ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0005-0604 ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0605- ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> (A) M12 		9-09840-280-0 01 1 0605- ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0605- ● ●
312 NUT; UNION
(B) M12 		9-99111-412-0 01 1 9804-0512 ●
312 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
313 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9804-0603 ●
313 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ● ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-0 01 1 9804-9810 ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-09656-728-0 01 1 9804-9810 ● ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-728-1 01 1 9811-0004 ● ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9601-9803 ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9810 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9810 ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9811-9811 ● ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ● ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-738-0 01 1 0005-0010 ● ● ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005-0010 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0011- ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-663-0 01 1 9804-9810 ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-663-0 01 1 9811-9911 ● ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-712-0 01 1 9912-0004 ● ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9803 ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9804-9810 ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9804-9810 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M10 H=8 		1-09400-029-0 01 1 9804-9810 ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0005-0010 ● ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005-0010 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0011- ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9803 ● ● ●
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9804-9810 ● ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9804-9810 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=10.2 		9-09150-510-0 01 1 9804-9810 ● ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ● ● ●
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0005-0010 ● ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0010 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0011-0603 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47493-105-1 01 1 9601-9609 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47493-105-1 01 1 9610-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47493-105-1 01 1 0005- ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47493-105-1 01 1 0005- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 9601-9803 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-47492-452-2 01 1 9804-9810 ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 9811-0004 ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 0005-0010 ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 0011- ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9601-9803 ● ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9804-9810 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-47470-392-0 01 1 9804-9810 ● ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 9811-0004 ● ● ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 0005-0010 ● ● ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005-0010 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 0011- ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 0011- ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0011- ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9601-9803 ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9804-0004 ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0603 ● ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-9810 ● ● ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ● ● ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ● ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-9803 ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9804-0004 ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0608 ● ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ● ● ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9601-9609 ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9610-9803 ● ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9804-9810 ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28 		8-94279-720-0 01 1 9804-9810 ● ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004 ● ● ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005-0010 ● ● ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0011- ● ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 0011- ● ●
374 CONNECTOR 1-09656-451-1 01 1 9601-9803 ● ● ●
374 CONNECTOR 1-09656-721-0 01 1 9804-0004 ● ● ● ●
374 CONNECTOR 1-09656-721-0 01 1 0005-0103 ● ● ● ● ●
374 CONNECTOR 1-09656-754-0 01 1 0104- ● ● ● ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9601-9609 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9601-9609 ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9610-9803 ● ● ●
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9804-9810 ● ● ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9804-9810 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=11 OD=18 		9-09572-510-0 01 1 9804-9810 ● ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ● ● ●
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9601-9803 ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9804-0004 ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ● ● ●
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-9810 ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-9810 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-9810 ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ● ● ●
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ● ● ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ●
çizim 184375
286 154 171 360 170 176 14 297 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9601-9803 ● ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9804-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9601-9607 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=430 		1-09363-559-0 01 1 9608-0004 ●
1 HOSE; FLEX,AIR TANK
VERTICAL TAIL PIPE<NC4> L=1400 		0-17716-140-0 01 1 0005-0103 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0104-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1300 		0-17716-130-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. VERTICAL TAIL PIPE<NC4> L=1300 		0-17716-130-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49122-834-0 01 1 0605- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9610-9803 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 9807-0004 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-849-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-849-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0104-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0405 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0406- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9803 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-850-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49123-077-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0301-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-004-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-202-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0104-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0405 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) EXC. AIR DRYER<PS7> L=1546 		1-49124-434-0 01 1 0406- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-174-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49117-717-0 01 1 9804- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-522-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-522-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) AIR DRYER<PS7> 		1-49124-745-0 01 1 0605- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9610-9803 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49122-180-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49122-181-0 01 1 0005-0104 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0105- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-410-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-172-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9807-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-526-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0405 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0406- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-177-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-175-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0005-0405 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-437-0 01 1 0406- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) 		1-49117-153-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0105- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-398-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49122-171-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-421-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-176-0 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-188-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0005-0405 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1 TCS ENG(80L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49124-438-0 01 1 0406- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-519-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
VERTICAL TAIL PIPE<NC4> EXC. AIR DRYER<PS7> 		1-49122-186-0 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7> 		1-49122-187-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 0605- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9807-0004 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49115-564-0 01 1 9807-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0405 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0005-0405 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0406- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-401-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-191-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) AIR DRYER<PS7> L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0605- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9807-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0405 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0406- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49118-402-0 01 1 9804-0103 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49123-098-0 01 1 0104- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
286 PLUG; AIR PIPE
PT1/2 		9-09204-521-0 01 1 9804-9804 ●
286 PLUG; AIR PIPE
EXC. BRAKE REGULATION ADR<TDU> PT1/2 		9-09204-521-0 01 1 9805-0004 ●
286 PLUG; AIR PIPE
PT1/2 		9-09204-521-0 01 1 0005- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0605- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9601- ● ● ● ● ●
360 HOSE; FLEX,AIR DRYER
AIR DRYER<PS7> 		1-09363-700-0 01 1 9804- ●
çizim 184377
149 80 444 155 343 258 155 258 258 258 2 248 3 247 229 297 8 6 7 1 184 186 88 229 3 2 1 6 258 7 258 312 1 202 5 343 281 1 3 259 434 367 2 227 249 185 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0406- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9601-9803 ● ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 9804-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9601-9607 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=360 		1-09363-530-0 01 1 9608-9705 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0007-0405 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0406- ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=430 		1-09363-559-0 01 1 9608-0004 ●
1 HOSE; FLEX,AIR TANK
VERTICAL TAIL PIPE<NC4> L=1400 		0-17716-140-0 01 1 0005-0103 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0104-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1300 		0-17716-130-0 01 1 9804-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. VERTICAL TAIL PIPE<NC4> L=1300 		0-17716-130-0 01 1 0005-0103 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9608 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M22 		9-09111-422-0 01 1 9610-9701 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-9803 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9804-0004 ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0005-0512 ● ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9610-9803 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9804-0004 ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 0005-0512 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0005-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601- ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9608 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=22.5 		9-09150-522-0 01 1 9609-9701 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-9803 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9804-0004 ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0005-0603 ● ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		9-09150-520-0 01 1 9609-9803 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		9-09150-520-0 01 1 9804-0004 ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 0005-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		0-91510-520-0 01 1 0604- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
5 SLEEVE; FLEX HOSE
L=1300 		1-09360-677-1 01 1 9604-9609 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 9604-9609 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=1300 		1-09360-677-1 01 1 9610-9803 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 9610-9803 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=1300 		1-09360-677-1 01 1 9804-9903 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 9804-9903 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S), ZF 9S109 OD M/T HONG KONG(Y3Y) L=1300 		1-09360-677-1 01 1 9904-0004 ● ● ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=1300 		1-09360-677-1 01 1 0005- ● ● ●
5 SLEEVE; FLEX HOSE
L=1300 		1-09360-677-1 01 1 0005- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-47476-693-1 01 1 9601-9803 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-47476-693-1 01 1 9804-0004 ● ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) 		1-47476-693-2 01 1 0005- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-47476-693-2 01 1 0005- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-2 01 1 0005- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9601-9609 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9610-0004 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) 		1-47477-264-2 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0305-0405 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) 		1-47478-864-0 01 1 0406- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0406- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) 		1-47478-864-0 01 1 0406- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28680-835-0 02 1 9607-9803 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28680-835-0 02 1 9804-0004 ● ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9610-0004 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0405 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0405 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0405 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 		9-09110-408-0 02 1 9601-9606 ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9803 ● ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ● ● ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0005- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005- ● ● ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9803 ● ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9804-0004 ● ● ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512 ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512 ● ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9804-0004 ● ● ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9610-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-0405 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0406- ●
184 HOSE; FLEX,AIR GOV
6HK1 TCS ENG(80L) L=330 		1-09363-584-0 01 1 0406- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9607 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) EXC. ENGINE REAR PTO<SV1> L=350 		1-09363-651-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) ENGINE REAR PTO<SV1> L=370 		1-09363-586-0 01 1 9608-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) L=370 		1-09363-586-0 01 1 0005- ● ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9601-9609 ● ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9610-0405 ● ● ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) M12 		9-09840-280-0 01 1 0406- ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 0406- ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12 		9-09840-280-0 01 1 0406- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9601-9609 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9610-0405 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) ID=12.2 		9-09150-512-0 01 1 0406-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 0406-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) ID=12.2 		9-09150-512-0 01 1 0406-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) ID=12.2 		0-91510-512-0 01 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ID=12.2 		0-91510-512-0 01 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) ID=12.2 		0-91510-512-0 01 1 0604- ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9803 ● ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 9601-9803 ● ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 9804-0004 ● ● ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604-0604 ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		0-91510-512-0 01 1 0604-0604 ● ●
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-0604 ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0605- ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		0-91510-512-0 01 1 0605- ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605- ●
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0605- ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9705 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-0004 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0405 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0406- ●
229 ADAPTER; NYLON TUBE
6HK1 TCS ENG(80L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0406- ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-9803 ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9804-0004 ● ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9803 ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 		9-48319-149-0 01 1 9804-0004 ● ● ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M12 ELBOW 		9-09225-206-1 01 1 0605-0607 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M12 ELBOW 		0-92125-206-0 01 1 0608- ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 02 1 9601-9803 ● ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 02 1 9804-9903 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 02 1 9804-9903 ● ●
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 9804-9903 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9904-0004 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 01 1 9904-0004 ● ●
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 9904-0004 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 02 1 0005-0604 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 02 1 0005-0604 ● ●
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 0005-0604 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 02 1 0605-0607 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 02 1 0605-0607 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		9-09223-306-1 02 1 0605-0607 ●
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 0605-0607 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		0-92113-306-0 02 1 0608- ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		0-92113-306-0 02 1 0608- ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		0-92113-306-0 02 1 0608- ●
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 02 1 0608- ● ●
247 UNION; AIR PIPE
M12 2WAY 		1-09654-257-1 01 1 9804-9903 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 02 1 9601-9803 ● ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9804-0004 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 01 1 9804-0004 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9804-0004 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 02 1 0005-0604 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 02 1 0005-0604 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 0005-0604 ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 01 1 0605- ● ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 01 1 0605- ● ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605- ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 9601-9803 ● ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 9804-0004 ● ● ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604- ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		0-91510-512-0 01 1 0604- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9804-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0005- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0011 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0405 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9609 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9610-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9810 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9803 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9804-9810 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0405 ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0405 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0406- ● ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0406- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ● ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO3 SPECIFICATION<NJX>,A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605- ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9609-9803 ● ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) 		1-09660-718-1 01 1 9601-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-0405 ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009- ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9602 ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9603-9610 ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9803 ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0405 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0405 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0405 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0405 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0405 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 02 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0406- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9611-9804 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9805-0004 ● ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0105-0604 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 04 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 04 1 0005-0604 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 03 1 0605- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0605- ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9601-9803 ● ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9804-0004 ● ● ●
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 9804-0004 ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ● ●
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604-0604 ● ● ●
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0604-0604 ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0605- ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605- ●
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0605- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 9601- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0605- ● ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 9601- ● ● ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 9601-9803 ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 9804-0004 ● ● ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9804-0004 ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0005-0604 ● ● ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0005-0604 ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0605- ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> (A) M12 		9-09840-280-0 01 1 0605- ●
312 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0605- ● ●
312 NUT; UNION
(B) M12 		9-99111-412-0 01 1 9804-0512 ●
312 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 9601-9803 ● ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ● ● ●
343 UNION; NYLON TUBE
(A) M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 0005-0604 ● ● ●
343 UNION; NYLON TUBE
(A) M12 L=66.5 		9-09223-306-1 01 1 0005-0604 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 0605-0607 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		9-09223-306-1 01 1 0605-0607 ●
343 UNION; NYLON TUBE
(A) M12 L=66.5 		9-09223-306-1 01 1 0605-0607 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
343 UNION; NYLON TUBE
(A) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ●
343 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) 		1-09660-788-0 01 1 9804-9805 ●
343 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) 		1-09660-788-0 01 1 9806-0004 ●
343 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0005- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9804-0004 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9804-0405 ● ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 9804- ● ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9804- ● ● ● ● ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0605- ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0108-0604 ●
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EXC. EURO3 SPECIFICATION<NJX> (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0605- ●
434 CLIP
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9804- ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0005-0010 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0011-0405 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0406-0512 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-0604 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0605-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 9601-9612 ● ● ●
444 BOLT; UNION
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9601-9612 ● ●
444 BOLT; UNION
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9601-9612 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) M8X25 FLANGE 		0-28080-825-0 01 1 9701-9706 ● ● ●
444 BOLT; UNION
ISUZU M/T<X9A> AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9701-9706 ● ●
444 BOLT; UNION
ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9701-9706 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9707-9803 ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9804-0004 ● ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0005-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 02 1 0601- ● ● ● ● ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 02 1 9709-9803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
