3-46 — AIR DRYER (#63836) — 149 parça

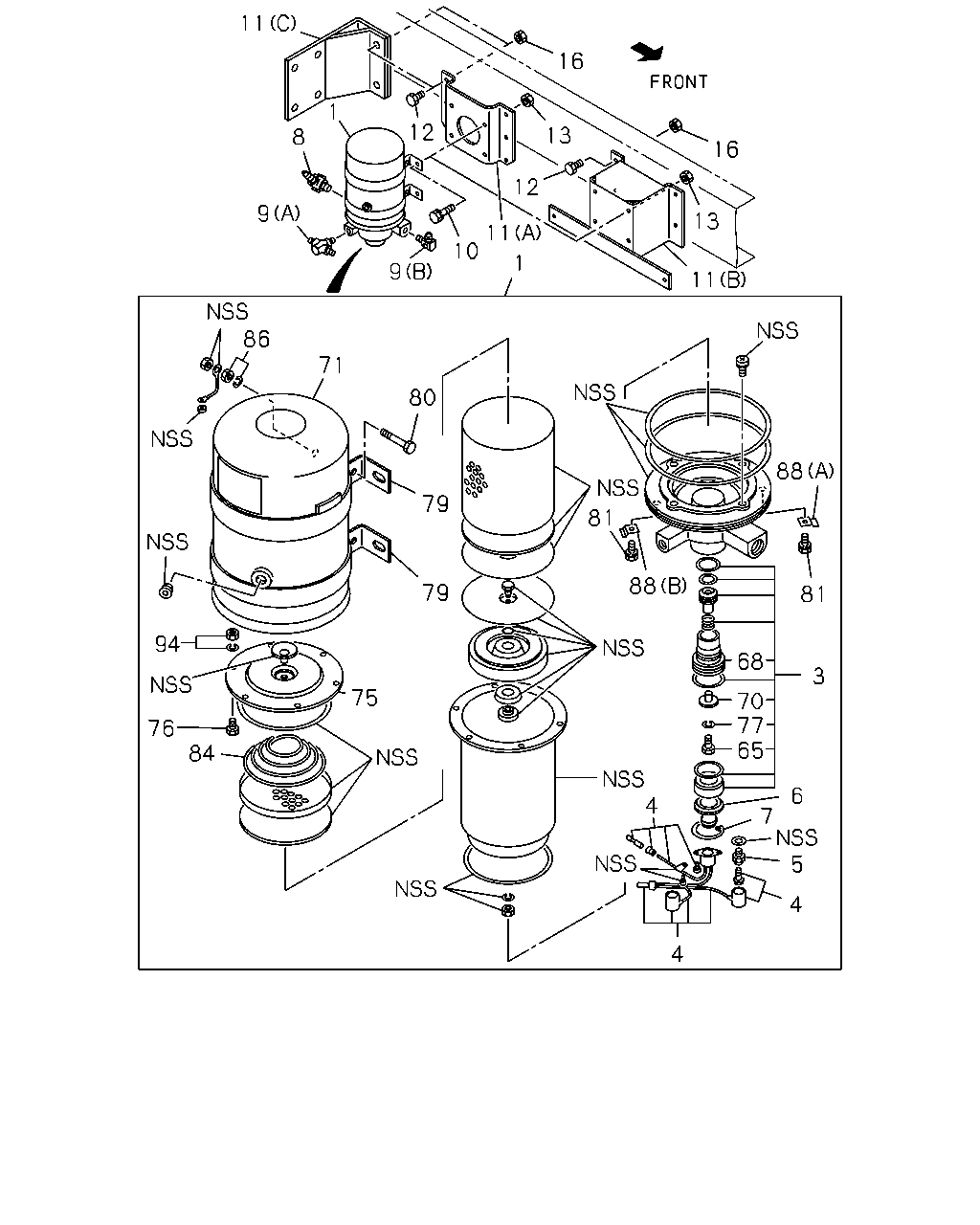

çizim 184202
11 16 1 12 13 8 16 12 9 13 11 10 1 9 11 86 71 80 88 79 81 88 79 81 94 68 3 75 70 77 65 76 84 4 6 7 5 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 9601-9803 ● ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 9804-0004 ● ● ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 0005-1001 ● ● ● ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-373-0 01 1 1002- ● ● ● ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 9601-9803 ● ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 9804-0004 ● ● ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 0005- ● ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9601-9803 ● ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9804-0004 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 0005- ● ● ● ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 9601-9803 ● ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 9804-0004 ● ● ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 0005- ● ● ● ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 9601-9803 ● ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 9804-0004 ● ● ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 0005- ● ● ● ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 9601-9803 ● ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 9804-0004 ● ● ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 0005- ● ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9601-9803 ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9804-0004 ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0005-0607 ● ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0608- ● ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9601-9803 ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9804-0004 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0005- ● ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9601-9803 ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9804-0004 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0005- ● ● ● ● ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X25 FLANGE 		0-28081-025-0 04 1 9601-9606 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X25 FLANGE 		0-28081-025-0 04 1 9601-9606 ● ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9607-9803 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9607-9803 ● ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9804-9806 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9804-9806 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9804-9806 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9807-0004 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9807-0004 ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9807-0004 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9807-0004 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
10 BOLT; AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> M10X35 FLANGE 		0-28081-035-0 04 1 9601-9606 ● ●
10 BOLT; AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9607-9609 ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9610-9806 ● ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9807-0004 ●
10 BOLT; AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9807-0004 ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> M10X40 FLANGE 		0-28681-040-0 04 1 9807-0004 ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0005-0405 ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0005-0405 ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0005-0405 ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0406-0512 ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0406-0512 ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0601-0604 ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0601-0604 ● ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0605- ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0605- ●
10 BOLT; AIR DRYER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0605- ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 9601-9803 ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 9601-9803 ● ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 9804-0004 ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 9804-0004 ● ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 0005- ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 0005- ● ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (A) 		1-48195-055-0 01 1 0005- ●
11 BRACKET; AIR DRYER
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (C) 		1-48195-095-1 01 1 9807-0004 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (B) 		1-48195-093-2 01 1 9804-0103 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (B) 		1-48195-110-0 01 1 0104- ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ● ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9607-9803 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9607-9803 ● ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
12 BOLT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
12 BOLT; BRKT
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M14X45 FLANGE 		0-28881-445-0 04 1 9807-0004 ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9804-0512 ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
13 NUT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 		9-09110-410-0 04 1 9601-9606 ●
13 NUT; AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 		9-09110-410-0 04 1 9601-9606 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9804-0602 ● ● ● ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
13 NUT; AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9601-9606 ● ●
16 NUT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9703-9803 ●
16 NUT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9703-9803 ● ●
16 NUT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ●
16 NUT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
16 NUT; BRKT
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ●
16 NUT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ●
16 NUT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
16 NUT; BRKT
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
16 NUT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
16 NUT; BRKT
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
16 NUT; BRKT
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
16 NUT; BRKT
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M14 FLANGE 		0-91160-114-0 02 1 9807-0004 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-102-0 01 1 9601-9803 ● ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 9804-0004 ● ● ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 0005-1001 ● ● ● ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-393-0 01 1 1002- ● ● ● ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9601-9803 ● ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9804-0004 ● ● ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 0005- ● ● ● ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9601-9803 ● ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9804-0004 ● ● ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0005- ● ● ● ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9601-9803 ● ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9804-0004 ● ● ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 0005- ● ● ● ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9601-9803 ● ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9804-0004 ● ● ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 0005- ● ● ● ● ●
76 BOLT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-478-0 06 1 0005- ● ● ● ● ●
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9601-9803 ● ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9601-9803 ● ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9804-0004 ● ● ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 0005- ● ● ● ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9601-9803 ● ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9804-0004 ● ● ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 0005- ● ● ● ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9601-9803 ● ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9804-0004 ● ● ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 0005- ● ● ● ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9601-9803 ● ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9804-0004 ● ● ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 0005- ● ● ● ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 9601-9803 ● ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 9804-0004 ● ● ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 0005- ● ● ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9601-9803 ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9804-0004 ● ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 0005- ● ● ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9601-9803 ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9804-0004 ● ● ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 0005- ● ● ● ● ●
94 NUT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-479-0 07 1 0005- ● ● ● ● ●

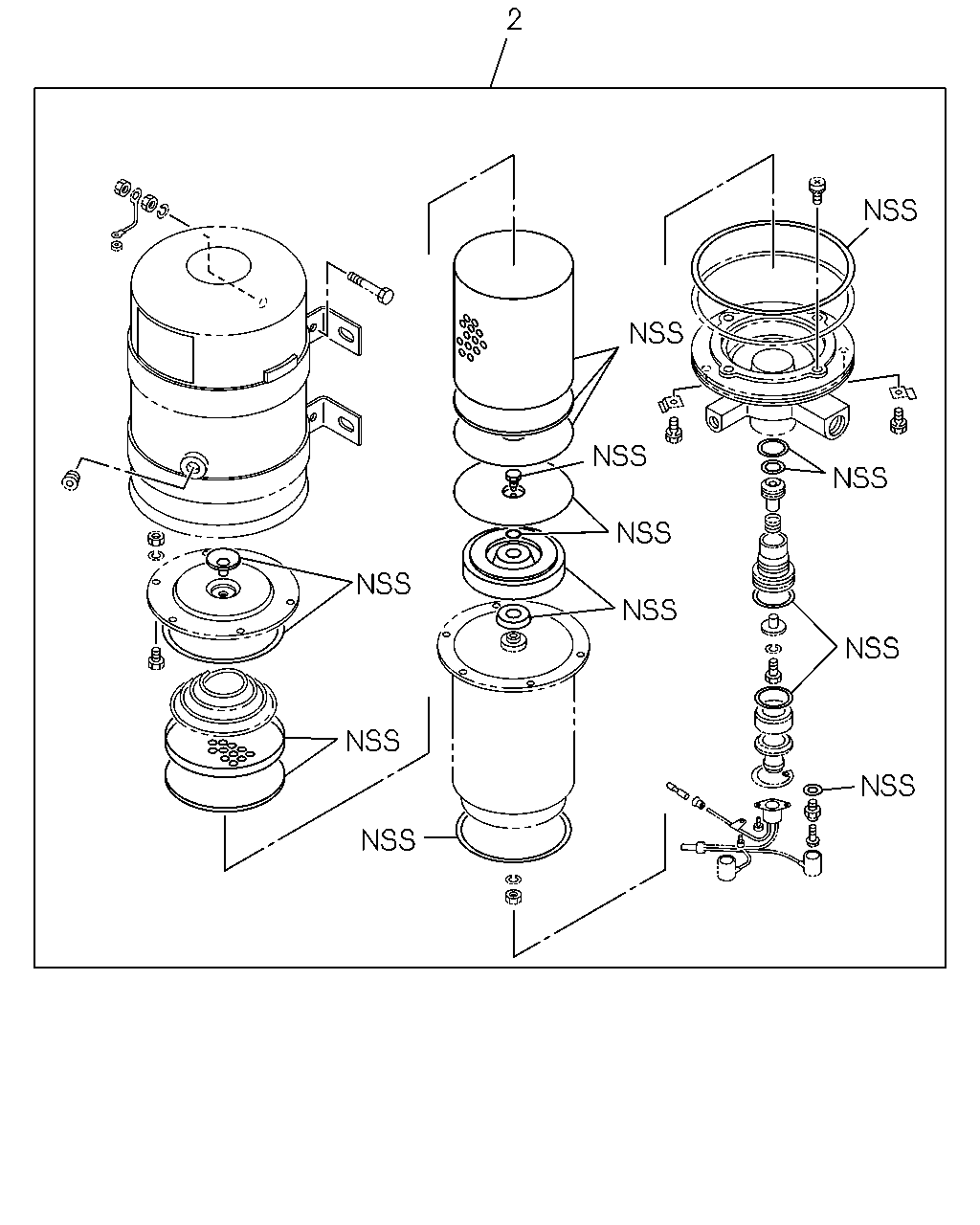

çizim 184378
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 9601-9803 ● ● ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 9804-0004 ● ● ● ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 0005-1001 ● ● ● ● ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-226-0 01 1 1002- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
