3-45 — LOAD SENSING PROPORTIONING VALVE (#63835) — 217 parça

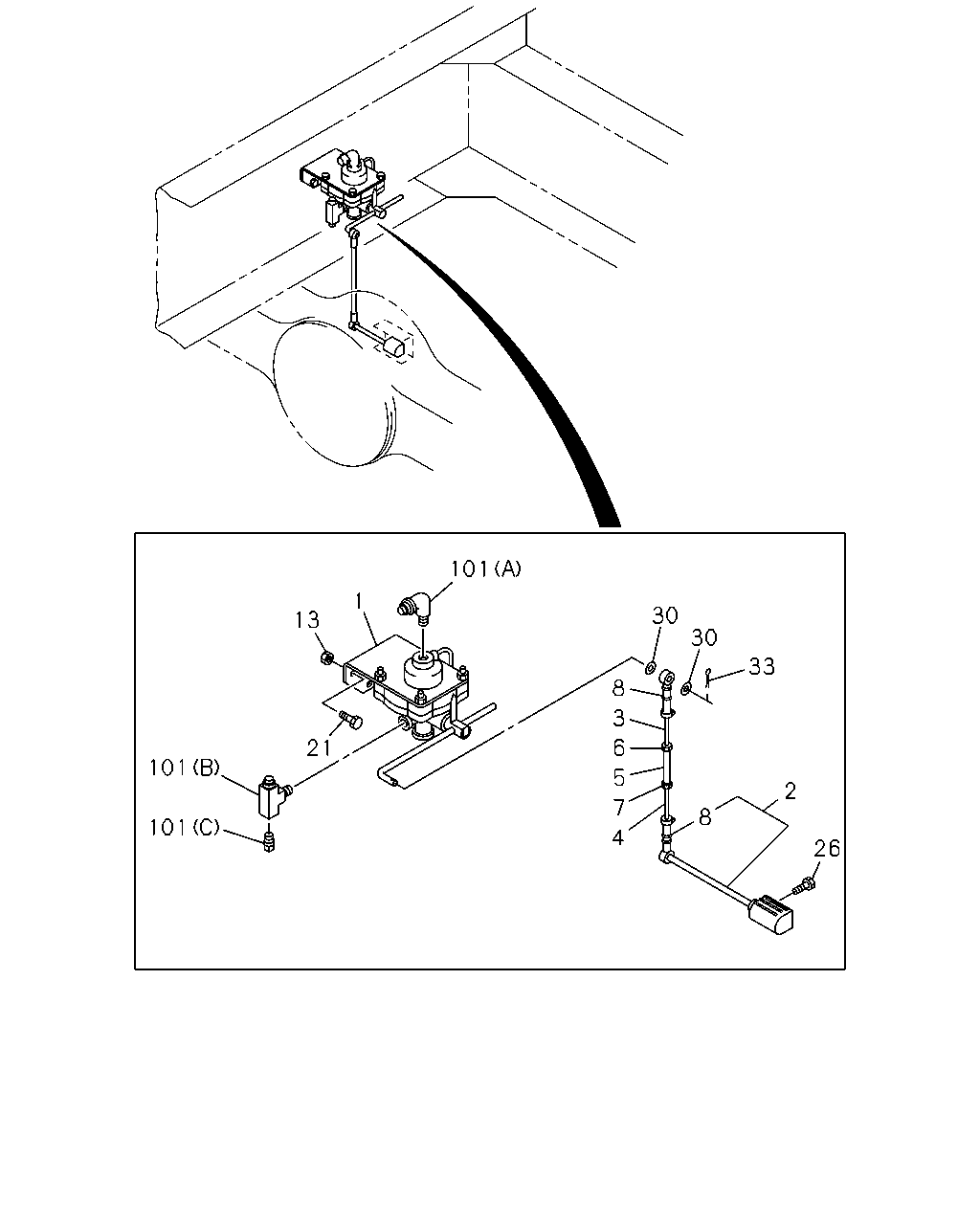

çizim 118241
101 1 30 13 30 33 8 3 6 21 101 5 2 7 8 101 4 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47720-062-0 01 1 9601-9803 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47720-062-0 01 1 9804-0004 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-062-0 01 1 9804-0004 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-062-0 01 1 0005-0105 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-122-0 01 1 0106- ●
2 DAMPER
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47725-012-0 01 1 9601-9803 ● ●
2 DAMPER
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47725-012-0 01 1 9804-0004 ●
2 DAMPER 1-47725-012-0 01 1 9804-0004 ●
2 DAMPER 1-47725-012-0 01 1 0005-0201 ●
2 DAMPER
FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47725-012-0 01 1 0202- ●
3 ROD; UPR
FINAL GEAR 37/6 18.5"(W3F) 		1-09765-071-0 01 1 0202- ●
3 ROD; UPR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09765-071-0 01 1 9601-9803 ● ●
3 ROD; UPR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09765-071-0 01 1 9804-0004 ●
3 ROD; UPR 1-09765-071-0 01 1 9804-0004 ●
3 ROD; UPR 1-09765-071-0 01 1 0005-0104 ●
3 ROD; UPR 1-09765-310-0 01 1 0105-0201 ●
3 ROD; UPR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-09765-310-0 01 1 0202-0404 ●
3 ROD; UPR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-09765-317-0 01 1 0405- ●
4 ROD; LWR
FINAL GEAR 37/6 18.5"(W3F) 		1-09765-212-0 01 1 0202- ●
4 ROD; LWR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09765-212-0 01 1 9601-9803 ● ●
4 ROD; LWR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09765-212-0 01 1 9804-0004 ●
4 ROD; LWR 1-09765-212-0 01 1 9804-0004 ●
4 ROD; LWR 1-09765-212-0 01 1 0005-0104 ●
4 ROD; LWR 1-09765-308-0 01 1 0105-0201 ●
4 ROD; LWR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-09765-308-0 01 1 0202- ●
5 JOINT
FINAL GEAR 37/6 18.5"(W3F) 		1-09768-004-0 01 1 0202- ●
5 JOINT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09768-004-0 01 1 9601-9803 ● ●
5 JOINT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-09768-004-0 01 1 9804-0004 ●
5 JOINT 1-09768-004-0 01 1 9804-0004 ●
5 JOINT 1-09768-004-0 01 1 0005-0104 ●
5 JOINT 1-09768-091-0 01 1 0105-0201 ●
5 JOINT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-09768-091-0 01 1 0202- ●
6 NUT; LK,UPR
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09111-408-0 01 1 9601-9803 ● ●
6 NUT; LK,UPR
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09111-408-0 01 1 9804-0004 ●
6 NUT; LK,UPR
M8 		9-09111-408-0 01 1 9804-0004 ●
6 NUT; LK,UPR
M8 		9-09111-408-0 01 1 0005-0201 ●
6 NUT; LK,UPR
FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M8 		9-09111-408-0 01 1 0202-0512 ●
6 NUT; LK,UPR
FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) M8 		0-91111-508-0 01 1 0601- ●
7 NUT; LK,LWR
LOAD SENSING PROPORTIONING VALVE(JR7) LH THREAD 		1-09409-002-0 01 1 9601-9803 ● ●
7 NUT; LK,LWR
LOAD SENSING PROPORTIONING VALVE(JR7) LH THREAD 		1-09409-002-0 01 1 9804-0004 ●
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 9804-0004 ●
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 0005-0201 ●
7 NUT; LK,LWR
FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) LH THREAD 		1-09409-002-0 01 1 0202- ●
8 ROD END
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47723-001-0 02 1 9601-9803 ● ●
8 ROD END
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47723-001-0 02 1 9804-0004 ●
8 ROD END 1-47723-001-0 02 1 9804-0004 ●
8 ROD END 1-47723-001-0 02 1 0005-0201 ●
8 ROD END
FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-47723-001-0 02 1 0202- ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 03 1 9601-9606 ● ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
21 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X30 FLANGE 		0-28080-830-0 03 1 9601-9606 ● ●
21 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X35 FLANGE 		0-28680-835-0 03 1 9607-9803 ● ●
21 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X35 FLANGE 		0-28680-835-0 03 1 9804-0004 ●
21 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 9804-0004 ●
21 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0005-0512 ●
21 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ●
26 BOLT; DAMPER
LOAD SENSING PROPORTIONING VALVE(JR7) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9601-9611 ● ●
26 BOLT; DAMPER
LOAD SENSING PROPORTIONING VALVE(JR7) M8X12 FLANGE 		0-28080-812-0 02 1 9612-9803 ● ●
26 BOLT; DAMPER
LOAD SENSING PROPORTIONING VALVE(JR7) M8X12 FLANGE 		0-28080-812-0 02 1 9804-0004 ●
26 BOLT; DAMPER
M8X12 FLANGE 		0-28080-812-0 02 1 9804-0004 ●
26 BOLT; DAMPER
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ●
26 BOLT; DAMPER
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
30 WASHER; PL
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.4 		9-09160-508-0 02 1 9601-9611 ● ●
33 PIN; SPLIT
LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=25 		9-08112-025-0 01 1 9601-9803 ● ●
33 PIN; SPLIT
LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=25 		9-08112-025-0 01 1 9804-0004 ●
33 PIN; SPLIT
OD=1.8 L=25 		9-08112-025-0 01 1 9804-0004 ●
33 PIN; SPLIT
OD=1.8 L=25 		9-08112-025-0 01 1 0005-0606 ●
33 PIN; SPLIT
OD=1.8 L=25 		0-81122-025-0 01 1 0607- ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9601-9803 ● ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-09660-839-0 01 1 9601-9702 ● ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-0 01 1 9703-9803 ● ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(B) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(B) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 0005- ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (C) PT1/4 		9-99204-513-0 01 1 9601-9803 ● ●
101 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (C) PT1/4 		9-99204-513-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(C) PT1/4 		9-99204-513-0 01 1 9804-0004 ●
101 CONNECTOR; LSPV
(C) PT1/4 		9-99204-513-0 01 1 0005- ●

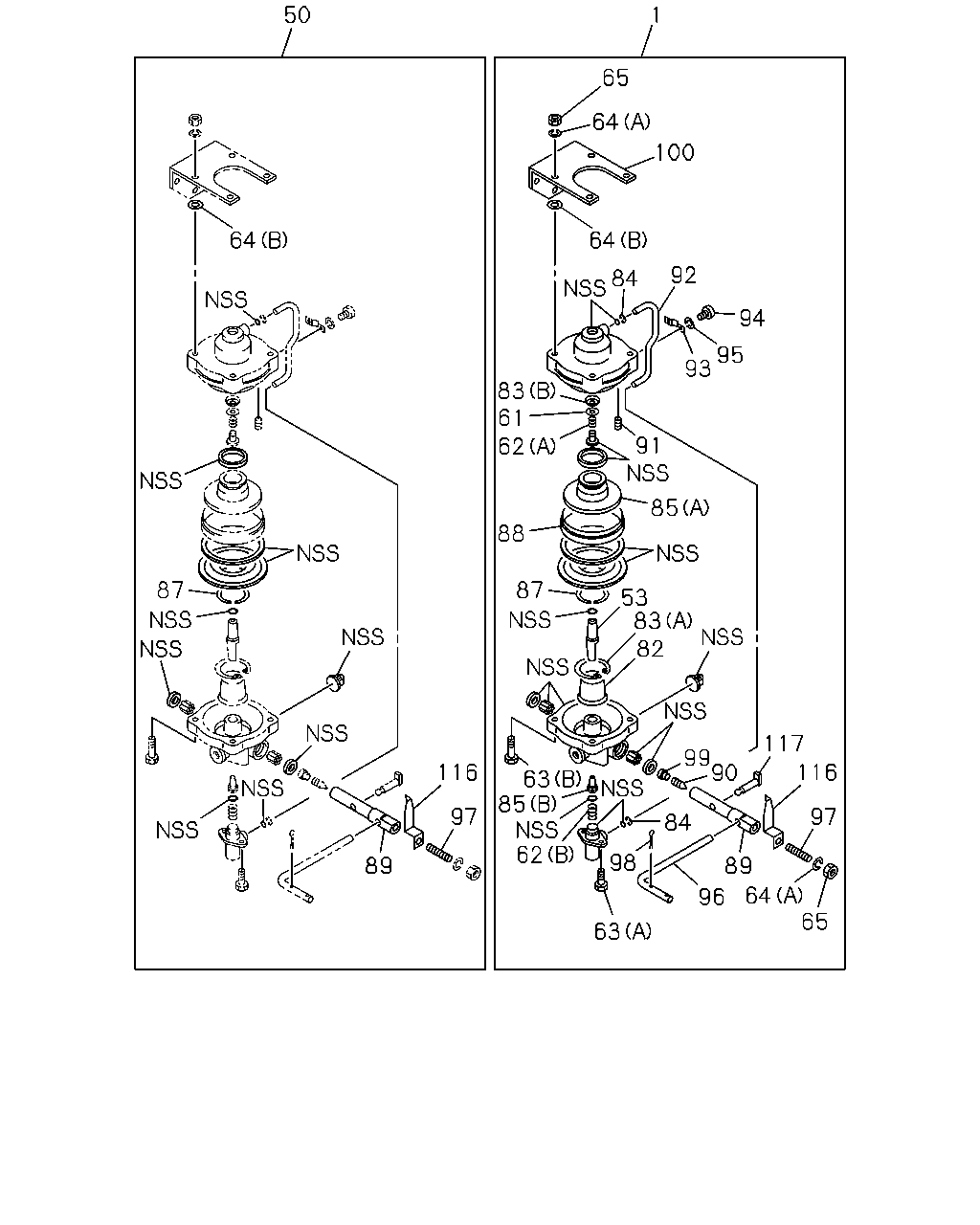

çizim 184200
50 1 65 64 100 64 64 92 84 94 95 93 83 61 91 62 85 88 87 87 53 83 82 117 63 85 62 99 90 116 98 116 97 97 84 89 89 64 65 96 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47720-062-0 01 1 9601-9803 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47720-062-0 01 1 9804-0004 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-062-0 01 1 9804-0004 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-062-0 01 1 0005-0105 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-122-0 01 1 0106- ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-088-0 01 1 9601-9803 ● ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-088-0 01 1 9804-0004 ●
50 REPAIR KIT; LSPV 1-47769-088-0 01 1 9804-0004 ●
50 REPAIR KIT; LSPV 1-47769-088-0 01 1 0005- ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-033-0 01 1 9601-9803 ● ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-033-0 01 1 9804-0004 ●
53 PLUNGER; LSPV 1-47769-033-0 01 1 9804-0004 ●
53 PLUNGER; LSPV 1-47769-033-0 01 1 0005- ●
61 RETAINER; SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-026-0 01 1 9601-9803 ● ●
61 RETAINER; SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-026-0 01 1 9804-0004 ●
61 RETAINER; SPRING 1-47769-026-0 01 1 9804-0004 ●
61 RETAINER; SPRING 1-47769-026-0 01 1 0005- ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-025-0 01 1 9601-9803 ● ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-025-0 01 1 9804-0004 ●
62 SPRING; LSPV
(A) 		1-47769-025-0 01 1 9804-0004 ●
62 SPRING; LSPV
(A) 		1-47769-025-0 01 1 0005- ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-042-0 01 1 9601-9803 ● ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-042-0 01 1 9804-0004 ●
62 SPRING; LSPV
(B) 		1-47769-042-0 01 1 9804-0004 ●
62 SPRING; LSPV
(B) 		1-47769-042-0 01 1 0005- ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-045-0 02 1 9601-9803 ● ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-045-0 02 1 9804-0004 ●
63 BOLT; LSPV
(A) 		1-47769-045-0 02 1 9804-0004 ●
63 BOLT; LSPV
(A) 		1-47769-045-0 02 1 0005- ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-094-0 04 1 9601-9803 ● ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-094-0 04 1 9804-0004 ●
63 BOLT; LSPV
(B) 		1-47769-094-0 04 1 9804-0004 ●
63 BOLT; LSPV
(B) 		1-47769-094-0 04 1 0005- ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-036-0 05 1 9601-9803 ● ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-036-0 05 1 9804-0004 ●
64 WASHER; LSPV
(A) 		1-47769-036-0 05 1 9804-0004 ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-079-0 04 1 9601-9803 ● ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-079-0 04 1 9804-0004 ●
64 WASHER; LSPV
(B) 		1-47769-079-0 04 1 9804-0004 ●
64 WASHER; LSPV
(B) 		1-47769-079-0 04 1 0005- ●
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-095-0 05 1 9601-9803 ● ●
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-095-0 05 1 9804-0004 ●
65 NUT; LSPV 1-47769-095-0 05 1 9804-0004 ●
65 NUT; LSPV 1-48199-320-0 05 1 0005- ●
82 GUIDE; PISTON,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-016-0 01 1 9601-9803 ● ●
82 GUIDE; PISTON,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-016-0 01 1 9804-0004 ●
82 GUIDE; PISTON,LSPV 1-47769-016-0 01 1 9804-0004 ●
82 GUIDE; PISTON,LSPV 1-47769-016-0 01 1 0005- ●
83 RING; SNAP,RET
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-017-0 01 1 9601-9803 ● ●
83 RING; SNAP,RET
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-017-0 01 1 9804-0004 ●
83 RING; SNAP,RET
(A) 		1-47769-017-0 01 1 9804-0004 ●
83 RING; SNAP,RET
(A) 		1-47769-017-0 01 1 0005- ●
83 RING; SNAP,RET
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-027-0 01 1 9601-9803 ● ●
83 RING; SNAP,RET
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-027-0 01 1 9804-0004 ●
83 RING; SNAP,RET
(B) 		1-47769-027-0 01 1 9804-0004 ●
83 RING; SNAP,RET
(B) 		1-47769-027-0 01 1 0005- ●
84 RETAINER; GASKET
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-021-0 02 1 9601-9803 ● ●
84 RETAINER; GASKET
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-021-0 02 1 9804-0004 ●
84 RETAINER; GASKET 1-47769-021-0 02 1 9804-0004 ●
84 RETAINER; GASKET 1-47769-021-0 02 1 0005- ●
85 PISTON; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-023-0 01 1 9601-9803 ● ●
85 PISTON; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47769-023-0 01 1 9804-0004 ●
85 PISTON; LSPV
(A) 		1-47769-023-0 01 1 9804-0004 ●
85 PISTON; LSPV
(A) 		1-47769-023-0 01 1 0005- ●
85 PISTON; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-043-0 01 1 9601-9803 ● ●
85 PISTON; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47769-043-0 01 1 9804-0004 ●
85 PISTON; LSPV
(B) 		1-47769-043-0 01 1 9804-0004 ●
85 PISTON; LSPV
(B) 		1-47769-043-0 01 1 0005- ●
87 RETAINER; DIAPH
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-086-0 01 1 9601-9803 ● ●
87 RETAINER; DIAPH
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-086-0 01 1 9804-0004 ●
87 RETAINER; DIAPH 1-47769-086-0 01 1 9804-0004 ●
87 RETAINER; DIAPH 1-47769-086-0 01 1 0005- ●
88 GUIDE; DIAPH
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-032-0 01 1 9601-9803 ● ●
88 GUIDE; DIAPH
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-032-0 01 1 9804-0004 ●
88 GUIDE; DIAPH 1-47769-032-0 01 1 9804-0004 ●
88 GUIDE; DIAPH 1-47769-032-0 01 1 0005- ●
89 ROD; CONN,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-083-0 01 1 9601-9803 ● ●
89 ROD; CONN,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-083-0 01 1 9804-0004 ●
89 ROD; CONN,LSPV 1-47769-083-0 01 1 9804-0004 ●
89 ROD; CONN,LSPV 1-47769-083-0 01 1 0005- ●
90 SCREW; CAM
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-039-0 01 1 9601-9803 ● ●
90 SCREW; CAM
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-039-0 01 1 9804-0004 ●
90 SCREW; CAM 1-47769-039-0 01 1 9804-0004 ●
90 SCREW; CAM 1-47769-039-0 01 1 0005- ●
91 FILTER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-047-0 01 1 9601-9803 ● ●
91 FILTER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-047-0 01 1 9804-0004 ●
91 FILTER; LSPV 1-47769-047-0 01 1 9804-0004 ●
91 FILTER; LSPV 1-47769-047-0 01 1 0005- ●
92 PIPE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-048-0 01 1 9601-9803 ● ●
92 PIPE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-048-0 01 1 9804-0004 ●
92 PIPE; LSPV 1-47769-048-0 01 1 9804-0004 ●
92 PIPE; LSPV 1-47769-048-0 01 1 0005- ●
93 CLIP; PIPE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-050-0 01 1 9601-9803 ● ●
93 CLIP; PIPE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-050-0 01 1 9804-0004 ●
93 CLIP; PIPE 1-47769-050-0 01 1 9804-0004 ●
93 CLIP; PIPE 1-47769-050-0 01 1 0005- ●
94 SCREW; CLIP
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-051-0 02 1 9601-9803 ● ●
94 SCREW; CLIP
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-051-0 02 1 9804-0004 ●
94 SCREW; CLIP 1-47769-051-0 02 1 9804-0004 ●
94 SCREW; CLIP 1-47769-144-0 02 1 0005- ●
95 WASHER; CLIP
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-052-0 02 1 9601-9803 ● ●
95 WASHER; CLIP
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-052-0 02 1 9804-0004 ●
95 WASHER; CLIP 1-47769-052-0 02 1 9804-0004 ●
96 ARM; OPERATING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-110-0 01 1 9601-9803 ● ●
96 ARM; OPERATING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-110-0 01 1 9804-0004 ●
96 ARM; OPERATING 1-47769-110-0 01 1 9804-0004 ●
96 ARM; OPERATING 1-47769-110-0 01 1 0005-0105 ●
96 ARM; OPERATING 1-47769-164-0 01 1 0106- ●
97 BOLT; OPERATING ARM
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-081-0 01 1 9601-9803 ● ●
97 BOLT; OPERATING ARM
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-081-0 01 1 9804-0004 ●
97 BOLT; OPERATING ARM 1-47769-081-0 01 1 9804-0004 ●
97 BOLT; OPERATING ARM 1-47769-081-0 01 1 0005- ●
98 PIN; SPLIT
LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=15 		9-08112-015-0 01 1 9601-9803 ● ●
98 PIN; SPLIT
LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=15 		9-08112-015-0 01 1 9804-0004 ●
98 PIN; SPLIT
OD=1.8 L=15 		9-08112-015-0 01 1 9804-0004 ●
98 PIN; SPLIT
OD=1.8 L=15 		9-08112-015-0 01 1 0005- ●
99 CAP; SCREW
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-055-0 01 1 9601-9803 ● ●
99 CAP; SCREW
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-055-0 01 1 9804-0004 ●
99 CAP; SCREW 1-47769-055-0 01 1 9804-0004 ●
99 CAP; SCREW 1-47769-055-0 01 1 0005- ●
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-111-0 01 1 9601-9803 ● ●
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-111-0 01 1 9804-0004 ●
100 BRACKET; LSPV 1-47769-111-0 01 1 9804-0004 ●
100 BRACKET; LSPV 1-47769-111-0 01 1 0005- ●
116 INDICATOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-078-0 01 1 9601-9803 ● ●
116 INDICATOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-078-0 01 1 9804-0004 ●
116 INDICATOR; LSPV 1-47769-078-0 01 1 9804-0004 ●
116 INDICATOR; LSPV 1-47769-078-0 01 1 0005- ●
117 CAM; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-038-0 01 1 9601-9803 ● ●
117 CAM; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47769-038-0 01 1 9804-0004 ●
117 CAM; LSPV 1-47769-038-0 01 1 9804-0004 ●
117 CAM; LSPV 1-47769-038-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
