3-26 — TRAILER CONTROL
(#63831) — 183 parça
Tümü
A - GVR5MC
B - FVR5FF
C - FVR5MC
D - FVR5MF
E - FVR5FC
◀

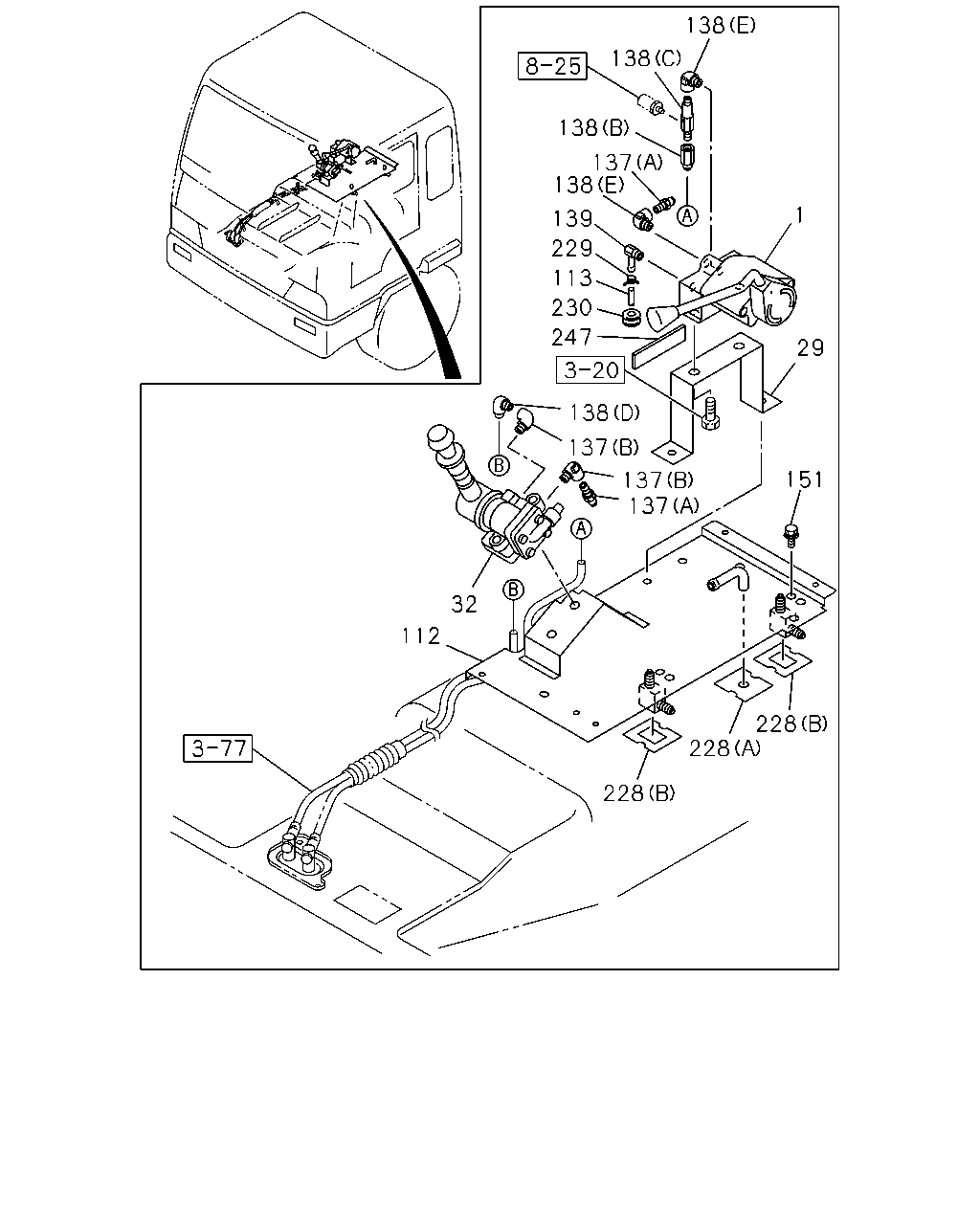

[326A] GVR VALVE FIXING (37 parça)

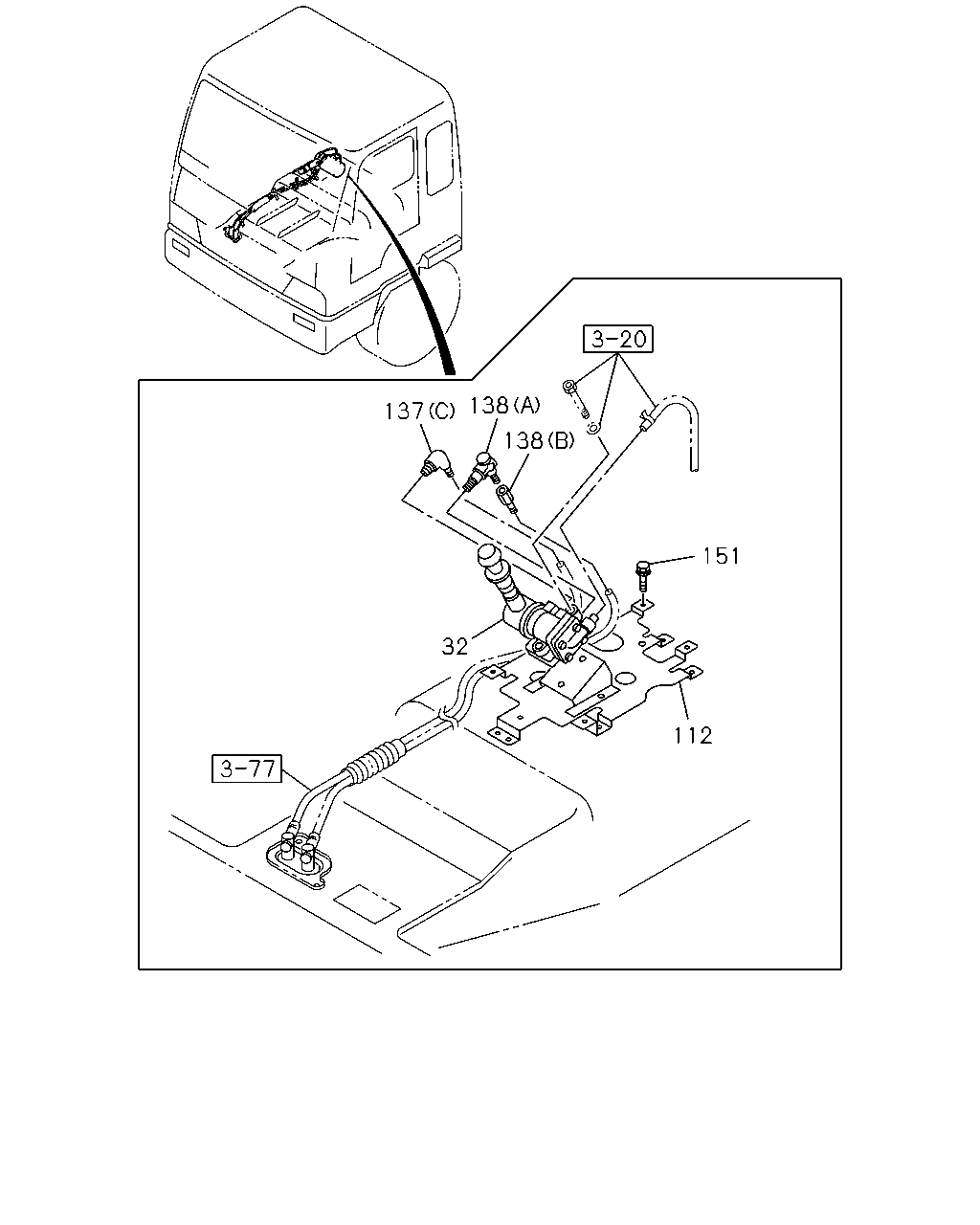

[326A] FVR VALVE FIXING (28 parça)

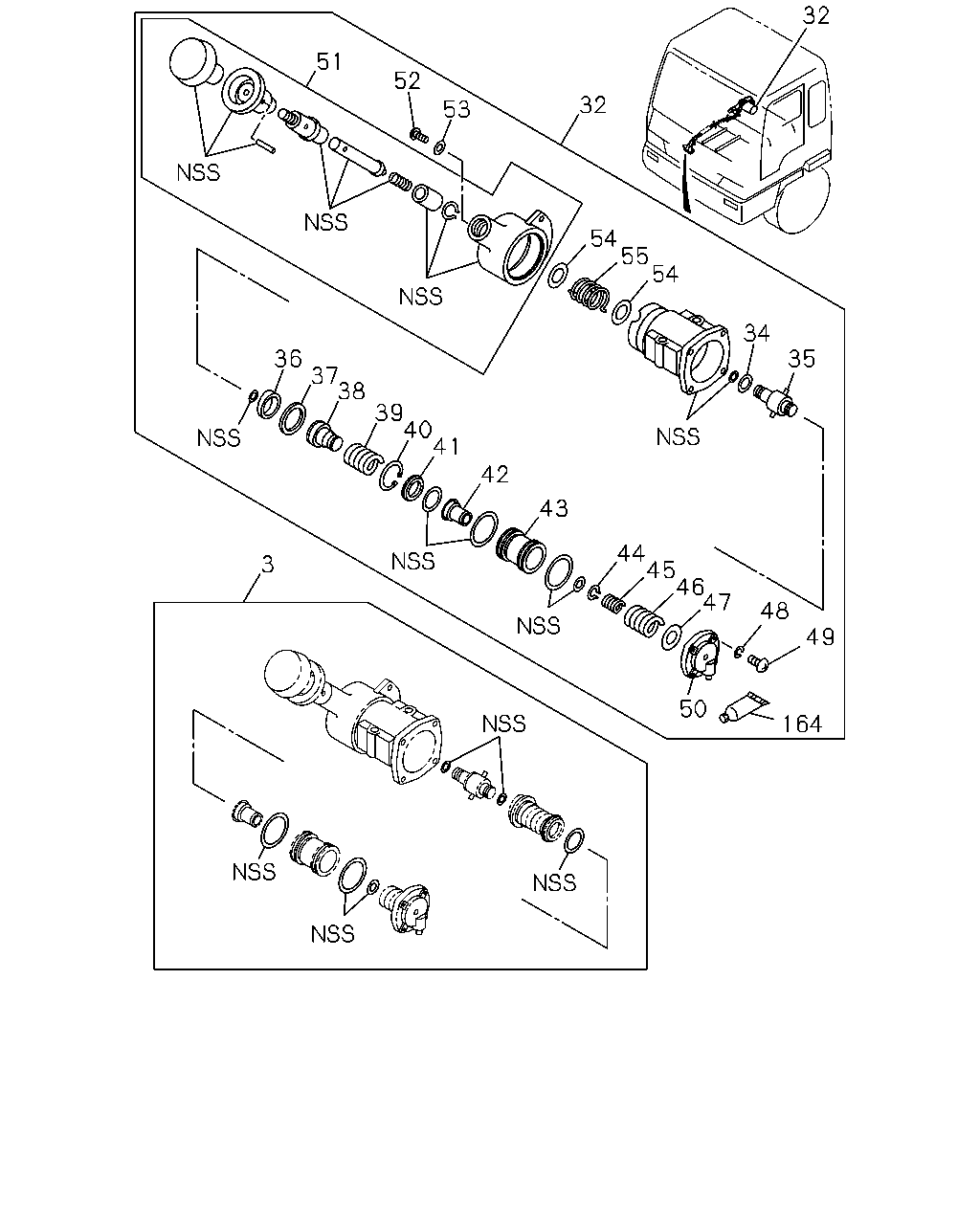

[326A] HAND CONT BRAKE VALVE (75 parça)

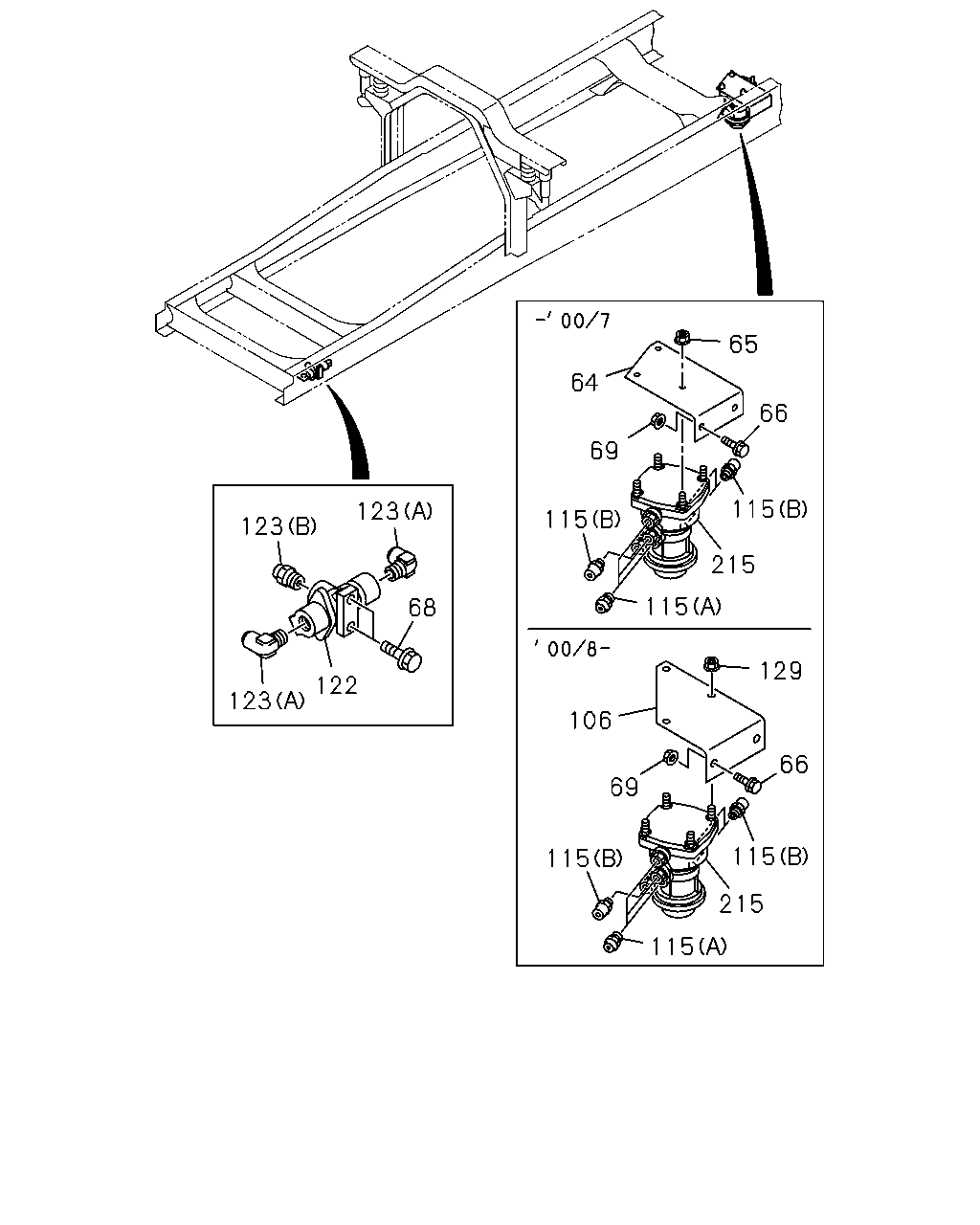

[326A] GVR TRAILER CONTROL (18 parça)

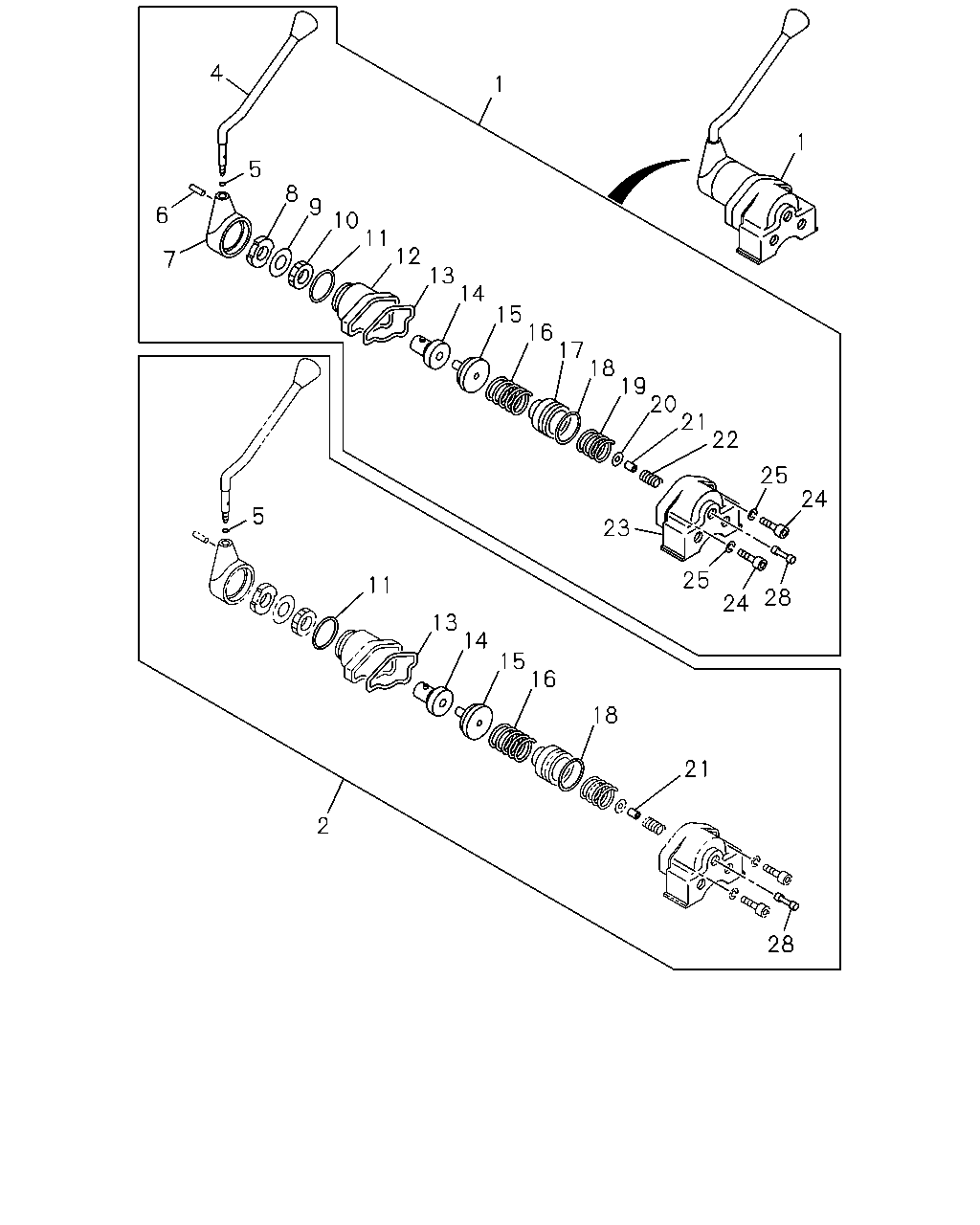

[326A] GVR TRAILER BRAKE VALVE (25 parça)
▶
138
138
138
137
138
1
139
229
113
230
247
29
138
137
151
137
137
32
112
228
228
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
VALVE ASM; HAND BRK
1-48100-674-0
01
1
9804-
●
29
BRACKET; HAND BRK
1-73908-268-0
01
1
9804-
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9601-9803
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9804-0004
●
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0005-
●
●
●
●
●
112
BRACKET; CONT VLV
1-73908-054-6
01
1
9601-0004
●
●
●
112
BRACKET; CONT VLV
1-73908-054-7
01
1
0005-
●
●
●
●
112
BRACKET; CONT VLV
1-73908-282-2
01
1
9804-
●
113
PIPE; EXH,BRK VLV
L=180 SERVICED BY L=10000
9-09914-701-0
01
1
9804-
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9601-9811
●
●
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-0004
●
●
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0005-
●
●
●
●
137
CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT
1-09660-647-1
02
1
9804-9811
●
137
CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
9812-
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
9804-0111
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
9804-0111
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
02
1
0112-
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
9601-0004
●
●
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0005-
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9601-9803
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9804-0004
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
9812-0004
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
0005-0007
●
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0008-
●
●
●
●
●
138
CONNECTOR; DELIVERY
(C) M14
1-09656-391-2
01
1
9804-
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9804-9811
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-
●
138
CONNECTOR; DELIVERY
(E) PT1/4 2WAY
1-09660-693-0
02
1
9804-
●
139
CONNECTOR; EXH
8-97062-077-1
01
1
9804-
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9601-0004
●
●
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0005-
●
●
●
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
9804-
●
228
SEAL; BRKT
(A)
1-79996-382-0
01
1
9804-
●
228
SEAL; BRKT
(B)
1-79998-766-2
02
1
9804-
●
229
CLIP; PIPE
ID=14
8-94238-572-0
01
1
9804-
●
230
GROMMET; EXH
OD=24
9-61166-007-0
01
1
9804-
●
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
0004-
●
138
137
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9601-9803
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9804-0004
●
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0005-
●
●
●
●
●
112
BRACKET; CONT VLV
1-73908-054-6
01
1
9601-0004
●
●
●
112
BRACKET; CONT VLV
1-73908-054-7
01
1
0005-
●
●
●
●
112
BRACKET; CONT VLV
1-73908-282-2
01
1
9804-
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9601-9811
●
●
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-0004
●
●
●
137
CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0005-
●
●
●
●
137
CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT
1-09660-647-1
02
1
9804-9811
●
137
CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
9812-
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
9804-0111
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
9804-0111
●
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
02
1
0112-
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
9601-0004
●
●
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0005-
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9601-9803
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9804-0004
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
9812-0004
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
0005-0007
●
●
●
●
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0008-
●
●
●
●
●
138
CONNECTOR; DELIVERY
(C) M14
1-09656-391-2
01
1
9804-
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9804-9811
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-
●
138
CONNECTOR; DELIVERY
(E) PT1/4 2WAY
1-09660-693-0
02
1
9804-
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9601-0004
●
●
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0005-
●
●
●
●
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
9804-
●
32
51
52
32
53
54
55
54
34
35
36
37
38
39
40
41
42
43
44
45
46
47
3
48
49
50
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
9601-9803
●
●
●
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
9804-0004
●
●
●
●
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0005-
●
●
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9601-9803
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9804-0004
●
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0005-
●
●
●
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
9601-9803
●
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
9804-0004
●
●
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0005-
●
●
●
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
9601-9803
●
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
9804-0004
●
●
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
0005-
●
●
●
●
●
36
RING; CAM
1-48469-056-0
01
1
9601-9803
●
●
●
36
RING; CAM
1-48469-056-0
01
1
9804-0004
●
●
●
●
36
RING; CAM
1-48469-056-0
01
1
0005-
●
●
●
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
9601-9803
●
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
9804-0004
●
●
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
0005-
●
●
●
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
9601-9803
●
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
9804-0004
●
●
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
0005-
●
●
●
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
9601-9803
●
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
9804-0004
●
●
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0005-
●
●
●
●
●
40
RING; SNAP
1-48469-067-0
01
1
9601-9803
●
●
●
40
RING; SNAP
1-48469-067-0
01
1
9804-0004
●
●
●
●
40
RING; SNAP
1-48469-067-0
01
1
0005-
●
●
●
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
9601-9803
●
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
9804-0004
●
●
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
0005-
●
●
●
●
●
42
VALVE; FEED
1-48469-065-0
01
1
9601-9803
●
●
●
42
VALVE; FEED
1-48469-065-0
01
1
9804-0004
●
●
●
●
42
VALVE; FEED
1-48469-065-0
01
1
0005-
●
●
●
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
9601-9803
●
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
9804-0004
●
●
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0005-
●
●
●
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
9601-9803
●
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
9804-0004
●
●
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0005-
●
●
●
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
9601-9803
●
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
9804-0004
●
●
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
0005-
●
●
●
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
9601-9803
●
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
9804-0004
●
●
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0005-
●
●
●
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
9601-9803
●
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
9804-0004
●
●
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0005-
●
●
●
●
●
48
WASHER; COVER
1-48469-091-0
04
1
9601-9803
●
●
●
48
WASHER; COVER
1-48469-091-0
04
1
9804-0004
●
●
●
●
48
WASHER; COVER
1-48469-091-0
04
1
0005-
●
●
●
●
●
49
SCREW; COVER
1-48469-092-0
04
1
9601-9803
●
●
●
49
SCREW; COVER
1-48469-092-0
04
1
9804-0004
●
●
●
●
49
SCREW; COVER
1-48469-092-0
04
1
0005-
●
●
●
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
9601-9803
●
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
9804-0004
●
●
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0005-
●
●
●
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
9601-9803
●
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
9804-0004
●
●
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0005-
●
●
●
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
9601-9803
●
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
9804-0004
●
●
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
0005-
●
●
●
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
9601-9803
●
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
9804-0004
●
●
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
0005-
●
●
●
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
0005-
●
●
●
●
●
54
SEAT; SPRING
1-48469-123-0
02
1
9601-9803
●
●
●
54
SEAT; SPRING
1-48469-123-0
02
1
9804-0004
●
●
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
9601-9803
●
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
9804-0004
●
●
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0005-
●
●
●
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
9601-9803
●
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
9804-0004
●
●
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0005-
●
●
●
●
●
65
64
66
69
115
123
115
123
215
68
115
129
122
123
106
66
69
115
115
215
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
64
BRACKET; RELAY VLV
1-48495-213-0
01
1
9804-0007
●
65
NUT; RELAY VLV
M8 FLANGE
0-91150-108-0
03
1
9804-0007
●
66
BOLT; VLV BRKT
M10X35 FLANGE
0-28681-035-0
02
1
9804-0512
●
66
BOLT; VLV BRKT
M10X35 FLANGE
0-28651-035-0
02
1
0601-
●
68
BOLT; DOUBLE CHECK VLV
M8X20 FLANGE
0-28080-820-0
02
1
9804-0512
●
68
BOLT; DOUBLE CHECK VLV
M8X20 FLANGE
0-28050-820-0
02
1
0601-
●
69
NUT; VLV BRKT
M10 FLANGE
0-91150-210-0
02
1
9804-0602
●
69
NUT; VLV BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
106
BRACKET; VLV
1-48495-227-0
01
1
0008-
●
115
CONNECTOR; DUAL RELAY VLV
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
9804-
●
115
CONNECTOR; DUAL RELAY VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
03
1
9804-
●
122
VALVE ASM; DOUBLE CHECK
1-48410-050-0
01
1
9804-9902
●
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
9903-
●
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
9804-
●
123
CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
9804-
●
129
NUT; VLV
M8 FLANGE
0-91150-108-0
03
1
0008-0602
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
03
1
0603-
●
215
VALVE; TRAILER CONT
1-48210-684-0
01
1
9804-
●
4
1
1
5
8
9
6
10
11
12
7
13
14
15
16
17
18
19
20
21
22
25
24
5
23
25
11
28
24
13
14
15
16
18
21
2
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
VALVE ASM; HAND BRK
1-48100-674-0
01
1
9804-
●
2
REPAIR KIT; HAND BRK VLV
1-85576-180-0
01
1
9804-
●
4
HANDLE ASM; BRK VLV
1-48119-144-0
01
1
9804-
●
5
GASKET; HANDLE
1-48119-128-0
01
1
9804-
●
6
PIN; SPR
1-48119-143-0
01
1
9804-
●
7
HEAD; BRK VLV
1-48119-131-1
01
1
9804-
●
8
STOPPER; BRK VLV
1-48119-136-0
01
1
9804-
●
9
WASHER; LK,ADJ
1-48119-123-0
01
1
9804-
●
10
RING; ADJ
1-48119-122-0
01
1
9804-
●
11
GASKET; HD TO COVER
1-48119-130-0
01
1
9804-
●
12
COVER; BRK VLV
1-48129-097-1
01
1
9804-
●
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
9804-
●
14
FOLLOWER; CAM
1-48129-109-0
01
1
9804-
●
15
CAM; FOLLOWER
1-48129-110-0
01
1
9804-
●
16
SPRING; GRUDUATING
1-48129-101-0
01
1
9804-
●
17
PISTON; SPR
1-48129-095-0
01
1
9804-
●
18
GASKET; BODY
1-48129-096-0
01
1
9804-
●
19
SPRING; PISTON
1-48129-094-0
01
1
9804-
●
20
GUIDE; VLV
1-48129-090-0
01
1
9804-
●
21
VALVE; IN & EXH
1-48121-017-0
01
1
9804-
●
22
SPRING; VLV
1-48123-024-0
01
1
9804-
●
23
BODY; BRK VLV
1-48111-060-1
01
1
9804-
●
24
BOLT; EXH VLV
1-48129-092-0
02
1
9804-
●
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
9804-
●
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
9804-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
