Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#63830) — 600 parça

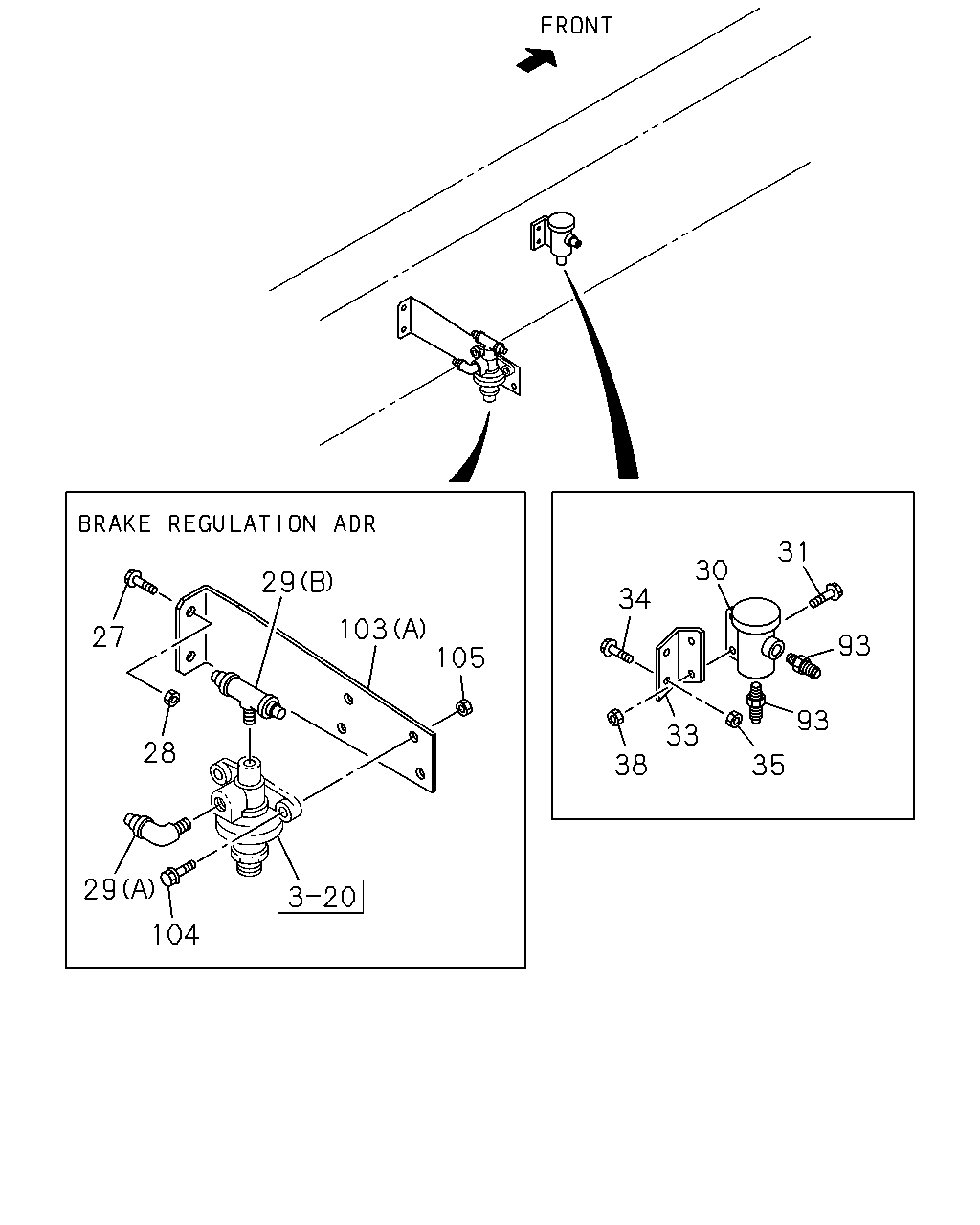

31 30 29 34 103 105 27 93 93 33 28 38 35 29 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
27	BOLT; AIR VLV BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
27	BOLT; AIR VLV BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	9607-9803	●	●
28	NUT; AIR VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9606	●	●
28	NUT; AIR VLV BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9601-9803	●	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9806-		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (B)	1-09660-842-0	01	1	9601-9803	●	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9806-		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9806-		●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9803	●	●		●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9804-0004	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-	●	●	●	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9602	●	●		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-9803	●	●		●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9804-0004	●	●	●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-	●	●	●	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9601-9602	●	●		●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●		●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●		●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●	●	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606	●	●		●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●		●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606	●	●		●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●		●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●	●	●	●	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (A)	1-47477-412-2	01	1	9601-9803	●	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (B)	1-47477-860-0	01	1	9804-0405		●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (B)	1-47477-860-0	01	1	0406-		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	9804-0405		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	0406-0512		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9606	●	●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9804-0405		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	0406-0602		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	02	1	0603-		●

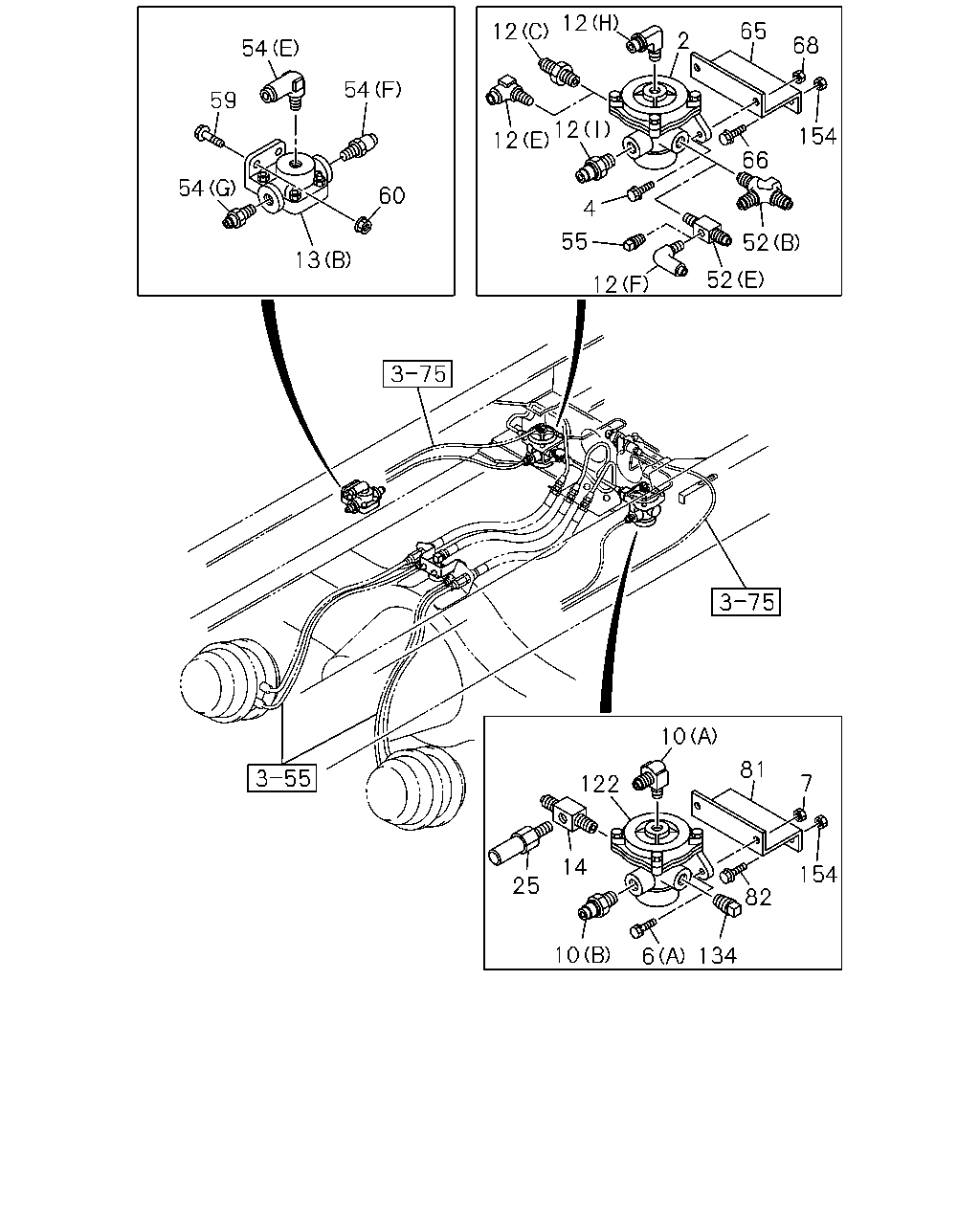

12 65 12 2 68 54 54 59 12 12 154 66 54 60 4 55 52 13 52 12 10 81 7 122 14 154 25 82 10 134 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

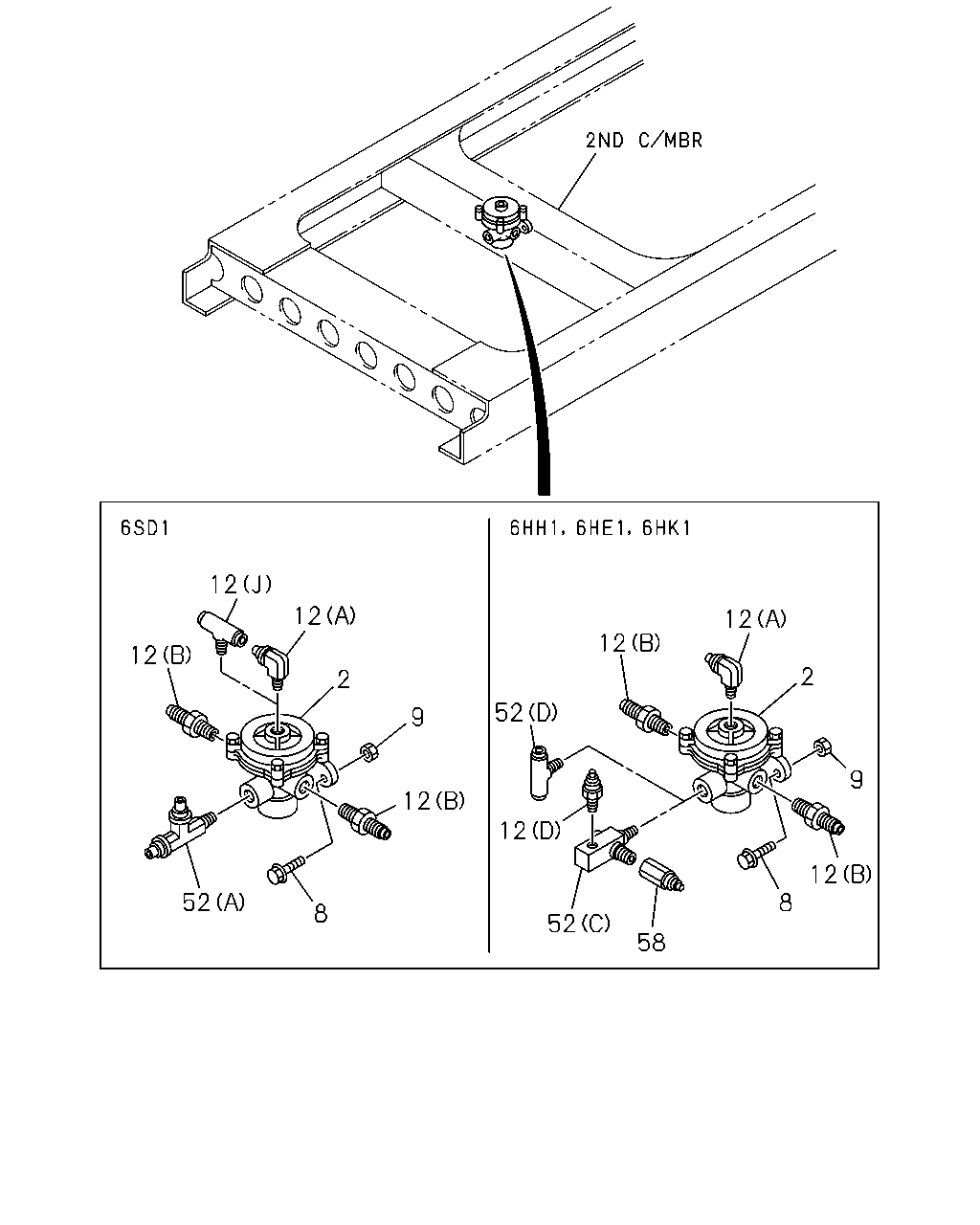

2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B) M8X20 FLANGE	0-28080-820-0	02	1	0301-0512		●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9803	●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0212		●
6	BOLT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	04	1	0301-0512		●
6	BOLT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-		●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606	●	●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9804-0004	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
10	CONNECTOR (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●		●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●	●	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●	●	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●	●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●		●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9612	●	●
12	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803	●	●		●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0211	●	●	●	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-	●		●	●	●
12	CONNECTOR; RELAY VLV EXC. FINAL GEAR 17.5"<B5D> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-		●
12	CONNECTOR; RELAY VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-		●
12	CONNECTOR; RELAY VLV (J) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9804-			●

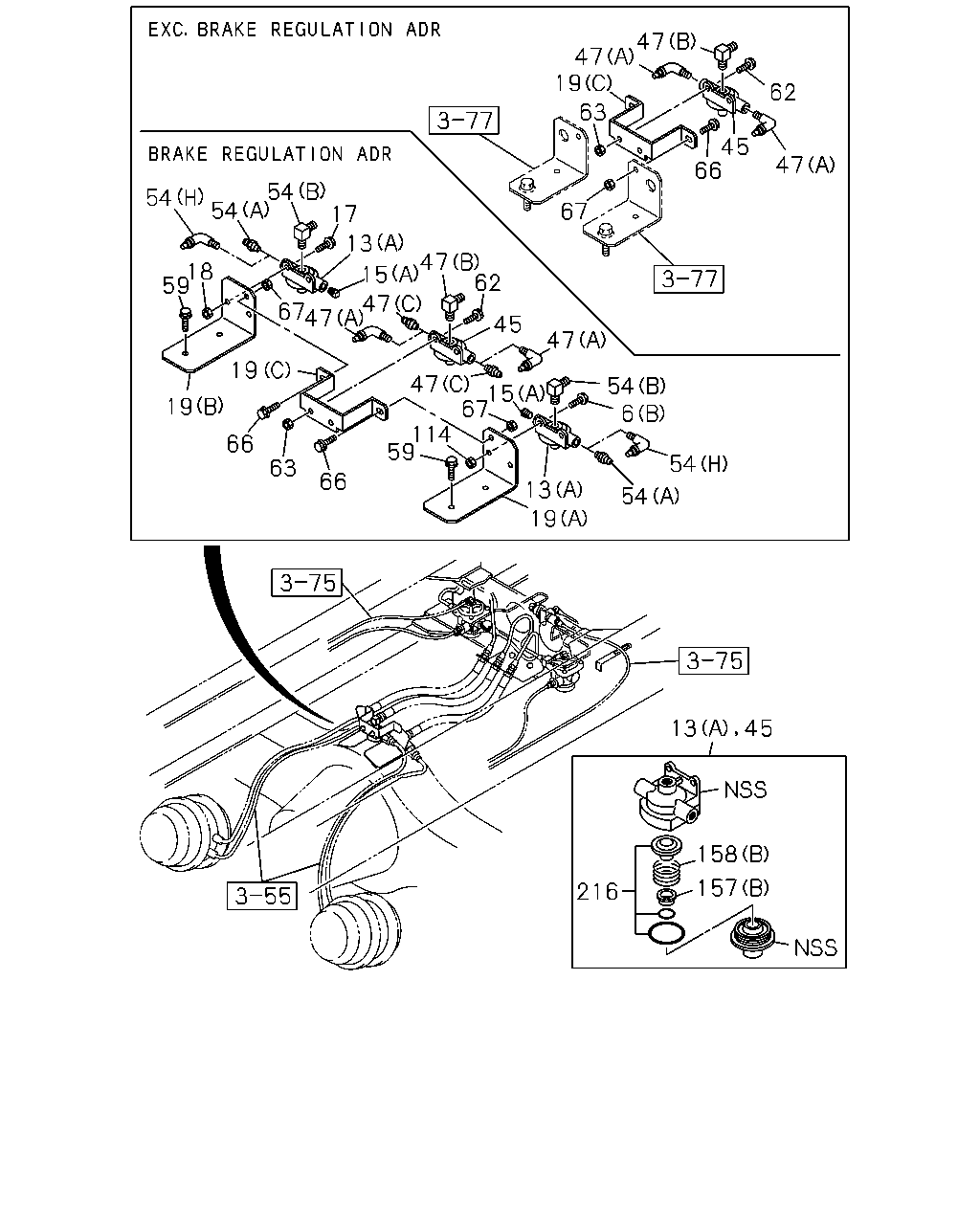

13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9601-9803	●	●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9804-0004		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	0005-0109		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-659-0	02	1	0110-		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-234-0	02	1	9804-0004			●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-320-0	01	1	9804-			●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9601-9803	●	●		●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9804-0004	●	●	●	●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	0005-	●	●	●	●	●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9601-9803	●	●		●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9804-0004	●	●	●	●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	0005-	●	●	●	●	●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●		●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	9804-0004	●	●	●	●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	0005-	●	●	●	●	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9601	●	●		●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A)	1-09660-719-1	01	1	9601-9803				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-09660-719-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004			●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-			●		●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (C)	1-09656-548-1	01	1	9601-9612	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C)	1-09656-548-1	01	1	9701-9803	●	●		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9804-0004	●	●		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405				●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405	●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-				●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-	●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (H) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-0405		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0406-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-0212		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C) M16 & NPT3/8	1-09650-327-1	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (F)	1-09660-968-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (G)	1-09660-991-0	01	1	9804-0004			●
55	PLUG; SUPPLY FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	01	1	0212-		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9601-9801	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28680-820-0	04	1	9802-9803	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9804-0004		●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	04	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28680-820-0	02	1	9804-0004			●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	9804-0004			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-208-0	04	1	9804-0004			●
65	BRACKET; RELAY VLV RR	1-48495-132-0	01	1	9601-9803	●	●		●
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	9804-0004	●	●	●	●
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0005-	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	05	1	9601-9606	●	●		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	05	1	9607-9803	●	●		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	9804-0004	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9601-9606	●	●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0004	●	●	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
81	BRACKET; RELAY VLV,PARKING BRK	1-48495-132-0	01	1	9601-9803	●	●		●
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	9804-0004	●	●	●	●
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0005-	●	●	●	●	●
82	BOLT; BRKT,RELAY VLV M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●		●
82	BOLT; BRKT,RELAY VLV M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●		●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	9804-0004	●	●	●	●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●	●	●	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●	●	●	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9601-9803	●	●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●	●	●	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9601-9803	●	●		●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9804-0004	●	●	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	0005-	●	●	●	●	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0004	●	●	●	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●	●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●

12 12 12 12 12 2 2 52 9 9 12 12 12 52 8 8 52 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

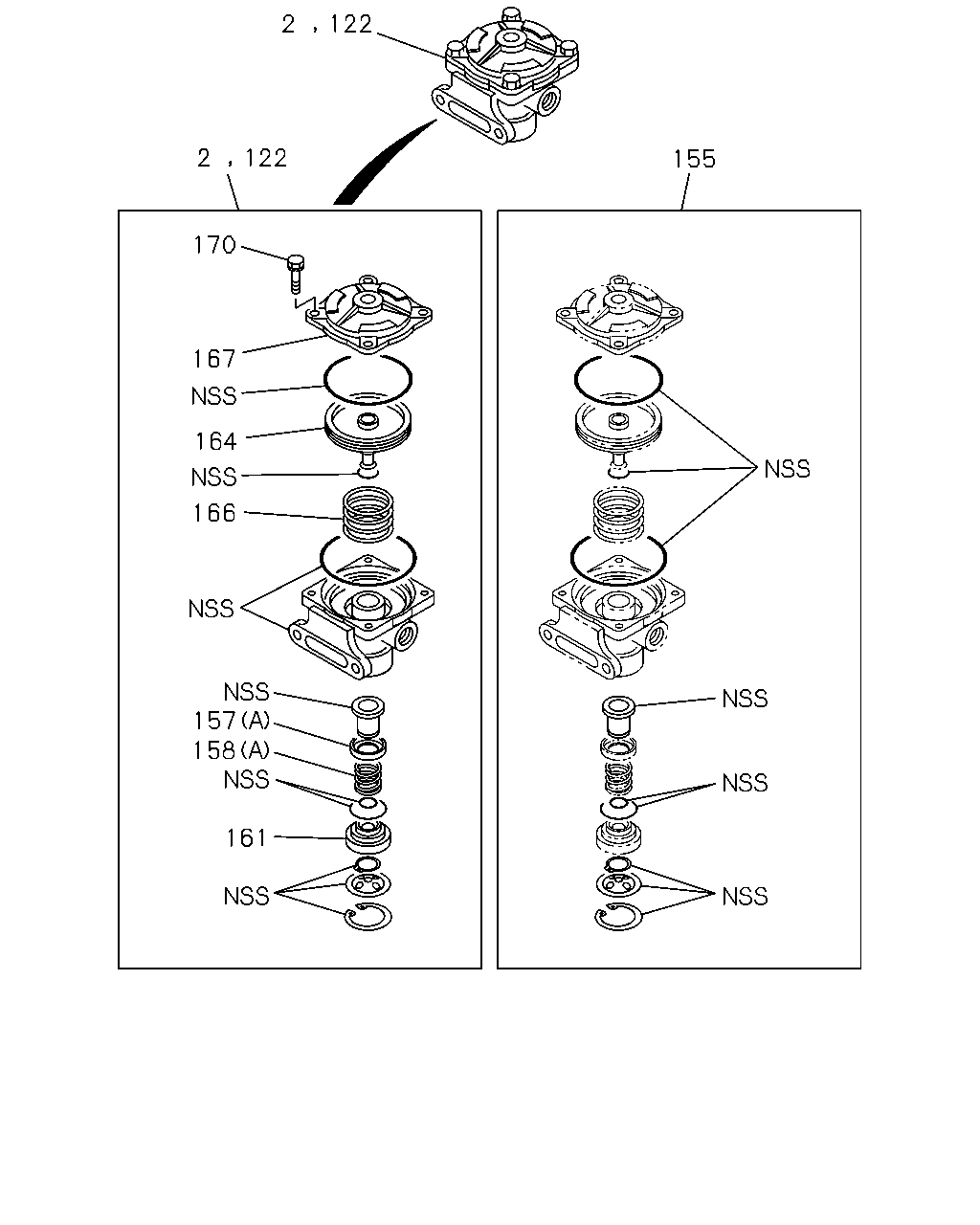

2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●		●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●		●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
9	NUT M10	9-09110-510-0	02	1	9601-9606	●	●		●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9804-0004	●	●	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (B) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●	●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●		●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV (I) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●	●	●	●	●
12	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9612	●	●
12	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803	●	●		●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●	●	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0211	●	●	●	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-	●		●	●	●
12	CONNECTOR; RELAY VLV EXC. FINAL GEAR 17.5"<B5D> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-		●
12	CONNECTOR; RELAY VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0212-		●
12	CONNECTOR; RELAY VLV (J) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9804-			●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●		●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	9804-0004	●	●	●	●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	0005-	●	●	●	●	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9601	●	●		●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A)	1-09660-719-1	01	1	9601-9803				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-09660-719-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0004			●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-				●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-			●		●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (C)	1-09656-548-1	01	1	9601-9612	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C)	1-09656-548-1	01	1	9701-9803	●	●		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9804-0004	●	●		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405				●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405	●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0405		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-				●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-	●
52	CONNECTOR; RELAY VLV 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0406-		●
58	ADAPTER 6HH1 STD ENG(65L) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9612	●	●
58	ADAPTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9701-9803	●	●		●

99 54 104 103 224 59 15 274 274 29 60 105 29 54 13 29 29 224 29 29 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

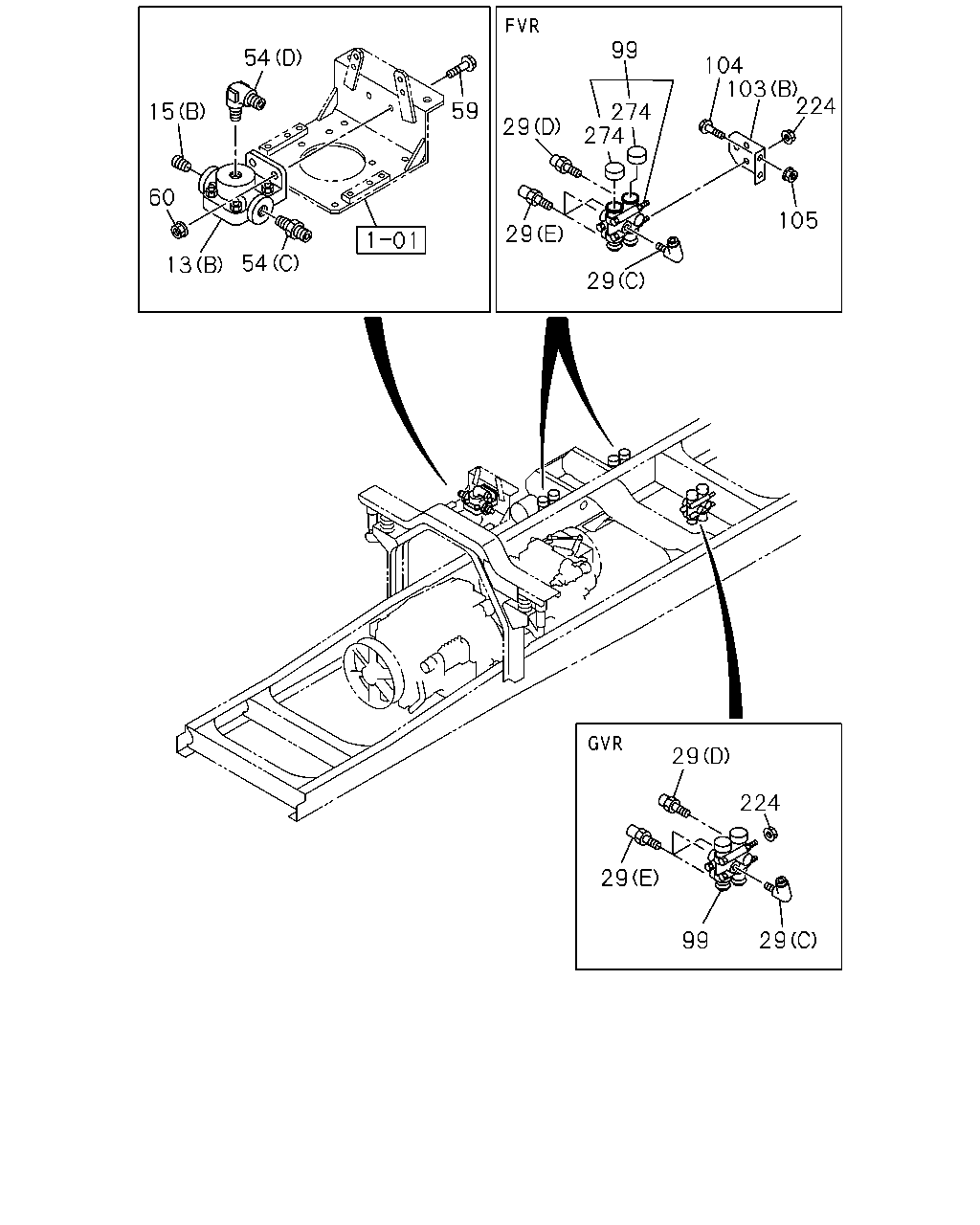

13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9601-9803	●	●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9804-0004		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	0005-0109		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-659-0	02	1	0110-		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-234-0	02	1	9804-0004			●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-320-0	01	1	9804-			●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9804-0004		●	●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	0005-0405		●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	0406-		●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B)	1-09605-111-0	01	1	9804-0004			●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9601-9803	●	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9806-		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (B)	1-09660-842-0	01	1	9601-9803	●	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9806-		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-9805		●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-9805			●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9806-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (H) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-0405		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0406-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-0212		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C) M16 & NPT3/8	1-09650-327-1	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (F)	1-09660-968-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (G)	1-09660-991-0	01	1	9804-0004			●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9601-9801	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28680-820-0	04	1	9802-9803	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9804-0004		●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	04	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28680-820-0	02	1	9804-0004			●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	9804-0004			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-208-0	04	1	9804-0004			●
99	VALVE; PROTECTION 6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU>	1-48110-113-0	01	1	9804-9805		●
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-113-0	01	1	9804-9805			●
99	VALVE; PROTECTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU>	1-48110-113-4	01	1	9806-0004		●
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-113-4	01	1	9806-0004			●
99	VALVE; PROTECTION 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU>	1-48110-113-5	01	1	0005-0405		●
99	VALVE; PROTECTION 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU>	1-48110-113-5	01	1	0406-		●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU>	1-48110-135-4	01	1	9804-0004		●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU>	1-48110-135-5	01	1	0005-		●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (A)	1-47477-412-2	01	1	9601-9803	●	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (B)	1-47477-860-0	01	1	9804-0405		●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU> (B)	1-47477-860-0	01	1	0406-		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	9804-0405		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	0406-0512		●
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9606	●	●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9804-0405		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	0406-0602		●
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	02	1	0603-		●
224	NUT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9804-9901		●	●
224	NUT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9902-0602		●
224	NUT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	03	1	0603-		●
274	COVER; DUST BRAKE REGULATION ADR<TDU>	1-48119-450-0	02	1	0005-		●

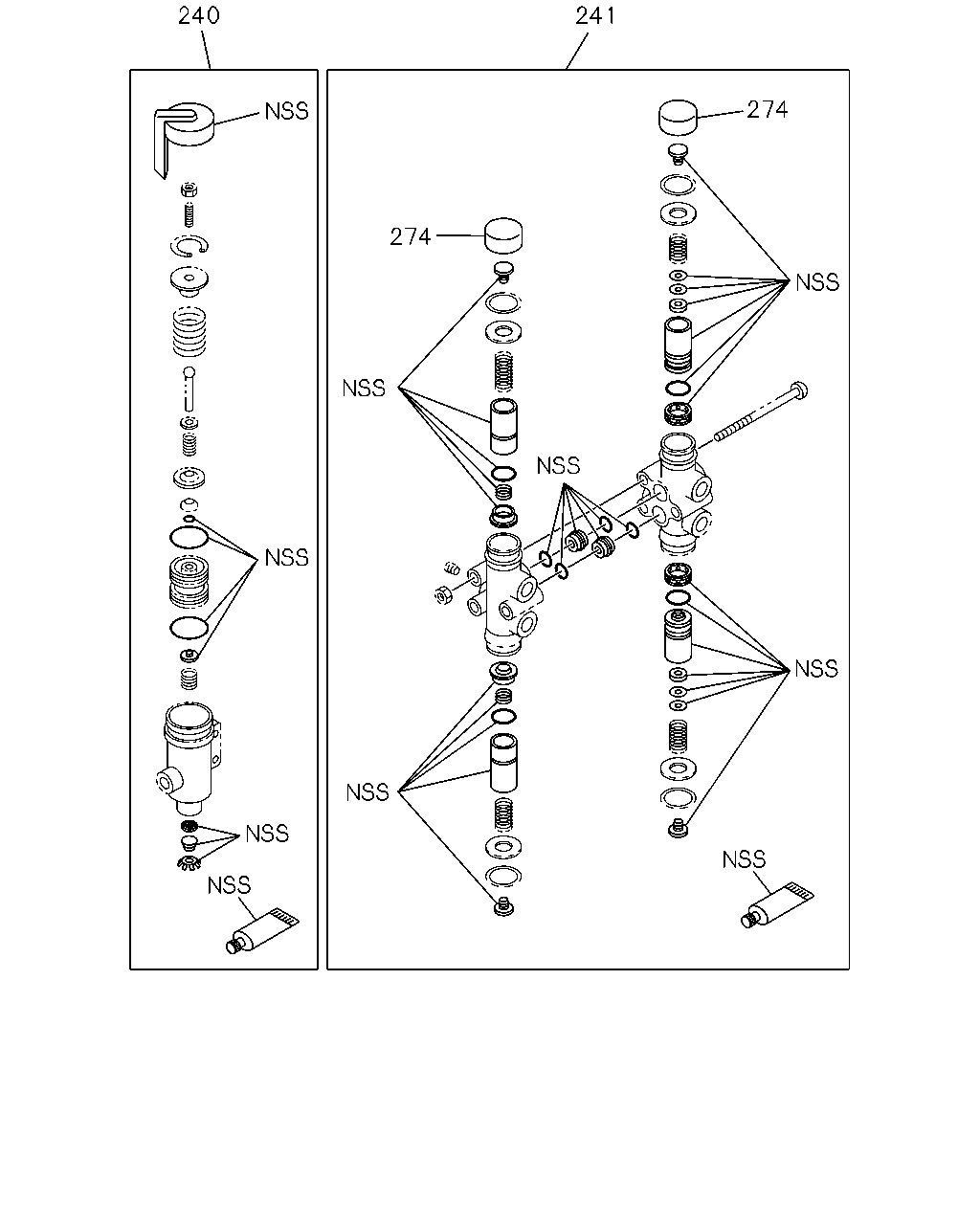

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-	●	●	●	●	●
241	REPAIR KIT; PROTECTION VALVE BRAKE REGULATION ADR<TDU>	1-85576-224-0	01	1	0005-		●
274	COVER; DUST BRAKE REGULATION ADR<TDU>	1-48119-450-0	02	1	0005-		●

2 122 2 122 155 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●		●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9601-9803	●	●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9601-9803	●	●		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9804-0004	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0211	●	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9601-9803	●	●		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9804-0004	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0005-0211	●	●	●	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-0212	●		●	●	●
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0110-0212		●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0301-	●		●	●	●
157	RETAINER; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0301-		●
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0301-		●
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	03	1	0110-0212		●
157	RETAINER; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	02	1	0301-		●
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B)	1-48419-020-0	03	1	0301-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-9803	●	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9804-0004	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0211	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-9803	●	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-0004	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0211	●	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-0212	●		●	●	●
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0110-0212		●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0301-	●		●	●	●
158	SPRING; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0301-		●
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0301-		●
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	03	1	0110-0212		●
158	SPRING; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	02	1	0301-		●
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B)	9-48419-003-0	03	1	0301-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-9803	●	●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9804-0004	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0211	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-9803	●	●		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-0004	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0211	●	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9601-9803	●	●		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9804-0004	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0211	●	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	9601-9803	●	●		●
161	GUIDE; VALVE	1-48129-014-0	02	1	9804-0004	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0005-0211	●	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9601-9803	●	●		●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9804-0004	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0211	●	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9601-9803	●	●		●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9804-0004	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0005-0211	●	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	9601-9803	●	●		●
166	SPRING; PISTON	1-47819-090-0	01	1	9804-0004	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0211	●	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	9601-9803	●	●		●
166	SPRING; PISTON	1-47819-090-0	02	1	9804-0004	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	0005-0211	●	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	9601-9803	●	●		●
167	COVER; VALVE	1-48219-070-0	01	1	9804-0004	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0211	●	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●	●	●	●
167	COVER; VALVE	1-48219-070-0	02	1	9601-9803	●	●		●
167	COVER; VALVE	1-48219-070-0	02	1	9804-0004	●	●	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0005-0211	●	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9601-9803	●	●		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9804-0004	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0211	●	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9601-9803	●	●		●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9804-0004	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0005-0211	●	●	●	●	●

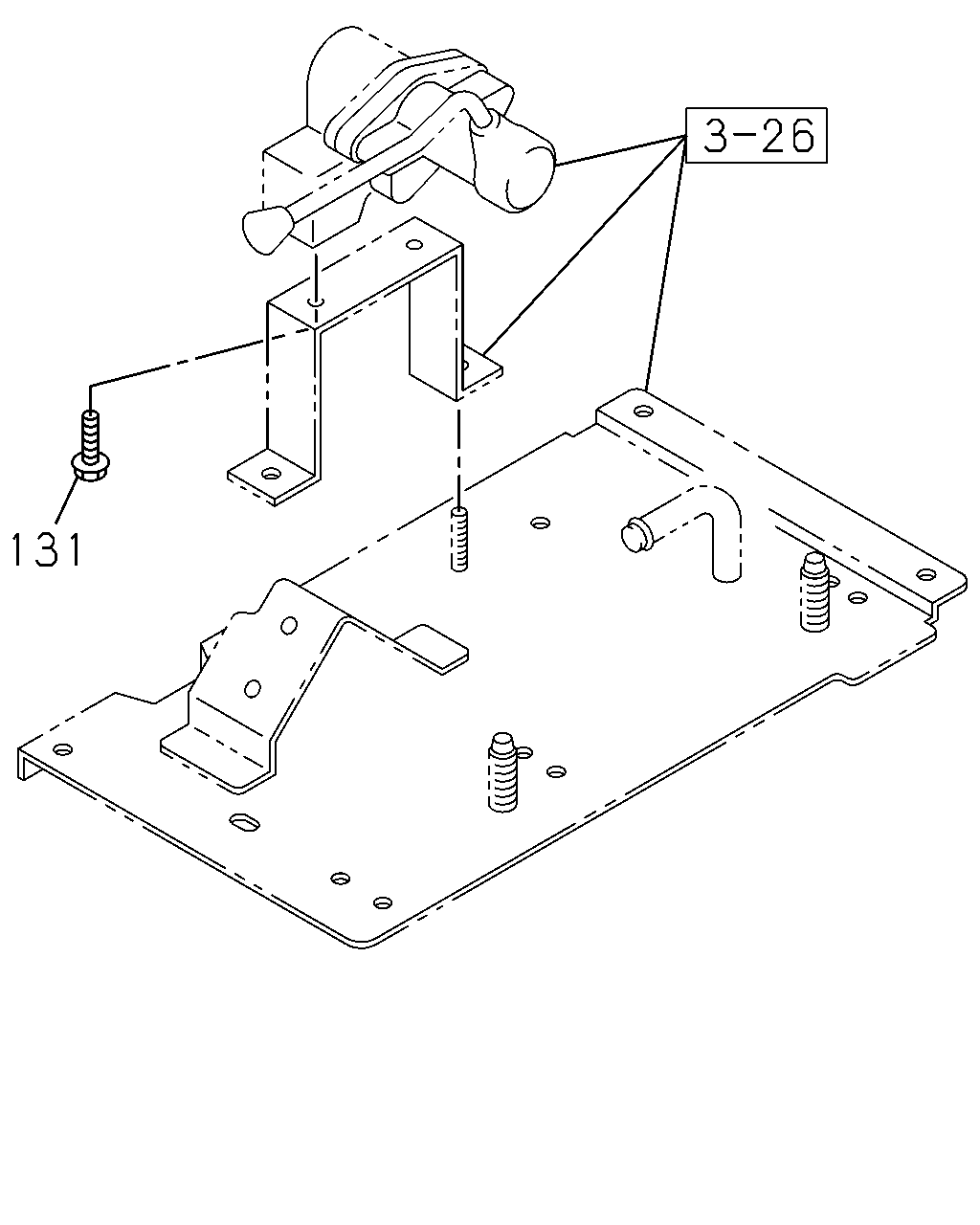

131

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28081-020-0	02	1	9804-0512			●
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28051-020-0	02	1	0601-			●

47 47 19 62 63 45 66 47 17 67 18 59 47 62 47 67 47 45 47 19 47 15 67 54 6 114 59 66 54 63 66 13 54 19 13 45 158 157 216 54 54 54 13 15 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	BOLT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B) M8X20 FLANGE	0-28080-820-0	02	1	0301-0512		●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9803	●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●	●
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0212		●
6	BOLT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	04	1	0301-0512		●
6	BOLT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9601-9803	●	●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	9804-0004		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	02	1	0005-0109		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-659-0	02	1	0110-		●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-234-0	02	1	9804-0004			●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-320-0	01	1	9804-			●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9804-0004		●	●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	0005-0405		●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	0406-		●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B)	1-09605-111-0	01	1	9804-0004			●
17	BOLT; BRKT BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	02	1	9601-9803	●	●
17	BOLT; BRKT BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●	●
17	BOLT; BRKT BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	02	1	0005-0212		●
17	BOLT; BRKT BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8X20 FLANGE	0-28080-820-0	02	1	0301-0512		●
17	BOLT; BRKT BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
18	NUT; BRKT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9803	●	●
18	NUT; BRKT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9804-0004		●	●
18	NUT; BRKT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	0005-0212		●
18	NUT; BRKT BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8	9-09110-408-0	02	1	0301-0512		●
18	NUT; BRKT BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8	0-91110-508-0	02	1	0601-		●
19	BRACKET; QUICK RELEASE VLV (C)	1-47477-518-0	01	1	9601-9803	●	●		●
19	BRACKET; QUICK RELEASE VLV (C)	1-47477-518-0	01	1	9804-0004	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (C)	1-47477-518-0	01	1	0005-	●	●	●	●	●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-48495-153-0	01	1	9601-9803	●	●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-48495-153-0	01	1	9804-0004		●	●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-48495-153-0	01	1	0005-0405		●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-48495-153-0	01	1	0406-		●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B)	1-48495-154-0	01	1	9601-9803	●	●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B)	1-48495-154-0	01	1	9804-0004		●	●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B)	1-48495-154-0	01	1	0005-0405		●
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B)	1-48495-154-0	01	1	0406-		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9601-9803	●	●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9804-0004	●	●	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109	●	●	●	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-	●	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803				●
47	CONNECTOR; RELAY VLV,CONT EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9804-0004	●			●
47	CONNECTOR; RELAY VLV,CONT EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9804-0004		●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0212	●		●	●	●
47	CONNECTOR; RELAY VLV,CONT EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0212		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-	●		●	●	●
47	CONNECTOR; RELAY VLV,CONT FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-		●
47	CONNECTOR; RELAY VLV,CONT EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-		●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9601-9803	●	●		●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9804-0004	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-	●	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803	●	●
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●	●
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-0212		●
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (H) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-0405		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0406-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9804-0004		●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-0212		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-		●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C) M16 & NPT3/8	1-09650-327-1	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (F)	1-09660-968-0	01	1	9804-0004			●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (G)	1-09660-991-0	01	1	9804-0004			●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9601-9801	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28680-820-0	04	1	9802-9803	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9804-0004		●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	04	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28680-820-0	02	1	9804-0004			●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	9804-0004			●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9601-9803	●	●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9804-0004	●	●	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●	●	●	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9601-9803	●	●		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9804-0004	●	●	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0512	●	●	●	●	●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	05	1	9601-9606	●	●		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	05	1	9607-9803	●	●		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	9804-0004	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●	●	●	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M8	9-09110-408-0	02	1	9601-9606	●	●		●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●		●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9804-0004	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
114	NUT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8	9-09110-408-0	02	1	0301-0512		●
114	NUT; VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> M8	0-91110-508-0	02	1	0601-		●
114	NUT; VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9803	●	●
114	NUT; VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9804-0004		●	●
114	NUT; VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	0005-0212		●
114	NUT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	0301-0512		●
114	NUT; VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	04	1	0601-		●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-0212	●		●	●	●
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0110-0212		●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0301-	●		●	●	●
157	RETAINER; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0301-		●
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	01	1	0301-		●
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	03	1	0110-0212		●
157	RETAINER; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	02	1	0301-		●
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B)	1-48419-020-0	03	1	0301-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-9803	●	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9804-0004	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0211	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-9803	●	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-0004	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0211	●	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-0212	●		●	●	●
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0110-0212		●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0301-	●		●	●	●
158	SPRING; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0301-		●
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	01	1	0301-		●
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	03	1	0110-0212		●
158	SPRING; VALVE FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	02	1	0301-		●
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D> (B)	9-48419-003-0	03	1	0301-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-9803	●	●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9804-0004	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0211	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-9803	●	●		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-0004	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0211	●	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-0212	●		●	●	●
216	REPAIR KIT; QUICK RELEASE VLV EXC. BRAKE REGULATION ADR<TDU>	1-85576-235-0	01	1	0110-0212		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0301-	●		●	●	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU>	1-85576-235-0	01	1	0301-		●
216	REPAIR KIT; QUICK RELEASE VLV EXC. BRAKE REGULATION ADR<TDU>	1-85576-235-0	01	1	0301-		●
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-85576-235-0	03	1	0110-0212		●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 17.5"<B5D> BRAKE REGULATION ADR<TDU>	1-85576-235-0	02	1	0301-		●
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> EXC. FINAL GEAR 17.5"<B5D>	1-85576-235-0	03	1	0301-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
