Sayfa 7-50 - Isuzu EPC

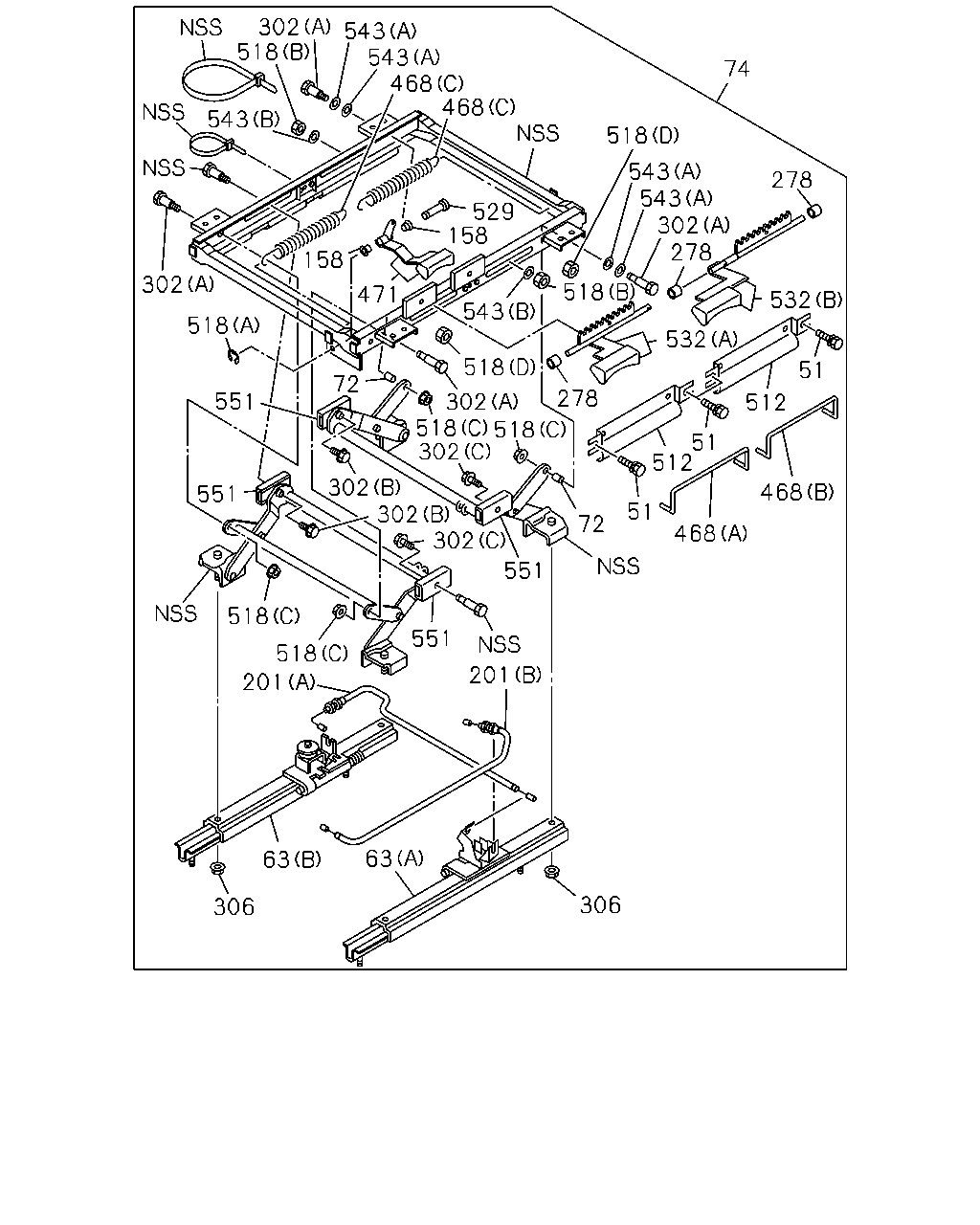

7-50 — FRONT SEAT (#6383) — 670 parça

302 518 543 543 468 468 74 543 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER M6X12 W/LK WASHER	9-03910-612-0	04	1	9604-0003
51	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER	9-03910-612-0	04	1	0004-0012
51	SCREW; COVER M6X12 W/LK WASHER	9-03910-612-0	04	1	0101-
51	SCREW; COVER RIGID SEAT W/ARM REST(SGC) M6X12 W/LK WASHER	9-03910-612-0	04	1	0101-
51	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER	9-03910-612-0	04	1	0101-
51	SCREW; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER	9-03910-612-0	08	1	0004-0012
63	ADJUSTER; SEAT SLIDE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	02	1	0004-0012
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9604-9910
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-226-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-226-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-0	01	1	9604-9705
63	ADJUSTER; SEAT SLIDE (B)	1-75518-295-0	01	1	9706-9912
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	0001-0003
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0004-0012
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	0101-
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC) (B)	1-75518-324-0	01	1	0101-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0101-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-0	01	1	0001-0003
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0004-0012
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0101-
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC) (A)	1-75518-227-1	01	1	0101-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0101-
63	ADJUSTER; SEAT SLIDE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	02	1	0004-0012
72	SPACER; SEAT ADJ	1-75518-269-0	02	1	9604-0003
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-269-0	02	1	0004-0012
72	SPACER; SEAT ADJ	1-75518-269-0	02	1	0101-
72	SPACER; SEAT ADJ RIGID SEAT W/ARM REST(SGC)	1-75518-269-0	02	1	0101-
72	SPACER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-269-0	02	1	0101-
72	SPACER; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-269-0	04	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9604-9705
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-0	01	1	0001-0003
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	02	1	0004-0012
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9604-0003
158	BUSHING; LINK ARM SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0004-0012
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0101-
158	BUSHING; LINK ARM RIGID SEAT W/ARM REST(SGC)	1-75518-209-0	02	1	0101-
158	BUSHING; LINK ARM EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0101-
158	BUSHING; LINK ARM EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	04	1	0004-0012
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9604-9705
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-0003
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0004-0012
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0101-
201	CABLE; ADJ RIGID SEAT W/ARM REST(SGC) (A) L=667	1-75518-288-0	01	1	0101-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0101-
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9604-9705
201	CABLE; ADJ (B) L=605	1-75518-289-0	01	1	9706-0003
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-0	01	1	0004-0012
201	CABLE; ADJ (B) L=605	1-75518-289-0	01	1	0101-
201	CABLE; ADJ RIGID SEAT W/ARM REST(SGC) (B) L=605	1-75518-289-0	01	1	0101-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-0	01	1	0101-
201	CABLE; ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	02	1	0004-0012
201	CABLE; ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-0	02	1	0004-0012
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	9604-0003
278	COLLAR; FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0004-0012
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0101-
278	COLLAR; FRT SEAT RIGID SEAT W/ARM REST(SGC)	1-75518-244-0	03	1	0101-
278	COLLAR; FRT SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0101-
278	COLLAR; FRT SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	06	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-0	02	1	9604-0003
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-266-0	02	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-0	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) (B)	1-75518-266-0	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-266-0	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-0	04	1	9604-0003
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-0	04	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-0	04	1	0101-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) (A)	1-75518-270-0	04	1	0101-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-0	04	1	0101-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-271-1	02	1	9604-0003
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-271-1	02	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-271-1	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) (C)	1-75518-271-1	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-271-1	02	1	0101-
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-266-0	04	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-270-0	08	1	0004-0012
302	BOLT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-271-1	04	1	0004-0012
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9604-9912
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	06	1	0001-0003
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0004-0012
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	06	1	0101-
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC) M8 FLANGE	1-75538-207-0	06	1	0101-
306	NUT; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0101-
306	NUT; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0004-0012
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0004-0012
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0004-0012
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0004-0012
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9604-
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	02	1	0004-0012
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	02	1	0004-0012
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	04	1	0004-0012
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9604-9705
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0003
471	LEVER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0004-0012
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0101-
471	LEVER; SEAT ADJ RIGID SEAT W/ARM REST(SGC)	1-75518-290-0	01	1	0101-
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0101-
471	LEVER; SEAT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	02	1	0004-0012
512	COVER; LEVER	1-75518-245-0	02	1	9604-0003
512	COVER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-0	02	1	0004-0012
512	COVER; LEVER	1-75518-245-0	02	1	0101-
512	COVER; LEVER RIGID SEAT W/ARM REST(SGC)	1-75518-245-0	02	1	0101-
512	COVER; LEVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-0	02	1	0101-
512	COVER; LEVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-0	04	1	0004-0012
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9604-0003
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0004-0012
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0101-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC) (A)	1-75518-263-0	01	1	0101-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0101-
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	9604-0003
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0004-0012
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	0101-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC) (B)	1-75518-264-0	04	1	0101-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0101-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	9604-0003
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0004-0012
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0101-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT	5-09984-020-0	02	1	0101-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0101-
518	NUT; TILT ADJ (C) M8 FLANGE	8-94152-886-0	04	1	9604-0003
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0004-0012
518	NUT; TILT ADJ (C) M8 FLANGE	8-94152-886-0	04	1	0101-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE	8-94152-886-0	04	1	0101-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0101-
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	02	1	0004-0012
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	08	1	0004-0012
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	04	1	0004-0012
518	NUT; TILT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	08	1	0004-0012
529	PIN; LINK	1-75518-262-0	01	1	9604-0003
529	PIN; LINK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0004-0012
529	PIN; LINK	1-75518-262-0	01	1	0101-
529	PIN; LINK RIGID SEAT W/ARM REST(SGC)	1-75518-262-0	01	1	0101-
529	PIN; LINK EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0101-
529	PIN; LINK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	02	1	0004-0012
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	9604-0003
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0004-0012
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	0101-
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC) (A)	1-75518-221-0	01	1	0101-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0101-
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	9604-0003
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0004-0012
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	0101-
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC) (B)	1-75518-222-1	01	1	0101-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0101-
532	LEVER ASM; TILT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	02	1	0004-0012
532	LEVER ASM; TILT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	02	1	0004-0012
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	9604-0003
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0004-0012
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	0101-
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC) (B) ID=6.4	9-09160-506-0	04	1	0101-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0101-
543	WASHER; HEIGHT ADJUSTER (A) ID=10.5	9-09164-510-0	02	1	9604-0003
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5	9-09164-510-0	02	1	0004-0012
543	WASHER; HEIGHT ADJUSTER (A) ID=10.5	9-09164-510-0	02	1	0101-
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC) (A) ID=10.5	9-09164-510-0	02	1	0101-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5	9-09164-510-0	02	1	0101-
543	WASHER; HEIGHT ADJUSTER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	08	1	0004-0012
543	WASHER; HEIGHT ADJUSTER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5	9-09164-510-0	04	1	0004-0012
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	9604-0003
551	SLIDER; HEIGHT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0004-0012
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0101-
551	SLIDER; HEIGHT ADJ RIGID SEAT W/ARM REST(SGC)	1-75518-265-0	04	1	0101-
551	SLIDER; HEIGHT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0101-
551	SLIDER; HEIGHT ADJ EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	08	1	0004-0012

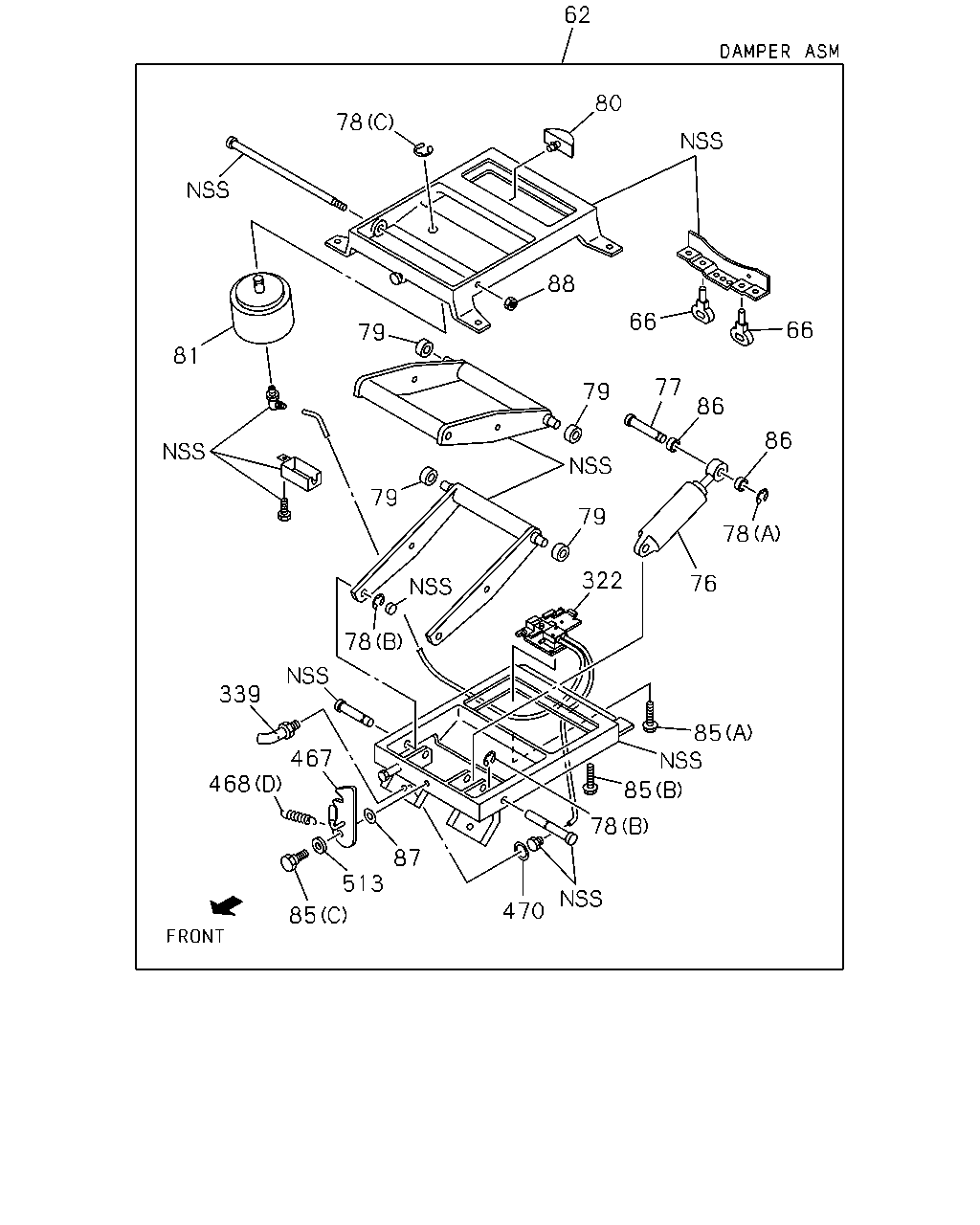

62 80 78 88 66 66 79 81 77 79 86 86 79 79 78 322 76 78 339 85 467 468 85 78 87 513 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-241-3	01	1	9604-9712
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-255-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-259-0	01	1	9805-9904
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9905-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	9604-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	9604-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	9604-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	9604-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	9604-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	9604-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	9604-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	9604-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-1	01	1	9604-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9604-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9604-0003
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	9604-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9604-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	9604-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	8-94279-519-0	01	1	9604-9904
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	9905-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-148-1	01	1	9604-9804
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	9805-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-1	01	1	9604-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	9604-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0004-0012
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0101-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0004-0012
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0101-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9604-0003
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0004-0012
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC) (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0101-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9604-
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	02	1	0004-0012
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	02	1	0004-0012
468	SPRING; RETURN EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	04	1	0004-0012
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	9604-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	9604-

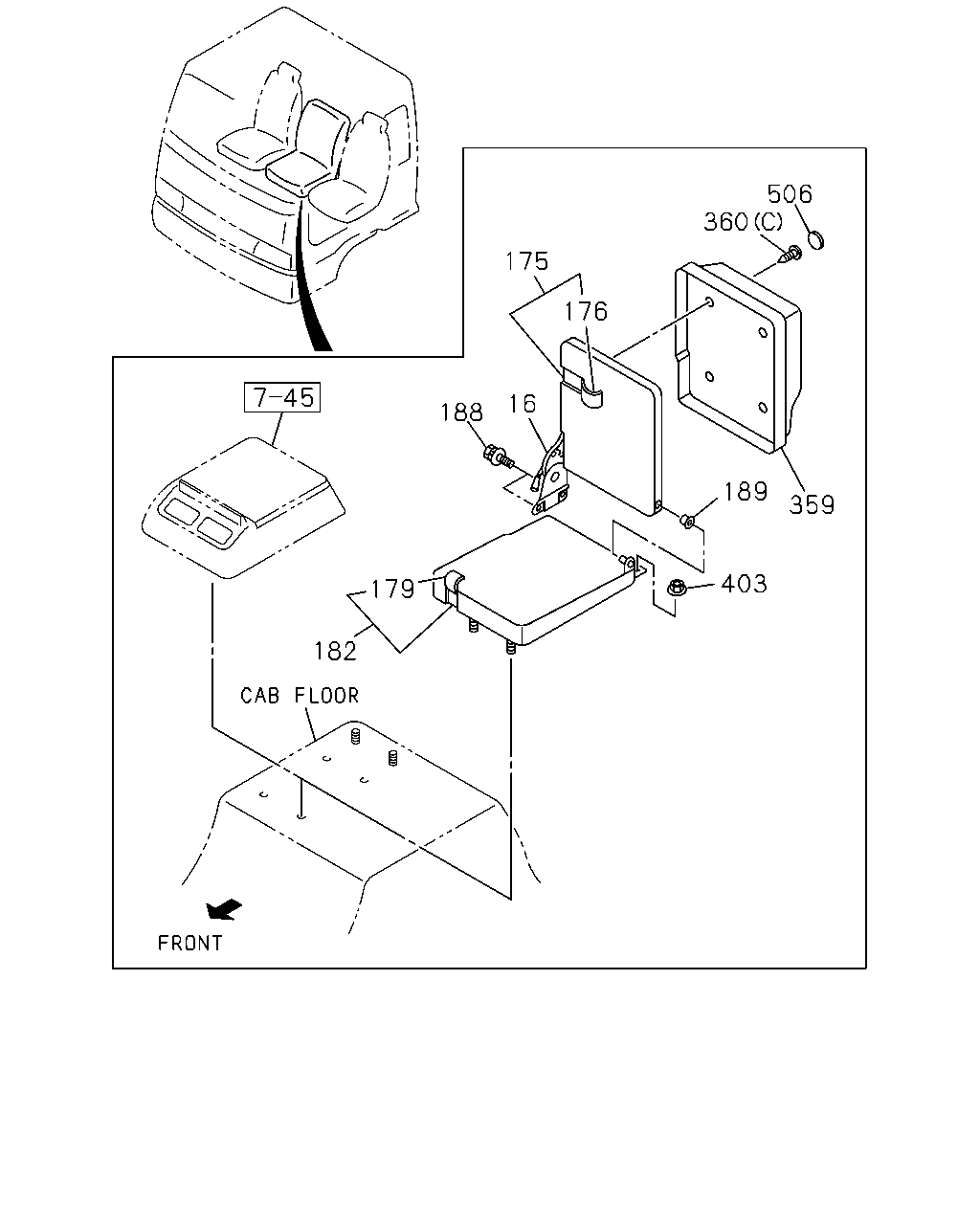

506 360 175 176 16 188 189 359 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT	1-75418-057-1	01	1	9604-9605
16	ADJUSTER ASM; RECLINING CENTER SEAT	1-75418-062-0	01	1	9606-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75028-592-0	01	1	9604-9605
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75028-924-0	01	1	9606-9904
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-598-1	01	1	9905-0003
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-255-0	01	1	0004-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-587-1	01	1	9604-9605
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-925-0	01	1	9606-9904
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75027-864-0	01	1	9905-0003
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-257-0	01	1	0004-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75116-257-0	01	1	9604-9904
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75116-884-0	01	1	9905-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-075-0	01	1	0004-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-258-1	01	1	9604-9904
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75117-941-0	01	1	9905-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-077-0	01	1	0004-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75117-859-0	01	1	9604-9904
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75117-931-0	01	1	9905-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-068-0	01	1	0004-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75117-858-1	01	1	9604-9904
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75117-932-0	01	1	9905-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-069-0	01	1	0004-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-519-0	01	1	9604-9904
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-830-0	01	1	9905-0003
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-247-1	01	1	0004-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75027-518-1	01	1	9604-9904
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75027-858-0	01	1	9905-0003
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-248-1	01	1	0004-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	9604-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	9604-
359	BOX; PARCEL	1-72538-157-4	01	1	9604-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9604-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9604-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9604-
360	SCREW; PARCEL (D) SCREW GROMMET	1-09983-165-0	02	1	9604-
403	NUT; CENTER SEAT M8 FLANGE	8-94279-504-1	04	1	9604-
506	CAP; PARCEL BOX	1-09983-164-2	04	1	9604-

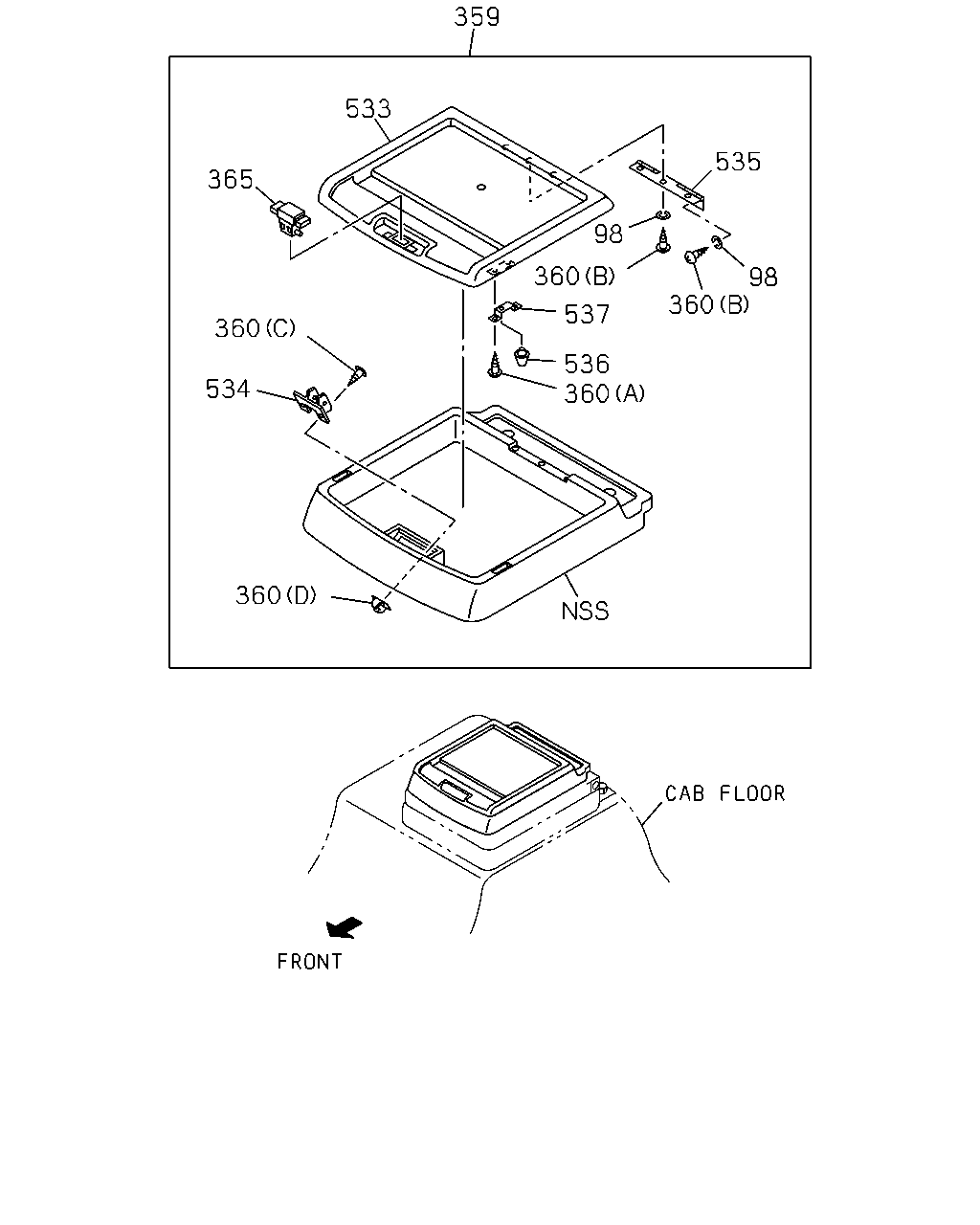

359 533 535 365 98 360 98 360 537 360 536 360 534 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9604-
359	BOX; PARCEL	1-72538-157-4	01	1	9604-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9604-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9604-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9604-
360	SCREW; PARCEL (D) SCREW GROMMET	1-09983-165-0	02	1	9604-
365	LOCK ASM; SEAT	1-72538-180-0	01	1	9604-
533	LID; PARCEL BOX	1-72538-194-2	01	1	9604-
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	9604-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	9604-
536	RUBBER; CUSHION	5-09983-002-1	02	1	9604-
537	BRACKET; RUBBER	1-72548-057-1	02	1	9604-

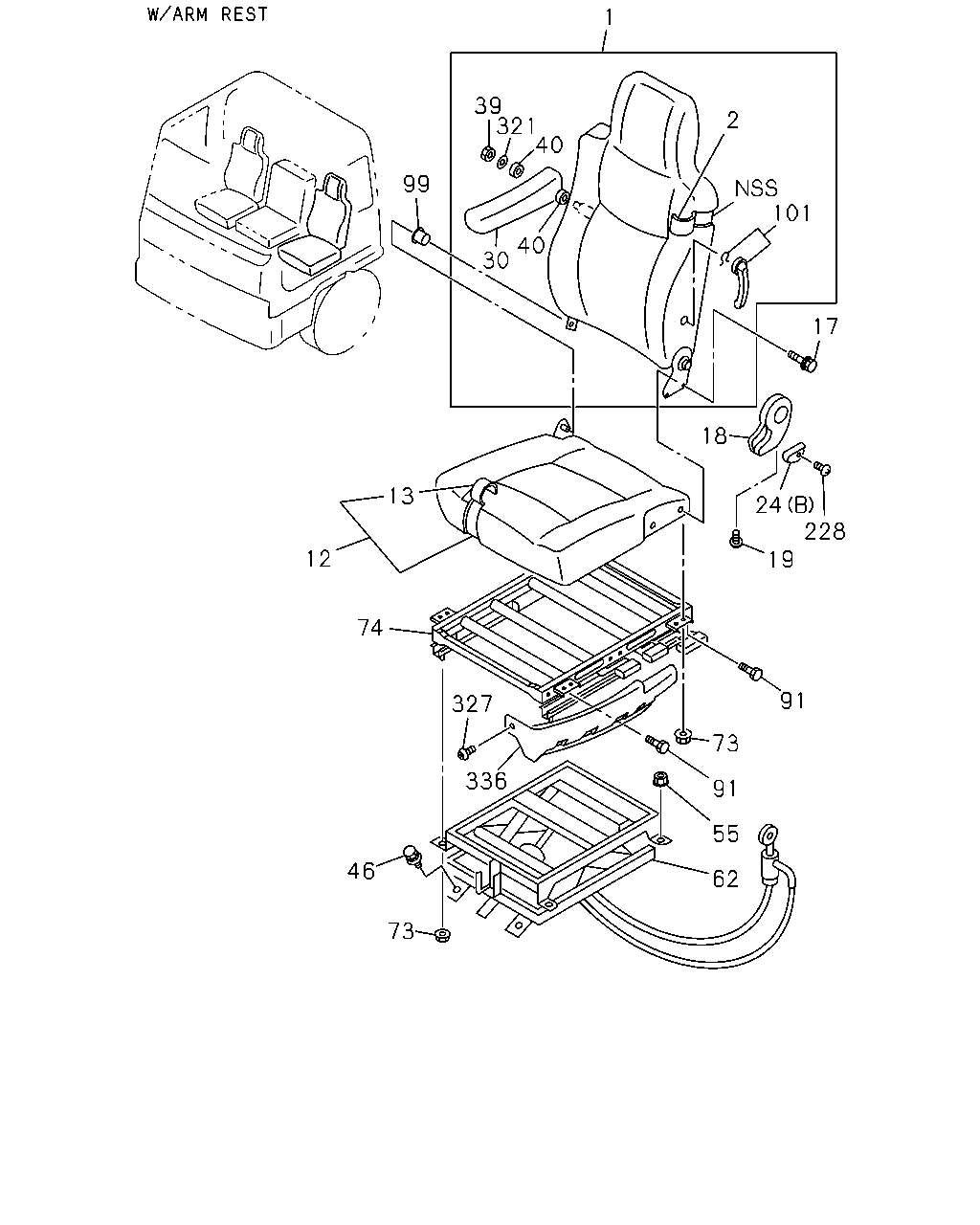

1 39 321 40 2 99 101 40 30 17 18 24 228 13 12 19 74 91 327 73 336 91 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-576-1	01	1	9604-9904
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-624-2	01	1	9604-9904
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9905-9910
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	02	1	0004-0012
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0101-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0101-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-559-1	01	1	9604-9904
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9905-9910
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	02	1	0004-0012
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-253-1	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-276-2	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9905-9910
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	02	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-236-1	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9905-9910
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	02	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-0012
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75028-600-1	01	1	9604-9904
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9905-9910
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-0	02	1	0004-0012
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9604-9904
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9905-9910
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	02	1	0004-0012
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0101-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0101-
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-0	01	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75117-842-0	01	1	9604-9904
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9905-9910
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	02	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9604-9904
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9905-9910
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	02	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-0012
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9604-0003
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0004-0012
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING RIGID SEAT W/ARM REST(SGC) M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	04	1	0004-0012
18	COVER; RECLINING	1-75418-052-0	01	1	9604-0003
18	COVER; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	01	1	0004-0012
18	COVER; RECLINING	1-75418-052-0	01	1	0101-
18	COVER; RECLINING RIGID SEAT W/ARM REST(SGC)	1-75418-052-0	01	1	0101-
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	01	1	0101-
18	COVER; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	02	1	0004-0012
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9604-0003
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0004-0012
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0004-0012
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	9604-0003
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0004-0012
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT W/ARM REST(SGC) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT (A) ASSIST SEAT	1-75418-059-0	01	1	9604-
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	02	1	0004-0012
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-320-0	01	1	9604-9904
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9905-9910
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	02	1	0004-0012
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	01	1	0101-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	01	1	0101-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75127-012-0	01	1	0101-
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	01	1	0004-0012
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	9-09110-410-0	02	1	0004-0012
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	9-09110-410-0	01	1	0101-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	9-09110-410-0	01	1	0101-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M10	9-09110-410-0	01	1	0101-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94279-521-0	01	1	9604-9910
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94279-521-0	01	1	9911-0003
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94279-521-0	01	1	9911-0003
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8	1-75147-657-0	02	1	0004-0012
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8	1-75147-657-0	01	1	0101-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8	1-75147-657-0	01	1	0101-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8	1-75147-657-0	01	1	0101-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8	1-75147-657-0	01	1	0004-0012
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	9-09110-410-0	01	1	0004-0012
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9604-9910
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-0003
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-0003
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	04	1	0004-0012
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0101-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0101-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	8-94285-921-0	02	1	0101-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0004-0012
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9604-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9604-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-241-3	01	1	9604-9712
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-255-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-259-0	01	1	9805-9904
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9905-
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	8-94279-518-0	08	1	9604-0003
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT ASSIST SEAT M8 FLANGE	8-94279-518-0	04	1	9604-0003
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ASSIST SEAT M8 FLANGE	1-75538-207-0	08	1	0004-0012
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	16	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9604-9705
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-0	01	1	0001-0003
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	02	1	0004-0012
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9604-0003
91	SCREW; SEAT ADJ COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0004-0012
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0004-0012
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9604-0003
99	BUSHING; SEAT BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0004-0012
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK RIGID SEAT W/ARM REST(SGC)	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	02	1	0004-0012
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9604-0003
101	LEVER ASM; LUMBAR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0004-0012
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR RIGID SEAT W/ARM REST(SGC)	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	02	1	0004-0012
228	SCREW; KNOB M4X6	8-97042-273-0	02	1	9604-9904
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0003
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	02	1	0004-0012
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	02	1	0004-0012
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0101-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0101-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22	9-09160-610-0	01	1	0101-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9604-9910
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9911-0003
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9911-0003
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	02	1	0004-0012
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0101-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0101-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22	9-09164-708-0	01	1	0101-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0004-0012
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0004-0012
327	CLIP; COVER NYLON	1-09987-249-0	01	1	9604-0003
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	01	1	0004-0012
327	CLIP; COVER	1-09987-249-0	01	1	0101-
327	CLIP; COVER RIGID SEAT W/ARM REST(SGC)	1-09987-249-0	01	1	0101-
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	01	1	0101-
327	CLIP; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	02	1	0004-0012
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9604-0003
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	01	1	0004-0012
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	02	1	0004-0012

228 113 24 114 122 126 123 120 116 115 137 135 136 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	9604-0003
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0004-0012
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT W/ARM REST(SGC) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT (A) ASSIST SEAT	1-75418-059-0	01	1	9604-
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	02	1	0004-0012
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	8-94279-518-0	08	1	9604-0003
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT ASSIST SEAT M8 FLANGE	8-94279-518-0	04	1	9604-0003
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ASSIST SEAT M8 FLANGE	1-75538-207-0	08	1	0004-0012
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	16	1	0004-0012
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75028-586-1	01	1	9604-9904
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-832-0	01	1	9905-0003
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-226-0	01	1	0004-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-590-2	01	1	9604-0003
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-721-0	01	1	0004-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75116-256-0	01	1	9604-9904
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75117-939-0	01	1	9905-0003
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-056-0	01	1	0004-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-277-2	01	1	9604-0003
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-600-0	01	1	0004-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75028-583-2	01	1	9604-9904
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-829-0	01	1	9905-0003
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-210-0	01	1	0004-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-531-2	01	1	9604-0003
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-771-0	01	1	0004-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75117-841-1	01	1	9604-9904
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75117-929-0	01	1	9905-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-026-0	01	1	0004-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-225-1	01	1	9604-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-575-0	01	1	0004-
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9604-0003
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9604-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9604-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9604-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9604-
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-547-1	01	1	9604-9609
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	9610-
136	STAND; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75558-521-5	01	1	9604-9609
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9604-
228	SCREW; KNOB M4X6	8-97042-273-0	02	1	9604-9904
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0003
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	02	1	0004-0012

1 2 99 101 17 18 24 228 13 12 19 74 91 327 73 336 91 55 46 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-576-1	01	1	9604-9904
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-624-2	01	1	9604-9904
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9905-9910
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	02	1	0004-0012
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0101-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0101-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-559-1	01	1	9604-9904
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9905-9910
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	02	1	0004-0012
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75207-169-0	01	1	0101-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-253-1	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-276-2	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9905-9910
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	02	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-236-1	01	1	9604-9904
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9905-9910
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	02	1	0004-0012
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75127-041-0	01	1	0101-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-0012
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75028-600-1	01	1	9604-9904
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9905-9910
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-0	02	1	0004-0012
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75207-152-1	01	1	0101-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9604-9904
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9905-9910
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	02	1	0004-0012
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0101-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0101-
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-0	01	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75117-842-0	01	1	9604-9904
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9905-9910
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	02	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75127-100-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9604-9904
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9905-9910
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	02	1	0004-0012
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0101-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-0012
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9604-0003
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0004-0012
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING RIGID SEAT W/ARM REST(SGC) M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0101-
17	BOLT; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	04	1	0004-0012
18	COVER; RECLINING	1-75418-052-0	01	1	9604-0003
18	COVER; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	01	1	0004-0012
18	COVER; RECLINING	1-75418-052-0	01	1	0101-
18	COVER; RECLINING RIGID SEAT W/ARM REST(SGC)	1-75418-052-0	01	1	0101-
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	01	1	0101-
18	COVER; RECLINING EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75418-052-0	02	1	0004-0012
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9604-0003
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0004-0012
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0101-
19	SCREW; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0004-0012
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	9604-0003
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0004-0012
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT W/ARM REST(SGC) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	01	1	0101-
24	KNOB; RECLINING,FRT,SEAT (A) ASSIST SEAT	1-75418-059-0	01	1	9604-
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT	1-75418-056-0	02	1	0004-0012
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-491-4	01	1	9604-0003
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	02	1	0004-0012
42	STAND; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0101-
42	STAND; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75558-604-0	01	1	0101-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0101-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9604-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9604-
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	8-94279-518-0	08	1	9604-0003
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT ASSIST SEAT M8 FLANGE	8-94279-518-0	04	1	9604-0003
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ASSIST SEAT M8 FLANGE	1-75538-207-0	08	1	0004-0012
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0101-
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	16	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9604-9705
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-0	01	1	0001-0003
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0004-0012
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	01	1	0101-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-318-1	02	1	0004-0012
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9604-0003
91	SCREW; SEAT ADJ COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0004-0012
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0101-
91	SCREW; SEAT ADJ COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0004-0012
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9604-0003
99	BUSHING; SEAT BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0004-0012
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK RIGID SEAT W/ARM REST(SGC)	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0101-
99	BUSHING; SEAT BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	02	1	0004-0012
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9604-0003
101	LEVER ASM; LUMBAR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0004-0012
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR RIGID SEAT W/ARM REST(SGC)	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0101-
101	LEVER ASM; LUMBAR EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	02	1	0004-0012
228	SCREW; KNOB M4X6	8-97042-273-0	02	1	9604-9904
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0003
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0004-0012
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0101-
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	02	1	0004-0012
327	CLIP; COVER NYLON	1-09987-249-0	01	1	9604-0003
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	01	1	0004-0012
327	CLIP; COVER	1-09987-249-0	01	1	0101-
327	CLIP; COVER RIGID SEAT W/ARM REST(SGC)	1-09987-249-0	01	1	0101-
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	01	1	0101-
327	CLIP; COVER EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-249-0	02	1	0004-0012
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9604-0003
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	01	1	0004-0012
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	01	1	0101-
336	COVER; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-194-2	02	1	0004-0012

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
