Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#63829) — 505 parça

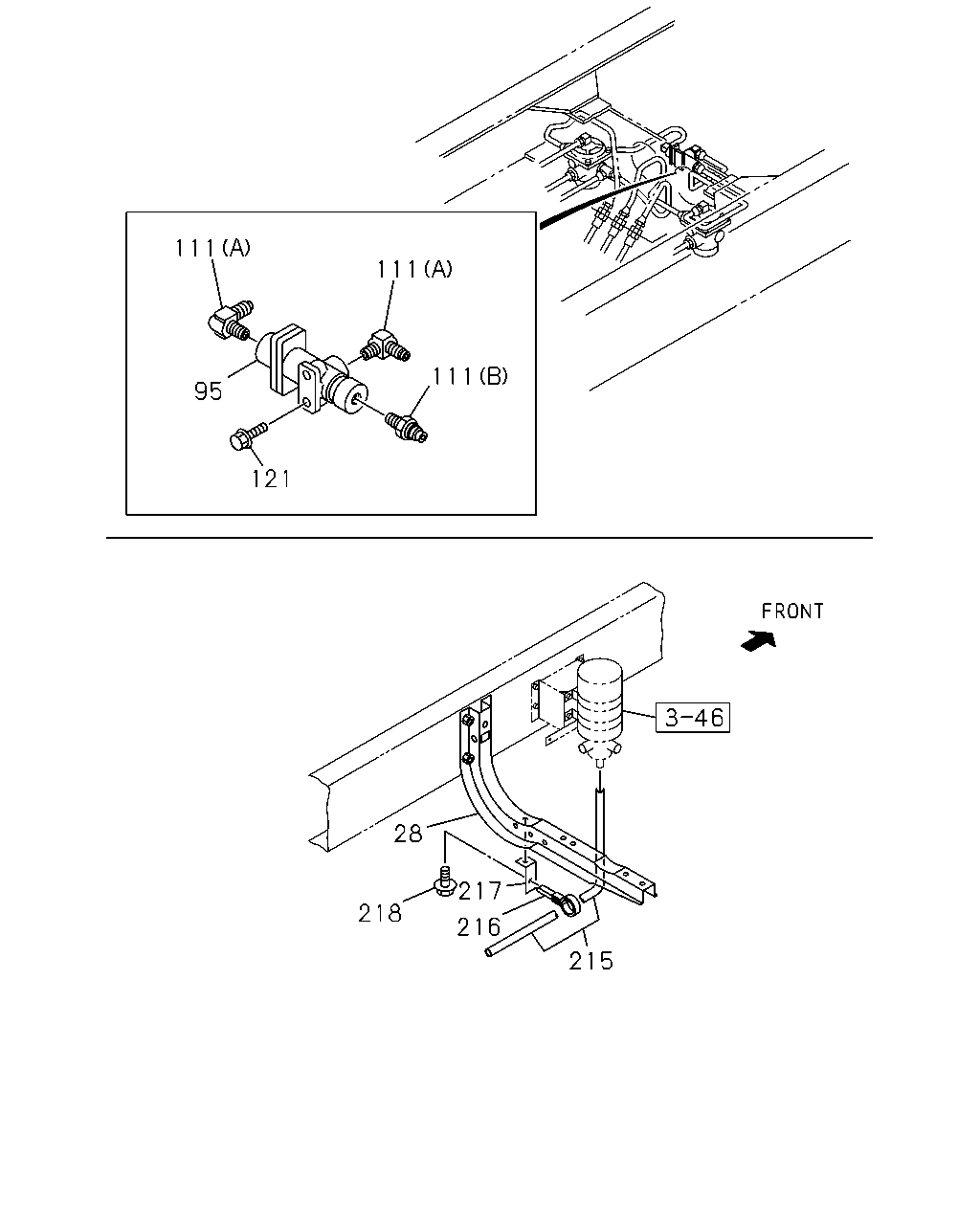

111 111 111 95 121 28 217 218 216 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9803	●	●	●
95	VALVE; DOUBLE CHECK	1-48410-050-0	01	1	9601-9803	●	●	●
95	VALVE; DOUBLE CHECK	1-48410-050-0	01	1	9804-9902	●	●	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-0	01	1	9903-0004	●	●	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-0	01	1	0005-0211	●	●	●	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-1	01	1	0212-	●	●		●	●
95	VALVE; DOUBLE CHECK EXC. FINAL GEAR 17.5"<B5D>	1-48410-531-1	01	1	0212-			●
95	VALVE; DOUBLE CHECK FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU>	1-48410-531-1	01	1	0212-			●
111	CONNECTOR; CHECK VLV (A) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	9601-9803	●	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0004	●	●	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-0211	●	●	●	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0212-	●	●		●	●
111	CONNECTOR; CHECK VLV EXC. FINAL GEAR 17.5"<B5D> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0212-			●
111	CONNECTOR; CHECK VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0212-			●
111	CONNECTOR; CHECK VLV (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9803	●	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004	●	●	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0211	●	●	●	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-	●	●		●	●
111	CONNECTOR; CHECK VLV EXC. FINAL GEAR 17.5"<B5D> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-			●
111	CONNECTOR; CHECK VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-			●
121	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
121	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY(F03) EXC. FINAL GEAR 17.5"<B5D> M8X25 FLANGE	0-28050-825-0	02	1	0712-			●
121	BOLT; DOUBLE CHECK VLV FINAL GEAR 17.5"<B5D> FRAME EQUIPMENT HEAVY DUTY(F03) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28050-825-0	02	1	0712-			●
121	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	9601-9803	●	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9804-0004	●	●	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	0005-0211	●	●	●	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	0212-0512	●	●		●	●
121	BOLT; DOUBLE CHECK VLV EXC. FINAL GEAR 17.5"<B5D> M8X20 FLANGE	0-28080-820-0	02	1	0212-0512			●
121	BOLT; DOUBLE CHECK VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	02	1	0212-0512			●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0601-0711	●	●		●	●
121	BOLT; DOUBLE CHECK VLV EXC. FINAL GEAR 17.5"<B5D> M8X20 FLANGE	0-28050-820-0	02	1	0601-0711			●
121	BOLT; DOUBLE CHECK VLV FINAL GEAR 17.5"<B5D> EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28050-820-0	02	1	0601-0711			●
121	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X20 FLANGE	0-28050-820-0	02	1	0712-	●	●
121	BOLT; DOUBLE CHECK VLV EXC. FINAL GEAR 17.5"<B5D>,FRAME EQUIPMENT HEAVY DUTY(F03) M8X20 FLANGE	0-28050-820-0	02	1	0712-			●
121	BOLT; DOUBLE CHECK VLV FINAL GEAR 17.5"<B5D> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28050-820-0	02	1	0712-			●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0712-				●	●
215	PIPE; VINYL VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9804-0004				●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	0005-0103				●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0104-				●
216	CLIP; PIPE,VINYL VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> ID=22 L=52	9-09917-431-0	01	1	9804-0004				●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> ID=22 L=52	9-09917-431-0	01	1	0005-				●
217	BRACKET; RUBBER HOSE VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=105 B=25	1-47476-161-0	01	1	9804-0004				●
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> L=105 B=25	1-47476-161-0	01	1	0005-				●
218	BOLT; BRKT VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	9804-0004				●
218	BOLT; BRKT AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	0005-0512				●
218	BOLT; BRKT AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0601-				●

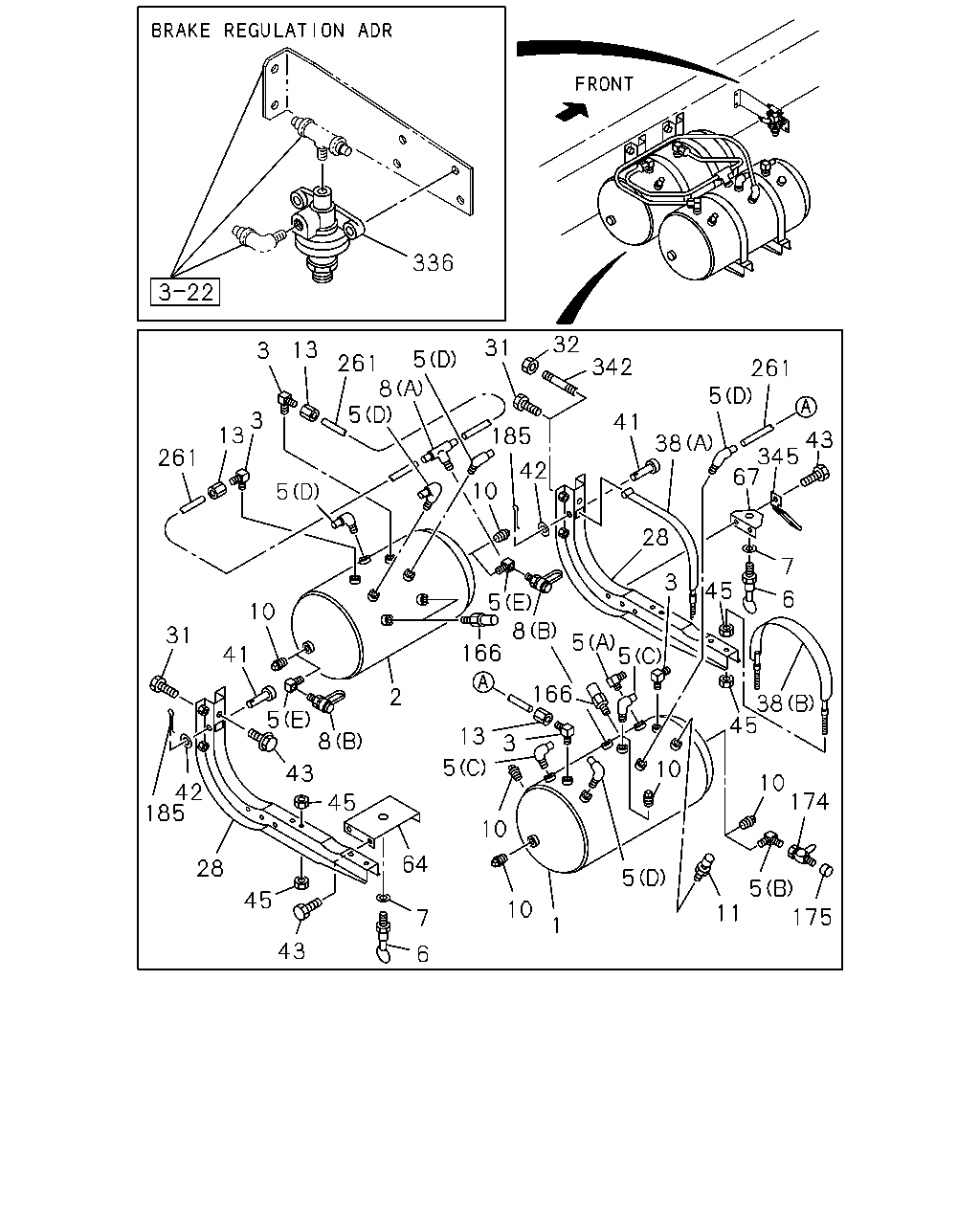

336 32 31 13 3 5 261 8 5 342 261 5 3 13 41 185 43 345 67 38 261 42 5 10 28 7 3 45 6 5 8 10 31 5 5 166 41 166 2 38 45 5 8 13 3 5 10 43 10 174 42 185 45 10 64 28 5 5 45 10 11 175 7 1 43 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9803	●	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	9804-0004	●	●	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	0005-	●	●	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	9601-9803	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	9804-0004	●	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●	●	●	●
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	04	1	9601-9803	●	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004			●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-			●
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●	●
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●	●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●	●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-9805			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9806-0004			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0405			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9601-9803		●	●
5	UNION; AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-0	01	1	9811-0004			●
5	UNION; AIR TANK 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	0005-0405			●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	0406-			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9803	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9804-0004	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-9803	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9804-0004	●	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●	●	●	●
8	CONNECTOR; AIR TANK (A) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●	●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9803		●	●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9804-9805			●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9804-9805				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9806-0004			●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9806-0004				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0005-0405			●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0406-			●
10	PLUG; AIR TANK PT3/8	9-09204-517-0	02	1	9601-9803	●
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	02	1	9601-9803		●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	9804-0004	●	●	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9601-9609	●
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	02	1	9601-9609		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	02	1	9610-9803		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	05	1	9804-0004			●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●	●		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	05	1	0005-			●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	03	1	9601-9803		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT1/4	9-99204-513-0	03	1	9601-9803		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT3/8	9-09204-517-0	06	1	9804-0004	●	●	●	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	06	1	9804-0004			●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●	●		●	●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	06	1	0005-			●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT3/8	9-09204-517-0	06	1	0005-			●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	01	1	9601-9803		●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	08	1	9811-0004			●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	07	1	0005-0405			●
10	PLUG; AIR TANK 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	07	1	0406-			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9804-0004	●	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●	●	●	●
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9803	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X45	1-09030-052-1	06	1	9601-9601	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-0004	●	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405			●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512			●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28651-240-0	07	1	0601-	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 FLANGE	0-28651-240-0	07	1	0601-			●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X45	1-09030-052-1	08	1	9601-9601		●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X45	1-09030-052-1	08	1	9601-9601			●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9602-9609		●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9609			●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9610-9610	●		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9610-9610		●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9611-9803	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9611-9803	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512		●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512				●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-				●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-0004	●	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91250-112-0	01	1	0005-0405	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0405		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0405			●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91250-112-0	01	1	0406-0602	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0406-0602		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12 FLANGE	0-91250-112-0	01	1	0406-0602			●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91280-112-0	01	1	0603-	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0603-		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12 FLANGE	0-91280-112-0	01	1	0603-			●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	02	1	9601-9602	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-09120-412-0	02	1	9603-9606	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9804-0004	●	●	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91250-112-0	02	1	0005-0602	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	0005-0602		●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	0005-0602				●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91280-112-0	02	1	0603-	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91280-112-0	02	1	0603-		●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-				●	●
32	NUT; BRKT TO FRAME VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9804-0004				●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0005-0602				●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-				●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9803	●	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9804-0004	●	●	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●	●	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9803	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9803	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9804-0004	●	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●	●	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9803	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9804-0004	●	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9601-9803	●	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9601-9803	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9803	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	9804-0004	●	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9601-9803	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9804-0004	●	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-9803	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9601-9803		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9804-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9804-0004			●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	0005-0010			●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-099-0	01	1	0011-			●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-9803	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9601-9803		●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9804-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9804-0004			●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●		●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	0005-			●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9803	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9804-0004	●	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-0405	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0406-	●	●		●	●
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0406-			●
336	VALVE; PROTECTION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU>	1-48110-006-0	01	1	9601-9803		●	●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-0004	●	●	●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	9-94321-240-0	01	1	0005-0405	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0405		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0405			●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	9-94321-240-0	01	1	0406-0604	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0406-0604		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 L=64	9-94321-240-0	01	1	0406-0604			●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	0-43211-240-0	01	1	0605-	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 L=64	0-43211-240-0	01	1	0605-			●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●	●	●
342	STUD 6SD1 TCN ENG(31L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604		●	●
342	STUD M12X40 L=64	9-94321-240-0	02	1	0005-0604				●	●
342	STUD 6SD1 TCN ENG(31L) M12X40 L=64	0-43211-240-0	02	1	0605-	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-		●	●
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-				●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-9803	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9804-0004	●	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●	●	●	●

32 282 342 31 13 21 261 282 282 282 21 261 41 8 185 13 53 345 67 10 261 282 38 5 42 10 49 7 58 6 10 31 282 166 8 41 282 282 5 2 282 10 40 58 5 174 8 282 10 13 10 282 166 282 43 261 42 185 175 58 11 10 21 282 36 49 10 10 58 7 10 43 6 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9803	●	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	9804-0004	●	●	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	0005-	●	●	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	9601-9803	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	9804-0004	●	●	●	●
2	TANK; AIR	1-48370-181-1	01	1	0005-	●	●	●	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	9601-9803		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0004			●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●		●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-			●
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●	●
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●	●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803		●	●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-9805			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9806-0004			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0405			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-			●
5	UNION; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9601-9803		●	●
5	UNION; AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-0	01	1	9811-0004			●
5	UNION; AIR TANK 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	0005-0405			●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (G) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	0406-			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9803	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9804-0004	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0005-	●	●	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-9803	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9804-0004	●	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0005-	●	●	●	●	●
8	CONNECTOR; AIR TANK (A) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●	●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9803		●	●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9804-9805			●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9804-9805				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9806-0004			●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9806-0004				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0005-0405			●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0406-			●
10	PLUG; AIR TANK PT3/8	9-09204-517-0	02	1	9601-9803	●
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	02	1	9601-9803		●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	9804-0004	●	●	●	●
10	PLUG; AIR TANK PT3/4	9-09204-526-0	01	1	0005-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9601-9609	●
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	02	1	9601-9609		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	9610-9803	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	02	1	9610-9803		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	9804-0004	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	05	1	9804-0004			●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	05	1	0005-	●	●		●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	05	1	0005-			●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	03	1	9601-9803	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	03	1	9601-9803		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT1/4	9-99204-513-0	03	1	9601-9803		●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT3/8	9-09204-517-0	06	1	9804-0004	●	●	●	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	06	1	9804-0004			●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	06	1	0005-	●	●		●	●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	06	1	0005-			●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATIONADR<TDU> PT3/8	9-09204-517-0	06	1	0005-			●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	01	1	9601-9803		●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	08	1	9811-0004			●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	07	1	0005-0405			●
10	PLUG; AIR TANK 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	07	1	0406-			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9601-9803	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9804-0004	●	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●	●	●	●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9804-0004	●	●	●	●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0005-	●	●	●	●	●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9804-0004	●	●	●	●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-	●	●	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X45	1-09030-052-1	06	1	9601-9601	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-0004	●	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0405			●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 FLANGE	0-28681-240-0	07	1	0406-0512			●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M12X40 FLANGE	0-28651-240-0	07	1	0601-	●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 FLANGE	0-28651-240-0	07	1	0601-		●
31	BOLT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 FLANGE	0-28651-240-0	07	1	0601-			●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X45	1-09030-052-1	08	1	9601-9601		●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X45	1-09030-052-1	08	1	9601-9601			●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9602-9609		●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9609			●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9610-9610	●		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9610-9610		●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9611-9803	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9611-9803	●		●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9804-0004	●	●	●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	0005-0512		●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512				●	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28651-240-0	06	1	0601-	●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 FLANGE	0-28651-240-0	06	1	0601-		●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-				●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-0004	●	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91250-112-0	01	1	0005-0405	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0405		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0405			●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91250-112-0	01	1	0406-0602	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0406-0602		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12 FLANGE	0-91250-112-0	01	1	0406-0602			●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) M12 FLANGE	0-91280-112-0	01	1	0603-	●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12 FLANGE	0-91280-112-0	01	1	0603-		●
32	NUT; BRKT TO FRAME 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12 FLANGE	0-91280-112-0	01	1	0603-			●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	02	1	9601-9602	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-09120-412-0	02	1	9603-9606	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9804-0004	●	●	●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91250-112-0	02	1	0005-0602	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	0005-0602		●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	0005-0602				●	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91280-112-0	02	1	0603-	●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 FLANGE	0-91280-112-0	02	1	0603-		●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-				●	●
32	NUT; BRKT TO FRAME VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9804-0004				●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0005-0602				●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-				●
36	STAY; MAIN TANK	1-48317-607-0	01	1	9804-0004	●	●	●	●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0005-	●	●	●	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9803	●	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9804-0004	●	●	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0005-	●	●	●	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9803	●	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	9804-0004	●	●	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0005-	●	●	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9803	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9804-0004	●	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0606	●	●	●	●	●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9803	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9804-0004	●	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-	●	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	9804-0004	●	●	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0005-	●	●	●	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	9804-0004	●	●	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0512	●	●	●	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9803	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	9804-0004	●	●	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-	●	●	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9601-9803	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9804-0004	●	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-	●	●	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-9803	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9601-9803		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9804-0004	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9804-0004			●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010	●	●		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	0005-0010			●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-	●	●		●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-099-0	01	1	0011-			●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-9803	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9601-9803		●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9804-0004	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9804-0004			●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-	●	●		●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	0005-			●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9803	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9804-0004	●	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-0405	●	●	●	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0406-	●	●		●	●
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0406-			●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0004	●	●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0004			●	●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-	●	●		●	●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-			●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-0004	●	●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-0004			●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-0004				●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-	●	●			●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-			●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9804-9810	●	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9811-0004	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9811-0004			●
282	UNION; 2 WAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9811-0004			●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●	●			●
282	UNION; 2 WAY 6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-			●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-			●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0004	●	●	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●	●	●	●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9804-9805			●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9804-9805				●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9806-9810			●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9806-9810				●
282	UNION; 2 WAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9811-0004			●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9811-0004				●
282	UNION; 2 WAY 6SD1 TCN ENG(31L) BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0005-			●
282	UNION; 2 WAY (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9804-9810				●
282	UNION; 2 WAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE REGULATION ADR<TDU> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9811-0004			●
282	UNION; 2 WAY (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9811-0004				●
282	UNION; 2 WAY 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0405			●
282	UNION; 2 WAY (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0405				●
282	UNION; 2 WAY 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0406-			●
282	UNION; 2 WAY (F) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0406-				●
282	UNION; 2 WAY BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004				●
282	UNION; 2 WAY 6HE1 TC ENG(57L) BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0405			●
282	UNION; 2 WAY 6HK1 TCS ENG(80L) BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0406-			●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR<TDU> (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	02	1	9804-0004				●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	02	1	0005-				●
342	STUD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-0004	●	●	●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	9-94321-240-0	01	1	0005-0405	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0405		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0405			●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	9-94321-240-0	01	1	0406-0604	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0406-0604		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 L=64	9-94321-240-0	01	1	0406-0604			●
342	STUD 6HE1 TC ENG(57L) M12X40 L=64	0-43211-240-0	01	1	0605-	●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M12X40 L=64	0-43211-240-0	01	1	0605-		●
342	STUD 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HK1TCS ENG(80L) M12X40 L=64	0-43211-240-0	01	1	0605-			●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9804-0004	●	●	●	●
342	STUD 6SD1 TCN ENG(31L) M12X40 L=64	9-94321-240-0	02	1	0005-0604	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	0005-0604		●	●
342	STUD M12X40 L=64	9-94321-240-0	02	1	0005-0604				●	●
342	STUD 6SD1 TCN ENG(31L) M12X40 L=64	0-43211-240-0	02	1	0605-	●
342	STUD 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X40 L=64	0-43211-240-0	02	1	0605-		●	●
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-				●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-9803	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9804-0004	●	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0305	●	●	●	●	●

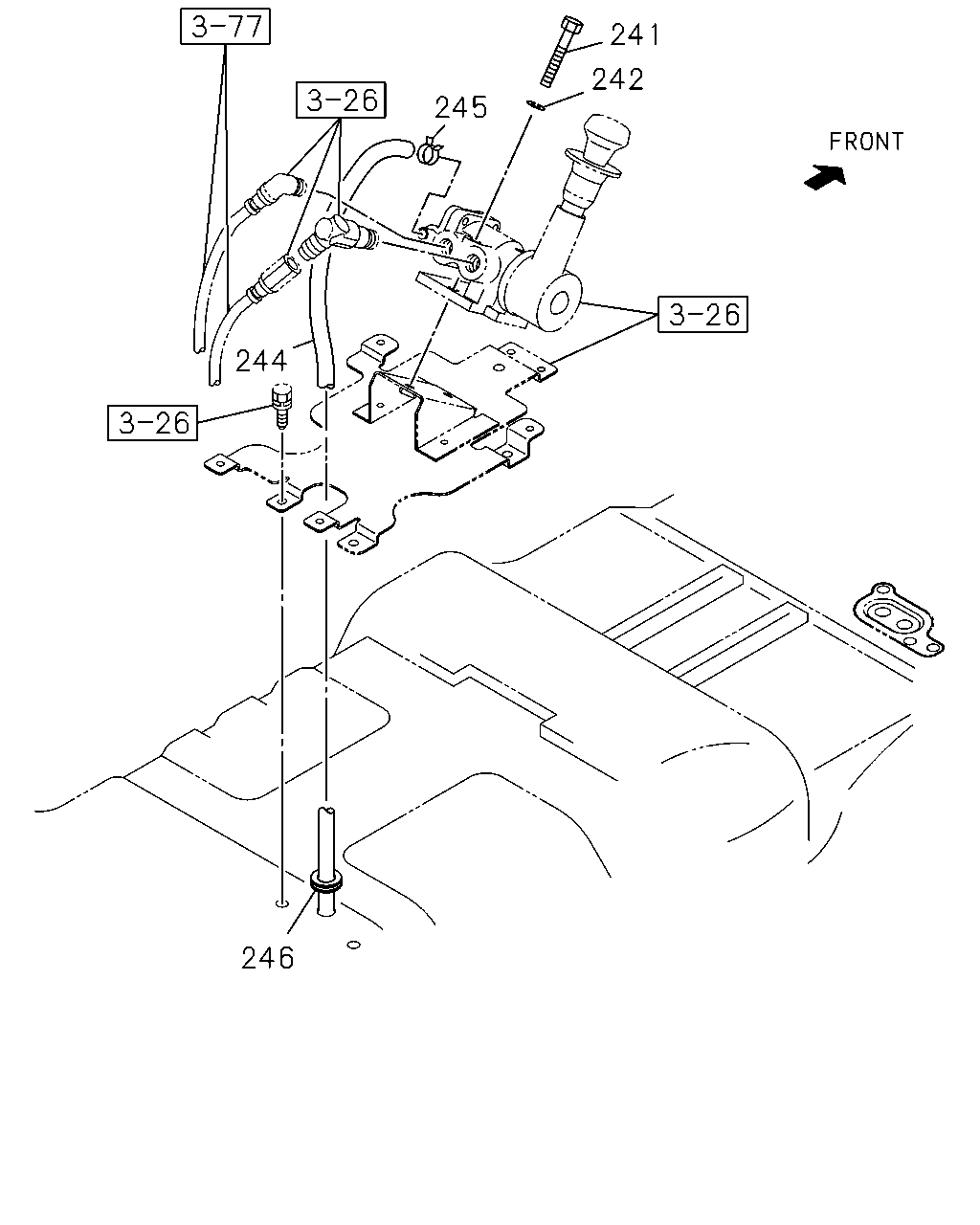

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9601-9704	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9705-9803	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9804-0004	●	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●	●	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●	●
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9601-9704	●	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0004	●	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●	●	●		●
244	PIPE; VINYL,EXH L=220	1-09366-253-0	01	1	9804-0004				●
244	PIPE; VINYL,EXH L=220 SERVICED BY L=10000	9-09914-701-0	01	1	0005-				●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	02	1	0201-				●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	9601-0004	●	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0005-0112	●	●	●	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0201-	●	●	●		●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	02	1	9804-0004				●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9601-0004	●	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0005-	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
