◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#63824) — 1095 parça

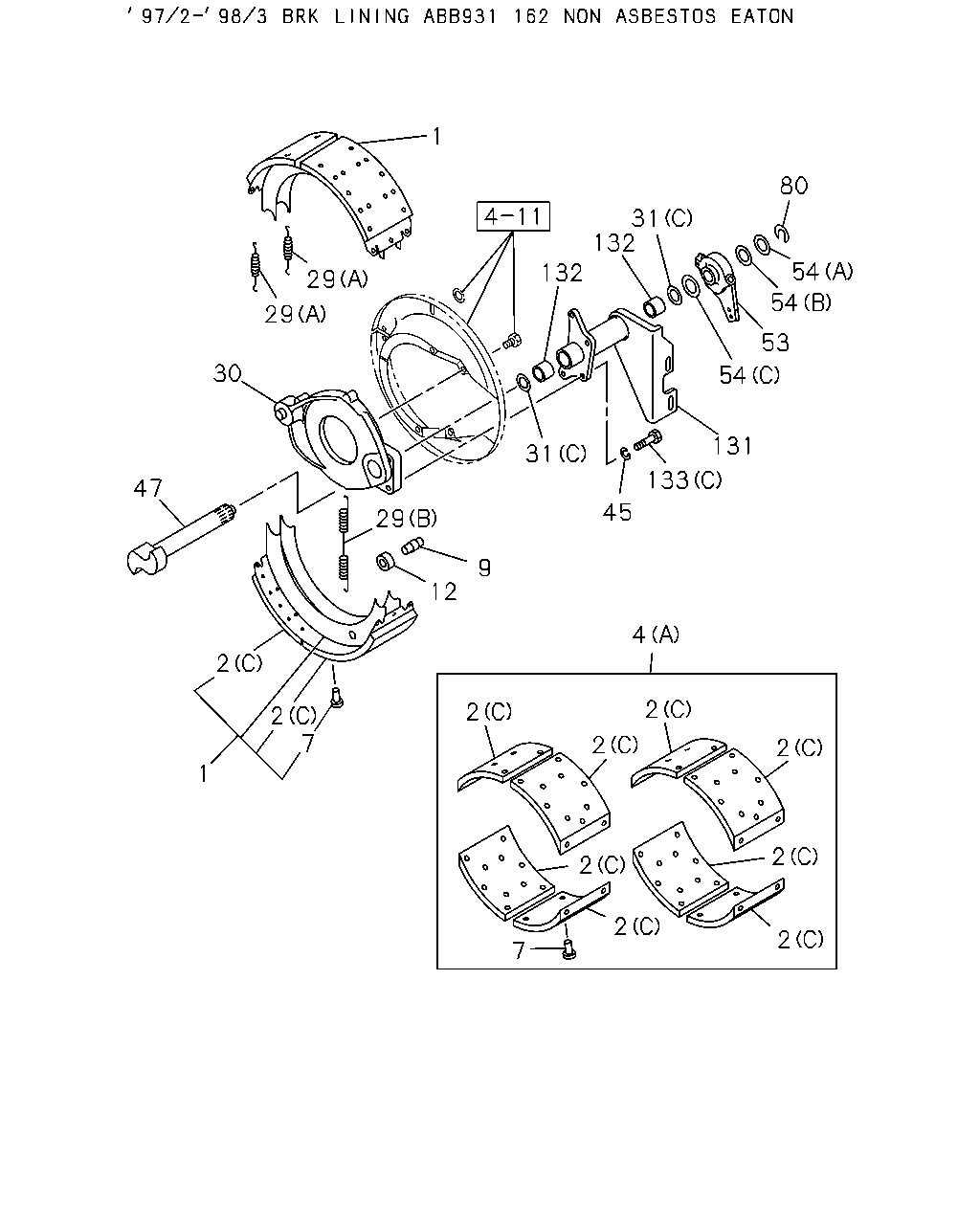

çizim 184204
30 47 1 2 2 7 12 9 29 29 29 132 132 31 45 133 131 54 53 54 54 80 31 4 2 2 2 7 2 2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9601-9701 ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9702-9803 ●
1 SHOE; BRK,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47120-402-0 04 1 9702-9803 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9804-0004 ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0005-0011 ● ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0012-0109 ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0012-0109 ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0110-0211 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0110-0211 ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0212- ●
1 SHOE; BRK,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-766-0 04 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47125-496-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47125-497-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-767-0 08 1 9702-9803 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0212- ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0212- ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-768-0 01 1 9702-9803 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0212- ● ● ● ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0012-0201 ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0202-0211 ● ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0212- ● ● ● ●
7 RIVET; LINING,FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-377-0 80 1 9702-9803 ● ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0012-0201 ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0202-0211 ● ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0212- ● ● ● ●
9 PIN; SHOE HOLDER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-380-0 04 1 9702-9803 ● ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0012-0201 ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0202-0211 ● ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9601-9701 ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9702-9803 ●
12 ROLLER; CAM,BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-117-0 02 1 9702-9803 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9804-0004 ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0005-0011 ● ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0012-0109 ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0012-0109 ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0110-0211 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0110-0211 ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0212- ●
12 ROLLER; CAM,BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-379-0 04 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0012-0201 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0202-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47119-114-0 04 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47119-119-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-313-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-384-0 04 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-333-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-334-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-770-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-769-0 01 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0012-0201 ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0202-0211 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0212- ● ● ● ●

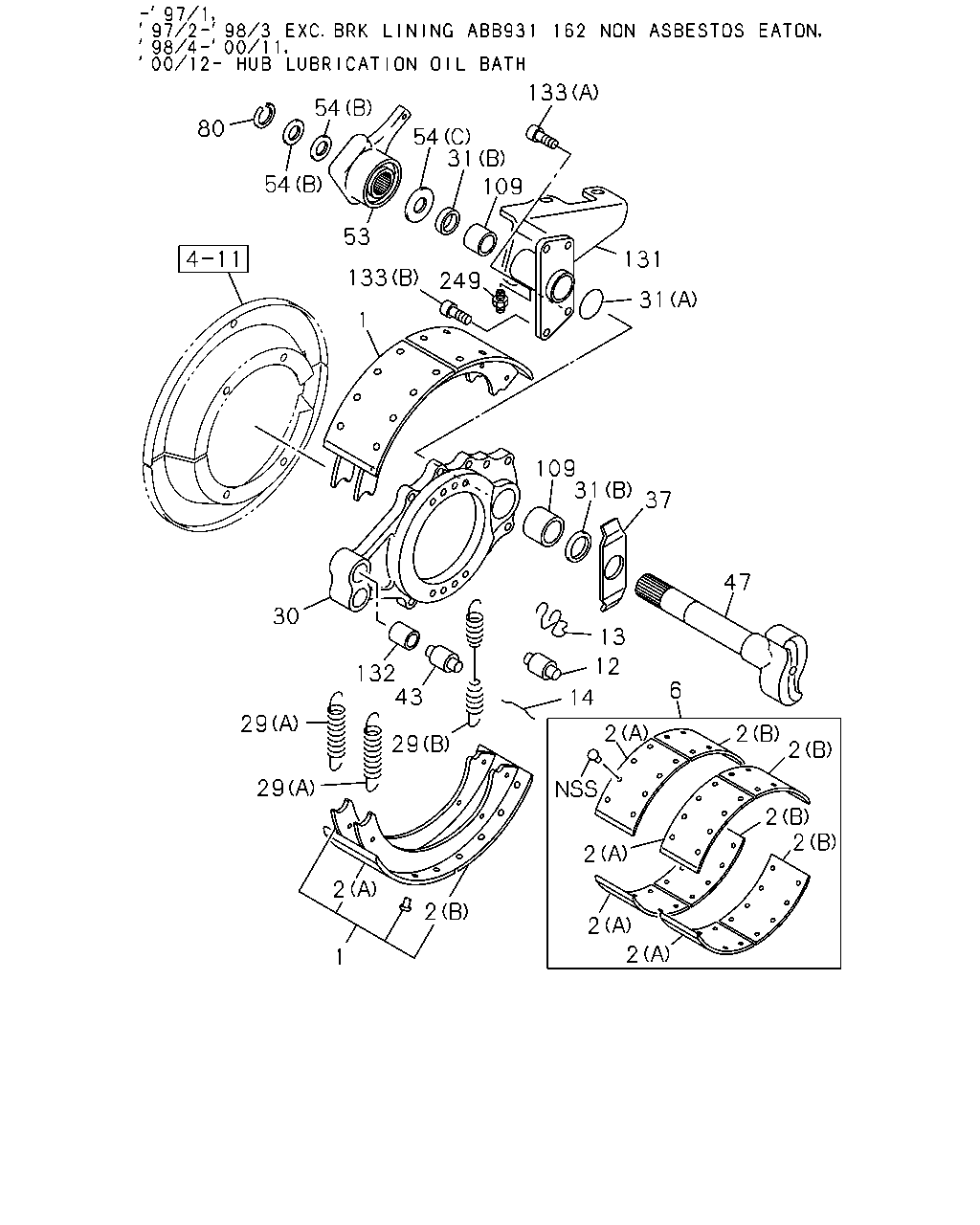

31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47149-056-0 02 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0212- ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-057-0 04 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0212- ●
31 SEAL; OIL,CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-386-0 04 1 9702-9803 ● ●

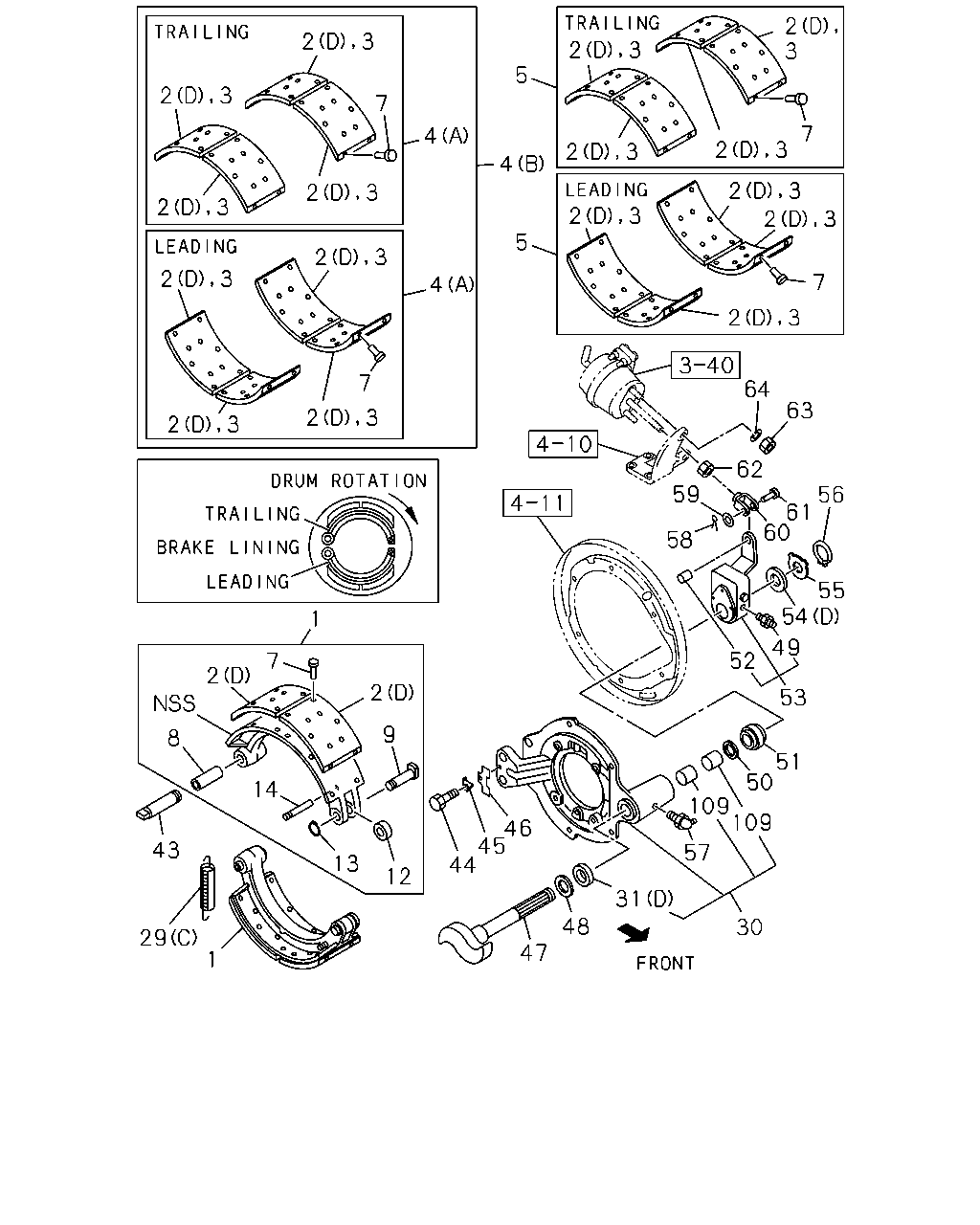

45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0012-0201 ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0202-0211 ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0212- ● ● ● ●
45 WASHER; LK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-403-0 08 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-100-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-101-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-778-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-777-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-080-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-111-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-111-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-081-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-112-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-112-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-776-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-775-0 01 1 9702-9803 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0012-0201 ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0202-0211 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-47149-058-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0212- ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-059-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0212- ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-368-0 04 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-374-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-381-0 02 1 9702-9803 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-9701 ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9702-9803 ●
80 RING; SNAP,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87050-005-0 02 1 9702-9803 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9804-0004 ● ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0005-0011 ● ● ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0012-0109 ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0012-0109 ● ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0110-0211 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0110-0211 ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0212- ● ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0212- ●
80 RING; SNAP,CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-388-0 02 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9601-9701 ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9702-9803 ●
131 BRACKET; POWER CHAMBER
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48258-160-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9804-0004 ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0005-0011 ● ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0012-0109 ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0012-0109 ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0110-0211 ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0110-0211 ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0212- ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0212- ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9601-9701 ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9702-9803 ●
131 BRACKET; POWER CHAMBER
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48258-161-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9804-0004 ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0005-0011 ● ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0012-0109 ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0012-0109 ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0110-0211 ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0110-0211 ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0212- ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0212- ●
131 BRACKET; POWER CHAMBER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-772-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-771-0 01 1 9702-9803 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9601-9701 ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9702-9803 ●
132 BUSHING; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47139-117-0 04 1 9702-9803 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9804-0004 ● ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0005-0011 ● ● ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0012-0109 ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0012-0109 ● ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0110-0211 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0110-0211 ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0212- ● ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0212- ●
132 BUSHING; BRKT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-312-0 04 1 9702-9803 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9601-9701 ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9702-9803 ●
133 BOLT; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47139-118-0 06 1 9702-9803 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9804-0004 ● ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0005-0011 ● ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0012-0109 ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0012-0109 ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0110-0211 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0110-0211 ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0212- ● ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0212- ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9601-9701 ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9702-9803 ●
133 BOLT; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47139-119-0 02 1 9702-9803 ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9804-0004 ● ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0005-0011 ● ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0012-0109 ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0012-0109 ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0110-0211 ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0110-0211 ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0212- ● ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0212- ●
133 BOLT; BRKT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-378-0 08 1 9702-9803 ● ●
çizim 184364
9 2 1 7 2 8 14 13 12 43 1 29 47 46 45 48 44 31 30 57 51 109 109 53 50 52 55 54 49 56 61 60 59 58 63 62 64 3 2 7 3 2 3 2 2 7 3 3 2 3 2 2 5 4 5 3 3 2 4 4 7 3 2 3 3 2 2 3 2 2 2 3 3 3 2 2 7 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9601-9701 ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9702-9803 ●
1 SHOE; BRK,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47120-402-0 04 1 9702-9803 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9804-0004 ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0005-0011 ● ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0012-0109 ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0012-0109 ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0110-0211 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0110-0211 ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0212- ●
1 SHOE; BRK,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-766-0 04 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47125-496-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47125-497-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-767-0 08 1 9702-9803 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47125-794-0 04 1 0012-0201 ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47125-794-0 04 1 0202-0211 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47125-794-0 04 1 0212- ● ● ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47125-796-0 04 1 0012-0201 ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47125-796-0 04 1 0202-0211 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47125-796-0 04 1 0212- ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) LEADING 		1-88310-497-0 01 1 0212- ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (A) TRAILING 		1-88310-499-0 01 1 0212- ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-768-0 01 1 9702-9803 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0012-0201 ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0202-0211 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING,TRAILING BEST VALUE PARTS 		1-87610-125-0 01 1 0212- ● ● ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-88310-498-0 01 1 0012-0201 ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-88310-498-0 01 1 0202-0211 ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-88310-498-0 01 1 0212- ● ● ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-88310-500-0 01 1 0012-0201 ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-88310-500-0 01 1 0202-0211 ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-88310-500-0 01 1 0212- ● ● ● ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0012-0201 ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0202-0211 ● ●
7 RIVET; LINING,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> L=18.5 		1-09732-034-0 80 1 0212- ● ● ● ●
7 RIVET; LINING,FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-377-0 80 1 9702-9803 ● ●
8 BUSHING; BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-011-0 04 1 0012-0201 ●
8 BUSHING; BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-011-0 04 1 0202-0211 ● ●
8 BUSHING; BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-011-0 04 1 0212- ● ● ● ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0012-0201 ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0202-0211 ● ●
9 PIN; SHOE HOLDER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-060-0 04 1 0212- ● ● ● ●
9 PIN; SHOE HOLDER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-380-0 04 1 9702-9803 ● ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0012-0201 ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0202-0211 ● ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9601-9701 ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9702-9803 ●
12 ROLLER; CAM,BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-117-0 02 1 9702-9803 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9804-0004 ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0005-0011 ● ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0012-0109 ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0012-0109 ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0110-0211 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0110-0211 ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0212- ●
12 ROLLER; CAM,BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-379-0 04 1 9702-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0012-0201 ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0202-0211 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0212- ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9601-9701 ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9702-9803 ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-118-0 02 1 9702-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9804-0004 ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0005-0011 ● ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0012-0109 ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0012-0109 ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0110-0211 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0110-0211 ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0212- ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0212- ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0012-0201 ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0202-0211 ● ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0212- ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9601-9701 ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9702-9803 ●
14 PIN; SHOE RETURN SPR
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-116-0 02 1 9702-9803 ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9804-0004 ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0005-0011 ● ● ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0012-0109 ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0012-0109 ● ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0110-0211 ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0110-0211 ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0212- ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0012-0201 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0202-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47119-114-0 04 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47119-119-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-313-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-384-0 04 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-333-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-334-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-770-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-769-0 01 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0012-0201 ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0202-0211 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47149-056-0 02 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0212- ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-057-0 04 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0212- ●
31 SEAL; OIL,CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-386-0 04 1 9702-9803 ● ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0012-0201 ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0202-0211 ● ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0212- ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9601-9701 ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9702-9803 ●
43 PIN; ANCHOR
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47131-046-0 04 1 9702-9803 ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9804-0004 ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0005-0011 ● ● ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0012-0109 ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0012-0109 ● ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0110-0211 ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0110-0211 ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0212- ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0212- ●
44 BOLT; LOCK,ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		0-20801-016-0 02 1 0012-0201 ●
44 BOLT; LOCK,ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		0-20801-016-0 02 1 0202-0211 ● ●
44 BOLT; LOCK,ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		0-20801-016-0 02 1 0212-0512 ● ● ● ●
44 BOLT; LOCK,ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		0-20851-016-0 02 1 0601- ● ● ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0012-0201 ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0202-0211 ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 0212- ● ● ● ●
45 WASHER; LK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-403-0 08 1 9702-9803 ● ●
46 PLATE; LOCK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-005-0 02 1 0012-0201 ●
46 PLATE; LOCK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-005-0 02 1 0202-0211 ● ●
46 PLATE; LOCK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-005-0 02 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-100-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-101-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-778-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-777-0 01 1 9702-9803 ● ●
48 RING; SPACER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-005-0 02 1 0012-0201 ●
48 RING; SPACER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-005-0 02 1 0202-0211 ● ●
48 RING; SPACER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-005-0 02 1 0212- ● ● ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0201 ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0202-0211 ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0212-0512 ● ● ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0012-0201 ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0202-0211 ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0212-0512 ● ● ● ●
49 NIPPLE; GREASE,SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ● ●
50 RING; FELT,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09620-009-0 02 1 0012-0201 ●
50 RING; FELT,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09620-009-0 02 1 0202-0211 ● ●
50 RING; FELT,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09620-009-0 02 1 0212- ● ● ● ●
51 COLLAR; RING,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-016-0 02 1 0012-0201 ●
51 COLLAR; RING,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-016-0 02 1 0202-0211 ● ●
51 COLLAR; RING,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47143-016-0 02 1 0212- ● ● ● ●
52 BUSHING; SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09330-041-0 02 1 0012-0201 ●
52 BUSHING; SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09330-041-0 02 1 0202-0211 ● ●
52 BUSHING; SLACK ADJ
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09330-041-0 02 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-080-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-111-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-111-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-081-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-112-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-112-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-776-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-775-0 01 1 9702-9803 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0012-0201 ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0202-0211 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-47149-058-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0212- ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-059-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0212- ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-368-0 04 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-374-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-381-0 02 1 9702-9803 ● ●
55 PLATE; STOPPER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47149-021-0 02 1 0012-0201 ●
55 PLATE; STOPPER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47149-021-0 02 1 0202-0211 ● ●
55 PLATE; STOPPER,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47149-021-0 02 1 0212- ● ● ● ●
56 CLIP; ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-09180-038-0 02 1 0012-0201 ●
56 CLIP; ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-09180-038-0 02 1 0202-0211 ● ●
56 CLIP; ANCHOR PIN
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-09180-038-0 02 1 0212- ● ● ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0012-0201 ●
57 NIPPLE; GREASE,ANCHOR BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0202-0211 ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0212-0512 ● ● ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
EXC. HUB LUBRICATION OIL BATH<C5K> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
58 PIN; SPLIT,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28 		9-08114-028-0 02 1 0012-0201 ●
58 PIN; SPLIT,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28 		9-08114-028-0 02 1 0202-0211 ● ●
58 PIN; SPLIT,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28 		9-08114-028-0 02 1 0212-0606 ● ● ● ●
58 PIN; SPLIT,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> OD=3.7 L=28 		0-81124-028-0 02 1 0607- ● ● ● ●
59 WASHER; PL,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> ID=17 OD=32 		9-09160-616-0 02 1 0012-0201 ●
59 WASHER; PL,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> ID=17 OD=32 		9-09160-616-0 02 1 0202-0211 ● ●
59 WASHER; PL,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> ID=17 OD=32 		9-09160-616-0 02 1 0212- ● ● ● ●
60 JOINT; JAW,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09768-060-1 02 1 0012-0201 ●
60 JOINT; JAW,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09768-060-1 02 1 0202-0211 ● ●
60 JOINT; JAW,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09768-060-1 02 1 0212- ● ● ● ●
61 PIN; JAW JOINT,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-088-0 02 1 0012-0201 ●
61 PIN; JAW JOINT,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-088-0 02 1 0202-0211 ● ●
61 PIN; JAW JOINT,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-09744-088-0 02 1 0212- ● ● ● ●
62 NUT; LK,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99111-416-0 02 1 0012-0201 ●
62 NUT; LK,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99111-416-0 02 1 0202-0211 ● ●
62 NUT; LK,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99111-416-0 02 1 0212-0512 ● ● ● ●
62 NUT; LK,JAW JOINT
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		0-91111-516-0 02 1 0601- ● ● ● ●
63 NUT; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99110-416-0 04 1 0012-0201 ●
63 NUT; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99110-416-0 04 1 0202-0211 ● ●
63 NUT; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		9-99110-416-0 04 1 0212-0512 ● ● ● ●
63 NUT; POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> M16 		0-91110-516-0 04 1 0601- ● ● ● ●
64 WASHER; LK,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2 		9-09150-516-0 04 1 0012-0201 ●
64 WASHER; LK,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2 		9-09150-516-0 04 1 0202-0211 ● ●
64 WASHER; LK,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2 		9-09150-516-0 04 1 0212-0603 ● ● ● ●
64 WASHER; LK,POWER CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2 		0-91510-516-0 04 1 0604- ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0012-0201 ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0202-0211 ● ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0212- ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9601-9701 ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9702-9803 ●
109 BUSHING; CM/SHF,FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47146-014-0 04 1 9702-9803 ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9804-0004 ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0005-0011 ● ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0012-0109 ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0012-0109 ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0110-0211 ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0110-0211 ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0212- ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0212- ●
çizim 184376
133 54 54 31 109 80 54 53 131 133 249 31 1 109 31 37 47 30 13 12 132 43 6 14 29 2 2 2 29 29 2 2 2 2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-711-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-712-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47120-709-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0012-0201 ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0202-0211 ● ●
1 SHOE; BRK,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47120-710-0 01 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9601-9701 ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9702-9803 ●
1 SHOE; BRK,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47120-402-0 04 1 9702-9803 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 9804-0004 ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0005-0011 ● ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0012-0109 ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0012-0109 ● ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0110-0211 ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0110-0211 ● ● ●
1 SHOE; BRK,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47120-402-0 04 1 0212- ● ● ● ●
1 SHOE; BRK,FRT 1-47120-402-0 04 1 0212- ●
1 SHOE; BRK,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-766-0 04 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) LEADING 		1-47125-793-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0012-0201 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0202-0211 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. HUB LUBRICATION OIL BATH<C5K> (D) TRAILING 		1-47125-795-0 04 1 0212- ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47125-496-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47125-496-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9601-9701 ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9702-9803 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47125-497-0 01 1 9702-9803 ● ●
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47125-497-0 01 1 9804-0004 ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-767-0 08 1 9702-9803 ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 9601-9701 ● ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 9702-9803 ●
6 LINING KIT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87050-155-0 01 1 9702-9803 ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 9804-0004 ● ● ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 0005-0011 ● ● ● ● ●
6 LINING KIT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-87050-155-0 01 1 0012-0109 ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 0012-0109 ● ● ● ●
6 LINING KIT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-87050-155-0 01 1 0110-0211 ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 0110-0211 ● ● ●
6 LINING KIT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-87050-155-0 01 1 0212- ● ● ● ●
6 LINING KIT; FRT BRK 1-87050-155-0 01 1 0212- ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0012-0201 ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0202-0211 ● ●
12 ROLLER; CAM,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47113-007-0 04 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9601-9701 ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9702-9803 ●
12 ROLLER; CAM,BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-117-0 02 1 9702-9803 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 9804-0004 ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0005-0011 ● ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0012-0109 ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0012-0109 ● ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0110-0211 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0110-0211 ● ● ●
12 ROLLER; CAM,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-117-0 02 1 0212- ● ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 02 1 0212- ●
12 ROLLER; CAM,BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-379-0 04 1 9702-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0012-0201 ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0202-0211 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-47119-022-0 04 1 0212- ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9601-9701 ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9702-9803 ●
13 CLIP; ROLLER PIN,BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-118-0 02 1 9702-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 9804-0004 ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0005-0011 ● ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0012-0109 ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0012-0109 ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0110-0211 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0110-0211 ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE
HUB LUBRICATION OIL BATH<C5K> 		1-47119-118-0 02 1 0212- ● ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0212- ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0012-0201 ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0202-0211 ● ●
14 PIN; SHOE RETURN SPR
EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5 		1-47119-017-1 04 1 0212- ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9601-9701 ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9702-9803 ●
14 PIN; SHOE RETURN SPR
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47119-116-0 02 1 9702-9803 ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 9804-0004 ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0005-0011 ● ● ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0012-0109 ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0012-0109 ● ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0110-0211 ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0110-0211 ● ● ●
14 PIN; SHOE RETURN SPR
HUB LUBRICATION OIL BATH<C5K> 		1-47119-116-0 02 1 0212- ● ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-116-0 02 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0012-0201 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0202-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. HUB LUBRICATION OIL BATH<C5K> (C) 		1-09583-185-2 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47119-114-0 04 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-114-0 04 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9601-9701 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9702-9803 ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47119-119-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 9804-0004 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0005-0011 ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0012-0109 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0012-0109 ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0110-0211 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0110-0211 ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47119-119-0 02 1 0212- ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0212- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-313-0 02 1 9702-9803 ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-384-0 04 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-119-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0012-0201 ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0202-0211 ● ●
30 BRACKET; ANCHOR,FRT
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47137-118-3 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-333-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-333-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-333-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9601-9701 ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9702-9803 ●
30 BRACKET; ANCHOR,FRT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47137-334-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 9804-0004 ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0005-0011 ● ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0012-0109 ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0012-0109 ● ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0110-0211 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0110-0211 ● ● ●
30 BRACKET; ANCHOR,FRT
HUB LUBRICATION OIL BATH<C5K> 		1-47137-334-0 01 1 0212- ● ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-334-0 01 1 0212- ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-770-0 01 1 9702-9803 ● ●
30 BRACKET; ANCHOR,FRT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-769-0 01 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0012-0201 ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0202-0211 ● ●
31 SEAL; OIL,CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-09625-228-0 02 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47149-056-0 02 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47149-056-0 02 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0212- ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9601-9701 ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9702-9803 ●
31 SEAL; OIL,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-057-0 04 1 9702-9803 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 9804-0004 ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0005-0011 ● ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0012-0109 ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0012-0109 ● ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0110-0211 ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0110-0211 ● ● ●
31 SEAL; OIL,CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-057-0 04 1 0212- ● ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 04 1 0212- ●
31 SEAL; OIL,CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-386-0 04 1 9702-9803 ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 9601-9701 ● ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 9702-9803 ●
37 WASHER; ADJ CAM
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47149-079-0 02 1 9702-9803 ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 9804-0004 ● ● ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 0005-0011 ● ● ● ● ●
37 WASHER; ADJ CAM
HUB LUBRICATION OIL BATH<C5K> 		1-47149-079-0 02 1 0012-0109 ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 0012-0109 ● ● ● ●
37 WASHER; ADJ CAM
HUB LUBRICATION OIL BATH<C5K> 		1-47149-079-0 02 1 0110-0211 ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 0110-0211 ● ● ●
37 WASHER; ADJ CAM
HUB LUBRICATION OIL BATH<C5K> 		1-47149-079-0 02 1 0212- ● ● ● ●
37 WASHER; ADJ CAM 1-47149-079-0 02 1 0212- ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0012-0201 ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0202-0211 ● ●
43 PIN; ANCHOR
EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5 		1-47131-038-0 04 1 0212- ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9601-9701 ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9702-9803 ●
43 PIN; ANCHOR
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47131-046-0 04 1 9702-9803 ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 9804-0004 ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0005-0011 ● ● ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0012-0109 ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0012-0109 ● ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0110-0211 ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0110-0211 ● ● ●
43 PIN; ANCHOR
HUB LUBRICATION OIL BATH<C5K> 		1-47131-046-0 04 1 0212- ● ● ● ●
43 PIN; ANCHOR 1-47131-046-0 04 1 0212- ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-052-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0012-0201 ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0202-0211 ● ●
47 CAMSHAFT; FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47141-051-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-100-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-100-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-100-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9601-9701 ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9702-9803 ●
47 CAMSHAFT; FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47141-101-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 9804-0004 ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0005-0011 ● ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0012-0109 ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0012-0109 ● ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0110-0211 ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0110-0211 ● ● ●
47 CAMSHAFT; FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47141-101-0 01 1 0212- ● ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-101-0 01 1 0212- ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-778-0 01 1 9702-9803 ● ●
47 CAMSHAFT; FRT BRK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-777-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-044-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0012-0201 ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0202-0211 ● ●
53 ADJUSTER ASM; SLACK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48270-043-0 01 1 0212- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-080-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-080-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-080-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-111-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-111-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9601-9701 ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9702-9803 ●
53 ADJUSTER ASM; SLACK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48270-081-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 9804-0004 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0005-0011 ● ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0012-0109 ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0012-0109 ● ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0110-0211 ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0110-0211 ● ● ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-081-0 01 1 0212-1209 ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-081-0 01 1 0212-1209 ●
53 ADJUSTER ASM; SLACK
HUB LUBRICATION OIL BATH<C5K> 		1-48270-112-0 01 1 1210- ● ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-112-0 01 1 1210- ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-776-0 01 1 9702-9803 ● ●
53 ADJUSTER ASM; SLACK
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-775-0 01 1 9702-9803 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0012-0201 ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0202-0211 ● ●
54 SPACER; CM/SHF
EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		1-47143-004-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-47149-058-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (C) 		1-47149-058-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-058-0 02 1 0212- ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9601-9701 ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9702-9803 ●
54 SPACER; CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47149-059-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 9804-0004 ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0005-0011 ● ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0012-0109 ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0012-0109 ● ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0110-0211 ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0110-0211 ● ● ●
54 SPACER; CM/SHF
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47149-059-0 02 1 0212- ● ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0212- ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-87061-368-0 04 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-87061-374-0 02 1 9702-9803 ● ●
54 SPACER; CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-381-0 02 1 9702-9803 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-9701 ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9702-9803 ●
80 RING; SNAP,CM/SHF
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87050-005-0 02 1 9702-9803 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9804-0004 ● ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0005-0011 ● ● ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0012-0109 ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0012-0109 ● ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0110-0211 ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0110-0211 ● ● ●
80 RING; SNAP,CM/SHF
HUB LUBRICATION OIL BATH<C5K> 		1-87050-005-0 02 1 0212- ● ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0212- ●
80 RING; SNAP,CM/SHF
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-388-0 02 1 9702-9803 ● ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0012-0201 ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0202-0211 ● ●
109 BUSHING; CM/SHF,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47146-003-1 04 1 0212- ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9601-9701 ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9702-9803 ●
109 BUSHING; CM/SHF,FRT BRK
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47146-014-0 04 1 9702-9803 ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 9804-0004 ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0005-0011 ● ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0012-0109 ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0012-0109 ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0110-0211 ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0110-0211 ● ● ●
109 BUSHING; CM/SHF,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-47146-014-0 04 1 0212- ● ● ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-014-0 04 1 0212- ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9601-9701 ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9702-9803 ●
131 BRACKET; POWER CHAMBER
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48258-160-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 9804-0004 ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0005-0011 ● ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0012-0109 ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0012-0109 ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0110-0211 ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0110-0211 ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-160-0 01 1 0212- ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-160-0 01 1 0212- ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9601-9701 ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9702-9803 ●
131 BRACKET; POWER CHAMBER
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48258-161-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 9804-0004 ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0005-0011 ● ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0012-0109 ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0012-0109 ● ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0110-0211 ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0110-0211 ● ● ●
131 BRACKET; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48258-161-0 01 1 0212- ● ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-161-0 01 1 0212- ●
131 BRACKET; POWER CHAMBER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-772-0 01 1 9702-9803 ● ●
131 BRACKET; POWER CHAMBER
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-771-0 01 1 9702-9803 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9601-9701 ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9702-9803 ●
132 BUSHING; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-47139-117-0 04 1 9702-9803 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 9804-0004 ● ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0005-0011 ● ● ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0012-0109 ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0012-0109 ● ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0110-0211 ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0110-0211 ● ● ●
132 BUSHING; BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-47139-117-0 04 1 0212- ● ● ● ●
132 BUSHING; BRKT 1-47139-117-0 04 1 0212- ●
132 BUSHING; BRKT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-87061-312-0 04 1 9702-9803 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9601-9701 ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9702-9803 ●
133 BOLT; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (A) 		1-47139-118-0 06 1 9702-9803 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 9804-0004 ● ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0005-0011 ● ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0012-0109 ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0012-0109 ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0110-0211 ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0110-0211 ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-47139-118-0 06 1 0212- ● ● ● ●
133 BOLT; BRKT
(A) 		1-47139-118-0 06 1 0212- ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9601-9701 ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9702-9803 ●
133 BOLT; BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (B) 		1-47139-119-0 02 1 9702-9803 ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 9804-0004 ● ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0005-0011 ● ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0012-0109 ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0012-0109 ● ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0110-0211 ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0110-0211 ● ● ●
133 BOLT; BRKT
HUB LUBRICATION OIL BATH<C5K> (B) 		1-47139-119-0 02 1 0212- ● ● ● ●
133 BOLT; BRKT
(B) 		1-47139-119-0 02 1 0212- ●
133 BOLT; BRKT
BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> (C) 		1-87061-378-0 08 1 9702-9803 ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9601-9701 ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9702-9803 ●
249 NIPPLE; GREASE,CHAMBER BRKT
EXC. BRK LINING ABB931 162 NON ASBESTOS EATON<BBU> 		1-48259-253-0 02 1 9702-9803 ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9804-0004 ● ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0005-0011 ● ● ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-253-0 02 1 0012-0109 ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0012-0109 ● ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-253-0 02 1 0110-0211 ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0110-0211 ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-253-0 02 1 0212- ● ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
