Isuzu WW
▶
TRUCKS
▶
FVR
▶
10704 - FVR/GVR-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85A - POWER TAKE OFF CONTROL
▶

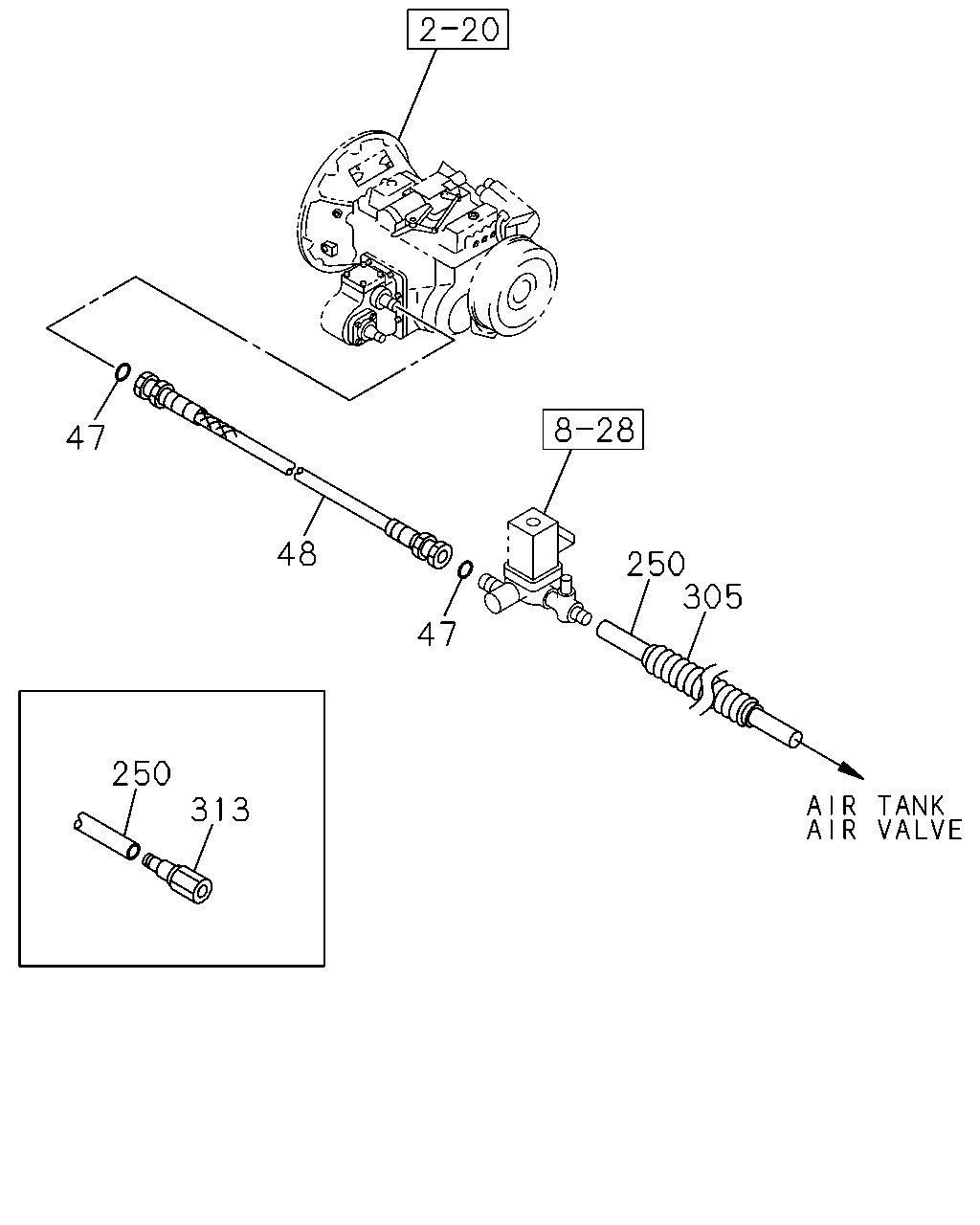

2-85A — POWER TAKE OFF CONTROL
(#63820) — 26 parça
Tümü
A - MLD7Q M/T
B - MLD7R M/T
C - MLD6A M/T
D - MAL6S M/T
E - MLD6E M/T
◀
[285A] FLEX HOSE AND NYLON TUBE (20 parça)
[285A] CONTROL LEVER (6 parça)
▶
47
48
250
305
47
250
313
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
47
GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18
9-09572-510-0
02
1
9601-9903
●
●
●
●
47
GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18
9-09572-510-0
02
1
9904-0204
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=650
0-07150-650-0
01
1
9605-0112
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=550
0-07150-550-0
01
1
0201-0204
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=580
1-09363-613-1
01
1
0205-
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500
0-07150-500-0
01
1
9601-9604
●
●
●
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500
0-07150-500-0
01
1
9605-9706
●
●
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430
0-07150-430-0
01
1
9707-9803
●
●
●
250
TUBE; NYLON
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0301-
●
●
●
●
250
TUBE; NYLON
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
9601-0004
●
●
●
●
●
250
TUBE; NYLON
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
0005-
●
●
●
●
●
250
TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=4000 OD=8
1-87410-074-0
01
1
9601-9805
●
●
●
●
●
250
TUBE; NYLON
NEW ZEALAND EQUIPMENT(PK5) PTO CONTROL<SV6> SERVICED BY L=4000 OD=8
1-87410-074-0
01
1
9806-0004
●
250
TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
9806-0212
●
●
●
●
●
250
TUBE; NYLON
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0301-
●
●
●
●
305
TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
9601-0004
●
●
●
●
●
305
TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0005-
●
●
●
●
●
313
ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
9804-0004
●
●
●
●
313
ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT
1-09661-093-0
01
1
0005-0005
●
●
●
●
313
ADAPTER
PTO CONTROL<SV6> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0006-
●
●
●
●
3
3
1
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
9601-
●
●
●
●
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
9601-
●
●
●
●
●
55
GROMMET; CABLE
1-09983-068-0
01
1
9601-9803
●
●
●
●
●
55
GROMMET; CABLE
1-09983-068-0
01
1
9804-0004
●
●
●
●
●
55
GROMMET; CABLE
1-09983-068-0
01
1
0005-0405
●
●
●
●
●
55
GROMMET; CABLE
1-09983-068-0
01
1
0406-
●
●
●
●
●
