◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#6382) — 25 parça

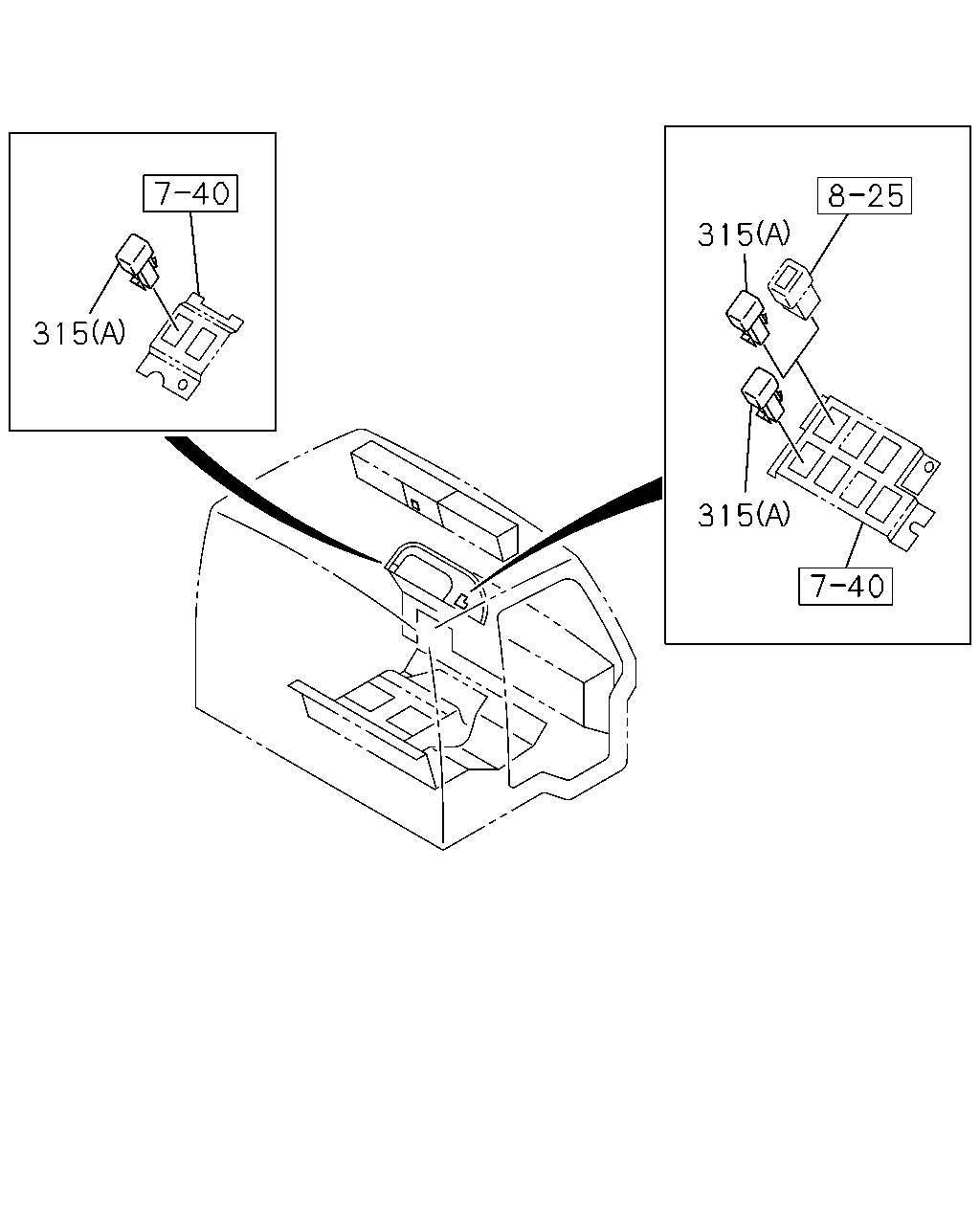

çizim 8536
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9604-9904
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) DUMP TRUCK<RA1> (A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 15 1 9604-9904
315 COVER; HOLE,SW
(A) 		1-82359-069-2 16 1 9905-
315 COVER; HOLE,SW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97043-732-1 06 1 9604-
315 COVER; HOLE,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) DUMP TRUCK<RA1> (A) 		1-82359-069-2 01 1 9604-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 9604-
çizim 41205
116 315 37 296 242 36 250 317
BalonParca AdiParca NoAdetTipApplied Date
36 FASTENER; CENTER CONSOLE
PARKING BRAKE TRANSFER REAR(WB5) D8X13.5 		1-09987-248-1 02 1 9604-
37 SCREW; CONSOLE
PARKING BRAKE TRANSFER REAR(WB5) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9604-
116 COVER; HOLE,CONSOLE,RR
PARKING BRAKE TRANSFER REAR(WB5) 		1-72537-106-0 02 1 9604-
242 TRAY ASM; CTR CONSOLE
PARKING BRAKE TRANSFER REAR(WB5) 		1-72537-134-0 01 1 9604-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9604-
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9604-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9604-9904
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) DUMP TRUCK<RA1> (A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 9905-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 15 1 9604-9904
315 COVER; HOLE,SW
(A) 		1-82359-069-2 16 1 9905-
315 COVER; HOLE,SW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97043-732-1 06 1 9604-
315 COVER; HOLE,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) DUMP TRUCK<RA1> (A) 		1-82359-069-2 01 1 9604-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 9604-
317 CONSENT 1-82523-020-2 01 1 9604-
