◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#63815) — 50 parça

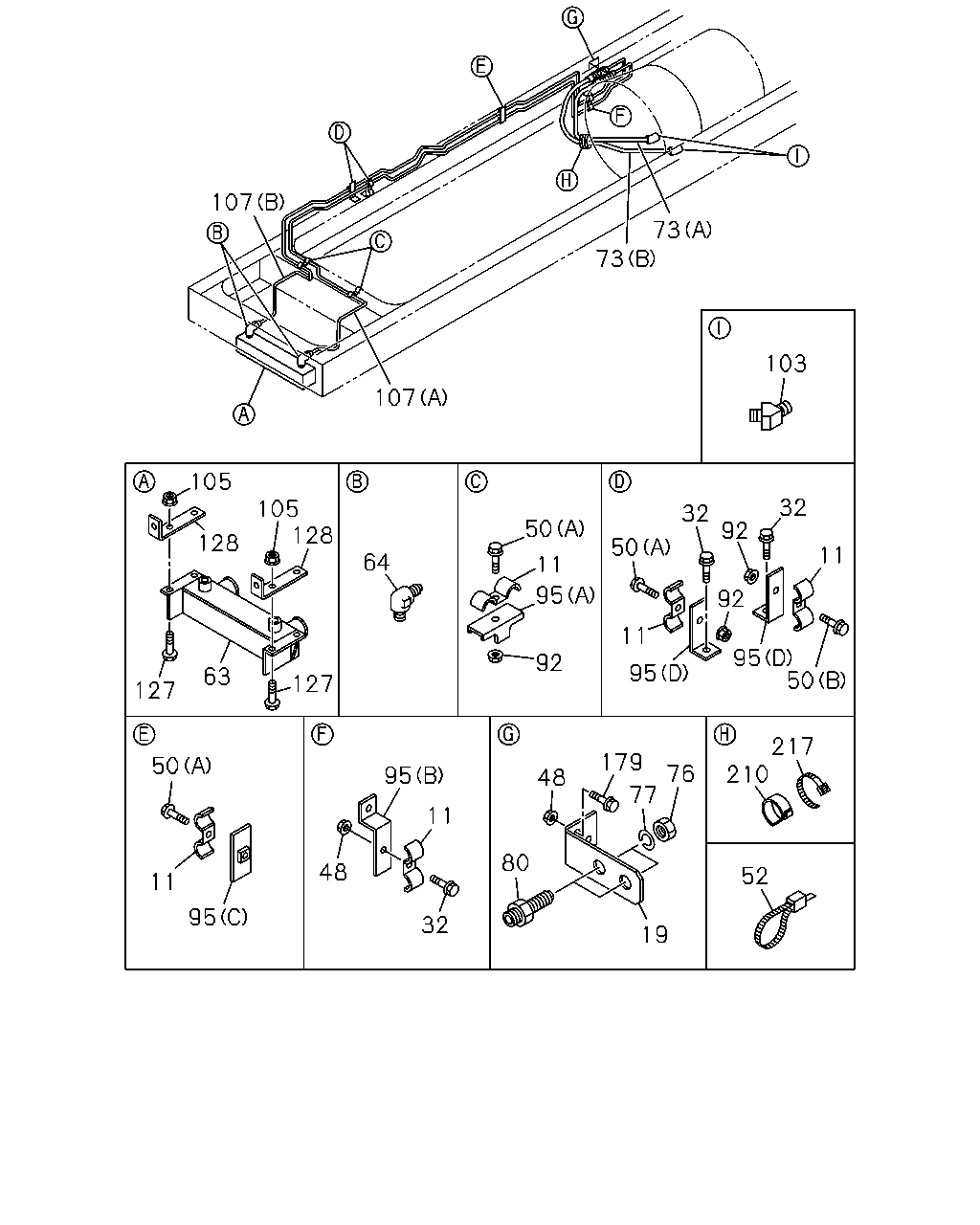

çizim 184187
107 73 73 103 107 105 32 105 128 32 50 92 128 50 11 64 11 92 95 11 95 50 92 95 63 127 127 217 210 179 50 76 77 95 48 11 80 48 52 11 95 32 19
BalonParca AdiParca NoAdetTipApplied Date A B
11 CLIP; PIPE
ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0005- ● ●
11 CLIP; PIPE
ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 05 1 0005- ● ●
19 BRACKET; FLEX HOSE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-47478-704-0 01 1 0005- ● ●
19 BRACKET; FLEX HOSE
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-47478-705-0 01 1 0005- ● ●
32 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512 ● ●
32 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
50 BOLT; CLIP
(B) M8X40 FLANGE 		0-28680-840-0 02 1 0005-0512 ● ●
50 BOLT; CLIP
(B) M8X40 FLANGE 		0-28650-840-0 02 1 0601- ● ●
52 CLIP; FLEX HOSE,A/T
L=500 		1-09707-082-1 01 1 0005- ● ●
63 COOLER; OIL 1-21700-326-1 01 1 0005- ● ●
64 CONNECTOR; OIL COOLER
M22 & PT3/4 ELBOW 		1-09650-277-0 02 1 0005- ● ●
73 HOSE; FLEX,TRANS
(A) L=700 		1-09365-016-0 01 1 0005- ● ●
73 HOSE; FLEX,TRANS
(B) L=750 		1-09365-017-0 01 1 0005- ● ●
76 NUT; FLEX HOSE
M22 		9-09111-422-0 02 1 0005-0512 ● ●
76 NUT; FLEX HOSE
M22 		0-91111-522-0 02 1 0601- ● ●
77 WASHER; LK
ID=22.5 		9-09150-522-0 02 1 0005-0603 ● ●
77 WASHER; LK
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-1 02 1 0005- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
95 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 0005- ● ●
95 BRACKET; CLIP
(A) 		1-47475-427-1 02 1 0005- ● ●
95 BRACKET; CLIP
(D) L=68 		1-47475-525-0 02 1 0005- ● ●
95 BRACKET; CLIP
(B) 		1-47475-702-0 01 1 0005- ● ●
103 CONNECTOR; OIL PIPE 1-34119-114-0 02 1 0006-0112 ●
103 CONNECTOR; OIL PIPE 1-34119-114-0 02 1 0201- ● ●
105 NUT; OIL COOLER
M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ● ●
105 NUT; OIL COOLER
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(A) 		1-49164-864-0 01 1 0005-0008 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(A) 		1-49165-818-0 01 1 0009-0104 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(A) 		1-21117-025-0 01 1 0105-0110 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(A) 		1-21117-180-0 01 1 0111-0111 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(A) 		1-21117-187-0 01 1 0112- ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(B) 		1-49164-865-0 01 1 0005-0008 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(B) 		1-49165-819-0 01 1 0009-0104 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(B) 		1-21117-026-0 01 1 0105-0110 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(B) 		1-21117-181-0 01 1 0111-0111 ● ●
107 PIPE; OIL,COOLER TO FLEX HOSE
(B) 		1-21117-188-0 01 1 0112- ● ●
127 BOLT; COOLER
M8X25 FLANGE 		0-28680-825-0 06 1 0005-0512 ● ●
127 BOLT; COOLER
M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ●
128 BRACKET; COOLER 1-47477-873-0 02 1 0005- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0005- ● ●
217 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 0005-0209 ● ●
217 CLIP; BAND,FLEX HOSE
L=250 		1-09707-126-0 01 1 0210- ● ●
