7-43 — SUN VISOR AND ASSIST GRIP (#6381) — 158 parça

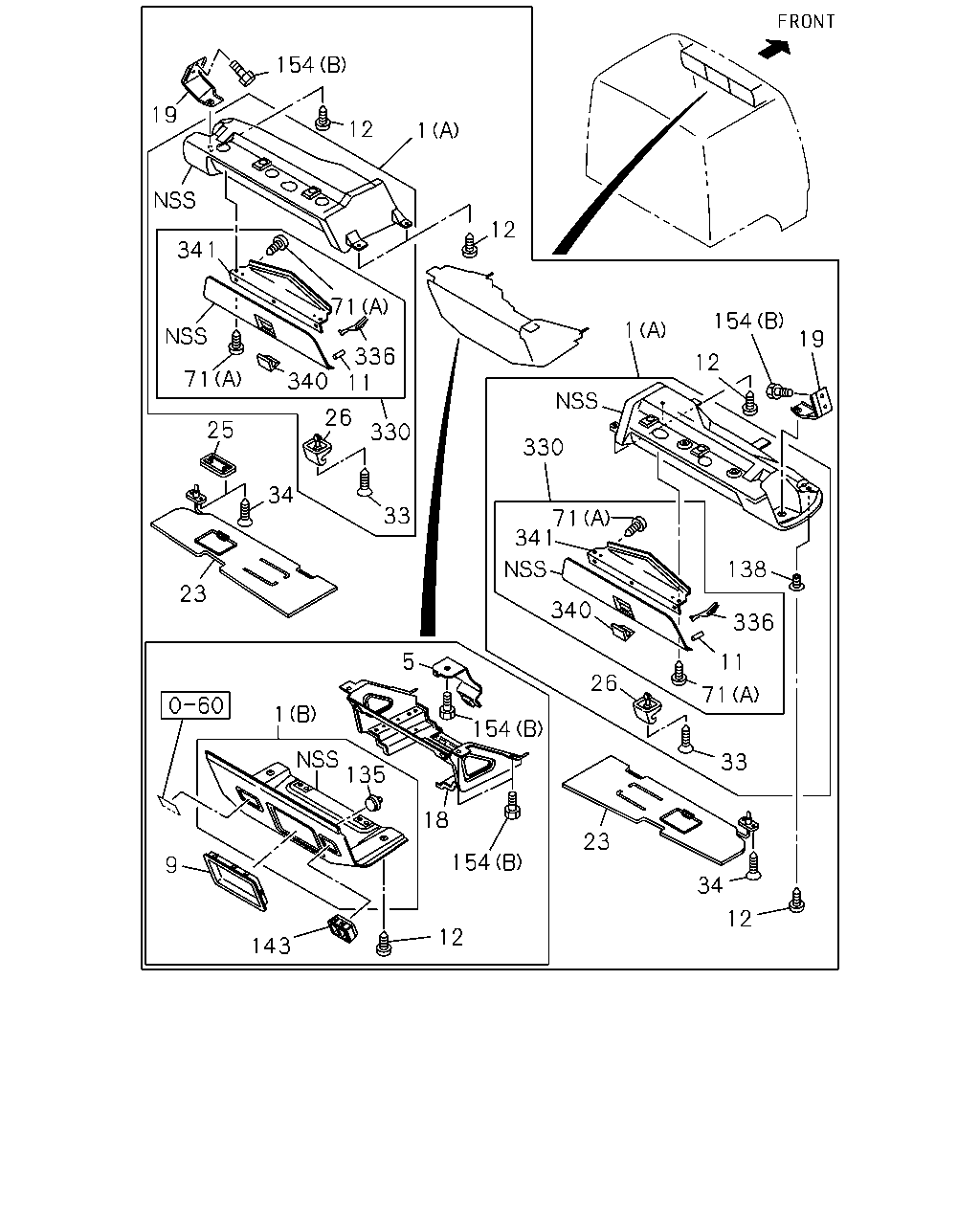

154 19 12 1 12 341 71 154 1 19 336 11 12 71 340 26 25 330 330 34 33 71 341 138 23 340 336 5 11 26 71 1 154 135 33 18 23 154 9 34 12 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9604-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9604-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9604-
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9604-9704
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9604-9904
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9604-0001
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9604-
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9604-9904
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9905-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9604-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9604-9604
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9604-
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9604-
23	SUN VISOR	1-73138-150-1	01	1	9604-
23	SUN VISOR	1-73138-148-1	01	1	9604-9904
23	SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-148-1	01	1	9905-0011
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	0012-
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9604-9904
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-142-0	01	1	9905-0011
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9905-0011
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9604-9904
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB(WY1) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9604-9904
34	SCREW; SUN VISOR EXC. CHEAPER CAB(WY1) M6X25	1-09981-441-0	04	1	9905-0011
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9604-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9604-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9604-9904
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	05	1	9604-9705
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9706-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9604-9904
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB(WY1)	1-09984-166-0	02	1	9905-0011
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9905-0011
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-
143	BEZEL	1-72448-411-0	01	1	9604-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9604-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9604-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9604-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
330	LID; HEADER SHELF	1-72448-360-3	02	1	9604-9904
330	LID; HEADER SHELF	1-72448-360-3	01	1	9905-
336	STAY; LID	1-72448-379-3	04	1	9604-9904
336	STAY; LID	1-72448-379-3	02	1	9905-
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9604-9904
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9905-
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9604-9904
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9905-

106 87 325 55 12 71 83 329 83 1 142 150 48 75 142 72 54 142 71 75 48 54 71 59 48 142 69 49 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9604-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9604-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9604-
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9604-9704
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9604-9904
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9604-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9604-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9604-
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9604-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9904
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9604-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9710-9904
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9604-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9604-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9604-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9604-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9604-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9604-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9604-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9604-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9604-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9604-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9604-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9604-9904
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9604-9612
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	9712-9904
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	9712-9904
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	02	1	9604-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-9904
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9604-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9604-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B) 25X25	8-94272-533-0	04	1	9604-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B) 25X25	8-94272-533-0	07	1	9710-9904
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B) 25X25	8-94272-533-0	04	1	9905-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A)	1-71997-691-0	01	1	9710-9904
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9604-9904
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9905-
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0002-
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0002-

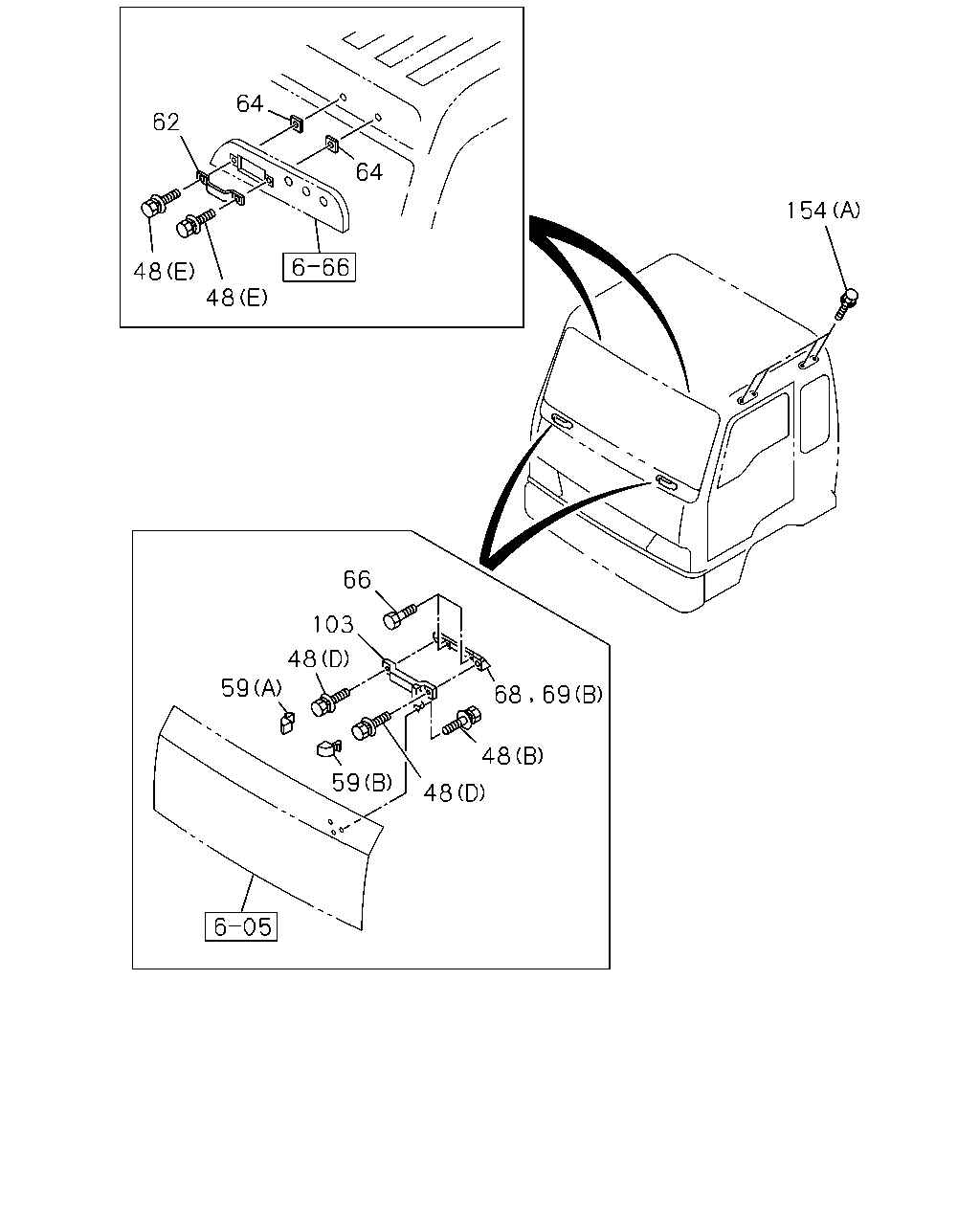

64 62 64 154 48 48 66 103 48 59 48 59 48 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9604-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9604-
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9604-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9904
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9604-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9604-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9604-
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	01	1	9604-9610
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	9611-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9604-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9604-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9604-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9604-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9604-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9604-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9604-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9604-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9604-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9604-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
