2-37C — MANUAL TRANSMISSION CONT; MISSION SIDE (#63808) — 104 parça

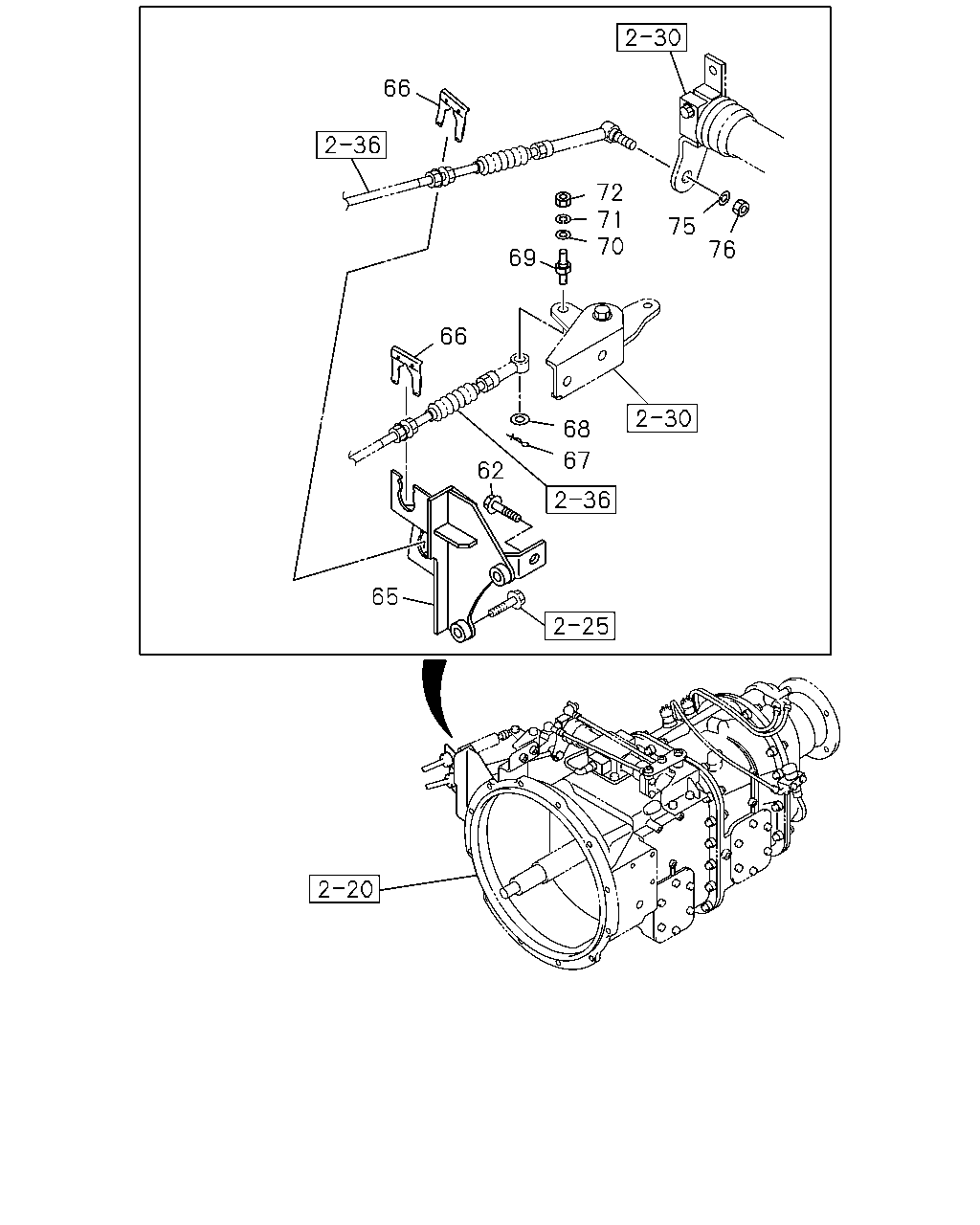

66 72 71 70 75 76 69 66 68 67 62 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0004	●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0005-0512	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9601-9605		●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9804	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-830-0	01	1	0406-			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-647-1	01	1	9601-0004		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-630-0	01	1	9609-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9601-9803	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9804-0004	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0005-1102	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	1103-1509	●		●
67	PIN; SNAP,SELECT WIRE L=27.7	1-09987-141-0	01	1	1510-	●		●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9601-9702	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9601-9803	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9804-0004	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0005-1102	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	1103-	●		●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9601-9803	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9804-0004	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0005-0605	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-1102	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	1103-	●		●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9601-9702	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9810	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0405	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0406-	●		●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9601-9803	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-062-1	01	1	0406-			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0405	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0406-	●		●

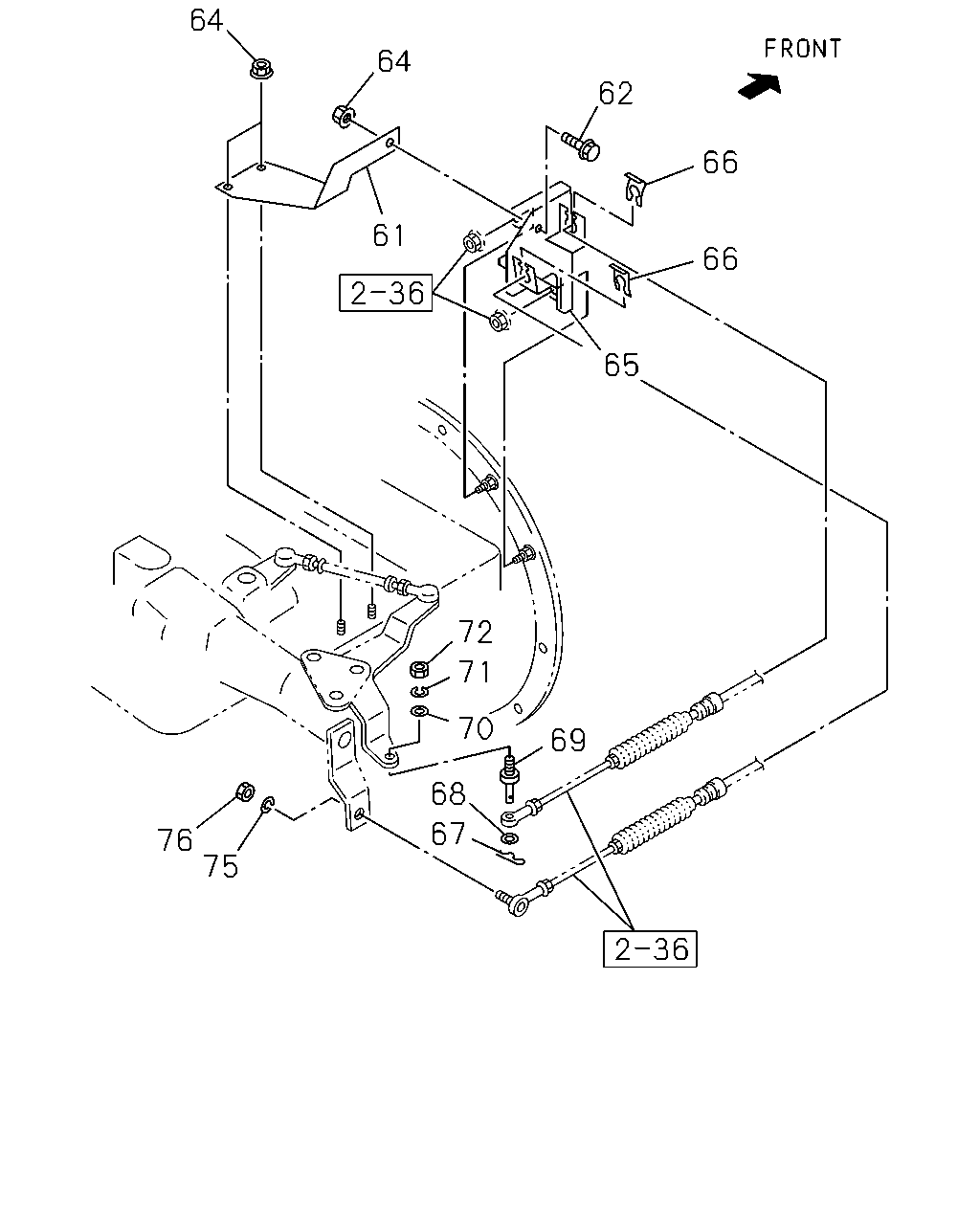

64 64 62 66 61 66 65 72 71 70 69 68 67 76 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	STAY; BRKT,TRANS CONT	1-33657-632-0	01	1	9609-	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0004	●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0005-0512	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9601-9605		●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9804	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	03	1	9609-0602	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	03	1	0603-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-830-0	01	1	0406-			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-647-1	01	1	9601-0004		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-630-0	01	1	9609-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9601-9803	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9804-0004	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0005-1102	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	1103-1509	●		●
67	PIN; SNAP,SELECT WIRE L=27.7	1-09987-141-0	01	1	1510-	●		●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9601-9702	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9601-9803	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9804-0004	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0005-1102	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	1103-	●		●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9601-9803	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9804-0004	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0005-0605	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-1102	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	1103-	●		●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9601-9702	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9810	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0405	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0406-	●		●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9601-9803	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-062-1	01	1	0406-			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0405	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0406-	●		●

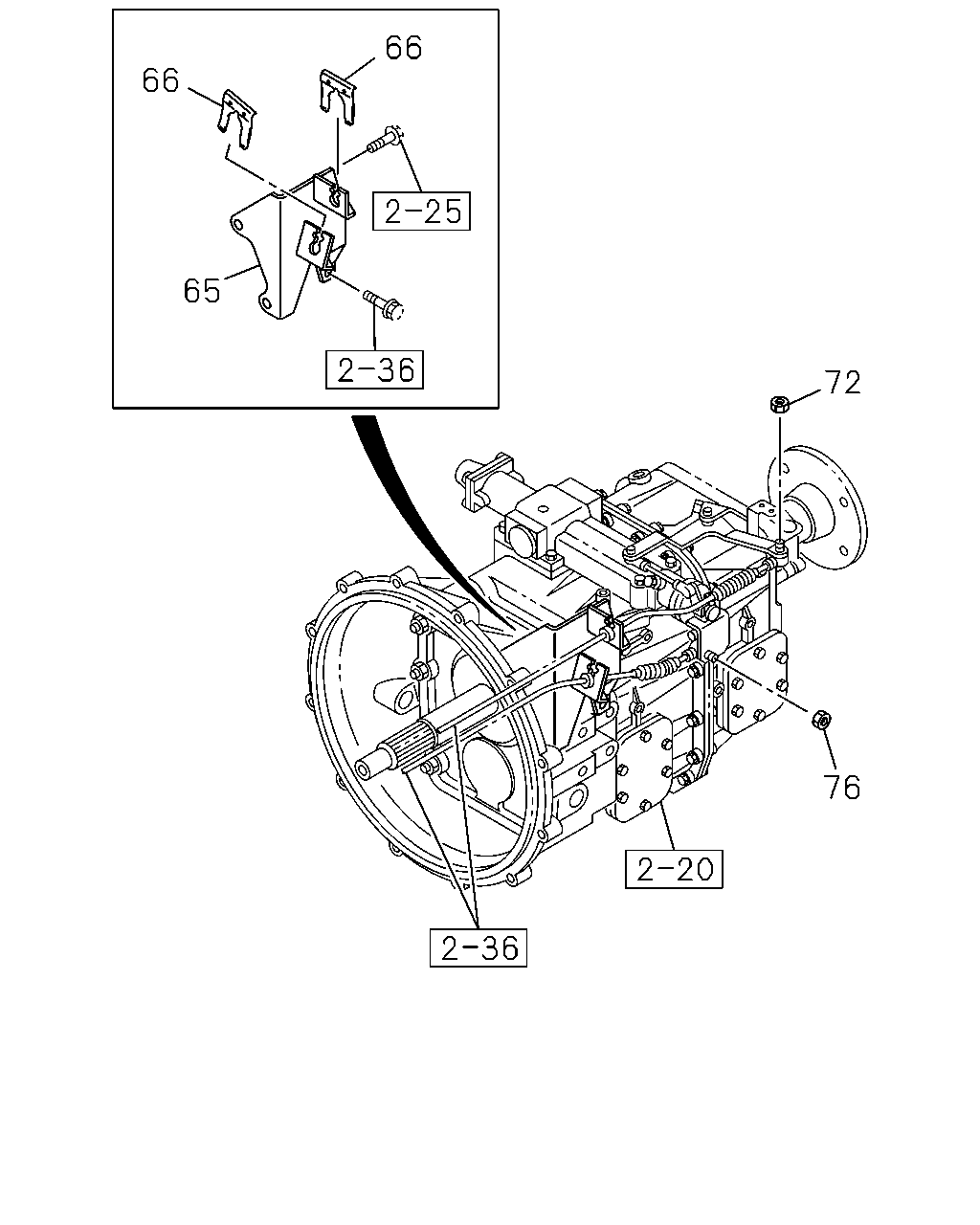

66 66 65 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-830-0	01	1	0406-			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-647-1	01	1	9601-0004		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-630-0	01	1	9609-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9810	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0405	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0406-	●		●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-062-1	01	1	0406-			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0405	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0406-	●		●
