Sayfa 2-36C - Isuzu EPC

2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#63805) — 523 parça

386 385 385 460 387 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0612-	●
385	TUBE; NYLON BLACK	1-33619-543-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-544-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9609-9803	●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) RED	1-33619-545-0	01	1	0609-0611	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9609-9803	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLUE	1-33619-546-0	01	1	0609-0611	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9609-9803	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLACK	1-33619-547-0	01	1	0609-0611	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9609-9803	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) GREEN	1-33619-548-0	01	1	0609-0611	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9803	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0405	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	07	1	9601-9606	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	08	1	9607-9803	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	08	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-0004	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	13	1	0005-0606	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	0607-	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-9803	●	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	0005-0308	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-0405	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (A) L=140	5-09707-031-1	12	1	9908-0004	●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	9601-9803	●	●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	9804-0004		●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	0005-0405	●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	0406-0912	●		●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	1001-	●
460	TUBE; CORRUGATE AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0609-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-	●
460	TUBE; CORRUGATE L=4580 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0004		●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9609-9803	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0608	●
460	TUBE; CORRUGATE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	0609-0611	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-	●

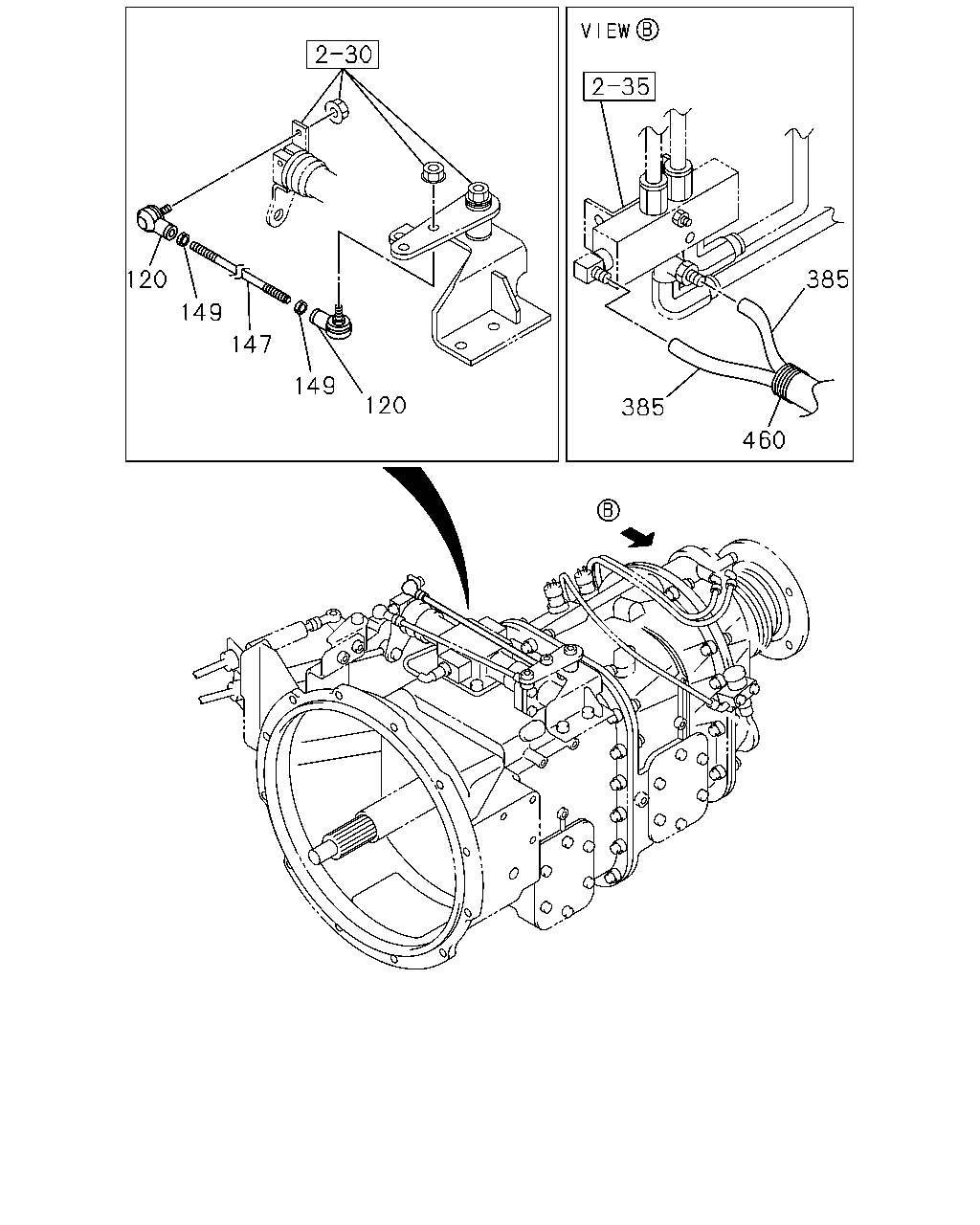

385 120 149 147 149 120 385 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
120	JOINT ASM; BALL,CONT ROD L=45.5	1-09760-118-1	02	1	0406-			●
120	JOINT ASM; BALL,CONT ROD	1-09760-078-0	02	1	9601-0004		●
147	ROD; LINK	1-33652-460-0	01	1	0406-			●
147	ROD; LINK	1-09765-227-0	01	1	9601-0004		●
149	NUT; SLEEVE TO CONT ROD M8	9-09111-408-0	02	1	0406-0512			●
149	NUT; SLEEVE TO CONT ROD M8	0-91111-508-0	02	1	0601-			●
149	NUT; SLEEVE TO CONT ROD M10	9-09111-410-0	02	1	9601-0004		●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0612-	●
385	TUBE; NYLON BLACK	1-33619-543-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-544-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9609-9803	●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) RED	1-33619-545-0	01	1	0609-0611	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9609-9803	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLUE	1-33619-546-0	01	1	0609-0611	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9609-9803	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLACK	1-33619-547-0	01	1	0609-0611	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9609-9803	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) GREEN	1-33619-548-0	01	1	0609-0611	●
460	TUBE; CORRUGATE AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0609-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-	●
460	TUBE; CORRUGATE L=4580 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0004		●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9609-9803	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0608	●
460	TUBE; CORRUGATE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	0609-0611	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-	●

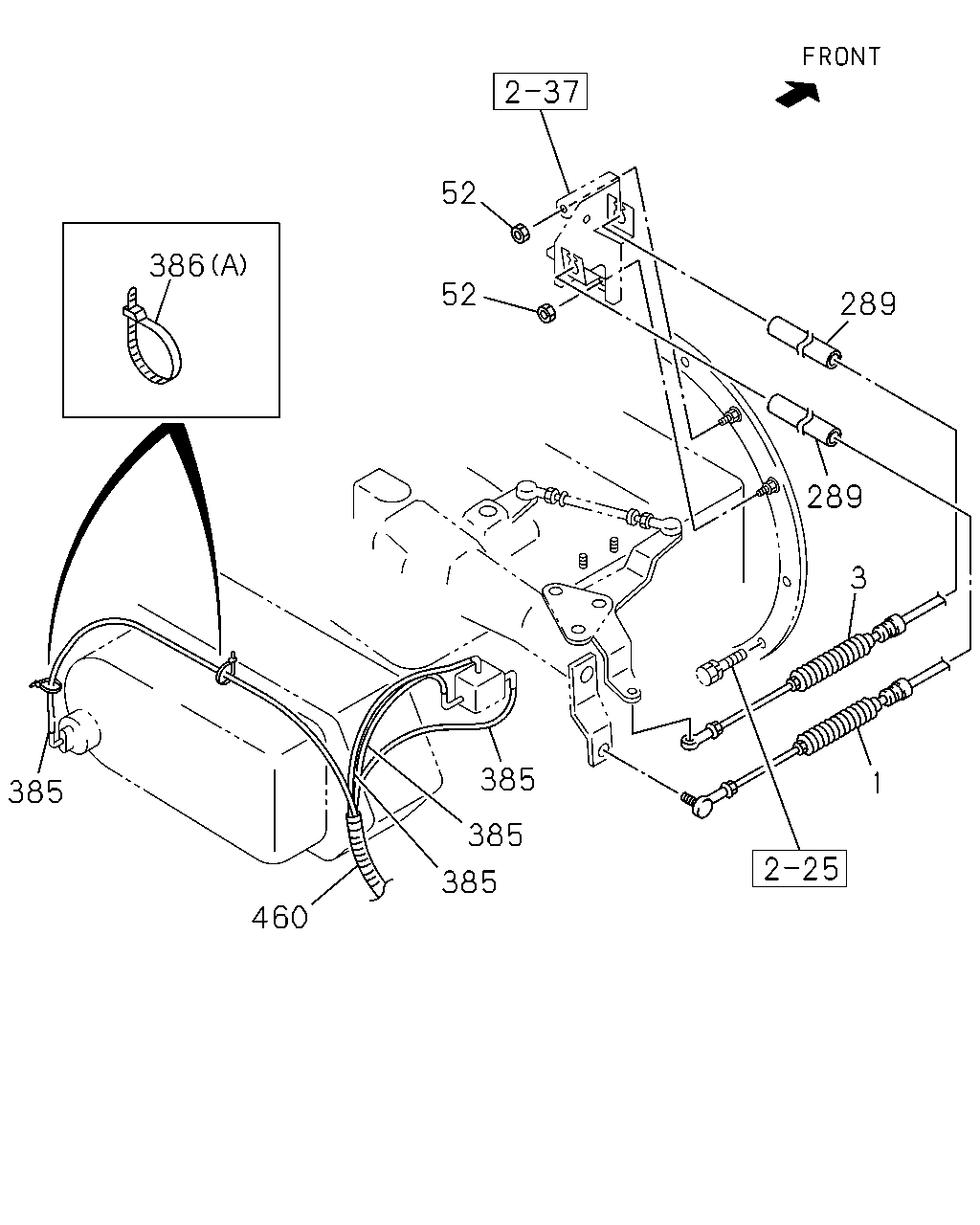

52 386 52 289 289 3 385 1 385 385 385 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3755	8-97383-462-0	01	1	0605-0608	●
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3745	8-98059-471-0	01	1	0609-0611	●
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3745	8-98059-471-1	01	1	0612-	●
1	CABLE; SHIFT,TRANS CONT L=3619	1-33671-972-0	01	1	0406-			●
1	CABLE; SHIFT,TRANS CONT L=3738	1-33670-913-0	01	1	9601-9602		●
1	CABLE; SHIFT,TRANS CONT L=3668	1-33670-974-0	01	1	9603-9605		●
1	CABLE; SHIFT,TRANS CONT L=3578	1-33671-002-0	01	1	9606-9709		●
1	CABLE; SHIFT,TRANS CONT L=3590	1-33671-185-1	01	1	9710-0004		●
1	CABLE; SHIFT,TRANS CONT L=3632	1-33671-003-0	01	1	9609-9709	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-0	01	1	9710-9803	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-1	01	1	9804-0604	●
1	CABLE; SHIFT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3645	1-33671-186-1	01	1	0605-0611	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3615	1-33671-698-0	01	1	0605-0608	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3655	8-98059-472-0	01	1	0609-0611	●
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3655	8-98059-472-1	01	1	0612-	●
3	CABLE; SELECT,TRANS CONT L=3841	1-33671-974-0	01	1	0406-			●
3	CABLE; SELECT,TRANS CONT L=3597	1-33670-914-0	01	1	9601-9602		●
3	CABLE; SELECT,TRANS CONT L=3527	1-33670-977-0	01	1	9603-9605		●
3	CABLE; SELECT,TRANS CONT L=3457	1-33671-004-0	01	1	9606-9709		●
3	CABLE; SELECT,TRANS CONT L=3470	1-33671-190-1	01	1	9710-0004		●
3	CABLE; SELECT,TRANS CONT L=3553	1-33671-005-0	01	1	9609-9709	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-0	01	1	9710-9803	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-1	01	1	9804-0604	●
3	CABLE; SELECT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3565	1-33671-191-1	01	1	0605-0611	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9609-0602	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
289	SLEEVE; RUBBER 6SD1 TCN ENG(31L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	9908-0004	●
289	SLEEVE; RUBBER L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0005-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0612-	●
385	TUBE; NYLON AIR CONDITIONER MANUAL CONTROL(C60) BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0609-0611	●
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0612-	●
385	TUBE; NYLON BLACK	1-33619-543-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-544-0	01	1	9601-0004		●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9609-9803	●
385	TUBE; NYLON RED	1-33619-545-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) RED	1-33619-545-0	01	1	0609-0611	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9609-9803	●
385	TUBE; NYLON BLUE	1-33619-546-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLUE	1-33619-546-0	01	1	0609-0611	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9609-9803	●
385	TUBE; NYLON BLACK	1-33619-547-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLACK	1-33619-547-0	01	1	0609-0611	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9609-9803	●
385	TUBE; NYLON GREEN	1-33619-548-0	01	1	9804-0608	●
385	TUBE; NYLON EXC. AIR CONDITIONER MANUAL CONTROL(C60) GREEN	1-33619-548-0	01	1	0609-0611	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9803	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0405	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	07	1	9601-9606	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	08	1	9607-9803	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	08	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-0004	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	13	1	0005-0606	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	0607-	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-9803	●	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	0005-0308	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-0405	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (A) L=140	5-09707-031-1	12	1	9908-0004	●
460	TUBE; CORRUGATE AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0609-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-	●
460	TUBE; CORRUGATE L=4580 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0004		●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9609-9803	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0608	●
460	TUBE; CORRUGATE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	0609-0611	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-	●

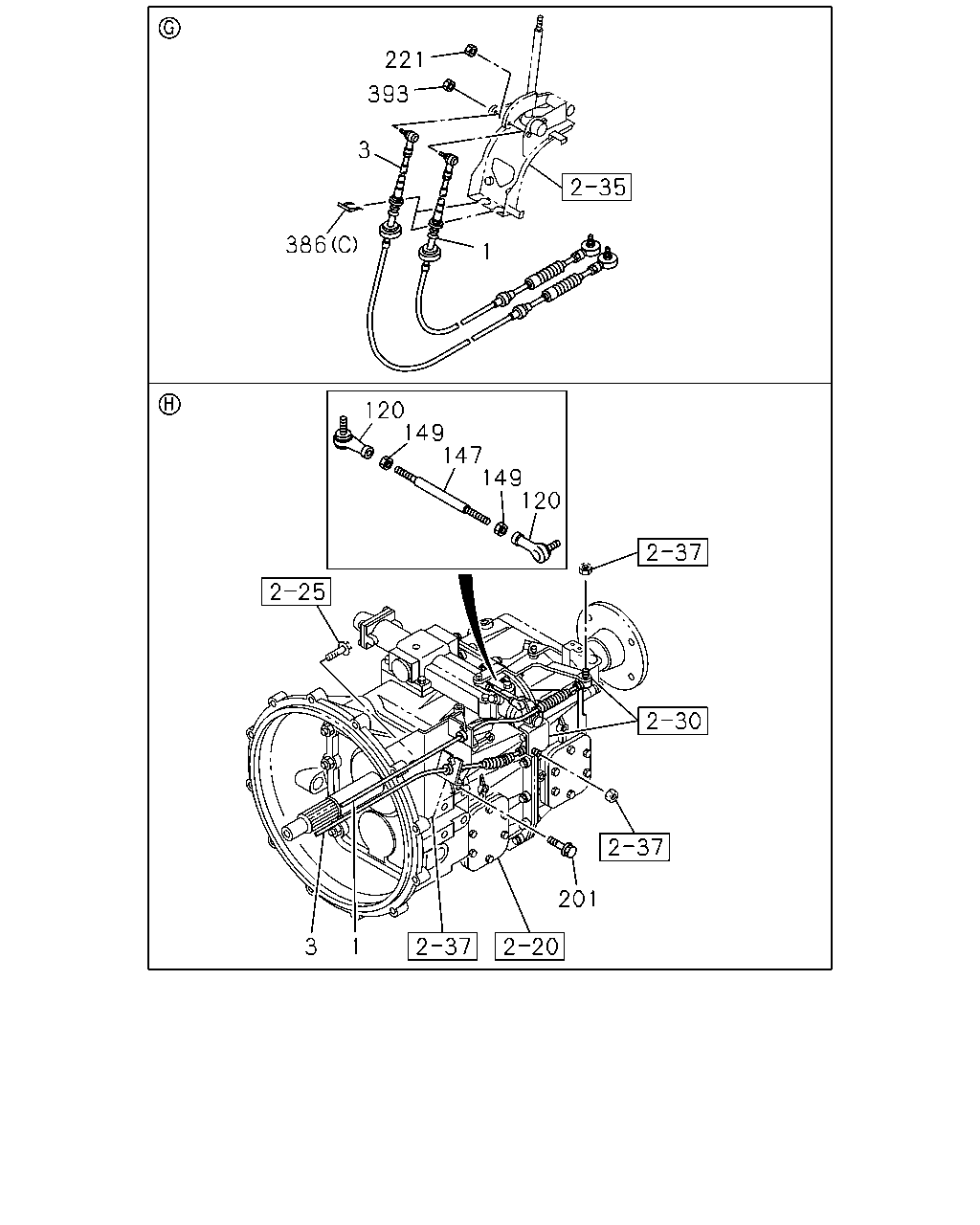

221 393 3 386 1 120 149 147 149 120 201 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3755	8-97383-462-0	01	1	0605-0608	●
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3745	8-98059-471-0	01	1	0609-0611	●
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3745	8-98059-471-1	01	1	0612-	●
1	CABLE; SHIFT,TRANS CONT L=3619	1-33671-972-0	01	1	0406-			●
1	CABLE; SHIFT,TRANS CONT L=3738	1-33670-913-0	01	1	9601-9602		●
1	CABLE; SHIFT,TRANS CONT L=3668	1-33670-974-0	01	1	9603-9605		●
1	CABLE; SHIFT,TRANS CONT L=3578	1-33671-002-0	01	1	9606-9709		●
1	CABLE; SHIFT,TRANS CONT L=3590	1-33671-185-1	01	1	9710-0004		●
1	CABLE; SHIFT,TRANS CONT L=3632	1-33671-003-0	01	1	9609-9709	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-0	01	1	9710-9803	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-1	01	1	9804-0604	●
1	CABLE; SHIFT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3645	1-33671-186-1	01	1	0605-0611	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3615	1-33671-698-0	01	1	0605-0608	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3655	8-98059-472-0	01	1	0609-0611	●
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3655	8-98059-472-1	01	1	0612-	●
3	CABLE; SELECT,TRANS CONT L=3841	1-33671-974-0	01	1	0406-			●
3	CABLE; SELECT,TRANS CONT L=3597	1-33670-914-0	01	1	9601-9602		●
3	CABLE; SELECT,TRANS CONT L=3527	1-33670-977-0	01	1	9603-9605		●
3	CABLE; SELECT,TRANS CONT L=3457	1-33671-004-0	01	1	9606-9709		●
3	CABLE; SELECT,TRANS CONT L=3470	1-33671-190-1	01	1	9710-0004		●
3	CABLE; SELECT,TRANS CONT L=3553	1-33671-005-0	01	1	9609-9709	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-0	01	1	9710-9803	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-1	01	1	9804-0604	●
3	CABLE; SELECT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3565	1-33671-191-1	01	1	0605-0611	●
120	JOINT ASM; BALL,CONT ROD L=45.5	1-09760-118-1	02	1	0406-			●
120	JOINT ASM; BALL,CONT ROD	1-09760-078-0	02	1	9601-0004		●
147	ROD; LINK	1-33652-460-0	01	1	0406-			●
147	ROD; LINK	1-09765-227-0	01	1	9601-0004		●
149	NUT; SLEEVE TO CONT ROD M8	9-09111-408-0	02	1	0406-0512			●
149	NUT; SLEEVE TO CONT ROD M8	0-91111-508-0	02	1	0601-			●
149	NUT; SLEEVE TO CONT ROD M10	9-09111-410-0	02	1	9601-0004		●
201	BOLT; BRKT M12X25	0-28781-225-0	01	1	0406-0512			●
201	BOLT; BRKT M12X25 FLANGE	0-28751-225-0	01	1	0601-			●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0405	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0406-1011	●		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9803	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0405	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	07	1	9601-9606	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	08	1	9607-9803	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	08	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-0004	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	13	1	0005-0606	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	0607-	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-9803	●	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	0005-0308	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-0405	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (A) L=140	5-09707-031-1	12	1	9908-0004	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0405	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0406-1011	●		●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●

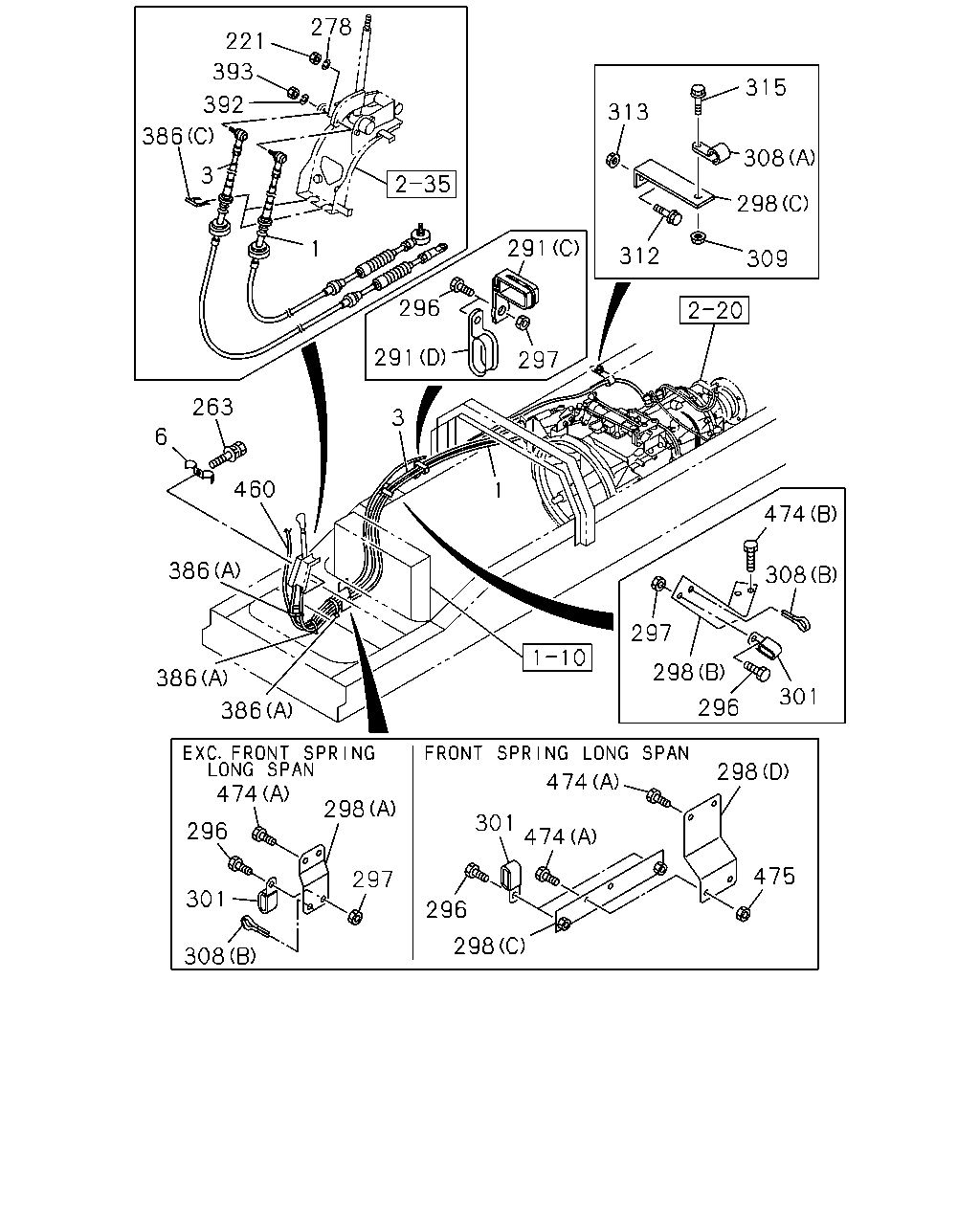

278 221 393 315 392 313 386 308 3 298 291 1 312 309 296 291 297 263 3 6 460 1 474 386 308 297 298 386 301 296 386 474 298 474 298 301 296 474 475 297 301 296 298 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3755	8-97383-462-0	01	1	0605-0608	●
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3745	8-98059-471-0	01	1	0609-0611	●
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3745	8-98059-471-1	01	1	0612-	●
1	CABLE; SHIFT,TRANS CONT L=3619	1-33671-972-0	01	1	0406-			●
1	CABLE; SHIFT,TRANS CONT L=3738	1-33670-913-0	01	1	9601-9602		●
1	CABLE; SHIFT,TRANS CONT L=3668	1-33670-974-0	01	1	9603-9605		●
1	CABLE; SHIFT,TRANS CONT L=3578	1-33671-002-0	01	1	9606-9709		●
1	CABLE; SHIFT,TRANS CONT L=3590	1-33671-185-1	01	1	9710-0004		●
1	CABLE; SHIFT,TRANS CONT L=3632	1-33671-003-0	01	1	9609-9709	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-0	01	1	9710-9803	●
1	CABLE; SHIFT,TRANS CONT L=3645	1-33671-186-1	01	1	9804-0604	●
1	CABLE; SHIFT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3645	1-33671-186-1	01	1	0605-0611	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3615	1-33671-698-0	01	1	0605-0608	●
3	CABLE; SELECT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3655	8-98059-472-0	01	1	0609-0611	●
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> L=3655	8-98059-472-1	01	1	0612-	●
3	CABLE; SELECT,TRANS CONT L=3841	1-33671-974-0	01	1	0406-			●
3	CABLE; SELECT,TRANS CONT L=3597	1-33670-914-0	01	1	9601-9602		●
3	CABLE; SELECT,TRANS CONT L=3527	1-33670-977-0	01	1	9603-9605		●
3	CABLE; SELECT,TRANS CONT L=3457	1-33671-004-0	01	1	9606-9709		●
3	CABLE; SELECT,TRANS CONT L=3470	1-33671-190-1	01	1	9710-0004		●
3	CABLE; SELECT,TRANS CONT L=3553	1-33671-005-0	01	1	9609-9709	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-0	01	1	9710-9803	●
3	CABLE; SELECT,TRANS CONT L=3565	1-33671-191-1	01	1	9804-0604	●
3	CABLE; SELECT,TRANS CONT EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=3565	1-33671-191-1	01	1	0605-0611	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-9803	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9804-0004	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0405	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0406-	●		●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0405	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0406-1011	●		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0405	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0406-	●		●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13 & 13 L=32	8-97389-264-0	01	1	0607-	●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0407-0710			●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0711-0806			●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0807-			●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9601-9907		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9908-0004	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0405	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0406-0406	●		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0407-0604		●
291	CLIP; SHIFT TO SELECT,FRAME EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=10 & 10 M8	1-09701-220-0	01	1	0605-0606	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0406-0606			●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-0912			●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1001-			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-245-0	01	1	0406-0506			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-312-0	01	1	0507-0912			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-312-0	01	1	1001-			●
296	BOLT; CLIP,SHIFT & SELECT AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	04	1	0605-0606	●
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	03	1	0302-0512	●
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	03	1	0601-0604	●
296	BOLT; CLIP,SHIFT & SELECT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	01	1	0605-0806	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	01	1	0807-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	0005-0301	●
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	02	1	0302-0512	●
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	9601-9907		●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	9908-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-0604		●
296	BOLT; CLIP,SHIFT & SELECT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	03	1	0605-0606	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	03	1	0607-	●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28680-830-0	02	1	0406-0512			●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
297	NUT; CLIP M8	9-09110-408-0	02	1	9601-9606	●	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0301	●
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
297	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0605-0611	●
297	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0605-0611	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0612-	●
297	NUT; CLIP M8	9-09110-408-0	01	1	9601-9606		●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9809		●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9810-9907		●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9908-0004	●	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0301		●
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	01	1	0603-0604	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0604	●
297	NUT; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-0611	●
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-0611	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0612-0806	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0807-	●
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	01	1	0807-	●
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> (D)	8-98044-763-1	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (D)	8-98044-763-1	01	1	0612-	●
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> (C)	8-98044-764-0	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (C)	8-98044-764-0	01	1	0612-	●
298	BRACKET (E)	1-36183-235-0	01	1	0406-			●
298	BRACKET FRONT SPRING LONG SPAN<W36> (D)	1-47478-997-0	01	1	0302-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-47478-997-0	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (C)	1-47479-121-0	01	1	0302-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-47479-121-0	01	1	0605-0611	●
298	BRACKET (B)	1-47477-520-0	01	1	9601-0004	●	●
298	BRACKET (B)	1-47477-520-0	01	1	0005-	●
298	BRACKET (A)	1-47477-519-2	01	1	9610-9701	●	●
298	BRACKET (A)	1-47477-519-2	01	1	9702-0004	●	●
298	BRACKET (A)	1-47477-519-2	01	1	0005-0301	●
298	BRACKET EXC. FRONT SPRING LONG SPAN<W36> (A)	1-47477-519-2	01	1	0302-	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9607-9803	●	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9804-9907		●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9908-0004	●	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	0005-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=95	1-82699-085-0	01	1	0605-0611	●
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> ID=11X2 L=16	9-09535-026-0	03	1	0605-0606	●
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> ID=11X2 L=16	0-95325-026-0	03	1	0607-0607	●
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> ID=11X2 L=32	9-09535-066-0	01	1	0605-0606	●
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> ID=11X2 L=32	0-95325-066-0	01	1	0607-0607	●
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> ID=11X2 L=16	9-09535-026-0	01	1	0302-0604	●
301	CLIP; WIRE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=11X2 L=16	9-09535-026-0	01	1	0605-0606	●
301	CLIP; WIRE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=11X2 L=16	0-95325-026-0	01	1	0607-0607	●
301	CLIP; WIRE ID=11X2 L=16	0-95325-026-0	01	1	0607-	●
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> ID=11X2 L=32	9-09535-066-0	02	1	0302-0604	●
301	CLIP; WIRE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=11X2 L=32	9-09535-066-0	02	1	0605-0606	●
301	CLIP; WIRE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=11X2 L=32	0-95325-066-0	02	1	0607-0607	●
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> ID=11X2 L=32	0-95325-066-0	02	1	0607-	●
301	CLIP; WIRE ID=11X2 L=16	9-09535-026-0	02	1	9601-0004	●	●
301	CLIP; WIRE ID=11X2 L=16	9-09535-026-0	02	1	0005-0301	●
301	CLIP; WIRE EXC. FRONT SPRING LONG SPAN<W36> ID=11X2 L=16	9-09535-026-0	02	1	0302-0606	●
301	CLIP; WIRE EXC. FRONT SPRING LONG SPAN<W36> ID=11X2 L=16	0-95325-026-0	02	1	0607-	●
308	CLIP; PIPE (A) ID=15 L=65	1-09700-466-0	02	1	0607-	●
308	CLIP; PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9601-9803	●	●
308	CLIP; PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9804-9907		●
308	CLIP; PIPE (A) ID=16 L=40	9-09525-576-0	01	1	9908-0004	●	●
308	CLIP; PIPE (A) ID=16 L=40	9-09525-576-0	01	1	0005-0606	●
308	CLIP; PIPE (A) ID=16 L=40	0-95235-576-0	01	1	0607-	●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	03	1	9601-9606	●	●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	04	1	9607-9803	●	●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	04	1	9804-9907		●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	03	1	9908-0004	●	●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	03	1	0005-0606	●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	01	1	0607-	●
308	CLIP; PIPE (A) ID=16 L=28	9-09525-556-0	01	1	0005-0606	●
308	CLIP; PIPE (A) ID=16 L=28	0-95235-556-0	01	1	0607-	●
309	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9601-9606	●	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9804-9907		●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-0004	●	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	9601-9803	●	●
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	9804-9907		●
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	9908-0004	●	●
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-0604	●
312	BOLT; CLIP BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28650-830-0	01	1	0605-0611	●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9601-9803	●	●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9804-9907		●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9908-0004	●	●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0604	●
313	NUT; CLIP BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-0611	●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9601-9803	●	●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9804-9907		●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9908-0004	●	●
315	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
315	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9803	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0405	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	07	1	9601-9606	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	08	1	9607-9803	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	08	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-0004	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	13	1	0005-0606	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	0607-	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-9803	●	●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9804-0004		●
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	0005-0308	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-0405	●
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0406-	●		●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (A) L=140	5-09707-031-1	12	1	9908-0004	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0405	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0406-1011	●		●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●
460	TUBE; CORRUGATE AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0609-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-	●
460	TUBE; CORRUGATE L=4580 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0004		●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9609-9803	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0608	●
460	TUBE; CORRUGATE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	0609-0611	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9609-9803	●
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9804-0611	●
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-	●
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0512	●
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
474	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9803	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-9609	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9610-9803	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9804-0004	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0405	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0406-	●		●
475	NUT; BRKT FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
475	NUT; BRKT FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0603-	●

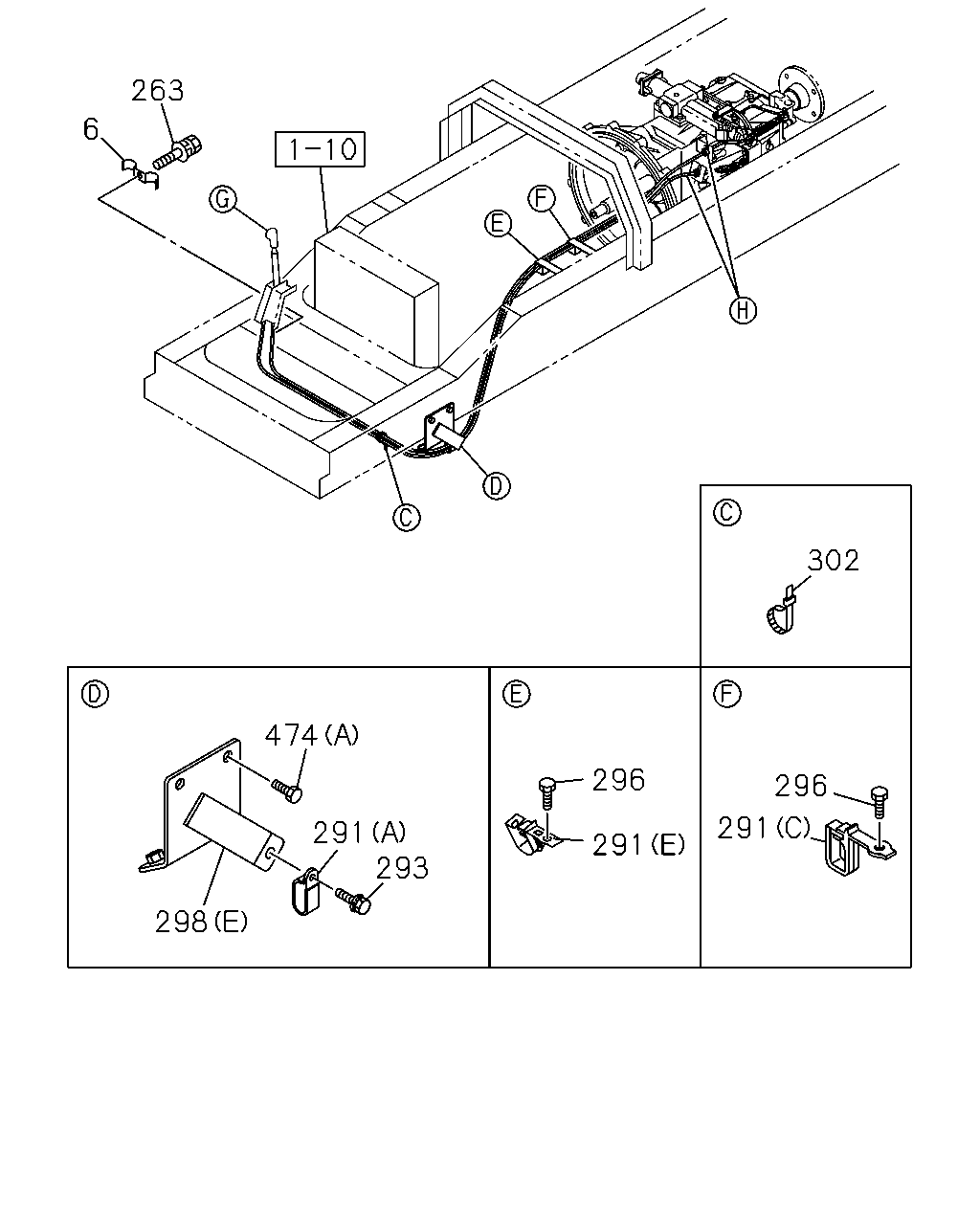

263 6 302 474 296 296 291 291 293 291 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-9803	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9804-0004	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0405	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0406-	●		●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0405	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0406-	●		●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13 & 13 L=32	8-97389-264-0	01	1	0607-	●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0407-0710			●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0711-0806			●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0807-			●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9601-9907		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9908-0004	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0405	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0406-0406	●		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0407-0604		●
291	CLIP; SHIFT TO SELECT,FRAME EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=10 & 10 M8	1-09701-220-0	01	1	0605-0606	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0406-0606			●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-0912			●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1001-			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-245-0	01	1	0406-0506			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-312-0	01	1	0507-0912			●
291	CLIP; SHIFT TO SELECT,FRAME (E) ID=13X2 L=32	1-09701-312-0	01	1	1001-			●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0406-0512			●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
296	BOLT; CLIP,SHIFT & SELECT AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	04	1	0605-0606	●
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	03	1	0302-0512	●
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	03	1	0601-0604	●
296	BOLT; CLIP,SHIFT & SELECT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	01	1	0605-0806	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	01	1	0807-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	0005-0301	●
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	02	1	0302-0512	●
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	9601-9907		●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	9908-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-0604		●
296	BOLT; CLIP,SHIFT & SELECT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	03	1	0605-0606	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	03	1	0607-	●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28680-830-0	02	1	0406-0512			●
296	BOLT; CLIP,SHIFT & SELECT M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> (D)	8-98044-763-1	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (D)	8-98044-763-1	01	1	0612-	●
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPRING LONG SPAN<W36> (C)	8-98044-764-0	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (C)	8-98044-764-0	01	1	0612-	●
298	BRACKET (E)	1-36183-235-0	01	1	0406-			●
298	BRACKET FRONT SPRING LONG SPAN<W36> (D)	1-47478-997-0	01	1	0302-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-47478-997-0	01	1	0605-0611	●
298	BRACKET FRONT SPRING LONG SPAN<W36> (C)	1-47479-121-0	01	1	0302-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-47479-121-0	01	1	0605-0611	●
298	BRACKET (B)	1-47477-520-0	01	1	9601-0004	●	●
298	BRACKET (B)	1-47477-520-0	01	1	0005-	●
298	BRACKET (A)	1-47477-519-2	01	1	9610-9701	●	●
298	BRACKET (A)	1-47477-519-2	01	1	9702-0004	●	●
298	BRACKET (A)	1-47477-519-2	01	1	0005-0301	●
298	BRACKET EXC. FRONT SPRING LONG SPAN<W36> (A)	1-47477-519-2	01	1	0302-	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9607-9803	●	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9804-9907		●
298	BRACKET (C) L=95	1-82699-085-0	01	1	9908-0004	●	●
298	BRACKET (C) L=95	1-82699-085-0	01	1	0005-0604	●
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=95	1-82699-085-0	01	1	0605-0611	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0406-			●
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0512	●
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
474	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606	●	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9803	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-9609	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9610-9803	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9804-0004	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0405	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0406-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
