◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#63804) — 113 parça

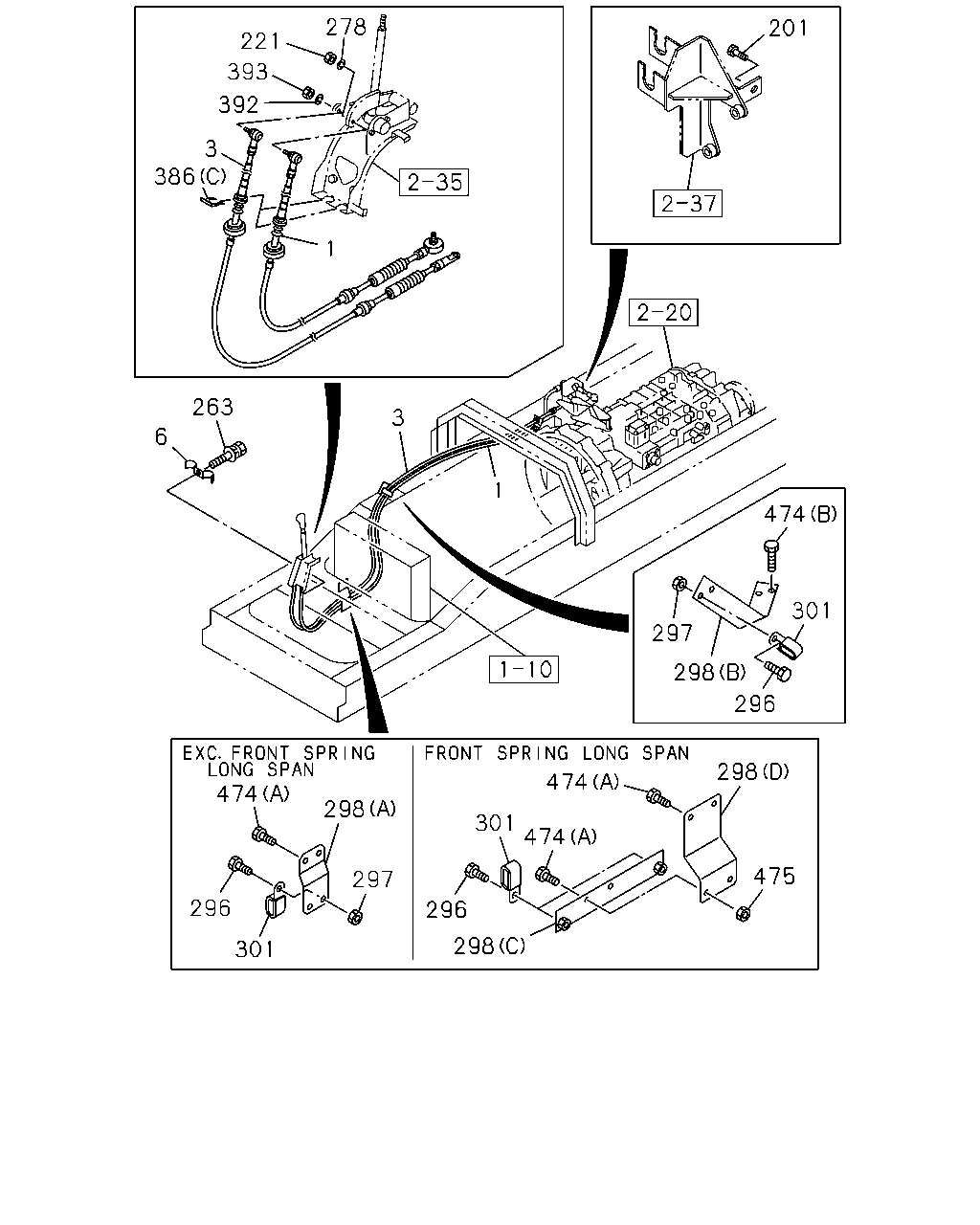

çizim 113982
278 201 221 393 392 3 386 1 263 3 6 1 474 301 297 298 296 474 298 474 298 301 474 475 297 296 296 298 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING LONG SPAN<W36> L=3615 		1-33671-900-0 01 1 0302- ●
1 CABLE; SHIFT,TRANS CONT
L=3734 		1-33670-952-0 01 1 9601-9602 ●
1 CABLE; SHIFT,TRANS CONT
L=3664 		1-33670-975-0 01 1 9603-9701 ●
1 CABLE; SHIFT,TRANS CONT
L=3672 		1-33671-050-0 01 1 9702-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3685 		1-33671-187-1 01 1 9710-9903 ●
1 CABLE; SHIFT,TRANS CONT
L=3685 		1-33671-187-1 01 1 9904-0004 ● ●
1 CABLE; SHIFT,TRANS CONT
L=3685 		1-33671-187-1 01 1 0005-0301 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING LONG SPAN<W36> L=3685 		1-33671-187-1 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING LONG SPAN<W36> L=3490 		1-33671-901-0 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
L=3618 		1-33670-956-0 01 1 9601-9602 ●
3 CABLE; SELECT,TRANS CONT
L=3548 		1-33670-978-0 01 1 9603-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3560 		1-33671-189-1 01 1 9710-9903 ●
3 CABLE; SELECT,TRANS CONT
L=3560 		1-33671-189-1 01 1 9904-0004 ● ●
3 CABLE; SELECT,TRANS CONT
L=3560 		1-33671-189-1 01 1 0005-0301 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING LONG SPAN<W36> L=3560 		1-33671-189-1 01 1 0302- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0004 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0405 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0406- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9904-0004 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 9601-9903 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 9904-0004 ● ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 0005-0512 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 0601- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0405 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9904-0004 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9812 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0405 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406- ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
296 BOLT; CLIP,SHIFT & SELECT
FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28080-816-0 03 1 0302-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28050-816-0 03 1 0601-0604 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0301 ●
296 BOLT; CLIP,SHIFT & SELECT
EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28080-816-0 02 1 0302-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 TCN ENG(31L) M8X16 FLANGE 		0-28050-816-0 03 1 0605-0606 ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 TCN ENG(31L) M8X16 FLANGE 		0-28050-816-0 03 1 0607- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9904-0004 ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0301 ●
297 NUT; CLIP
EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ●
297 NUT; CLIP
EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ●
297 NUT; CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0605-0611 ●
297 NUT; CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0612- ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9904-0004 ●
297 NUT; CLIP
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ●
297 NUT; CLIP
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ●
297 NUT; CLIP
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0605-0611 ●
297 NUT; CLIP
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0612-0806 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0807- ●
297 NUT; CLIP
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0807- ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0302-0604 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0605-0611 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0612- ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (C) 		1-47479-121-0 01 1 0302-0604 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (C) 		1-47479-121-0 01 1 0605-0611 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (C) 		1-47479-121-0 01 1 0612- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601-0004 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9610-9701 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9702-0004 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0005-0301 ●
298 BRACKET
EXC. FRONT SPRING LONG SPAN<W36> (A) 		1-47477-519-2 01 1 0302- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9904-0004 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9904-0004 ●
301 CLIP; WIRE
FRONT SPRING LONG SPAN<W36> ID=11X2 L=16 		9-09535-026-0 01 1 0302-0604 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		9-09535-026-0 01 1 0605-0606 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0607 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
301 CLIP; WIRE
FRONT SPRING LONG SPAN<W36> ID=11X2 L=32 		9-09535-066-0 02 1 0302-0604 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		9-09535-066-0 02 1 0605-0606 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		0-95325-066-0 02 1 0607-0607 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		0-95325-066-0 02 1 0607- ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0004 ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 0005-0301 ●
301 CLIP; WIRE
EXC. FRONT SPRING LONG SPAN<W36> ID=11X2 L=16 		9-09535-026-0 02 1 0302-0606 ●
301 CLIP; WIRE
EXC. FRONT SPRING LONG SPAN<W36> ID=11X2 L=16 		0-95325-026-0 02 1 0607- ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9904-0004 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-9803 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9804-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0405 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0406- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9904-0004 ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0405 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ●
474 BOLT; BRKT
FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0302-0512 ●
474 BOLT; BRKT
FRONT SPRING LONG SPAN<W36> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9803 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0004 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9609 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9803 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804-0004 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0405 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9904-0004 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9904-0004 ●
475 NUT; BRKT
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ●
475 NUT; BRKT
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
