2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#63803) — 177 parça

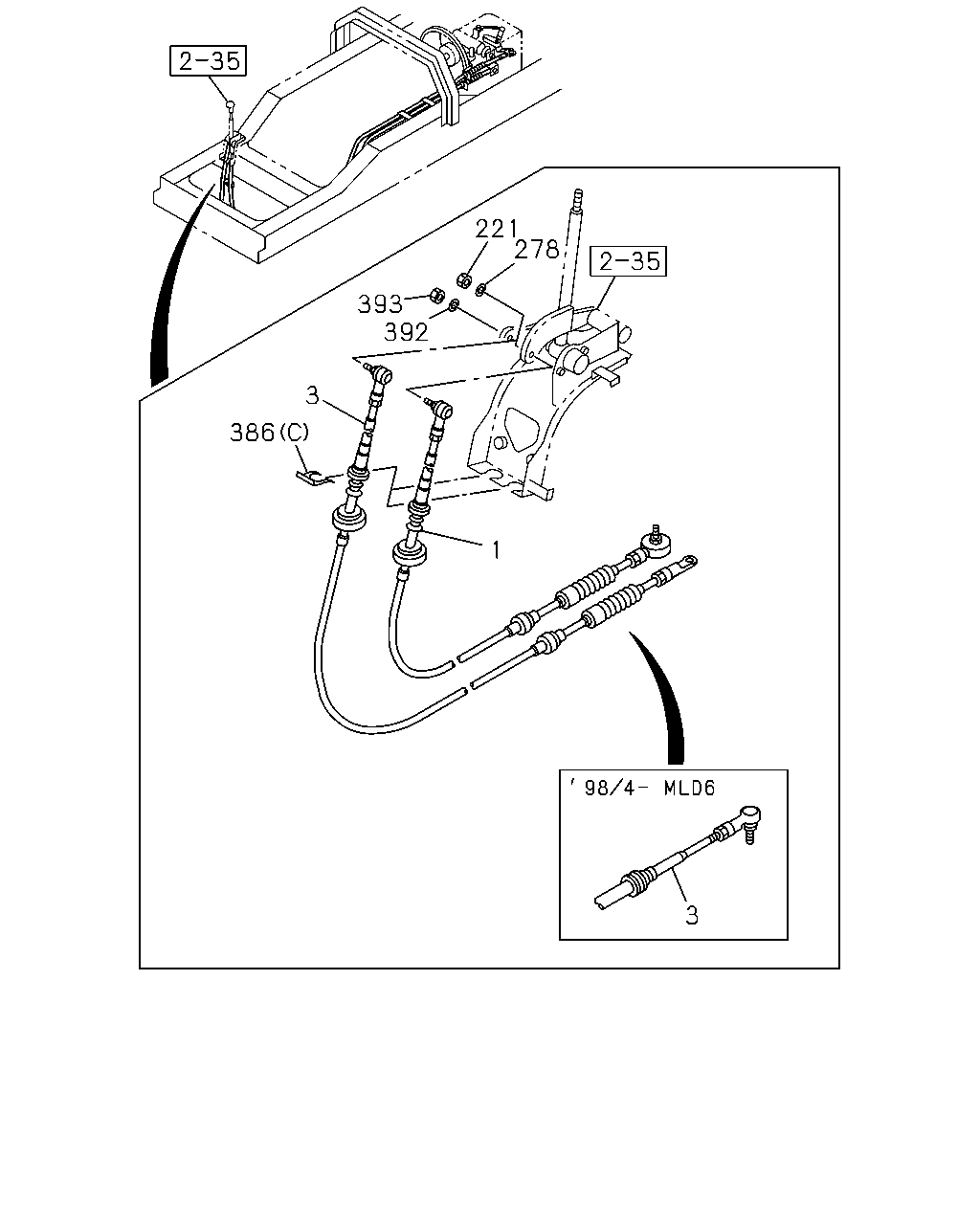

çizim 114132
221 278 393 392 3 386 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
L=3417.5 		1-33670-953-1 01 1 9601-0011 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 STD ENG(37L) L=3417.5 		1-33670-953-1 01 1 0012- ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) L=3573.5 		1-33671-753-0 01 1 0012- ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3564 		1-33670-848-0 01 1 9601-9607 ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO<SV1>,ASSISTOR SHIFT CONTROL<WX8> L=3564 		1-33670-848-0 01 1 9608-9803 ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3525 		1-33671-143-0 01 1 9804- ● ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3675 		1-33671-149-0 01 1 9804-0006 ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3437 		1-33670-847-0 01 1 9601-9609 ● ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3437 		1-33670-847-0 01 1 9610-9803 ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3437 		1-33670-847-0 01 1 9610-9803 ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN> L=3437 		1-33670-847-0 01 1 9804- ●
1 CABLE; SHIFT,TRANS CONT
L=3437 		1-33670-847-0 01 1 9804- ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO<SV1> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3621 		1-33671-006-0 01 1 9608-9803 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3565 		1-33671-144-0 01 1 9804-0004 ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3565 		1-33671-144-0 01 1 0005- ● ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO<SV1> EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3620 		1-33671-148-0 01 1 9804-0004 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3787 		1-33671-021-0 01 1 9610-9701 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3590 		1-33671-054-0 01 1 9702-9803 ●
1 CABLE; SHIFT,TRANS CONT
EURO2 SPECIFICATION<THN> L=3590 		1-33671-054-1 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
L=3348.5 		1-33670-957-1 01 1 9601-0011 ●
3 CABLE; SELECT,TRANS CONT
6SD1 STD ENG(37L) L=3348.5 		1-33670-957-1 01 1 0012- ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) L=3505.5 		1-33671-754-0 01 1 0012- ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3661 		1-33670-860-1 01 1 9601-9607 ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO<SV1>,ASSISTOR SHIFT CONTROL<WX8> L=3661 		1-33670-860-1 01 1 9608-9803 ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3640 		1-33671-150-0 01 1 9804- ● ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> ASSISTOR SHIFT CONTROL<WX8> L=3790 		1-33671-155-0 01 1 9804-0006 ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3679 		1-33670-859-1 01 1 9601-9609 ● ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3679 		1-33670-859-1 01 1 9610-9803 ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3679 		1-33670-859-1 01 1 9610-9803 ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN> L=3679 		1-33670-859-1 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
L=3679 		1-33670-859-1 01 1 9804- ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO<SV1> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3718 		1-33671-007-0 01 1 9608-9803 ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO<SV1>,EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3660 		1-33671-151-0 01 1 9804-0004 ● ●
3 CABLE; SELECT,TRANS CONT
EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3660 		1-33671-151-0 01 1 0005- ● ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO<SV1> EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3720 		1-33671-154-0 01 1 9804-0004 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=4029 		1-33671-022-0 01 1 9610-9701 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3830 		1-33671-055-0 01 1 9702-9803 ●
3 CABLE; SELECT,TRANS CONT
EURO2 SPECIFICATION<THN> L=3830 		1-33671-055-1 01 1 9804- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0405 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-9803 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9804-0004 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0405 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0406- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0405 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0406-1011 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●

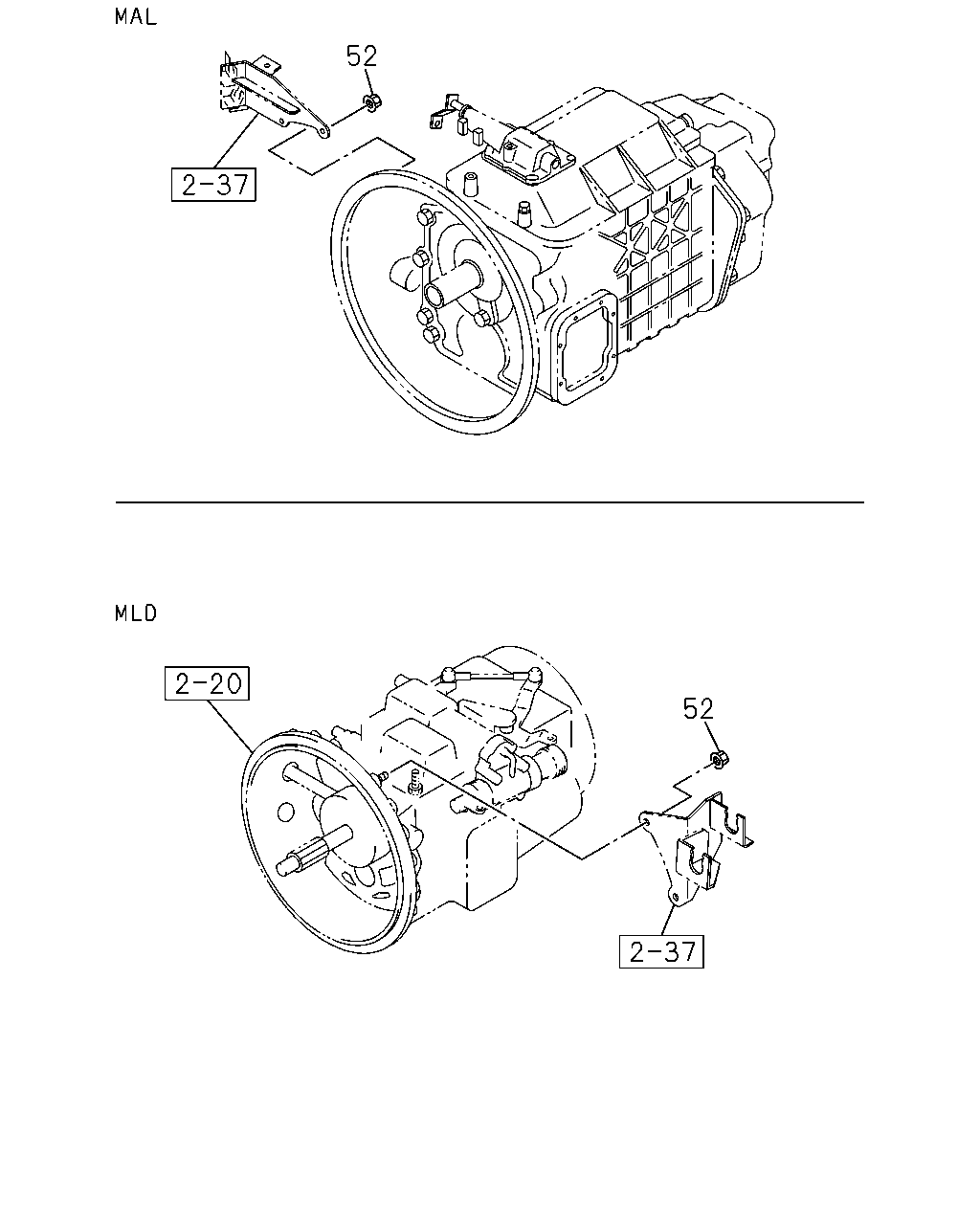

çizim 184171
52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9601-9605 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-9608 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609-0602 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●

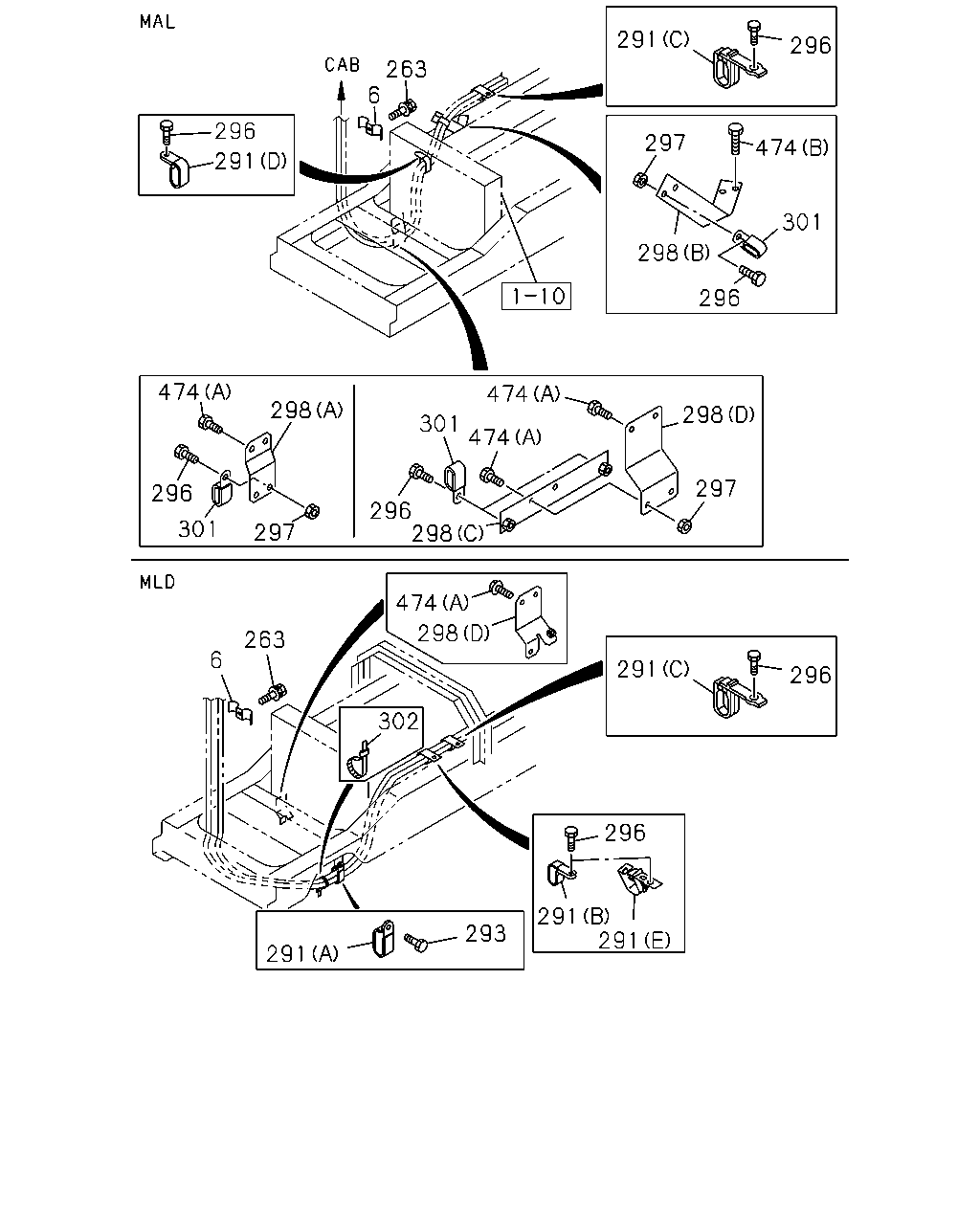

çizim 184176
291 296 263 6 296 297 474 291 301 298 296 474 474 298 298 301 474 297 296 296 298 301 297 474 298 263 6 291 296 302 296 291 291 293 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0004 ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0405 ● ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0406- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9812 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0405 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0407-0710 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6SD1 STD ENG(37L) (C) 		1-09701-307-2 01 1 0711-0806 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0711-0806 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0807- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		8-97028-508-2 01 1 9601-9809 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9907 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9908-0004 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0405 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0406-0406 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6SD1 STD ENG(37L) (C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407-0604 ●
291 CLIP; SHIFT TO SELECT,FRAME
6SD1 STD ENG(37L) (C) ID=10 & 10 M8 		1-09701-220-0 01 1 0605-0606 ●
291 CLIP; SHIFT TO SELECT,FRAME
6SD1 STD ENG(37L) (C) ID=10 & 10 M8 		1-09701-220-0 01 1 0607-0710 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9601-9602 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9609 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9601-9803 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0405 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. EURO2 SPECIFICATION<THN> (A) ID=11X2 L=16 		9-09535-026-0 01 1 0006-0405 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0406-0606 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0912 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 1001- ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) 		1-09701-258-0 01 1 9702-9702 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-245-0 01 1 9703-9803 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-245-0 01 1 9804-0005 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0405 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (E) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0405 ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-245-0 01 1 0406-0506 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (E) ID=13X2 L=32 		1-09701-245-0 01 1 0406-0506 ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EURO2 SPECIFICATION<THN> (E) ID=13X2 L=32 		1-09701-312-0 01 1 0507-0912 ●
291 CLIP; SHIFT TO SELECT,FRAME
(E) ID=13X2 L=32 		1-09701-312-0 01 1 1001- ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0405 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 STD ENG(37L) M8X16 FLANGE 		0-28050-816-0 01 1 0605-0806 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0301 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0302-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9907 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9908-0004 ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 STD ENG(37L) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 STD ENG(37L) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0604 ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 TCN ENG(31L) M8X16 FLANGE 		0-28050-816-0 03 1 0605-0606 ●
296 BOLT; CLIP,SHIFT & SELECT
6SD1 TCN ENG(31L) M8X16 FLANGE 		0-28050-816-0 03 1 0607- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9809 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9601-9803 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9804-0405 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 0406-0512 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
297 NUT; CLIP
M8 		9-09110-408-0 02 1 9601-9606 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0301 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ●
297 NUT; CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0605-0611 ●
297 NUT; CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0612- ●
297 NUT; CLIP
6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 01 1 9810-9907 ●
297 NUT; CLIP
6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 01 1 9908-0004 ●
297 NUT; CLIP
6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 01 1 0005-0301 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ●
297 NUT; CLIP
6SD1 STD ENG(37L) M8 FLANGE 		0-91180-108-0 01 1 0605-0611 ●
297 NUT; CLIP
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0605-0611 ●
297 NUT; CLIP
6SD1 STD ENG(37L) M8 FLANGE 		0-91180-108-0 01 1 0612-0806 ●
297 NUT; CLIP
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0612-0806 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0807- ●
297 NUT; CLIP
FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 01 1 0807- ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0605-0611 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0612- ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (C) 		1-47479-121-0 01 1 0605-0611 ●
298 BRACKET
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> (C) 		1-47479-121-0 01 1 0612- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601-0004 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9610-9701 ●
298 BRACKET
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) 		1-47477-519-2 01 1 9610-9701 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9702-0004 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0005-0301 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0302- ●
298 BRACKET
EURO2 SPECIFICATION<THN> (D) 		1-47477-922-0 01 1 9702-9810 ●
298 BRACKET
EURO2 SPECIFICATION<THN> (D) 		1-47478-354-0 01 1 9811- ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		9-09535-026-0 01 1 0605-0606 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		0-95325-026-0 01 1 0607-0607 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		9-09535-066-0 02 1 0605-0606 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		0-95325-066-0 02 1 0607-0607 ●
301 CLIP; WIRE
6SD1 TCN ENG(31L) ID=11X2 L=32 		0-95325-066-0 02 1 0607- ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 9601-0004 ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 0005-0301 ●
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 0302-0606 ●
301 CLIP; WIRE
ID=11X2 L=16 		0-95325-026-0 02 1 0607- ●
302 CLIP; BAND
L=300 		1-09707-001-0 01 1 9601-9803 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9804-0103 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 02 1 0104- ● ● ● ●
474 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9601-9606 ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9803 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0004 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9609 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9803 ●
474 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9803 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804-0004 ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804-0004 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0405 ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0405 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ●
474 BOLT; BRKT
EURO2 SPECIFICATION<THN> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
