2-35C — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#63801) — 186 parça

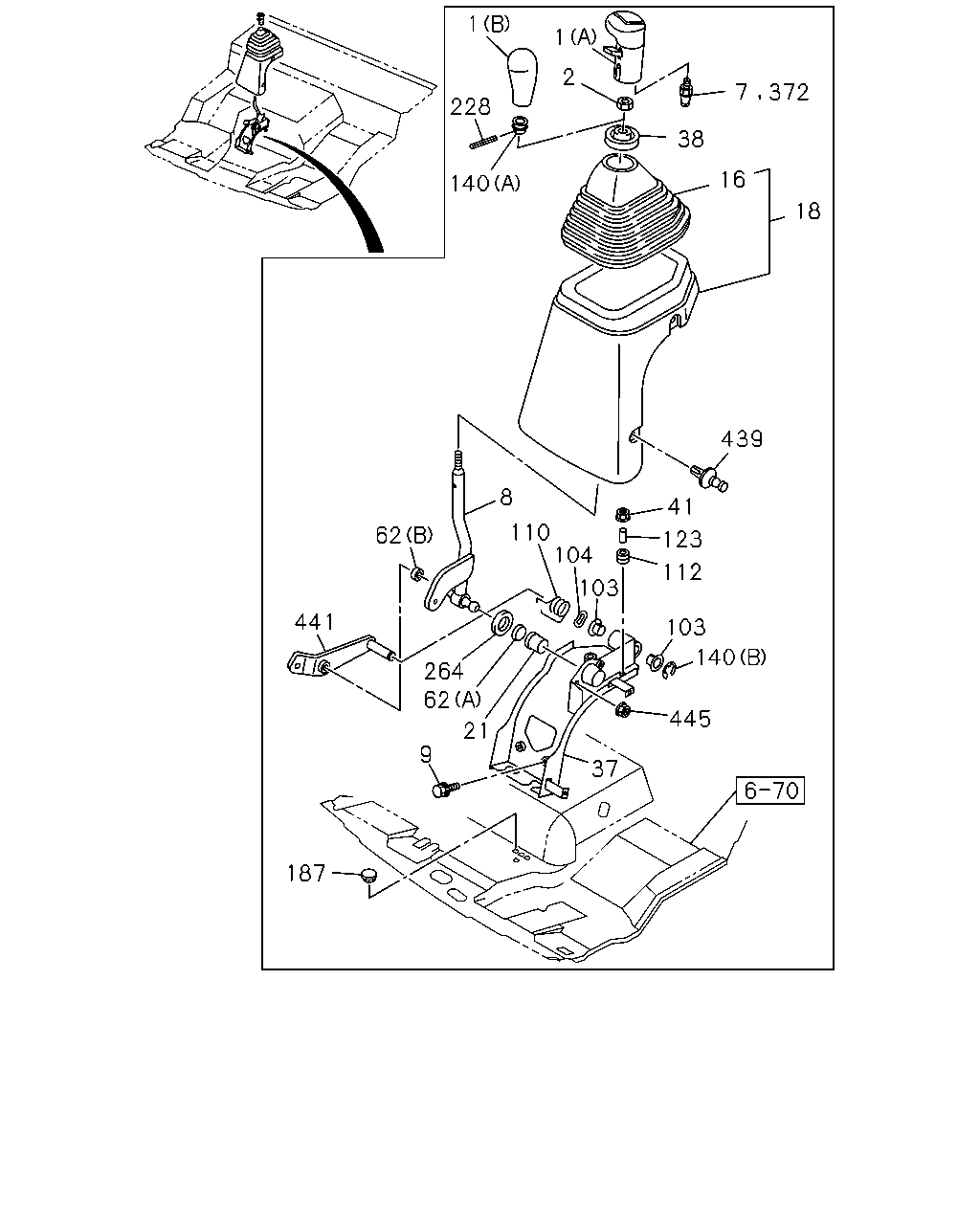

çizim 114068
1 1 2 7 372 228 38 16 140 18 439 8 41 110 104 62 123 112 103 441 103 140 264 62 445 21 37 9 187
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-1 01 1 0406- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-042-0 01 1 9601-9610 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-106-0 01 1 9611-0004 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-043-0 01 1 9609-9610 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-110-0 01 1 9611-1401 ●
1 KNOB; CHANGE LEVER
(A) 		8-98224-292-0 01 1 1402- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9601-0004 ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0005- ●
7 GASKET; CONNECTOR 8-97500-148-0 02 1 9601-9803 ●
7 GASKET; CONNECTOR 8-97500-148-0 04 1 9609-9803 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0406- ●
8 LEVER; CHANGE 1-33619-503-0 01 1 9601-0004 ● ●
8 LEVER; CHANGE 1-33619-503-0 01 1 0005- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9601-9803 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9804-0004 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005-0405 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0406- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9601-0004 ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0512- ● ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0512- ● ●
18 BOOT; CHANGE LEVER 1-79998-761-4 01 1 9601-9803 ● ●
18 BOOT; CHANGE LEVER 1-79998-761-5 01 1 9804-0004 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9601-9609 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9610-9701 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9702-9702 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9703-9903 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9904-0004 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005-0405 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0406- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0406- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-552-0 01 1 9604-0004 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-552-0 01 1 0005- ●
38 HOLDER; BOOT CHANGE LEVER 1-79998-915-1 01 1 9603-9709 ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 9710-0004 ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 0005-0405 ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 0406- ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9601-9803 ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9804-0004 ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0107 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0405 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0406-0805 ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9609 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9610-9701 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9702-9702 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9703-9903 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9904-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005-0405 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0406- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9609 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9610-9701 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9702-9704 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9705-9803 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9804-9903 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9904-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005-0405 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0406- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9609 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9610-9701 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9702-9702 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9703-9903 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9904-0004 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005-0405 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0406- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9601-9609 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9610-9701 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9702-9702 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9703-9903 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9904-0004 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0005-0405 ●
104 WASHER; WAVED 1-09550-009-0 01 1 0406- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9601-9702 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9703-9803 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9804-0004 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0005-0405 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0406- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9601-9609 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9610-9701 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9702-9704 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9705-9803 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9804-9903 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9904-0004 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0005-0405 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0406- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9601-9609 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9610-9701 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9702-9704 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9705-9803 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9804-9903 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9904-0004 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0005-0405 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0406- ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0406- ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9601-9609 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9610-9701 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9702-9702 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9703-9903 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9904-0004 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0005-0405 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0406-0604 ● ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605- ● ●
187 GROMMET; HOLE,CHANGE LEVER 1-09983-098-0 01 1 1001- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0406- ●
264 PLATE; COVER 1-33619-430-0 01 1 9601-9609 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9610-9701 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9702-9702 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9703-9903 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9904-0004 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0005-0405 ●
264 PLATE; COVER 1-33619-430-0 01 1 0406- ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 02 1 9804-0004 ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9804-0804 ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805- ●
439 FASTENER; COVER 1-09987-245-1 04 1 9601-0004 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0405 ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0406- ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9601-9609 ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9610-9701 ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9702-9704 ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9705-9803 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 9804-9903 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 9904-0004 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0005-0405 ●
441 LEVER; SELECT 1-33619-437-2 01 1 0406- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9601-9609 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9610-9701 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9702-9702 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9703-9903 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9904-0004 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0405 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0406-0602 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●

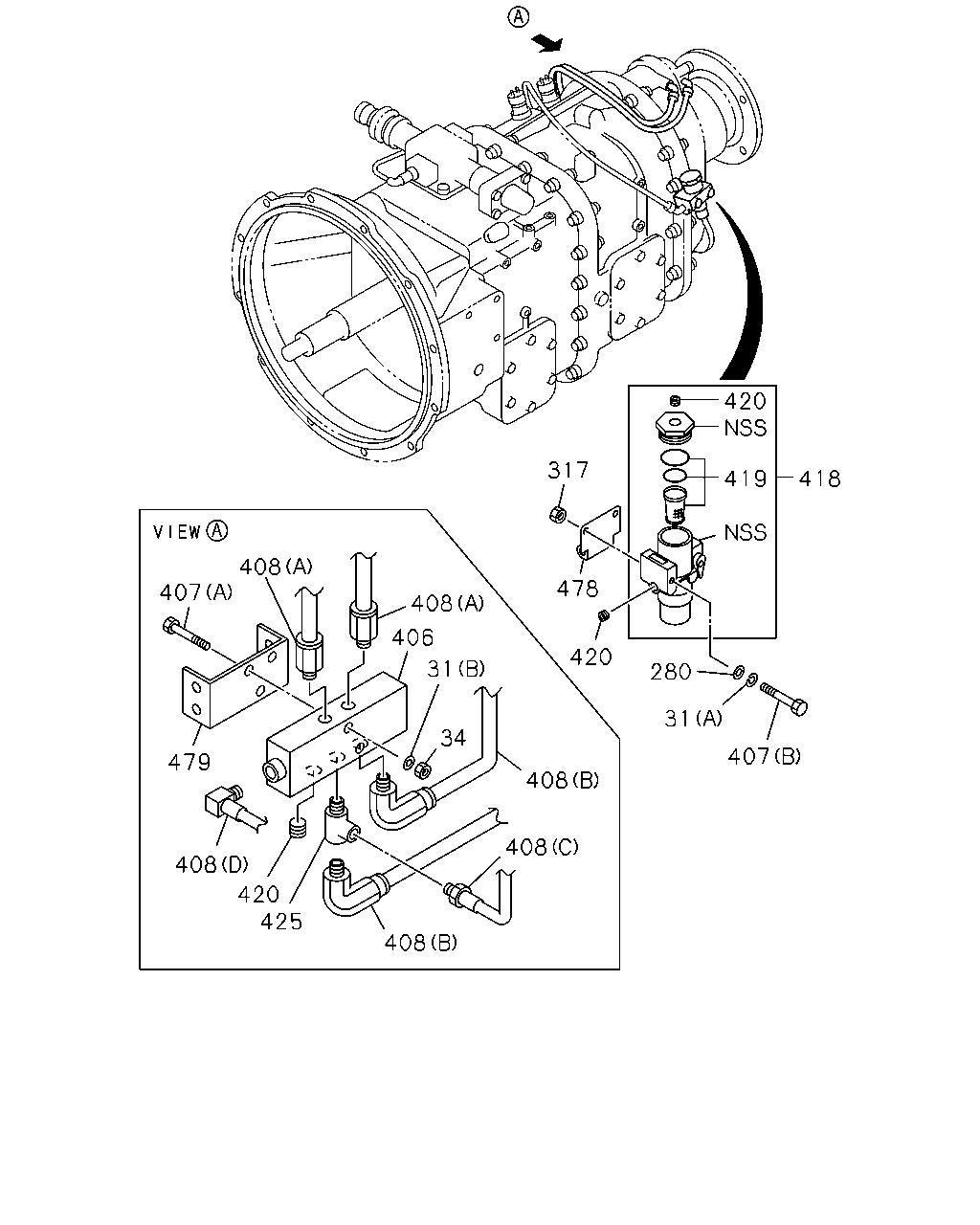

çizim 114098
420 317 419 418 408 478 407 408 406 420 31 280 31 34 407 479 408 408 408 420 425 408
BalonParca AdiParca NoAdetTipApplied Date A B C
31 WASHER; LK
(A) 		1-33549-241-0 02 1 9601-0004 ●
31 WASHER; LK
(B) 		1-33549-247-0 02 1 9601-0004 ●
34 NUT 1-33549-248-0 02 1 9601-0004 ●
280 WASHER; PL 1-33549-240-0 02 1 9601-0004 ●
317 NUT; BRKT 1-34119-016-0 02 1 9601-0004 ●
406 VALVE ASM; SLAVE 1-33549-242-0 01 1 9601-0004 ●
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 9609- ●
407 BOLT; VALVE
(A) M4X40 		1-33549-246-0 02 1 9601-0004 ●
407 BOLT; VALVE
(B) M6X55 		1-34119-015-0 02 1 9601-0004 ●
407 BOLT; VALVE
(A) 		1-87061-096-0 02 1 9609- ●
407 BOLT; VALVE
(B) 		1-87061-539-0 04 1 9609- ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 04 1 0604- ●
408 CONNECTOR; AIR HOSE
(A) 		1-33549-243-0 02 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(B) 		1-33549-244-0 02 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(C) 		1-33619-532-0 01 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 01 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(A) 		1-87061-113-0 05 1 9609- ●
408 CONNECTOR; AIR HOSE
(B) 		1-87061-114-0 02 1 9609- ●
418 VALVE ASM; AIR FILTER REG 1-33549-238-0 01 1 9601-0004 ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 9609- ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 9601-0004 ● ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0005- ●
420 PLUG; VALVE 1-33549-239-0 03 1 9601-0004 ●
420 PLUG; VALVE 1-87061-090-0 01 1 9609- ●
425 ADAPTER; CONNECTER 1-33549-245-0 01 1 9601-0004 ●
478 BRACKET; AIR FILTER REG 1-34119-014-0 01 1 9601-0004 ●
479 BRACKET; SLAVE VALVE 1-34119-014-0 01 1 9601-0004 ●

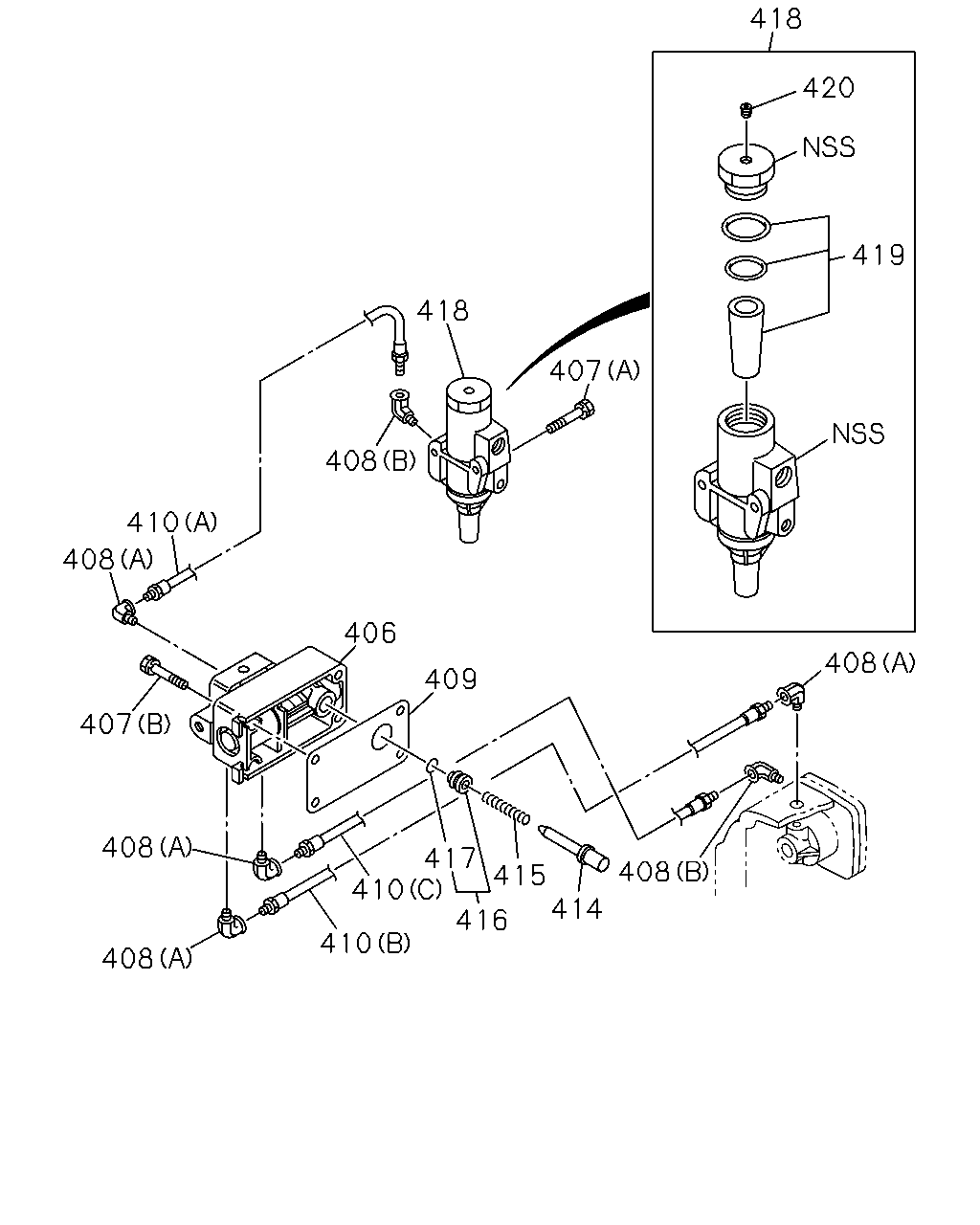

çizim 114099
418 420 419 418 407 408 410 408 406 408 409 407 408 417 410 408 415 414 416 410 408
BalonParca AdiParca NoAdetTipApplied Date A B C
406 VALVE ASM; SLAVE 1-33549-242-0 01 1 9601-0004 ●
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 9609- ●
407 BOLT; VALVE
(A) M4X40 		1-33549-246-0 02 1 9601-0004 ●
407 BOLT; VALVE
(B) M6X55 		1-34119-015-0 02 1 9601-0004 ●
407 BOLT; VALVE
(A) 		1-87061-096-0 02 1 9609- ●
407 BOLT; VALVE
(B) 		1-87061-539-0 04 1 9609- ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 04 1 0604- ●
408 CONNECTOR; AIR HOSE
(A) 		1-33549-243-0 02 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(B) 		1-33549-244-0 02 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(C) 		1-33619-532-0 01 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 01 1 9601-0004 ●
408 CONNECTOR; AIR HOSE
(A) 		1-87061-113-0 05 1 9609- ●
408 CONNECTOR; AIR HOSE
(B) 		1-87061-114-0 02 1 9609- ●
409 GASKET; SLAVE VALVE 1-87061-170-0 01 1 9609- ●
410 HOSE; AIR
(C) 		1-87061-496-0 01 1 9609- ●
410 HOSE; AIR
(B) 		1-87061-497-0 02 1 9609- ●
410 HOSE; AIR
(A) 		1-87061-498-0 01 1 9609- ●
414 PIN; SLAVE VALVE 1-87061-466-0 01 1 9609- ●
415 SPRING; SLAVE VALVE 1-87061-187-0 01 1 9609- ●
416 SLEEVE; SLAVE VALVE 1-87061-514-0 01 1 9609- ●
417 GASKET; SLEEVE 1-87060-995-0 01 1 9609- ●
418 VALVE ASM; AIR FILTER REG 1-33549-238-0 01 1 9601-0004 ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 9609- ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 9601-0004 ● ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0005- ●
420 PLUG; VALVE 1-33549-239-0 03 1 9601-0004 ●
420 PLUG; VALVE 1-87061-090-0 01 1 9609- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
