7-40 — INSTRUMENT PANEL AND BOX (#6380) — 96 parça

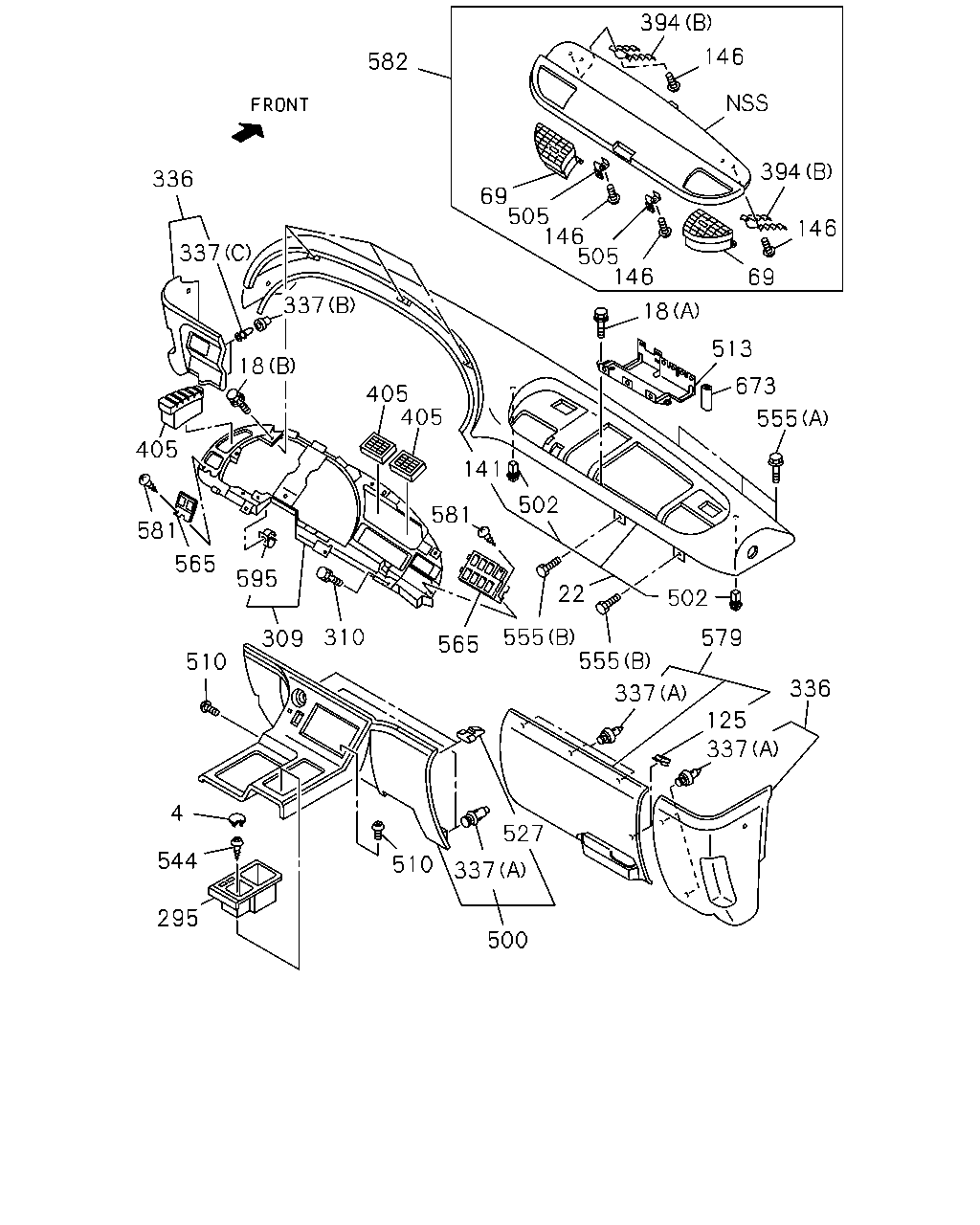

çizim 5935
394 146 582 394 336 69 505 146 146 146 337 69 337 18 513 18 673 405 405 555 405 141 581 502 581 565 595 22 502 310 555 555 579 309 565 510 336 337 125 337 4 527 544 510 337 295 500 505
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9604-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9604-
22 PAD; INST 1-72317-337-2 01 1 9604-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9604-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9604-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9604-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL 8-97853-939-4 10 1 9604-9812
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9604-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9604-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9604-
309 PANEL; SW,INST 1-72418-018-3 01 1 9604-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9604-
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9604-
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9604-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 9604-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9604-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9604-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9604-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9604-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9604-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9604-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9604-
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-594-1 01 1 9604-
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-573-1 01 1 9604-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9604-
505 LOCK; LID 1-72558-024-2 02 1 9604-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9604-
513 BRACKET; RELAY 1-73908-056-3 01 1 9604-9604
513 BRACKET; RELAY 8-97865-168-2 01 1 9605-
527 CLIP; INST CLUSTER 8-97853-939-4 05 1 9604-9812
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9901-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9604-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9604-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9604-
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9604-
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9604-
579 COVER; INST PNL 1-72438-128-1 01 1 9604-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9604-
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9604-
595 NUT; HOOK 1-72418-013-0 10 1 9604-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

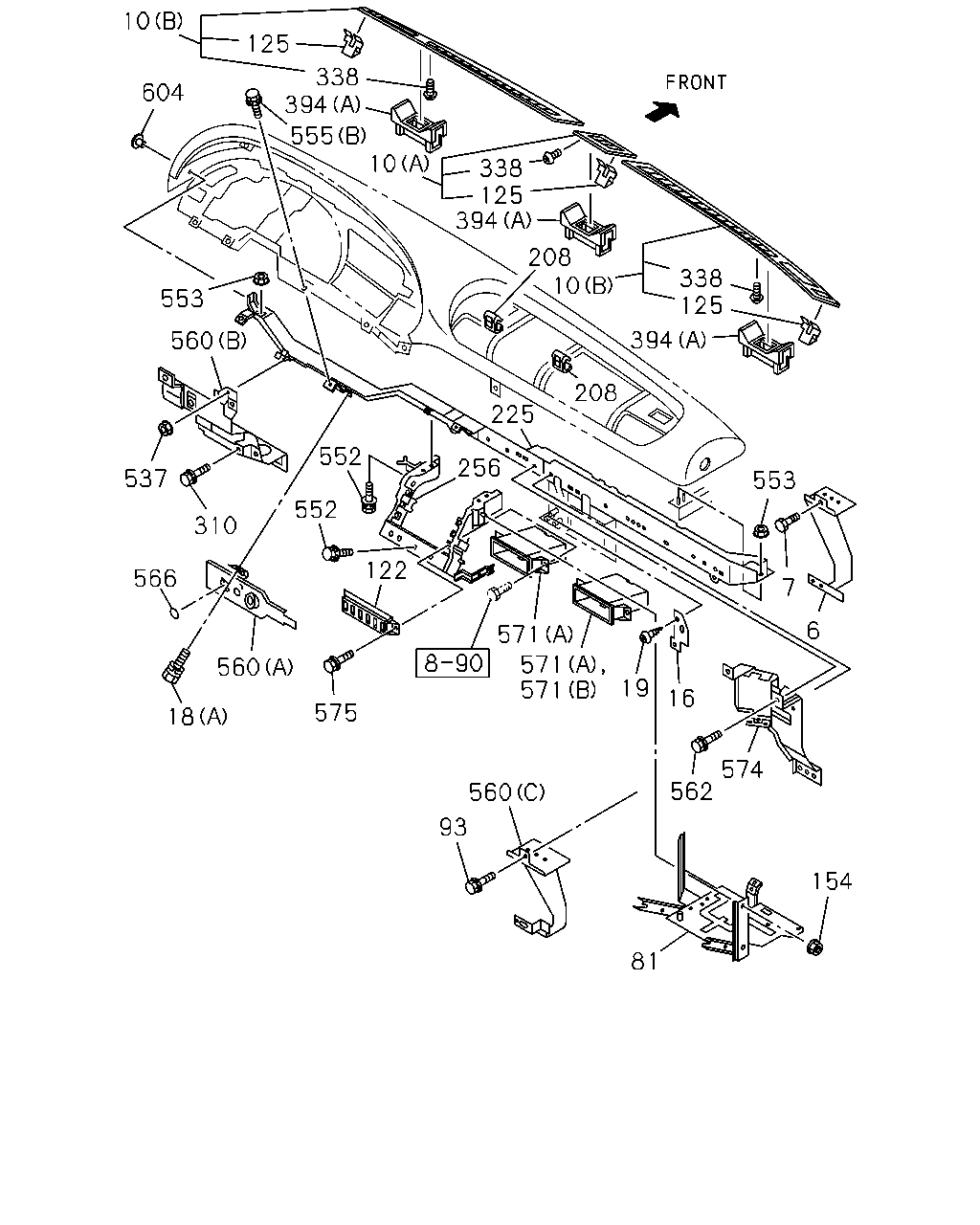

çizim 5936
10 125 338 394 604 555 10 338 125 394 208 10 338 125 553 560 394 208 225 552 256 537 553 552 310 122 566 7 6 571 571 571 560 19 16 575 18 574 562 560 93 154 81
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 9604-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 9604-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9604-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9604-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9604-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9604-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 9604-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 9604-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 9604-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9604-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9604-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9604-
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-416-7 01 1 9604-
81 BRACKET; ELEC CONT UNIT
EXC. INTAKE HEATER<SL2> 		1-73907-405-7 01 1 9604-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9604-
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9604-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9604-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL 8-97853-939-4 10 1 9604-9812
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9604-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9604-
225 FRAME; FACIA 1-65671-727-3 01 1 9604-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9604-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9604-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9604-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9604-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9604-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9604-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9604-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9604-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9604-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9604-
560 BRACKET
(B) 		1-65681-045-6 01 1 9604-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9604-
560 BRACKET
INTAKE HEATER<SL2> (A) 		1-65671-742-1 01 1 9604-
560 BRACKET
EXC. INTAKE HEATER<SL2> (A) 		1-65681-043-2 01 1 9604-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9604-
566 PLUG; HOLE
EXC. INTAKE HEATER<SL2> OD=36 BLACK 		1-76798-018-0 01 1 9705-9806
566 PLUG; HOLE
EXC. INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9604-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9604-9812
571 BEZEL; POCKET
(A),(B) 		1-72438-151-1 01 1 9901-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A),(B) 		1-72438-151-1 01 1 9901-
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9604-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9604-
604 CLIP; INST PAD 1-09983-123-0 01 1 9604-
çizim 5937
18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9604-
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9604-
