2-30C — GEAR SHIFTER AND QUADRANT BOX (#63798) — 733 parça

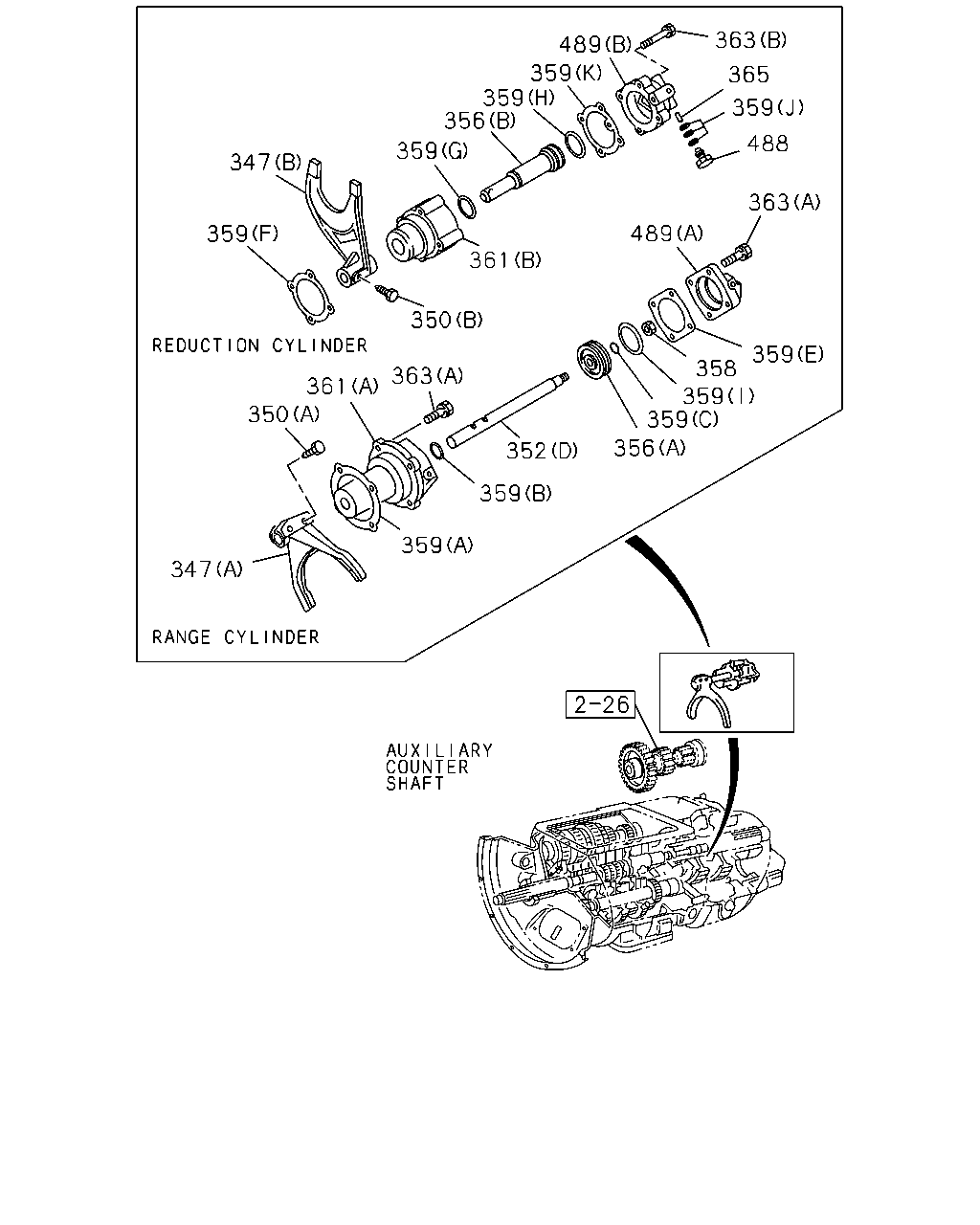

çizim 114026
363 489 359 359 356 365 359 488 359 347 363 489 359 361 350 359 358 359 359 363 361 350 356 352 359 359 347
BalonParca AdiParca NoAdetTipApplied Date A B C
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9609- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9609- ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0406- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 9601-0004 ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 9609- ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 9601-0004 ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9609- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9609- ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 9601-0004 ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9609- ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 9601-9608 ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 9609-0004 ● ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 0005- ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9609- ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9609- ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9609- ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9609- ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9609- ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9609- ●
359 GASKET; AIR CYL
(K) 		1-87061-268-0 01 1 9609- ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9609- ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9609- ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 9601-0004 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9609- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9609- ●
363 BOLT; AIR CYL
(C) M10X60 		1-33119-326-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9609- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9609- ●
365 VALVE; AIR CYL 1-87060-997-0 01 1 9609- ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 9609- ●
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 9609- ●
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 9609- ●

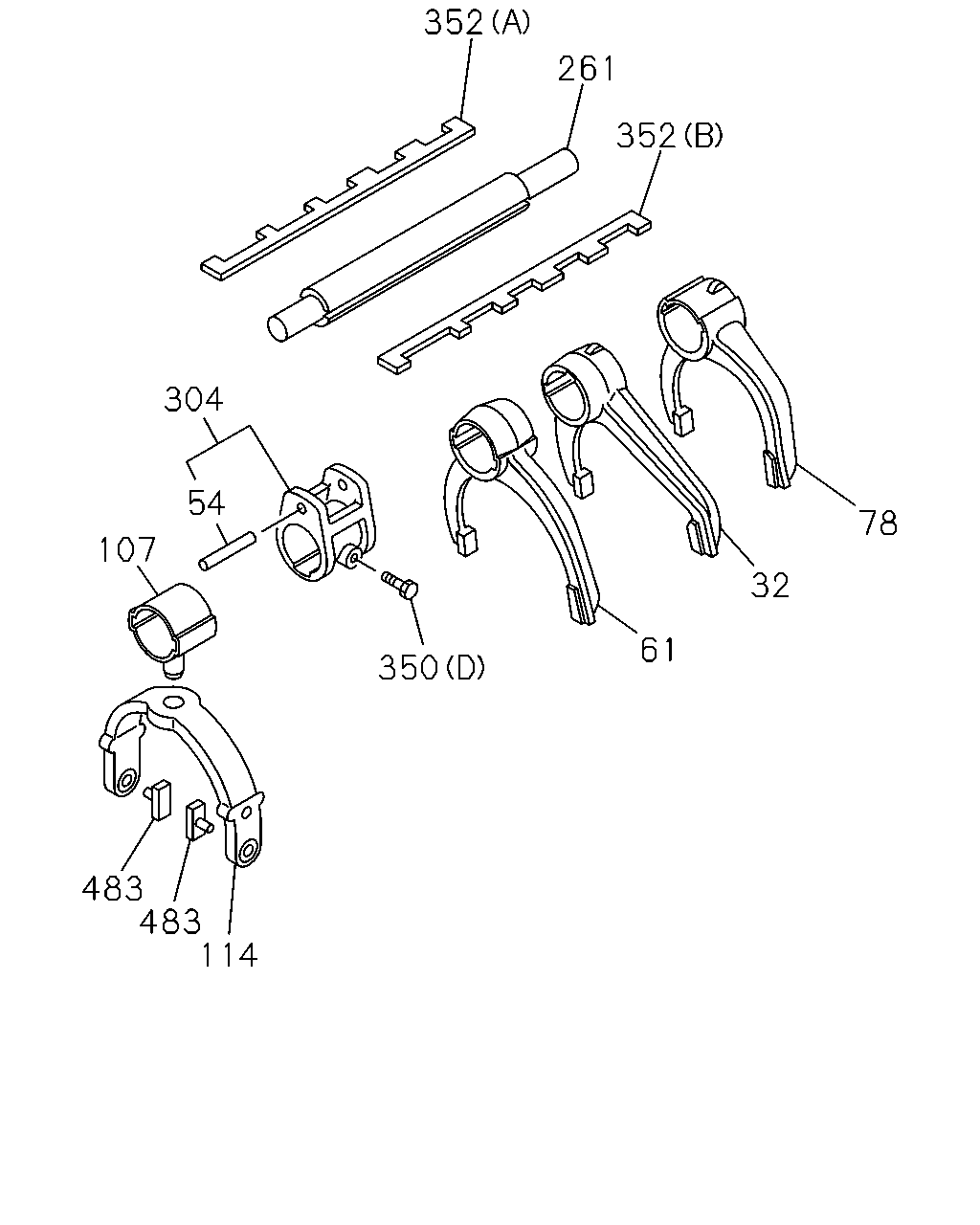

çizim 114058
352 261 352 304 54 78 107 32 61 350 483 483 114
BalonParca AdiParca NoAdetTipApplied Date A B C
32 ARM; SHIFT,1ST & 2ND 1-33511-634-0 01 1 0406- ●
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0406- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 0406- ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 9609- ●
78 ARM; SHIFT,REV 1-33511-633-0 01 1 0406- ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 9609- ●
107 BLOCK; SHIFT,OD TO TOP 1-33511-636-0 01 1 0406- ●
114 ARM; SHIFT,OD TO TOP 1-33511-637-0 01 1 0406- ●
261 ROD; GEAR CONT 1-33531-480-0 01 1 0406- ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 9601-0004 ●
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 0406- ●
304 BLOCK; SHIFT SHAFT 1-33511-575-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0406- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 9601-0004 ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 9609- ●
483 BUSHING; SHIFT ARM 1-33519-164-0 02 1 0406- ●

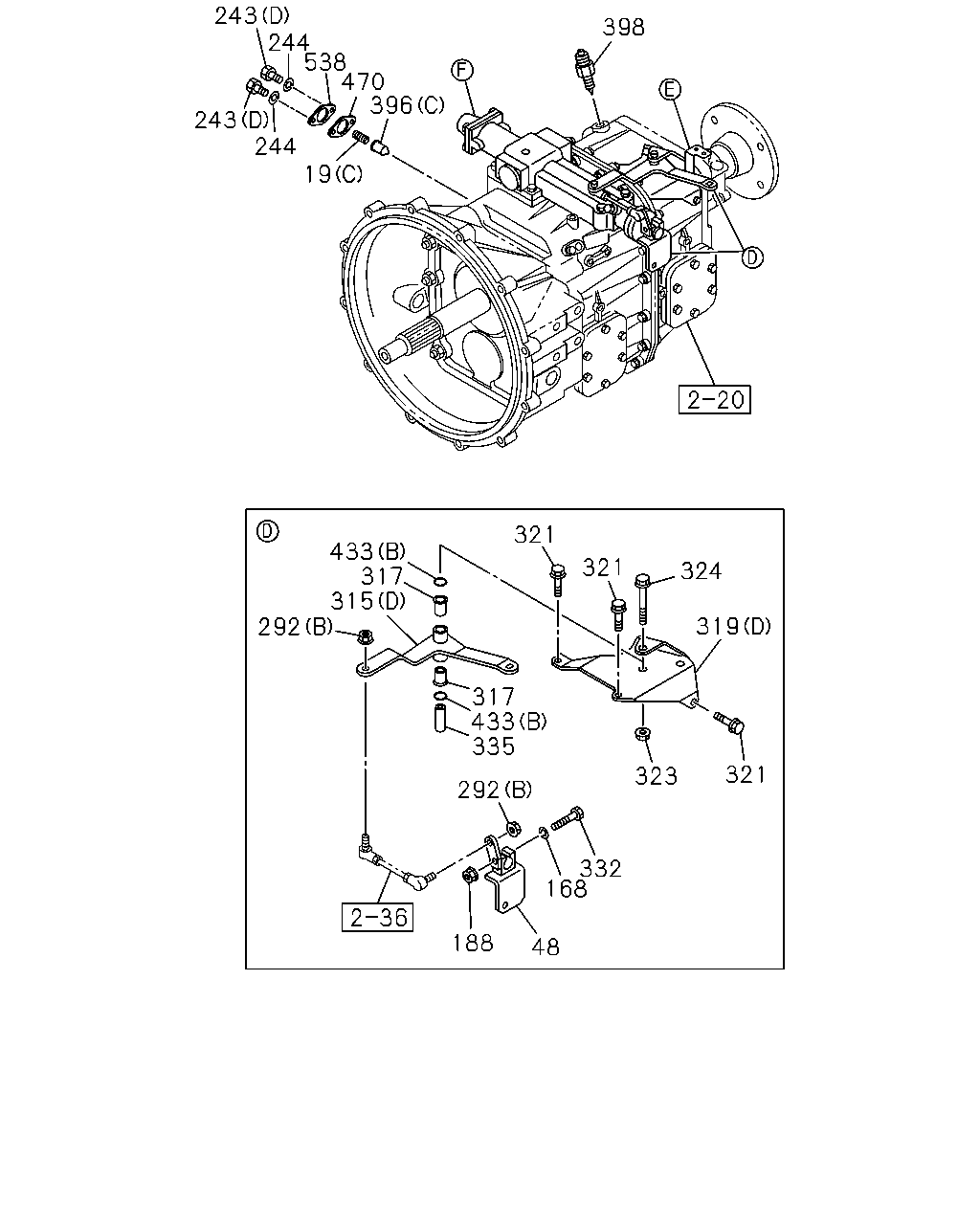

çizim 114089
243 244 538 470 396 398 244 19 321 433 317 315 292 321 324 319 317 433 335 321 323 292 332 168 188 48 243
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0406- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0406- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0406- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0406- ●
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 9601-0004 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0406-0603 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 9601-0004 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406-0602 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9609-9803 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0005 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0006-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-0004 ●
243 BOLT; COVER
(D) 		1-33119-575-0 02 1 0406- ●
243 BOLT; COVER
(E) 		1-33549-551-0 02 1 0406- ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0406- ●
244 WASHER; LK,COVER 1-33119-323-0 06 1 9601-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0005 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0006-0405 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0406- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9903 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-0705 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0706- ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-0004 ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0406- ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9601-0004 ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9601-0004 ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 9609- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 04 1 9601-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0405 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0406- ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0406- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9601-9803 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9804-0004 ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 9609- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9601-9608 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9609-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0405 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9601-0004 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0406- ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0406- ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 9601-0004 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0406- ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
398 SWITCH; REV LAMP 1-82440-128-0 01 1 0406- ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 9601-0004 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9609- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9601-9803 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0012-0405 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0406- ● ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 9609- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0406- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609- ●
538 COVER; DETENT 1-33119-574-0 01 1 0406- ●
538 COVER; DETENT 1-33119-320-0 01 1 9601-0004 ●
çizim 184155
492 492 485 486 486 492 485 486
BalonParca AdiParca NoAdetTipApplied Date A B C
485 TROUGH; OIL
(A) 		1-87061-489-0 01 1 9609- ●
485 TROUGH; OIL
(B) 		1-87061-490-0 01 1 9609- ●
486 BOLT; OIL TROUGH
(A) 		1-87061-527-0 02 1 9609- ●
486 BOLT; OIL TROUGH
(B) 		1-87061-528-0 01 1 9609- ●
492 SPACER; OIL TROUGH 1-87061-494-0 03 1 9609- ●

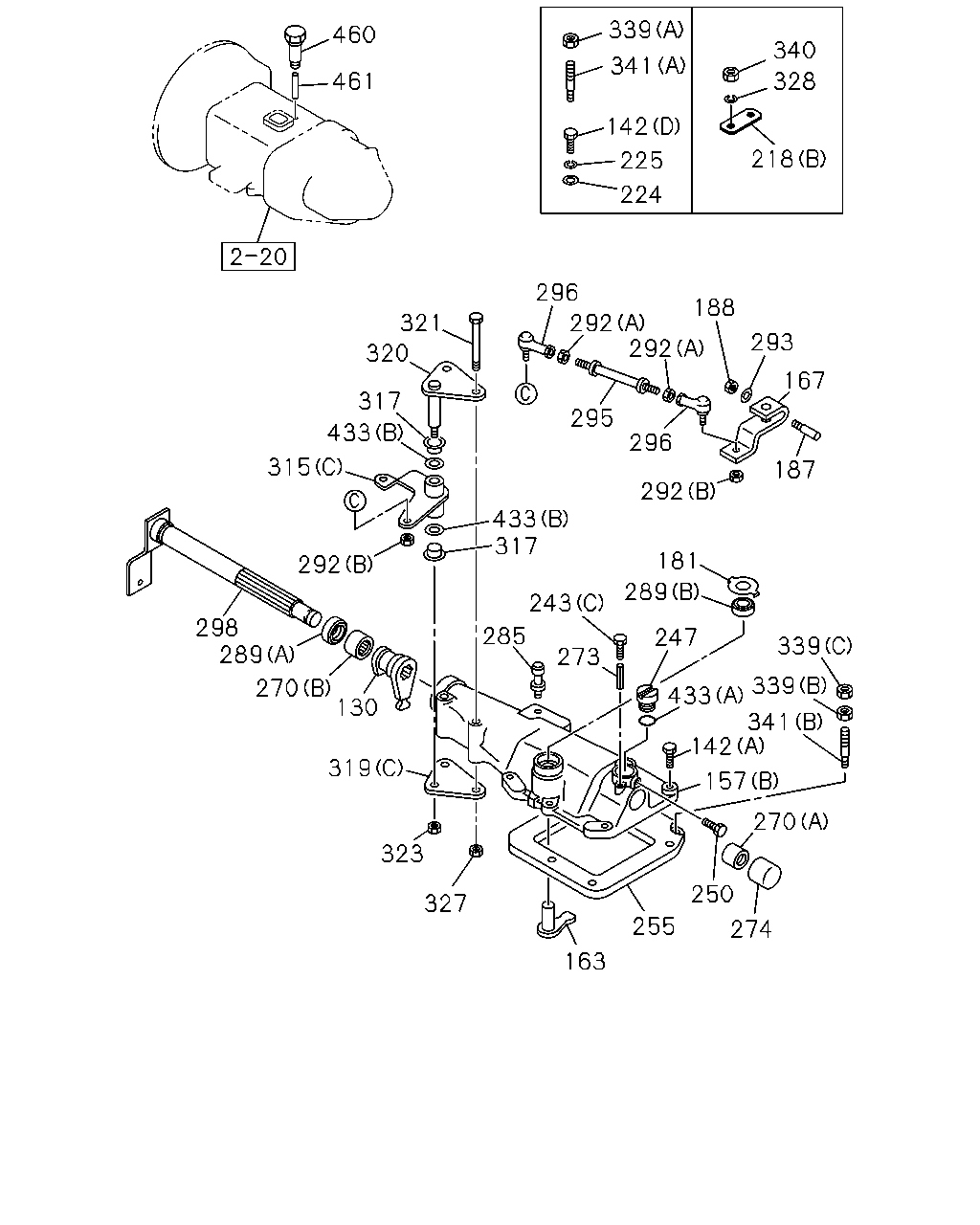

çizim 184168
339 340 341 328 142 224 225 218 460 461 321 320 317 296 188 167 292 292 295 296 292 181 433 317 433 315 187 289 247 339 339 341 142 433 157 270 250 274 292 298 289 270 130 319 323 327 163 255 273 243 285 293
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0406- ●
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9609- ●
142 BOLT; QUAD BOX
(F) 		1-33119-569-0 04 1 0406- ●
142 BOLT; QUAD BOX
(G) 		1-33119-585-0 02 1 0406- ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609- ●
157 BOX; QUAD,TRANS
(D) 		1-33541-537-0 01 1 0406- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9803 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9804-0005 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 0006-0011 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0012- ●
167 LEVER; SELECT,EXTERNAL 1-33521-070-0 01 1 9609- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9609-9803 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9804-0005 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0006-0011 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0012- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9609-9803 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9804-0005 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0006-0011 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0012- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406-0602 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9609-9803 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0005 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0006-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0406- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9609- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0406-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9601-0004 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9609-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0406- ●
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9601-0004 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9609-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(D) 		1-33119-575-0 02 1 0406- ●
243 BOLT; COVER
(E) 		1-33549-551-0 02 1 0406- ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9609- ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9609- ●
255 PLATE; DIST,QUAD BOX 1-33549-235-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9609- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9609- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9609- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9609- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0406- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9609- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9601-0004 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9609-9803 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9804-0005 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0006-0011 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0012- ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0406- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9609- ●
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9601-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0406- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 9601-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0005 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0006-0405 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0406- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9903 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-0705 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0706- ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-0004 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9609-9803 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0005 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0006-0011 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0012-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-9803 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9804- ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 9601-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9903 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0705 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0406- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9609- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0406- ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9601-0004 ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9601-0004 ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 9609- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 04 1 9601-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0405 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0406- ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0406- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9601-9803 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9804-0004 ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 9609- ●
320 SHAFT; LEVER 1-33619-511-0 01 1 9609- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9601-9608 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9609-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0405 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406- ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9609-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9609-0603 ●
328 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 01 1 0604- ●
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 0604- ●
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 0604- ●
339 NUT; QUAD BOX
(A) M10 		9-09110-510-0 02 1 9609-0512 ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 0601- ●
340 NUT; BRKT
M10 		9-09110-510-0 01 1 9609-0512 ●
340 NUT; BRKT
M10 		0-91110-510-0 01 1 0601- ●
341 STUD; QUAD BOX
(A) ISUZU 		1-09305-006-0 06 1 0604- ●
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 0604- ●
341 STUD; QUAD BOX
(A) EATON 		1-09305-004-0 02 1 9609- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9601-9803 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0012-0405 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0406- ● ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 9609- ●
460 ADAPTER; NEUTRAL SW 1-09660-460-2 01 1 9609- ●
461 ROD; ADAPTER 1-82446-001-0 01 1 9609- ●

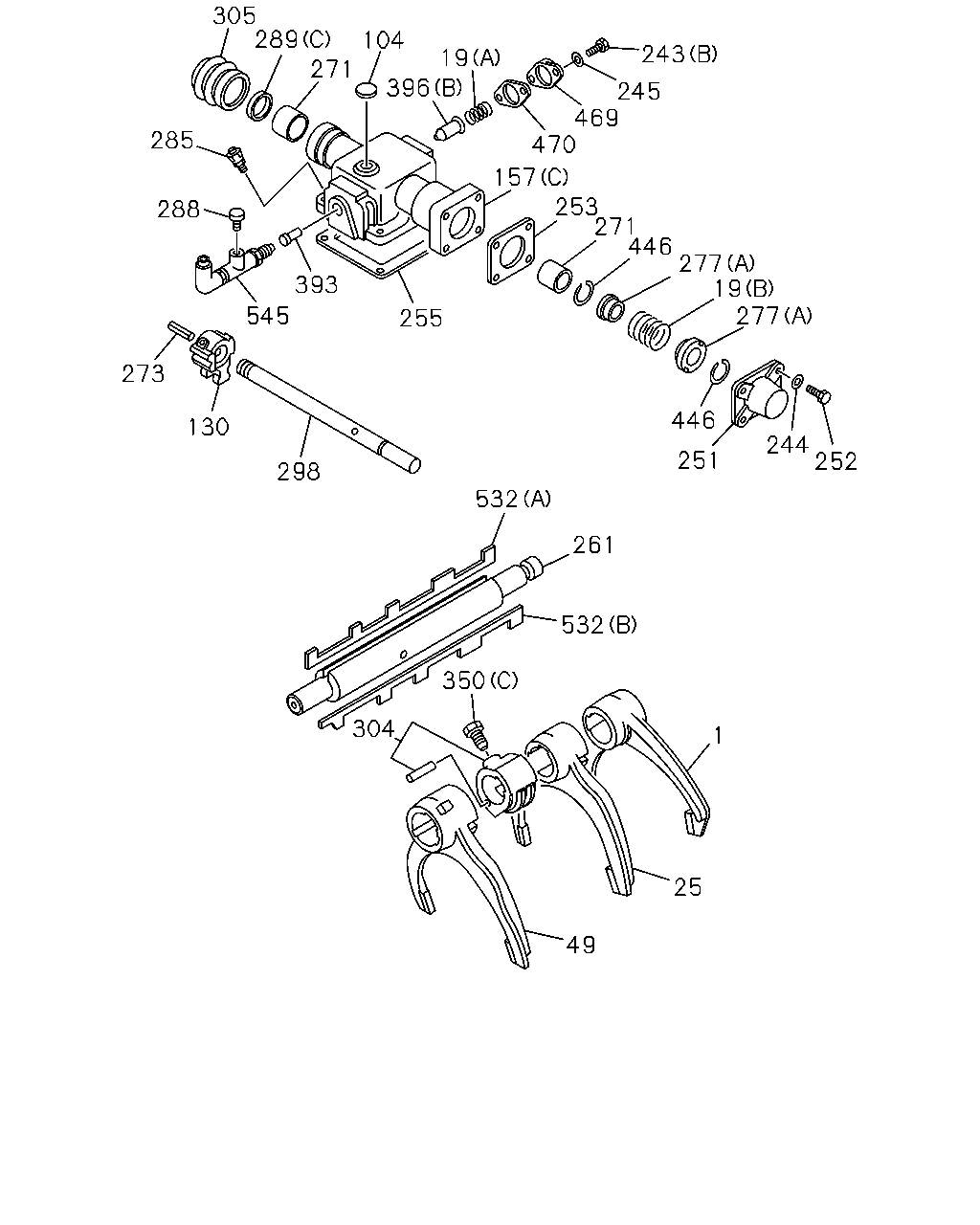

çizim 184172
305 289 271 104 243 19 396 245 469 470 285 157 253 271 446 277 19 277 288 393 545 255 273 446 130 244 252 251 298 532 261 532 350 304 1 25 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-535-0 01 1 9601-0004 ●
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0406- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0406- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0406- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-536-0 01 1 9601-0004 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 9601-0004 ●
104 PLUG; PLATE 1-33549-550-0 01 1 0406- ●
104 PLUG; PLATE 1-33549-231-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0406- ●
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9609- ●
157 BOX; QUAD,TRANS
(D) 		1-33541-537-0 01 1 0406- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609- ●
243 BOLT; COVER
(D) 		1-33119-575-0 02 1 0406- ●
243 BOLT; COVER
(E) 		1-33549-551-0 02 1 0406- ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0406- ●
244 WASHER; LK,COVER 1-33119-323-0 06 1 9601-0004 ●
245 WASHER; PL,COVER 1-33119-323-0 02 1 9601-0004 ●
251 COVER; SIDE 1-33545-013-0 01 1 0406- ●
251 COVER; SIDE 1-33545-009-0 01 1 9601-0004 ●
252 BOLT; SIDE COVER 1-33549-552-0 04 1 0406- ●
252 BOLT; SIDE COVER 1-33549-228-0 04 1 9601-0004 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0406- ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-235-0 01 1 9601-0004 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9609- ●
261 ROD; GEAR CONT 1-33531-480-0 01 1 0406- ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 9601-0004 ●
271 BUSHING; QUAD BOX 1-33119-303-0 02 1 9601-0004 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0406- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9609- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9601-0004 ●
277 PLATE; SPRING SEAT
(C) 		1-33549-388-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(D) 		1-33549-389-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(B) 		1-33549-395-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 02 1 9601-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0406- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9609- ●
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9601-0004 ●
288 PLUG; AIR BREATHER 1-33549-237-0 01 1 9601-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0406- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0406- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9609- ●
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 0406- ●
304 BLOCK; SHIFT SHAFT 1-33511-575-0 01 1 9601-0004 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0406- ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0406- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609- ●
393 PIN; SW 1-33549-394-0 01 1 0406- ●
393 PIN; SW 1-33549-234-0 01 1 9601-0004 ●
393 PIN; SW 1-87061-139-0 01 1 9609- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0406- ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9609- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0406- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609- ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 9601-0004 ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 9601-0004 ●
545 VALVE; POPPET 1-33549-236-0 01 1 9601-0004 ●

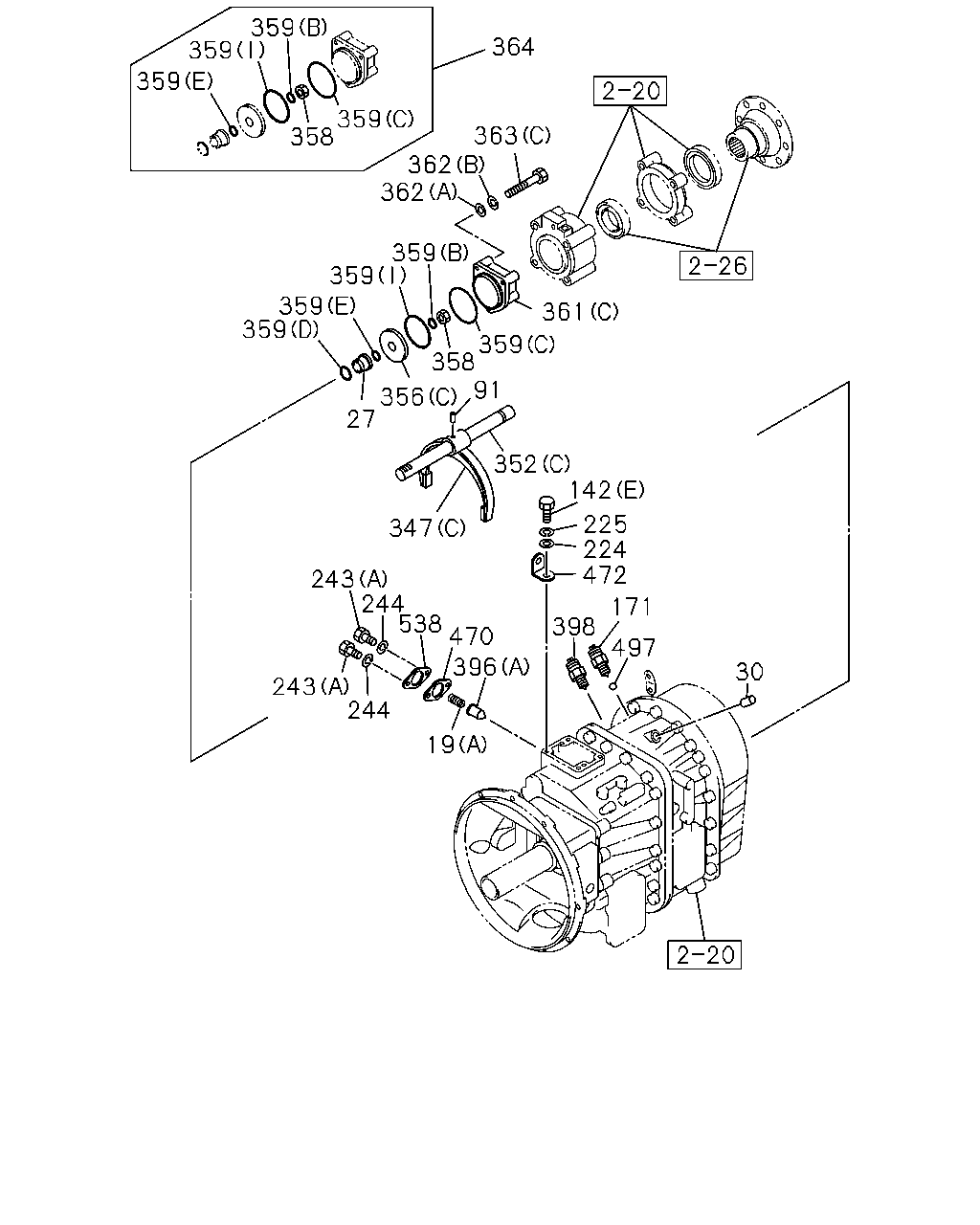

çizim 184175
359 359 364 359 359 358 363 362 362 359 359 359 359 361 359 358 91 356 27 352 142 225 224 472 347 243 244 538 470 171 39 497 396 30 243 244 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0406- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0406- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0406- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 9601-0004 ●
30 PIN; INTER LK 1-33119-309-0 01 1 9601-0004 ●
39 BALL; DETENT 1-87060-789-0 03 1 9609- ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 9601-0004 ●
142 BOLT; QUAD BOX
(F) 		1-33119-569-0 04 1 0406- ●
142 BOLT; QUAD BOX
(G) 		1-33119-585-0 02 1 0406- ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0406- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9601-0004 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9609- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0406-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9601-0004 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9609-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0406- ●
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9601-0004 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9609-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(D) 		1-33119-575-0 02 1 0406- ●
243 BOLT; COVER
(E) 		1-33549-551-0 02 1 0406- ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0406- ●
244 WASHER; LK,COVER 1-33119-323-0 06 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 9601-0004 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9609- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9609- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0406- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 9601-0004 ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 9609- ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 9601-0004 ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9609- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9609- ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 9601-0004 ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9609- ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 9601-0004 ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 9601-9608 ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 9609-0004 ● ●
359 GASKET; AIR CYL
(I) 		1-87061-122-0 01 1 0005- ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9609- ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9609- ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9609- ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9609- ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9609- ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9609- ●
359 GASKET; AIR CYL
(K) 		1-87061-268-0 01 1 9609- ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9609- ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9609- ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 9601-0004 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9609- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9609- ●
362 WASHER; AIR CYL
(A) 		1-33119-318-0 03 1 9601-0004 ●
362 WASHER; AIR CYL
(B) 		1-34159-066-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(C) M10X60 		1-33119-326-0 03 1 9601-0004 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9609- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9609- ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0406- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609- ●
472 EYE; LIFTING 1-87060-783-0 01 1 9601-0004 ●
472 EYE; LIFTING 1-87060-783-0 02 1 9609- ●
497 BALL; SWITCH 1-33119-308-0 01 1 9601-0004 ●
538 COVER; DETENT 1-33119-574-0 01 1 0406- ●
538 COVER; DETENT 1-33119-320-0 01 1 9601-0004 ●

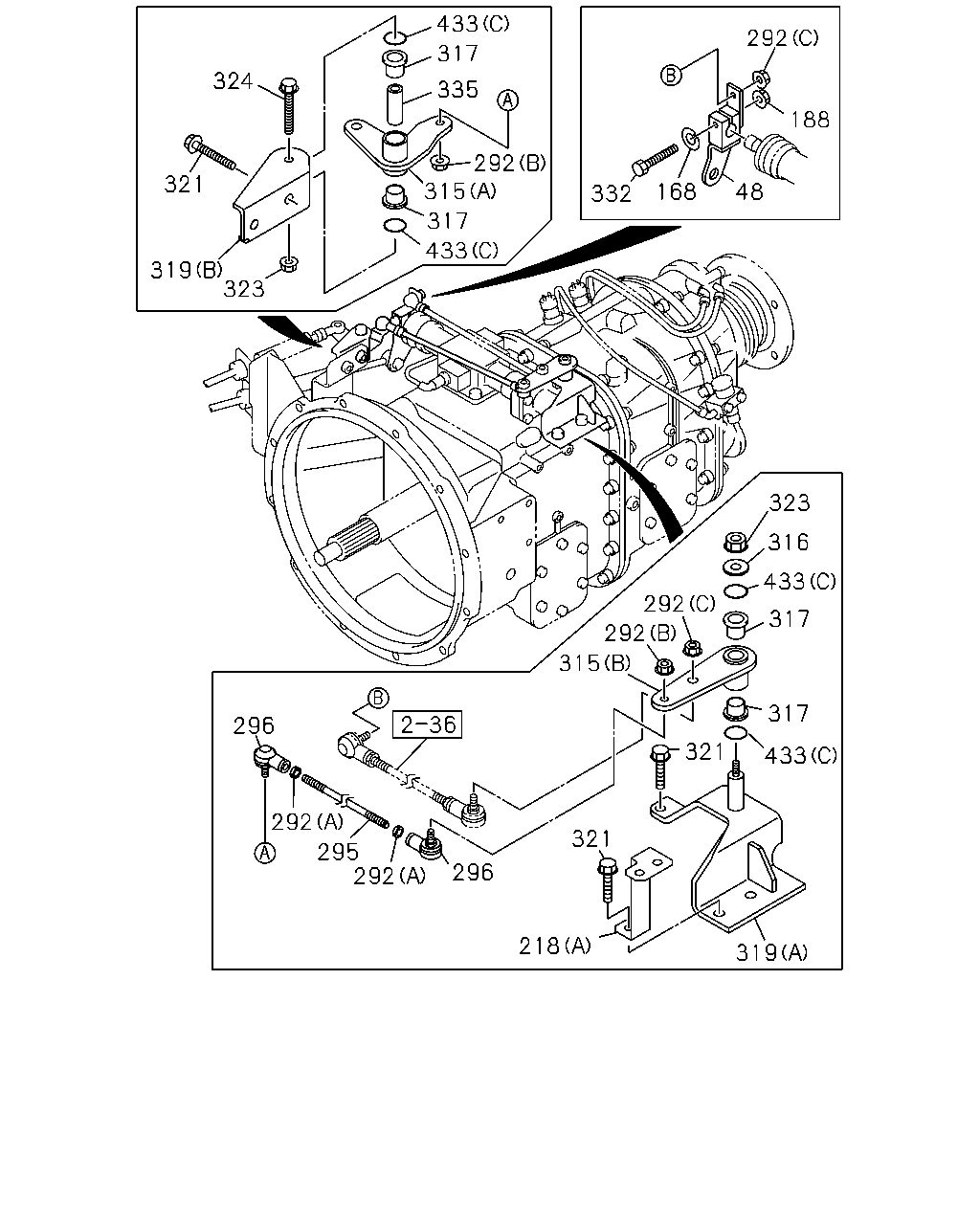

çizim 184178
433 292 317 324 335 188 292 315 321 168 48 332 317 433 319 323 323 316 433 292 317 292 315 317 296 321 433 292 321 295 292 296 218 319
BalonParca AdiParca NoAdetTipApplied Date A B C
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0406- ●
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 9601-0004 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0406-0603 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 9601-0004 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406-0602 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9609-9803 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0005 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0006-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0406- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9609- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0005 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0006-0405 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0406- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9903 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-0705 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0706- ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-9803 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9804- ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 9601-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9903 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0705 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0406- ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9601-0004 ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9601-0004 ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 9609- ●
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9601-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 04 1 9601-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0405 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0406- ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0406- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9601-9803 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9804-0004 ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9601-0004 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 9609- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0406-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9601-9608 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9609-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9601-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0405 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9601-0004 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0406- ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0406- ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 9601-0004 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0406- ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9601-9803 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 9601-0004 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0012-0405 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0406- ● ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 9609- ●

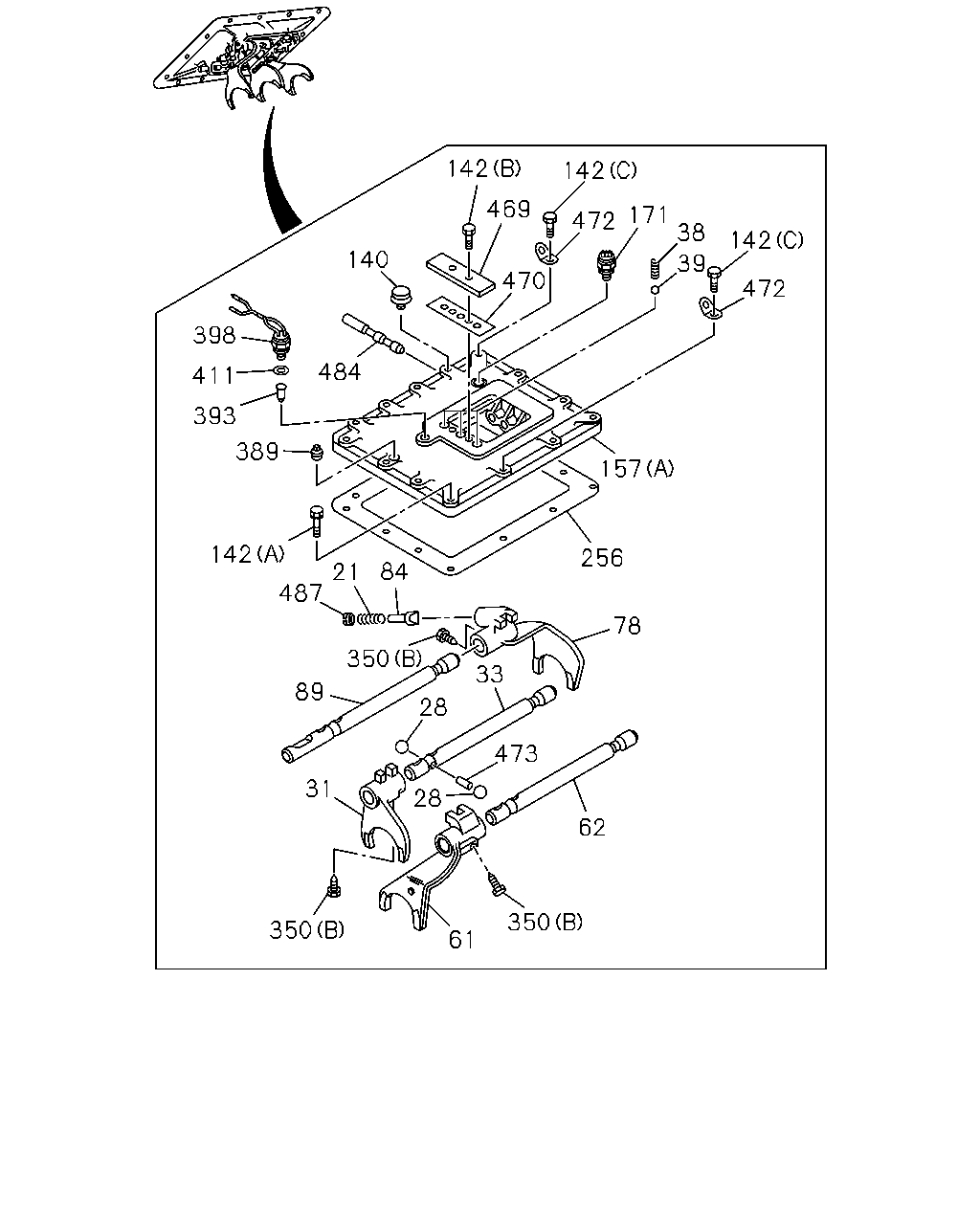

çizim 184182
142 142 469 171 472 38 142 470 140 39 472 398 484 411 393 389 157 142 84 256 21 487 78 350 33 89 28 473 31 28 62 350 350 61
BalonParca AdiParca NoAdetTipApplied Date A B C
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 9609- ●
28 BALL; INTER LK 1-87061-224-0 02 1 9609- ●
31 ARM; SHIFT,LOW & 2ND 1-87061-463-0 01 1 9609- ●
33 ROD; SHIFT,LOW & 2ND 1-87061-417-0 01 1 9609- ●
38 SPRING; DETENT 1-87060-785-0 03 1 9609- ●
39 BALL; DETENT 1-87060-789-0 03 1 9609- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 0406- ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 9609- ●
62 ROD; SHIFT,3RD & 4TH 1-87061-418-0 01 1 9609- ●
78 ARM; SHIFT,REV 1-33511-633-0 01 1 0406- ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 9609- ●
84 SLEEVE; REV 1-87061-112-0 01 1 9609- ●
89 ROD; SHIFT,REV 1-87061-424-0 01 1 9609- ●
140 BREATHER; AIR,TRANS 1-87060-780-0 01 1 9609- ●
142 BOLT; QUAD BOX
(F) 		1-33119-569-0 04 1 0406- ●
142 BOLT; QUAD BOX
(G) 		1-33119-585-0 02 1 0406- ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609- ●
157 BOX; QUAD,TRANS
(D) 		1-33541-537-0 01 1 0406- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0406- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9601-0004 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9609- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 0406- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 9609- ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0406- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 9601-0004 ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9609- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9609- ●
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-091-0 01 1 9609- ●
393 PIN; SW 1-33549-394-0 01 1 0406- ●
393 PIN; SW 1-33549-234-0 01 1 9601-0004 ●
393 PIN; SW 1-87061-139-0 01 1 9609- ●
398 SWITCH; REV LAMP 1-82440-128-0 01 1 0406- ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 9601-0004 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9609- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-781-0 01 1 9609- ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9609- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0406- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609- ●
472 EYE; LIFTING 1-87060-783-0 01 1 9601-0004 ●
472 EYE; LIFTING 1-87060-783-0 02 1 9609- ●
473 PIN; ROLL 1-87060-808-0 01 1 9609- ●
484 SHAFT; AIR VALVE 1-87061-164-0 01 1 9609- ●
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 9609- ●

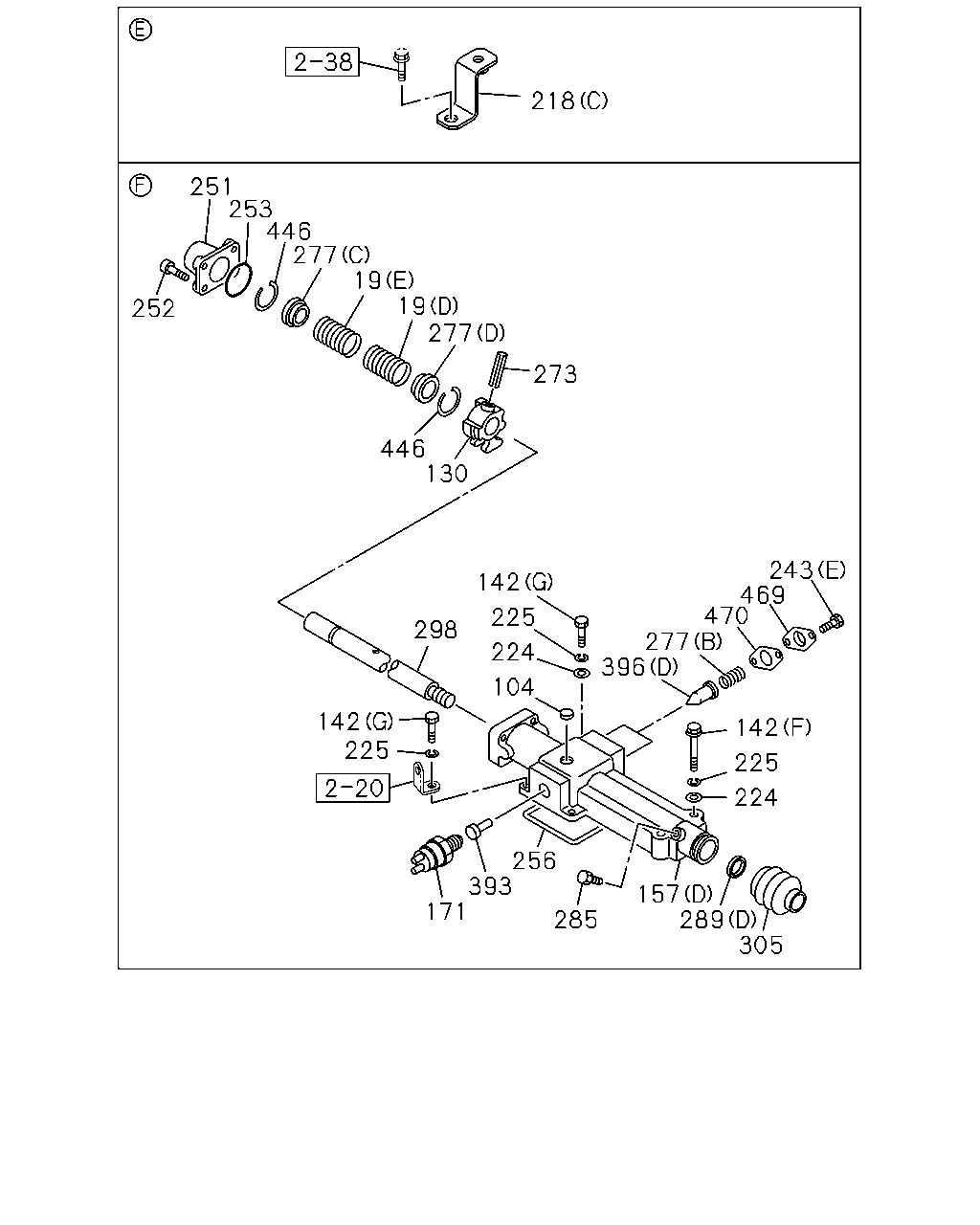

çizim 184328
218 251 253 446 277 19 19 277 252 273 446 130 243 469 470 277 396 142 225 298 224 104 142 225 142 225 224 256 393 171 157 289 305 285
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0406- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0406- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0406- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9601-0004 ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9601-0004 ●
104 PLUG; PLATE 1-33549-550-0 01 1 0406- ●
104 PLUG; PLATE 1-33549-231-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0406- ●
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9609- ●
142 BOLT; QUAD BOX
(F) 		1-33119-569-0 04 1 0406- ●
142 BOLT; QUAD BOX
(G) 		1-33119-585-0 02 1 0406- ●
142 BOLT; QUAD BOX
(E) 		1-33549-222-0 04 1 9601-0004 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9609-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9609- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9609- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9609- ●
157 BOX; QUAD,TRANS
(D) 		1-33541-537-0 01 1 0406- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 9601-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9609- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9609- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0406- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9601-0004 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9609- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0406- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9609- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0406-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9601-0004 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9609-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0406- ●
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9601-0004 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9609-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(D) 		1-33119-575-0 02 1 0406- ●
243 BOLT; COVER
(E) 		1-33549-551-0 02 1 0406- ●
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9601-0004 ●
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9601-0004 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 9609-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
251 COVER; SIDE 1-33545-013-0 01 1 0406- ●
251 COVER; SIDE 1-33545-009-0 01 1 9601-0004 ●
252 BOLT; SIDE COVER 1-33549-552-0 04 1 0406- ●
252 BOLT; SIDE COVER 1-33549-228-0 04 1 9601-0004 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0406- ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 9601-0004 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 0406- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 9609- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0406- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9609- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9601-0004 ●
277 PLATE; SPRING SEAT
(C) 		1-33549-388-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(D) 		1-33549-389-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(B) 		1-33549-395-0 01 1 0406- ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 02 1 9601-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0406- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9609- ●
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9601-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0406- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0406- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9601-0004 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9609- ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0406- ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 9601-0004 ●
393 PIN; SW 1-33549-394-0 01 1 0406- ●
393 PIN; SW 1-33549-234-0 01 1 9601-0004 ●
393 PIN; SW 1-87061-139-0 01 1 9609- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0406- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9601-0004 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9601-0004 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0406- ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9601-0004 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9609- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0406- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9601-0004 ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9609- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
