2-30B — GEAR SHIFTER AND QUADRANT BOX (#63797) — 517 parça
çizim 113877
361 359 355 357 356 355 354 363 345 347 358 345 60 352 52 52 60
BalonParca AdiParca NoAdetTipApplied Date A B
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9601-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9601-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9601-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9601-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9601-9903 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9904-0004 ● ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0005- ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9601-9903 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9904-0004 ● ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0005- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9601-9903 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9904-0004 ● ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0005- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9601-9903 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9904-0004 ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0005- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9601-9903 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9904-0004 ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 0005- ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9601-9903 ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9904-0004 ● ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 0005- ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9601-9903 ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9904-0004 ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0005- ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9601-9903 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9904-0004 ● ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 0005- ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9601-9903 ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9904-0004 ● ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0005- ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9601-9903 ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9904-0004 ● ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0005- ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9601-9903 ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9904-0004 ● ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 9601- ●
361 CYLINDER; AIR,SHIFT 1-33519-091-0 01 1 9904-0004 ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9601-9903 ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9904-0004 ● ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 0005- ●

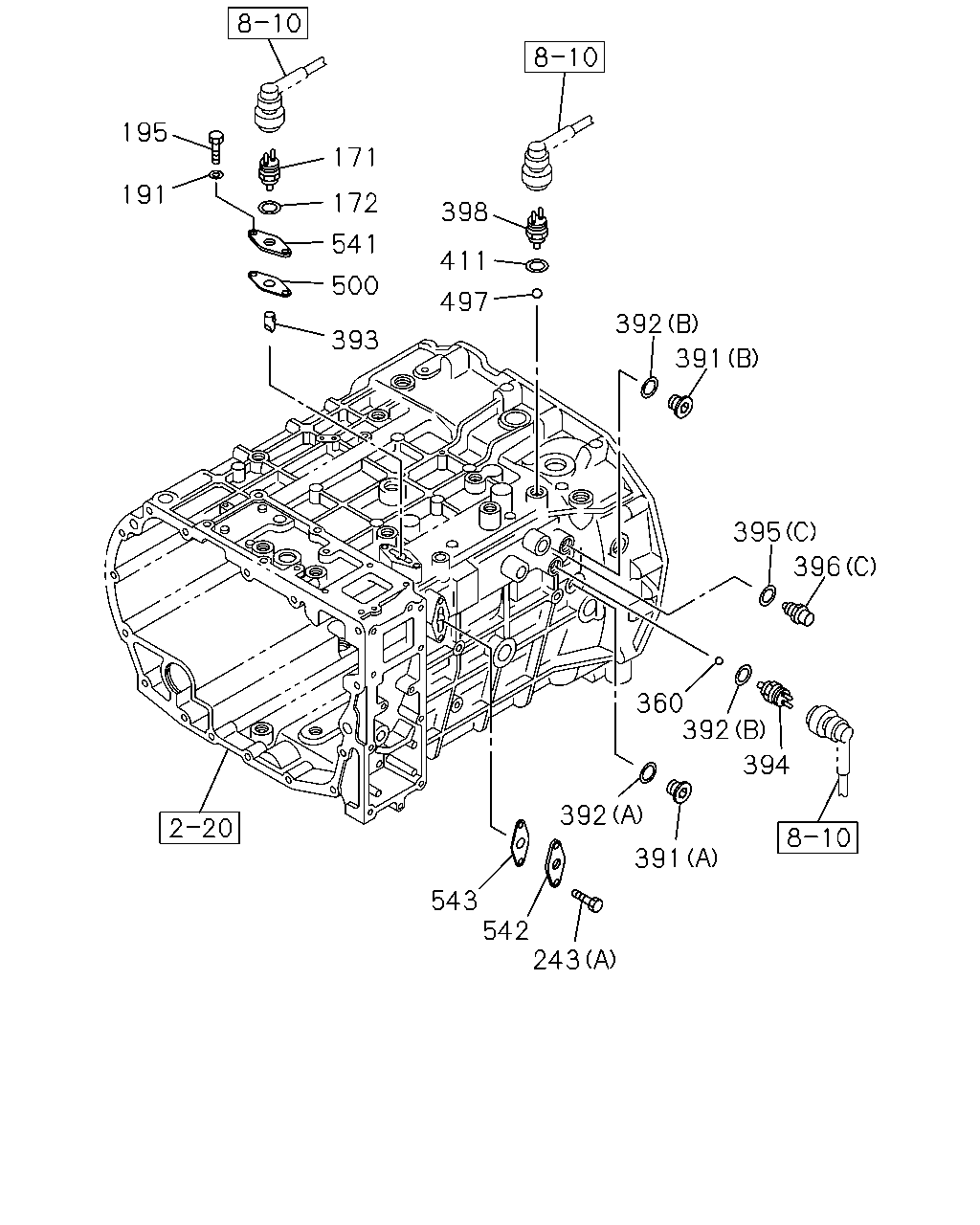

çizim 113962
195 171 191 172 398 541 411 500 497 392 393 391 395 396 360 392 394 392 391 543 542 243
BalonParca AdiParca NoAdetTipApplied Date A B
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9601-9903 ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9904-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0005- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9601-9903 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005- ●
191 WASHER; LK 1-36129-007-0 02 1 9601-9903 ●
191 WASHER; LK 1-36129-007-0 02 1 9904-0004 ● ●
191 WASHER; LK 1-36129-007-0 02 1 0005- ●
195 BOLT 1-33119-301-0 02 1 9601-9903 ●
195 BOLT 1-33119-301-0 02 1 9904-0004 ● ●
195 BOLT 1-33119-301-0 02 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9601-9903 ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0005- ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9601-9903 ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0005- ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9601-9903 ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9904-0004 ● ●
360 BALL; AIR CYL 1-33119-252-0 01 1 0005- ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 9601-9903 ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 9904-0004 ● ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 0005- ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 9601-9903 ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 9904-0004 ● ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 0005- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-249-0 03 1 9601-9903 ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-249-0 03 1 9904-0004 ● ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-249-0 03 1 0005- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-184-0 01 1 9601-9903 ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-184-0 01 1 9904-0004 ● ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-184-0 01 1 0005- ●
393 PIN; SW 1-33119-298-0 01 1 9601-9903 ●
393 PIN; SW 1-33119-298-0 01 1 9904-0004 ● ●
393 PIN; SW 1-33119-298-0 01 1 0005- ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9601-9903 ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9904-0004 ● ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 0005- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9601-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9601-9903 ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9904-0004 ● ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 0005- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9601-9903 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005- ●
497 BALL; SWITCH 1-33119-252-0 01 1 9601-9903 ●
497 BALL; SWITCH 1-33119-252-0 01 1 9904-0004 ● ●
497 BALL; SWITCH 1-33119-252-0 01 1 0005- ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9601-9903 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9904-0004 ● ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 0005- ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9601-9903 ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9904-0004 ● ●
541 PLATE; SWITCH 1-33119-300-0 01 1 0005- ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 9601-9903 ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 9904-0004 ● ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 0005- ●
543 GASKET; PLATE 1-33119-299-0 01 1 9601-9903 ●
543 GASKET; PLATE 1-33119-299-0 01 1 9904-0004 ● ●
543 GASKET; PLATE 1-33119-299-0 01 1 0005- ●

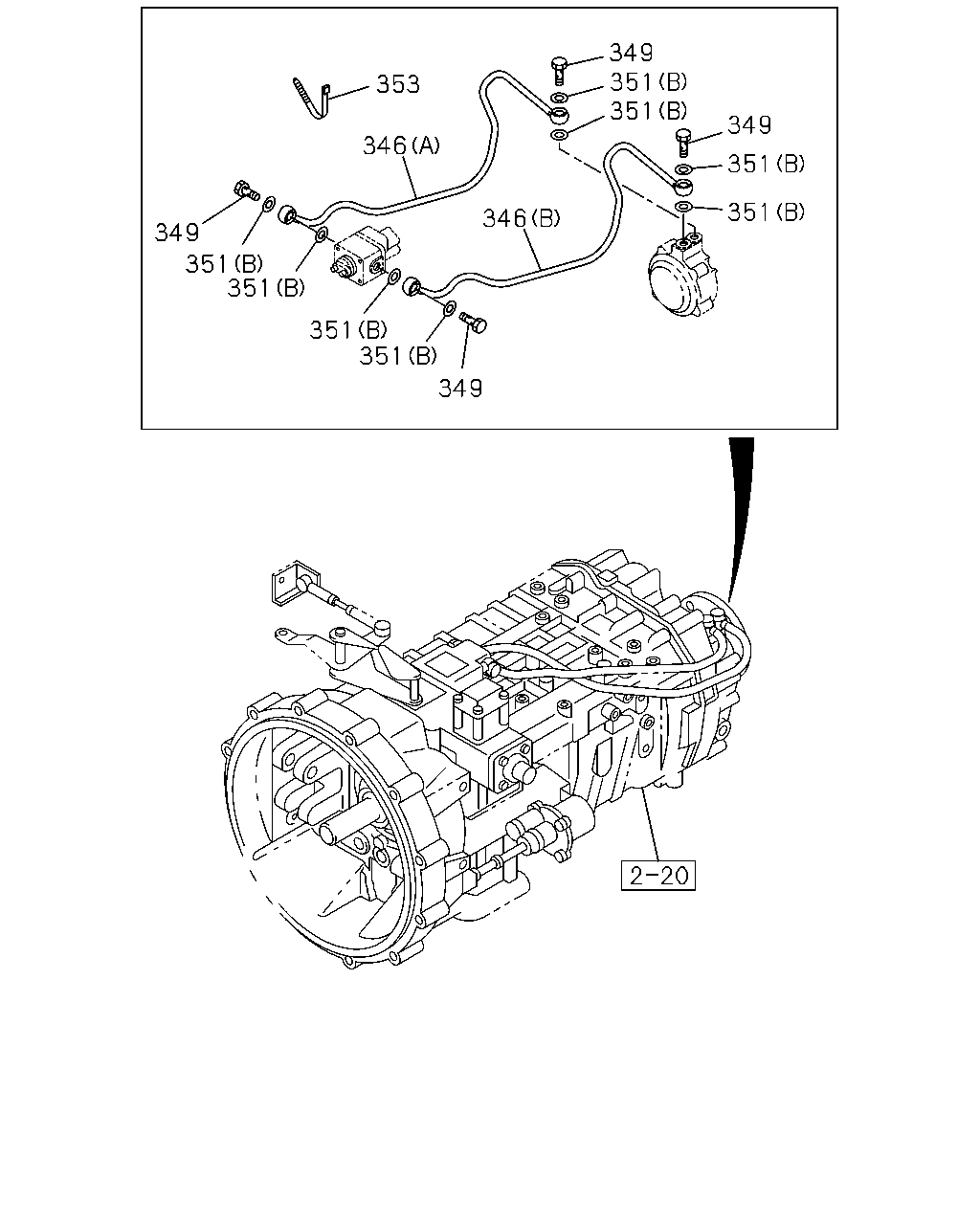

çizim 113965
349 351 351 353 349 346 351 351 346 349 351 351 351 351 349
BalonParca AdiParca NoAdetTipApplied Date A B
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9601-9903 ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 0005- ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9601-9903 ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 0005- ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9601-9903 ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9904-0004 ● ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 0005- ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9601-9903 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0005-1312 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9601-9903 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0005- ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9601-9903 ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9904-0004 ● ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 0005- ●

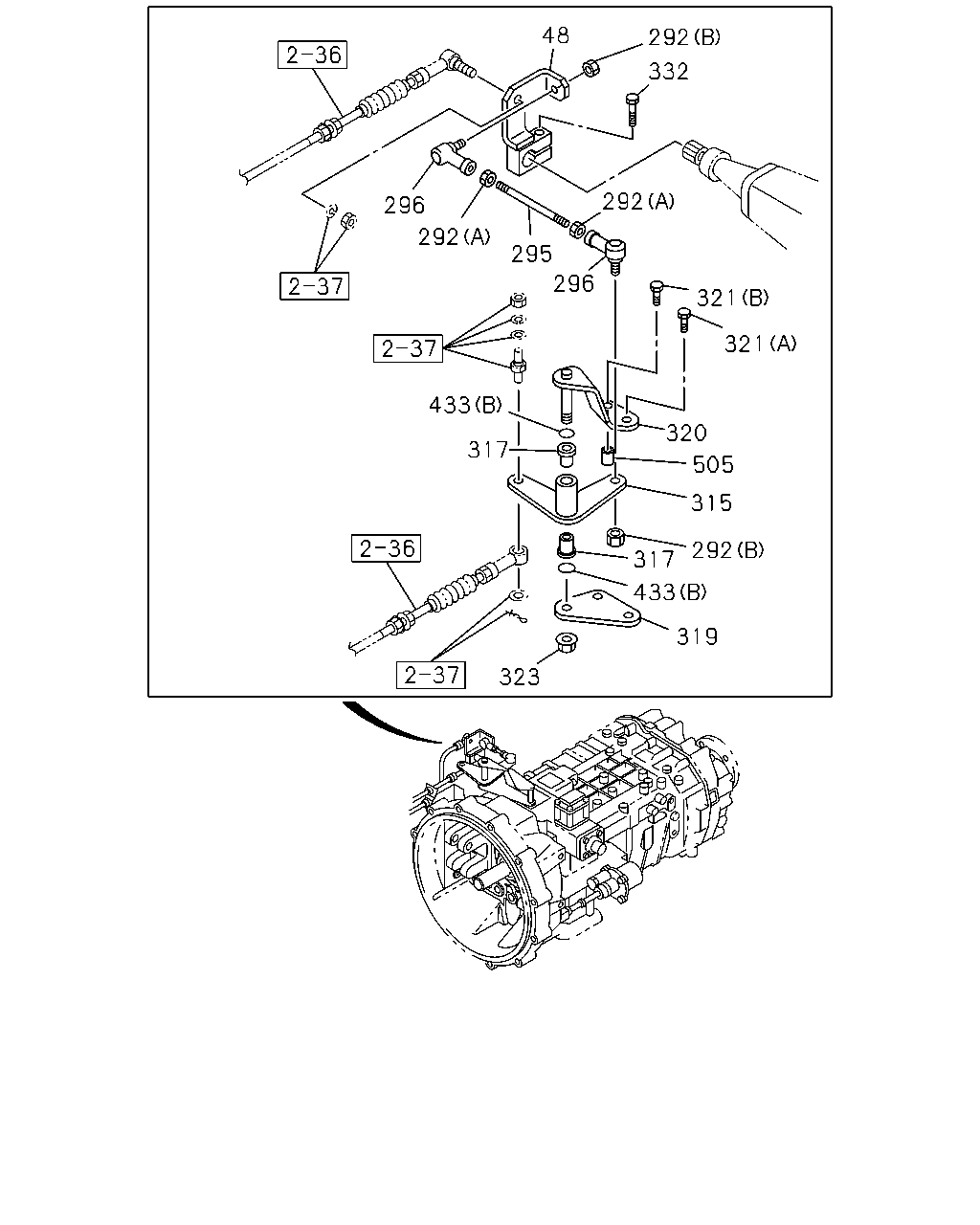

çizim 114024
48 292 332 292 296 292 295 296 321 321 433 320 317 505 315 292 317 433 319 323
BalonParca AdiParca NoAdetTipApplied Date A B
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9601-9903 ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9904-0004 ● ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 0005- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0005 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0006-0405 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0406- ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9903 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-0705 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0706- ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9601-9903 ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9904-0004 ● ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0005- ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0705 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ●
315 LEVER; SELECT 1-33651-660-1 01 1 9601-9903 ●
315 LEVER; SELECT 1-33651-660-1 01 1 9904-0004 ● ●
315 LEVER; SELECT 1-33651-660-1 01 1 0005- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0405 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0406- ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9601-9903 ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9904-0004 ● ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 0005- ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9601-9903 ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9904-0004 ● ●
320 SHAFT; LEVER 1-33619-524-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9601-9903 ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9601-9903 ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 0005- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0405 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0406- ●
332 BOLT; 4TH,SHIFT LEVER
M8X35 W/LK WASHER 		0-50040-835-0 01 1 9601-9610 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9611-9903 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9904-0004 ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0512 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9601-9803 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0012-0405 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0406- ●
505 SPACER; BRKT 1-11349-149-0 02 1 9601-9903 ●
505 SPACER; BRKT 1-11349-149-0 02 1 9904-0004 ● ●
505 SPACER; BRKT 1-11349-149-0 02 1 0005- ●

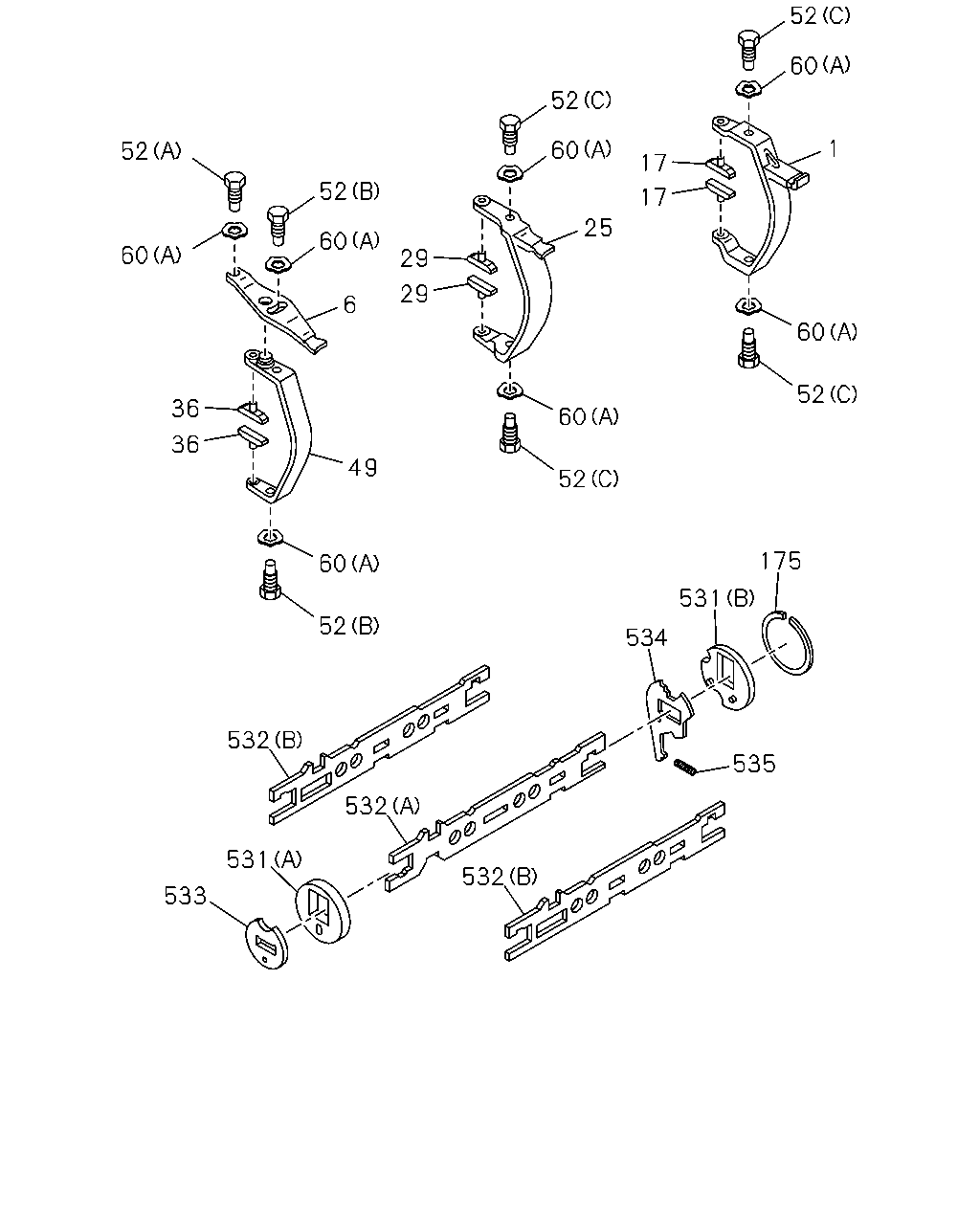

çizim 114241
52 52 1 52 17 52 17 25 60 29 29 6 60 52 36 60 36 49 52 175 60 531 52 534 532 535 532 531 532 533 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9601-9903 ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9904-0004 ● ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 0005- ●
6 LEVER; RELAY 1-33511-526-0 01 1 9601-9903 ●
6 LEVER; RELAY 1-33511-526-0 01 1 9904-0004 ● ●
6 LEVER; RELAY 1-33511-526-0 01 1 0005- ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9601-9903 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9904-0004 ● ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0005- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9601-9903 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9904-0004 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 0005- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9601-9903 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9904-0004 ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0005- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9601-9903 ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9904-0004 ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 0005- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9601-9903 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9904-0004 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9601-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9601-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9601-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9601-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9601-9903 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9904-0004 ● ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0005- ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9601-9903 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9904-0004 ● ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0005- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9601-9903 ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9904-0004 ● ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 0005- ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9601-9903 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0005- ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9601-9903 ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9601-9903 ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9601-9903 ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 0005- ●
533 STOPPER; PLATE 1-33539-045-0 01 1 9601-9903 ●
533 STOPPER; PLATE 1-33539-045-0 01 1 9904-0004 ● ●
533 STOPPER; PLATE 1-33539-045-0 01 1 0005- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9601-9903 ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9904-0004 ● ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 0005- ●
535 SPRING; LEVER 1-33539-049-0 01 1 9601-9903 ●
535 SPRING; LEVER 1-33539-049-0 01 1 9904-0004 ● ●
535 SPRING; LEVER 1-33539-049-0 01 1 0005- ●

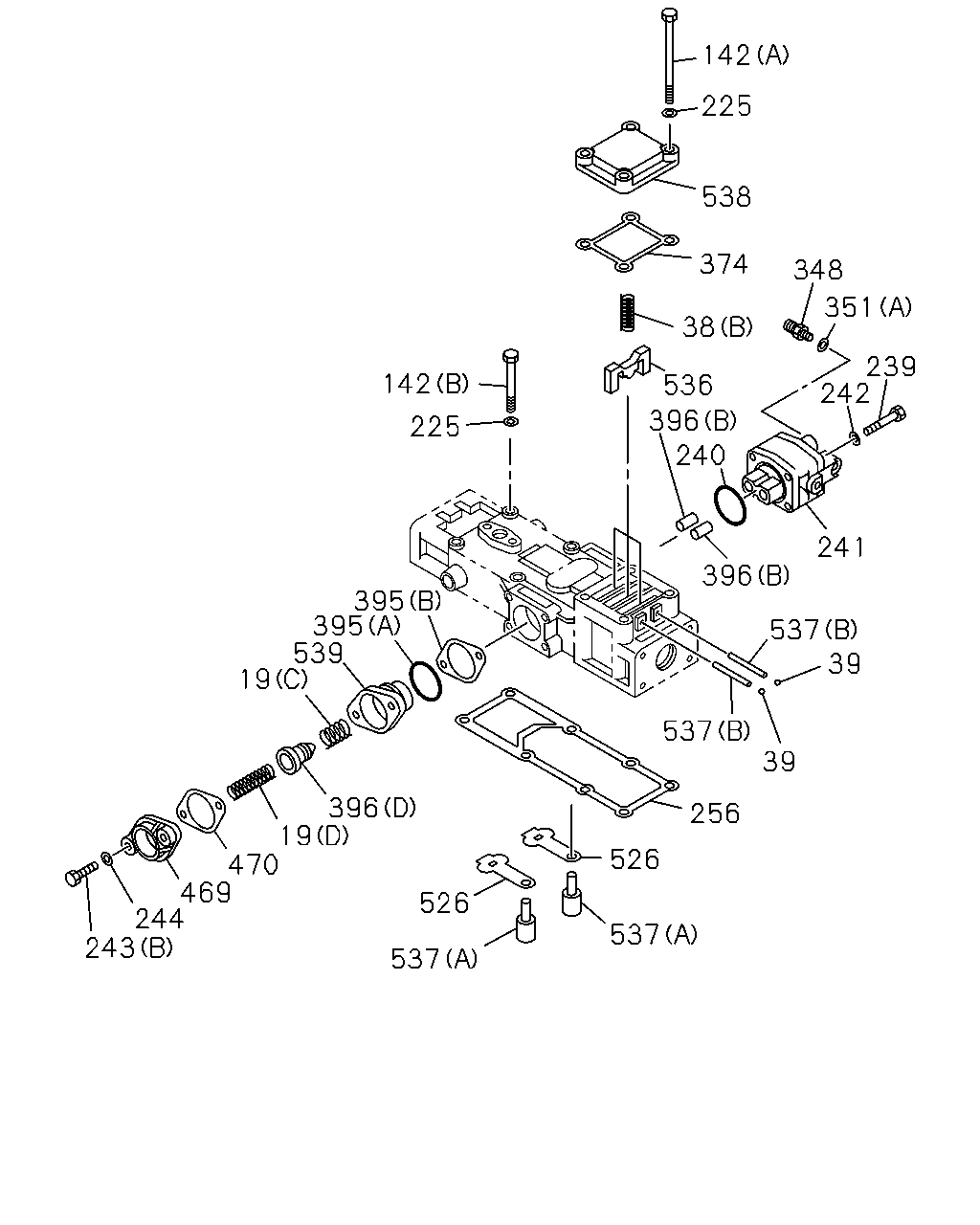

çizim 184162
142 225 538 374 348 351 38 239 242 142 536 396 225 240 241 396 395 395 539 19 537 39 537 39 396 19 470 469 244 243 256 526 526 537 537
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0005- ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0005- ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0005- ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0005- ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9601-9903 ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9904-0004 ● ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0005- ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9601-9903 ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9904-0004 ● ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0005- ●
39 BALL; DETENT 1-33549-210-0 04 1 9601-9903 ●
39 BALL; DETENT 1-33549-210-0 04 1 9904-0004 ● ●
39 BALL; DETENT 1-33549-210-0 04 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-09089-015-0 04 1 9601-9903 ●
142 BOLT; QUAD BOX
(B) 		1-09089-015-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(B) 		1-09089-015-0 04 1 0005- ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9601-9903 ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 0005- ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9601-9903 ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9904-0004 ● ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 0005- ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9601-9903 ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9904-0004 ● ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 0005- ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9601-9903 ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9904-0004 ● ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 0005- ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9601-9903 ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9904-0004 ● ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 0005- ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9601-9903 ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9904-0004 ● ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9601-9903 ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0005- ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9601-9903 ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0005- ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9601-9903 ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9904-0004 ● ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9601-9903 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9904-0004 ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 0005- ●
348 CONNECTOR; AIR HOSE 1-09660-678-0 01 1 9601-9903 ●
348 CONNECTOR; AIR HOSE 1-09660-678-0 01 1 9904-0004 ● ●
348 CONNECTOR; AIR HOSE 1-09660-678-0 01 1 0005-0407 ●
348 CONNECTOR; AIR HOSE
M12 STRAIGHT 		1-09654-246-0 01 1 0408- ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9601-9903 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0005-1312 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401- ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9601-9903 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0005- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 9601-9903 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 9904-0004 ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 0005- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9601-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9601-9903 ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9904-0004 ● ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 9601-9903 ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 9904-0004 ● ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 0005- ●
526 LEVER; DETENT 1-33549-187-0 02 1 9601-9903 ●
526 LEVER; DETENT 1-33549-187-0 02 1 9904-0004 ● ●
526 LEVER; DETENT 1-33549-187-0 02 1 0005- ●
536 PLATE; DETENT 1-33549-212-0 03 1 9601-9903 ●
536 PLATE; DETENT 1-33549-212-0 03 1 9904-0004 ● ●
536 PLATE; DETENT 1-33549-212-0 03 1 0005- ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 9601-9903 ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 9904-0004 ● ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 0005- ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 9601-9903 ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 9904-0004 ● ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 0005- ●
538 COVER; DETENT 1-33543-045-0 01 1 9601-9903 ●
538 COVER; DETENT 1-33543-045-0 01 1 9904-0004 ● ●
538 COVER; DETENT 1-33543-045-0 01 1 0005- ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 9601-9903 ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 9904-0004 ● ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 0005- ●

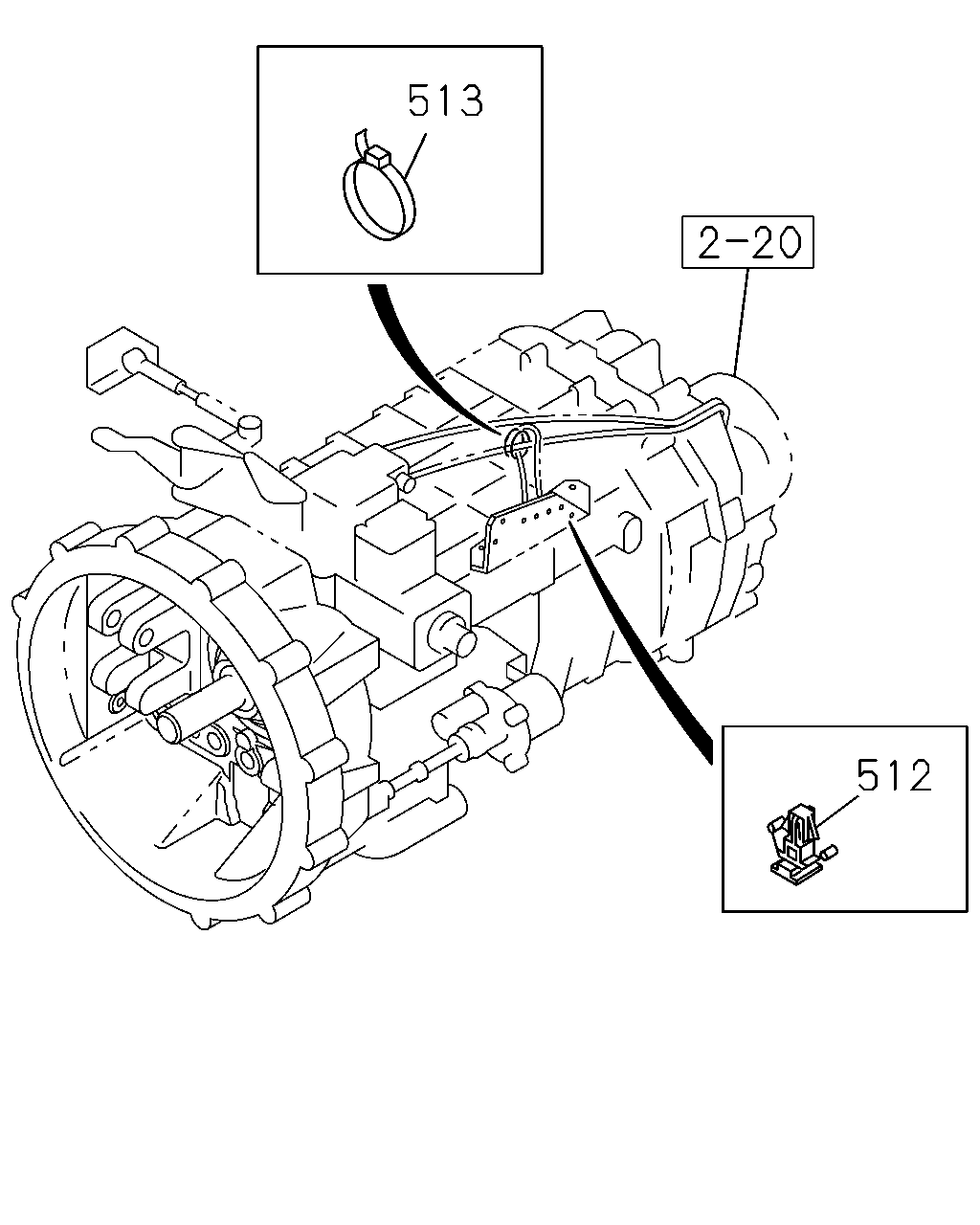

çizim 184169
513 512
BalonParca AdiParca NoAdetTipApplied Date A B
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 9601-9903 ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 9904-0004 ● ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0005- ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 9601-9903 ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 9904-0004 ● ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0005- ●

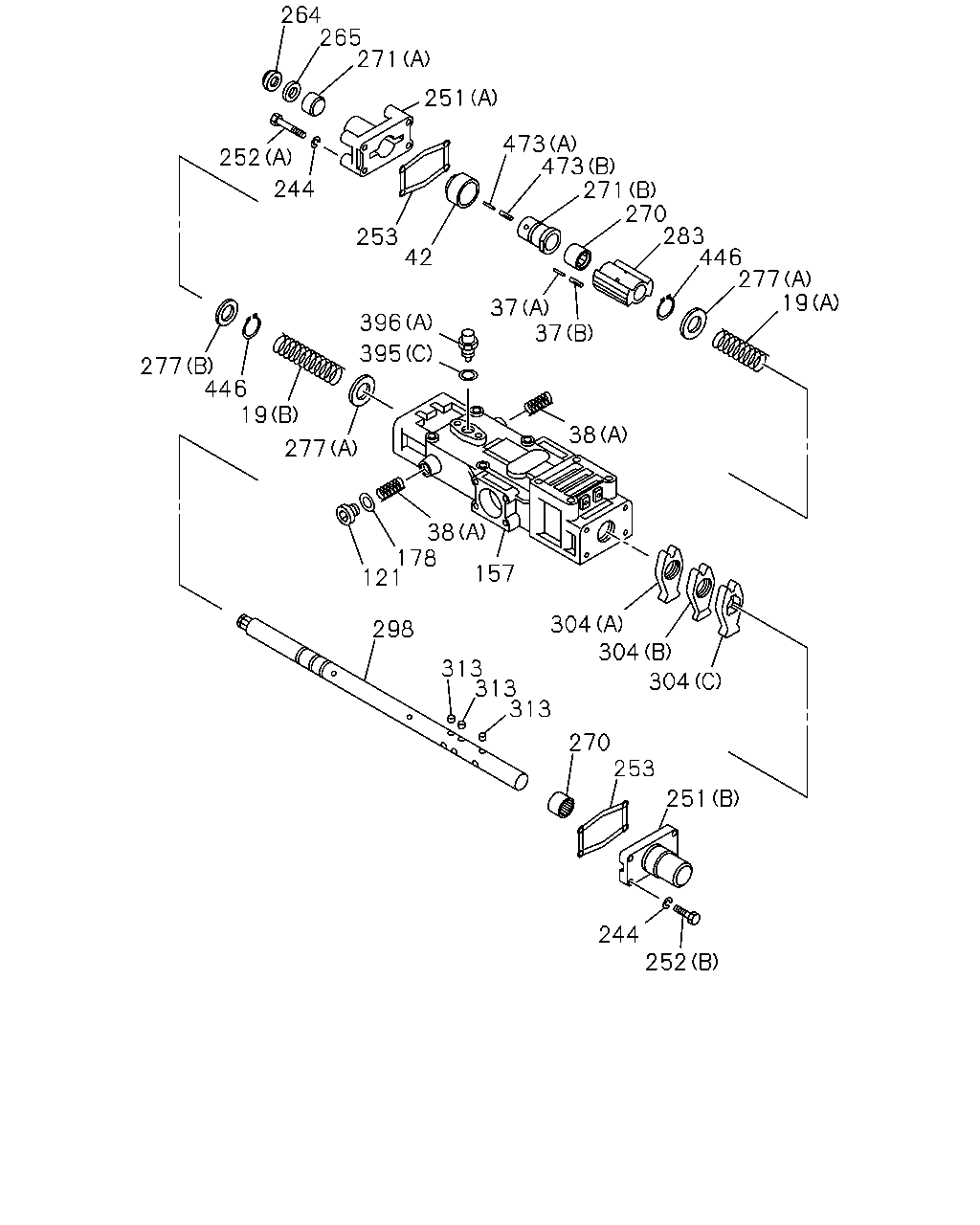

çizim 184170
264 265 271 251 473 473 271 270 283 446 277 19 252 244 253 42 37 37 396 395 277 446 19 38 277 38 178 121 157 304 304 298 313 313 313 304 270 253 251 244 252
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0005- ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0005- ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0005- ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9601-9903 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0005- ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 9601-9903 ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 9904-0004 ● ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 0005- ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 9601-9903 ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 9904-0004 ● ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 0005- ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9601-9903 ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9904-0004 ● ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0005- ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9601-9903 ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9904-0004 ● ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0005- ●
42 CAP; QUAD BOX 1-33549-111-0 01 1 9601-9903 ●
42 CAP; QUAD BOX 1-33549-111-0 01 1 9904-0004 ● ●
42 CAP; QUAD BOX 1-33549-111-0 01 1 0005- ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 9601-9903 ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 9904-0004 ● ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 0005- ●
157 BOX; QUAD,TRANS 1-33541-485-0 01 1 9601-9903 ●
157 BOX; QUAD,TRANS 1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS 1-33541-485-0 01 1 0005- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 9601-9903 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 9904-0004 ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 0005- ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9601-9903 ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9904-0004 ● ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 0005- ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 9601-9903 ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 9904-0004 ● ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 0005- ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 9601-9903 ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 9904-0004 ● ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 0005- ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9601-9903 ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 0005- ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9601-9903 ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 0005- ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9601-9903 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9904-0004 ● ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 0005- ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9601-9903 ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9904-0004 ● ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 0005- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9601-9903 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9904-0004 ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 0005- ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 9601-9903 ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 9904-0004 ● ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 0005- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9601-9903 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 0005- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9601-9903 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9601-9903 ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 0005- ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9601-9903 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 0005- ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 9601-9903 ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 9904-0004 ● ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9601-9903 ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9904-0004 ● ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9601-9903 ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9601-9903 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9601-9903 ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 0005- ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 9601-9903 ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 9904-0004 ● ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 0005- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9601-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9601-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9601-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 9601-9903 ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 9904-0004 ● ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 0005- ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 9601-9903 ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 9904-0004 ● ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 0005- ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 9601-9903 ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 9904-0004 ● ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
