2-25C — SPEEDOMETER DRIVEN GEAR (#63791) — 97 parça

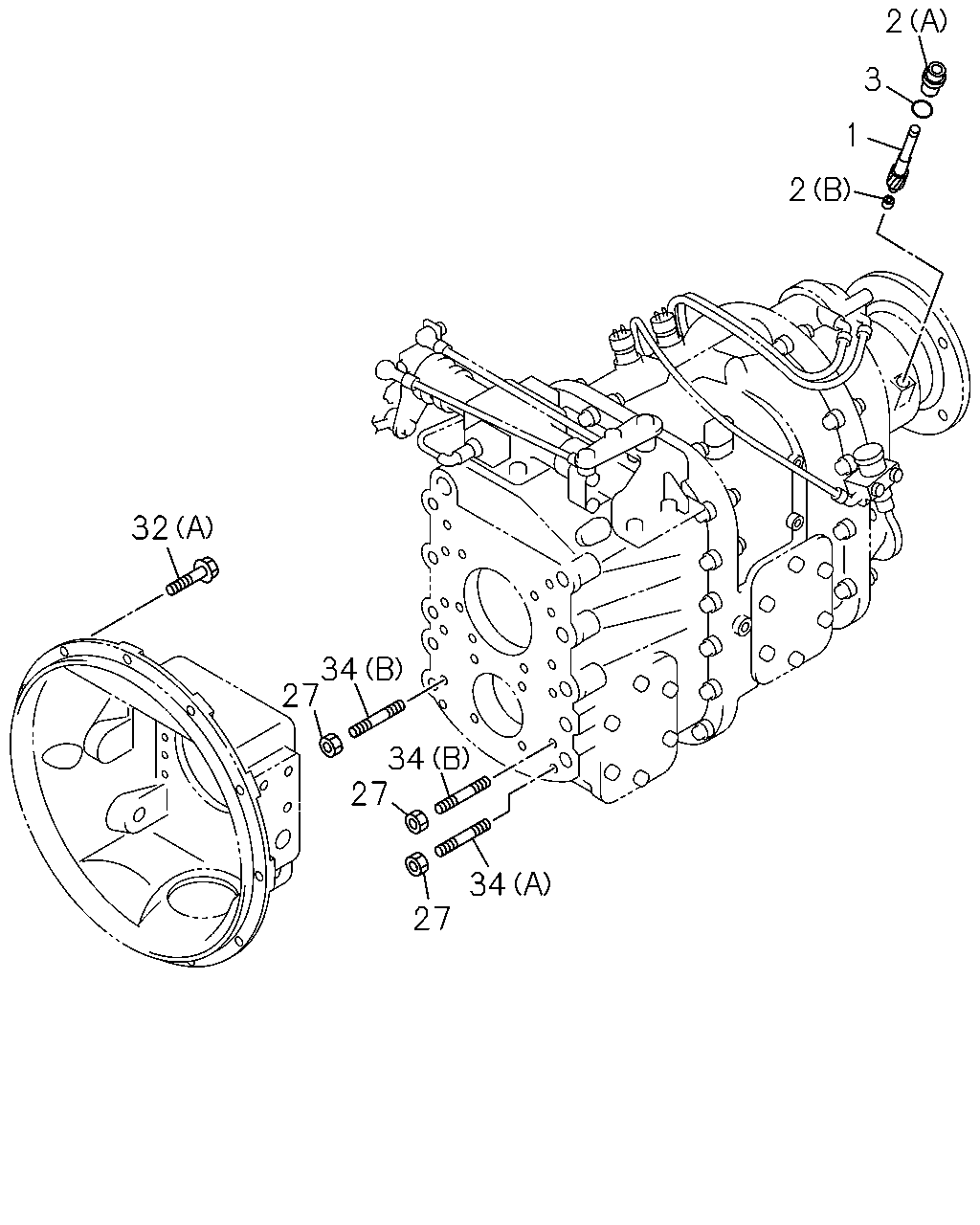

2 3 1 2 32 34 27 34 27 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0406-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	9601-0004		●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	9609-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0406-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	9601-0004		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	9601-0004		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0406-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-010-0	01	1	9601-0004		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	9609-			●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0406-	●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	9601-0004		●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	9609-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9804-0512			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9609-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9804-0805			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X32 FLANGE	0-28181-032-0	10	1	9601-9606		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	9607-9803		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	9601-9803		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0406-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0406-	●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	9601-0004		●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	9601-0004		●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	9609-			●

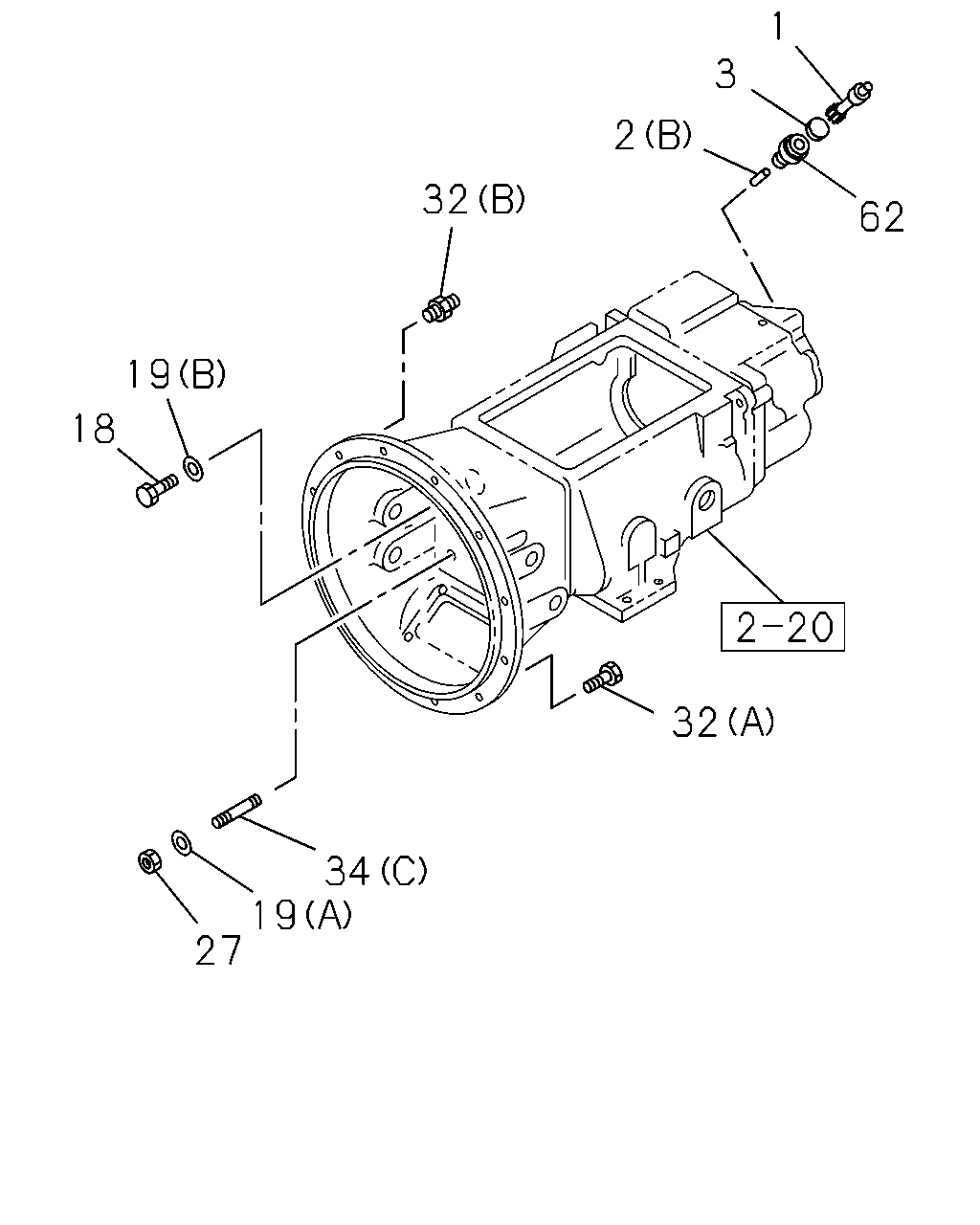

1 3 2 32 62 19 18 32 34 19 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0406-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	9601-0004		●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	9609-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0406-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	9601-0004		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	9601-0004		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0406-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-010-0	01	1	9601-0004		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	9609-			●
18	BOLT; CLU HSG TO TRANS	1-87061-537-0	02	1	9609-			●
19	WASHER; PL,CLU HSG TO TRANS (A)	1-87060-770-0	06	1	9609-			●
19	WASHER; PL,CLU HSG TO TRANS (B)	1-87061-525-0	02	1	9609-			●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0406-	●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	9601-0004		●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	9609-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9804-0512			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9609-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9804-0805			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X32 FLANGE	0-28181-032-0	10	1	9601-9606		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	9607-9803		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	9601-9803		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0406-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0406-	●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	9601-0004		●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	9601-0004		●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	9609-			●
62	SLEEVE; DRIVEN GEAR	1-87061-234-0	01	1	9609-			●

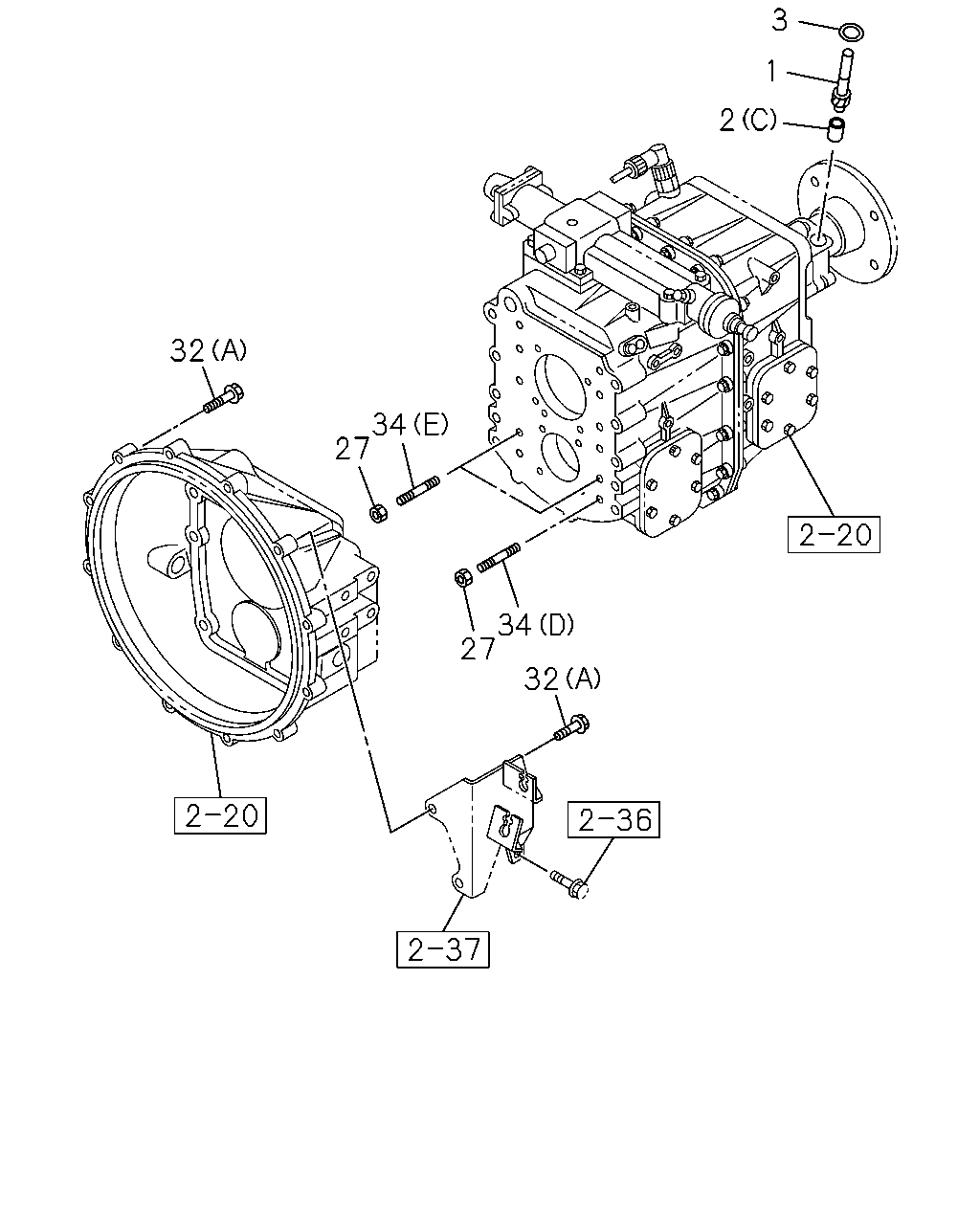

3 1 2 32 34 27 34 27 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0406-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	9601-0004		●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	9609-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0406-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	9601-0004		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	9601-0004		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0406-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-010-0	01	1	9601-0004		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	9609-			●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0406-	●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	9601-0004		●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	9609-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	0406-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9804-0512			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9609-9803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9804-0805			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X32 FLANGE	0-28181-032-0	10	1	9601-9606		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	9607-9803		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	9601-9803		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0406-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0406-	●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	9601-0004		●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	9601-0004		●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	9609-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
