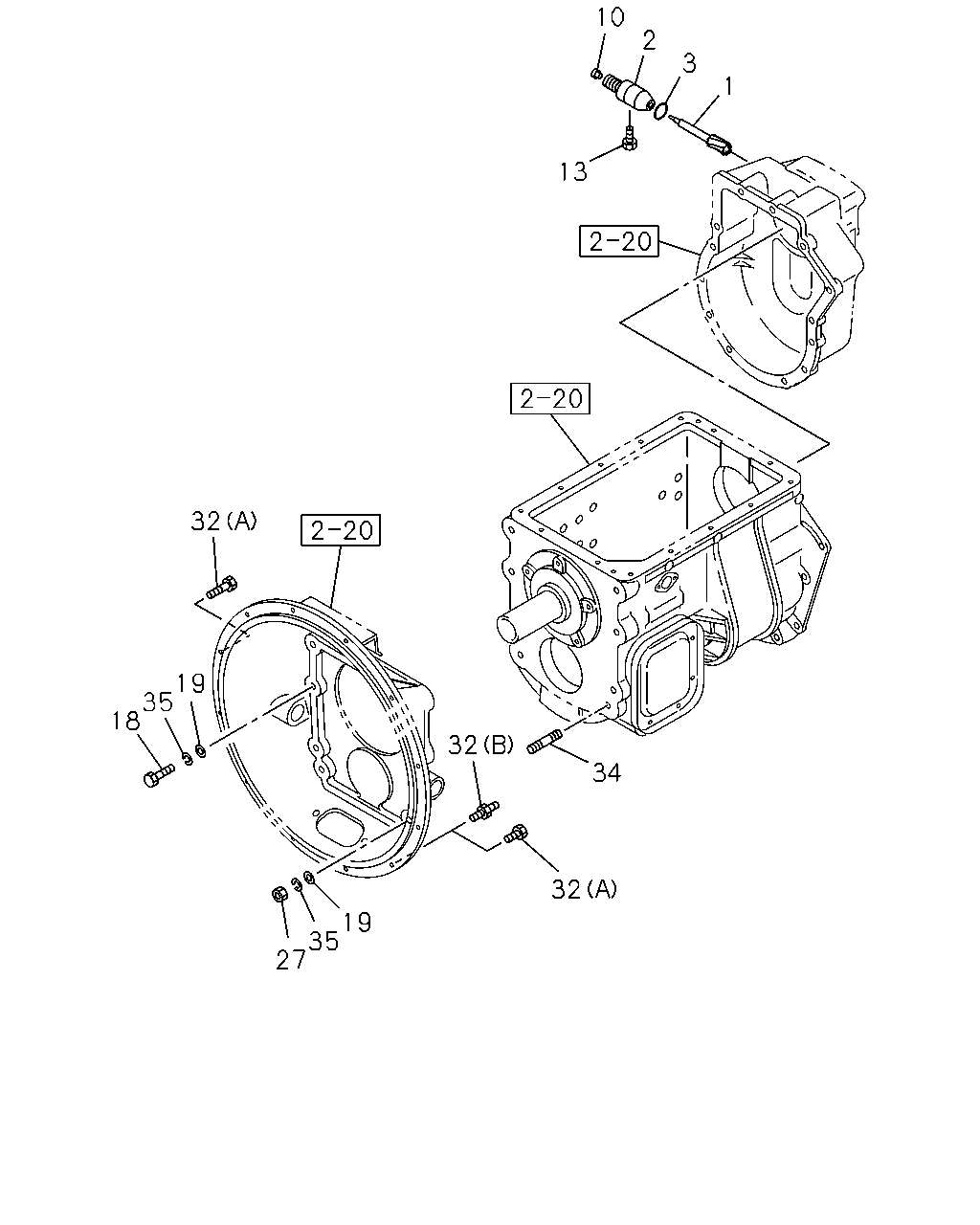

2-25A — SPEEDOMETER DRIVEN GEAR (#63789) — 64 parça

10 2 3 1 13 32 19 35 18 32 34 32 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9601-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	9601-		●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9601-9605	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9606-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9601-		●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9601-9609	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9610-	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9601-9609	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9610-	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9601-0805	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9601-0512	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9601-0512		●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-		●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9601-0605	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9601-0512	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9601-9606	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-9803	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9804-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9601-9608	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9609-9803	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9804-0805	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	9804-0004		●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	9804-0004		●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9601-	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9601-0603	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●

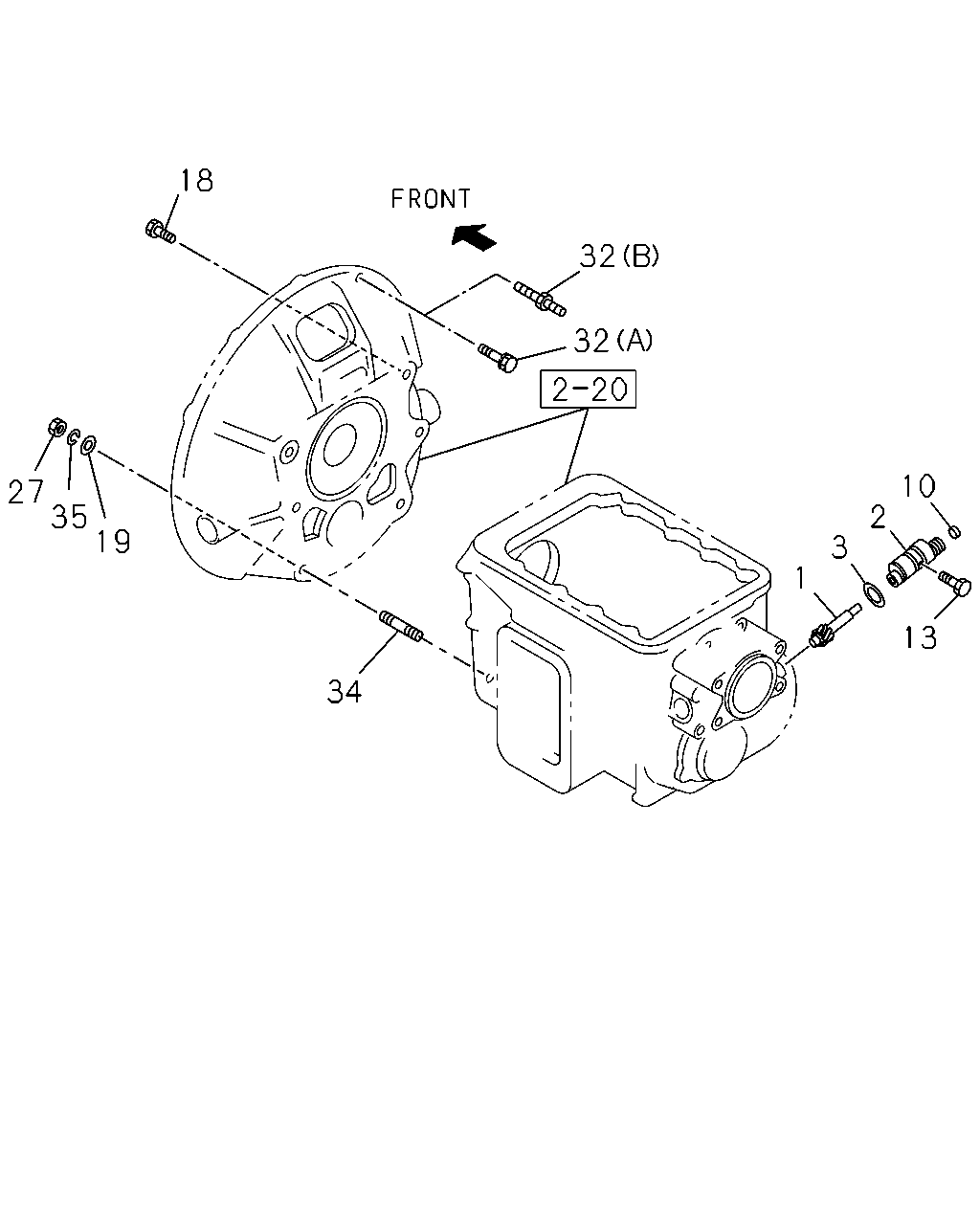

18 32 32 10 27 35 19 2 3 1 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9601-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	9601-		●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9601-9605	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9606-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9601-		●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9601-9609	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9610-	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9601-9609	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9610-	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9601-0805	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9601-0512	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9601-0512		●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-		●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9601-0605	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9601-0512	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9601-9606	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9607-9803	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	9804-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9601-9608	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9609-9803	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	9804-0805	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X35 FLANGE	0-28781-035-0	10	1	9804-0004		●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X45 FLANGE	0-28181-045-0	02	1	9804-0004		●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9601-	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9601-0603	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●
