Sayfa 2-20C - Isuzu EPC

2-20C — MANUAL TRANSMISSION ASM AND CASE (#63787) — 543 parça

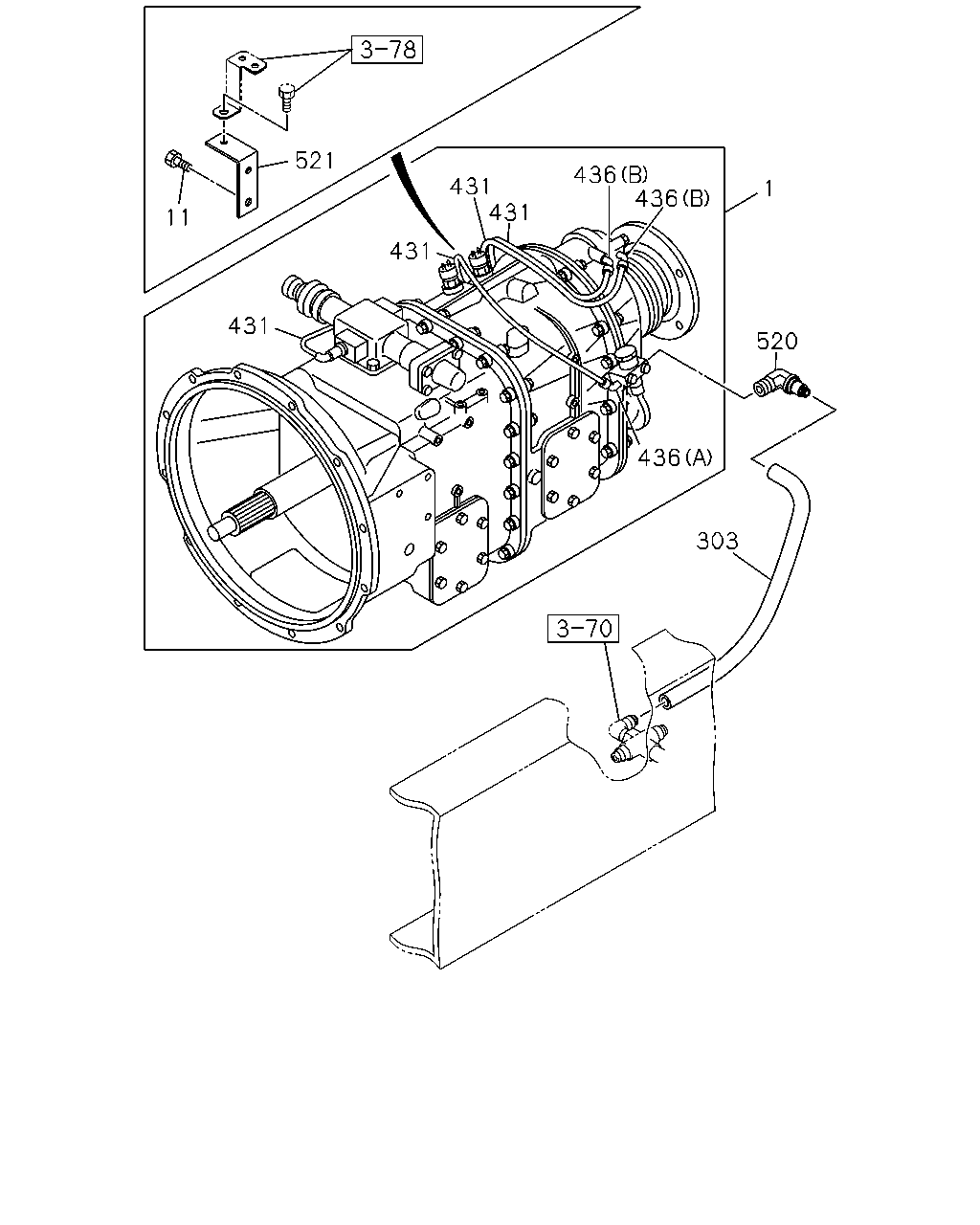

521 436 436 431 431 1 11 431 431 520 436 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

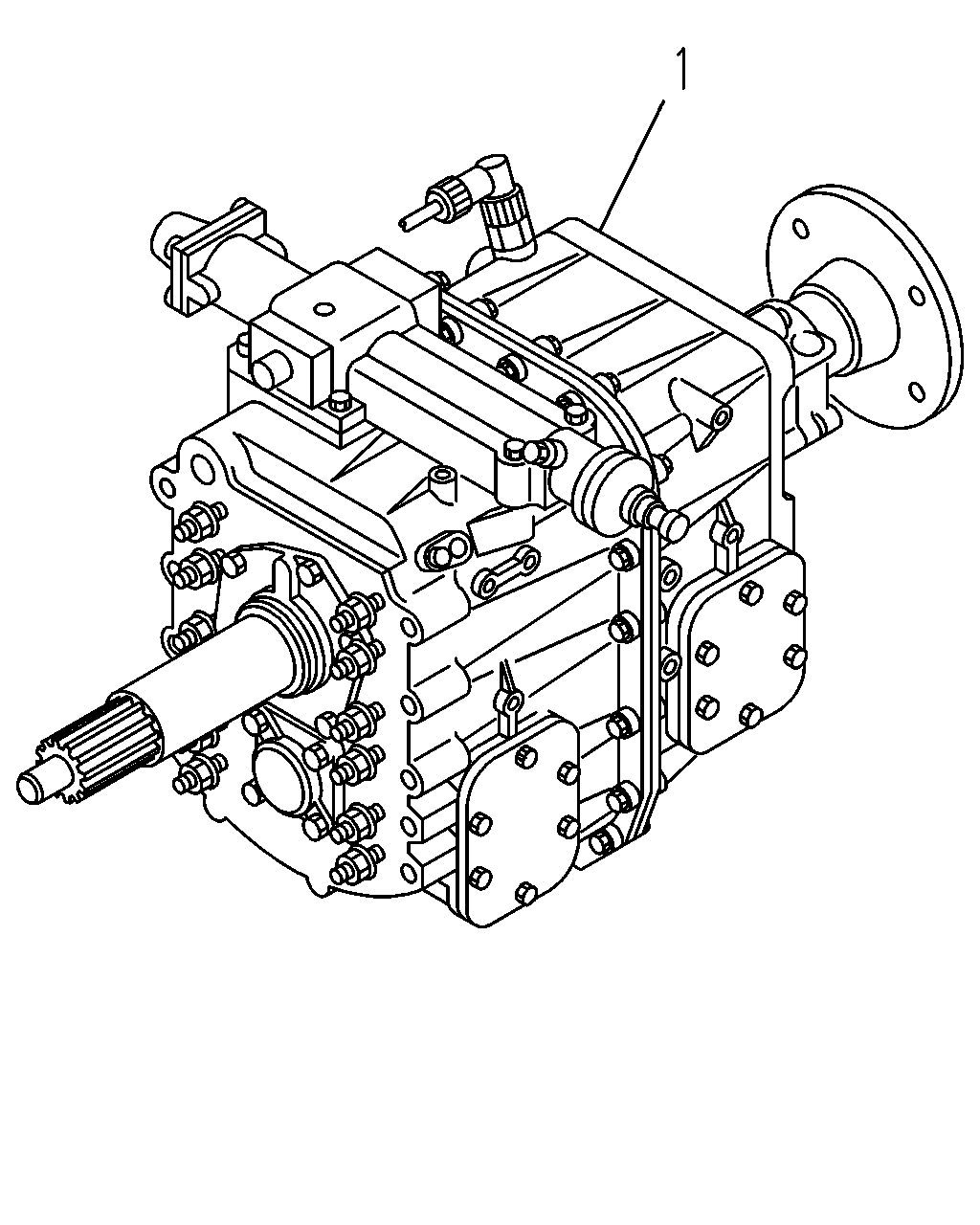

1	TRANSMISSION ASM; MANUAL	8-98120-339-0	01	1	0805-	●
1	TRANSMISSION ASM; MANUAL	1-33043-644-3	01	1	0406-		●
1	TRANSMISSION ASM; MANUAL	1-33041-007-1	01	1	9601-9708			●
1	TRANSMISSION ASM; MANUAL	1-33041-480-0	01	1	9709-0004			●
1	TRANSMISSION ASM; MANUAL	1-33040-583-0	01	1	9609-0603	●
1	TRANSMISSION ASM; MANUAL	1-33036-643-0	01	1	0604-	●
11	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	01	1	9607-0004			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9609-0004	●		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●
431	TUBE; NYLON	1-33119-331-0	04	1	9601-0004			●
436	CONNECTOR; AIR HOSE,SUPPLY (A)	1-33119-329-0	01	1	9601-0004			●
436	CONNECTOR; AIR HOSE,SUPPLY (B)	1-33119-330-0	02	1	9601-0004			●
436	CONNECTOR; AIR HOSE,SUPPLY (C) L=35	1-09660-039-0	01	1	9609-	●
520	CONNECTOR	1-09660-911-0	01	1	9601-9803			●
520	CONNECTOR	1-09660-961-0	01	1	9804-9906			●
520	CONNECTOR	1-09660-961-0	01	1	9907-0004	●		●
520	CONNECTOR	1-09660-961-0	01	1	0005-	●
521	BRACKET; HOSE	1-47477-698-0	01	1	9607-0004			●

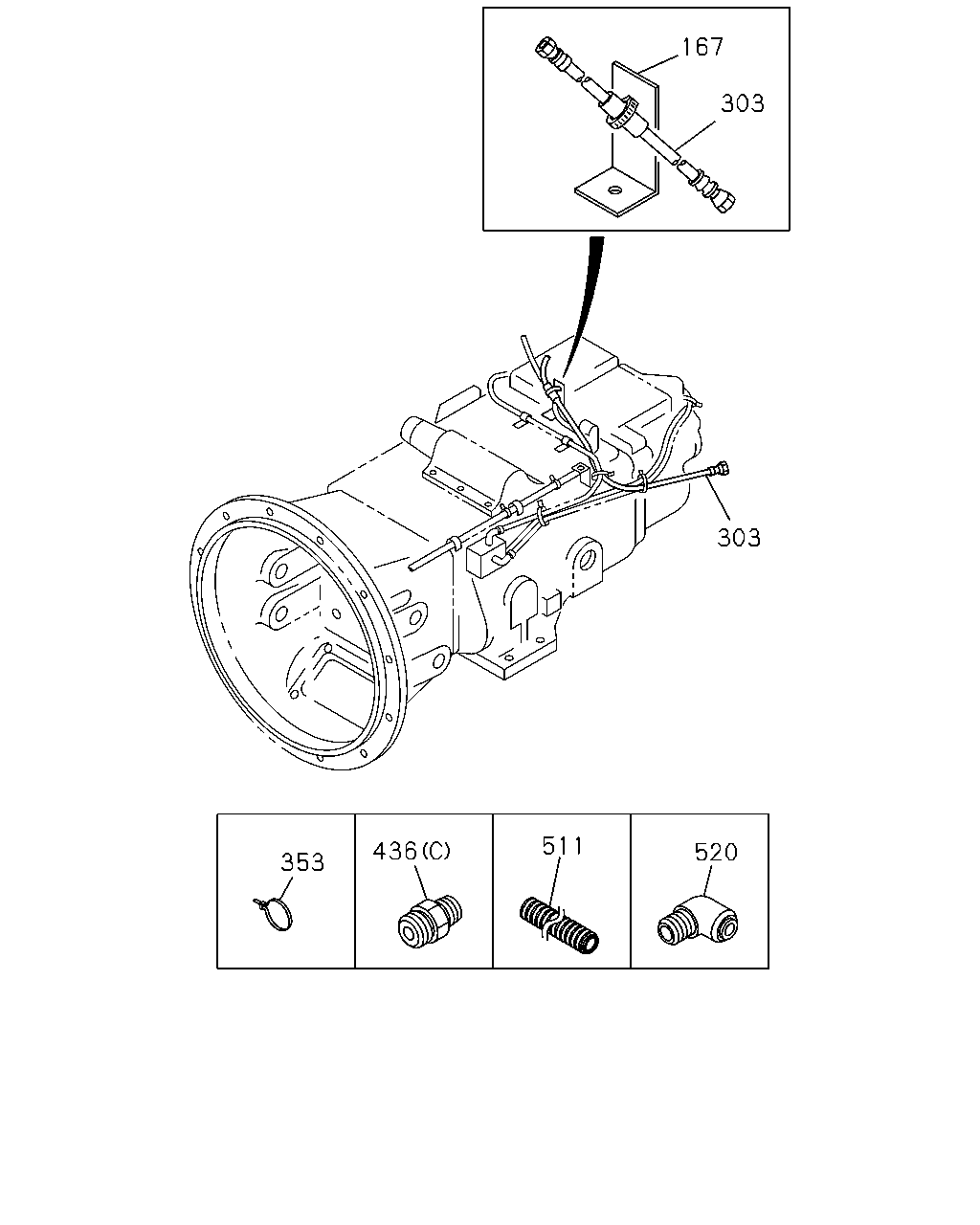

167 303 303 511 436 520 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
167	BRACKET; CLIP,AIR TUBE L=55	1-47476-177-0	01	1	9609-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9609-0004	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212	●
353	CLIP; NYLON TUBE EURO3 SPECIFICATION<NJX> L=250	1-09707-126-0	01	1	0605-	●
436	CONNECTOR; AIR HOSE,SUPPLY (A)	1-33119-329-0	01	1	9601-0004		●
436	CONNECTOR; AIR HOSE,SUPPLY (B)	1-33119-330-0	02	1	9601-0004		●
436	CONNECTOR; AIR HOSE,SUPPLY (C) L=35	1-09660-039-0	01	1	9609-	●
511	TUBE; CORRUGATE EURO3 SPECIFICATION<NJX> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0610-	●
520	CONNECTOR	1-09660-911-0	01	1	9601-9803		●
520	CONNECTOR	1-09660-961-0	01	1	9804-9906		●
520	CONNECTOR	1-09660-961-0	01	1	9907-0004	●	●
520	CONNECTOR	1-09660-961-0	01	1	0005-	●

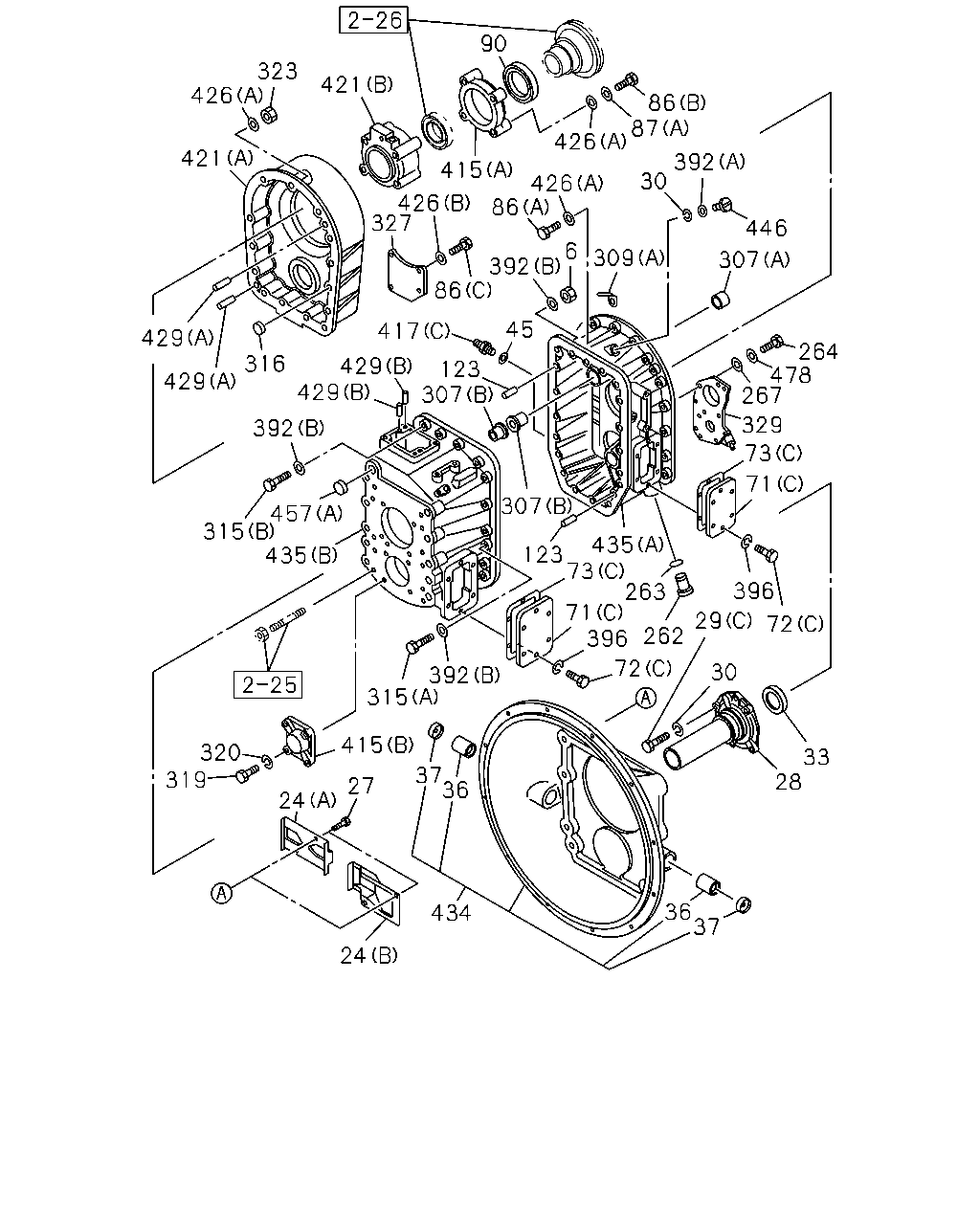

90 323 421 426 86 87 426 421 392 30 415 426 86 426 327 446 6 392 86 309 307 45 417 429 264 478 267 316 429 429 123 307 429 329 392 73 307 71 457 315 435 435 123 73 263 71 396 396 29 72 262 72 30 392 315 415 320 319 33 28 37 36 27 24 36 37 434 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	NUT; CASE,TRANS	1-33119-571-0	15	1	0406-		●
6	NUT; CASE,TRANS	1-33119-317-0	14	1	9601-0004			●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9709-9807			●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-0004			●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0406-1410		●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-0004			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0406-		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004			●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0603	●
28	COVER; FRT,TRANS CASE	1-33121-097-0	01	1	0604-	●
29	BOLT; FRT COVER (D)	1-33129-017-0	05	1	0406-		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0406-		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	0406-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9709-0004			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0406-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9709-9803			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9804-0004			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0406-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	0406-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-328-0	01	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (D)	1-33141-073-0	02	1	0406-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-	●
72	BOLT; SIDE COVER (D)	1-33119-589-0	12	1	0406-		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-	●
86	BOLT; RR COVER (D)	1-33119-569-0	02	1	0406-		●
86	BOLT; RR COVER (A)	1-33119-583-0	04	1	0406-		●
86	BOLT; RR COVER (C)	1-33139-221-0	01	1	0406-		●
86	BOLT; RR COVER (B)	1-33139-222-0	01	1	0406-		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004			●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004			●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004			●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004			●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-	●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-	●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-	●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-	●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-	●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-	●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-	●
87	WASHER; LK,RR COVER (C)	1-33119-568-0	04	1	0406-		●
87	WASHER; LK,RR COVER (B)	1-33159-079-0	04	1	0406-		●
87	WASHER; LK,RR COVER (A)	1-34159-066-0	04	1	9601-0004			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-121-0	01	1	0406-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	9601-0004			●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	0406-		●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	9601-0004			●
262	STRAINER; OIL PUMP	1-33119-324-0	01	1	9601-0004			●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-325-0	01	1	9601-0004			●
264	BOLT; OIL PUMP	1-34159-065-0	08	1	9601-0004			●
267	WASHER; PL	1-33119-318-0	08	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (D)	1-33119-562-0	02	1	0406-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-	●
309	EYE; LIFTING (C)	1-33119-566-0	01	1	0406-		●
309	EYE; LIFTING (D)	1-33119-584-0	01	1	0406-		●
309	EYE; LIFTING (A)	1-33119-319-0	01	1	9601-0004			●
309	EYE; LIFTING (B)	1-87060-783-0	02	1	9609-	●
315	BOLT; CASE (A) M10X40	1-33119-572-0	03	1	0406-		●
315	BOLT; CASE (B) M10X58	1-33119-573-0	15	1	0406-		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004			●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004			●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-	●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-	●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004			●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-	●
319	BOLT; COVER	1-33119-579-0	04	1	0406-		●
319	BOLT; COVER	1-33159-041-0	04	1	9601-0004			●
320	WASHER; COVER	1-33159-079-0	04	1	0406-		●
320	WASHER; COVER	1-33159-042-0	04	1	9601-0004			●
323	NUT; RR COVER	1-33119-317-0	17	1	9601-0004			●
327	COVER; RR,COUNTER	1-33131-267-0	01	1	0406-		●
327	COVER; RR,COUNTER	1-33139-076-0	01	1	9601-0004			●
329	PUMP ASM; OIL	1-34150-075-0	01	1	9601-0004			●
392	WASHER; PL,CASE (A)	1-33119-307-0	01	1	9601-0004			●
392	WASHER; PL,CASE (B)	1-33119-318-0	32	1	9601-0004			●
396	WASHER; LK,SIDE COVER	1-34159-066-0	12	1	9601-0004			●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004			●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004			●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-	●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (D)	1-33119-576-0	01	1	0406-		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004			●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-	●
421	COVER; RR,TRANS (D)	1-33131-251-0	01	1	0406-		●
421	COVER; RR,TRANS (E)	1-33131-253-0	01	1	0406-		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004			●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004			●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-	●
426	WASHER; PL,RR COVER (C)	1-33119-567-0	04	1	0406-		●
426	WASHER; PL,RR COVER (A)	1-33119-318-0	33	1	9601-0004			●
426	WASHER; PL,RR COVER (B)	1-33159-042-0	04	1	9601-0004			●
429	PIN; STRAIGHT (C)	1-33119-311-0	02	1	0406-		●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004			●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004			●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-	●
434	HOUSING; CLU	1-31110-188-2	01	1	0406-		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708			●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802			●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004			●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0603	●
434	HOUSING; CLU	1-31110-151-0	01	1	0604-	●
435	CASE; TRANS (D)	1-33111-377-0	01	1	0406-		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004			●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004			●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-	●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004			●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-	●
457	CUP; SEALING,CASE (B)	1-33119-578-0	02	1	0406-		●
457	CUP; SEALING,CASE (A)	1-33119-310-0	01	1	9601-0004			●
478	WASHER; LK,OIL PUMP	1-34159-066-0	08	1	9601-0004			●

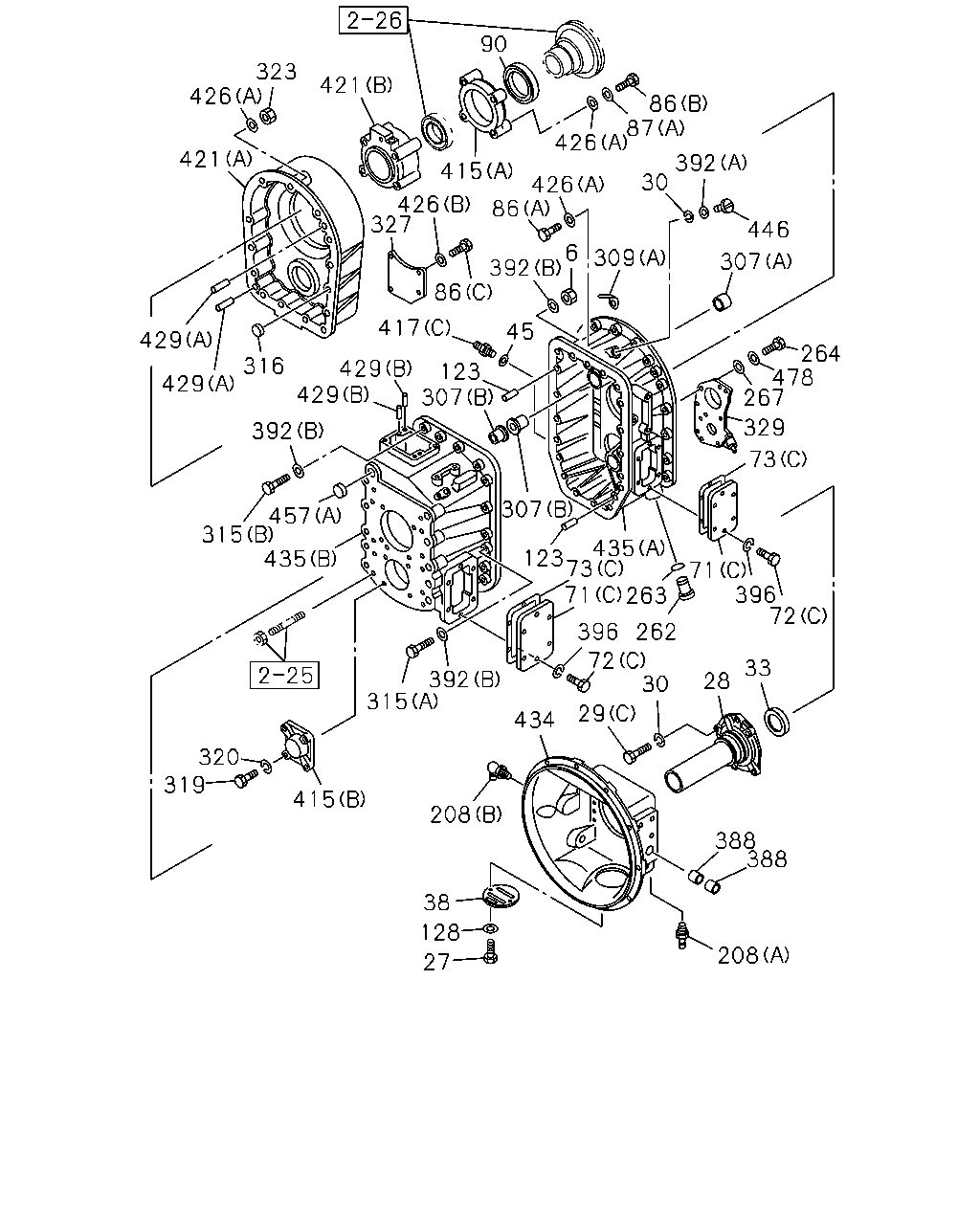

90 323 421 426 86 87 426 421 392 30 415 426 86 426 327 446 6 392 86 309 307 417 45 429 264 478 267 316 429 429 123 307 429 329 392 307 73 457 315 435 435 123 73 71 396 72 396 262 72 30 33 392 28 315 29 434 320 319 415 208 388 388 38 128 208 27 71 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	NUT; CASE,TRANS	1-33119-571-0	15	1	0406-		●
6	NUT; CASE,TRANS	1-33119-317-0	14	1	9601-0004			●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-0004			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0406-		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004			●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0603	●
28	COVER; FRT,TRANS CASE	1-33121-097-0	01	1	0604-	●
29	BOLT; FRT COVER (D)	1-33129-017-0	05	1	0406-		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0406-		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	0406-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-	●
38	COVER; CHECK HOLE,LWR	1-31119-028-0	01	1	9601-9708			●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9609-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	0406-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-328-0	01	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (D)	1-33141-073-0	02	1	0406-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-	●
72	BOLT; SIDE COVER (D)	1-33119-589-0	12	1	0406-		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-	●
86	BOLT; RR COVER (D)	1-33119-569-0	02	1	0406-		●
86	BOLT; RR COVER (A)	1-33119-583-0	04	1	0406-		●
86	BOLT; RR COVER (C)	1-33139-221-0	01	1	0406-		●
86	BOLT; RR COVER (B)	1-33139-222-0	01	1	0406-		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004			●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004			●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004			●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004			●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-	●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-	●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-	●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-	●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-	●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-	●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-	●
87	WASHER; LK,RR COVER (C)	1-33119-568-0	04	1	0406-		●
87	WASHER; LK,RR COVER (B)	1-33159-079-0	04	1	0406-		●
87	WASHER; LK,RR COVER (A)	1-34159-066-0	04	1	9601-0004			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-121-0	01	1	0406-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	9601-0004			●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	0406-		●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	9601-0004			●
128	WASHER; PL,CLU HSG	1-34159-066-0	02	1	9601-9708			●
208	NIPPLE; GREASE,CLU HSG (A)	1-31119-029-0	02	1	9601-9708			●
208	NIPPLE; GREASE,CLU HSG (B)	1-31119-030-0	01	1	9601-9708			●
262	STRAINER; OIL PUMP	1-33119-324-0	01	1	9601-0004			●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-325-0	01	1	9601-0004			●
264	BOLT; OIL PUMP	1-34159-065-0	08	1	9601-0004			●
267	WASHER; PL	1-33119-318-0	08	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (D)	1-33119-562-0	02	1	0406-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-	●
309	EYE; LIFTING (C)	1-33119-566-0	01	1	0406-		●
309	EYE; LIFTING (D)	1-33119-584-0	01	1	0406-		●
309	EYE; LIFTING (A)	1-33119-319-0	01	1	9601-0004			●
309	EYE; LIFTING (B)	1-87060-783-0	02	1	9609-	●
315	BOLT; CASE (A) M10X40	1-33119-572-0	03	1	0406-		●
315	BOLT; CASE (B) M10X58	1-33119-573-0	15	1	0406-		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004			●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004			●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-	●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-	●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004			●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-	●
319	BOLT; COVER	1-33119-579-0	04	1	0406-		●
319	BOLT; COVER	1-33159-041-0	04	1	9601-0004			●
320	WASHER; COVER	1-33159-079-0	04	1	0406-		●
320	WASHER; COVER	1-33159-042-0	04	1	9601-0004			●
323	NUT; RR COVER	1-33119-317-0	17	1	9601-0004			●
327	COVER; RR,COUNTER	1-33131-267-0	01	1	0406-		●
327	COVER; RR,COUNTER	1-33139-076-0	01	1	9601-0004			●
329	PUMP ASM; OIL	1-34150-075-0	01	1	9601-0004			●
388	BUSHING; CLU HSG	1-87061-485-0	04	1	9601-9708			●
392	WASHER; PL,CASE (A)	1-33119-307-0	01	1	9601-0004			●
392	WASHER; PL,CASE (B)	1-33119-318-0	32	1	9601-0004			●
396	WASHER; LK,SIDE COVER	1-34159-066-0	12	1	9601-0004			●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004			●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004			●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-	●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (D)	1-33119-576-0	01	1	0406-		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004			●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-	●
421	COVER; RR,TRANS (D)	1-33131-251-0	01	1	0406-		●
421	COVER; RR,TRANS (E)	1-33131-253-0	01	1	0406-		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004			●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004			●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-	●
426	WASHER; PL,RR COVER (C)	1-33119-567-0	04	1	0406-		●
426	WASHER; PL,RR COVER (A)	1-33119-318-0	33	1	9601-0004			●
426	WASHER; PL,RR COVER (B)	1-33159-042-0	04	1	9601-0004			●
429	PIN; STRAIGHT (C)	1-33119-311-0	02	1	0406-		●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004			●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004			●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-	●
434	HOUSING; CLU	1-31110-188-2	01	1	0406-		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708			●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802			●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004			●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0603	●
434	HOUSING; CLU	1-31110-151-0	01	1	0604-	●
435	CASE; TRANS (D)	1-33111-377-0	01	1	0406-		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004			●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004			●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-	●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004			●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-	●
457	CUP; SEALING,CASE (B)	1-33119-578-0	02	1	0406-		●
457	CUP; SEALING,CASE (A)	1-33119-310-0	01	1	9601-0004			●
478	WASHER; LK,OIL PUMP	1-34159-066-0	08	1	9601-0004			●

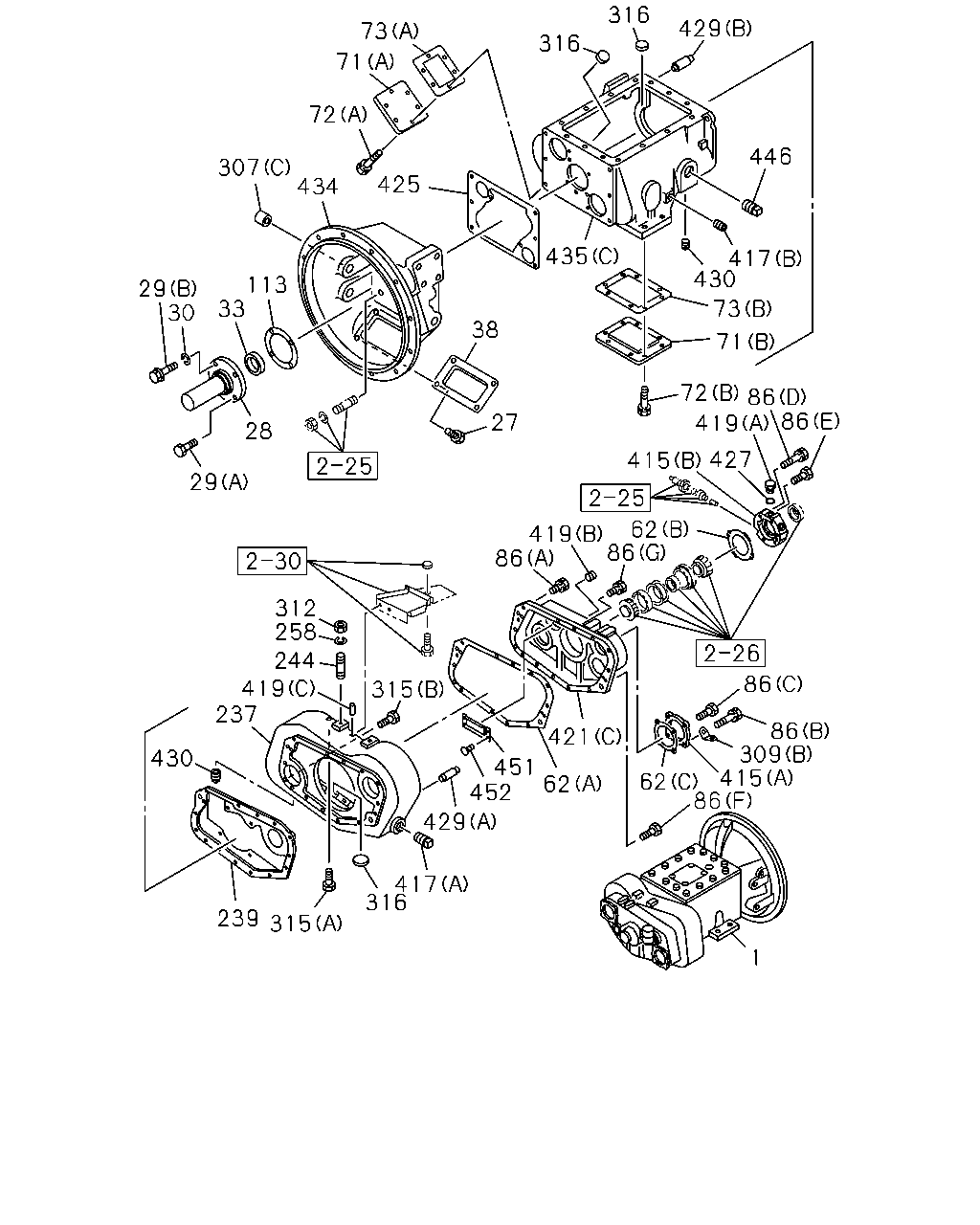

316 429 73 316 71 72 446 307 434 425 435 417 430 113 33 29 30 73 38 71 72 86 419 86 27 28 29 62 419 86 86 312 258 244 419 237 86 315 421 86 309 62 415 86 430 451 452 62 429 417 316 239 315 1 415 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	8-98120-339-0	01	1	0805-	●
1	TRANSMISSION ASM; MANUAL	1-33043-644-3	01	1	0406-		●
1	TRANSMISSION ASM; MANUAL	1-33041-007-1	01	1	9601-9708			●
1	TRANSMISSION ASM; MANUAL	1-33041-480-0	01	1	9709-0004			●
1	TRANSMISSION ASM; MANUAL	1-33040-583-0	01	1	9609-0603	●
1	TRANSMISSION ASM; MANUAL	1-33036-643-0	01	1	0604-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-0004			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0406-		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004			●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0603	●
28	COVER; FRT,TRANS CASE	1-33121-097-0	01	1	0604-	●
29	BOLT; FRT COVER (D)	1-33129-017-0	05	1	0406-		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0406-		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	0406-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-	●
38	COVER; CHECK HOLE,LWR	1-31119-028-0	01	1	9601-9708			●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9609-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9609-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9609-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9609-	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-073-0	02	1	0406-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-	●
72	BOLT; SIDE COVER (D)	1-33119-589-0	12	1	0406-		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87060-702-0	02	1	9601-0004			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9609-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9609-	●
86	BOLT; RR COVER (D)	1-33119-569-0	02	1	0406-		●
86	BOLT; RR COVER (A)	1-33119-583-0	04	1	0406-		●
86	BOLT; RR COVER (C)	1-33139-221-0	01	1	0406-		●
86	BOLT; RR COVER (B)	1-33139-222-0	01	1	0406-		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004			●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004			●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004			●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004			●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-	●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-	●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-	●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-	●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-	●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-	●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9609-	●
237	CASE; GEAR	1-87061-520-0	01	1	9609-	●
239	GASKET; TRANS	1-87061-491-0	01	1	9609-	●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9609-	●
258	WASHER; LK	1-87060-770-0	02	1	9609-	●
307	BUSHING; SHIFT FORK SHAFT (D)	1-33119-562-0	02	1	0406-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-	●
309	EYE; LIFTING (C)	1-33119-566-0	01	1	0406-		●
309	EYE; LIFTING (D)	1-33119-584-0	01	1	0406-		●
309	EYE; LIFTING (A)	1-33119-319-0	01	1	9601-0004			●
309	EYE; LIFTING (B)	1-87060-783-0	02	1	9609-	●
312	NUT	1-87061-220-0	02	1	9609-	●
315	BOLT; CASE (A) M10X40	1-33119-572-0	03	1	0406-		●
315	BOLT; CASE (B) M10X58	1-33119-573-0	15	1	0406-		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004			●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004			●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-	●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-	●
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	9601-0004			●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9609-	●
415	COVER; BRG (A)	1-33153-002-0	01	1	9601-0004			●
415	COVER; BRG (B)	1-33159-040-0	01	1	9601-0004			●
415	COVER; BRG (A)	1-87061-300-0	02	1	9609-	●
415	COVER; BRG (B)	1-87061-517-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (D)	1-33119-576-0	01	1	0406-		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004			●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-	●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9609-	●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9609-	●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9609-	●
421	COVER; RR,TRANS (D)	1-33131-251-0	01	1	0406-		●
421	COVER; RR,TRANS (E)	1-33131-253-0	01	1	0406-		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004			●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004			●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9609-	●
427	GASKET; RR COVER	1-87061-174-0	01	1	9609-	●
429	PIN; STRAIGHT (C)	1-33119-311-0	02	1	0406-		●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004			●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004			●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-	●
430	PLUG; OIL DRAIN	1-33119-577-0	01	1	0406-		●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9609-	●
434	HOUSING; CLU	1-31110-188-2	01	1	0406-		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708			●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802			●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004			●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0603	●
434	HOUSING; CLU	1-31110-151-0	01	1	0604-	●
435	CASE; TRANS (D)	1-33111-377-0	01	1	0406-		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004			●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004			●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-	●
446	PLUG; CASE,TRANS	1-33119-306-0	01	1	9601-0004			●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9609-	●
451	PLATE; RR COVER	1-87061-435-0	01	1	9609-	●
452	SCREW; PLATE	1-87061-523-0	04	1	9609-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	8-98120-339-0	01	1	0805-	●
1	TRANSMISSION ASM; MANUAL	1-33043-644-3	01	1	0406-		●
1	TRANSMISSION ASM; MANUAL	1-33041-007-1	01	1	9601-9708			●
1	TRANSMISSION ASM; MANUAL	1-33041-480-0	01	1	9709-0004			●
1	TRANSMISSION ASM; MANUAL	1-33040-583-0	01	1	9609-0603	●
1	TRANSMISSION ASM; MANUAL	1-33036-643-0	01	1	0604-	●

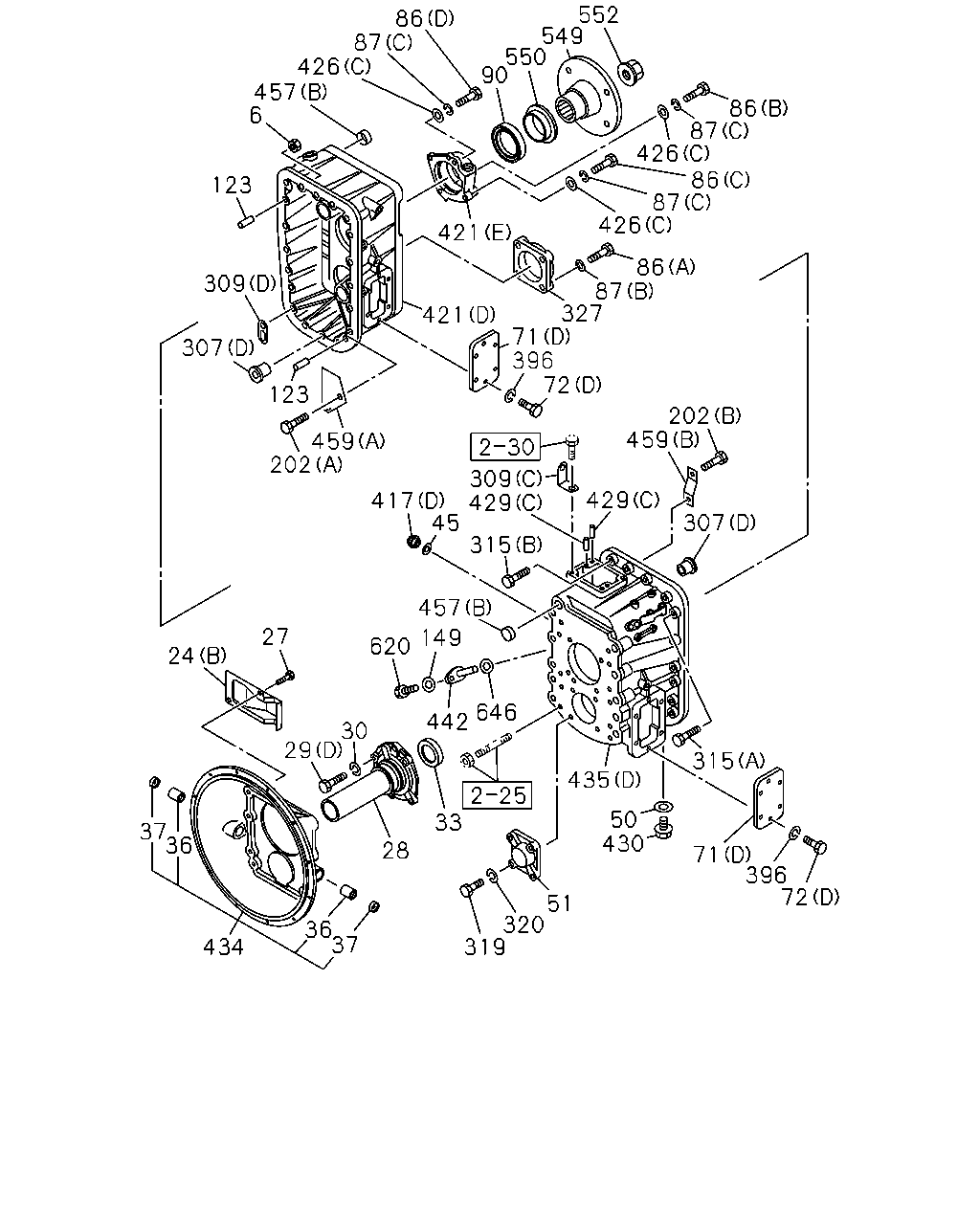

552 549 550 90 86 87 426 457 6 86 87 426 86 87 426 123 421 86 87 327 71 396 72 309 421 307 123 202 459 459 202 309 417 429 45 429 307 315 457 27 149 620 24 646 442 30 29 315 435 33 50 430 37 36 28 71 396 72 51 320 319 36 37 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	NUT; CASE,TRANS	1-33119-571-0	15	1	0406-		●
6	NUT; CASE,TRANS	1-33119-317-0	14	1	9601-0004			●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9709-9807			●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-0004			●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0406-1410		●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9709-0004			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0406-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
27	BOLT; COVER TO CLU HSG	1-33149-010-0	02	1	9601-9708			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9609-	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0406-		●
28	COVER; FRT,TRANS CASE	1-33121-137-0	01	1	9601-0004			●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9609-0603	●
28	COVER; FRT,TRANS CASE	1-33121-097-0	01	1	0604-	●
29	BOLT; FRT COVER (D)	1-33129-017-0	05	1	0406-		●
29	BOLT; FRT COVER (C)	1-33129-008-0	05	1	9601-0004			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9609-	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9609-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0406-		●
30	WASHER; LK,FRT COVER	1-34159-066-0	05	1	9601-0004			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9609-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	0406-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	9601-0004			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9609-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9709-0004			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0406-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9709-9803			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9804-0004			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0406-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	0406-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-328-0	01	1	9601-0004			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	0406-		●
51	COVER; SEAL,COUNTER,FRT	1-33131-267-0	01	1	0406-		●
71	COVER; SIDE,TRANS CASE (D)	1-33141-073-0	02	1	0406-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-046-0	02	1	9601-0004			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9609-	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9609-	●
72	BOLT; SIDE COVER (D)	1-33119-589-0	12	1	0406-		●
72	BOLT; SIDE COVER (C)	1-33149-010-0	12	1	9601-0004			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9609-	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9609-	●
86	BOLT; RR COVER (D)	1-33119-569-0	02	1	0406-		●
86	BOLT; RR COVER (A)	1-33119-583-0	04	1	0406-		●
86	BOLT; RR COVER (C)	1-33139-221-0	01	1	0406-		●
86	BOLT; RR COVER (B)	1-33139-222-0	01	1	0406-		●
86	BOLT; RR COVER (A) M10X55	1-33119-316-0	15	1	9601-0004			●
86	BOLT; RR COVER (A) M10X60	1-33119-326-0	02	1	9601-0004			●
86	BOLT; RR COVER (C)	1-33159-041-0	04	1	9601-0004			●
86	BOLT; RR COVER (B)	1-33159-044-0	04	1	9601-0004			●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9609-	●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9609-	●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9609-	●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9609-	●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9609-	●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9609-	●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9609-	●
87	WASHER; LK,RR COVER (C)	1-33119-568-0	04	1	0406-		●
87	WASHER; LK,RR COVER (B)	1-33159-079-0	04	1	0406-		●
87	WASHER; LK,RR COVER (A)	1-34159-066-0	04	1	9601-0004			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-121-0	01	1	0406-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	9601-0004			●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	0406-		●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	9601-0004			●
149	WASHER; LK	1-33119-564-0	02	1	0406-		●
202	BOLT; PLATE (A)	1-33119-480-0	02	1	0406-		●
202	BOLT; PLATE (B)	1-33119-485-0	02	1	0406-		●
307	BUSHING; SHIFT FORK SHAFT (D)	1-33119-562-0	02	1	0406-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-304-0	02	1	9601-0004			●
307	BUSHING; SHIFT FORK SHAFT (C)	1-87061-485-0	01	1	9609-	●
309	EYE; LIFTING (C)	1-33119-566-0	01	1	0406-		●
309	EYE; LIFTING (D)	1-33119-584-0	01	1	0406-		●
309	EYE; LIFTING (A)	1-33119-319-0	01	1	9601-0004			●
309	EYE; LIFTING (B)	1-87060-783-0	02	1	9609-	●
315	BOLT; CASE (A) M10X40	1-33119-572-0	03	1	0406-		●
315	BOLT; CASE (B) M10X58	1-33119-573-0	15	1	0406-		●
315	BOLT; CASE (A) M10X40	1-33119-315-0	04	1	9601-0004			●
315	BOLT; CASE (B) M10X55	1-33119-316-0	14	1	9601-0004			●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9609-	●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9609-	●
319	BOLT; COVER	1-33119-579-0	04	1	0406-		●
319	BOLT; COVER	1-33159-041-0	04	1	9601-0004			●
320	WASHER; COVER	1-33159-079-0	04	1	0406-		●
320	WASHER; COVER	1-33159-042-0	04	1	9601-0004			●
327	COVER; RR,COUNTER	1-33131-267-0	01	1	0406-		●
327	COVER; RR,COUNTER	1-33139-076-0	01	1	9601-0004			●
396	WASHER; LK,SIDE COVER	1-34159-066-0	12	1	9601-0004			●
417	PLUG; OIL FILLER,TRANS (D)	1-33119-576-0	01	1	0406-		●
417	PLUG; OIL FILLER,TRANS (C)	1-33119-327-0	01	1	9601-0004			●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9609-	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9609-	●
421	COVER; RR,TRANS (D)	1-33131-251-0	01	1	0406-		●
421	COVER; RR,TRANS (E)	1-33131-253-0	01	1	0406-		●
421	COVER; RR,TRANS (A)	1-33131-212-0	01	1	9601-0004			●
421	COVER; RR,TRANS (B)	1-33159-043-0	01	1	9601-0004			●
421	COVER; RR,TRANS (C)	1-87061-515-0	01	1	9609-	●
426	WASHER; PL,RR COVER (C)	1-33119-567-0	04	1	0406-		●
426	WASHER; PL,RR COVER (A)	1-33119-318-0	33	1	9601-0004			●
426	WASHER; PL,RR COVER (B)	1-33159-042-0	04	1	9601-0004			●
429	PIN; STRAIGHT (C)	1-33119-311-0	02	1	0406-		●
429	PIN; STRAIGHT (A)	1-33119-305-0	02	1	9601-0004			●
429	PIN; STRAIGHT (B)	1-33119-311-0	02	1	9601-0004			●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9609-	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9609-	●
430	PLUG; OIL DRAIN	1-33119-577-0	01	1	0406-		●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9609-	●
434	HOUSING; CLU	1-31110-188-2	01	1	0406-		●
434	HOUSING; CLU	1-31111-184-0	01	1	9601-9708			●
434	HOUSING; CLU	1-31110-182-0	01	1	9709-9802			●
434	HOUSING; CLU	1-31110-188-0	01	1	9803-0004			●
434	HOUSING; CLU	1-87061-511-0	01	1	9609-0603	●
434	HOUSING; CLU	1-31110-151-0	01	1	0604-	●
435	CASE; TRANS (D)	1-33111-377-0	01	1	0406-		●
435	CASE; TRANS (A)	1-33111-267-0	01	1	9601-0004			●
435	CASE; TRANS (B)	1-33111-268-0	01	1	9601-0004			●
435	CASE; TRANS (C)	1-87061-519-0	01	1	9609-	●
442	PIN; SHIFT FORK	1-33119-563-0	02	1	0406-		●
457	CUP; SEALING,CASE (B)	1-33119-578-0	02	1	0406-		●
457	CUP; SEALING,CASE (A)	1-33119-310-0	01	1	9601-0004			●
459	PLATE; OIL (A)	1-33119-479-0	01	1	0406-		●
459	PLATE; OIL (B)	1-33119-484-0	01	1	0406-		●
549	FLANGE; COUPLING	1-37243-433-0	01	1	0406-		●
550	COVER; DUST,FLANGE	1-33139-124-0	01	1	0406-		●
552	NUT; FLANGE	1-33239-371-0	01	1	0406-		●
620	BOLT; CASE	1-33119-565-0	02	1	0406-		●
646	GASKET; PIN	1-33119-483-0	02	1	0406-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
