Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#6378) — 222 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73118-026-0	01	1	9604-
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9604-9906
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9907-

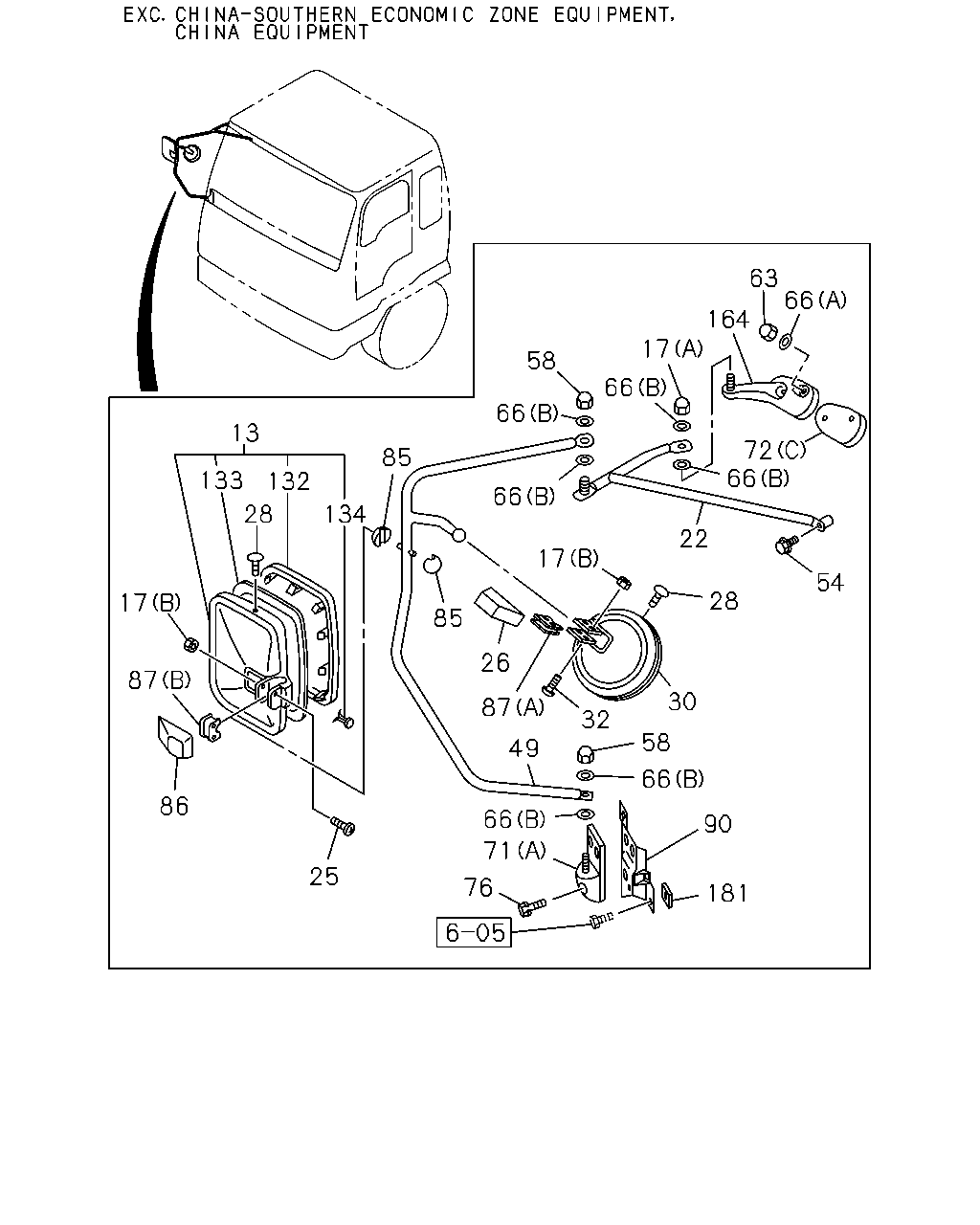

63 66 164 17 58 66 66 13 72 66 85 133 132 66 134 28 22 17 54 28 17 85 26 87 30 87 32 58 49 66 86 66 90 71 25 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-0	02	1	9604-9709
13	MIRROR ASM; OUTSIDE RR VIEW EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-918-2	02	1	9710-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-97865-547-1	02	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9604-9709
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9710-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	04	1	9604-9709
17	NUT; CAP,MIRROR STAY EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M5	1-09984-124-0	04	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9905-
22	STAY; OUTSIDE MIRROR	1-71797-876-0	01	1	9604-9904
22	STAY; OUTSIDE MIRROR EXC. HIGH ROOF<S2F>	1-71797-876-0	01	1	9905-
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F>	1-71707-079-0	01	1	9905-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	04	1	9604-9709
25	SCREW; OUTSIDE MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M5X50	1-09981-444-0	04	1	9710-
26	COVER; OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	9604-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9604-9910
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9604-9709
28	GROMMET; UNDER MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) BLACK	1-71737-678-0	02	1	9710-9910
30	MIRROR; UNDER	1-71798-591-0	01	1	9604-9709
30	MIRROR; UNDER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-591-0	01	1	9710-
30	MIRROR; UNDER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71797-853-0	01	1	9710-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	9604-
49	STAY; MIRROR SIDE	1-71798-491-2	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-491-2	01	1	9710-
49	STAY; MIRROR SIDE	1-71797-855-0	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71797-855-1	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-584-2	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-789-0	01	1	9710-
54	BOLT; STAY M6X40 LK&PL WASHER	8-94279-215-0	02	1	9604-
58	NUT; MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	9604-
63	NUT; STAY M8	1-09984-187-0	02	1	9604-
63	NUT; STAY M8	1-71707-105-0	02	1	0004-0005
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9711-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-
71	BRACKET; OUTSIDE MIRROR (B) UPPER	1-71798-484-1	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (C) LOWER	1-71798-486-2	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9604-
72	SHEET (A) UPPER	1-71798-487-3	01	1	9604-
72	SHEET (B) LOWER	1-71798-488-1	01	1	9604-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-798-1	01	1	9905-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	9604-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	9604-9709
85	PIVOT; MAIN MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=19.1	1-71737-633-2	02	1	9710-
85	PIVOT; MAIN MIRROR ID=22.2	1-71736-489-2	02	1	9604-9709
85	PIVOT; MAIN MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=22.2	1-71736-489-2	02	1	9710-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-0	02	1	9604-9709
86	COVER; STAY,OUTSIDE MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) BLACK	1-71737-760-1	02	1	9710-
87	SPACER (B)	1-71737-704-0	02	1	9604-9709
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	02	1	9710-9904
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	01	1	9905-
87	SPACER (A)	1-71737-646-2	01	1	9604-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
132	RING; MIRROR	1-71737-934-0	02	1	9604-9709
132	RING; MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-934-0	02	1	9710-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	02	1	9604-9709
133	LENS; MIRROR,OUTSIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-927-0	02	1	9710-
134	CLIP; MIRROR LENS	1-71737-936-0	02	1	9604-9709
134	CLIP; MIRROR LENS EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-936-0	02	1	9710-
164	STAY; ROOF	1-71798-300-5	01	1	9604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9604-9707
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9902-

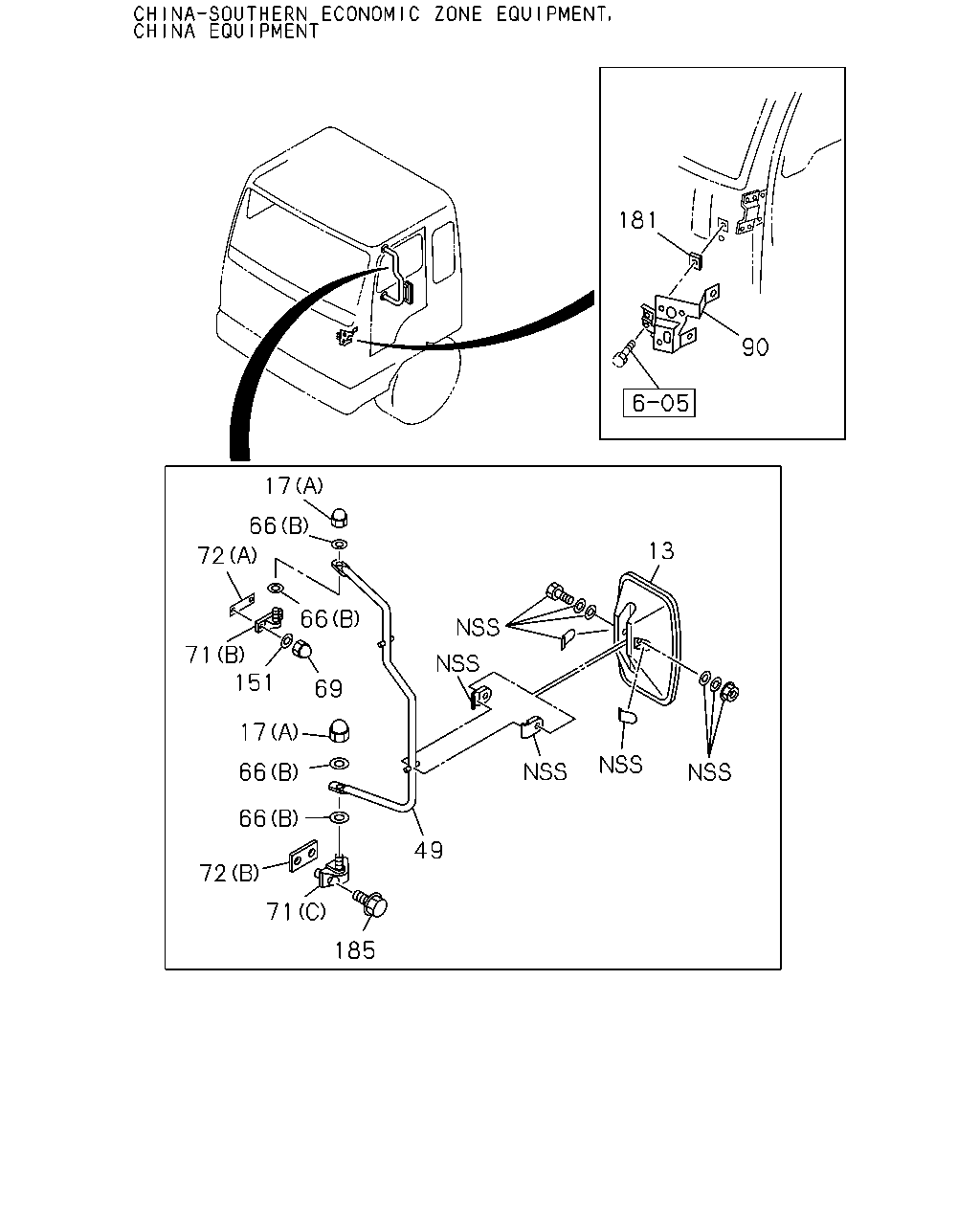

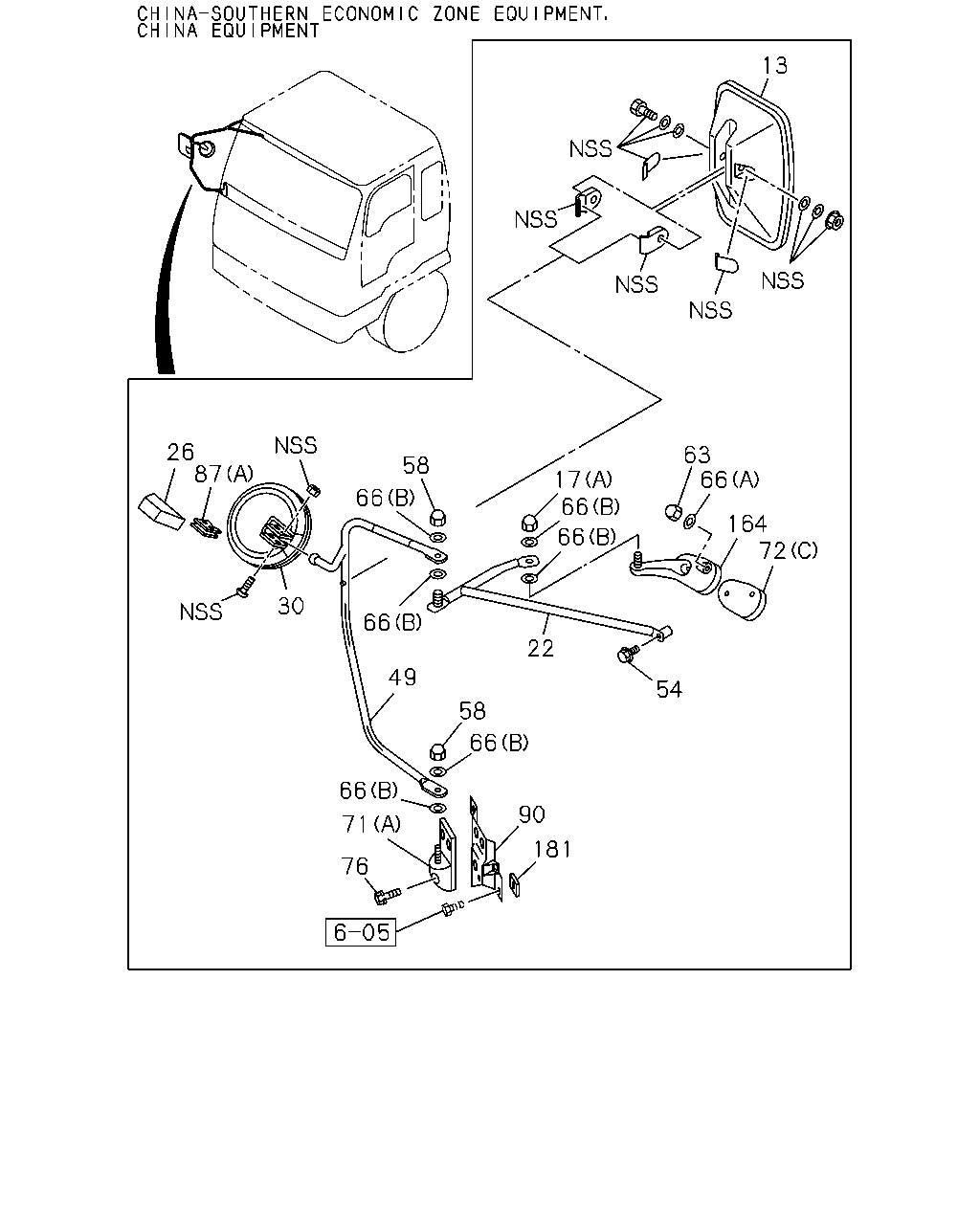

13 26 87 63 66 58 17 66 66 164 72 66 30 66 22 49 54 58 66 66 90 71 181 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-0	02	1	9604-9709
13	MIRROR ASM; OUTSIDE RR VIEW EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-918-2	02	1	9710-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-97865-547-1	02	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9604-9709
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9710-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	04	1	9604-9709
17	NUT; CAP,MIRROR STAY EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M5	1-09984-124-0	04	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9905-
22	STAY; OUTSIDE MIRROR	1-71797-876-0	01	1	9604-9904
22	STAY; OUTSIDE MIRROR EXC. HIGH ROOF<S2F>	1-71797-876-0	01	1	9905-
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F>	1-71707-079-0	01	1	9905-
26	COVER; OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	9604-
30	MIRROR; UNDER	1-71798-591-0	01	1	9604-9709
30	MIRROR; UNDER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-591-0	01	1	9710-
30	MIRROR; UNDER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71797-853-0	01	1	9710-
49	STAY; MIRROR SIDE	1-71798-491-2	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-491-2	01	1	9710-
49	STAY; MIRROR SIDE	1-71797-855-0	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71797-855-1	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-584-2	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-789-0	01	1	9710-
54	BOLT; STAY M6X40 LK&PL WASHER	8-94279-215-0	02	1	9604-
58	NUT; MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	9604-
63	NUT; STAY M8	1-09984-187-0	02	1	9604-
63	NUT; STAY M8	1-71707-105-0	02	1	0004-0005
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9711-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-
71	BRACKET; OUTSIDE MIRROR (B) UPPER	1-71798-484-1	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (C) LOWER	1-71798-486-2	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9604-
72	SHEET (A) UPPER	1-71798-487-3	01	1	9604-
72	SHEET (B) LOWER	1-71798-488-1	01	1	9604-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-798-1	01	1	9905-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	9604-
87	SPACER (B)	1-71737-704-0	02	1	9604-9709
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	02	1	9710-9904
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	01	1	9905-
87	SPACER (A)	1-71737-646-2	01	1	9604-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
164	STAY; ROOF	1-71798-300-5	01	1	9604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9604-9707
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9902-

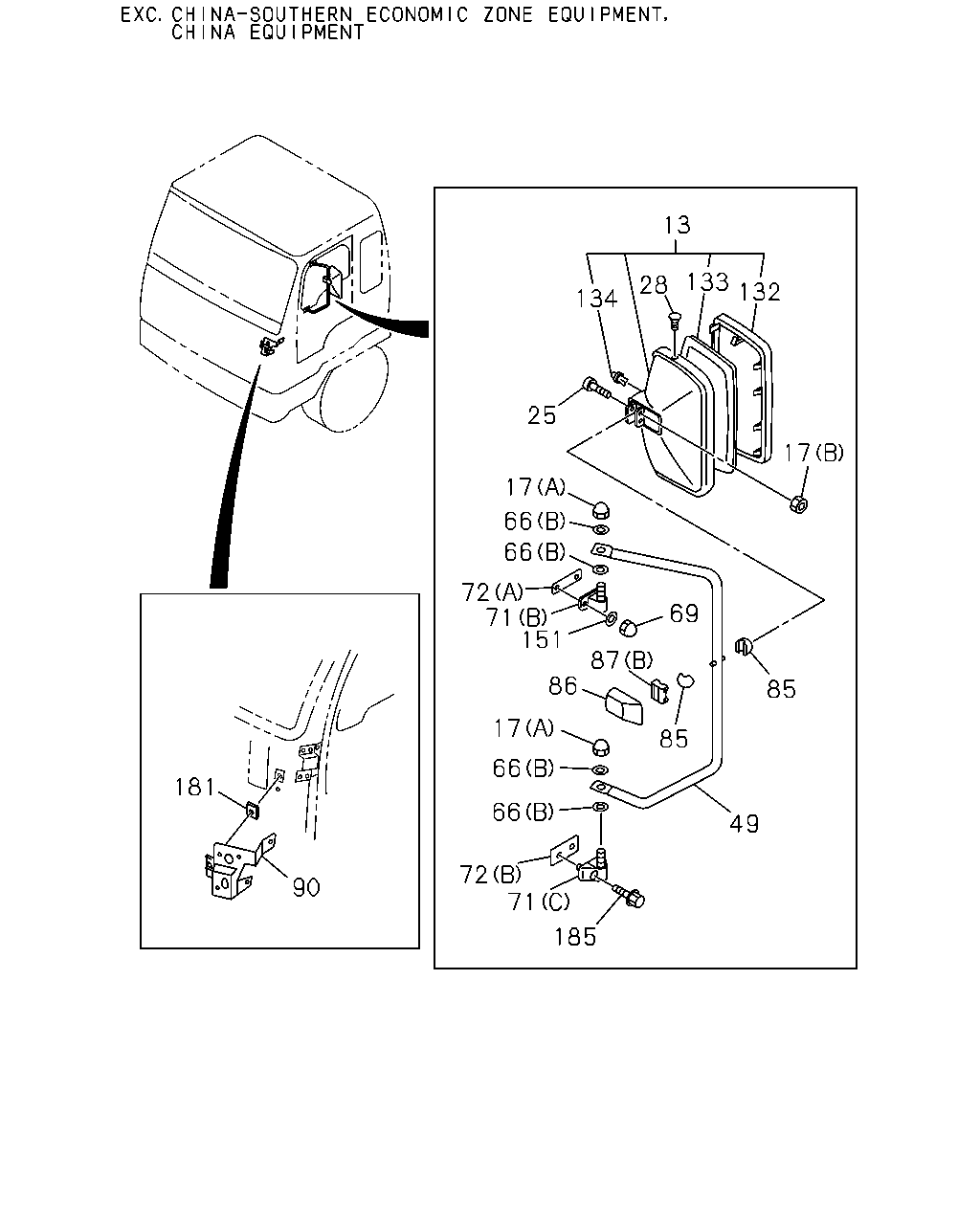

13 133 28 132 134 25 17 17 66 66 72 71 151 69 87 86 85 17 85 66 181 66 49 72 71 90 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-0	02	1	9604-9709
13	MIRROR ASM; OUTSIDE RR VIEW EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-918-2	02	1	9710-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-97865-547-1	02	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9604-9709
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9710-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	04	1	9604-9709
17	NUT; CAP,MIRROR STAY EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M5	1-09984-124-0	04	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	04	1	9604-9709
25	SCREW; OUTSIDE MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M5X50	1-09981-444-0	04	1	9710-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9604-9910
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9604-9709
28	GROMMET; UNDER MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) BLACK	1-71737-678-0	02	1	9710-9910
49	STAY; MIRROR SIDE	1-71798-491-2	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-491-2	01	1	9710-
49	STAY; MIRROR SIDE	1-71797-855-0	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71797-855-1	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-584-2	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-789-0	01	1	9710-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9711-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-
69	NUT; CAP M8	1-09984-187-0	02	1	9604-
71	BRACKET; OUTSIDE MIRROR (B) UPPER	1-71798-484-1	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (C) LOWER	1-71798-486-2	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9604-
72	SHEET (A) UPPER	1-71798-487-3	01	1	9604-
72	SHEET (B) LOWER	1-71798-488-1	01	1	9604-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-798-1	01	1	9905-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	9604-9709
85	PIVOT; MAIN MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=19.1	1-71737-633-2	02	1	9710-
85	PIVOT; MAIN MIRROR ID=22.2	1-71736-489-2	02	1	9604-9709
85	PIVOT; MAIN MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=22.2	1-71736-489-2	02	1	9710-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-0	02	1	9604-9709
86	COVER; STAY,OUTSIDE MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) BLACK	1-71737-760-1	02	1	9710-
87	SPACER (B)	1-71737-704-0	02	1	9604-9709
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	02	1	9710-9904
87	SPACER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-71737-704-0	01	1	9905-
87	SPACER (A)	1-71737-646-2	01	1	9604-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
132	RING; MIRROR	1-71737-934-0	02	1	9604-9709
132	RING; MIRROR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-934-0	02	1	9710-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	02	1	9604-9709
133	LENS; MIRROR,OUTSIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-927-0	02	1	9710-
134	CLIP; MIRROR LENS	1-71737-936-0	02	1	9604-9709
134	CLIP; MIRROR LENS EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-936-0	02	1	9710-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9604-9707
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9902-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	9604-

181 90 17 66 13 72 66 71 151 69 17 66 66 49 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-0	02	1	9604-9709
13	MIRROR ASM; OUTSIDE RR VIEW EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71737-918-2	02	1	9710-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-97865-547-1	02	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9604-9709
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9710-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	04	1	9604-9709
17	NUT; CAP,MIRROR STAY EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M5	1-09984-124-0	04	1	9710-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	01	1	9604-9904
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9905-
49	STAY; MIRROR SIDE	1-71798-491-2	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71798-491-2	01	1	9710-
49	STAY; MIRROR SIDE	1-71797-855-0	01	1	9604-9709
49	STAY; MIRROR SIDE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71797-855-1	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-584-2	01	1	9710-
49	STAY; MIRROR SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71798-789-0	01	1	9710-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	9604-9710
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9711-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-
69	NUT; CAP M8	1-09984-187-0	02	1	9604-
71	BRACKET; OUTSIDE MIRROR (B) UPPER	1-71798-484-1	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (C) LOWER	1-71798-486-2	01	1	9604-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9604-
72	SHEET (A) UPPER	1-71798-487-3	01	1	9604-
72	SHEET (B) LOWER	1-71798-488-1	01	1	9604-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-798-1	01	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9604-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9604-9707
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9902-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
