Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#63774) — 284 parça

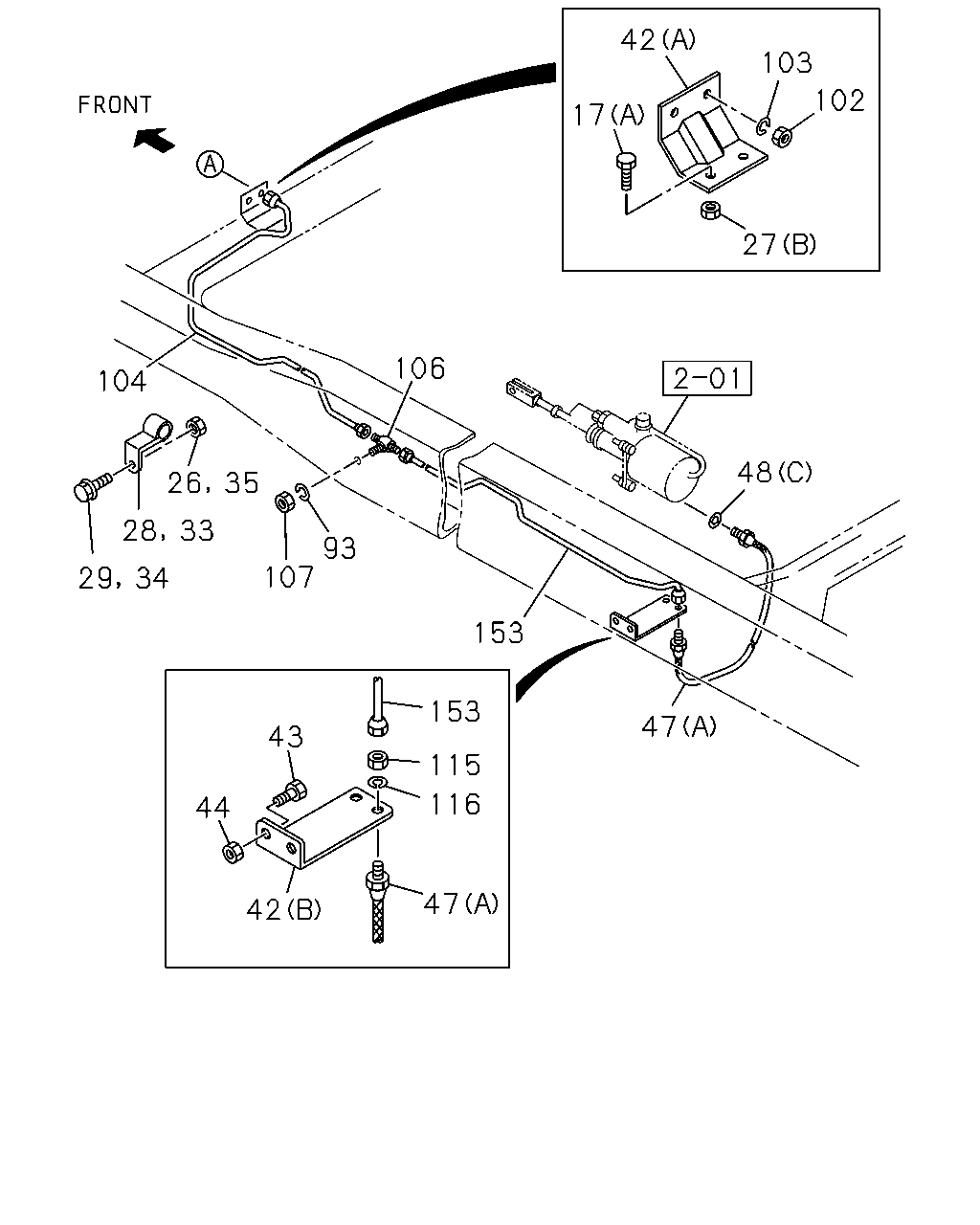

42 103 102 17 27 106 104 48 26 35 28 33 93 107 29 34 153 153 47 43 115 116 44 47 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0405	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9810	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9810	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0405	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9810	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9810	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9803	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9808-0004	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9808-0004	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9702	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9703-9803	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	9804-9807	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9808-0004	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0011	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0012-	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9702	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9703-9803	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9804-9807	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9808-0004	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0005-0011	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0012-0512	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9702	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9703-9803	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0011	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0012-0602	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0405	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0406-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0405	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0406-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9804-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0405	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0406-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09364-446-0	01	1	9601-9903	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09364-446-0	01	1	9904-0004	●	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09364-446-0	01	1	0005-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9705	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0405	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0406-	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9803	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9804-0004	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0005-0603	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0405	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0405	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9601-9803	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9804-0004	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0005-0011	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0012-0101	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. FRONT SPRING LONG SPAN<W36> L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0102-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FRONT SPRING LONG SPAN<W36> L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	0102-	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9803	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9804-0004	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0005-	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9803	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9804-0004	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0005-0512	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0405	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0406-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0405	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0406-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
153	PIPE ASM; CLU,UNION TO FLEX 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> L=1421 SERVICED BY L=1550	1-47426-390-0	01	1	0605-	●
153	PIPE ASM; CLU,UNION TO FLEX L=1328 SERVICED BY L=1400	1-47426-389-0	01	1	9601-9602	●
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9803	●
153	PIPE ASM; CLU,UNION TO FLEX FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9804-0004	●
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9804-0004		●
153	PIPE ASM; CLU,UNION TO FLEX FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0005-0202	●
153	PIPE ASM; CLU,UNION TO FLEX FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0203-0604	●
153	PIPE ASM; CLU,UNION TO FLEX 6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0605-	●
153	PIPE ASM; CLU,UNION TO FLEX GVR(GV****) L=1260 SERVICED BY L=1400	1-47426-389-0	01	1	9804-0004	●
153	PIPE ASM; CLU,UNION TO FLEX GVR(GV****) L=1245 SERVICED BY L=1250	1-47426-388-0	01	1	0005-	●

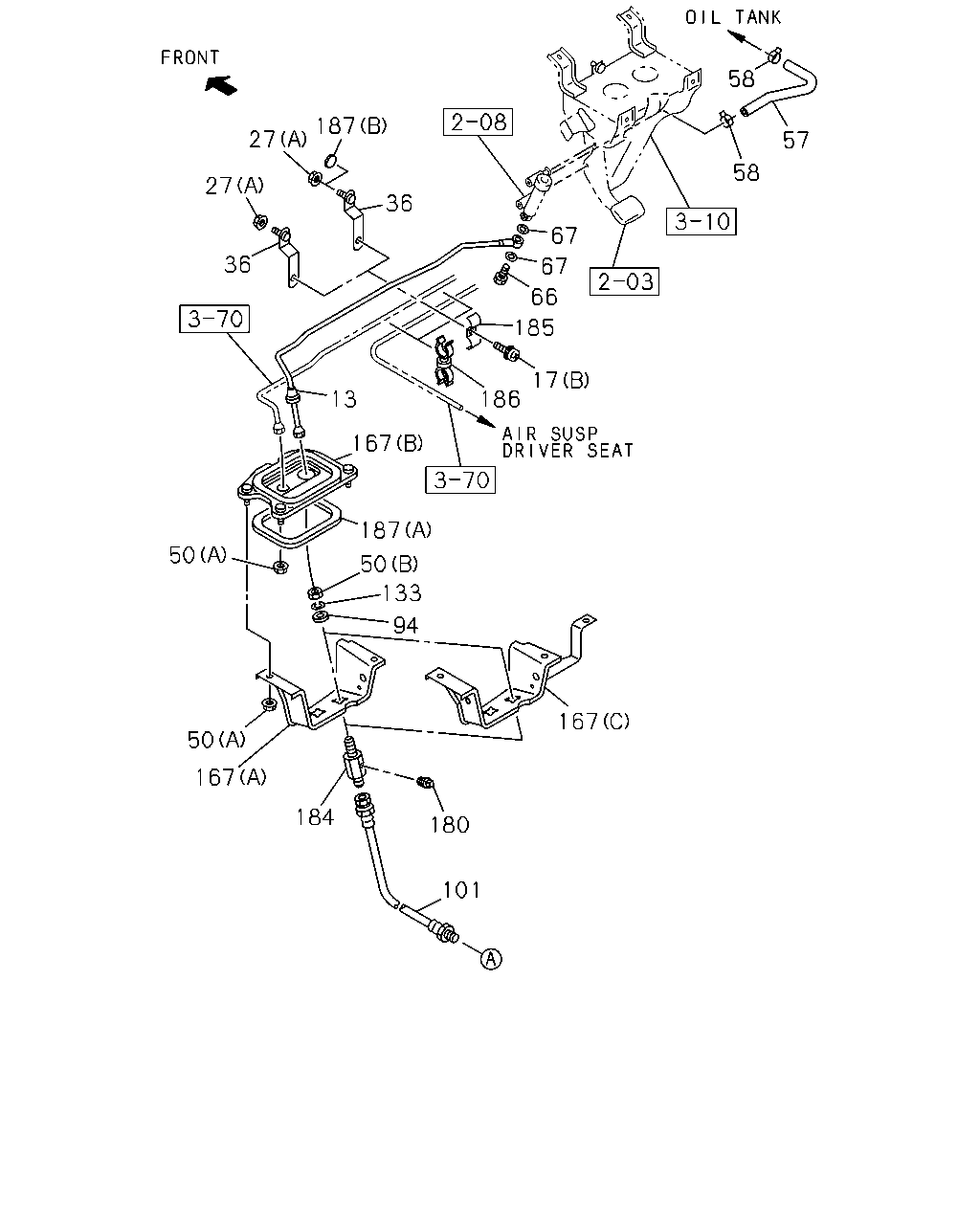

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 167 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR STD CAB MIDDLE CHASSIS(FV**MF)	1-47423-750-4	01	1	9601-9803	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR STD CAB(FV*M) GVR(GV****)	1-47423-750-4	01	1	9804-0004	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR STD CAB MIDDLE CHASSIS(FV**MF)	1-47423-750-4	01	1	9804-0004		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR STD CAB(FV*M) GVR(GV****)	1-47423-750-4	01	1	0005-0405	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR STD CAB(FV*M) GVR(GV****)	1-47423-750-4	01	1	0406-	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR WIDE CAB MIDDLE CHASSIS(FV**FF)	1-47424-110-4	01	1	9601-9803	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR WIDE CAB MIDDLE CHASSIS(FV**FF)	1-47424-110-4	01	1	9804-0004	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL FVR WIDE CAB MIDDLE CHASSIS(FV**FF)	1-47424-110-4	01	1	0005-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0405	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9810	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0405	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0406-	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9810	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-0004	●	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0405	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0406-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0405	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9810	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0405	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0406-	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9810	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9811-0004	●	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0405	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0406-	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9601-9810	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	9811-0004	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	0005-0010	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0011-0405	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0406-	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9601-9810	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>	1-79738-186-1	01	1	9811-0004	●	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>	1-79738-186-1	01	1	0011-0405	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA>	1-79738-186-1	01	1	0406-	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0405	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0406-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9803	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9804-0004	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0405	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0406-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9803	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9804-0004	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0405	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0406-	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9803	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9804-0004	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0405	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0406-	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9803	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9804-0004	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0405	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0406-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-9803	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9804-0004	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0405	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0406-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0405	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0406-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9803	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0405	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0406-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●
167	BRACKET; UNION 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (A)	1-79738-847-2	01	1	0605-	●
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9601-9803	●
167	BRACKET; UNION FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) (A)	1-79738-193-6	01	1	9804-0004	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9804-0004		●
167	BRACKET; UNION FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) (A)	1-79738-193-6	01	1	0005-0404	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0405-0604	●
167	BRACKET; UNION EXC. EURO3 SPECIFICATION<NJX> (A)	1-79738-193-6	01	1	0605-	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9911	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0005-0405	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0406-	●
167	BRACKET; UNION GVR(GV****) (C)	1-79738-830-3	01	1	9804-0004	●
167	BRACKET; UNION GVR(GV****) (C)	1-79738-830-4	01	1	0005-	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0406-	●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9803	●
180	PLUG; PIPE	9-09204-510-0	01	1	9804-0004	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0405	●
180	PLUG; PIPE	9-09204-510-0	01	1	0406-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-9803	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9804-0004	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0005-0405	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0406-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9601-9810	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0011-0405	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0406-	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9601-9810	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0405	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0406-	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9601-9706	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9810	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-0405	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0406-	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-9803	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9804-0004	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0405	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0406-	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9601-9810	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0405	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSENSEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
