Sayfa 2-01B - Isuzu EPC

2-01B — CLUTCH (#63770) — 239 parça

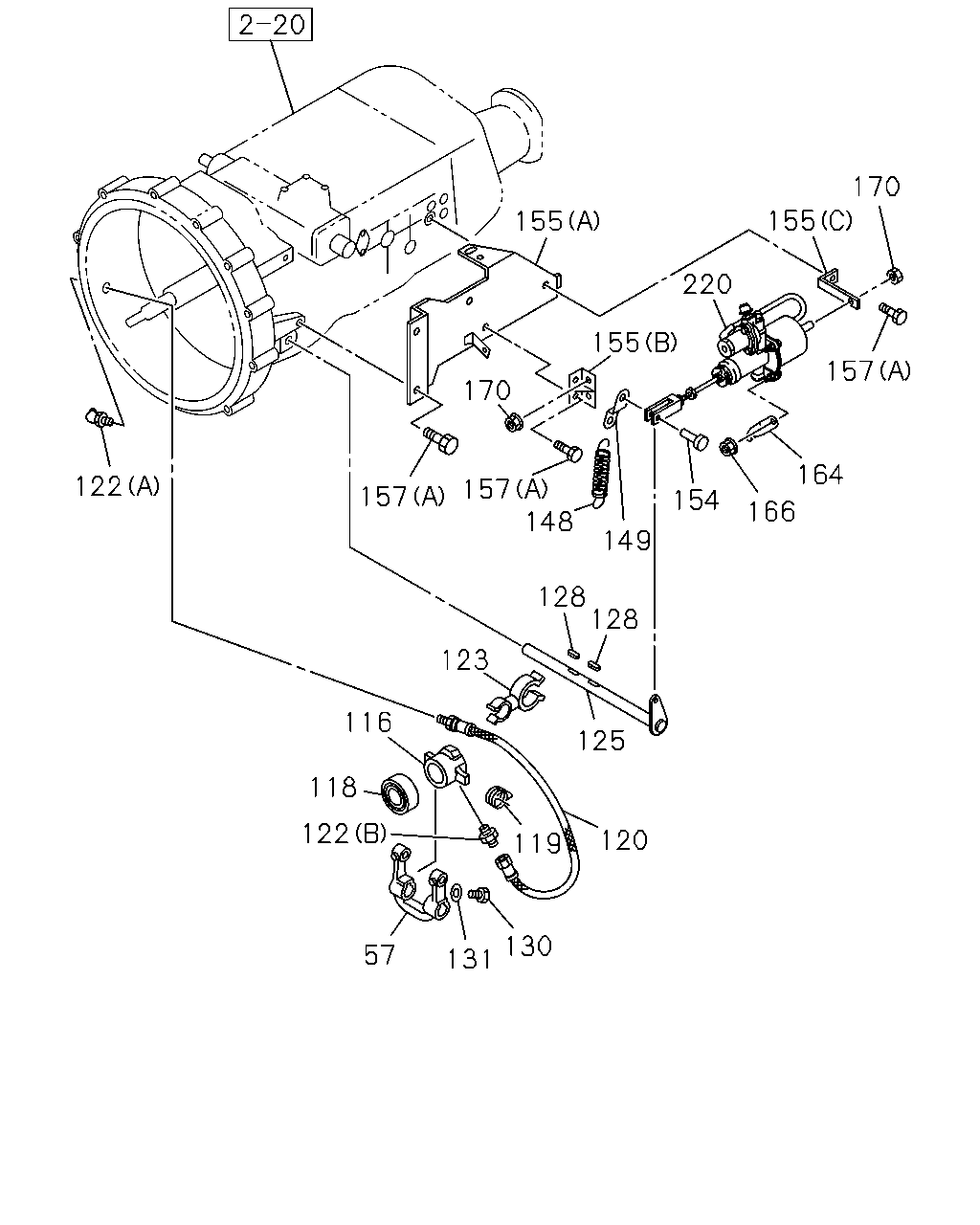

170 155 155 220 155 157 170 164 122 157 148 157 154 166 149 128 128 123 116 125 118 122 120 119 130 57 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9601-9903	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9904-0004	●	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0005-0405	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0406-	●
116	BLOCK; SHIFT,CLU	1-31321-086-0	01	1	9601-9903	●
116	BLOCK; SHIFT,CLU	1-31321-086-0	01	1	9904-0004	●	●
116	BLOCK; SHIFT,CLU	1-31321-086-1	01	1	0005-	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9601-9903	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9904-0004	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0005-0110	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0111-0111	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0112-0405	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0406-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0112-0405	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0406-	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9601-9903	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9904-0004	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0005-0405	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0406-	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9601-9903	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9904-0004	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0005-0405	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0406-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=360	1-09364-881-0	01	1	9601-9903	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=360	1-09364-881-0	01	1	9904-0004	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=360	1-09364-881-0	01	1	0005-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9601-9708	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9709-9903	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9904-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0405	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0406-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	9-09031-210-0	01	1	9601-9708	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	9-09031-210-0	01	1	9709-9802	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	9-09031-210-0	01	1	9803-9903	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	9-09031-210-0	01	1	9904-0004	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	9-09031-210-0	01	1	0005-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	8-97010-484-0	01	1	9601-9903	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	8-97010-484-0	01	1	9904-0004	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	8-97010-484-0	01	1	0005-	●
125	SHAFT; CLU	1-31342-276-1	01	1	9601-9903	●
125	SHAFT; CLU	1-31342-276-1	01	1	9904-0004	●	●
125	SHAFT; CLU	1-31342-276-1	01	1	0005-	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9601-9903	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9904-0004	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0405	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0406-	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9601-9903	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9904-0004	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0005-0405	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0406-	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9601-9903	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9904-0004	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0405	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0406-0603	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9601-9710	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9711-9803	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9804-9903	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9904-0004	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-0405	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0406-	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9601-9903	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9904-0004	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0005-0405	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0406-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9601-9609	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9610-9803	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9804-9903	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9904-0004	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-0405	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0406-	●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	9601-9903	●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	9904-0004	●	●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0005-	●
155	BRACKET; MINIPACK (A)	1-31429-354-0	01	1	9601-9903	●
155	BRACKET; MINIPACK (A)	1-31429-354-0	01	1	9904-0004	●	●
155	BRACKET; MINIPACK (A)	1-31429-354-0	01	1	0005-	●
155	BRACKET; MINIPACK (B)	1-31429-355-0	01	1	9601-9903	●
155	BRACKET; MINIPACK (B)	1-31429-355-0	01	1	9904-0004	●	●
155	BRACKET; MINIPACK (B)	1-31429-355-0	01	1	0005-	●
157	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9903	●
157	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9904-0004	●	●
157	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●
157	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	9601-9608	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	9609-9903	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	9904-0004	●	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	0005-0212	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	0301-0512	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	03	1	0601-	●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28181-220-0	03	1	9601-9903	●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28181-220-0	03	1	9904-0004	●	●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28181-220-0	03	1	0005-0512	●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28151-220-0	03	1	0601-	●
164	EYE; SPRING	1-31426-050-0	01	1	9601-9903	●
164	EYE; SPRING	1-31426-050-0	01	1	9904-0004	●	●
164	EYE; SPRING	1-31426-050-0	01	1	0005-	●
166	NUT; SPRING EYE M10 FLANGE	0-91150-210-0	01	1	9601-9903	●
166	NUT; SPRING EYE M10 FLANGE	0-91150-210-0	01	1	9904-0004	●	●
166	NUT; SPRING EYE M10 FLANGE	0-91150-210-0	01	1	0005-0602	●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	01	1	0603-	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9601-9903	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9904-0004	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0005-0602	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-0	01	1	9601-9903	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-0	01	1	9904-0004	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-4	01	1	0005-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-088-0	01	1	9601-	●

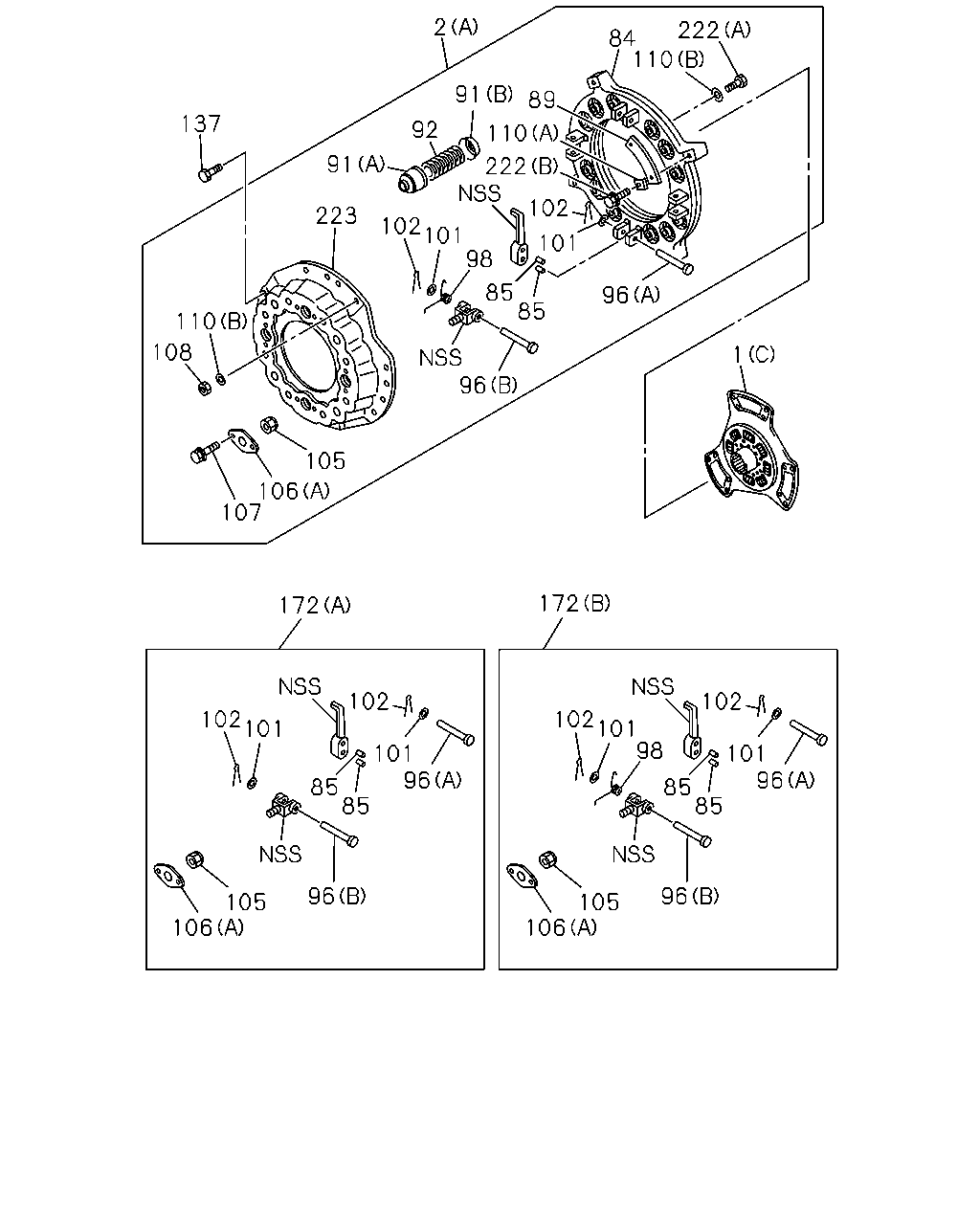

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 108 1 96 105 106 107 172 172 102 102 102 101 102 101 98 101 96 101 96 85 85 85 85 96 96 105 106 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (C) 15"	1-31240-735-2	01	1	9904-0004		●
1	DISC; CLUTCH (C) 15"	1-31240-735-2	01	1	9601-0004	●
1	DISC; CLUTCH (C) 15"	1-31240-735-2	01	1	0005-0011	●
1	DISC; CLUTCH (C) 15"	1-31240-735-2	01	1	0012-	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-306-0	01	1	9601-0004	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-306-0	01	1	0005-0011	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-306-0	01	1	0012-0109	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-380-2	01	1	0110-	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-306-0	01	1	9904-0004		●
2	PLATE ASM; PRESSURE,CLU (A) BEST VALUE PARTS	1-87610-145-0	01	1	0110-	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9601-9810	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-0004	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-0405	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0406-	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9904-0004		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9601-0004	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0405	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0406-	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9904-0004		●
89	PLATE; STRAP	1-31229-050-0	16	1	9601-9810	●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-0004	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-0405	●
89	PLATE; STRAP	1-31229-050-0	16	1	0406-	●
89	PLATE; STRAP	1-31229-050-0	16	1	9904-0004		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9601-0004	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0405	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0406-1005	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9601-0004	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0405	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0406-1005	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9904-0004		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9904-0004		●
92	SPRING; CLU	1-31214-053-0	12	1	9601-0004	●
92	SPRING; CLU	1-31214-053-0	12	1	0005-0011	●
92	SPRING; CLU	1-31214-053-0	12	1	0012-	●
92	SPRING; CLU	1-31214-053-0	12	1	9904-0004		●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0309-0405	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0406-	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0309-0405	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0406-	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	9601-9803	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	9804-9810	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	9811-0004	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	0005-0011	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	0012-0308	●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	9601-0004	●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	0005-0011	●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	0012-0308	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	9904-0004		●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	9904-0004		●
98	SPRING; RETURN	1-31233-003-0	04	1	9601-0004	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0405	●
98	SPRING; RETURN	1-31233-003-0	04	1	0406-	●
98	SPRING; RETURN	1-31233-003-0	04	1	9904-0004		●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9601-0004	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0405	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0406-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9904-0004		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9601-9609	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9610-9803	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9804-0004	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-0405	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0406-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9904-0004		●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0405	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0406-	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9601-0004	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0309-0309	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9904-0004		●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9601-0004	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0405	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0406-	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9904-0004		●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0405	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0406-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9601-0004	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0308	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9904-0004		●
108	NUT; STRAP	1-09449-036-0	04	1	9601-9609	●
108	NUT; STRAP	1-09449-036-0	04	1	9610-9803	●
108	NUT; STRAP	1-09449-036-0	04	1	9804-0004	●
108	NUT; STRAP	1-09449-036-0	04	1	0005-0405	●
108	NUT; STRAP	1-09449-036-0	04	1	0406-	●
108	NUT; STRAP	1-09449-036-0	04	1	9904-0004		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9601-9609	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9610-9803	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9804-0004	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0005-0403	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-0405	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0406-	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9601-9609	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9610-9803	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9804-0004	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0005-0405	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0406-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9904-0004		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9904-0004		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9601-9803	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9804-0004	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0405	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0406-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-813-0	01	1	9601-0004	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-813-0	01	1	0005-0011	●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-813-1	01	1	0012-0307	●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-172-1	01	1	0308-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-813-0	01	1	9904-0004		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9601-9609	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9610-9803	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9804-0004	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-0405	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0406-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9601-9609	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9610-9803	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9804-0004	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0405	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0406-	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9904-0004		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9904-0004		●
223	COVER; CLU	1-31211-019-1	01	1	9601-0004	●
223	COVER; CLU	1-31211-019-1	01	1	0005-0405	●
223	COVER; CLU	1-31211-019-1	01	1	0406-	●
223	COVER; CLU	1-31211-019-1	01	1	9904-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
