◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#63768) — 120 parça

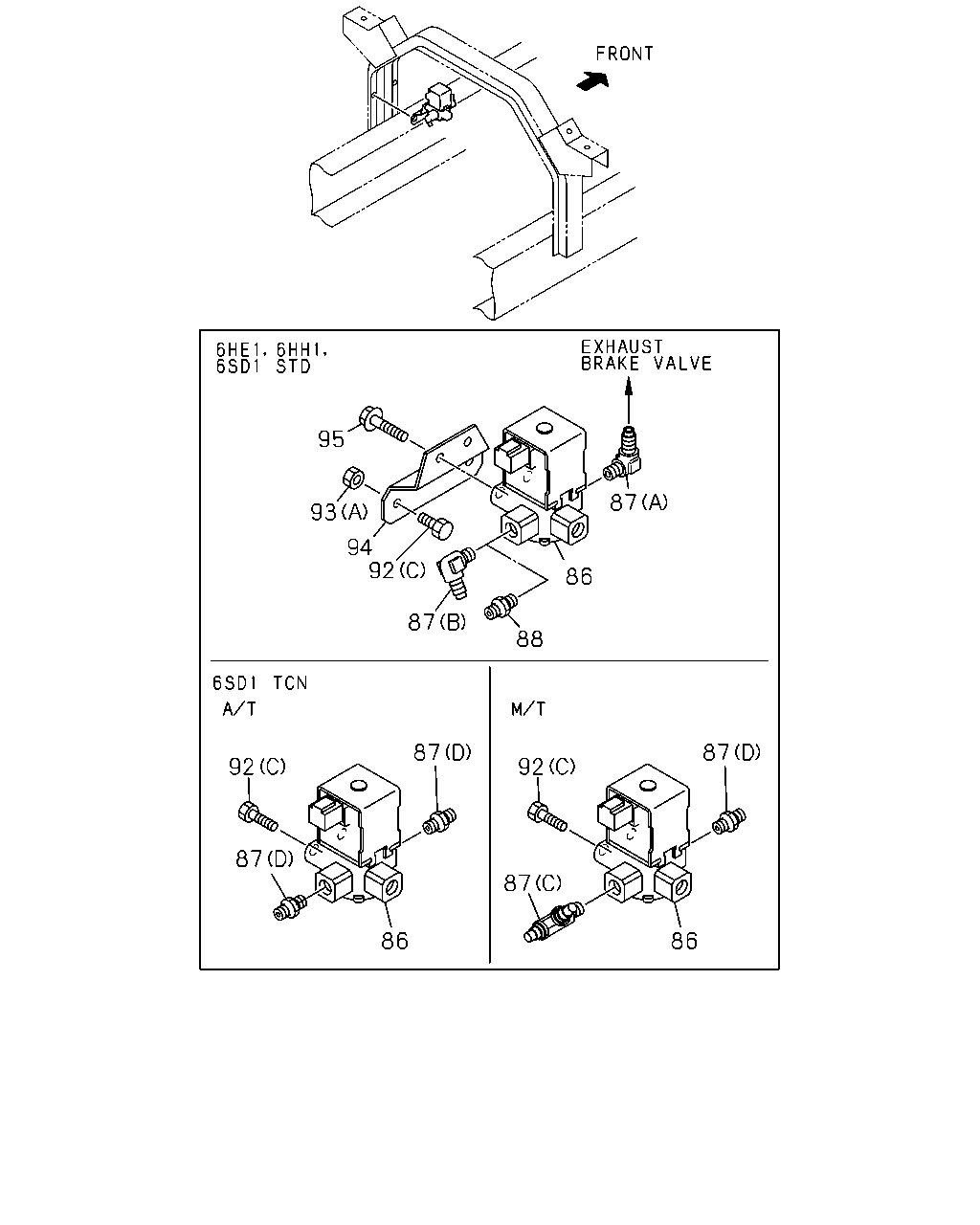

çizim 97310
95 87 93 94 92 86 87 88 87 87 92 92 87 87 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0406- ●
86 VALVE; MAG,EXH BRK 1-82563-600-5 01 1 0301- ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9601-0004 ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0005-0011 ● ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0012-0212 ● ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0301- ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0406- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-0004 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005- ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9803 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ● ● ●
87 CONNECTOR
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0405 ● ● ● ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0405 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ● ● ● ● ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ●
87 CONNECTOR
(C) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0004 ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0011 ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012- ●
87 CONNECTOR
A/T<X9D> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005- ●
87 CONNECTOR
EXC. A/T<X9D> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
MAL6S M/T(Y1V) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0301-0405 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0406- ● ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0406-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
92 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9801-0004 ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
92 BOLT; MAG VLV
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) (C) M8X30 FLANGE 		0-28080-830-0 02 1 9601-0004 ●
92 BOLT; MAG VLV
(C) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(C) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
GVR(GV****) (C) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0004 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0406-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
93 NUT; MAG VLV
(A) M8 		9-09110-408-0 02 1 9601-9606 ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47478-888-0 01 1 0406- ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-0004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0005- ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0406-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9902 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0004 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●

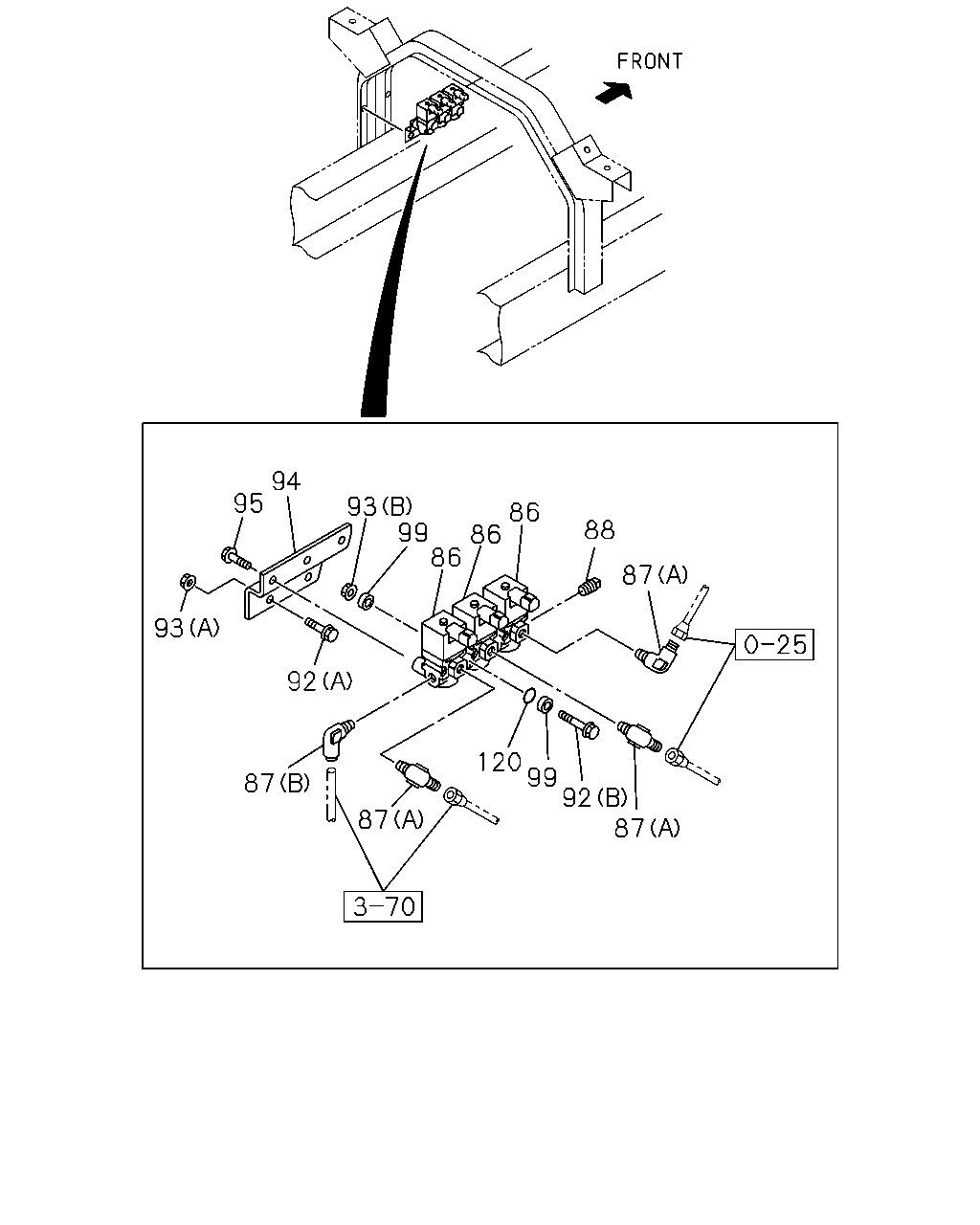

çizim 97472
94 95 93 86 86 88 87 93 92 120 99 92 87 87 87 99 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0406- ●
86 VALVE; MAG,EXH BRK 1-82563-600-5 01 1 0301- ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9601-0004 ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0005-0011 ● ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0012-0212 ● ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0301- ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0406- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-0004 ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005- ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9803 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ● ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ● ● ●
87 CONNECTOR
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0405 ● ● ● ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0405 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ● ● ● ● ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ●
87 CONNECTOR
(C) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0004 ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0011 ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012- ●
87 CONNECTOR
A/T<X9D> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005- ●
87 CONNECTOR
EXC. A/T<X9D> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
MAL6S M/T(Y1V) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0301-0405 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0406- ● ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0406-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
92 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9801-0004 ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
92 BOLT; MAG VLV
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) (C) M8X30 FLANGE 		0-28080-830-0 02 1 9601-0004 ●
92 BOLT; MAG VLV
(C) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(C) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
GVR(GV****) (C) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0004 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0406-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
93 NUT; MAG VLV
(A) M8 		9-09110-408-0 02 1 9601-9606 ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47478-888-0 01 1 0406- ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-0004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 0005- ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0406-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9902 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0004 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
99 WASHER; MAG VLV 1-82569-266-0 04 1 0406- ●
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0406- ●

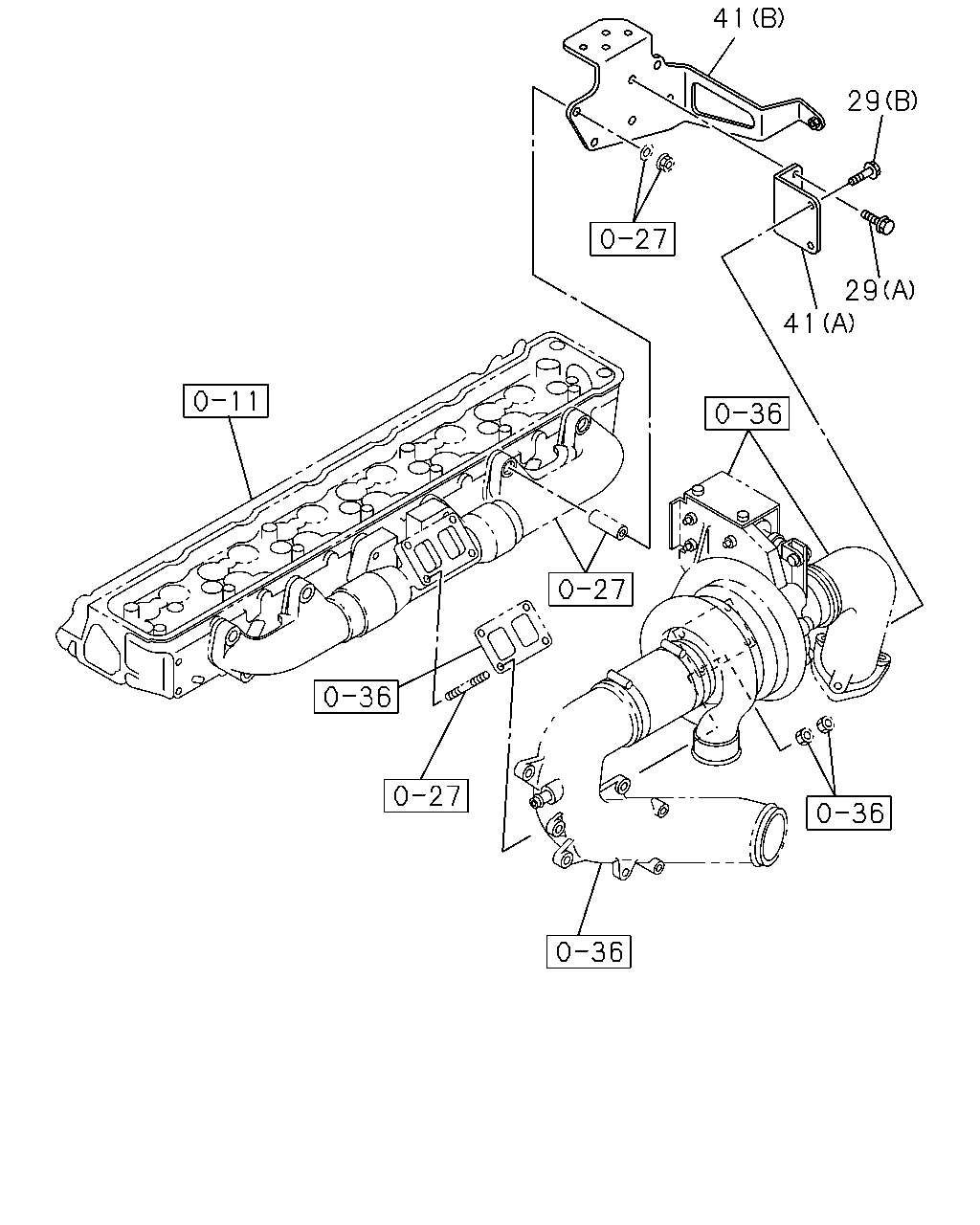

çizim 184320
41 29 29 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 BOLT; CONT CYL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0605- ●
29 BOLT; CONT CYL
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) M10X20 FLANGE 		0-28751-020-0 02 1 0605- ●
41 BRACKET
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (A) 		1-14149-243-0 01 1 0605- ●
41 BRACKET
EURO3 SPECIFICATION<NJX> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14149-248-1 01 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
