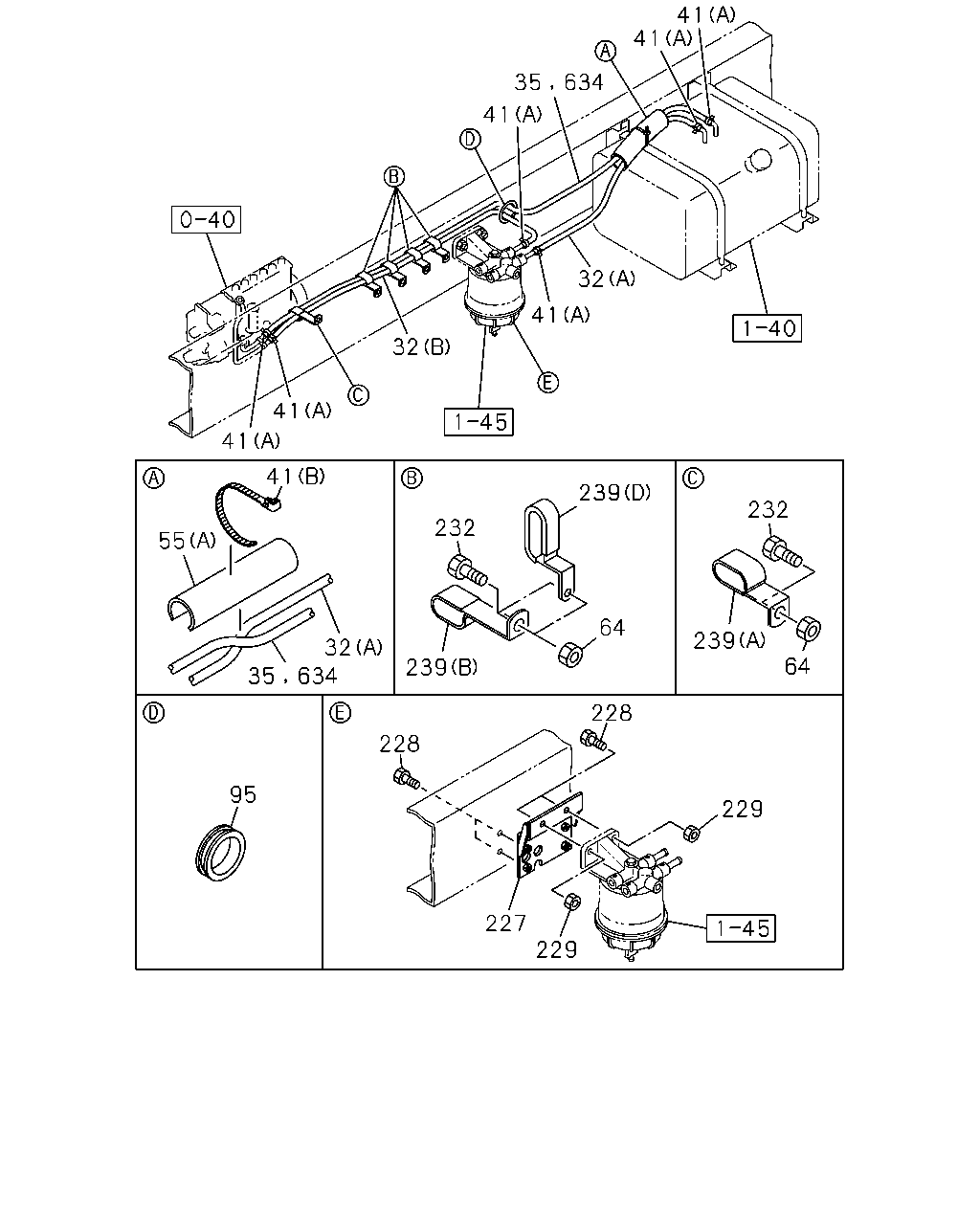

32 |
PIPE; DELIVERY,FUEL TANK
EURO3 SPECIFICATION<NJX>
(A)
L=500
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0605- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9609 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9610-9701 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9610-9701 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9702-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0006 |
|
● |
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0007-0011 |
|
● |
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0209 |
|
● |
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0209 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0210-0405 |
|
● |
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0210-0405 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0406- |
|
● |
● |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
L=2000
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=2000
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0006 |
|
● |
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0007-0011 |
|
● |
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0209 |
|
● |
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0209 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
L=3150
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9803 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
L=3150
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)

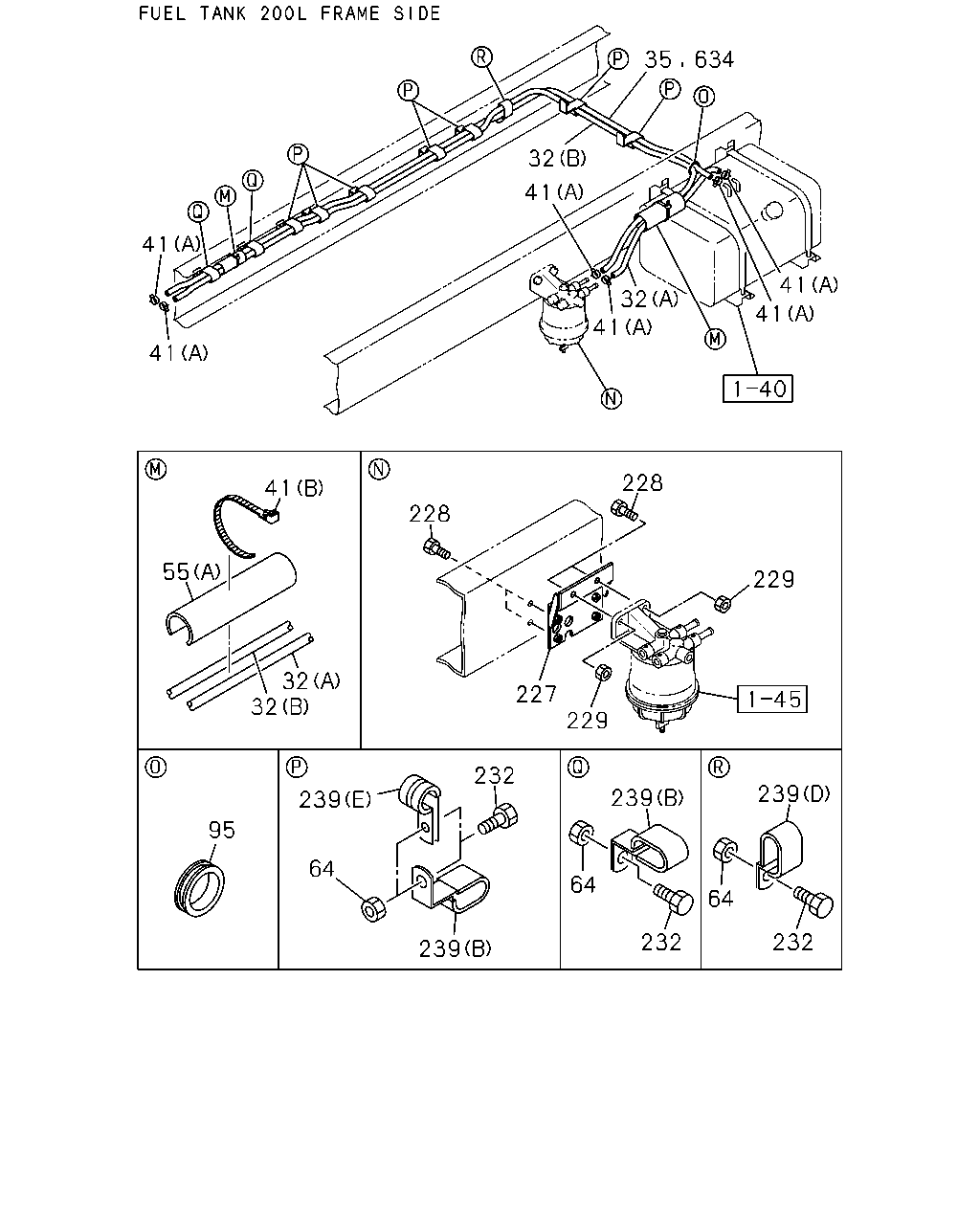

FUEL TANK 200L FRAME SIDE<N20>
(B)
L=3150
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
L=3150
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9806 |
|
● |
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9806 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9807-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB SHORT CHASSIS(FV**FC)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
● |
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(B)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9609 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9609 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
(B)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9609 |
● |
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9610-9705 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9610-9705 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9610-9705 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2
SPECIFICATION<THN>
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-9901 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-9901 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR(FV****)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-9901 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9902-0004 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W)
(B)
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W)
(B)
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9702-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=1100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9702-9803 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9702-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-9901 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)

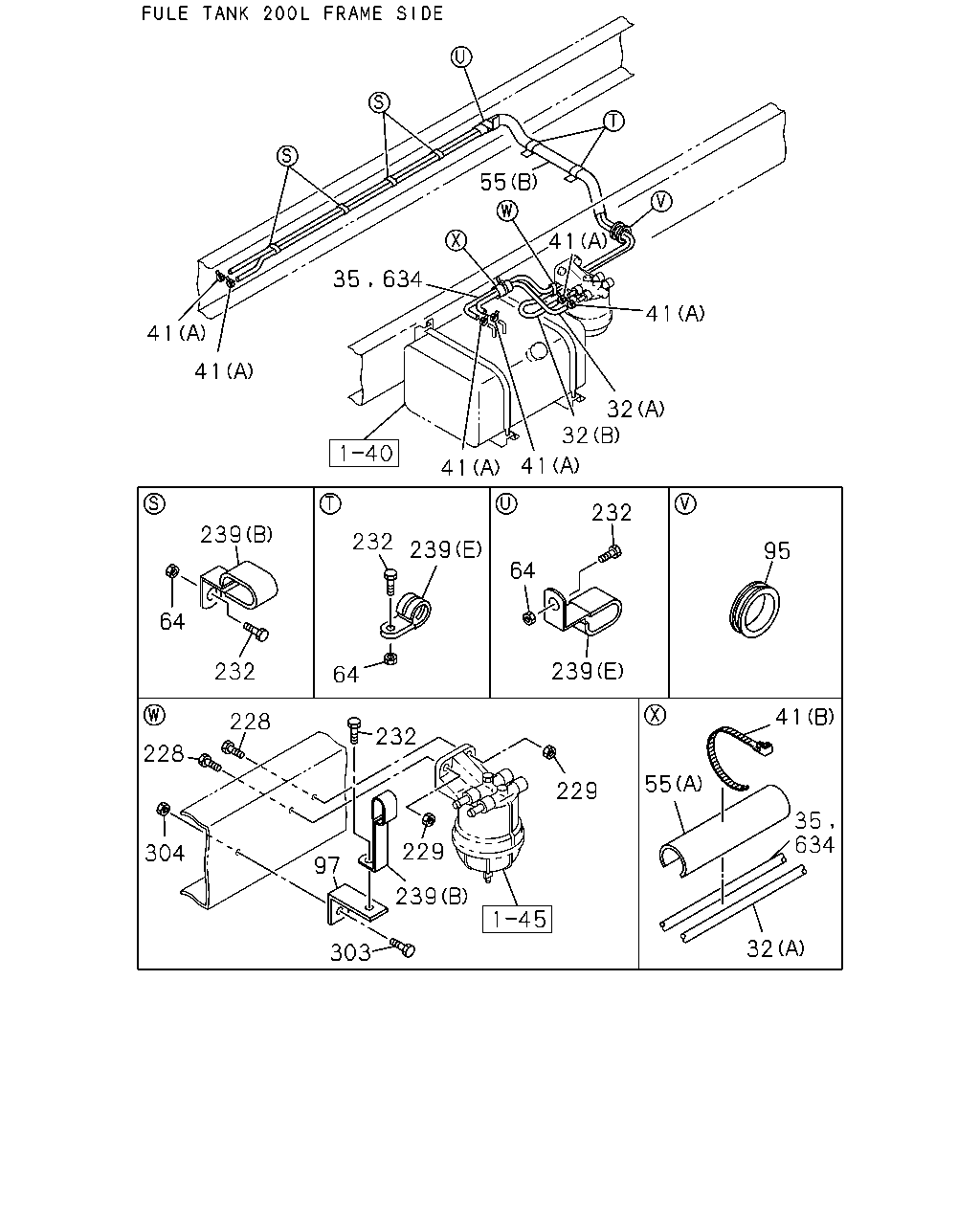

FUEL TANK 200L FRAME SIDE<N20>
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-9901 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0209 |
● |
|
|
|
|
|
| |
32 |

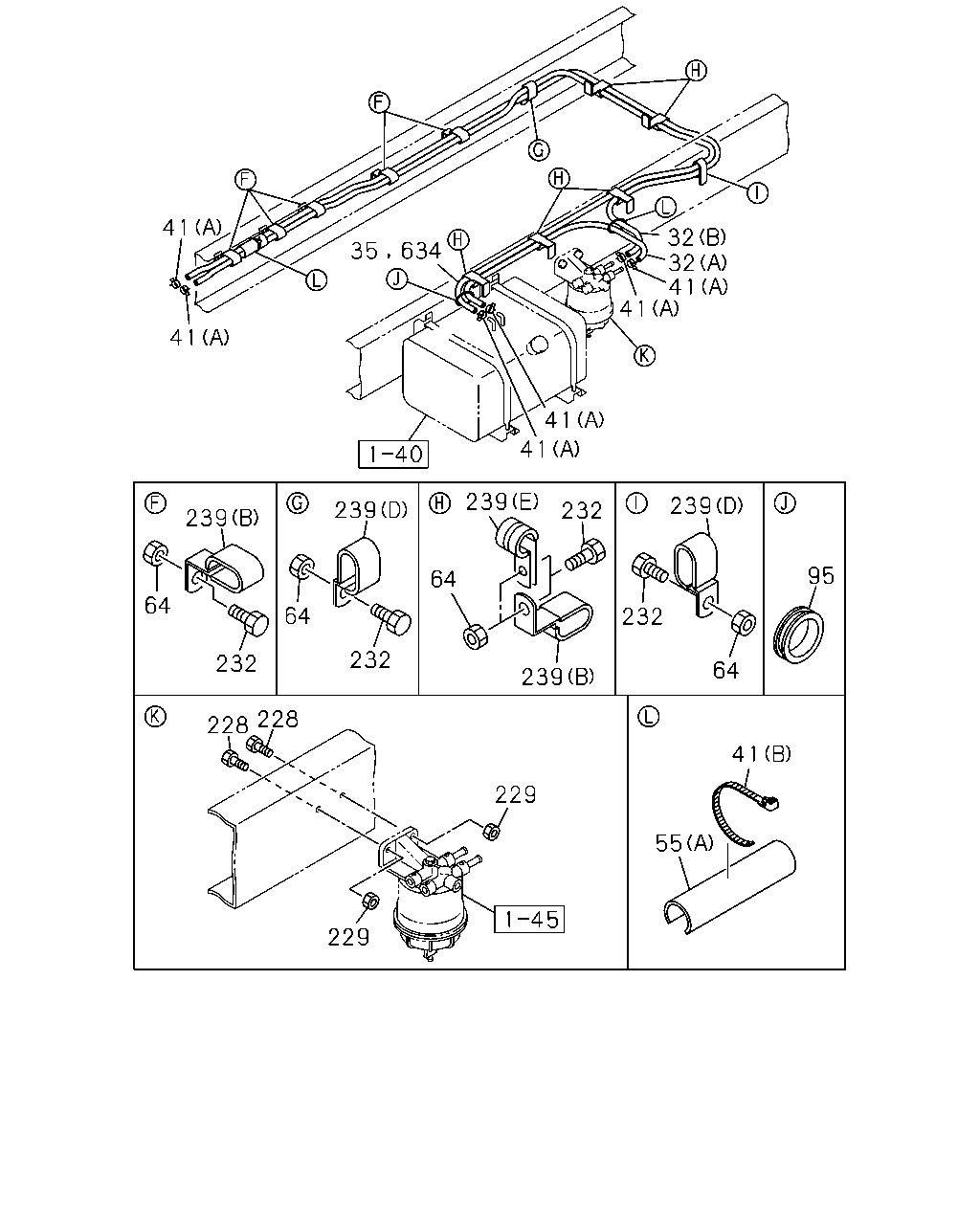

PIPE; DELIVERY,FUEL TANK
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0210-0405 |
|
● |
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0210-0405 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0210-0405 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0406- |
|
● |
● |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0406- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4600MM(46W)
(B)
L=3750
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9702-9705 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9702-9705 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(B)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0011 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR(FV****)
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0012- |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0012- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
(B)
L=3850
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
L=3950
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0012- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
L=4250
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9610-9701 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
L=4500
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9702-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=1250
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9701 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9702-9705 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9702-9705 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR MIDDLE CHASSIS(FV***F)
HONG KONG EQUIPMENT(PQ1)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR(FV****)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0604 |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB(FV**M*)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0604 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB(FV**M*)
EXC. EURO3 SPECIFICATION<NJX>
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0605- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)

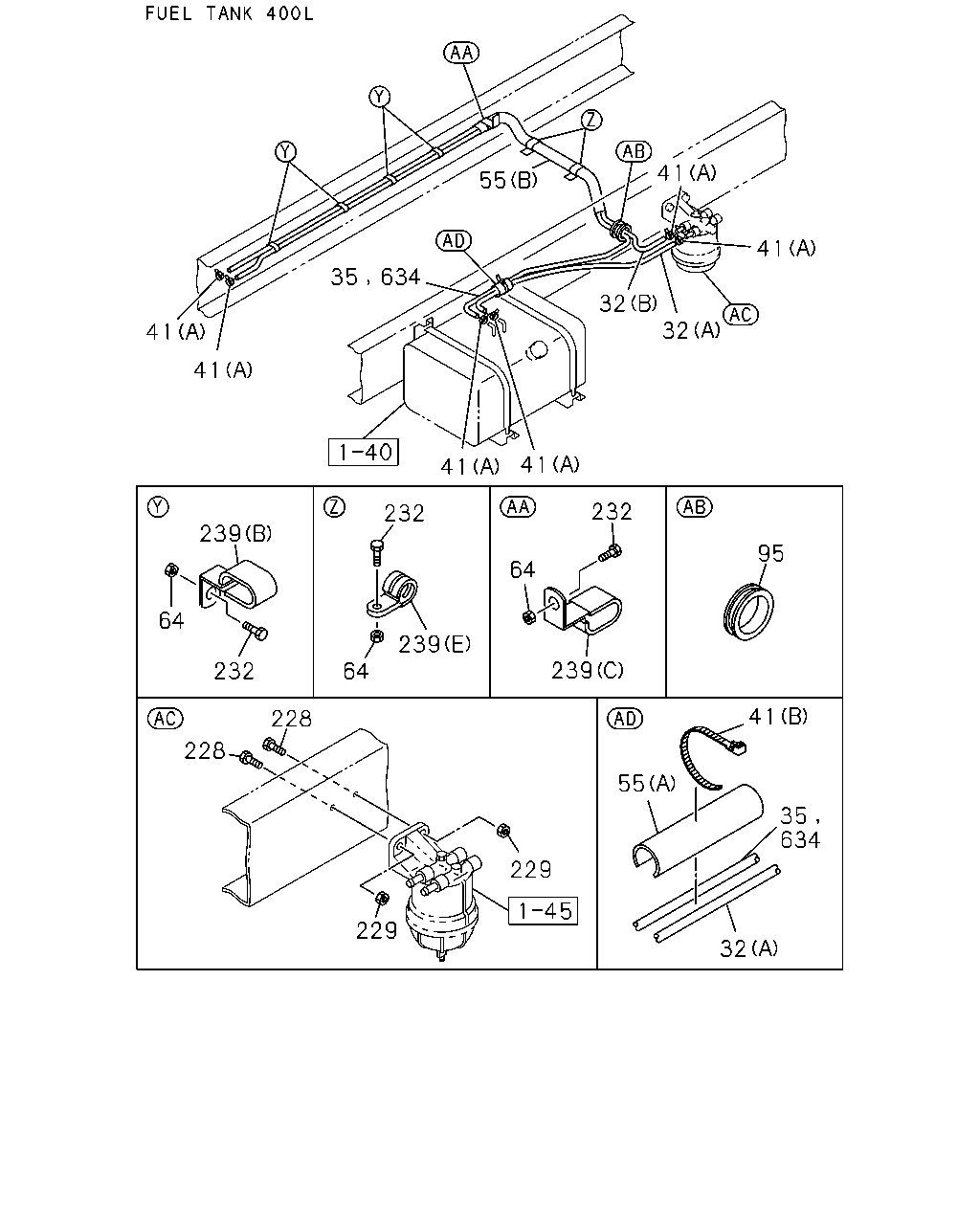

FUEL TANK 400L<SDH>
(A)
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 400L<SDH>
(A)
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVR(GV****)
FUEL TANK 400L<SDH>
(B)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012- |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
L=1450
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012- |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB SHORT CHASSIS(FV**MC)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
L=2950
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-0004 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9705 |
|
|
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
● |
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9706-9803 |
|
|
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9804-0004 |
|
|
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB SHORT CHASSIS(FV**MC)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=4350
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB SHORT CHASSIS(FV**MC)
L=4350
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W)
L=3250
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4600MM(46W)
L=3450
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
L=4250
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(RR3)
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2
SPECIFICATION<THN>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
GVR(GV****)
FUEL TANK 400L<SDH>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9610-9705 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
|
|
|
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
L=5050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB SHORT CHASSIS(FV**MC)
AUSTRALIA EQUIPMENT(RR3)
L=4500
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9807-0004 |
|
|
|
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
9601-9803 |
● |
● |
|
● |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
9804-0405 |
● |
● |
● |
● |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0406- |
● |
● |
● |
● |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
9601-9903 |
● |
● |
|
● |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
9904-0004 |
|
● |
|
● |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR(FV****)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
9904-0004 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0005-0011 |
|
● |
● |
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0005-0011 |
|
|
|
● |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR(FV****)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0012-0201 |
|
|
|
|
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR(FV****)
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0012-0201 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0012-0201 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
05 |
1 |
0202- |
|
|
|
|
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR(FV****)
(B)
L=250
|
5-09707-030-1 |
05 |
1 |
0202- |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
L=250
|
5-09707-030-1 |
05 |
1 |
0202- |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
GVR(GV****)
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
9804-0011 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0012-0201 |
|
● |
● |
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0012-0201 |
|
|
|
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
0202-0405 |
|
● |
● |
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
0202-0405 |
|
|
|
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
0406-1306 |
|
● |
● |
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
0406-1306 |
|
|
|
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
0406-1306 |
|
|
|
|
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
1307- |
|
● |
● |
● |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
GVR(GV****)
FUEL TANK 400L<SDH>
(B)
L=250
|
5-09707-030-1 |
06 |
1 |
0012-0201 |
● |
|
|
|
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
GVR(GV****)
FUEL TANK 400L<SDH>
(B)
L=250
|
5-09707-030-1 |
07 |
1 |
0202- |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3)
(A)
L=250
|
9-09912-735-1 |
01 |
1 |
9607-9803 |
|
● |
● |
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB(FV**M*)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=250
|
9-09912-735-1 |
01 |
1 |
9607-9803 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=250
|
9-09912-735-1 |
01 |
1 |
9607-9803 |
|
|
|
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(A)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9804-0004 |
● |
● |
● |
● |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
GVR(GV****)
(A)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3)
(A)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9804-0004 |
|
|
|
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
GVR(GV****)
(A)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
GVR(GV****)
FUEL TANK 400L<SDH>
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0012- |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9601-9803 |
|
● |
● |
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9601-9803 |
● |
|
|
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB(FV**M*)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9601-9803 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9601-9803 |
|
|
|
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9804-0004 |
|
● |
|
● |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR(FV****)
EXC. AUSTRALIA EQUIPMENT(RR3)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0405 |
|
● |
● |
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0405 |
|
|
|
● |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR(FV****)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0405 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0406-1306 |
|
● |
● |
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0406-1306 |
|
|
|
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR(FV****)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0406-1306 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0406-1306 |
|
|
|
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1307- |
|
● |
● |
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR(FV****)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1307- |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1307- |
|
|
|
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=350
|
1-09360-460-1 |
01 |
1 |
9607-0004 |
|
|
|
|
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
(A)
L=350
|
1-09360-460-1 |
01 |
1 |
9607-0004 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=350
|
1-09360-460-1 |
01 |
1 |
0005-0011 |
|
|
|
|
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
FVR(FV****)
(A)
L=350
|
1-09360-460-1 |
01 |
1 |
0005-0011 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=350
|
1-09360-460-1 |
01 |
1 |
0012- |
● |
|
|
|
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
GVR(GV****)
(B)
L=800
|
1-09361-018-0 |
01 |
1 |
9804-0005 |
● |
|
|
|
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(B)
L=800
|
1-09361-018-0 |
01 |
1 |
0006- |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0406-0602 |
|
|
|
|
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
|
|
● |
|
| |
64 |
NUT; CLIP
FVR STD CAB SHORT CHASSIS(FV**MC)
M8
|
9-09110-408-0 |
05 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB SHORT CHASSIS(FV**MC)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9607-0004 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
M8
|
9-09110-408-0 |
07 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9607-0004 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8
|
9-09110-408-0 |
03 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9609 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
9610-9705 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
9804-0004 |
|
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0005-0602 |
|
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR(FV****)
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0005-0602 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0603- |
|
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR(FV****)
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0603- |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9610-9705 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9610-9705 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9706-9803 |
|
● |
|
● |
|
|
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9706-9803 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9804-9806 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9804-9806 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9807-0004 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9807-0004 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0109 |
|
● |
● |
● |
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0110-0602 |
|
● |
● |
● |
|
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
● |
● |
|
|
| |
64 |
NUT; CLIP
FVR STD CAB SHORT CHASSIS(FV**MC)
M8
|
9-09110-408-0 |
13 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR STD CAB SHORT CHASSIS(FV**MC)
M8 FLANGE
|
0-91150-108-0 |
13 |
1 |
9607-0004 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8
|
9-09110-408-0 |
09 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8
|
9-09110-408-0 |
09 |
1 |
9601-9606 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
9607-0004 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
M8
|
9-09110-408-0 |
11 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9607-9705 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9607-9705 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
64 |
NUT; CLIP
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
EXC. HONG KONG EQUIPMENT(PQ1)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
0005-0602 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC)
M8 FLANGE
|
0-91180-108-0 |
09 |
1 |
0603- |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
GVR(GV****)
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
9804-0602 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
GVR(GV****)
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0603- |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9804-0602 |
● |
|
|
|
|
|
| |
64 |
NUT; CLIP
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
FVR STD CAB SHORT CHASSIS(FV**MC)
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
9904- |
|
● |
|
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9601-9903 |
● |
● |
● |
● |
● |
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9904-0004 |
|
● |
|
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9904-0004 |
|
|
|
● |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
FVR(FV****)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9904-0004 |
● |
|
|
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0005-0405 |
|
● |
● |
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0005-0405 |
● |
|
|
● |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
FVR STD CAB MIDDLE CHASSIS(FV**MF)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0406- |
|
● |
● |
|
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0406- |
● |
|
|
● |
● |
● |
| |
97 |
BRACKET; CLIP
L=95
|
1-82699-085-0 |
02 |
1 |
0007- |
● |
|
|
|
|
● |
| |
97 |
BRACKET; CLIP
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
L=55
|
1-47475-304-0 |
01 |
1 |
9804- |
● |
|
|
|
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28081-040-0 |
02 |
1 |
9601-9606 |
● |
● |
● |
● |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9607-9803 |
● |
● |
● |
● |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9804-0011 |
● |
● |
● |
● |
|
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0012-0209 |
|
● |
● |
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0012-0209 |
● |
|
|
|
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0012-0209 |
|
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0210-0512 |
|
● |
● |
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0210-0512 |
● |
|
|
|
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0210-0512 |
|
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
|
● |
● |
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
● |
|
|
|
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
|
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M12X35 FLANGE
|
0-28681-235-0 |
04 |
1 |
0012-0512 |
● |
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M12X35 FLANGE
|
0-28651-235-0 |
04 |
1 |
0601- |
● |
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M14X45 FLANGE
|
0-28881-445-0 |
02 |
1 |
0012-0512 |
● |
|
|
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M14X45 FLANGE
|
0-28851-445-0 |
02 |
1 |
0601- |
● |
|
|
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
M10
|
9-09110-510-0 |
02 |
1 |
9601-9606 |
● |
● |
● |
● |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9607-0004 |
● |
● |
● |
● |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0005-0011 |
● |
● |
● |
● |
|
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0012-0602 |
|
● |
● |
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0012-0602 |
● |
|
|
|
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0012-0602 |
|
|
|
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
|
● |
● |
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
FVR WIDE CAB SHORT CHASSIS(FVR5FC)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
● |
|
|
|
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
|
|
|
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M12 FLANGE
|
0-91150-212-0 |
02 |
1 |
0012-0602 |
● |
|
|
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M12 FLANGE
|
0-91180-212-0 |
02 |
1 |
0603- |
● |
|
|
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M14 FLANGE
|
0-91150-214-0 |
02 |
1 |
0012- |
● |
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0406-0512 |
|
|
|
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
|
|
|
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X30 FLANGE
|
0-28080-830-0 |
05 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
9607-9807 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
9808-0004 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
M8X30 FLANGE
|
0-28080-830-0 |
07 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
07 |
1 |
9607-9807 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
9808-0004 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X30 FLANGE
|
0-28080-830-0 |
03 |
1 |
9601-9606 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9607-9609 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
14 |
1 |
9610-9705 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
14 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
14 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8X35 FLANGE
|
0-28680-835-0 |
14 |
1 |
9804-9807 |
|
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8X35 FLANGE
|
0-28680-835-0 |
14 |
1 |
9804-9807 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8X30 FLANGE
|
0-28680-830-0 |
14 |
1 |
9808-0004 |
|
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
M8X30 FLANGE
|
0-28680-830-0 |
14 |
1 |
9808-0004 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0005-0512 |
|
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR(FV****)
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0005-0512 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
11 |
1 |
0601- |
|
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR(FV****)
M8X30 FLANGE
|
0-28650-830-0 |
11 |
1 |
0601- |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9610-9705 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9610-9705 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9706-9803 |
|
● |
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9706-9803 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9804-9806 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9804-9806 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9807-9807 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
9807-9807 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9808-0004 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9808-0004 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0005-0109 |
|
● |
● |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0110-0512 |
|
● |
● |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0601- |
|
● |
● |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X30 FLANGE
|
0-28080-830-0 |
13 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X35 FLANGE
|
0-28680-835-0 |
13 |
1 |
9607-9807 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
M8X30 FLANGE
|
0-28680-830-0 |
13 |
1 |
9808-0004 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8X30 FLANGE
|
0-28080-830-0 |
09 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8X30 FLANGE
|
0-28080-830-0 |
09 |
1 |
9601-9606 |
● |
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
M8X35 FLANGE
|
0-28680-835-0 |
11 |
1 |
9607-9807 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
9808-0004 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
M8X30 FLANGE
|
0-28080-830-0 |
11 |
1 |
9601-9606 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9607-9705 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9607-9705 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9804-9807 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
EXC. HONG KONG EQUIPMENT(PQ1)
M8X35 FLANGE
|
0-28680-835-0 |
09 |
1 |
9804-9807 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
9808-0004 |
● |
|
|
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
9808-0004 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
0005-0512 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC)
M8X30 FLANGE
|
0-28650-830-0 |
09 |
1 |
0601- |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
GVR(GV****)
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
9804-0512 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
GVR(GV****)
M8X30 FLANGE
|
0-28650-830-0 |
08 |
1 |
0601- |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9804-9807 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9808-0512 |
● |
|
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
03 |
1 |
0406- |
|
|
|
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9610-9705 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9610-9705 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9610-9705 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9610-9705 |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9706-9806 |
|
● |
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9706-9806 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9706-9806 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9706-9806 |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9807-9901 |
|
● |
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9807-9901 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9807-9901 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
9902-0004 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0005-0006 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0005-0006 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0007-0109 |
|
● |
● |
● |
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0007-0109 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0110- |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0110- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9601-9705 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9706-9803 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR SHORT CHASSIS(FV***C)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9804-9807 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9804-9807 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9804-9807 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9804-9807 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9808-0004 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9808-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
EXC. HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9808-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9808-0004 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
02 |
1 |
9808-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
01 |
1 |
0005-0006 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC)
GVR(GV****)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
02 |
1 |
0007- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9601-9610 |
● |
● |
● |
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9601-9610 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9611-9806 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9807-9807 |
● |
● |
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9807-9807 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9808-9901 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9808-9901 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9902-0004 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
9902-0004 |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(A)
ID=13X2 H=25 L=50
|
1-09700-777-0 |
01 |
1 |
9601-9907 |
|
● |
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
9908-0004 |
|
● |
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0005-0405 |
|
● |
● |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0406- |
|
● |
● |
● |
● |
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
09 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9601-9705 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
EXC. HONG KONG EQUIPMENT(PQ1)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC)
(D)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9601-9705 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9601-9705 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9706-9803 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W)
EXC. EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. HONG KONG EQUIPMENT(PQ1)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9804-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
EXC. HONG KONG EQUIPMENT(PQ1)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0005-0006 |
|
● |
● |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0005-0006 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=16X2 L=20
|
9-09535-536-0 |
02 |
1 |
0007-0606 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
(B)
ID=16X2 L=20
|
0-95325-536-0 |
02 |
1 |
0607- |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5000MM(50W)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
07 |
1 |
9601-0004 |
● |
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
10 |
1 |
9601-9705 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
10 |
1 |
9706-9803 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
10 |
1 |
9706-9803 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
10 |
1 |
9804-0004 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR MIDDLE CHASSIS(FV***F)
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
HONG KONG EQUIPMENT(PQ1)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
10 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
01 |
1 |
9804-9901 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
02 |
1 |
9902-0006 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0007-0109 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0110-0405 |
|
● |
● |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0110-0405 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0406- |
|
● |
● |
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0406- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF)
(C)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0406- |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(E)
ID=32 L=50
|
1-09701-055-1 |
02 |
1 |
9804-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(E)
ID=32 L=50
|
1-09701-055-1 |
02 |
1 |
0005- |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
(E)
ID=32 L=50
|
1-09701-055-1 |
02 |
1 |
0005- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
9804-9901 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
01 |
1 |
9902-0004 |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
01 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0005- |
|
|
|
|
|
● |
| |
239 |
CLIP; FUEL PIPE
FVR(FV****)
(C)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0005- |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
9804-9901 |
● |
|
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB SHORT CHASSIS(FV**MC)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9902-0004 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF)
AUSTRALIA EQUIPMENT(RR3)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9902-0004 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
GVR(GV****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
9902-0004 |
● |
|
|
|
|
|
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0007-0512 |
● |
|
|
|
|
● |
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
|
|
|
|
● |
| |
303 |
BOLT; BRKT
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9804-0512 |
● |
|
|
|
|
|
| |
303 |
BOLT; BRKT
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0007-0602 |
● |
|
|
|
|
● |
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
|
|
● |
| |
304 |
NUT; BRKT
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9804-0602 |
● |
|
|
|
|
|
| |
304 |
NUT; BRKT
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
FVR WIDE CAB SHORT CHASSIS(FV**FC)
L=3400
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0604 |
|
|
|
|
|
● |
| |
634 |
HOSE; RUBBER RETURN
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF)
FVR STD CAB SHORT CHASSIS(FVR5MC)
FVR STD CAB MIDDLE CHASSIS(FVR5MF)
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0604 |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
GVR(GV****)
FUEL TANK 400L<SDH>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0604 |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
GVR(GV****)
FUEL TANK 400L<SDH>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0605- |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0405 |
|
● |
● |
● |
|
|
| |
634 |
HOSE; RUBBER RETURN
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0406- |
|
● |
● |
● |
● |
|
| |
634 |
HOSE; RUBBER RETURN
GVR(GV****)
FUEL TANK 200L FRAME SIDE<N20>
L=3600
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005- |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0605- |
|
|
|
|
|
● |
| |
634 |
HOSE; RUBBER RETURN
FVR(FV****)
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0605- |
● |
|
|
|
|
|
