Sayfa 1-40 - Isuzu EPC

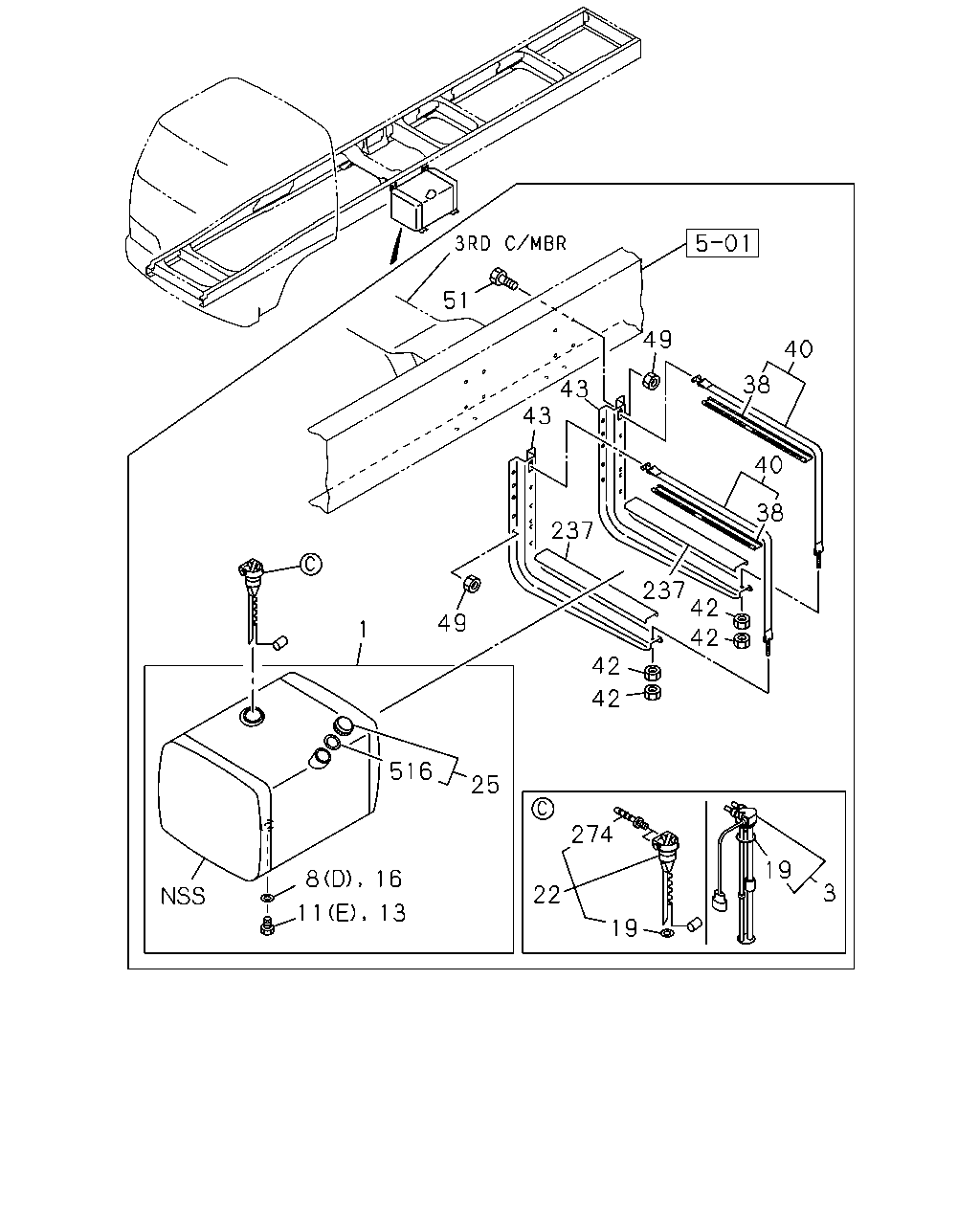

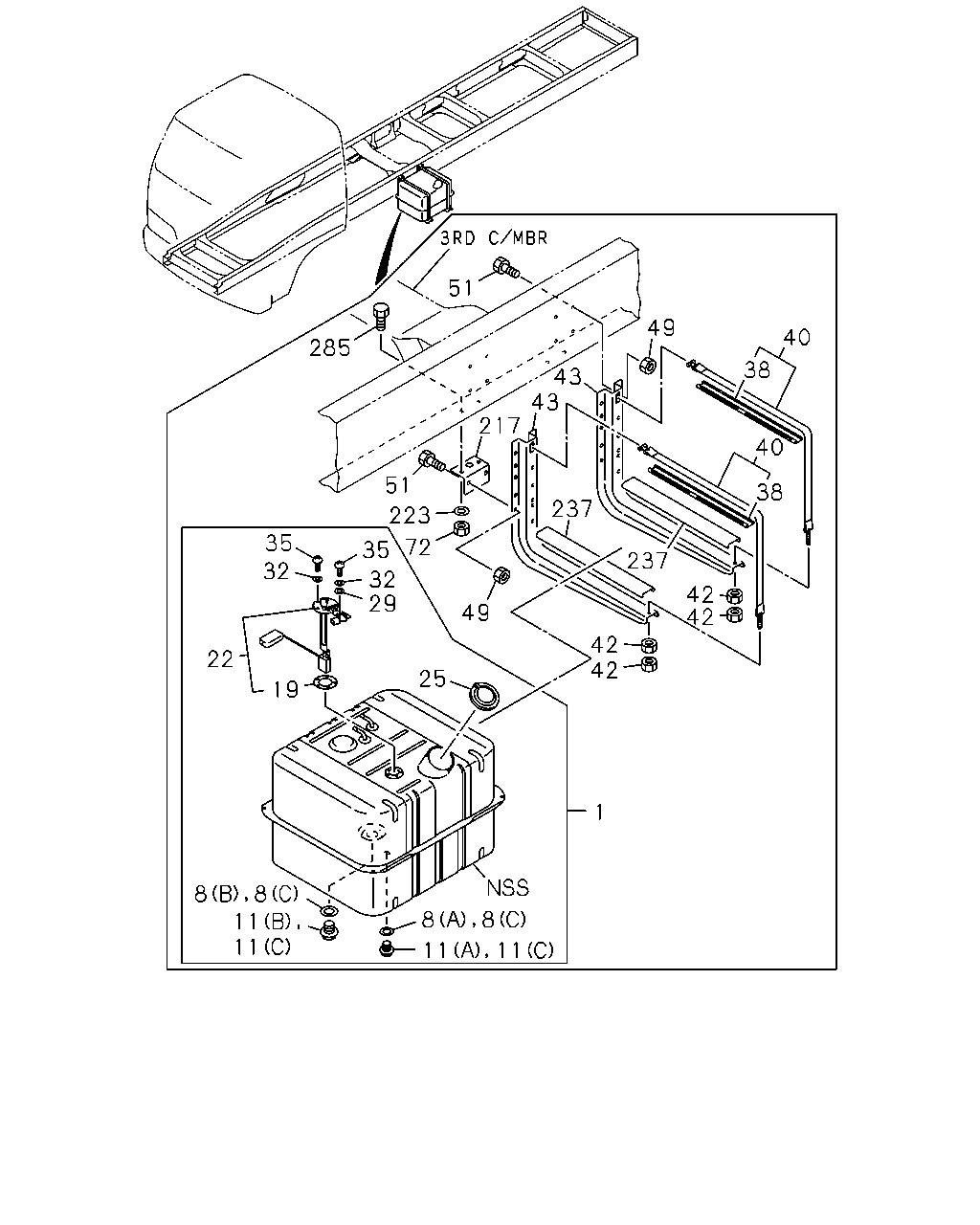

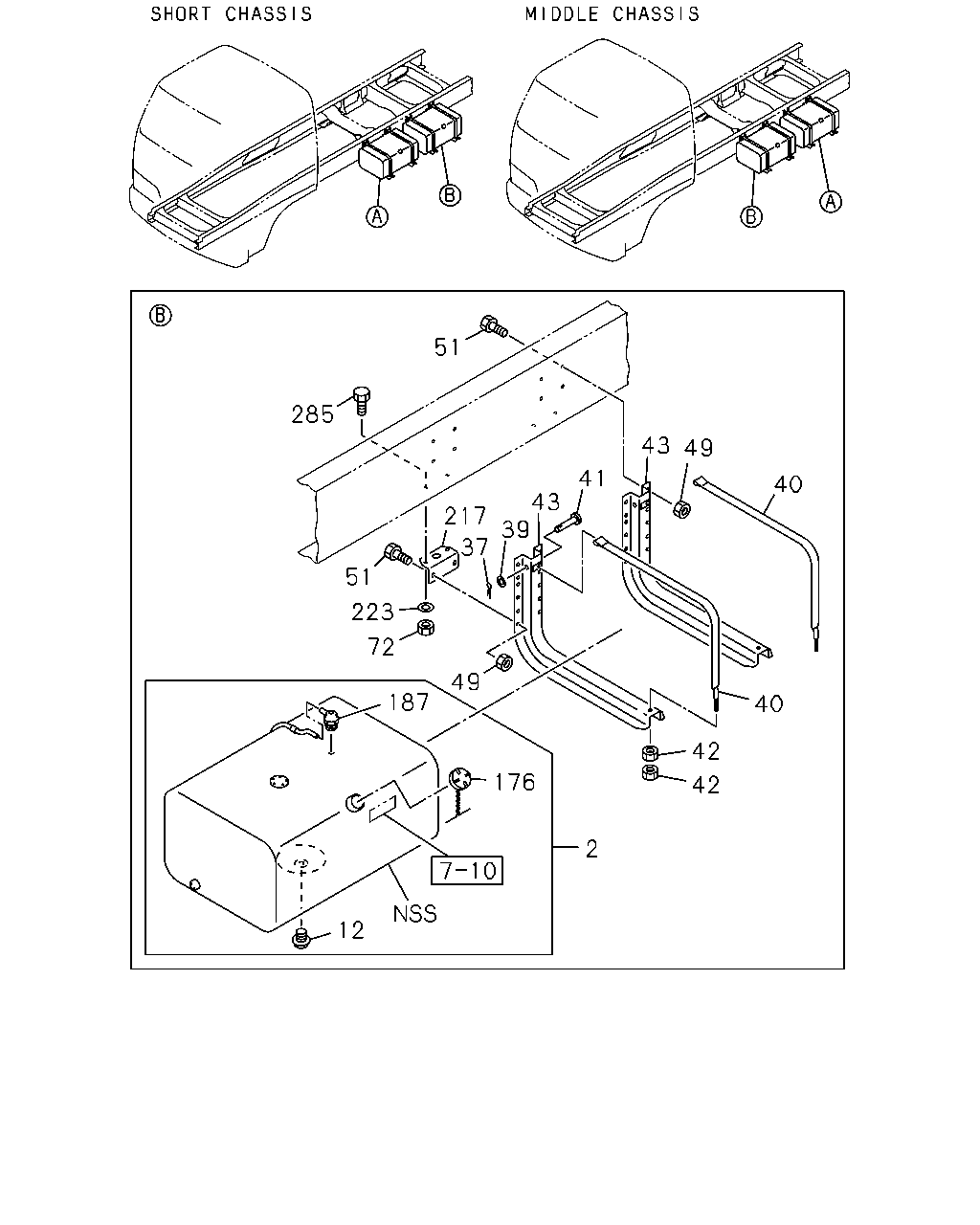

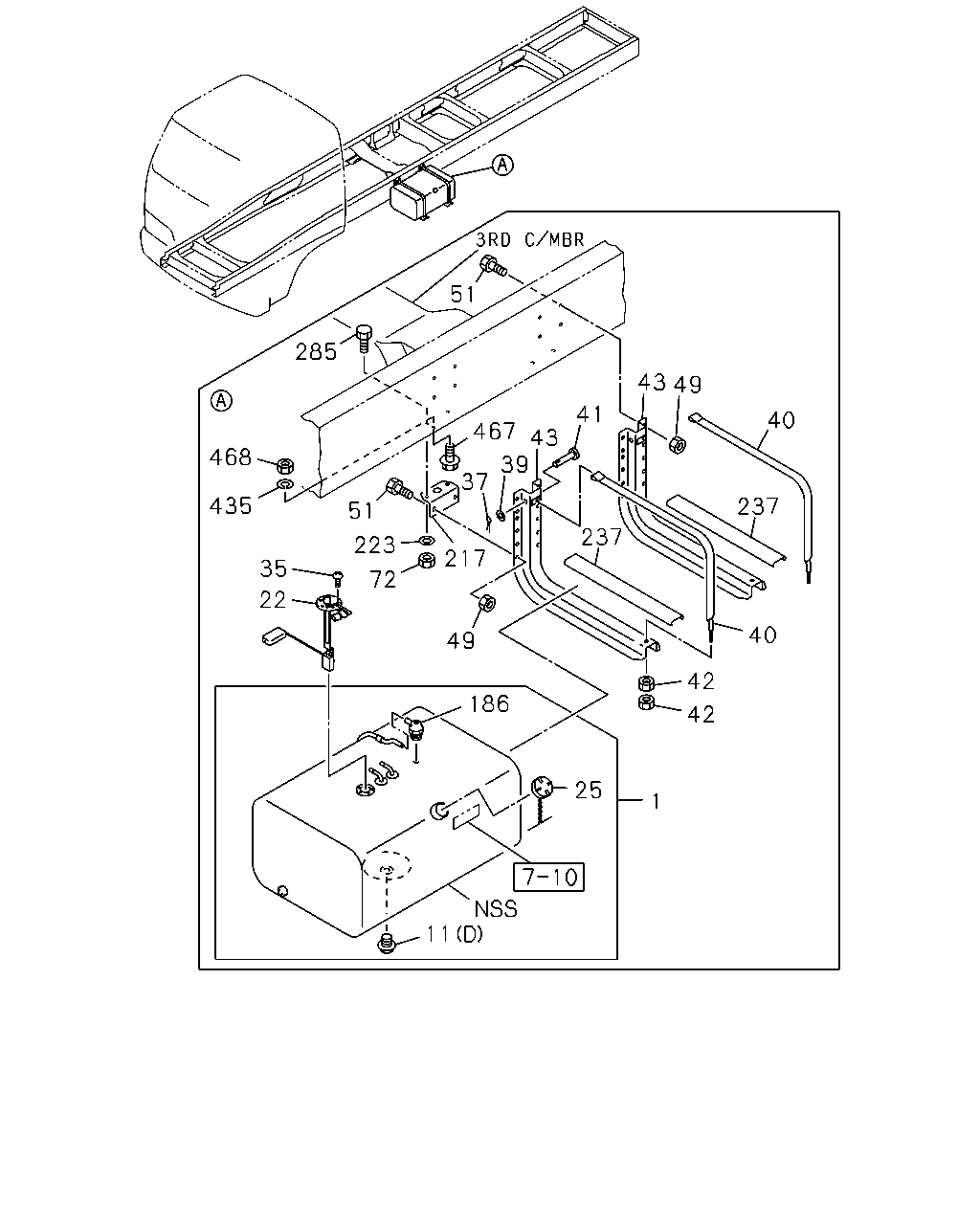

1-40 — FUEL TANK (#63763) — 885 parça

51 43 43 49 40 38 40 38 42 42 42 42 237 19 3 19 274 22 16 13 8 11 516 25 49 237 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	9804-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9601-0003	●	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0005-0112		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0201-0405		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0405	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0406-1505		●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0406-1505	●
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●			●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (D) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9601-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	0005-0112		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9601-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0405		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0405	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0406-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0406-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (E) M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9601-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0106		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0005-0106	●
11	PLUG; DRAIN,FUEL TANK (B) M14X14	9-09862-156-0	01	1	0107-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0107-0112	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0201-0405		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0201-0405	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0406-		●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0406-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9601-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0005-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> (D)	1-09604-082-0	01	1	9601-0004	●			●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9804-0606	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0607-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9804-0509	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0510-1210	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-		●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9601-0004	●	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9804-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9601-0004	●	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0005-0405		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0405	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0406-1505		●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0406-1505	●
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-83141-121-0	01	1	9601-0004	●			●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9804-1210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9601-0003	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0004-0004	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0005-0109		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	1-22440-069-0	01	1	0110-0112		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0201-0309		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-0405		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0405	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0406-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0406-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-22440-050-0	01	1	9601-0004	●			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9804-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9601-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0005-0405		●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0405	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0406-		●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0406-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	9804-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9601-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0405		●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0405	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0406-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0406-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	9804-	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9601-9803	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9804-0004	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0203		●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0005-0203	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0405	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●			●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9601-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0405		●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0405	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0406-		●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0406-	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9601-9803	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●			●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9804-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9601-9702			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9601-9702	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12 FLANGE	0-91150-212-0	12	1	9703-9803			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12 FLANGE	0-91150-212-0	12	1	9703-9803	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806		●	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806					●
49	NUT; BRKT FVR(FV****) FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9807-9808					●
49	NUT; BRKT M12	9-99110-512-0	12	1	9807-9808			●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9807-9808	●			●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	12	1	9807-9808				●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004						●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0405		●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0405	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0406-0512		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0406-0512	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	11	1	9701-9702	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9804-9806	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9809-0004			●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●
49	NUT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004						●
49	NUT; BRKT GVR(GV****) FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	9804-0004	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●				●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●				●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	9804-9805	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●		●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●	●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	9804-0004	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0005	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9601-9803	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004			●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9804-0004			●		●
237	GASKET; BRKT TO FUEL TANK FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FVMF) GVR(GV**) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) L=580	1-22553-003-0	02	1	9804-0004				●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0005-0405		●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0405	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0406-		●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0406-	●
237	GASKET; BRKT TO FUEL TANK GVR(GV****) FUEL TANK 400L<SDH>	1-22553-037-0	04	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	0005-1210	●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	1312-	●

51 285 43 49 41 40 467 43 39 468 37 435 237 51 237 223 217 35 72 22 40 49 42 186 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	9804-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9601-0003	●	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0005-0112		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0201-0405		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0405	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0406-1505		●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0406-1505	●
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●			●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (E) M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9601-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0106		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0005-0106	●
11	PLUG; DRAIN,FUEL TANK (B) M14X14	9-09862-156-0	01	1	0107-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0107-0112	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0201-0405		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0201-0405	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0406-		●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0406-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9601-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0005-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> (D)	1-09604-082-0	01	1	9601-0004	●			●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9601-0004	●	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0005-0405		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0405	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0406-1505		●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0406-1505	●
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-83141-121-0	01	1	9601-0004	●			●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9804-1210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9601-0003	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0004-0004	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0005-0109		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	1-22440-069-0	01	1	0110-0112		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0201-0309		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-0405		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0405	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0406-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0406-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-22440-050-0	01	1	9601-0004	●			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9804-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9601-0004	●	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0405		●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0005-0405	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0406-0604		●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0406-0604	●
35	SCREW; FUEL TANK UNIT M5X10	0-34218-510-0	05	1	0605-		●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09187-007-0	05	1	9601-0004	●			●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●			●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●				●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> ID=17	9-09164-516-0	02	1	9601-0004	●			●	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> ID=17	9-09164-516-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9601-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0405		●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0405	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0406-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0406-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	9804-	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> OD=16 L=75	9-08224-675-0	02	1	9601-0004	●			●	●
41	PIN; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> OD=16 L=75	9-08224-675-0	02	1	9601-0004	●				●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9601-9803	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9804-0004	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0203		●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0005-0203	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0405	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●			●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9601-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0405		●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0405	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0406-		●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0406-	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9601-9803	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●			●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9804-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9601-9702			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9601-9702	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12 FLANGE	0-91150-212-0	12	1	9703-9803			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12 FLANGE	0-91150-212-0	12	1	9703-9803	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806		●	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806					●
49	NUT; BRKT FVR(FV****) FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9807-9808					●
49	NUT; BRKT M12	9-99110-512-0	12	1	9807-9808			●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9807-9808	●			●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	12	1	9807-9808				●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004						●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0405		●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0405	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0406-0512		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0406-0512	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	11	1	9701-9702	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9804-9806	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9809-0004			●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●
49	NUT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004						●
49	NUT; BRKT GVR(GV****) FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	9804-0004	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●				●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●				●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	9804-9805	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●		●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●	●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	9804-0004	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0005	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9601-9702	●		●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9807-0004				●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9601-9702	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9807-0004				●	●
72	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	04	1	9807-0004					●
72	NUT; BRKT M12	9-99110-512-0	04	1	9807-0004			●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	04	1	9807-0004	●			●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	04	1	9807-0004				●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0405		●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0005-0405	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0406-0512		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0406-0512	●
72	NUT; BRKT M12	0-91110-512-0	04	1	0601-		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-22453-005-0	01	1	9601-0004	●			●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9601-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0005-0405		●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0005-0405	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0406-		●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0406-	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●			●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●				●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●		●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR STD CAB MIDDLE CHASSIS(FV**MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004				●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006		●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702		●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702					●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9601-9803	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004			●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9804-0004			●		●
237	GASKET; BRKT TO FUEL TANK FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FVMF) GVR(GV**) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) L=580	1-22553-003-0	02	1	9804-0004				●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0005-0405		●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0405	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0406-		●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0406-	●
237	GASKET; BRKT TO FUEL TANK GVR(GV****) FUEL TANK 400L<SDH>	1-22553-037-0	04	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606			●		●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●				●
285	BOLT; BRKT FVR(FV****) M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9803		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●				●
285	BOLT; BRKT FVR(FV****) M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●		●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●				●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0405		●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0005-0405	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0406-0512		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0406-0512	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
435	WASHER; LK FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) ID=12.5	9-09164-512-0	08	1	9601-9711					●
467	BOLT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12X35 FLANGE	0-28081-235-0	04	1	9601-9606					●
467	BOLT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40 FLANGE	0-28681-240-0	04	1	9607-9711					●
468	NUT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12	9-99110-512-0	04	1	9601-9606					●
468	NUT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12 FLANGE	0-91150-212-0	04	1	9607-9711					●

51 285 43 49 41 40 43 39 217 37 51 223 72 49 187 40 42 176 42 2 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L FMCSR<TGS> 869X597X413 200L	1-22400-867-0	01	1	9601-0004	●				●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L FMCSR<TGS>	1-09604-082-0	01	1	9601-0004	●				●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●			●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●				●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> ID=17	9-09164-516-0	02	1	9601-0004	●			●	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> ID=17	9-09164-516-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9601-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0405		●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0405	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0406-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0406-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	9804-	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> OD=16 L=75	9-08224-675-0	02	1	9601-0004	●			●	●
41	PIN; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS> OD=16 L=75	9-08224-675-0	02	1	9601-0004	●				●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9601-9803	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9804-0004	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0203		●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0005-0203	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0405	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●			●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9601-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0405		●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0405	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0406-		●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0406-	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9601-9803	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●			●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9804-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9601-9702			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9601-9702	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12 FLANGE	0-91150-212-0	12	1	9703-9803			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12 FLANGE	0-91150-212-0	12	1	9703-9803	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806		●	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806					●
49	NUT; BRKT FVR(FV****) FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9807-9808					●
49	NUT; BRKT M12	9-99110-512-0	12	1	9807-9808			●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9807-9808	●			●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	12	1	9807-9808				●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004						●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0405		●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0405	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0406-0512		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0406-0512	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	11	1	9701-9702	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9804-9806	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9809-0004			●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●
49	NUT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004						●
49	NUT; BRKT GVR(GV****) FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	9804-0004	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●				●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●				●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	9804-9805	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●		●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●	●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	9804-0004	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0005	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9601-9702	●		●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9807-0004				●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9601-9702	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9807-0004				●	●
72	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	04	1	9807-0004					●
72	NUT; BRKT M12	9-99110-512-0	04	1	9807-0004			●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	04	1	9807-0004	●			●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	04	1	9807-0004				●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0405		●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0005-0405	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0406-0512		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0406-0512	●
72	NUT; BRKT M12	0-91110-512-0	04	1	0601-		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L FMCSR<TGS>	1-22440-050-0	01	1	9601-0004	●				●
187	VALVE; GT,SUB TANK FUEL TANK 200L+200L FMCSR<TGS>	1-22453-005-0	01	1	9601-0004	●				●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9601-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0005-0405		●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0005-0405	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0406-		●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0406-	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●			●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●				●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●		●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR STD CAB MIDDLE CHASSIS(FV**MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004				●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006		●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702		●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702					●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606			●		●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●				●
285	BOLT; BRKT FVR(FV****) M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9803		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●				●
285	BOLT; BRKT FVR(FV****) M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●		●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●				●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0405		●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0005-0405	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0406-0512		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0406-0512	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0601-	●

51 43 43 49 40 285 38 217 40 51 38 237 223 35 32 72 35 237 32 29 42 42 49 42 42 22 25 19 1 11 11 8 8 1 11 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X680X625 400L	1-87411-168-0	01	1	9804-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9601-0003	●	●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0005-0112		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0005-0112	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0201-0405		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0405	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0406-1505		●	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0406-1505	●
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-		●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	8-98299-274-0	01	1	1506-	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●			●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (D) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9601-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	0005-0112		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0005-0112	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9601-0004	●	●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	0005-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0405		●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0405	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0406-		●	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0406-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (E) M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9601-0003	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0004-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0106		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0005-0106	●
11	PLUG; DRAIN,FUEL TANK (B) M14X14	9-09862-156-0	01	1	0107-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0107-0112	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0201-0405		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0201-0405	●
11	PLUG; DRAIN,FUEL TANK (C) M14X14	9-09862-156-0	02	1	0406-		●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) M14X14	9-09862-156-0	02	1	0406-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9601-0004	●	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0005-0112		●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0005-0112	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> (D)	1-09604-082-0	01	1	9601-0004	●			●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-		●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0005-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9601-0004	●	●	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9804-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9601-0004	●	●	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0005-0405		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0005-0405	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0406-1505		●	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0406-1505	●
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-		●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98296-671-0	01	1	1506-	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-83141-121-0	01	1	9601-0004	●			●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9804-1210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9601-0003	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0004-0004	●	●	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0005-0109		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	1-22440-069-0	01	1	0110-0112		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0201-0309		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0309	●
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0310-0404	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-0405		●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-0405	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0406-		●	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0406-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-22440-050-0	01	1	9601-0004	●			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9804-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9601-0004	●	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0405		●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0005-0405	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0406-0605		●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0406-0605	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-		●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9601-0004	●	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0005-0405		●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0005-0405	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0406-0603		●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0406-0603	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	0-91510-505-0	05	1	0604-		●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9601-0004	●	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0405		●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0005-0405	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0406-0604		●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0406-0604	●
35	SCREW; FUEL TANK UNIT M5X10	0-34218-510-0	05	1	0605-		●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09187-007-0	05	1	9601-0004	●			●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9601-0004	●	●	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0005-0405		●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0005-0405	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0406-		●	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0406-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	9804-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9601-0004	●	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0405		●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0005-0405	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0406-		●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0406-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR<TGS> L=1035	1-22550-221-0	02	1	9601-0004	●				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	9804-	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9601-9803	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9804-0004	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0203		●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	0005-0203	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0204-0405	●	●	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0406-0512	●	●	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●			●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR<TGS>	1-09487-027-1	04	1	9601-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9601-0004	●	●	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0405		●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0005-0405	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0406-		●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0406-	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9601-9803	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●			●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR<TGS>	1-53461-354-2	02	1	9804-0004	●				●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9804-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9601-9702			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9601-9702	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9601-9702				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803		●	●		●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12 FLANGE	0-91150-212-0	12	1	9703-9803			●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12 FLANGE	0-91150-212-0	12	1	9703-9803	●				●
49	NUT; BRKT FVR SHORT CHASSIS(FV***C) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	9703-9803				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806		●	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806					●
49	NUT; BRKT FVR(FV****) FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9804-9806	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9804-9806				●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9807-9808					●
49	NUT; BRKT M12	9-99110-512-0	12	1	9807-9808			●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9807-9808	●			●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9807-9808	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	12	1	9807-9808				●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	11	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M12	9-99110-512-0	11	1	9809-0004	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	9809-0004						●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0405		●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0005-0405	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0406-0512		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	0406-0512	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-		●	●	●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	12	1	0601-	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9601-9612						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	11	1	9701-9702	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9701-9702						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	9703-9803	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-9803						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	11	1	9804-9806	●	●	●		●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9804-9806						●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9807-9808				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004	●	●	●	●	●
49	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	12	1	9809-0004			●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●	●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004			●
49	NUT; BRKT FVR MIDDLE CHASSIS(FV***F) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	12	1	9809-0004				●
49	NUT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	12	1	9809-0004						●
49	NUT; BRKT GVR(GV****) FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	9804-0004	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91150-212-0	09	1	0005-0602	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12 FLANGE	0-91180-212-0	09	1	0603-	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●				●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●	●	●	●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28681-235-0	12	1	9701-9805	●				●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	9804-9805	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●		●	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	12	1	9806-0004	●				●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0512	●	●	●	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●	●	●	●
51	BOLT; BRKT TO FRAME GVR(GV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	9804-0004	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0005	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9601-9702	●		●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9807-0004				●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9601-9702	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	9703-9803	●		●	●	●
72	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9804-9806	●		●	●	●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12	9-99110-512-0	04	1	9807-0004				●	●
72	NUT; BRKT FVR STD CAB SHORT CHASSIS(FV**MC) M12	9-99110-512-0	04	1	9807-0004					●
72	NUT; BRKT M12	9-99110-512-0	04	1	9807-0004			●
72	NUT; BRKT FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L+200L FMCSR<TGS> M12	9-99110-512-0	04	1	9807-0004	●			●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT GVR(GV****) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	9807-0004	●
72	NUT; BRKT FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M12	9-99110-512-0	04	1	9807-0004				●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0405		●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0005-0405	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0406-0512		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	0406-0512	●
72	NUT; BRKT M12	0-91110-512-0	04	1	0601-		●	●	●	●	●
72	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9601-0004	●	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0005-0405		●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0005-0405	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0406-		●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0406-	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>,FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●			●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR<TGS>	1-53461-432-1	02	1	9601-0004	●				●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004			●		●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX GVR(GV****) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004	●
223	WASHER; PL,LWR BRKT FIX FVR STD CAB MIDDLE CHASSIS(FV**MF) ID=12.5 OD=26	9-09160-612-0	04	1	9804-0004				●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006		●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702		●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702					●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
223	WASHER; PL,LWR BRKT FIX FVR(FV****) FUEL TANK 200L+200L FMCSR<TGS> ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9601-9803	●	●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004			●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9804-0004			●		●
237	GASKET; BRKT TO FUEL TANK FVR WIDE CAB SHORT CHASSIS(FVR5FC) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FVMF) GVR(GV**) FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FVR STD CAB MIDDLE CHASSIS(FV**MF) L=580	1-22553-003-0	02	1	9804-0004				●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0005-0405		●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0005-0405	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0406-		●	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0406-	●
237	GASKET; BRKT TO FUEL TANK GVR(GV****) FUEL TANK 400L<SDH>	1-22553-037-0	04	1	9804-0004	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0005-	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606			●		●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●				●
285	BOLT; BRKT FVR(FV****) M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9803		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●				●
285	BOLT; BRKT FVR(FV****) M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●		●	●	●
285	BOLT; BRKT FUEL TANK 200L+200L FMCSR<TGS> M12X40 FLANGE	0-28681-240-0	04	1	9804-0004	●				●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0405		●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0005-0405	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0406-0512		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0406-0512	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-		●	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28651-240-0	04	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
