◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#63762) — 74 parça

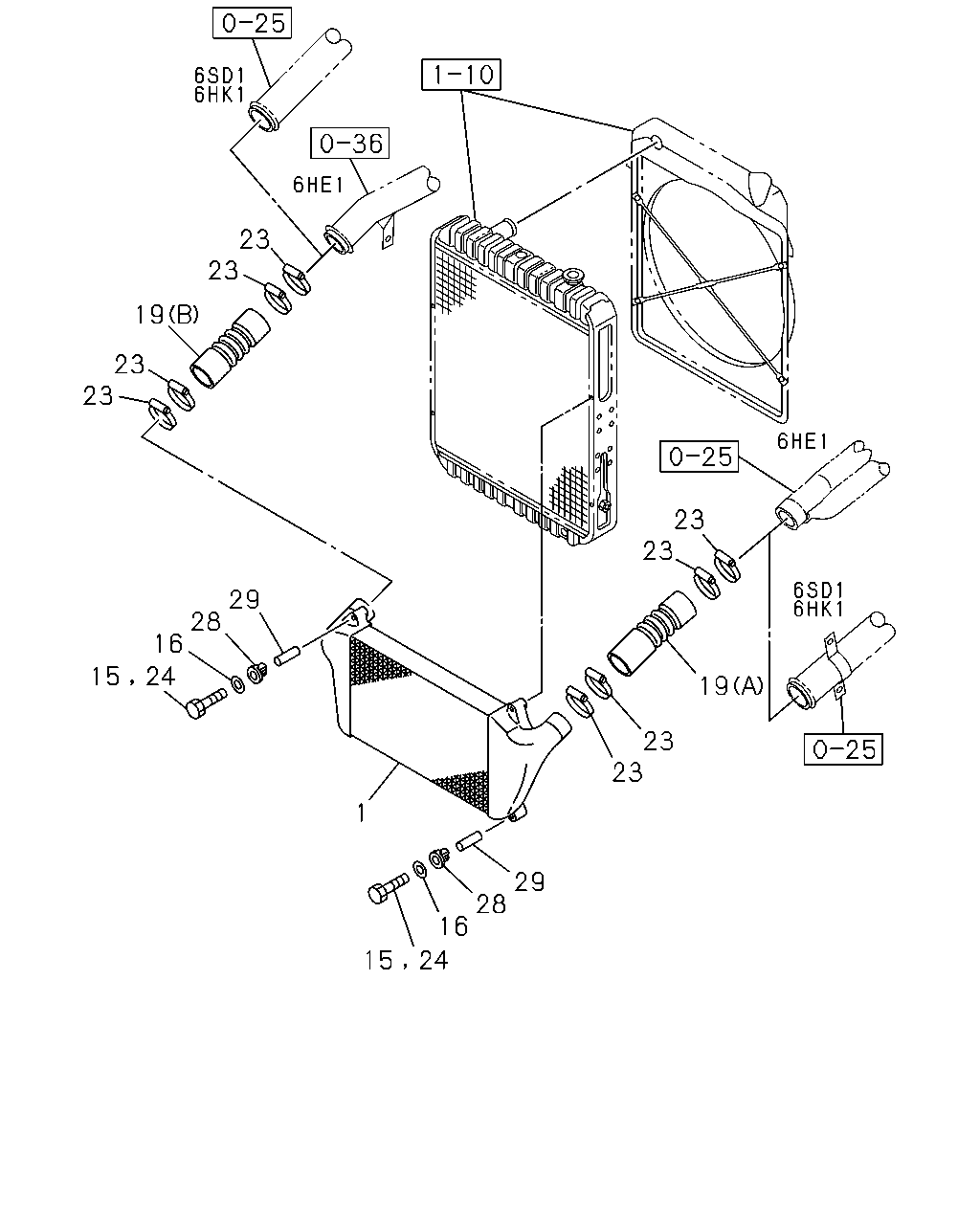

çizim 92318
23 23 19 23 23 23 23 29 28 16 19 23 23 1 29 28 16 15 24 15 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR 8-94392-923-2 01 1 0406-0606 ●
1 COOLER; CHARGE AIR
FVR STD CAB MIDDLE CHASSIS(FV**MF) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> 		8-94392-923-2 01 1 0607-0607 ●
1 COOLER; CHARGE AIR
GVR(GV****) 		8-94392-923-2 01 1 0607-0607 ●
1 COOLER; CHARGE AIR 8-94392-923-2 01 1 0607-0607 ●
1 COOLER; CHARGE AIR
EURO3 SPECIFICATION<NJX> 		8-94392-923-2 01 1 0607- ●
1 COOLER; CHARGE AIR 8-94392-923-2 01 1 0607- ●
1 COOLER; CHARGE AIR 1-14431-044-0 01 1 9601-0606 ●
1 COOLER; CHARGE AIR
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		1-14431-044-0 01 1 0607-0607 ●
1 COOLER; CHARGE AIR
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) 		1-14431-044-0 01 1 0607-0607 ●
1 COOLER; CHARGE AIR
EXC. EURO3 SPECIFICATION<NJX> 		1-14431-044-0 01 1 0607- ●
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 9610-0511 ●
1 COOLER; CHARGE AIR 8-98033-144-0 01 1 0512- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9601-0004 ● ●
15 BOLT; CHARGE AIR COOLER
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) GVR(GV****) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0405 ●
15 BOLT; CHARGE AIR COOLER
FVR STD CAB(FV**M*) FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0405 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 0005-0405 ●
15 BOLT; CHARGE AIR COOLER
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
15 BOLT; CHARGE AIR COOLER
FVR STD CAB MIDDLE CHASSIS(FV**MF) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
15 BOLT; CHARGE AIR COOLER
GVR(GV****) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
15 BOLT; CHARGE AIR COOLER
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 0607-0607 ●
15 BOLT; CHARGE AIR COOLER
EXC. EURO3 SPECIFICATION<NJX> M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9610-0405 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0406-0606 ● ●
16 WASHER; PL,CHARGE AIR COOLER
FVR(FV****) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 04 1 0607-0607 ●
16 WASHER; PL,CHARGE AIR COOLER
GVR(GV****) ID=10.5 OD=32 		9-09164-810-0 04 1 0607-0607 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0607-0607 ● ●
16 WASHER; PL,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 04 1 0607- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0607- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94395-022-0 01 1 0406- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09360-911-0 01 1 9601-0212 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-118-0 01 1 0301-0604 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-09361-118-0 01 1 0605- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-023-1 01 1 9601-0405 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-023-1 01 1 0406- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94390-035-0 01 1 9610-1408 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-98245-238-0 01 1 1409- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94390-043-0 01 1 9610-0604 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EURO3 SPECIFICATION<NJX> (B) 		8-94390-043-0 01 1 0605- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94390-043-0 01 1 0605- ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ● ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9601-0306 ● ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0405 ● ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0406-0811 ● ● ●
23 CLIP; HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ● ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ● ●
24 BOLT; COOLER TO RAD
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0405 ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0405 ●
24 BOLT; COOLER TO RAD
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 0406-0606 ●
24 BOLT; COOLER TO RAD
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) M8X35 FLANGE 		0-28080-835-0 04 1 0607-0607 ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) M8X35 FLANGE 		0-28080-835-0 04 1 0607-0607 ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> M8X35 FLANGE 		0-28080-835-0 04 1 0607-0607 ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 0607-0607 ●
24 BOLT; COOLER TO RAD
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
24 BOLT; COOLER TO RAD
FVR STD CAB MIDDLE CHASSIS(FV**MF) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 0607- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9610-0405 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0406-0606 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
FVR(FV****) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> 		1-21467-015-1 04 1 0607-0607 ●
28 RUBBER; MTG,CHARGE AIR COOLER
GVR(GV****) 		1-21467-015-1 04 1 0607-0607 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0607-0607 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> 		1-21467-015-1 04 1 0607- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0607- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9610-0405 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0406-0606 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
FVR(FV****) FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EURO3 SPECIFICATION<NJX> 		1-21469-100-0 04 1 0607-0607 ●
29 COLLAR; MTG RUBBER,CAC BRKT
GVR(GV****) 		1-21469-100-0 04 1 0607-0607 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0607-0607 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
EURO3 SPECIFICATION<NJX> 		1-21469-100-0 04 1 0607- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0607- ● ●
